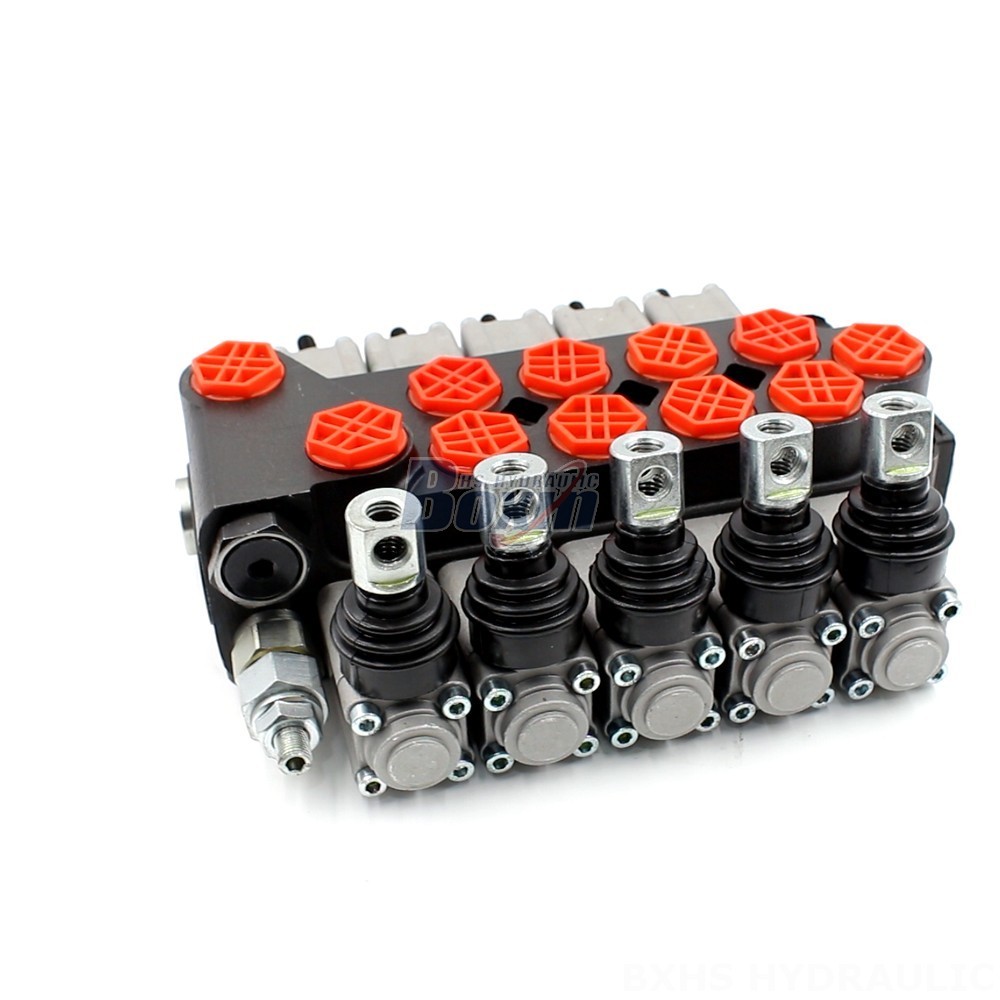

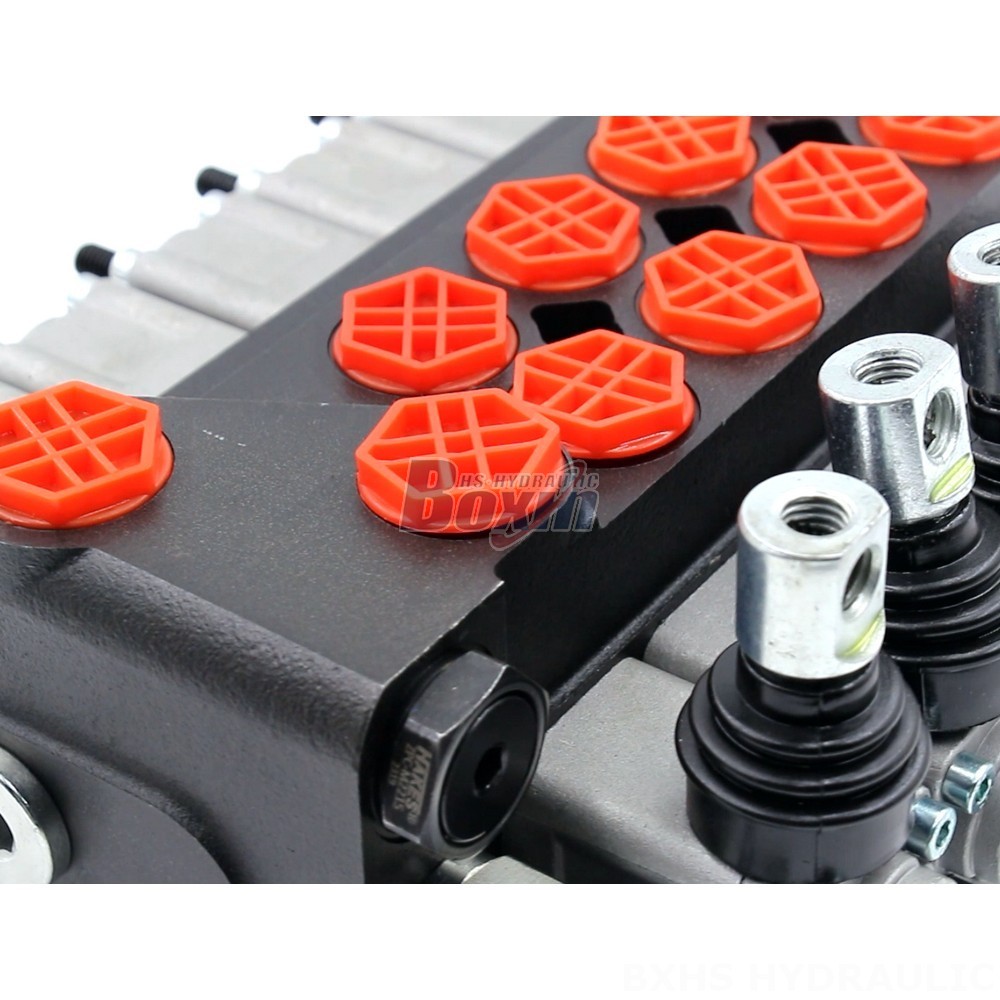

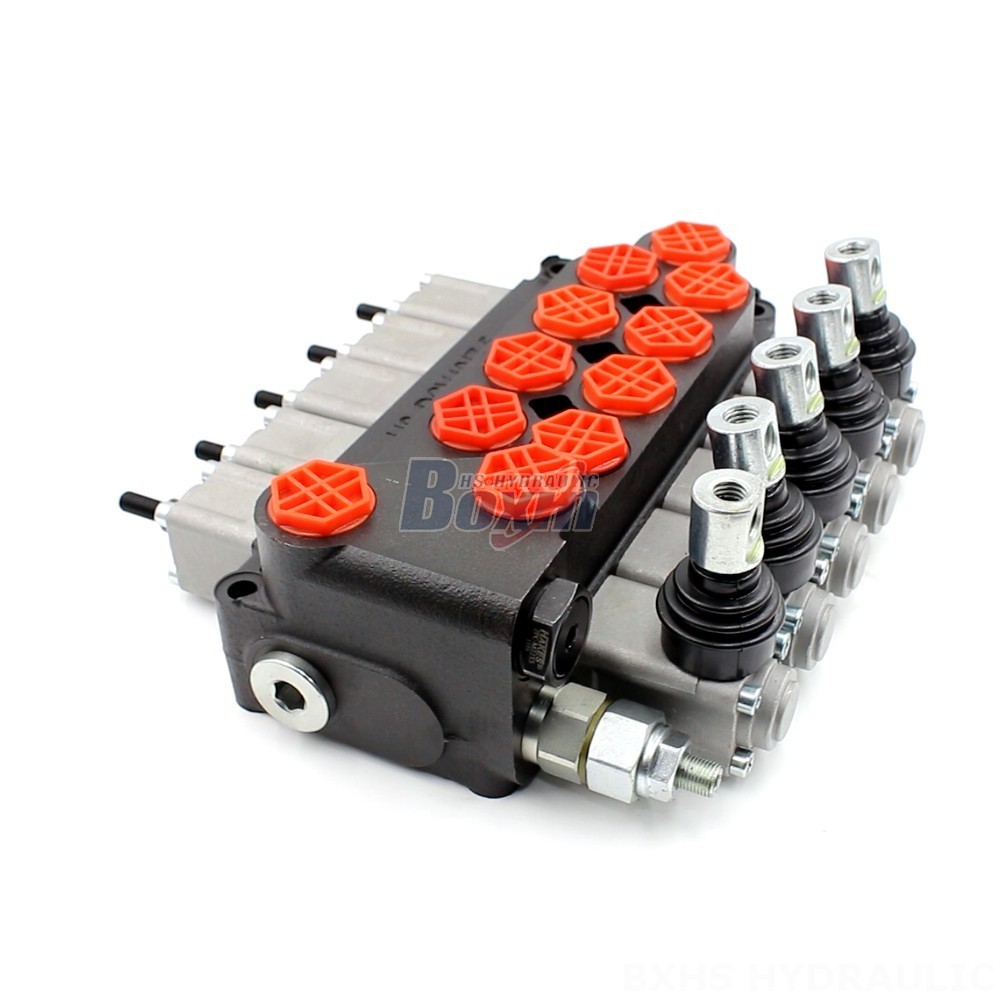

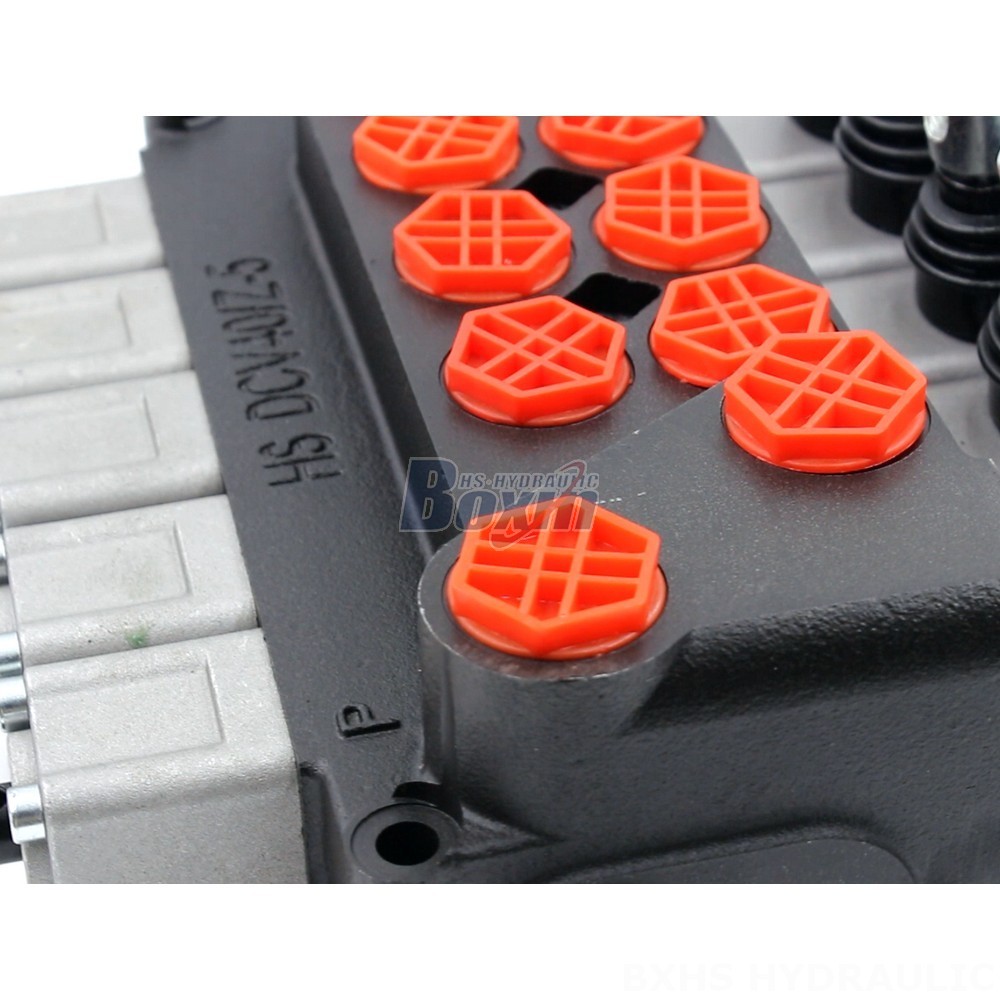

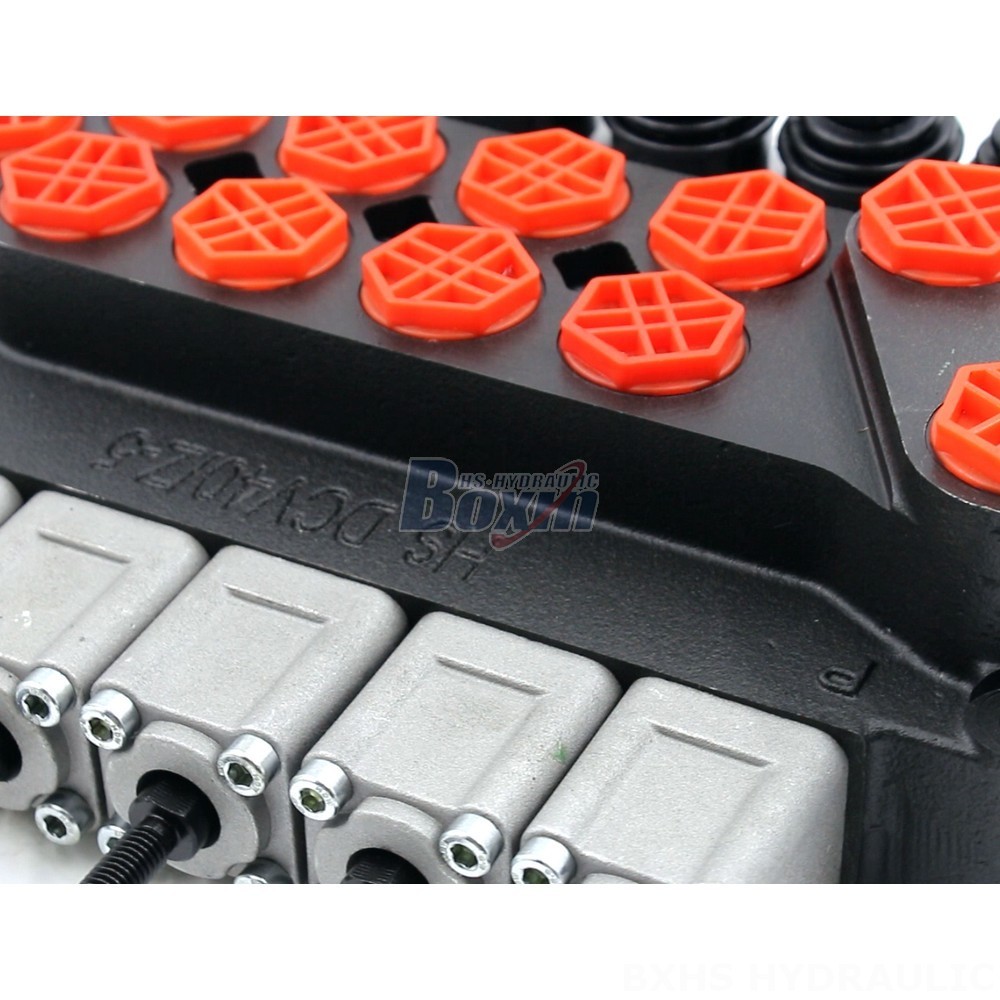

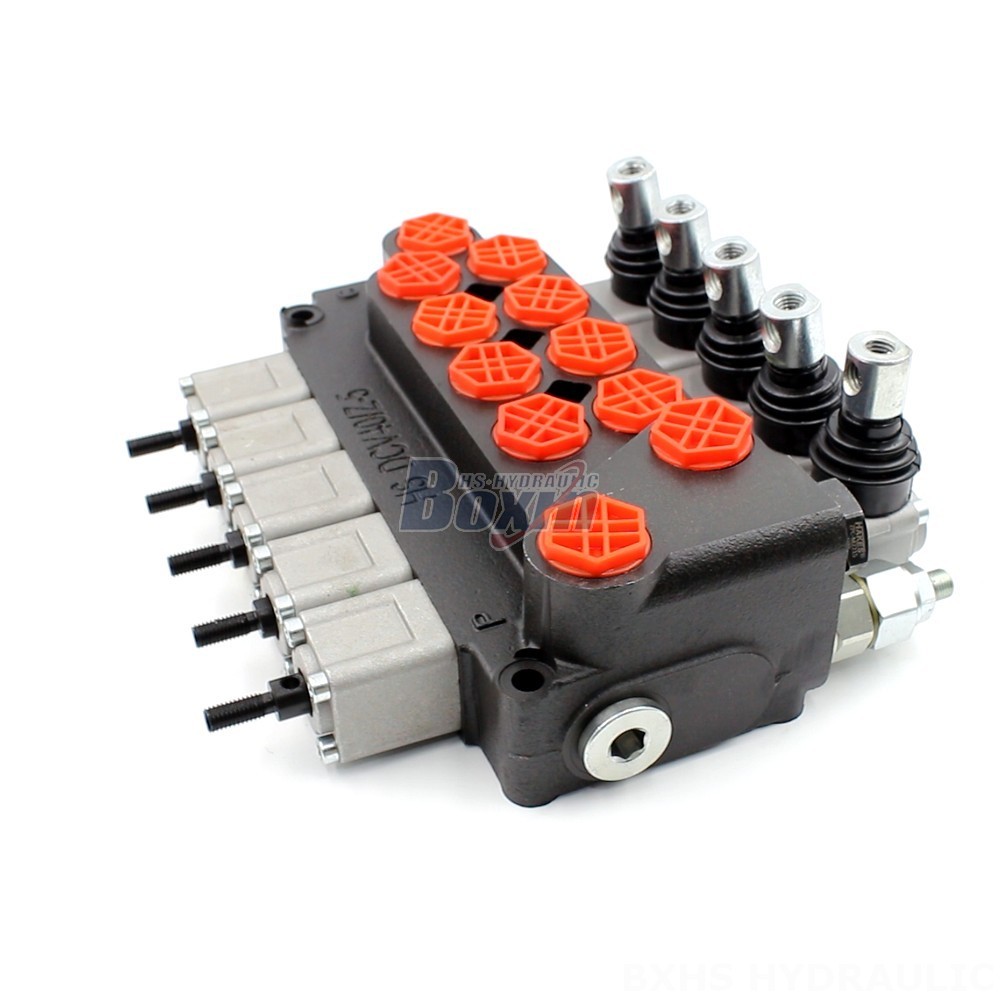

Electric Hydraulic Distributor DCV40Z Monoblock Valve | Direct from Manufacturer | Customizable

控制方式:手控

路数:5 联

额定流量:40 L/min (10.5 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:支腿控制阀

产品系列:DCV40Z系列 支腿控制阀

Packagingsize:39*39*20

Grossweight:12.00 kg

库存: 有货

259 次查看了此产品

Electric Hydraulic Distributor DCV40Z Monoblock Valve | Direct from Manufacturer | Customizable

Electric Hydraulic Distributor DCV40Z Monoblock Valve | Direct from Manufacturer | Customizable

Electric Hydraulic Distributor DCV40Z Monoblock Valve | Direct from Manufacturer | Customizable drawing image

The DCV40Z series electric hydraulic distributor is a high-performance monoblock valve designed for demanding applications in construction equipment, material handling, and industrial vehicles. With a 40 L/min flow rate and 350 bar pressure rating, it offers reliable control and durability for heavy-duty operations.

DCV40Z系列 支腿控制阀 参数
控制方式 手控, 电液控, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 350 bar (5100 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The DCV40Z electric hydraulic distributor is a 5-section monoblock valve featuring a manual control method. It is capable of handling flow rates up to 40 L/min and pressures up to 350 bar. This valve is designed for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The DCV40Z is known for its durability, reliability, and customizable options. Manufactured with high-quality materials, it offers excellent performance in demanding environments. Available directly from the manufacturer, this valve provides a cost-effective solution for various hydraulic system requirements.
