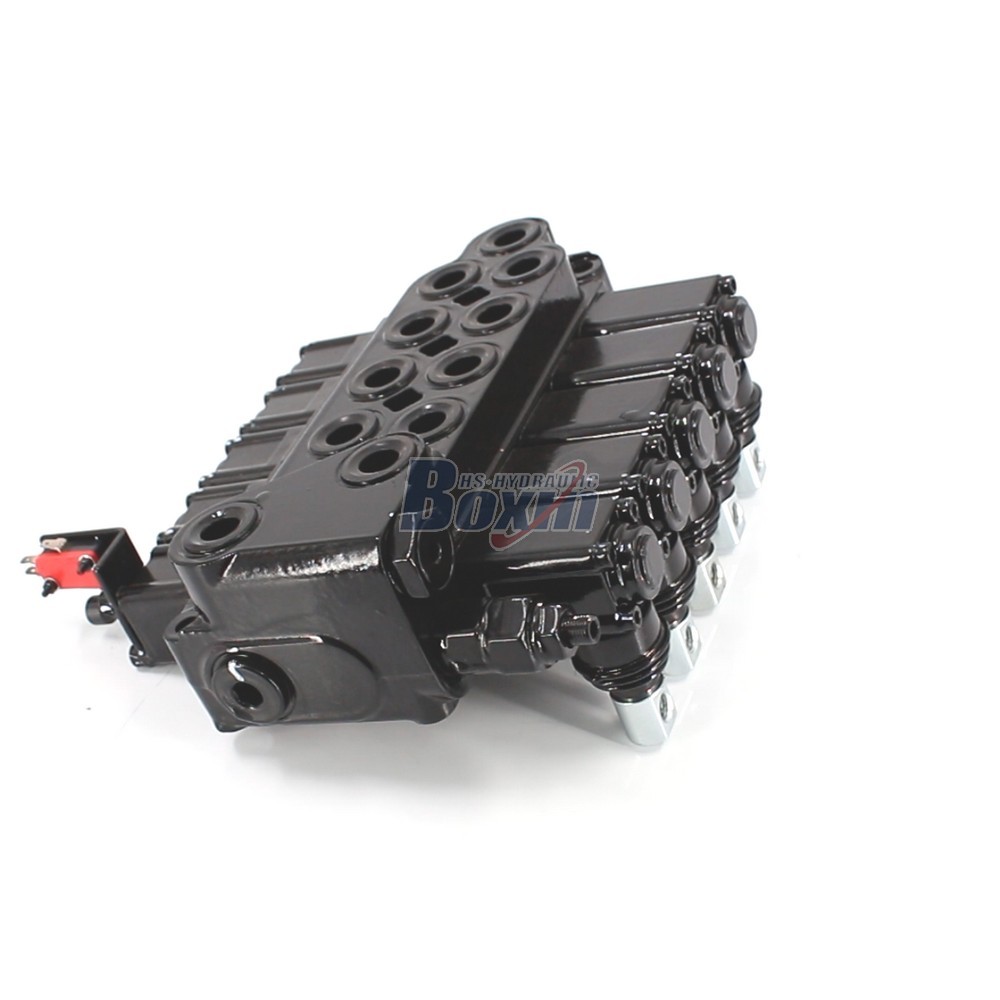

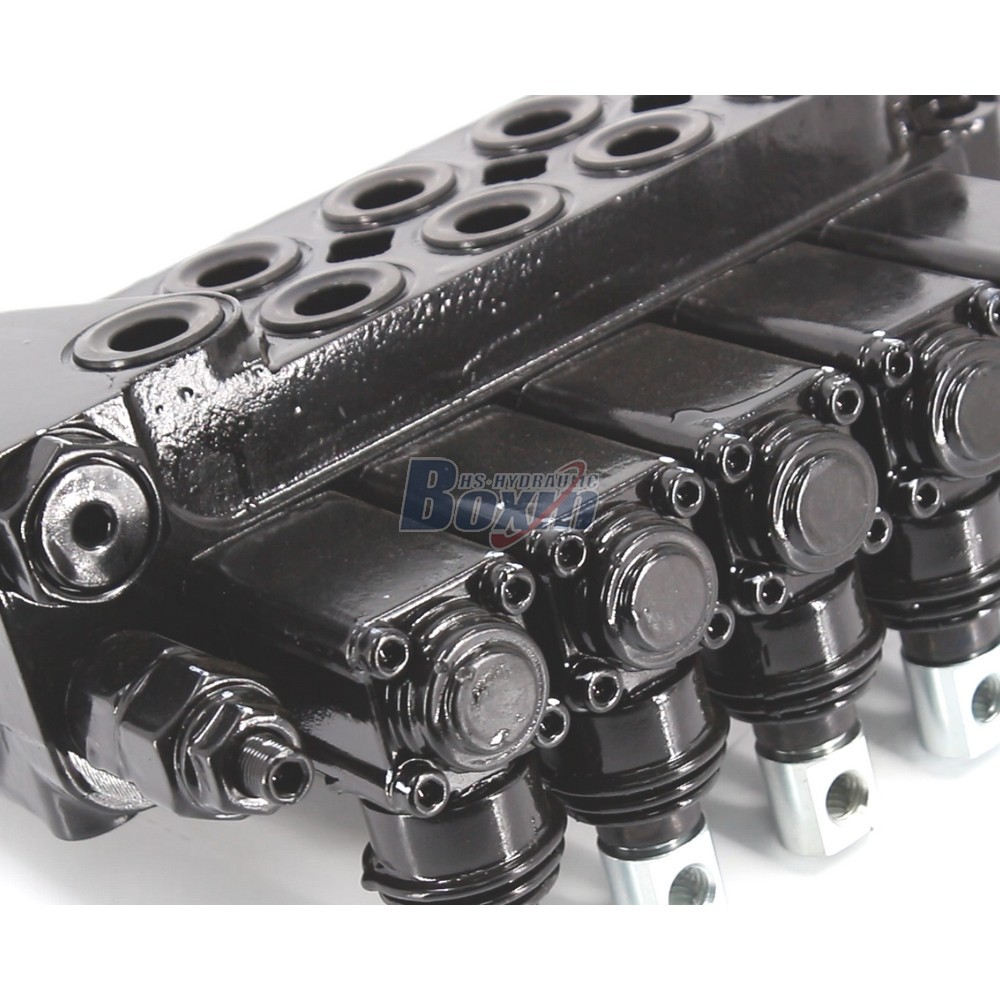

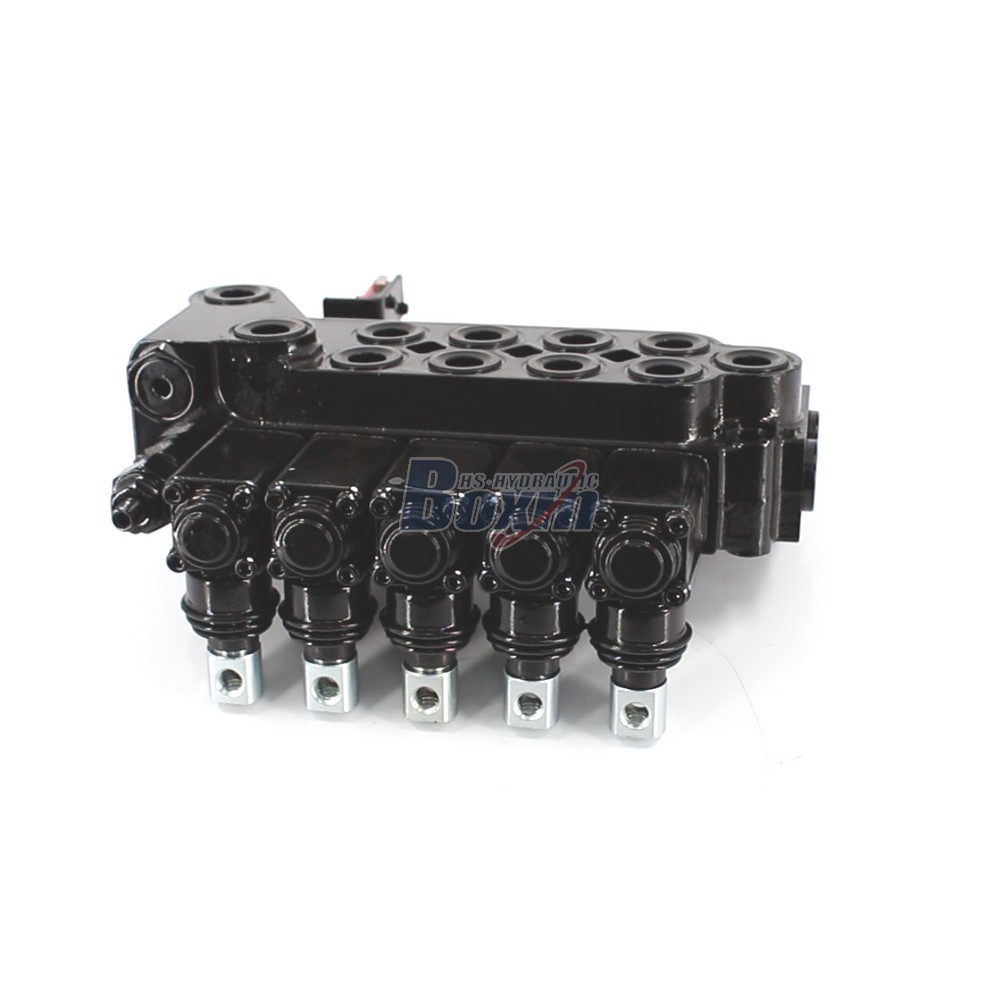

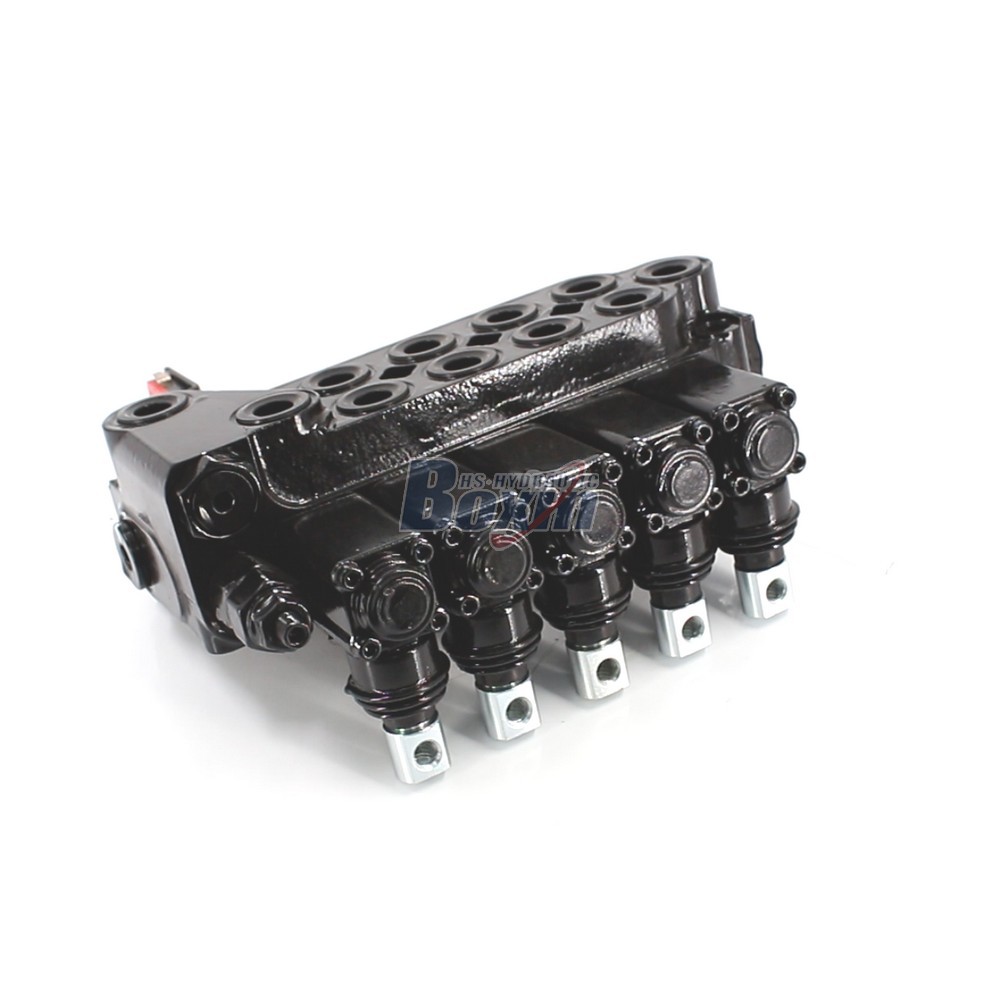

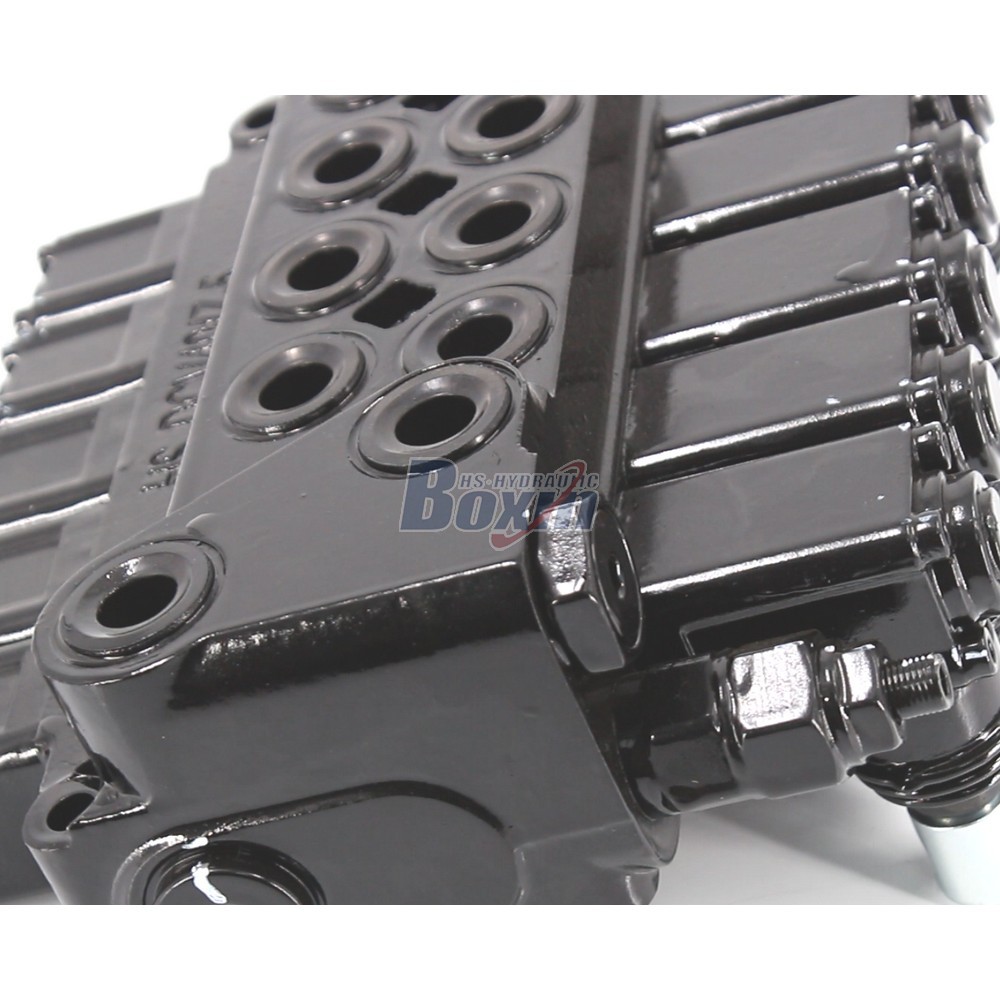

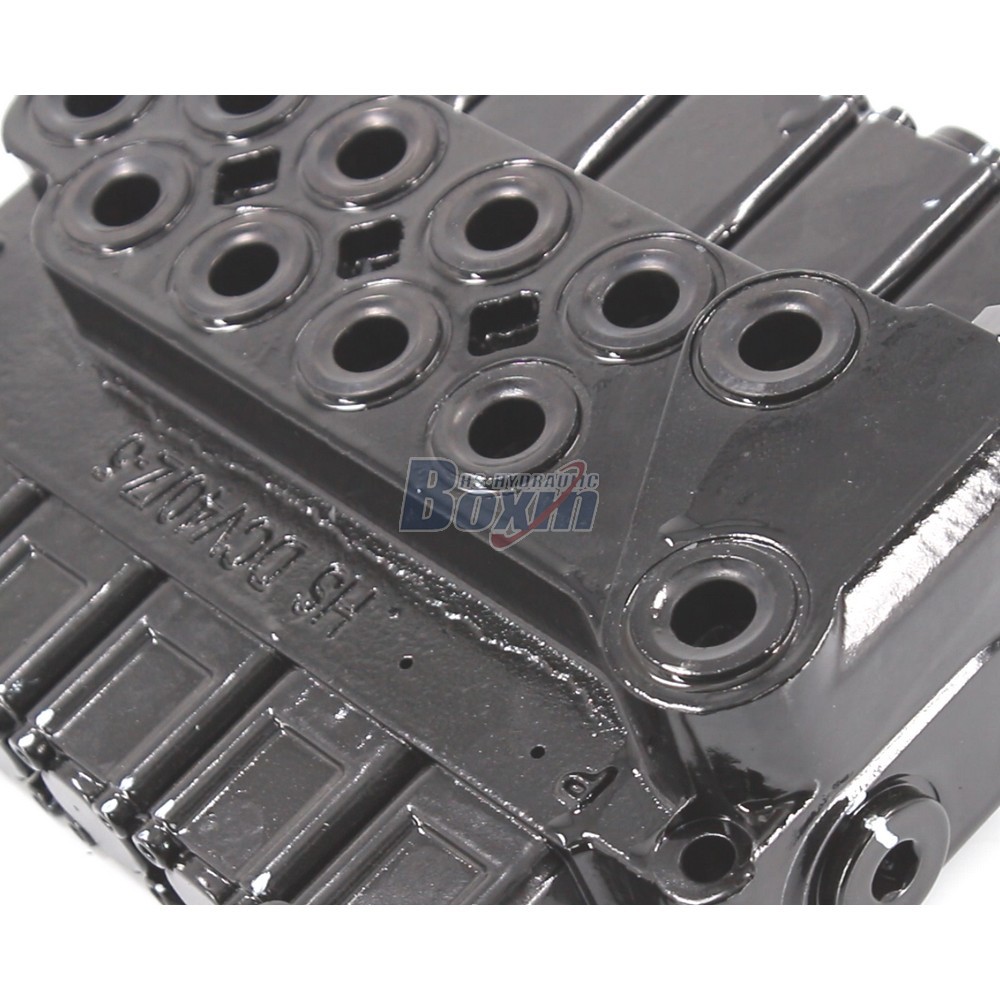

The DCV40Z-FZJ Series is a high-performance 5-spool manual directional control valve designed for versatile hydraulic systems. With a rated flow of 40 L/min and a maximum pressure capacity of 350 bar, it provides reliable fluid power management for mini-excavators, loaders, and agricultural machinery.
| DCV40Z系列 支腿控制阀 参数 | |
|---|---|
| 控制方式 | 手控, 电液控, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
As a leading manufacturer of premium hydraulic products, we offer the DCV40Z-FZJ Series 5 Spool Multi-way Directional Control Valve for global markets. This manual control valve features a compact monoblock design with G1/2 ports, making it ideal for MATERIAL HANDLING, AGRICULTURE, and CONSTRUCTION equipment such as SKID STEER LOADERS, BACKHOE LOADERS, and WOOD SPLITTERS. Our factory provides comprehensive solutions including OEM, ODM, and custom manufacturing to meet specific technical requirements. We specialize in factory wholesale and are actively seeking long-term cooperation with distributors, wholesalers, agents, and traders worldwide. Whether you need reliable components for forestry trailers or industrial vehicles, our heavy-duty valves ensure precise operation and durability. Partner with us for competitive factory pricing, stable supply chains, and professional hydraulic engineering support.
