The SD5 Series Single Hydraulic Valve is a robust and versatile monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. We offer OEM, ODM, and private label options, enabling you to customize the valve to meet your specific requirements.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |

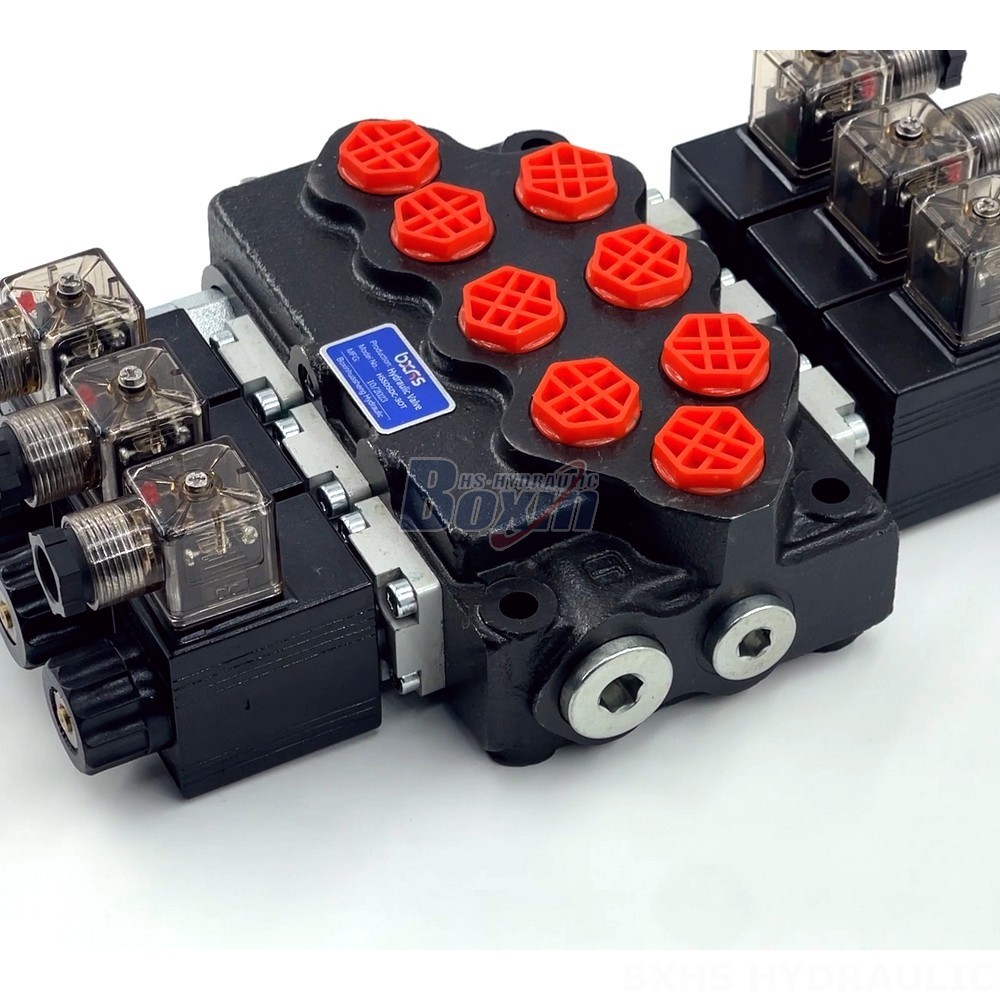

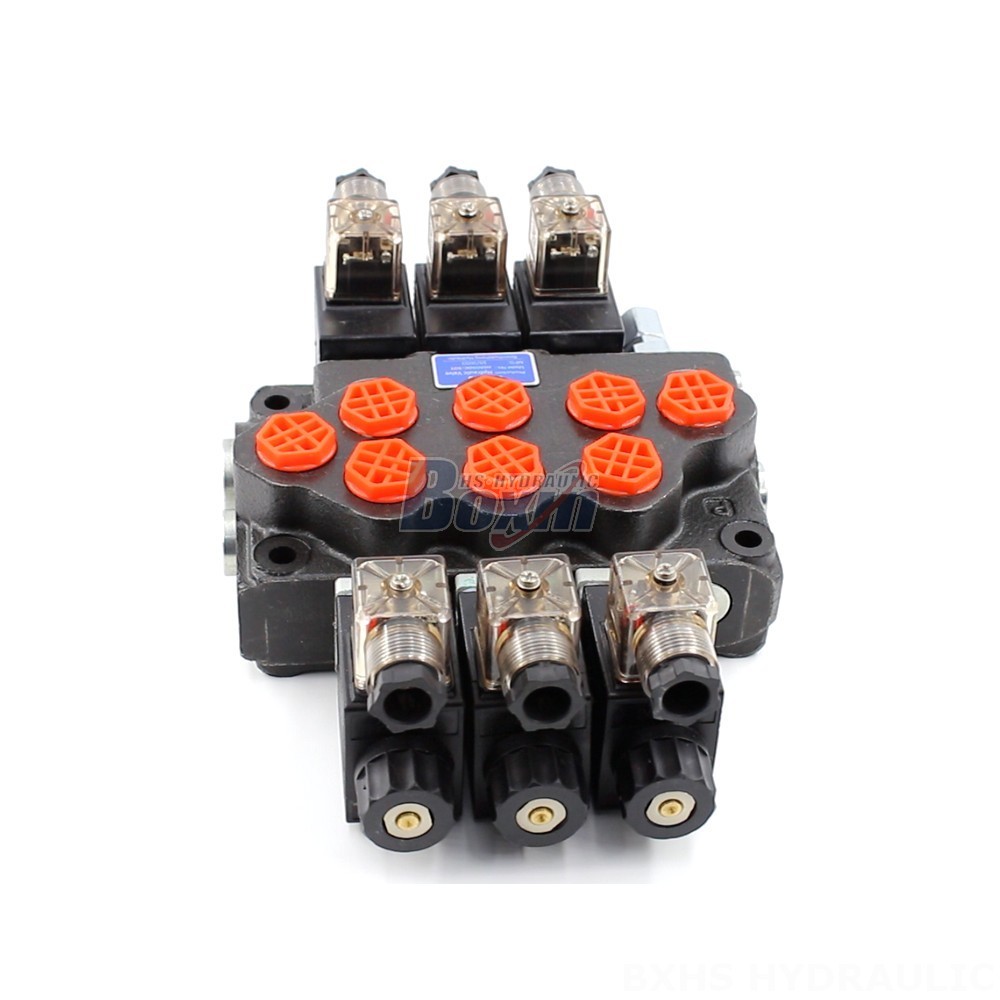

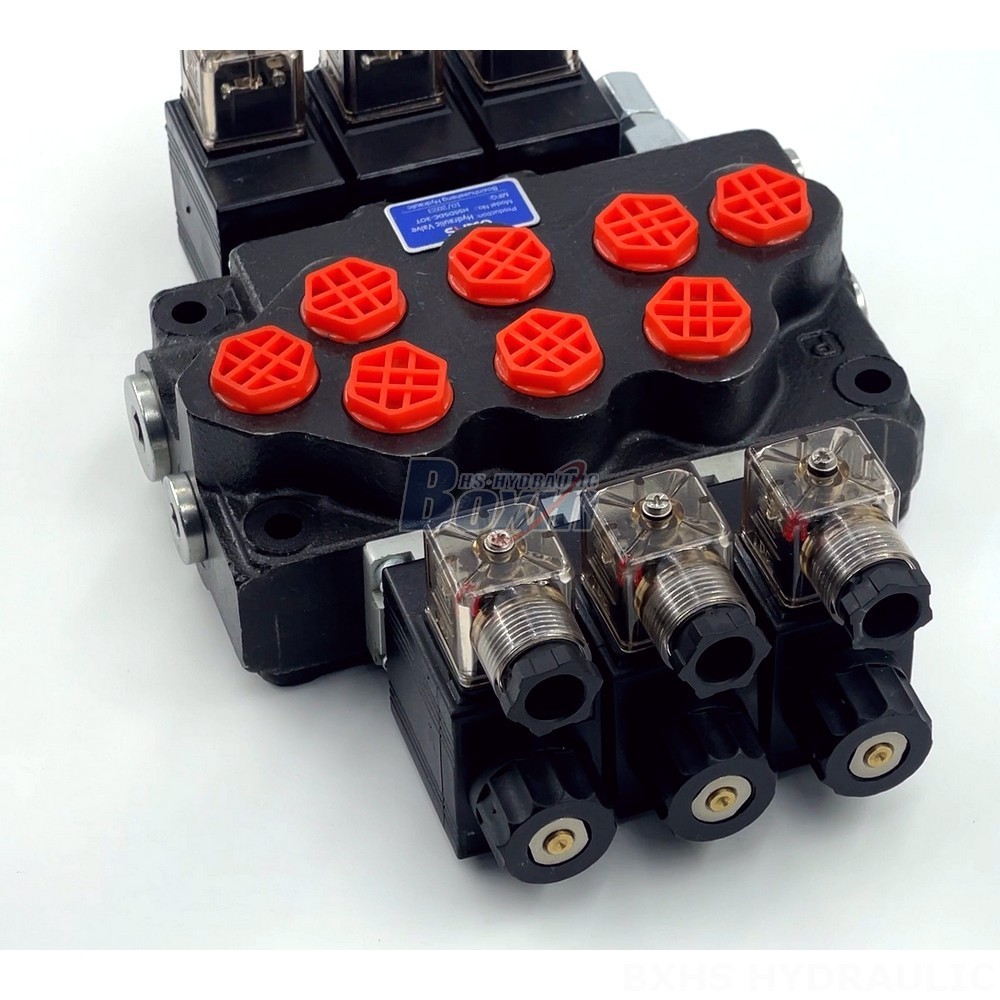

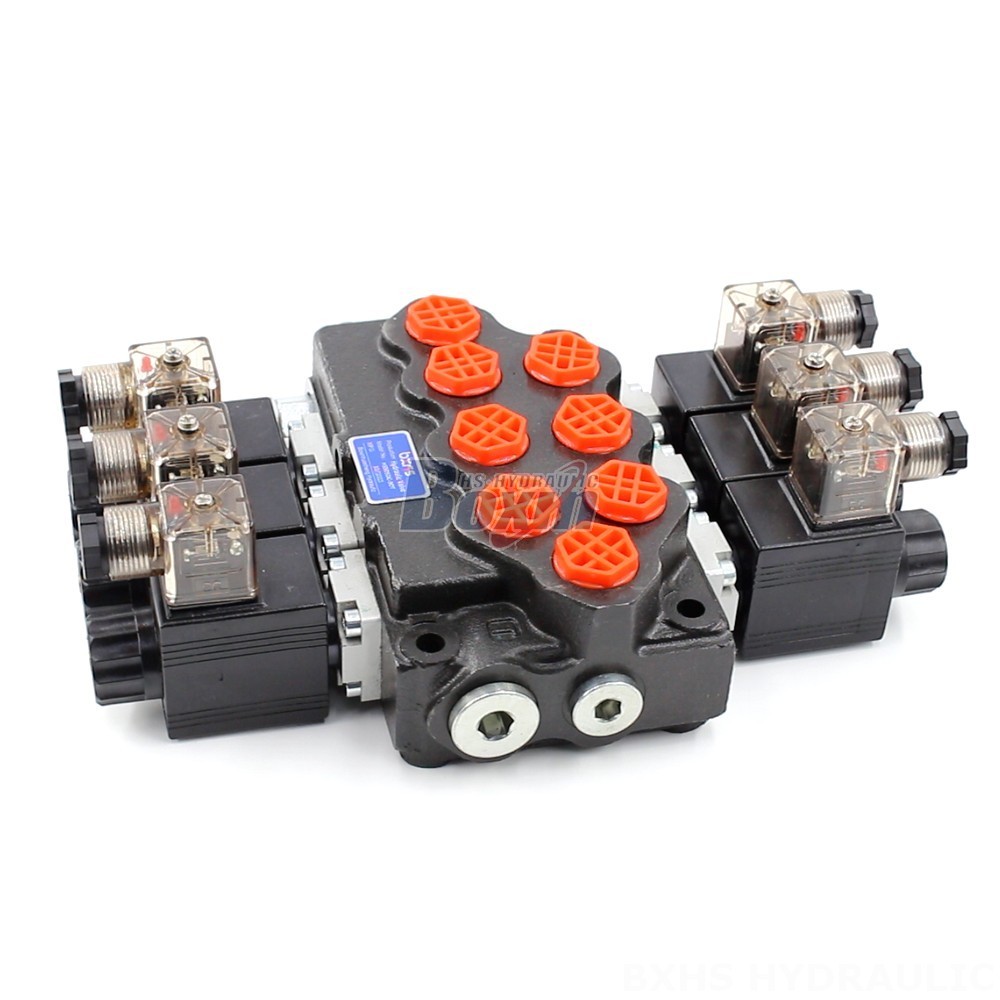

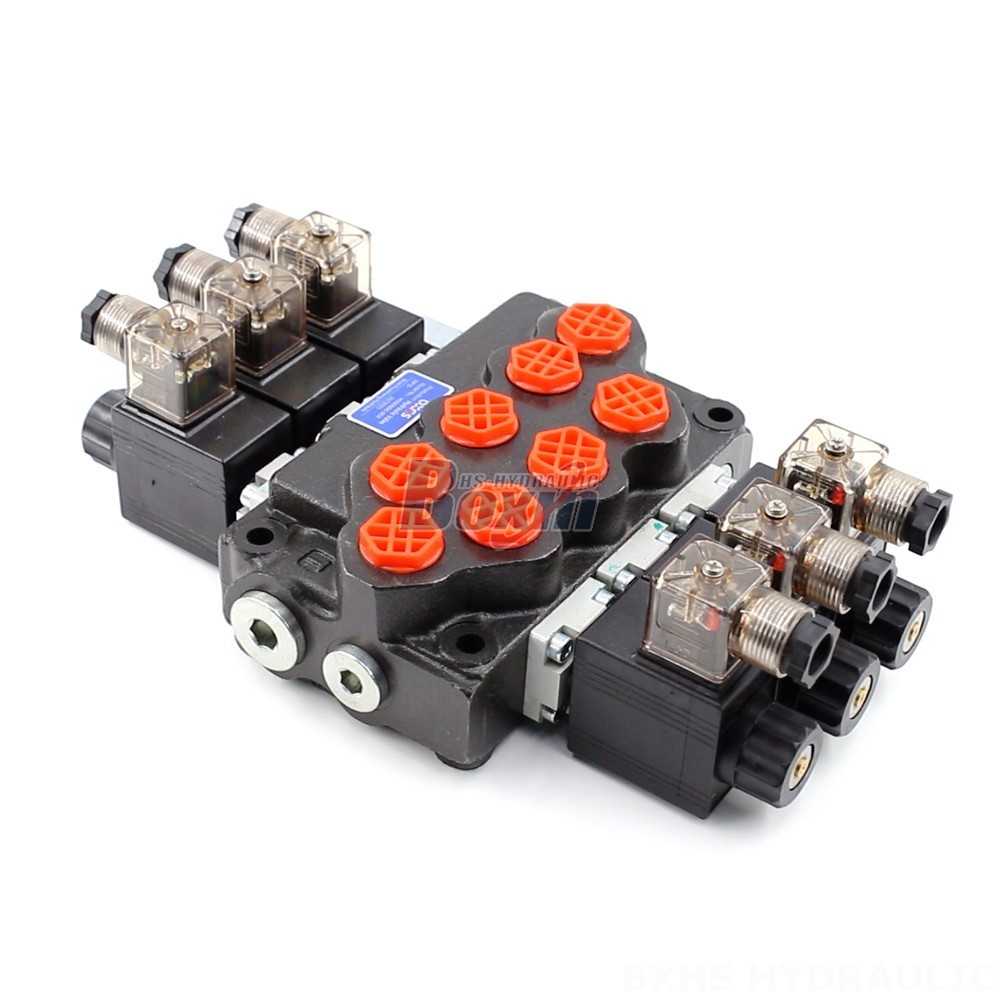

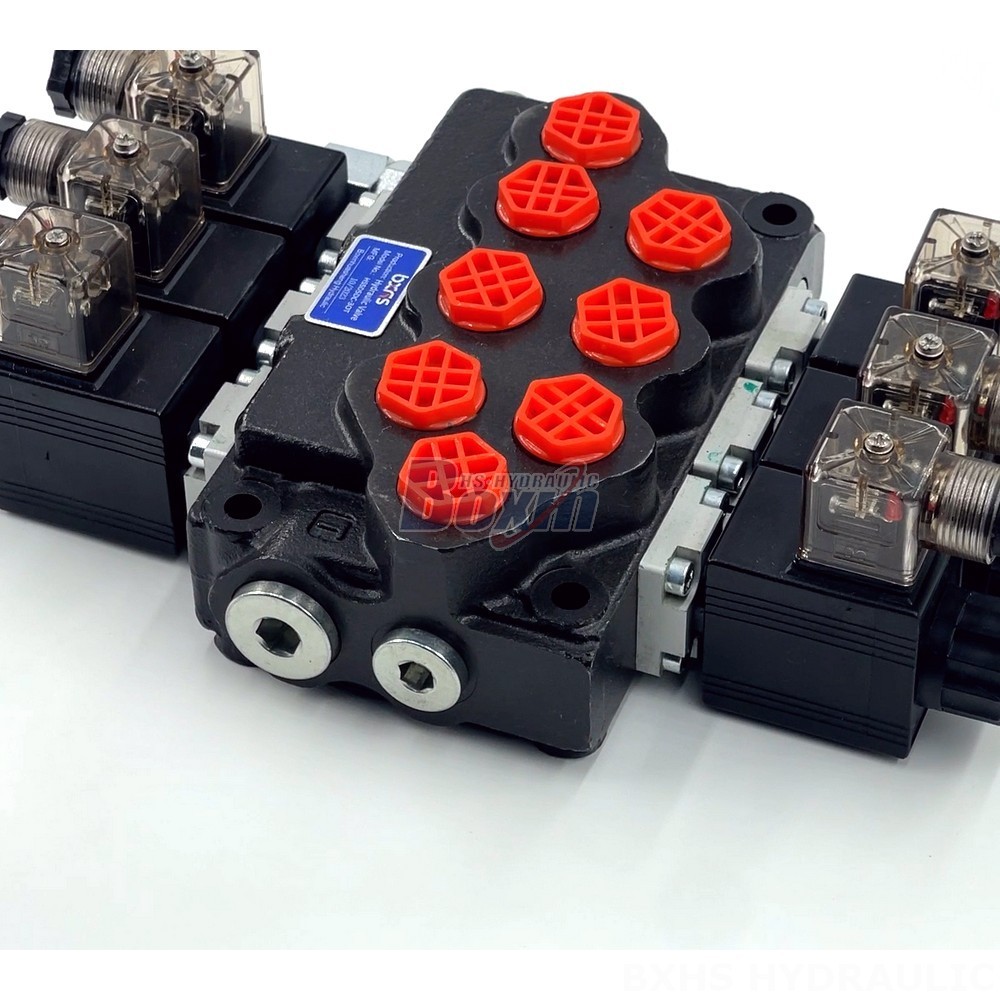

This 3-section solenoid-controlled valve features a rated flow of 40 L/min and a maximum pressure of 305 bar. With its 3 spool design, the SD5 Series valve provides precise control for various hydraulic systems. Our manufacturing expertise allows us to offer OEM, ODM, and private label services, enabling you to tailor the valve to your exact specifications. Whether you need a customized valve for a telehandler, forklift, or any other industrial equipment, our team can deliver a solution that meets your specific needs. We also offer wholesale options for distributors, wholesalers, and traders seeking high-quality hydraulic valves.
