751 次查看了此产品

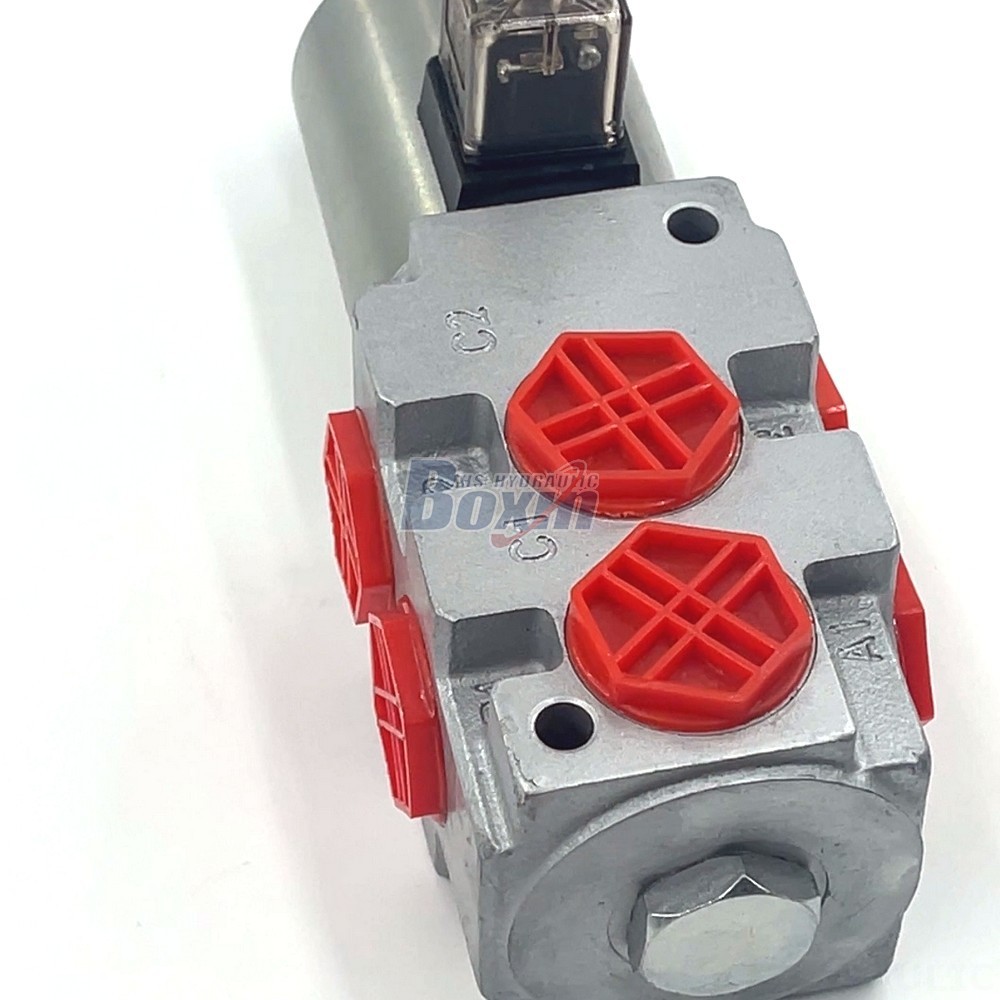

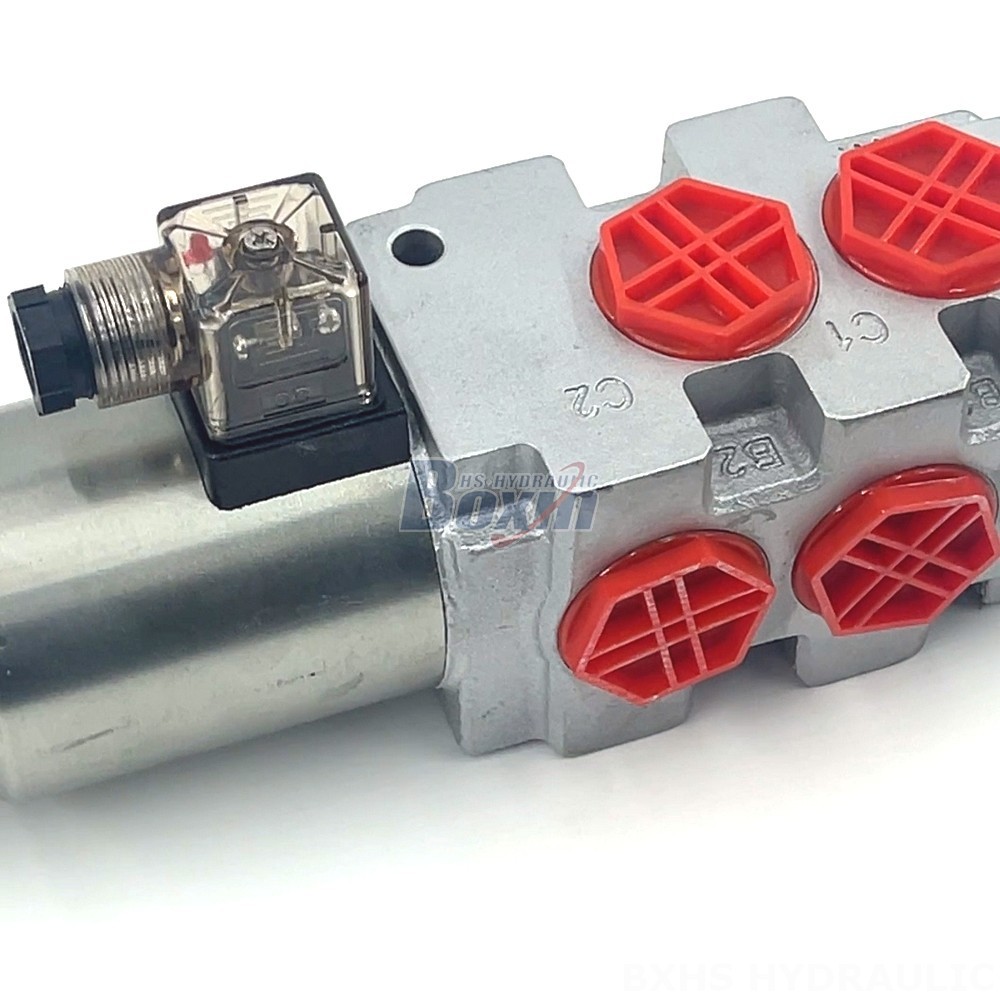

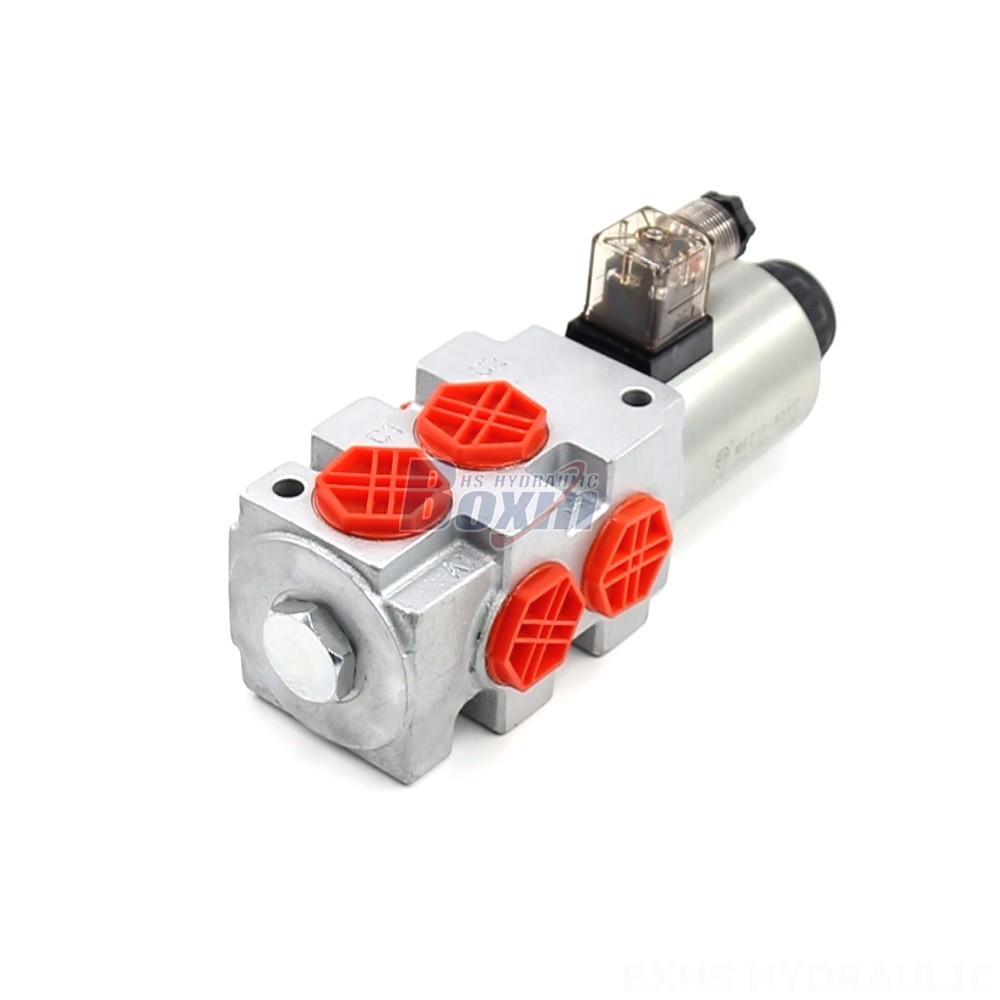

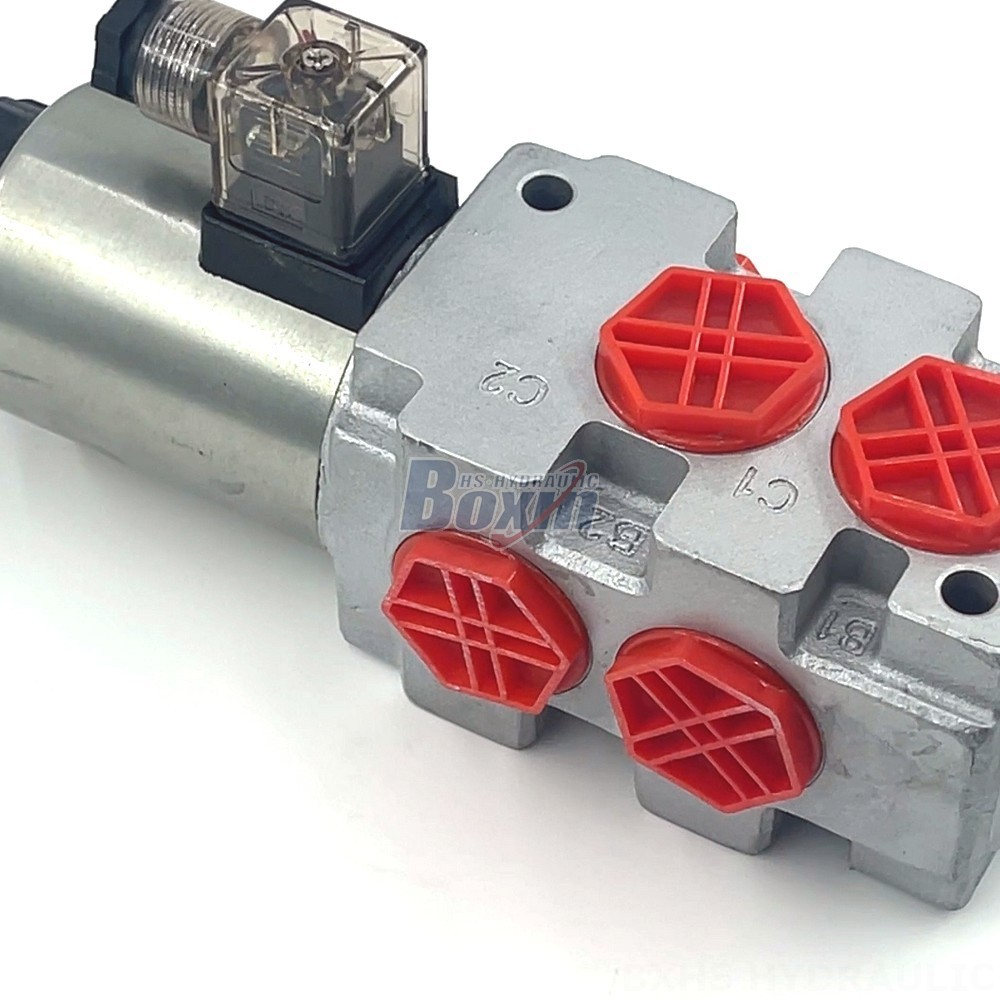

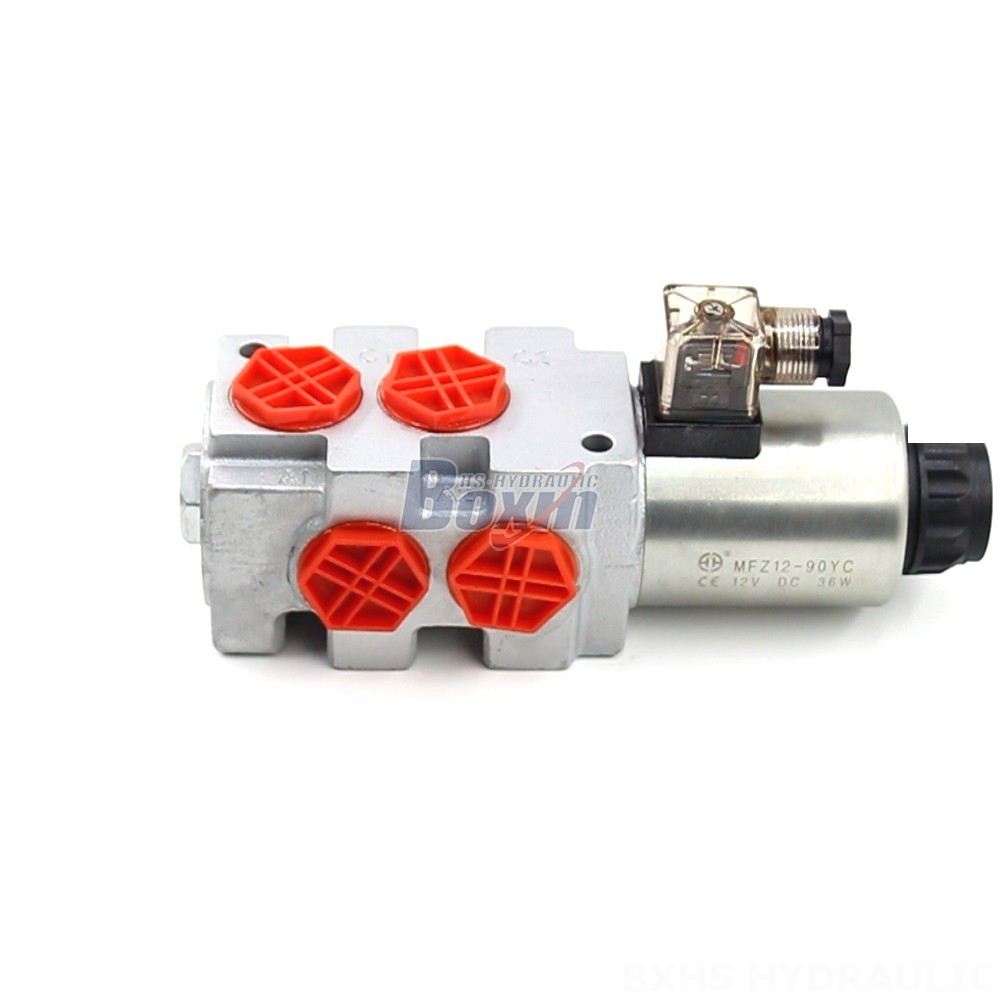

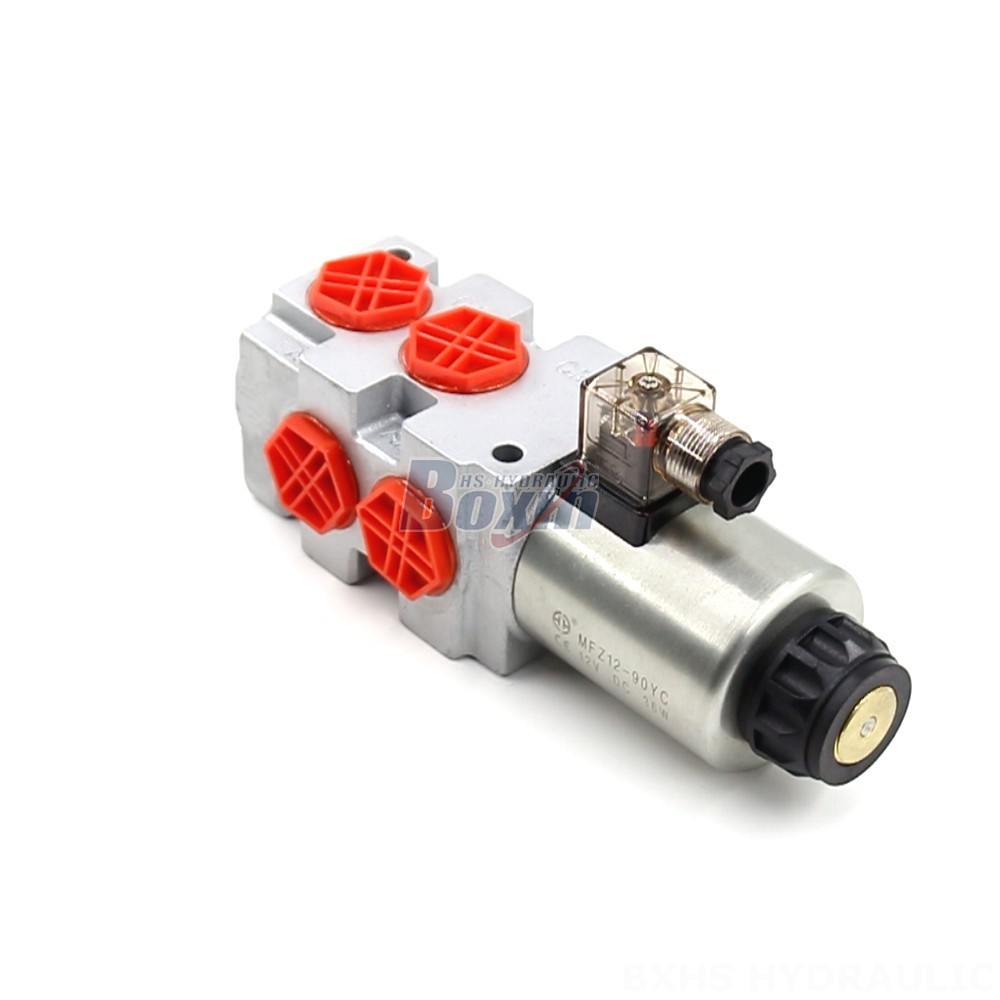

The HSV09-DKL series flow diverter valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With its solenoid control, sectional valve design, and high flow and pressure capabilities, this valve offers precise flow control and reliable operation in demanding conditions.
| HSV09-DKL系列 分流阀 参数 | |
|---|---|
| 控制方式 | 手控, 电磁, 液控, 电磁 |
| 路数 | 1 联, 2 联, 3 联 |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G1/2接口, G3/4接口 |
| 出油口 | G1/2接口, G3/4接口 |
| 接口尺寸 | G1/2接口, G3/4接口 |
| 联数 | 1联, 2联, 3联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Key Features:**
- Solenoid control for precise and responsive operation
- Sectional valve design for modularity and easy maintenance
- High flow rate of 90 L/min for efficient system operation
- Maximum pressure of 250 bar for handling high-pressure applications
- Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C for use in harsh environments
- Single spool for simple and effective flow control
- HSV09-DKL series for easy identification and compatibility
**Applications:**
- Material handling equipment
- Construction and earth moving machinery
- Agricultural machinery
- Industrial vehicles
**Applicable Models:**
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
