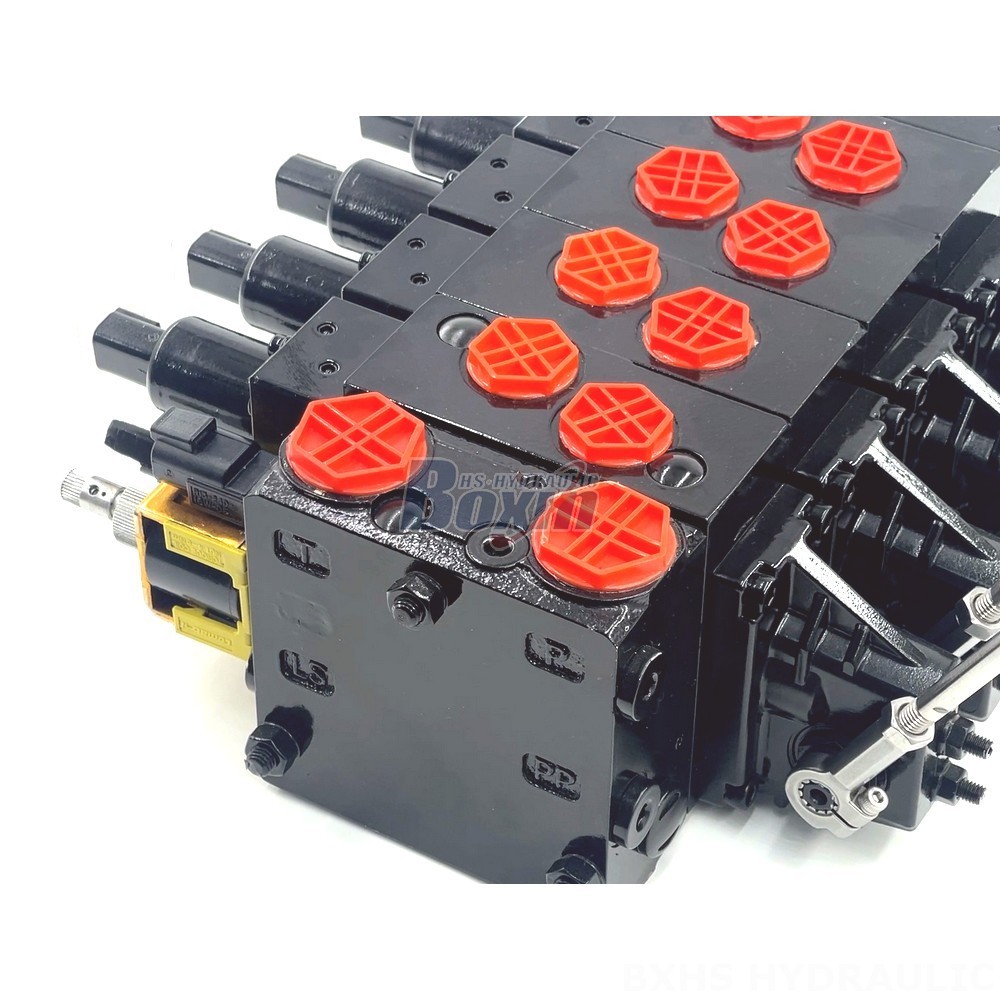

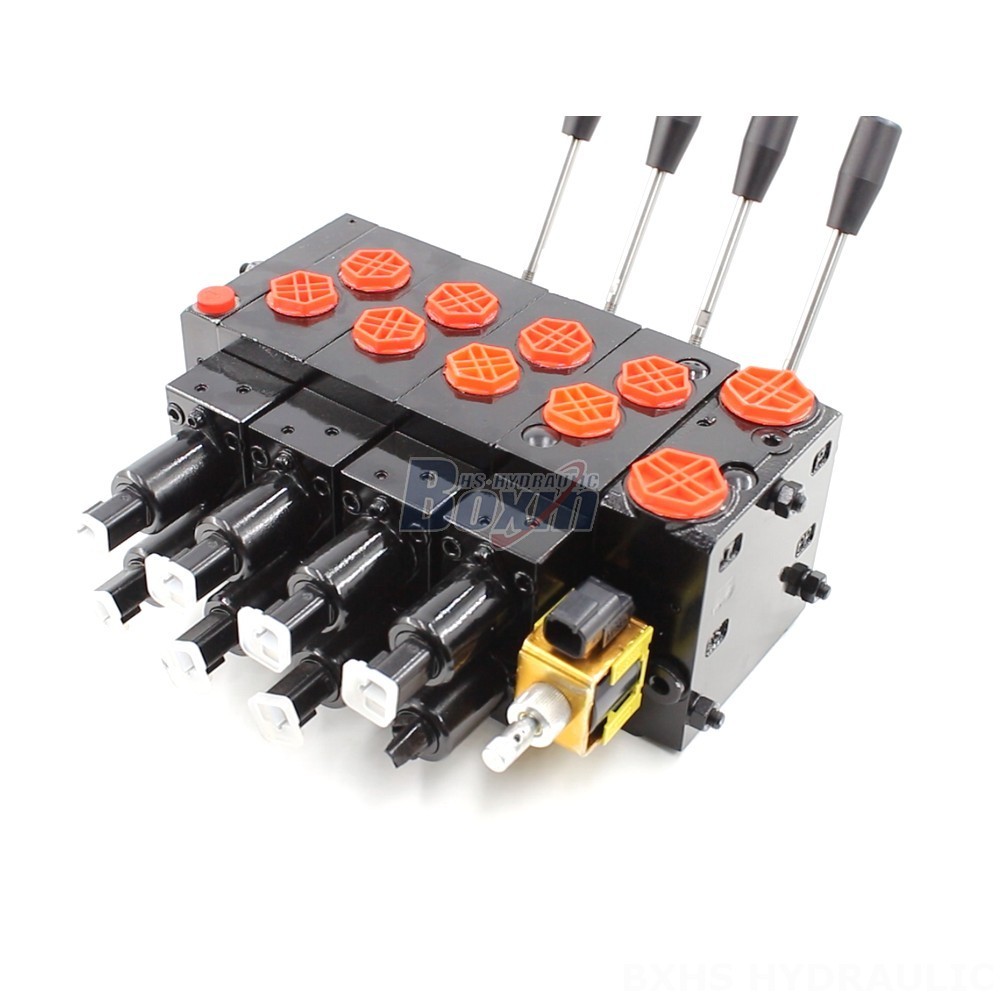

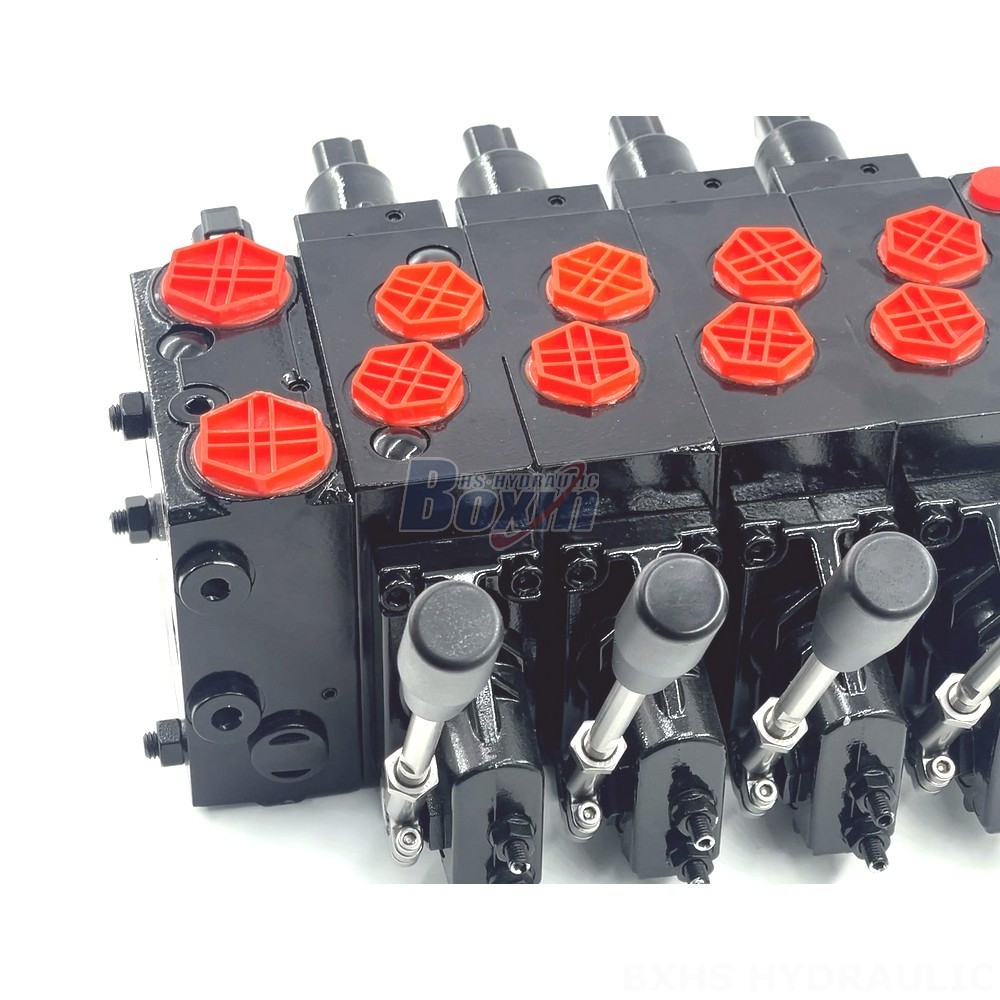

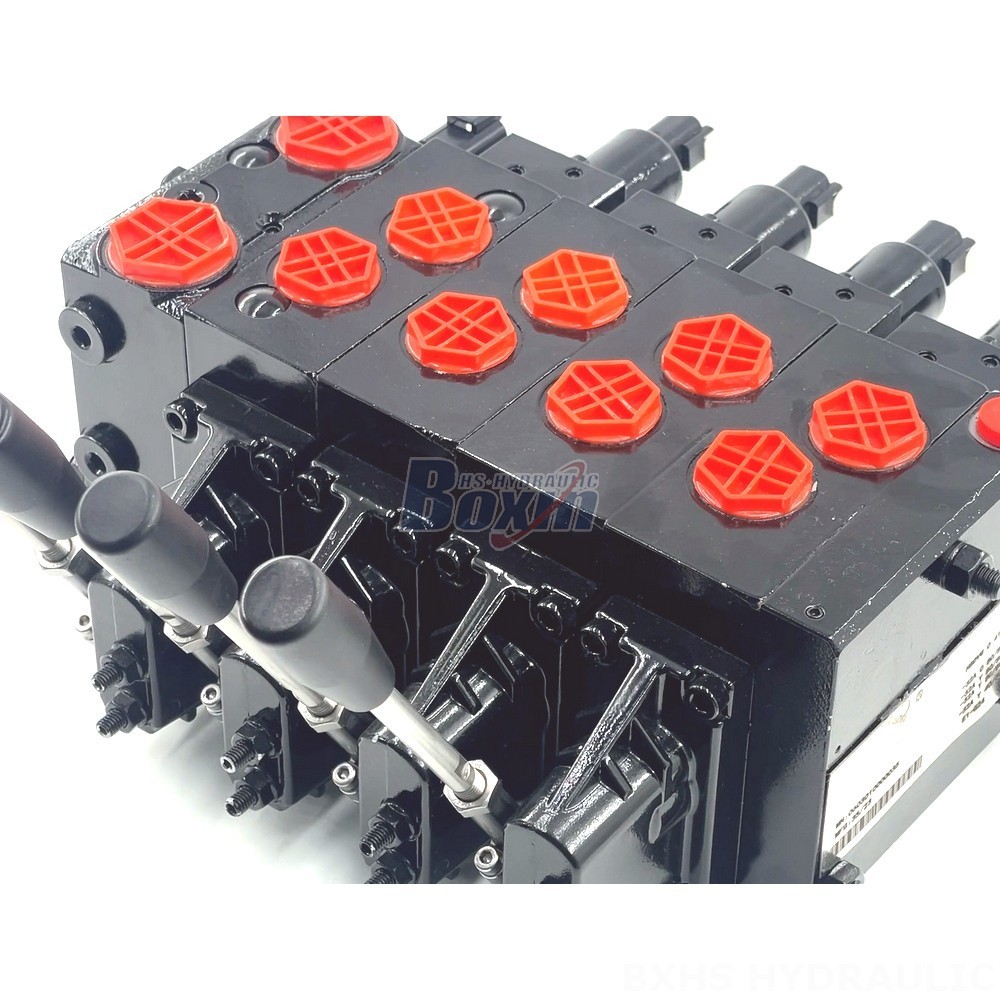

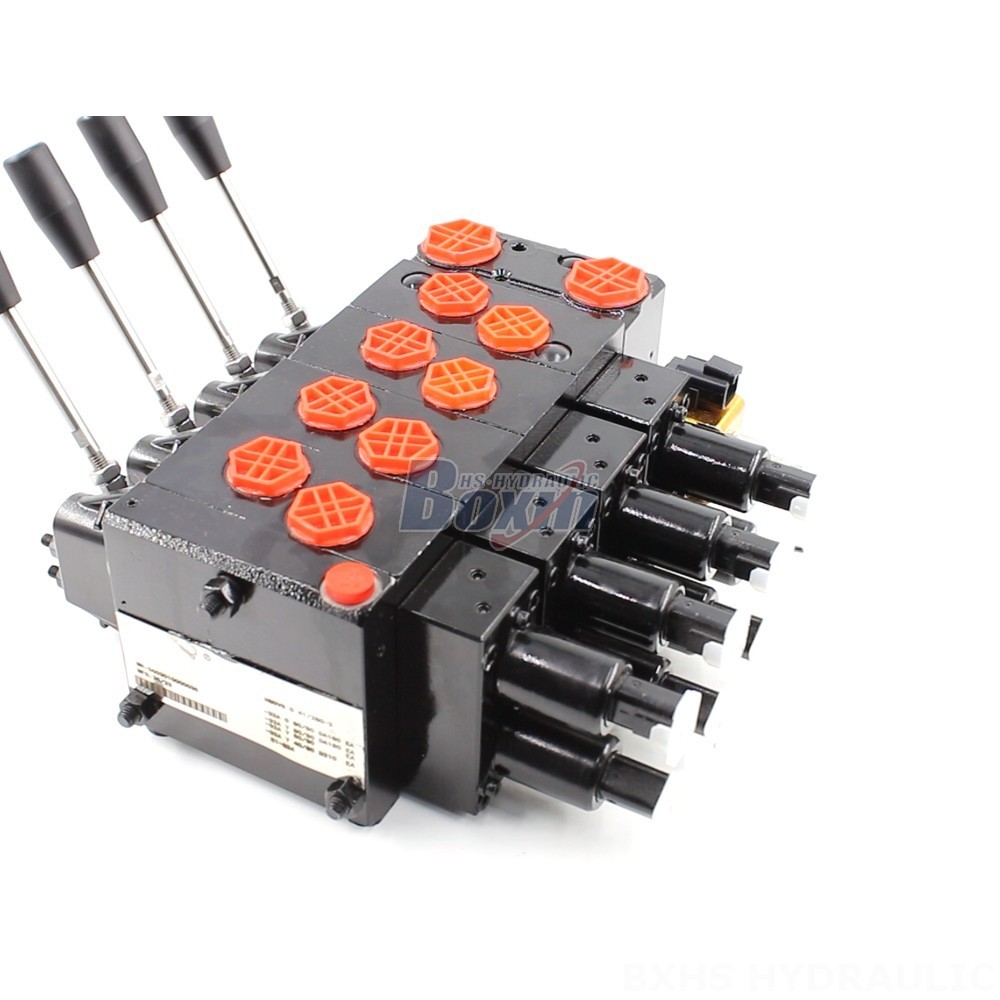

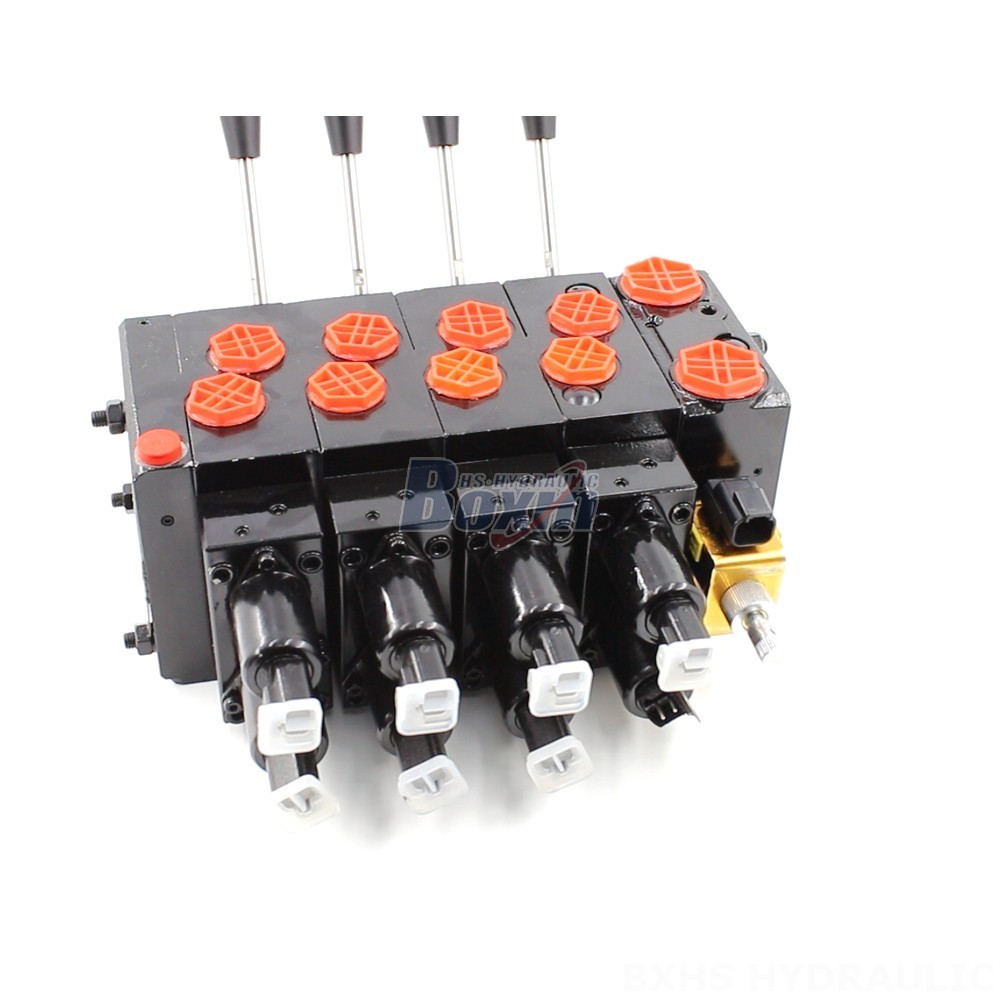

The HSDVG32 Control Valves from Customizable Hydraulic Solutions offer a diverse range of options for controlling hydraulic systems. These valves feature electric proportional and manual control, a sectional valve design, a rated flow of 140 L/min, a maximum pressure of 315 bar, and an operating viscosity range of 15 - 75 mm²/s. With an ambient temperature range of -40°C to +80°C, 4 spool design, and applications in material handling, construction and earth moving, agriculture, and industrial vehicles, these valves provide versatility and reliability in various industries.
| HSDVG32系列 比例控制阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电液控, 电磁, 液控和手控, 软轴, 电比例, 电磁和手动, 电比例+手控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 140 L/min (37 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口 |
| 出油口 | G3/4接口 |
| 接口尺寸 | G1/2接口, G3/4接口 |
**Customizable Hydraulic Solutions: HSDVG32 Control Valves**
**Control Method:** Electric proportional and Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 140 L/min (37 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** HSDVG32 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
