High-quality P40 series 4-spool monoblock directional hydraulic valves, rated at 40 L/min and 250 bar, ideal for various applications including material handling, construction, and agriculture. Factory direct supply, offering OEM, private label, and custom solutions. Wholesale pricing available.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |

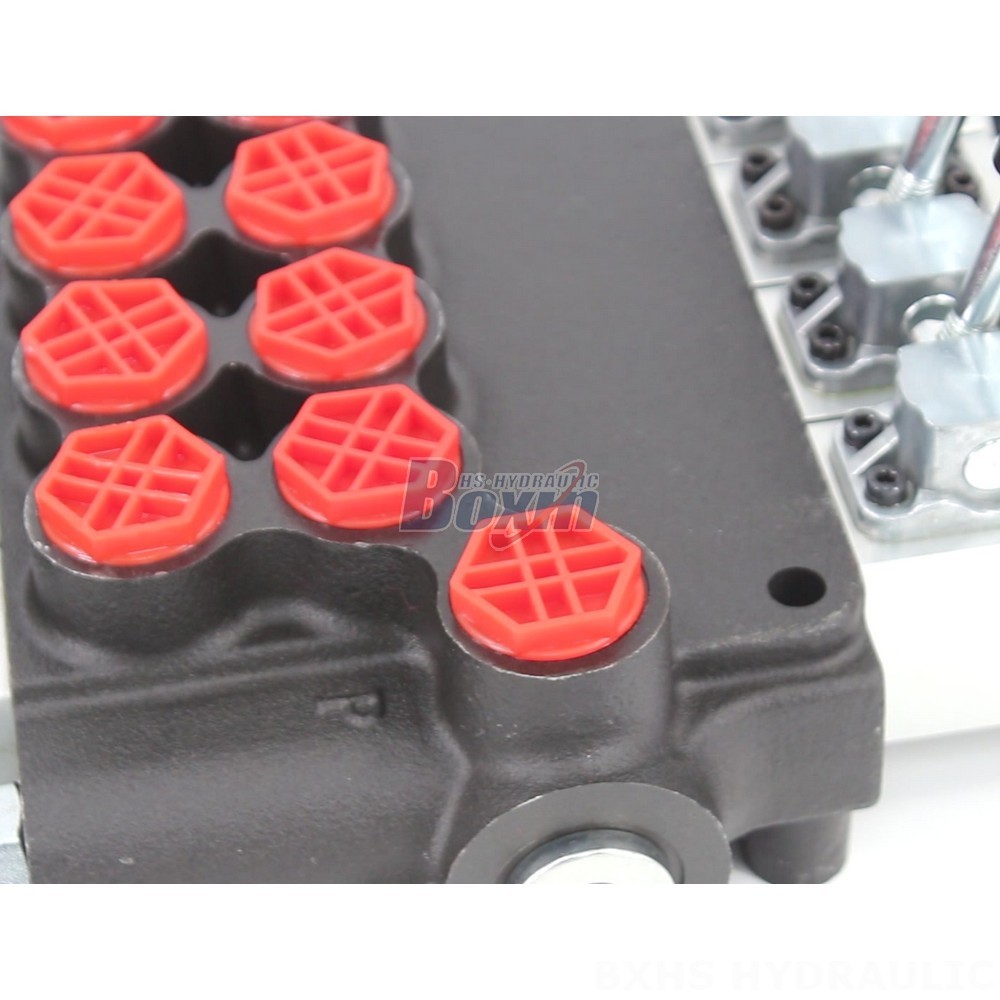

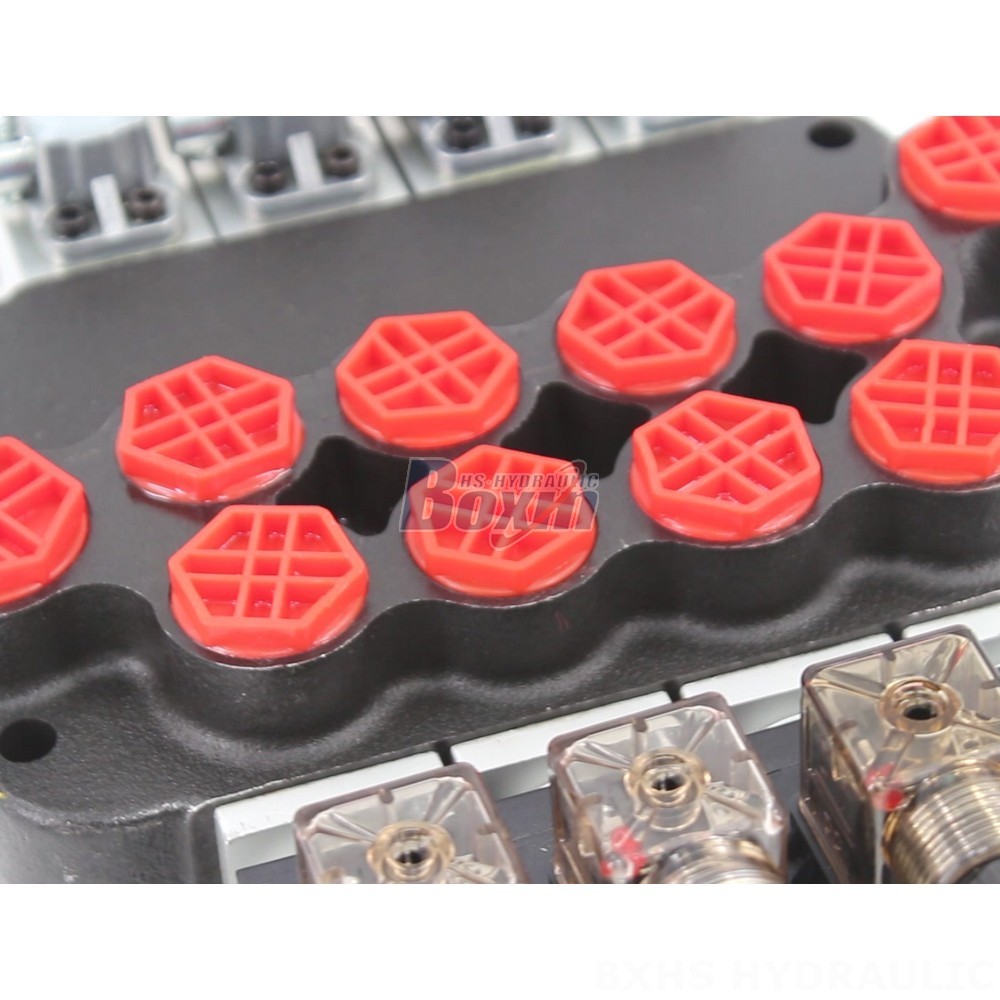

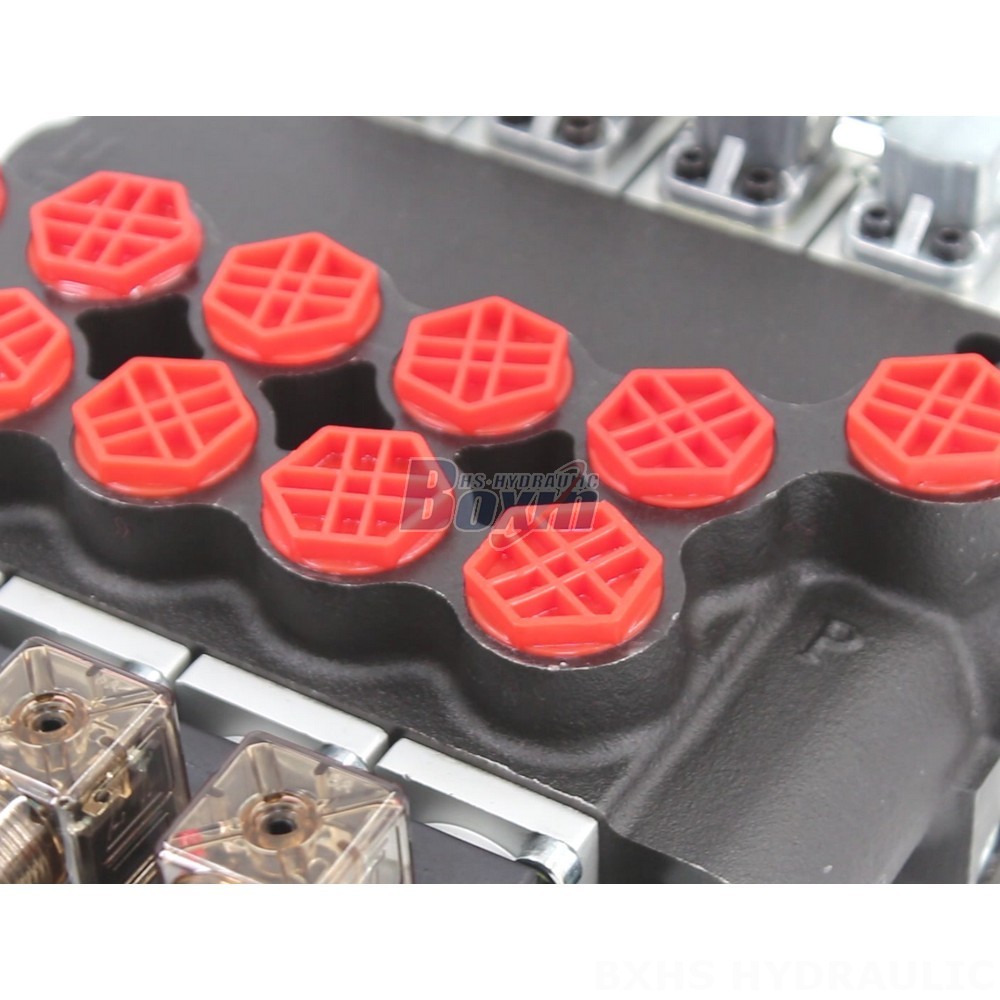

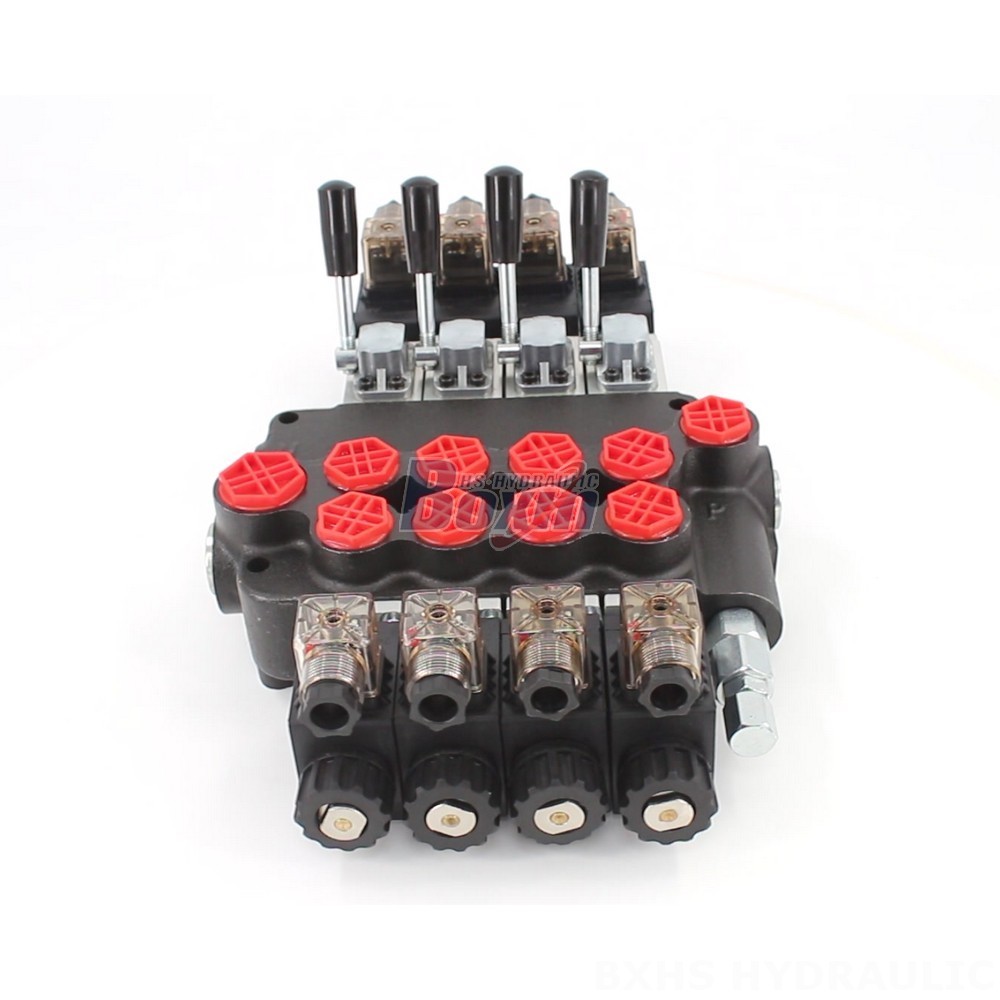

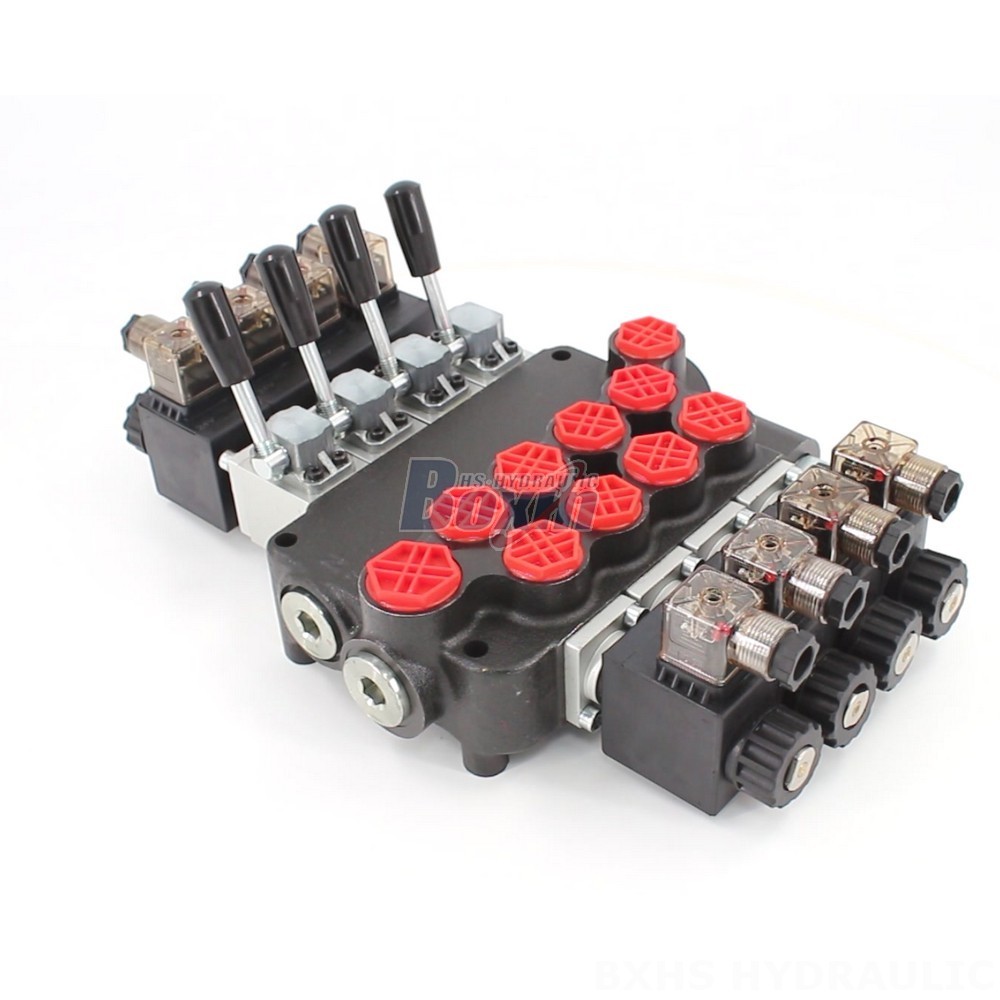

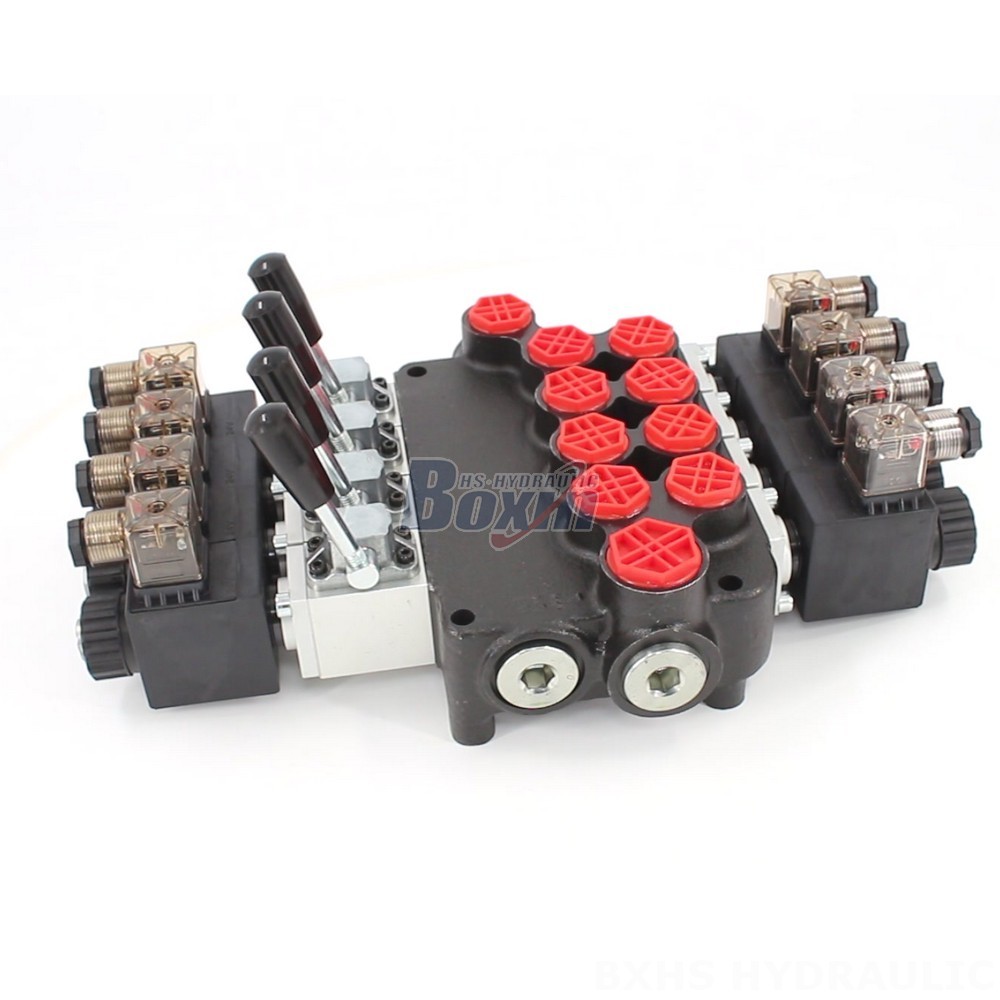

Buy high-performance P40-S 4-Spool Monoblock Directional Valves – direct from the factory! We are a leading manufacturer of hydraulic products supplying globally. Our P40 series offers superior performance and reliability. This robust 4-section monoblock valve boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its solenoid control system and wide operating temperature range (-40°C to +80°C) ensure dependable operation in demanding environments.
**Key Features:**
* **Control Method:** Solenoid
* **Sections:** 4 Section
* **Structure Type:** Monoblock valve
* **Rated Flow:** 40 L/min (10.5 US gpm)
* **Max Pressure:** 250 bar (3600 psi)
* **Operating Viscosity:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Application:** MATERIAL HANDLING, CONSTRUCTION & EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES (Forklifts, Telehandlers, Skid Steer Loaders, Compact Wheel Loaders, Mini-Excavators, Tractors, Harvesters, Balers, Sprayers)
**We offer comprehensive solutions, including:**
* **Manufacturing:** High-quality production of hydraulic valves.
* **OEM (Original Equipment Manufacturing):** Customize valves to your specific requirements.
* **Private Labeling:** Brand your own hydraulic valves with your logo and branding.
* **Custom Design:** Tailor-made solutions for unique applications.
* **Wholesale Pricing:** Competitive pricing for large orders.
**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies
Partner with a reliable hydraulic valve manufacturer offering factory-direct pricing and exceptional service. Contact us today to discuss your needs and explore mutually beneficial collaboration opportunities. Factory direct wholesale pricing available! Contact us for a quote.
