The HDCF50 Solenoid Valve is a high-quality and reliable hydraulic valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 50 L/min, a maximum pressure of 160 bar, and an operating viscosity range of 15 - 75 mm²/s, this valve is capable of handling a wide range of hydraulic fluids and operating conditions.
| HDCF50系列 电磁控制阀 参数 | |
|---|---|
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 控制方式 | 电磁 |
| 接口尺寸 | M22×1.5螺纹, SAE 8接头 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 出油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |
| 最大压力 | 160 bar (2300 psi) |
| 额定流量 | 50 L/min (13.2 US gpm) |
| 结构类型 | 分片阀 |
| 进油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |

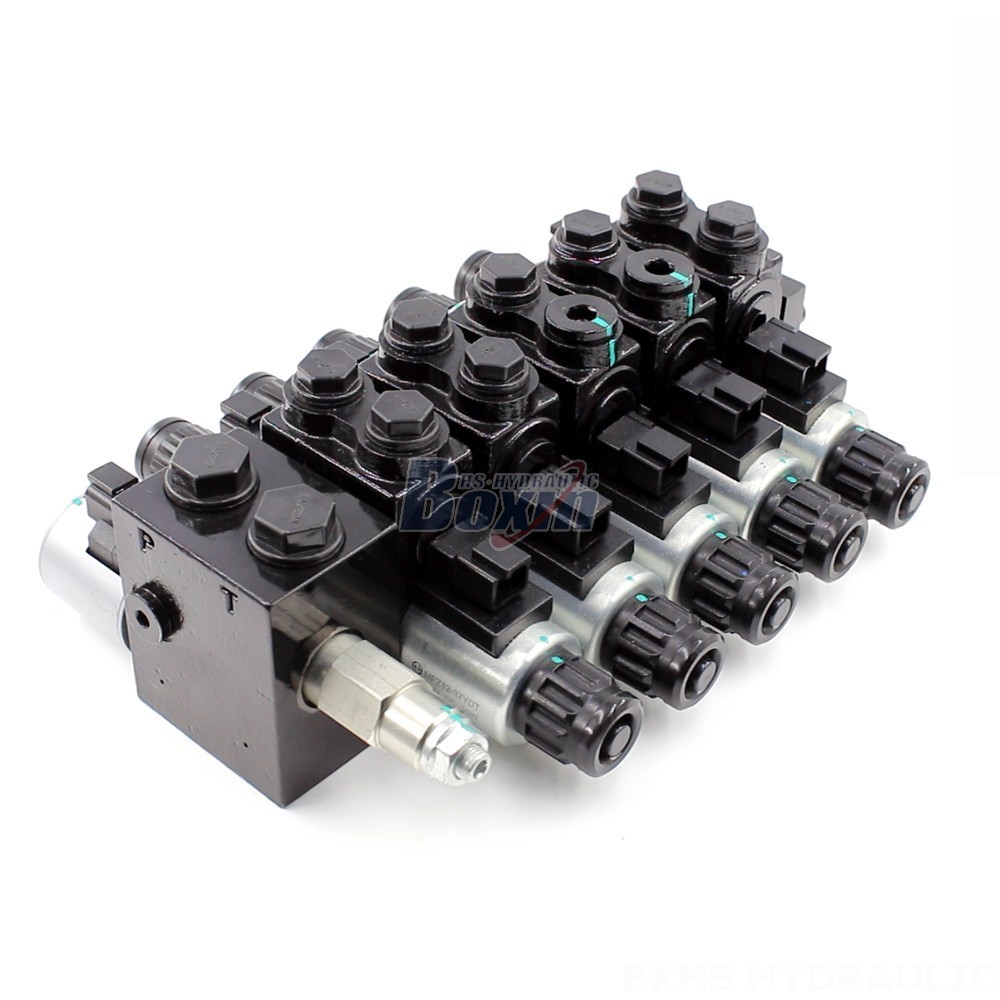

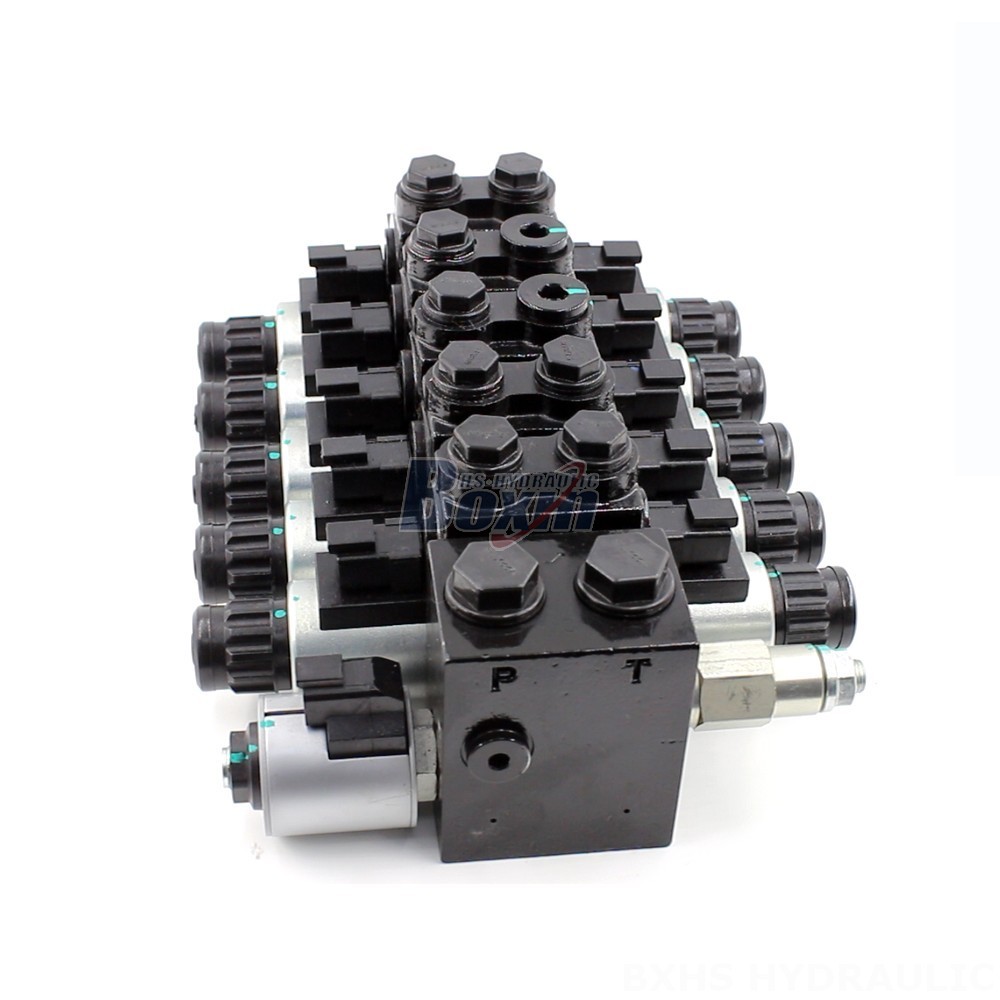

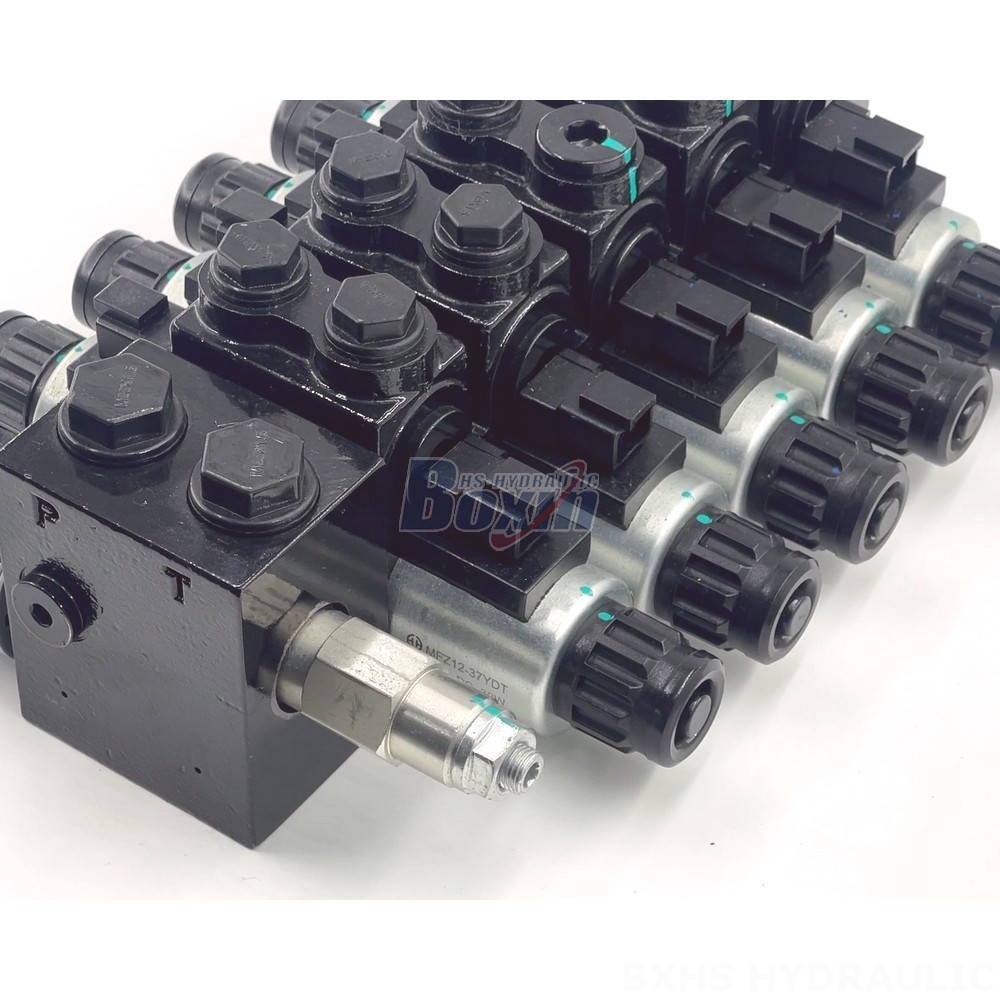

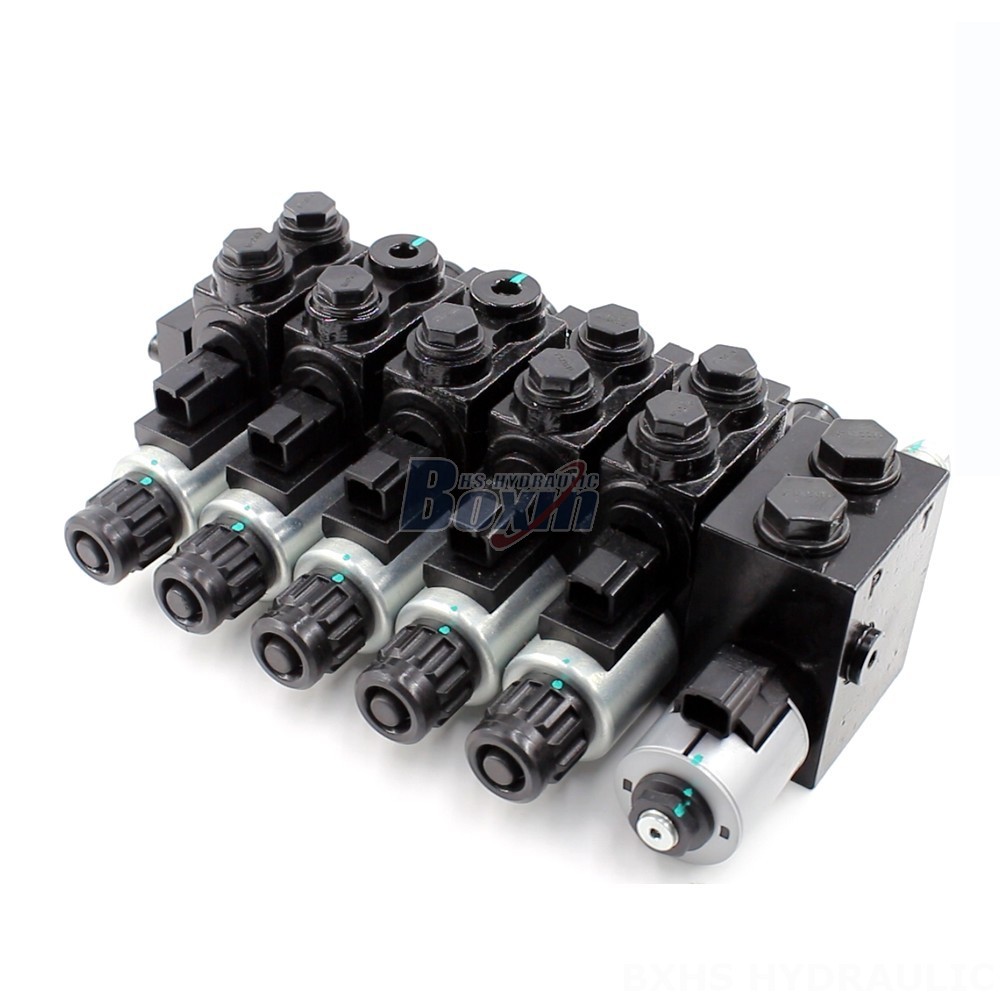

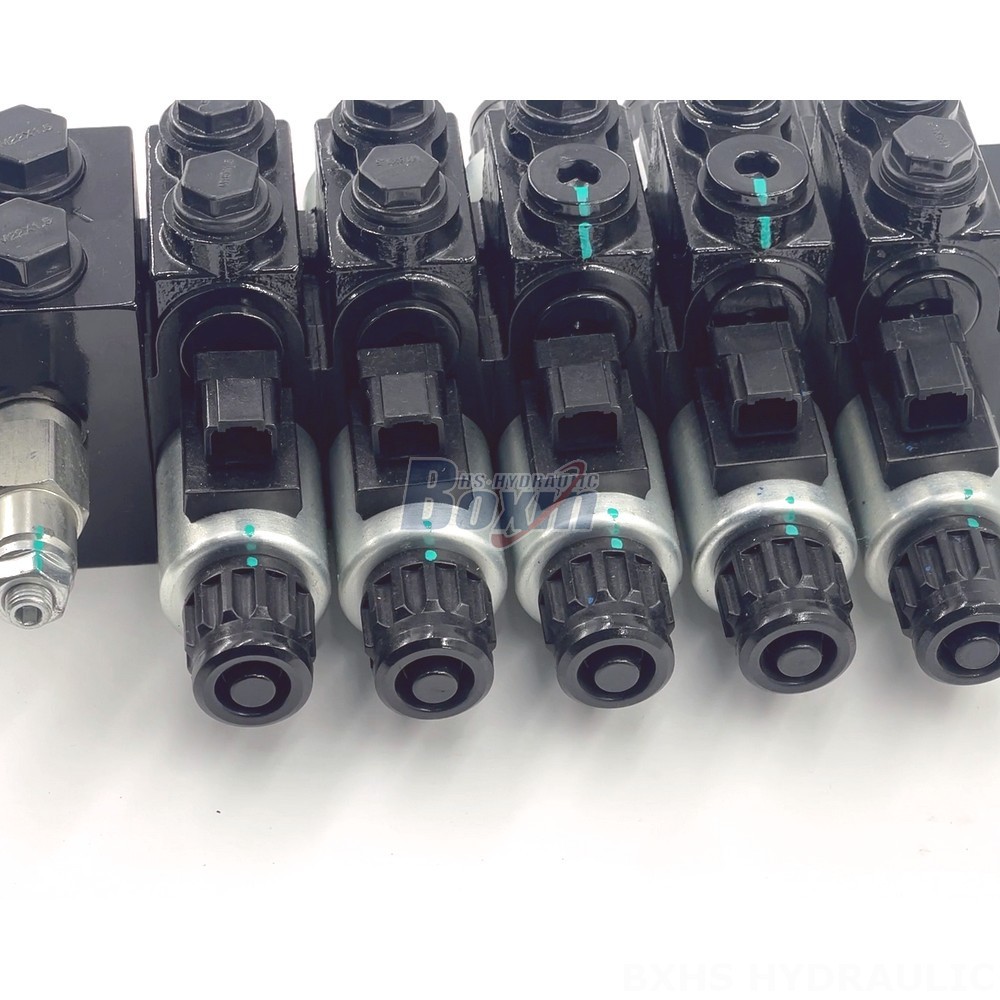

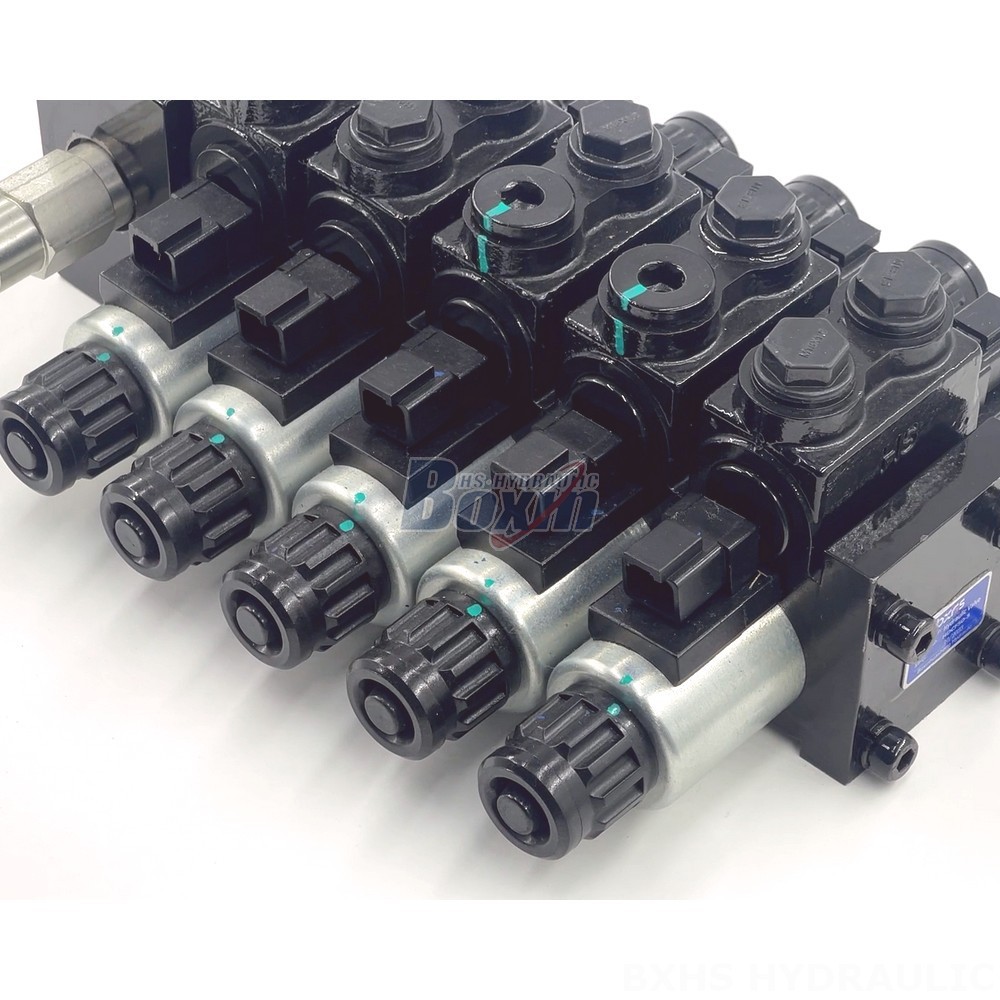

The HDCF50 Solenoid Valve is a sectional valve with 5 sections and 5 spools. It is available with a variety of voltage options, including 12V and 24V. This valve is manufactured to the highest standards of quality and is backed by a comprehensive warranty. As a leading manufacturer of hydraulic valves, we offer factory supply and factory wholesale prices on all of our products. Contact us today to learn more about the HDCF50 Solenoid Valve and to get a quote.
