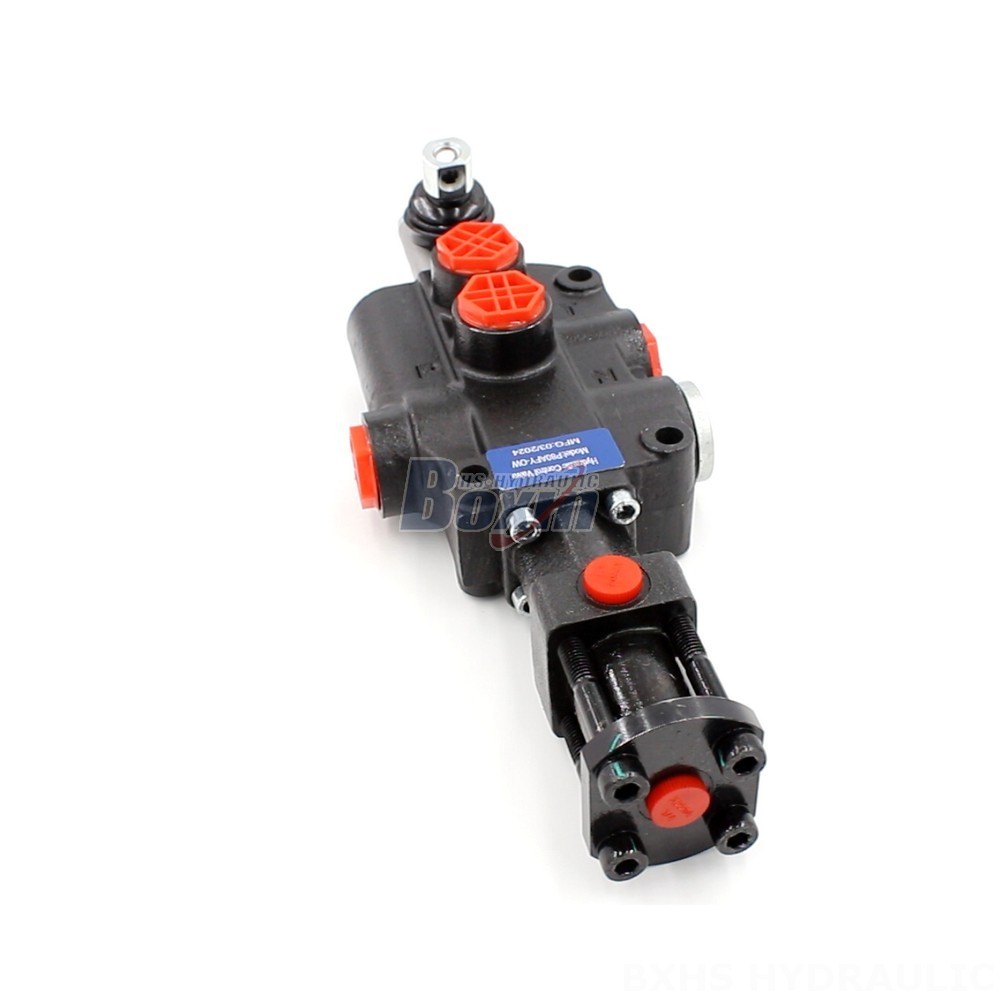

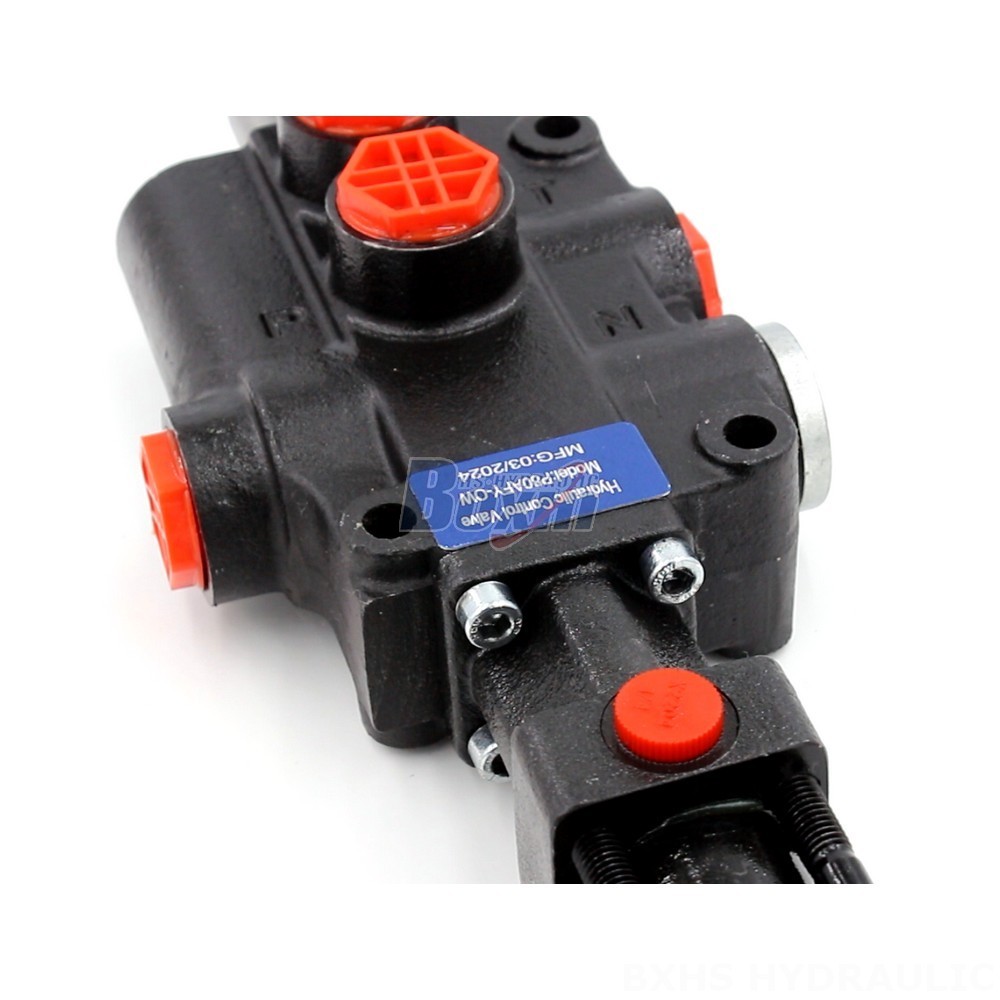

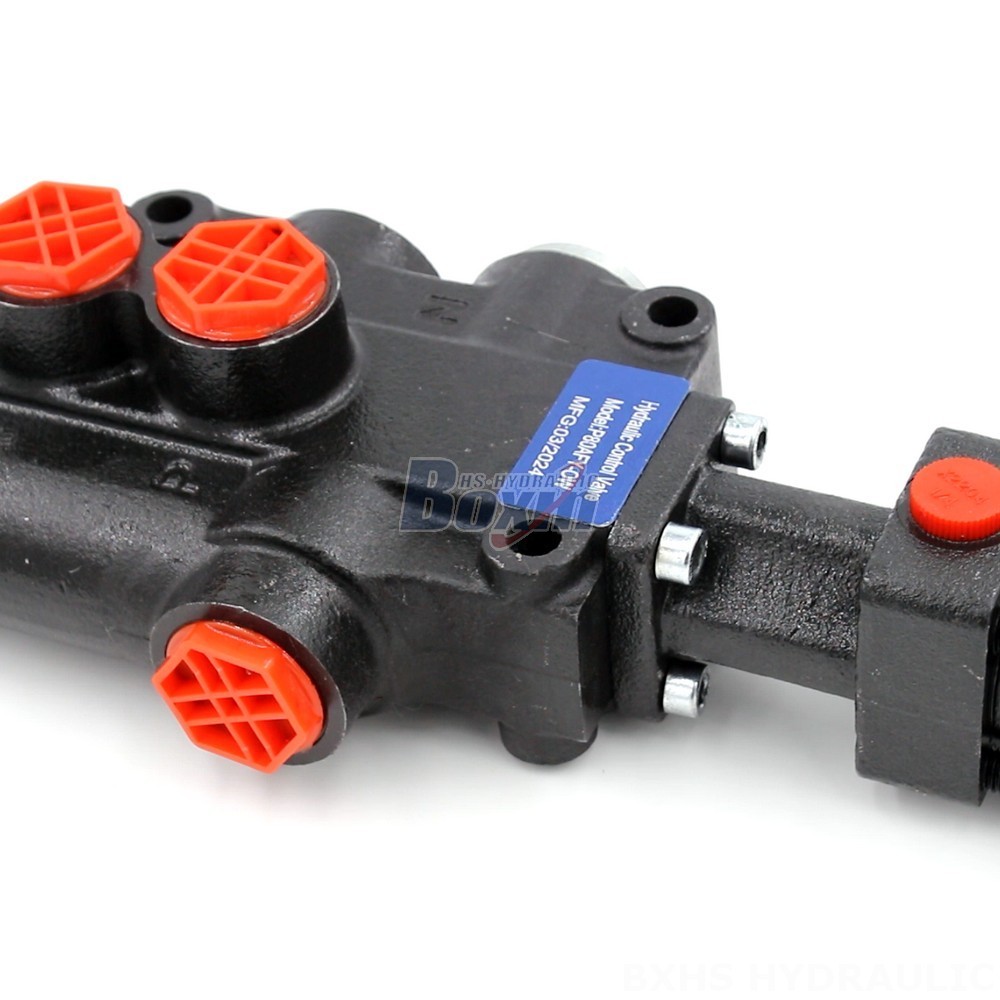

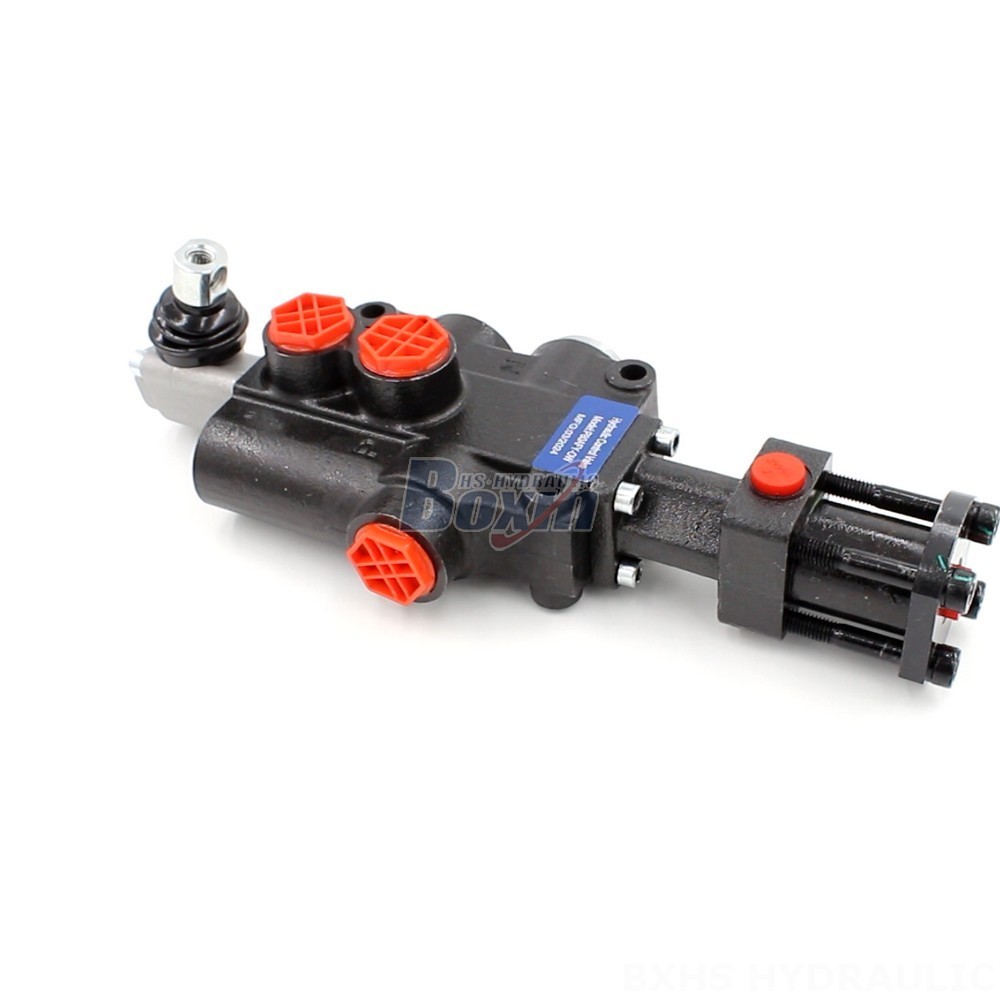

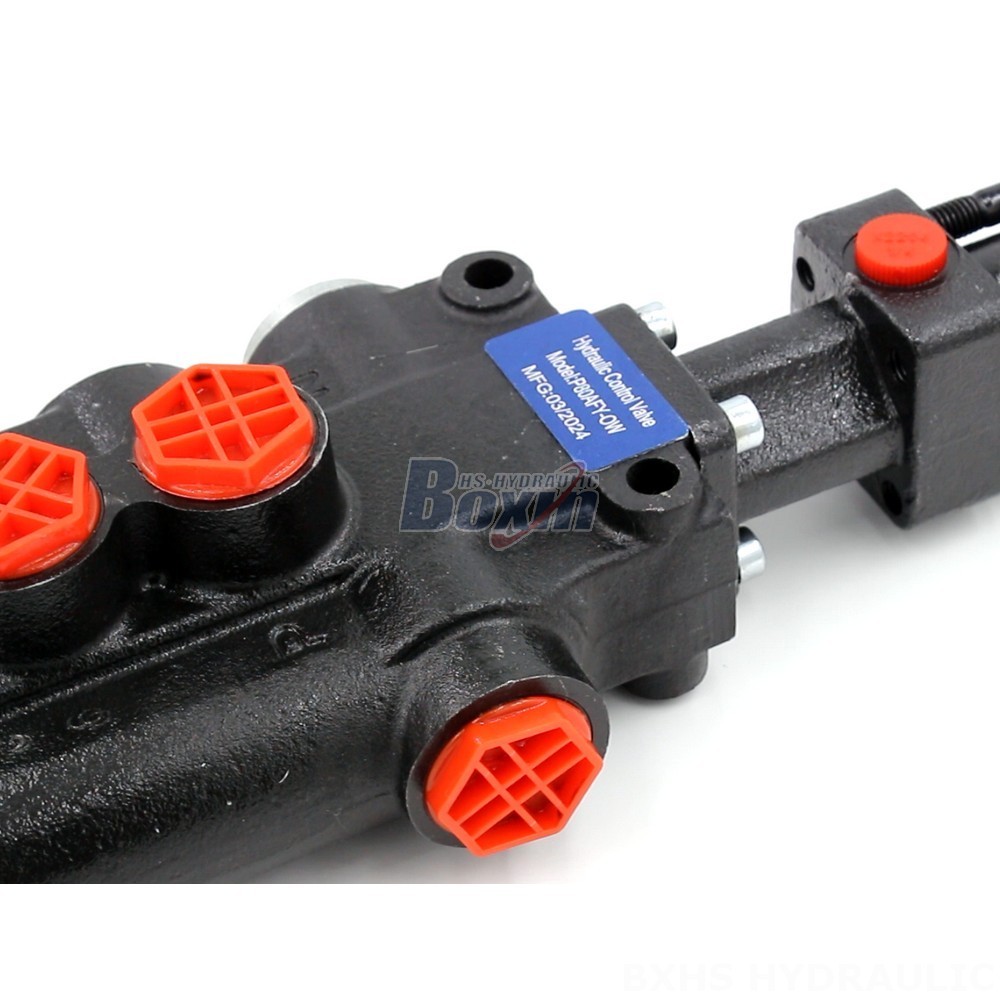

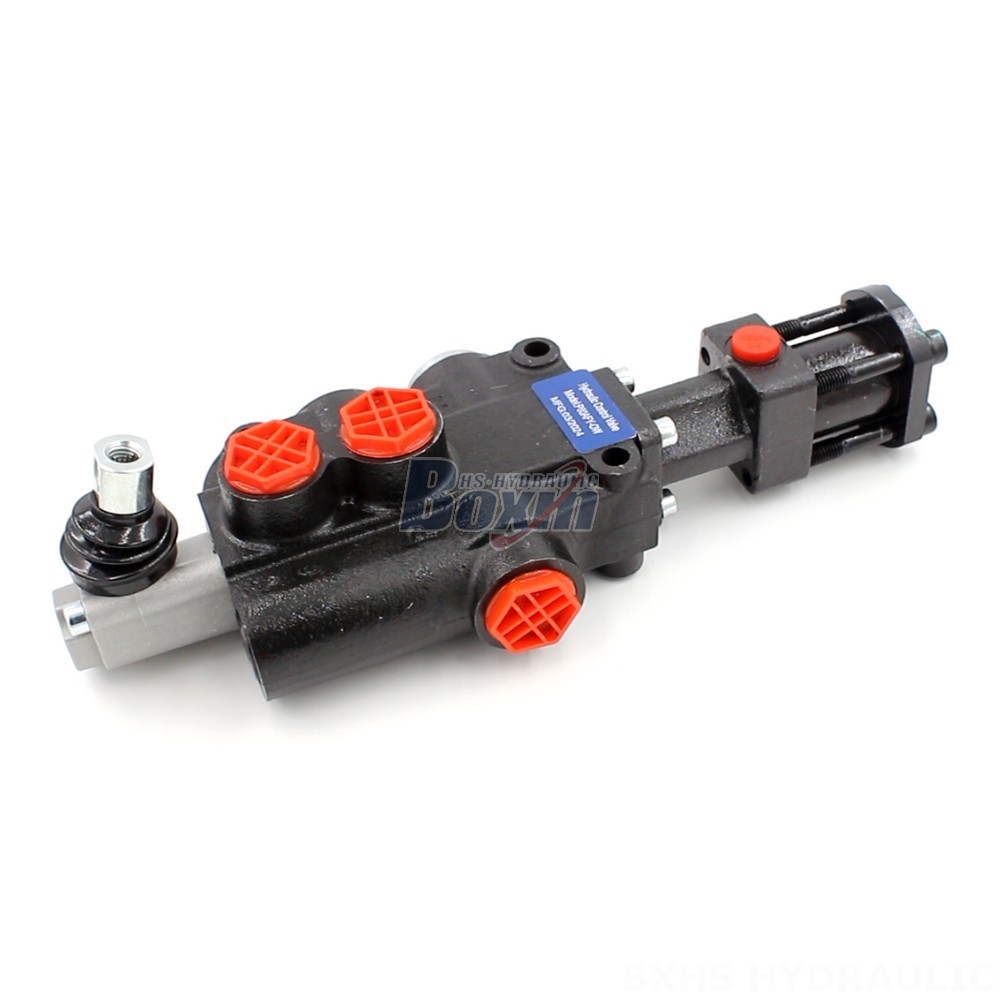

Introducing our P80F-G34 Single Spool Valve, a bespoke hydraulic solution tailored precisely to your specifications. With a rated flow of 80 L/min (21.2 US gpm), maximum pressure of 250 bar (3600 psi), and a wide viscosity range, this valve is ideally suited for demanding applications in various industries.
| P80F系列 单块式方向阀 参数 | |
|---|---|
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 接口尺寸 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹 |
| 最大压力 | 315 bar (4600 psi) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 结构类型 | 整体阀 |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
Our commitment to customization extends beyond the standard specifications. We understand the unique requirements of every customer and offer tailored OEM, ODM, and private label services. Whether you require specific spool configurations, pressure settings, or custom branding, our team will work closely with you to bring your vision to life. Our expertise in valve manufacturing ensures exceptional quality, durability, and performance, giving you the confidence to deliver reliable hydraulic solutions to your customers. Let us be your trusted partner in providing bespoke valve solutions that drive innovation and success.
