Our bespoke hydraulic solutions include the customizable P80-U78-1OT directional control valve, designed to meet the specific requirements of our global customers. This valve offers exceptional performance with a rated flow of 80 L/min, max pressure of 250 bar, and a wide operating viscosity range. It is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |

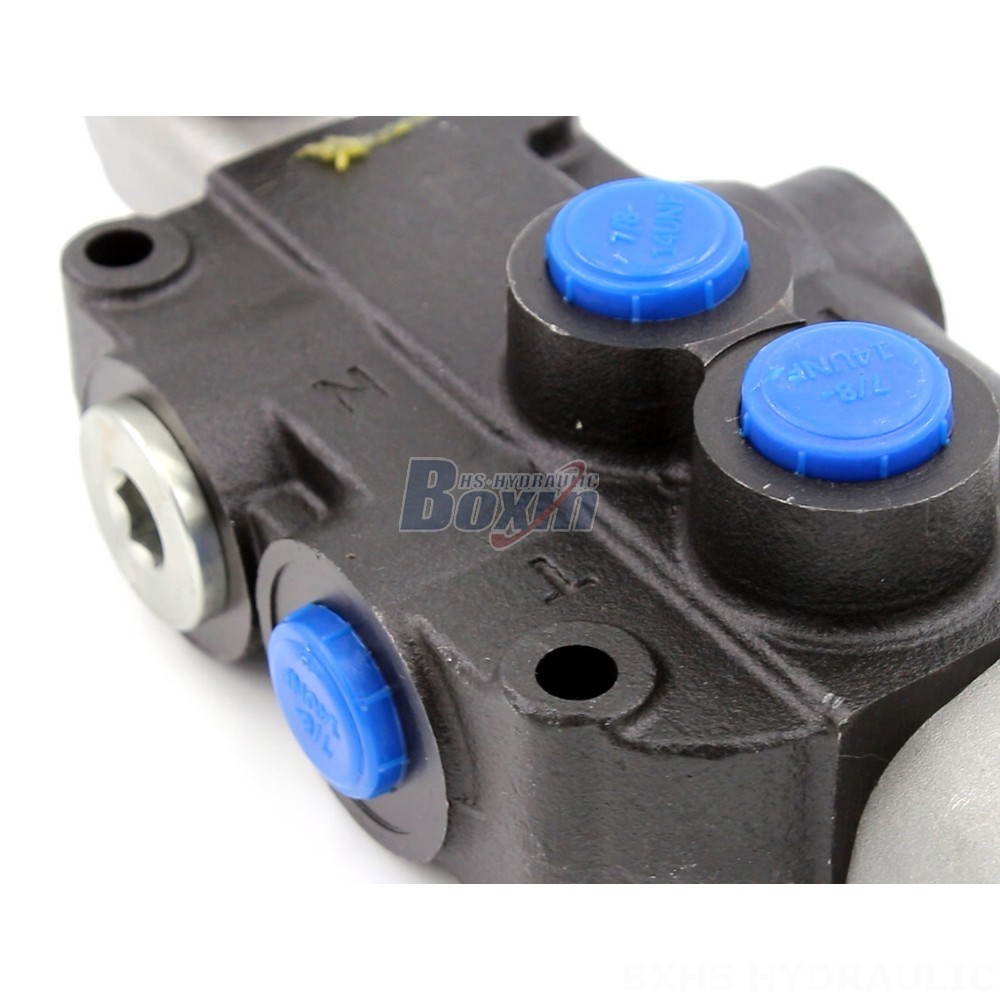

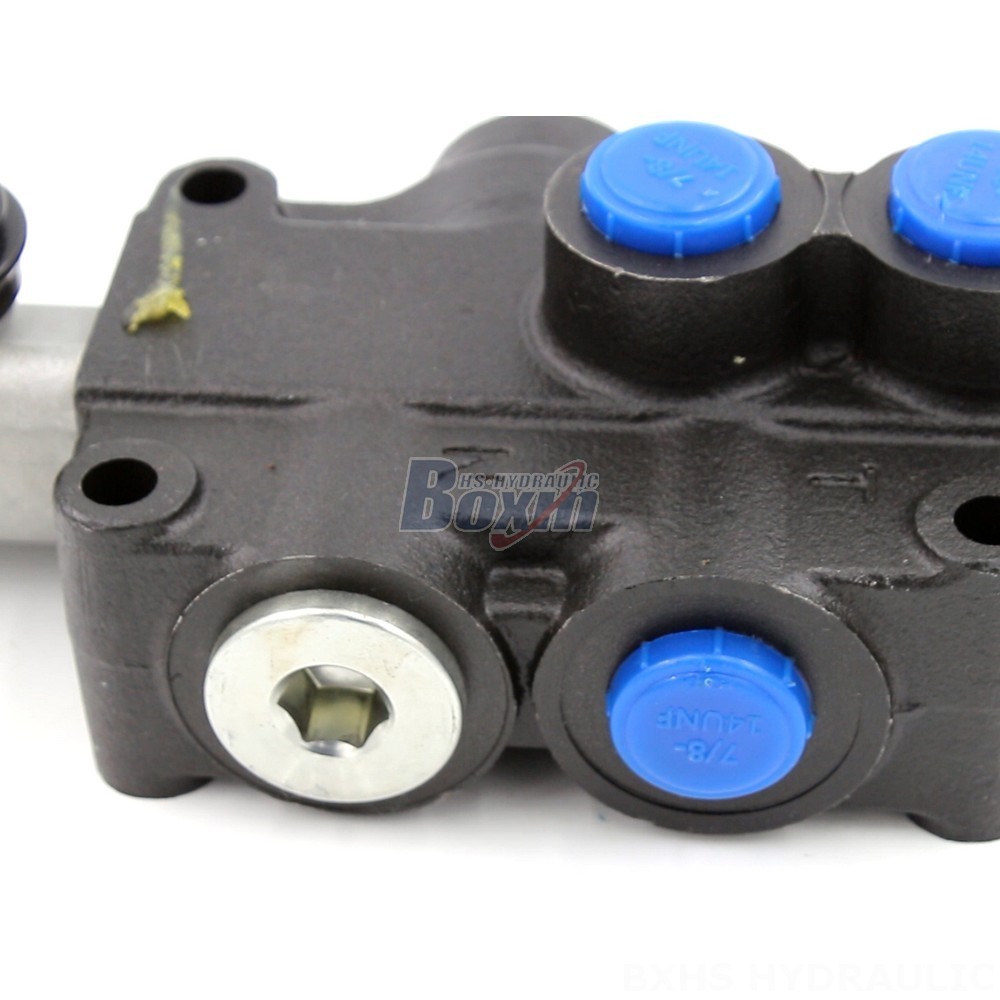

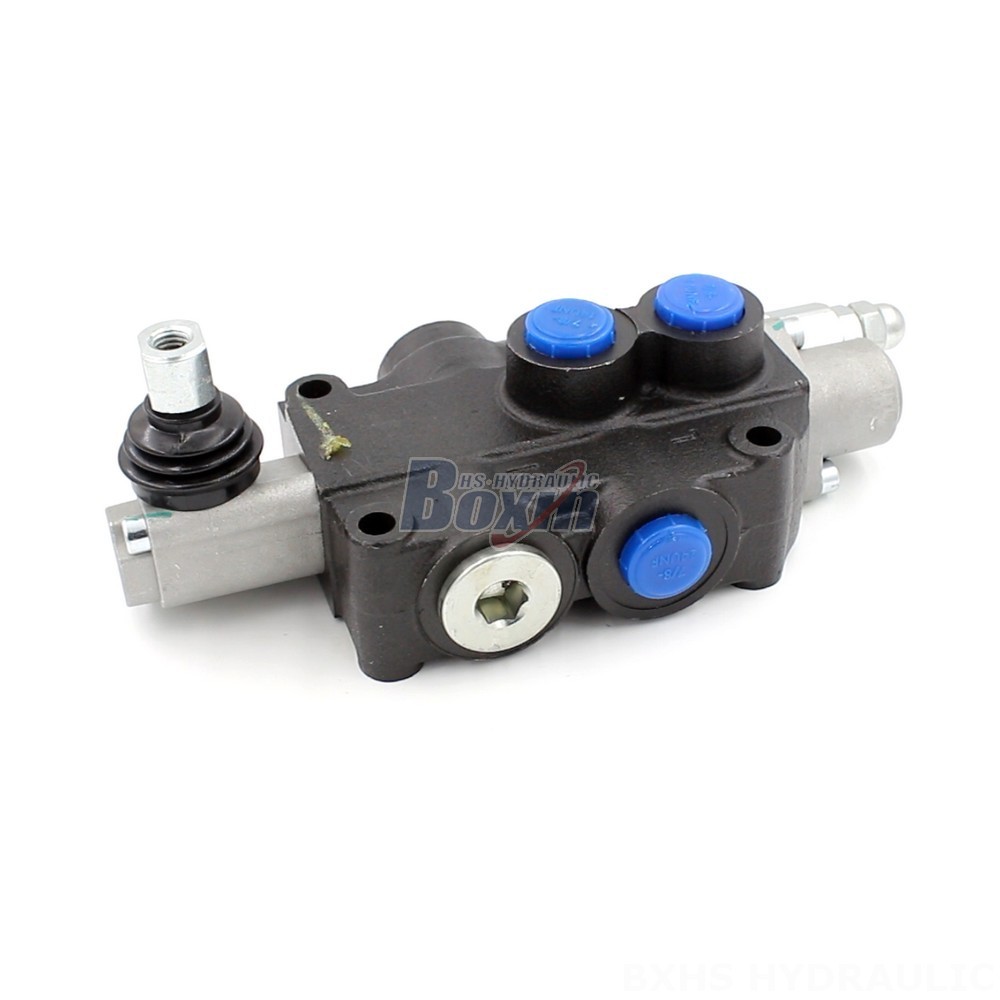

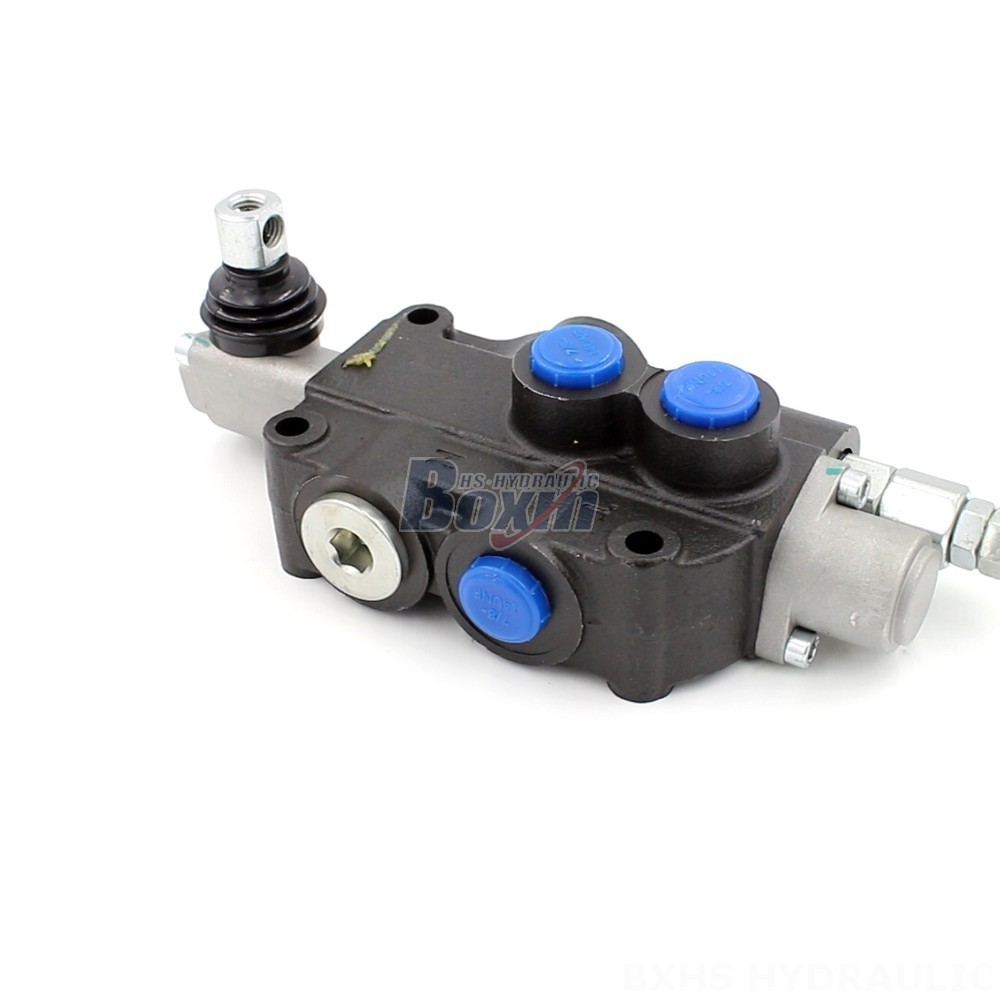

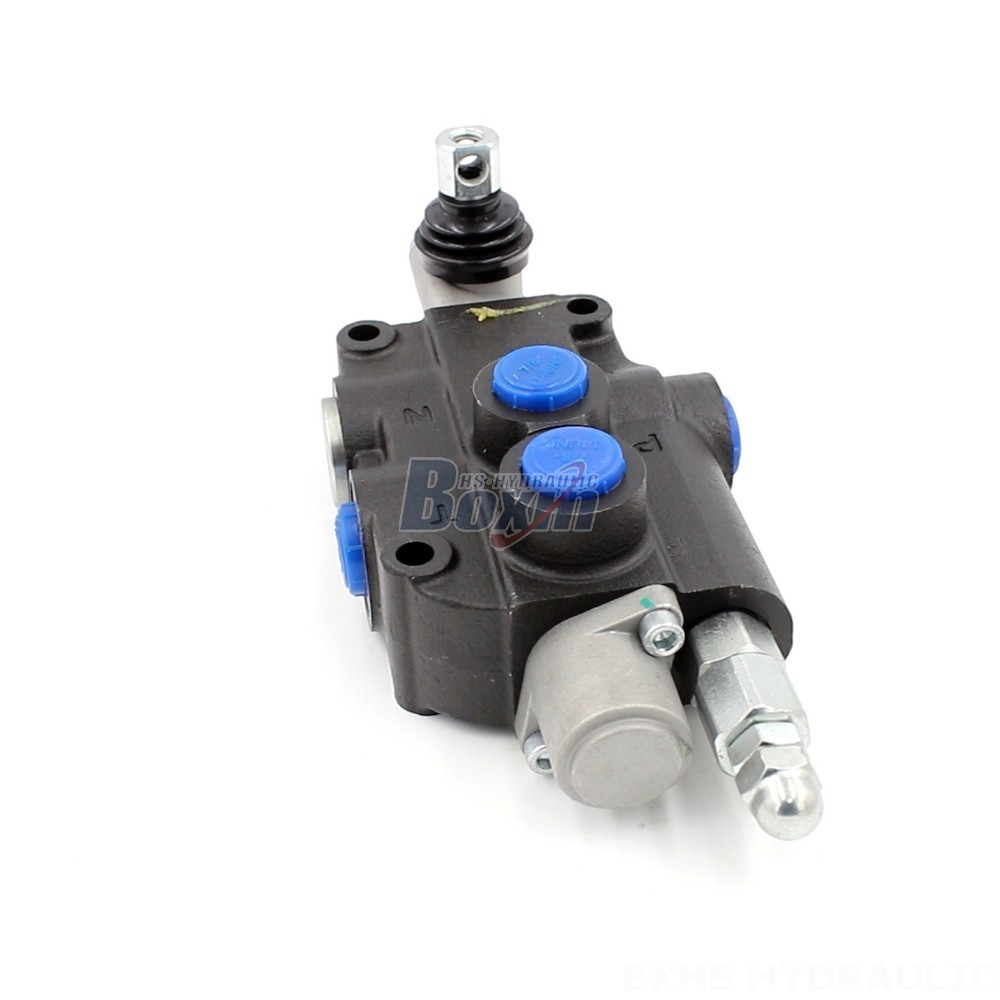

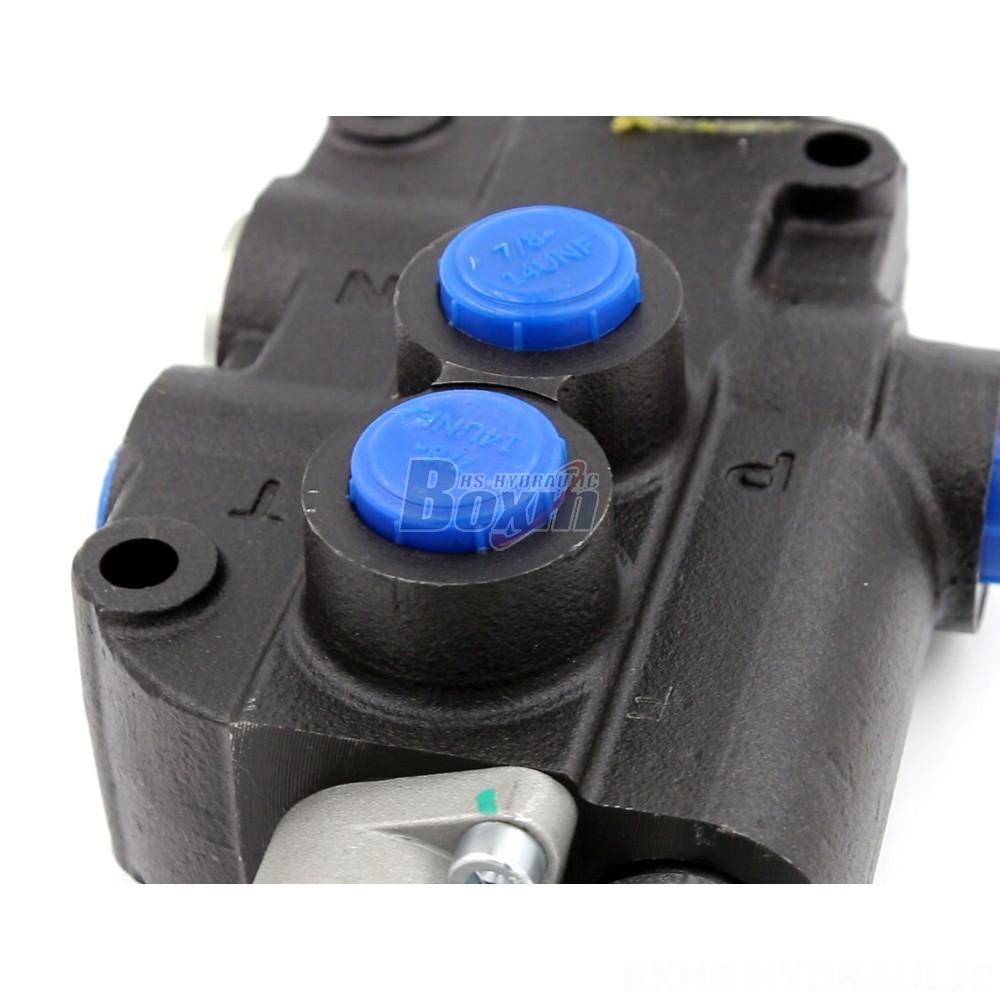

**P80-U78-1OT Directional Control Valve**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P80 Series
**Applications:**
The P80-U78-1OT directional control valve is widely used in various applications, including:
- Material Handling: Telehandlers, forklifts, stackers, aerial platforms
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders, compact wheel loaders
- Agriculture: Tractors, harvesters, sprayers
- Industrial Vehicles: Cranes, aerial work platforms, mining equipment
**OEM/ODM/Private Label Services:**
We offer flexible OEM/ODM/Private Label services to meet the unique requirements of our customers. We can customize the P80-U78-1OT directional control valve according to your specifications, including:
- Custom porting configurations
- Specific pressure and flow requirements
- Integration with other hydraulic components
- Your company logo and branding
Our team of experienced engineers will work closely with you to develop a customized hydraulic solution that meets your exact needs and exceeds your expectations.
