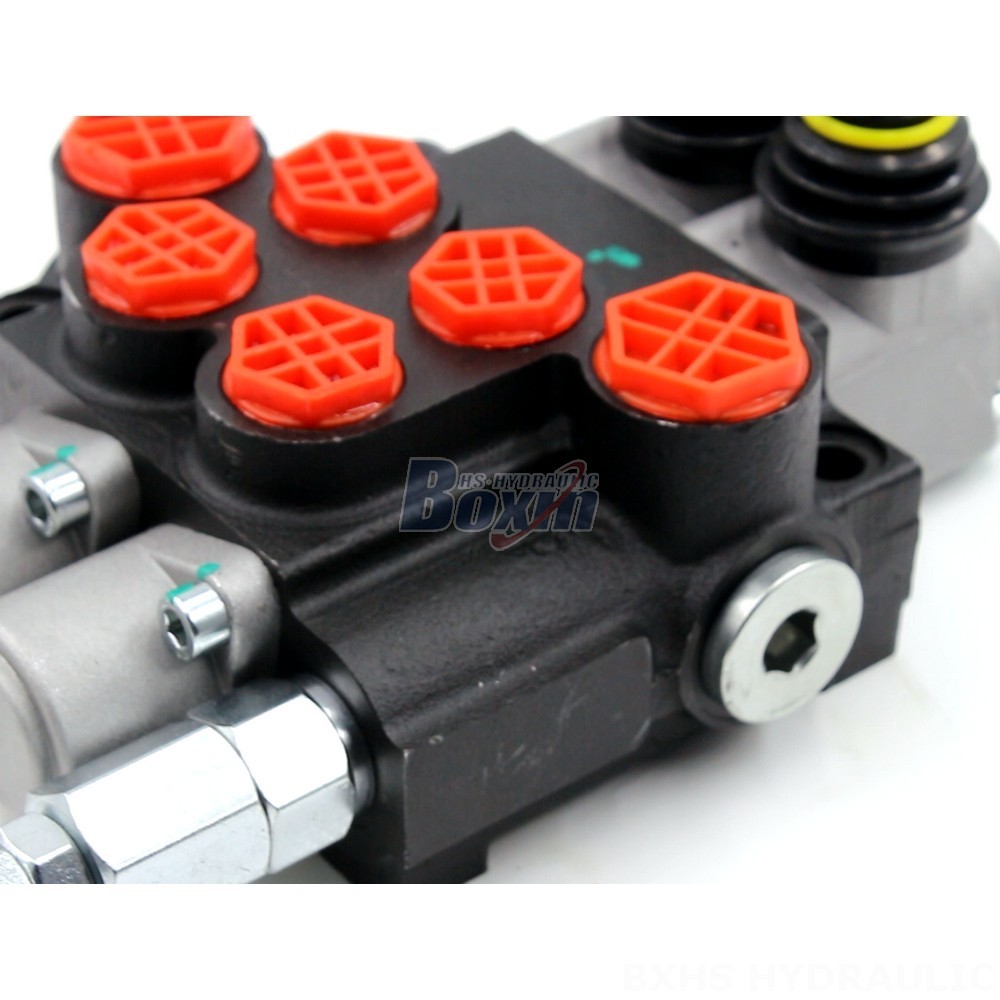

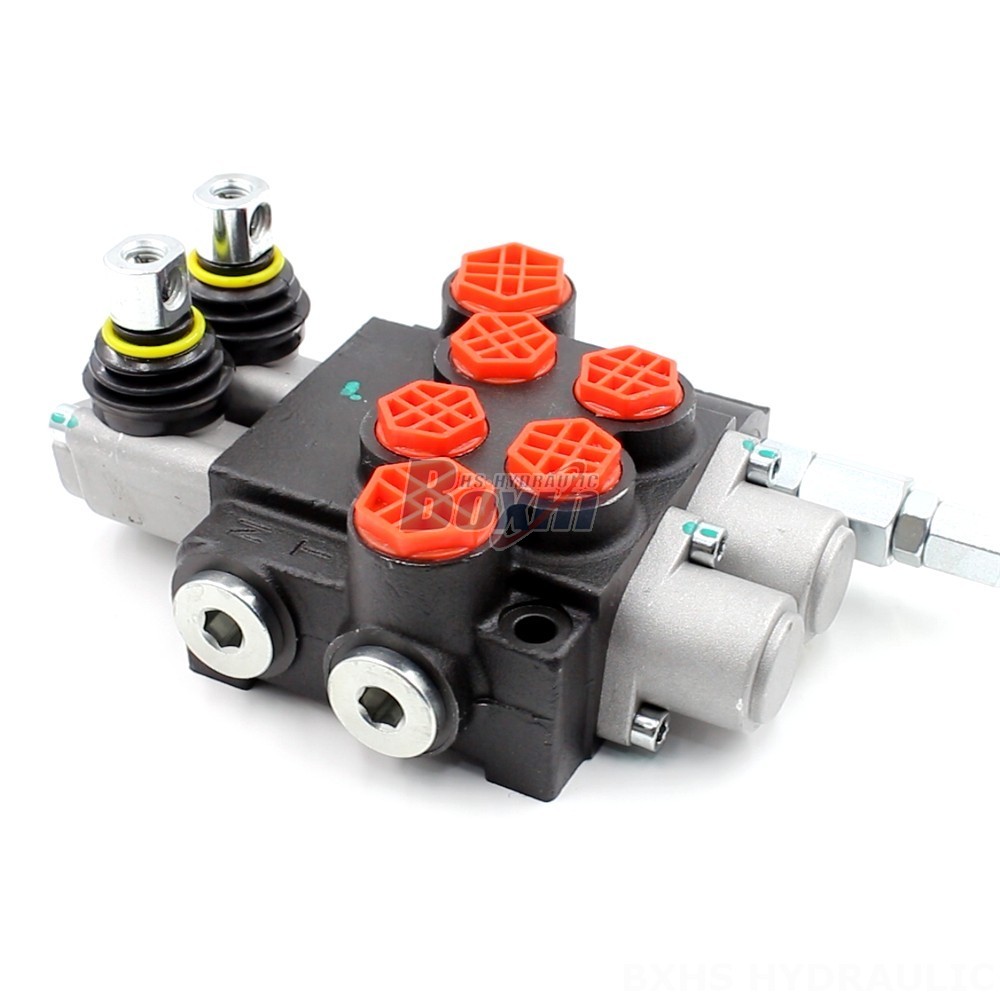

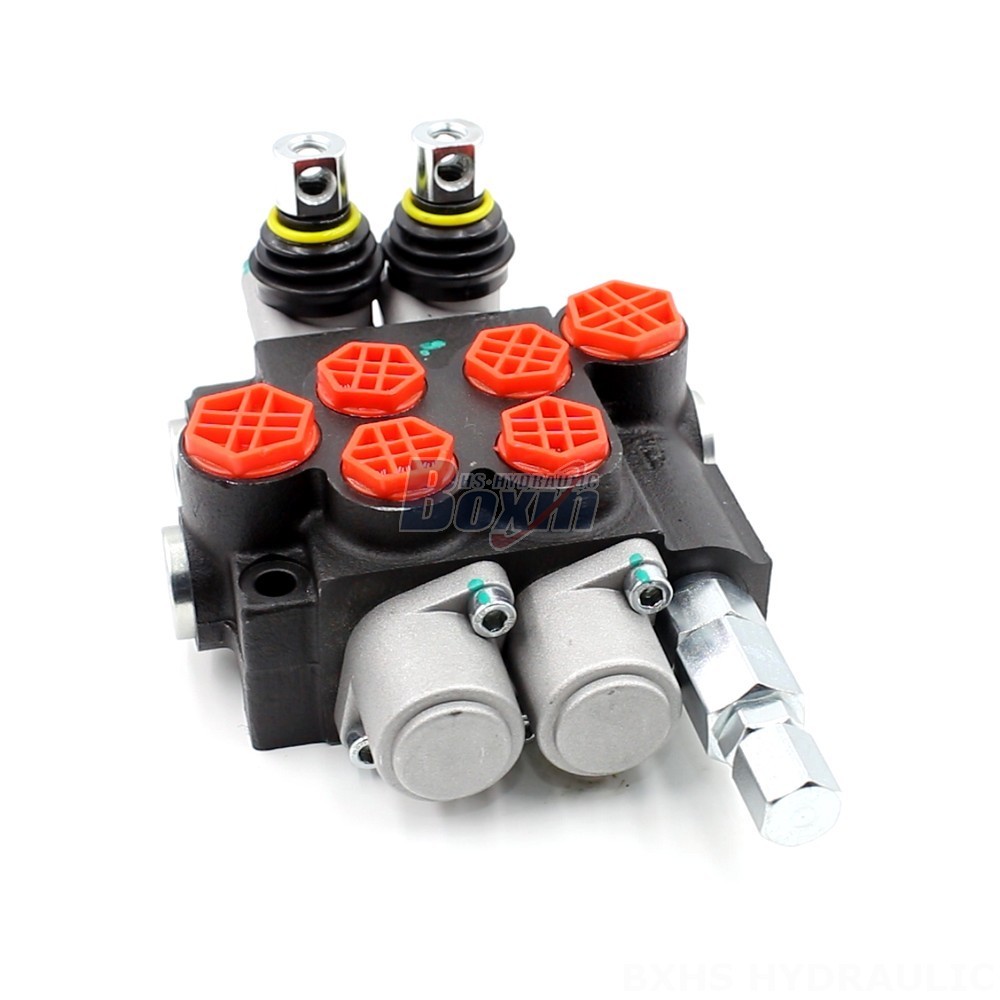

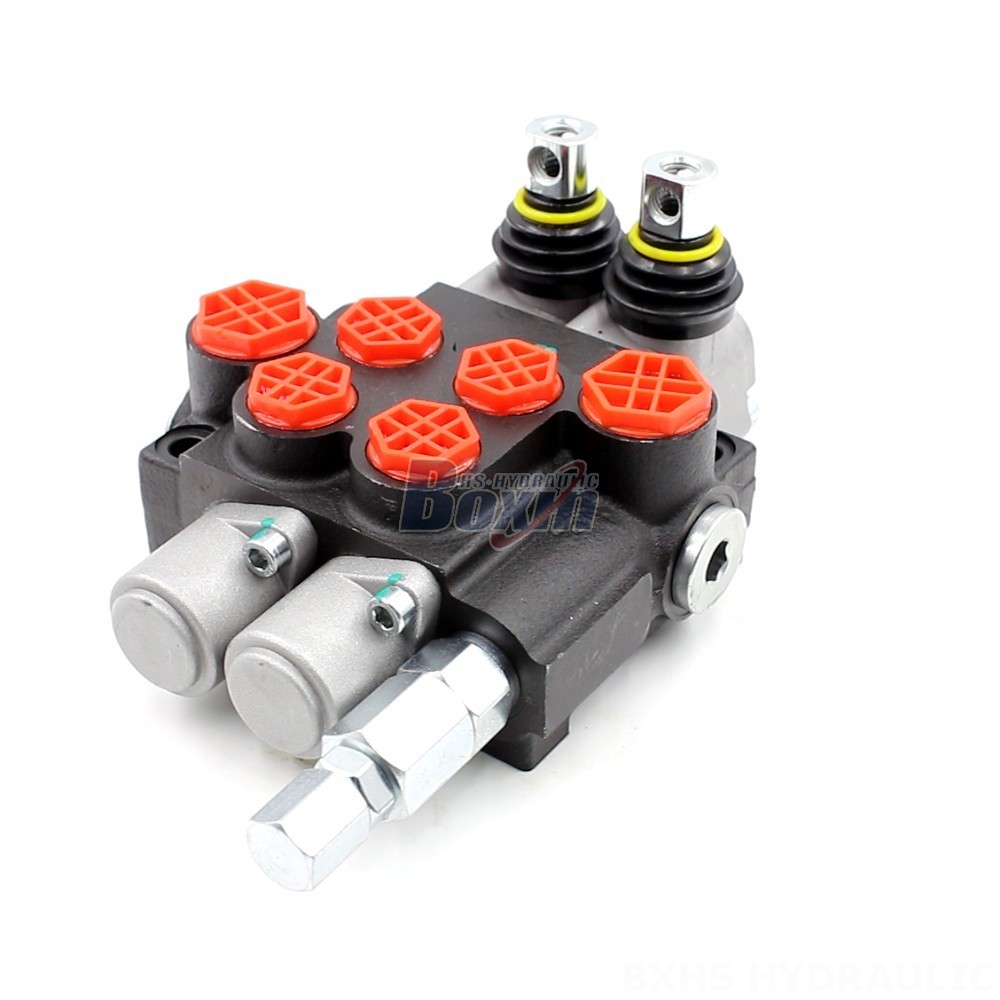

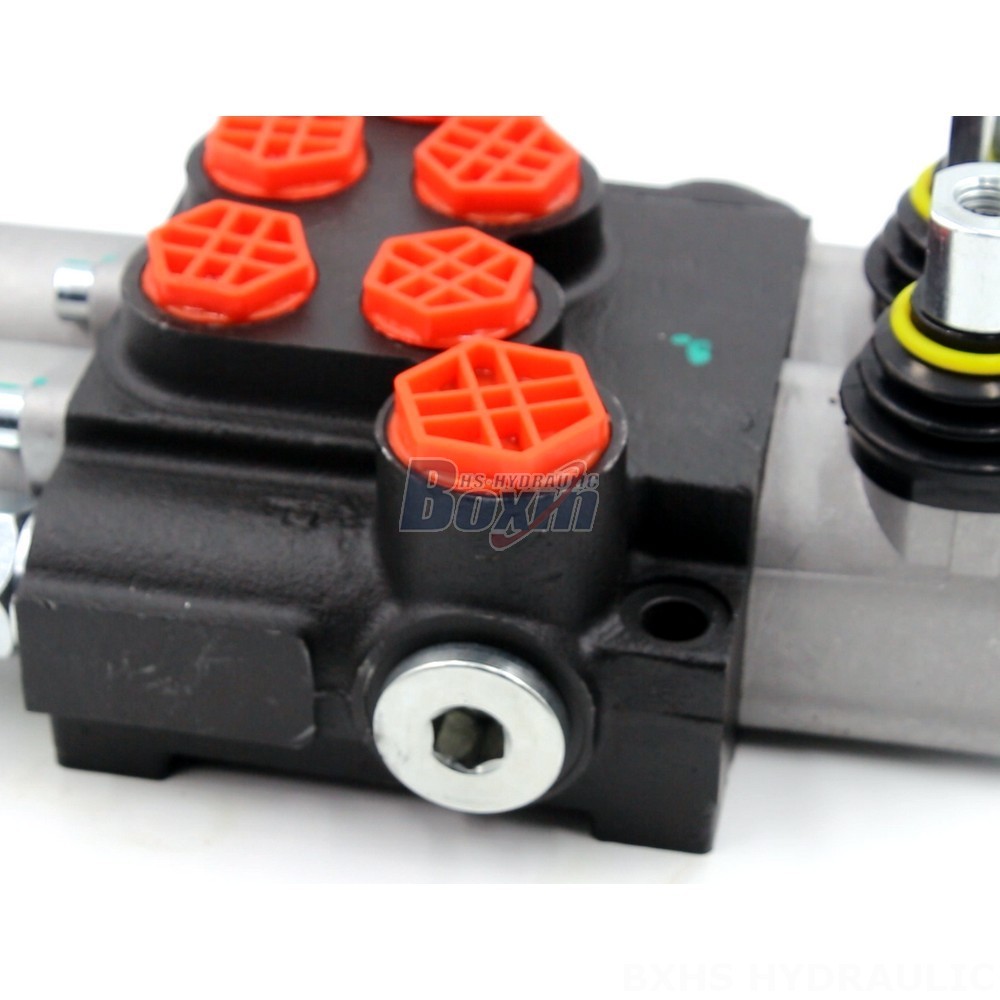

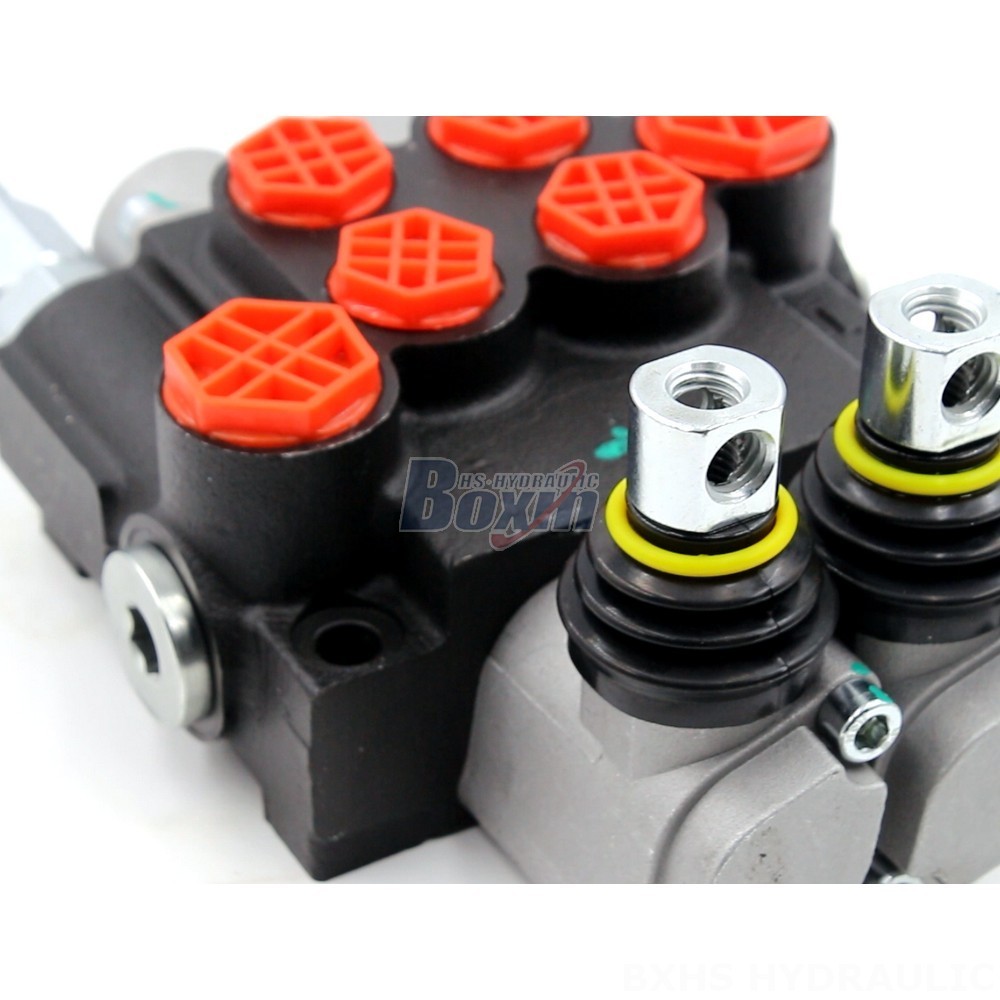

Our Bespoke Hydraulic Solutions: Customizable P40-G12-G38-OW Directional Control Valves are designed to meet your specific hydraulic system requirements. With a rated flow of 40 L/min and a maximum pressure of 250 bar, these valves are suitable for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
Our P40 Series directional control valves offer a high level of customization, allowing you to choose from various options to suit your specific needs. As a leading hydraulic product manufacturer, we provide OEM, ODM, and private labeling services to meet the unique requirements of our global customers. Our team of experienced engineers can work closely with you to design and manufacture hydraulic solutions tailored to your application. Whether you need custom spool configurations, pressure settings, or flow rates, we have the expertise to deliver the optimal solution for your hydraulic system.
