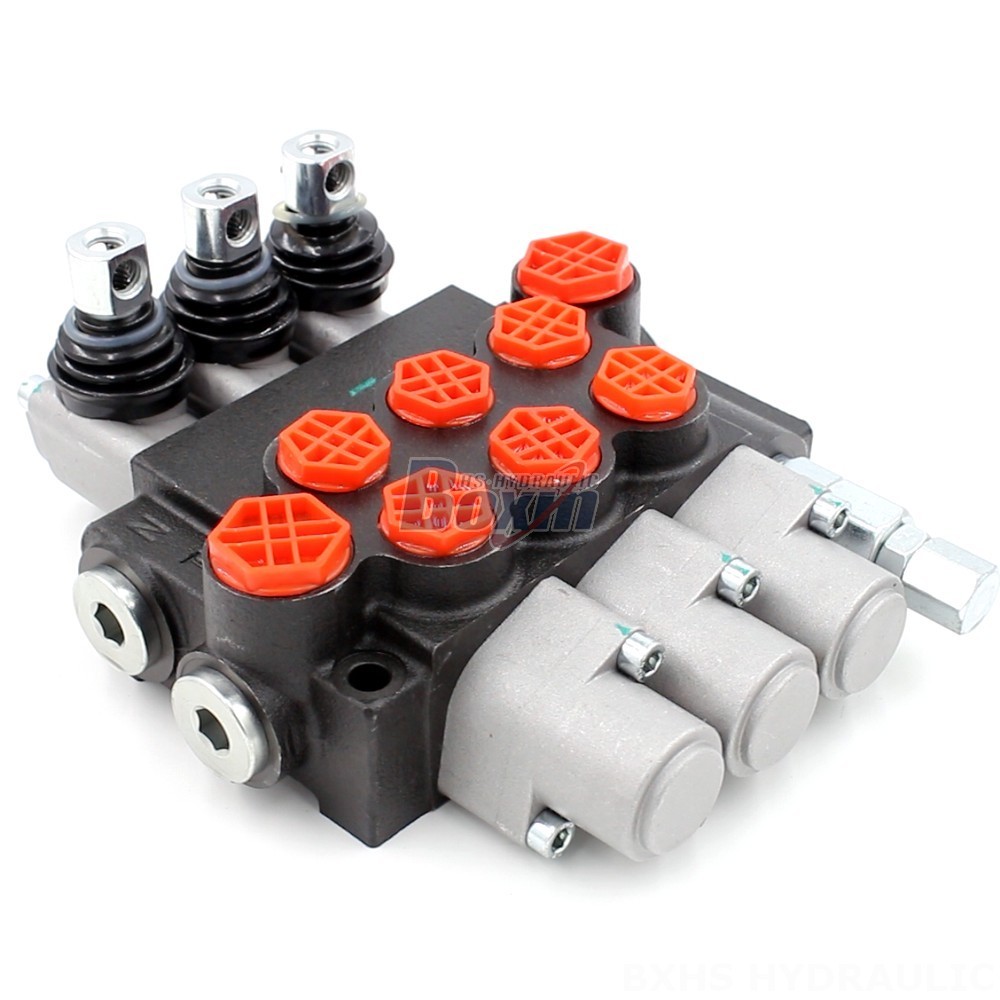

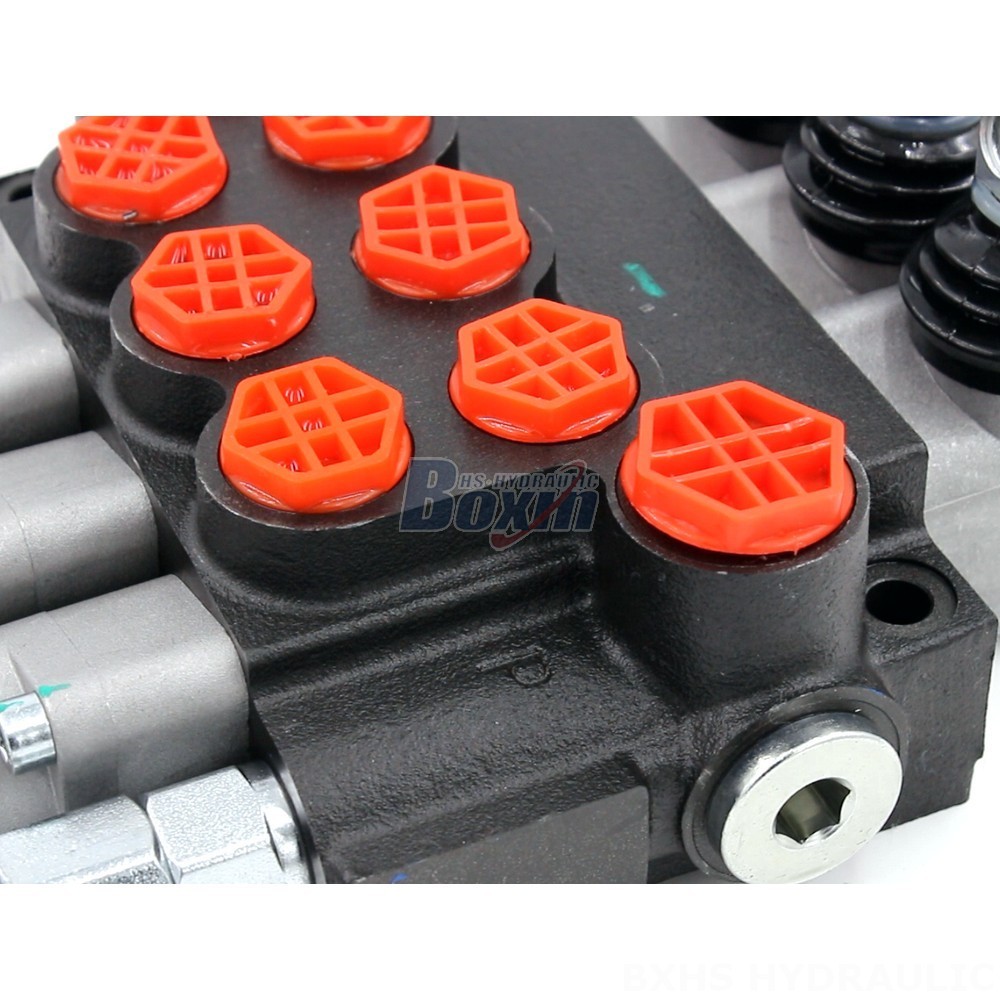

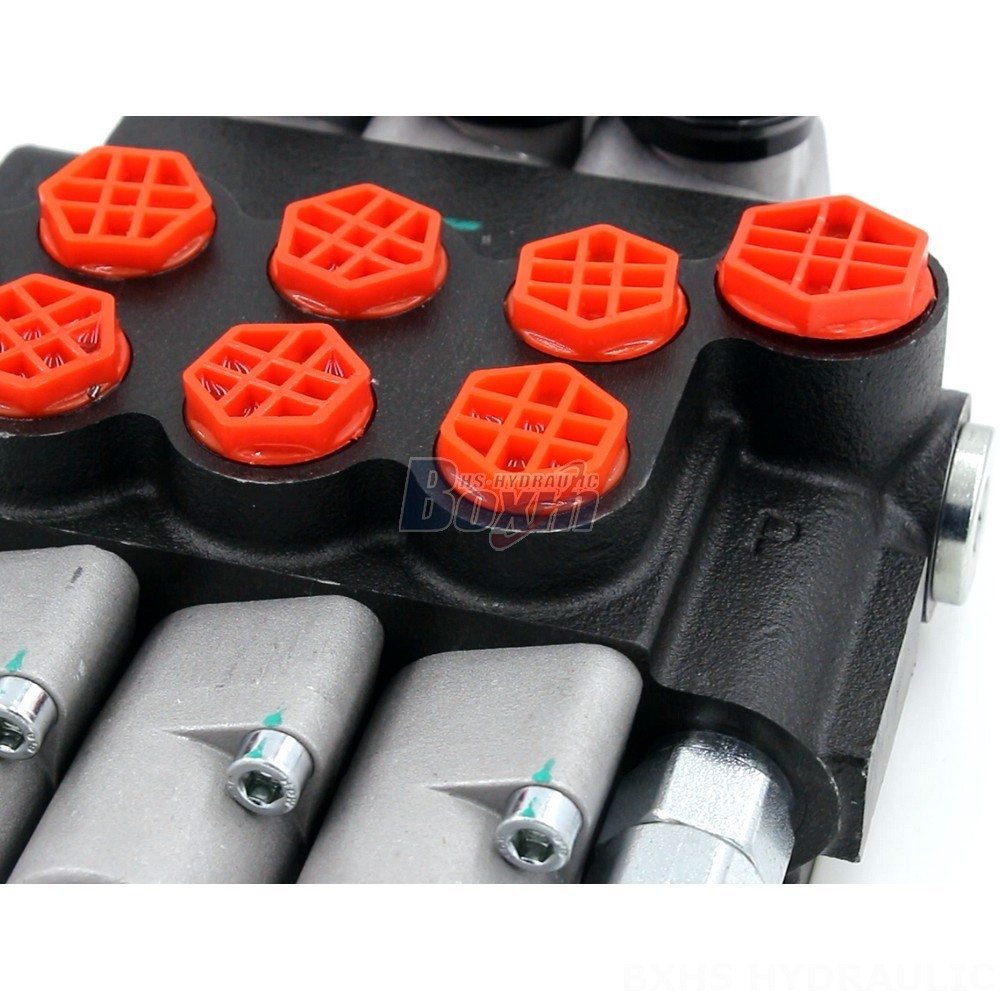

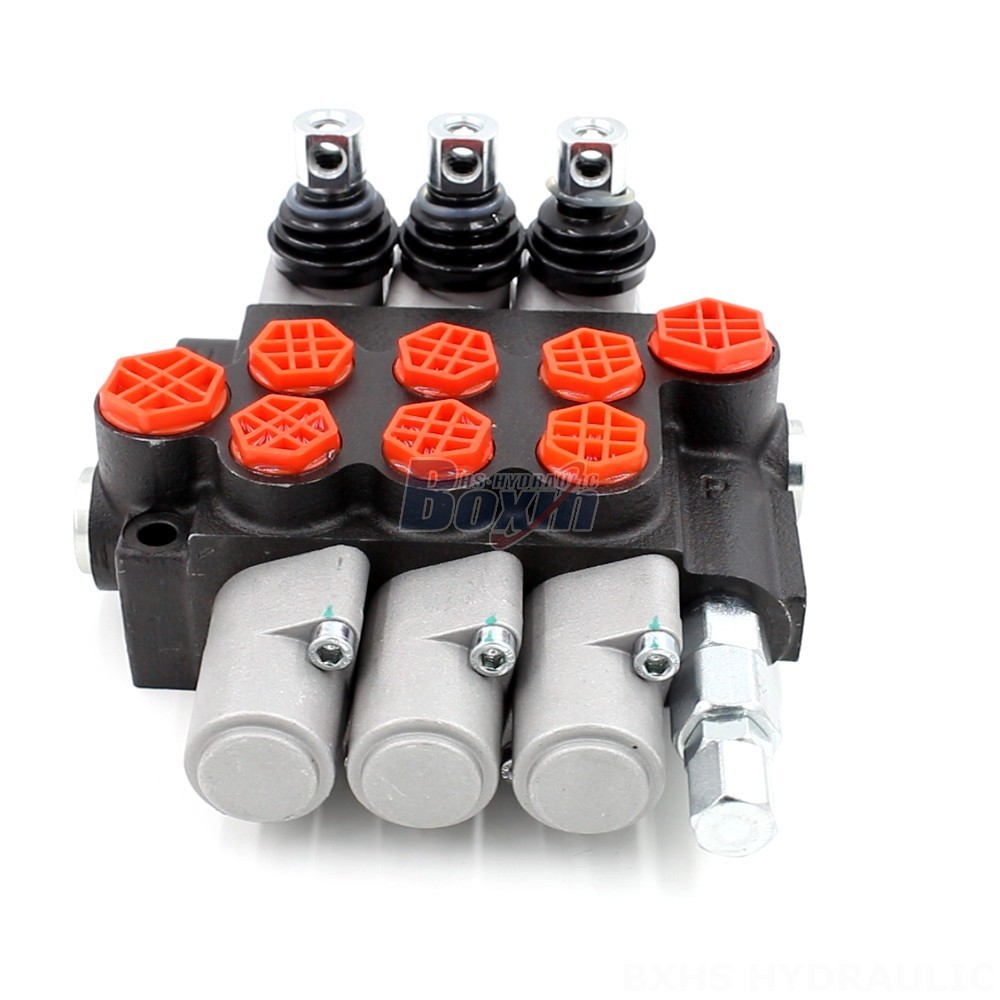

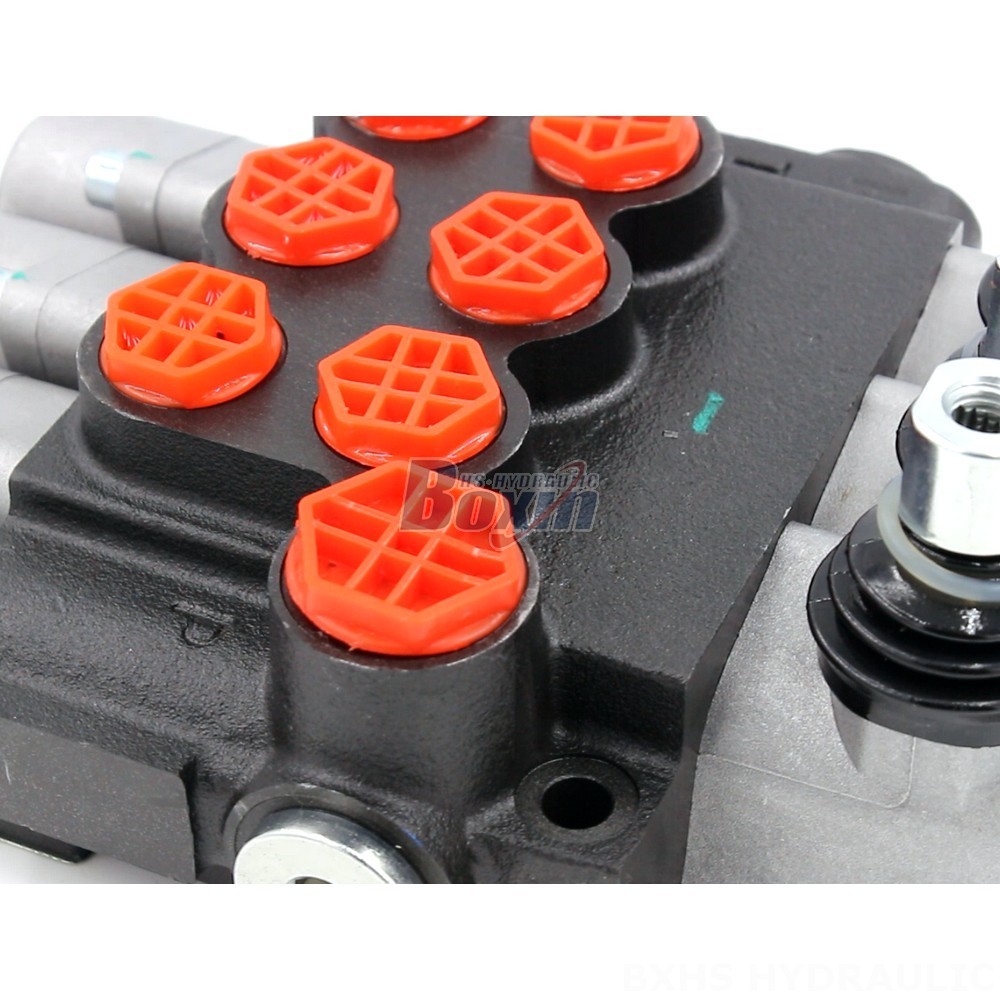

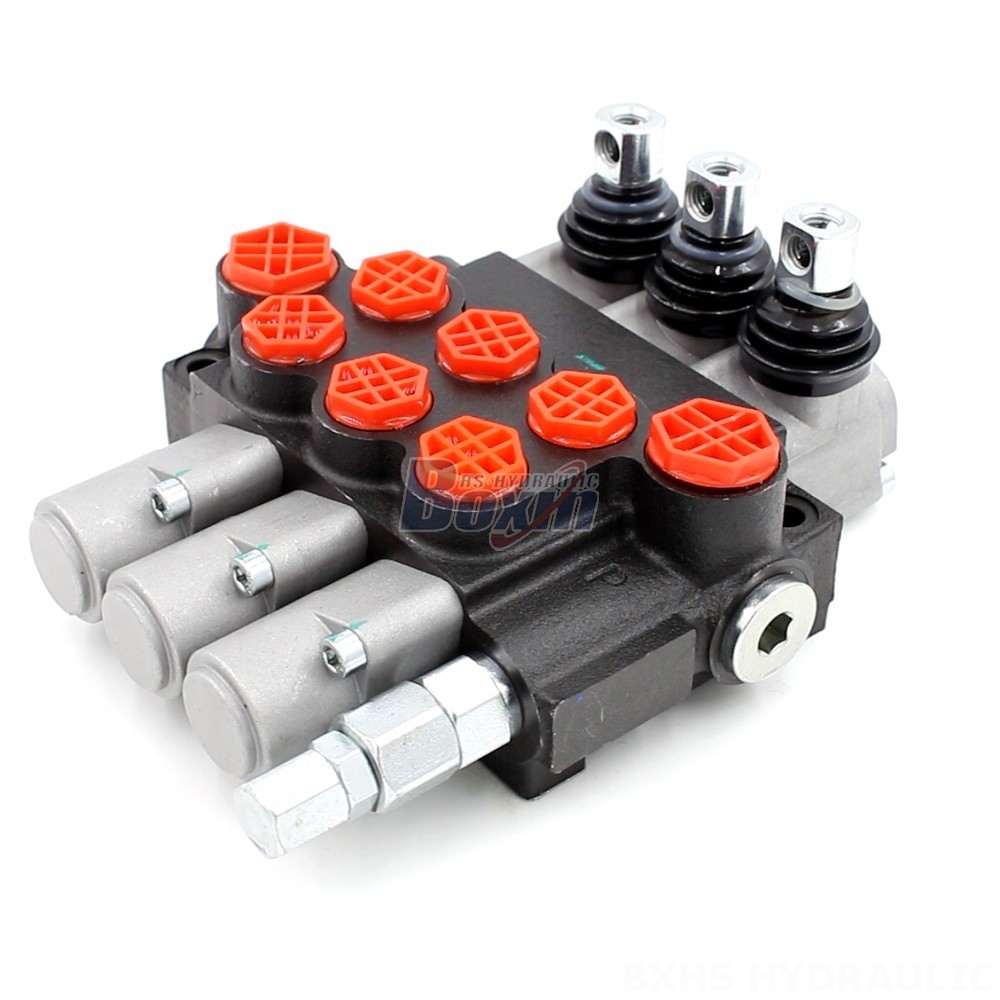

Bespoke Hydraulic Solutions: Customizable P40-G12-G38-3OT Directional Control Valves

控制方式:手控

路数:3 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:24*21*13

Grossweight:7.00 kg

库存: 有货

873 次查看了此产品

Bespoke Hydraulic Solutions: Customizable P40-G12-G38-3OT Directional Control Valves

Bespoke Hydraulic Solutions: Customizable P40-G12-G38-3OT Directional Control Valves

Bespoke Hydraulic Solutions: Customizable P40-G12-G38-3OT Directional Control Valves drawing image

Introducing our premium Bespoke Hydraulic Solutions: Customizable P40-G12-G38-3OT Directional Control Valves. Engineered with precision, these valves offer exceptional control and versatility for demanding hydraulic applications. With a rated flow of 40 L/min (10.5 US gpm) and a max pressure of 250 bar (3600 psi), they ensure reliable performance in diverse industries.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

Our customizable P40-G12-G38-3OT Directional Control Valves feature a robust monoblock valve structure, providing superior durability and leak-proof operation. They operate effortlessly with manual control, making them ideal for precise fluid management. The wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures compatibility with various hydraulic fluids. The valves are designed to withstand extreme temperatures from -40°C to +80°C (-40°F to +176°F), ensuring reliable operation in challenging environments.

We offer flexible manufacturing options, including OEM, private label, and custom design services. Our team of experts collaborates closely with customers to develop tailored solutions that meet specific application requirements. Whether you're a distributor, wholesaler, or end-user, we provide comprehensive support throughout the entire process.
