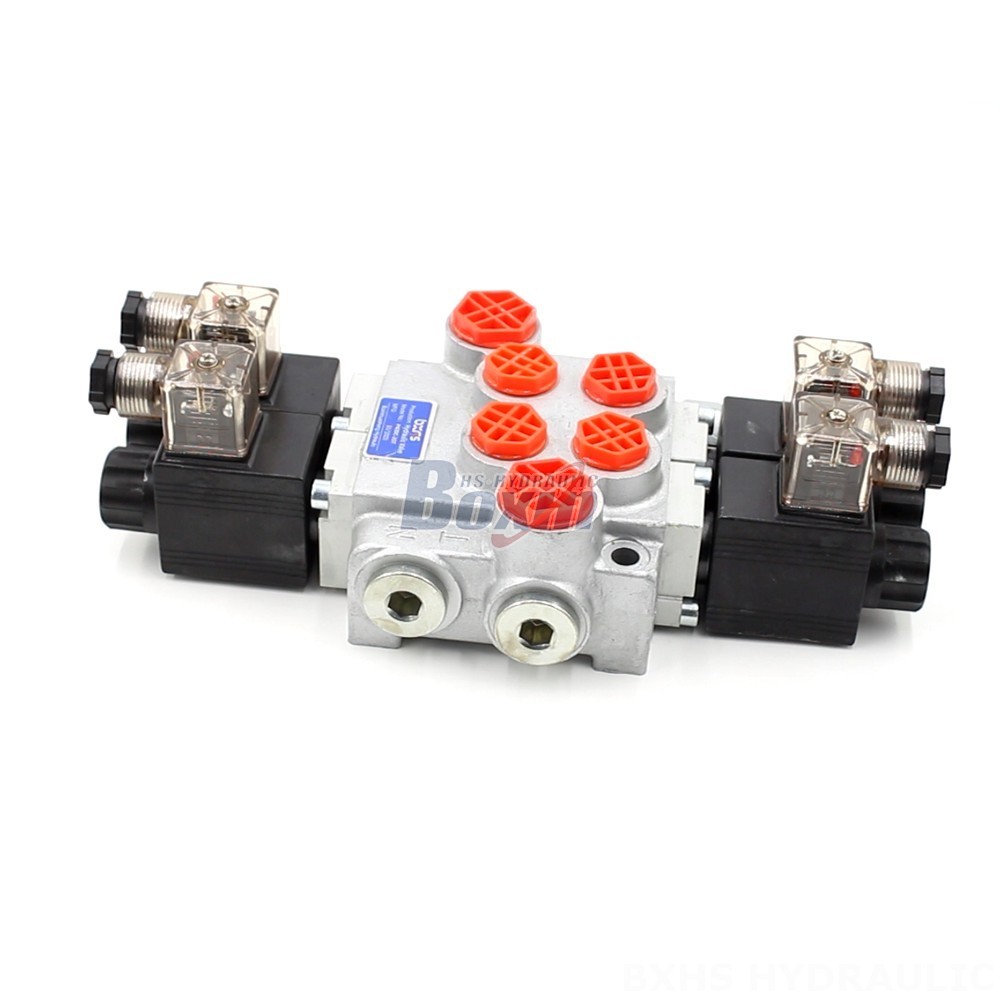

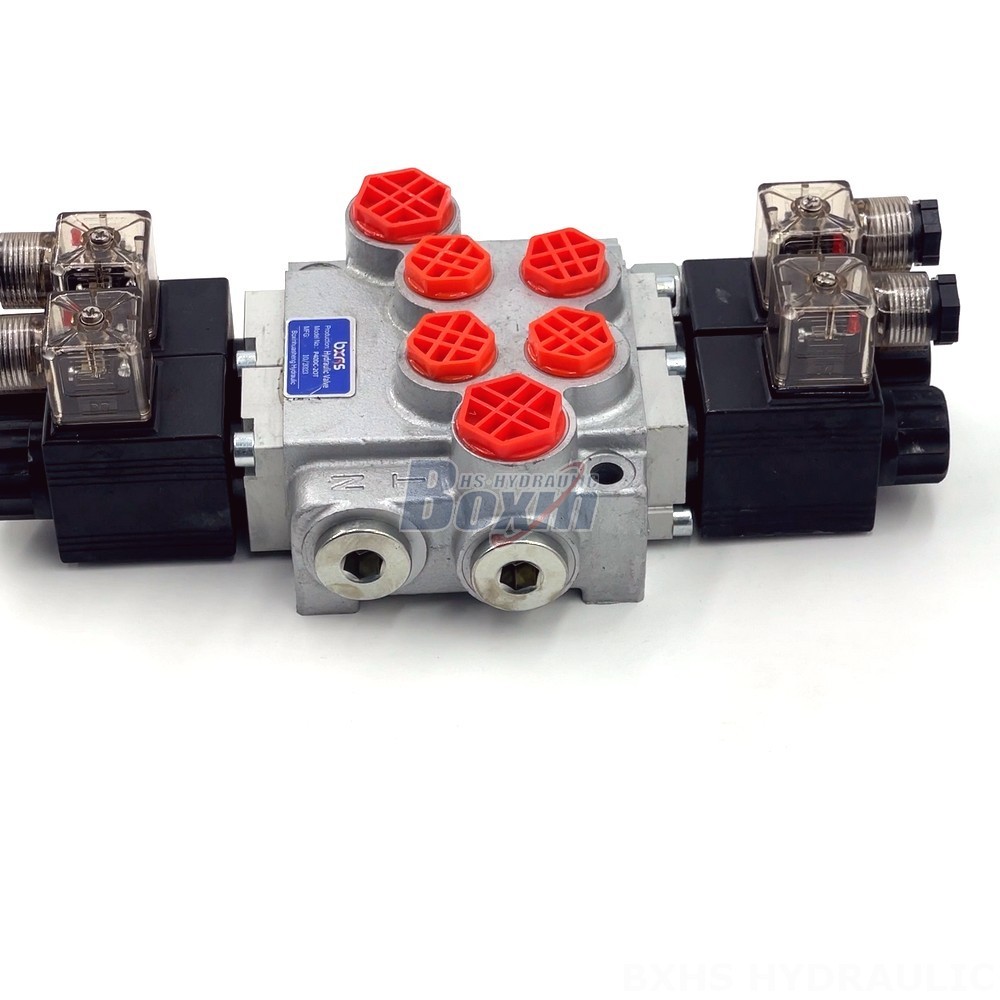

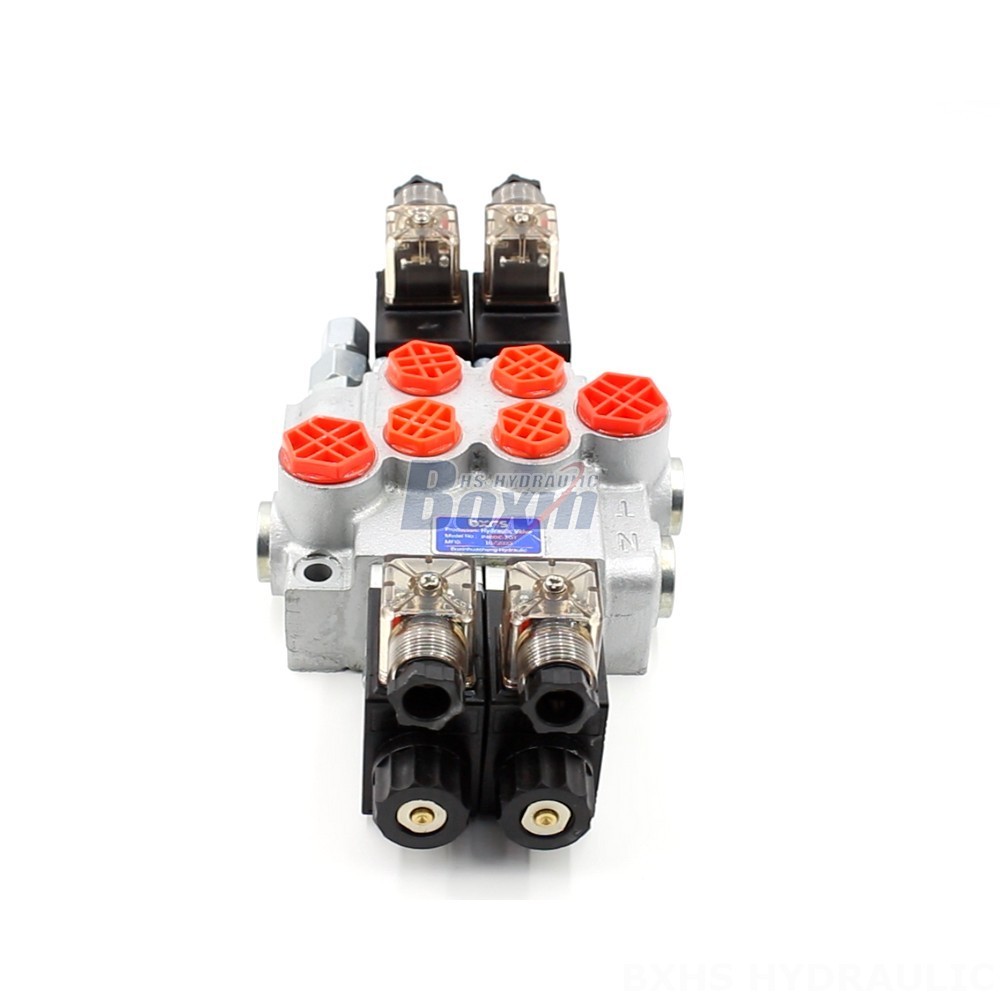

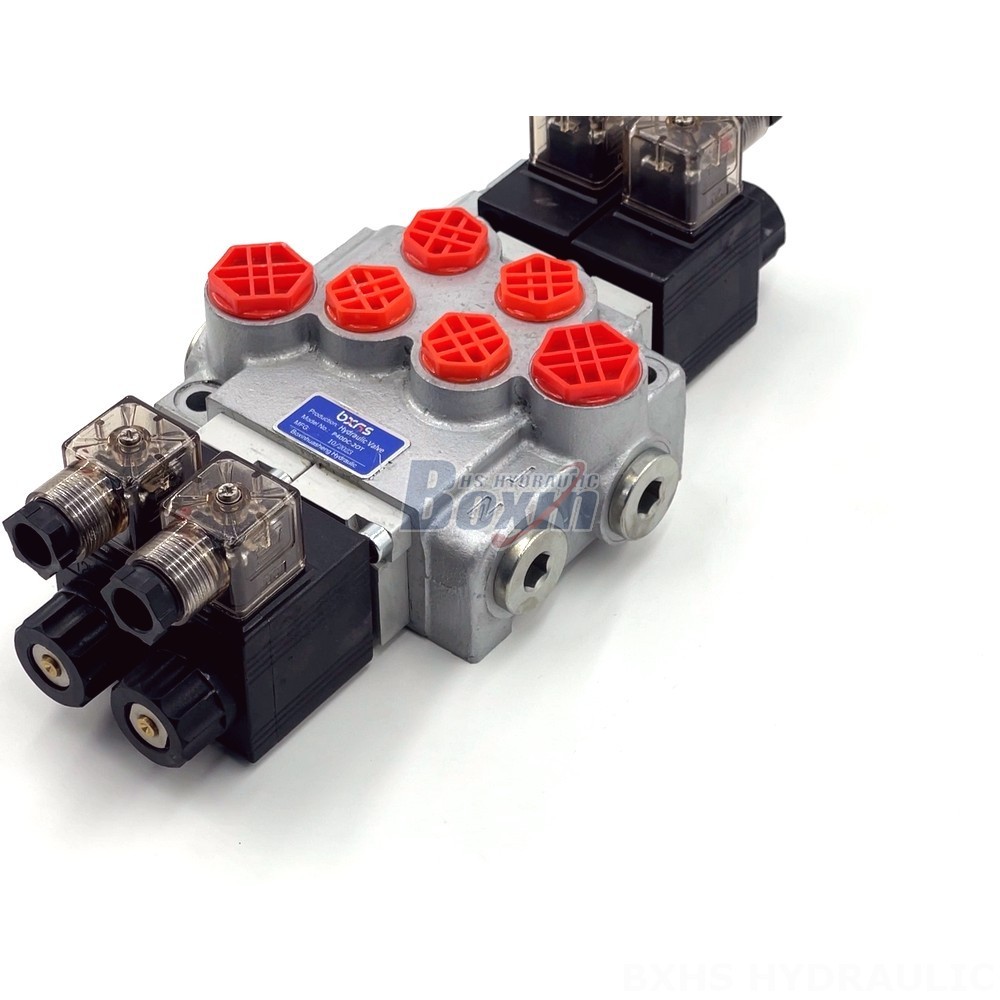

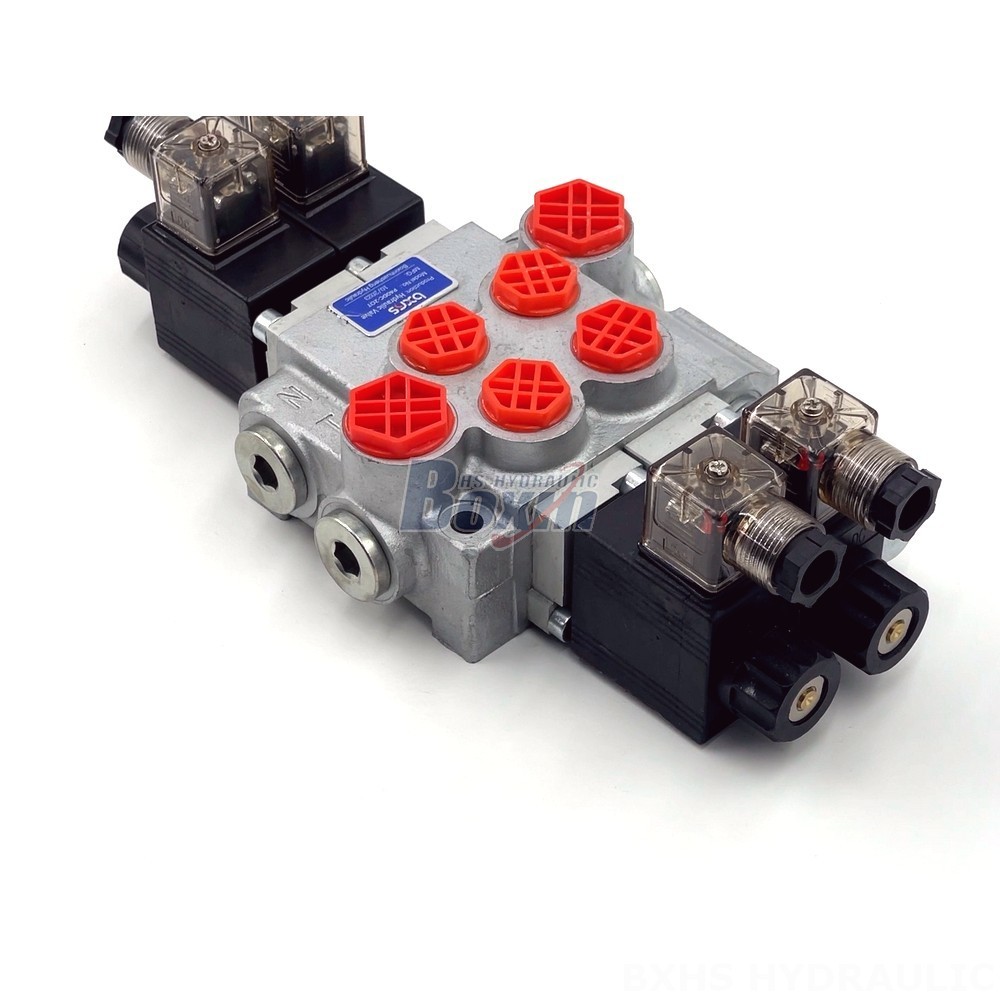

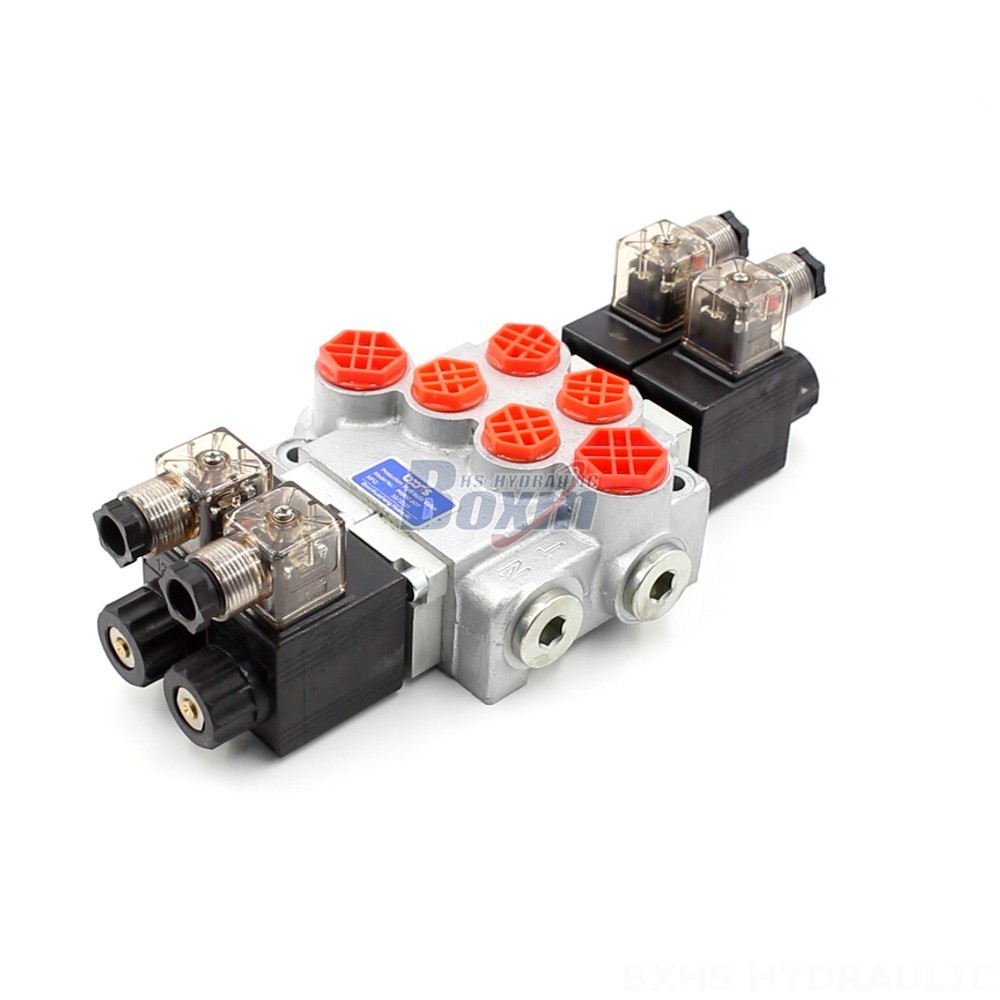

The P40-DKL valve is a high-performance, 2-section monoblock directional control valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This solenoid-operated valve features a rated flow of 40 L/min, a maximum pressure of 250 bar, and a wide operating viscosity range, making it suitable for demanding applications.
| P40-DKL系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The P40-DKL valve is a robust and reliable solution for controlling hydraulic fluid flow in a wide range of mobile equipment. This 2-section monoblock valve features a solenoid control method for easy and precise operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it can handle demanding hydraulic systems. The valve's wide operating viscosity range (15-75 mm²/s) ensures reliable performance in various environmental conditions. Its compact design and lightweight construction make it ideal for integration into various mobile applications. This valve is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
