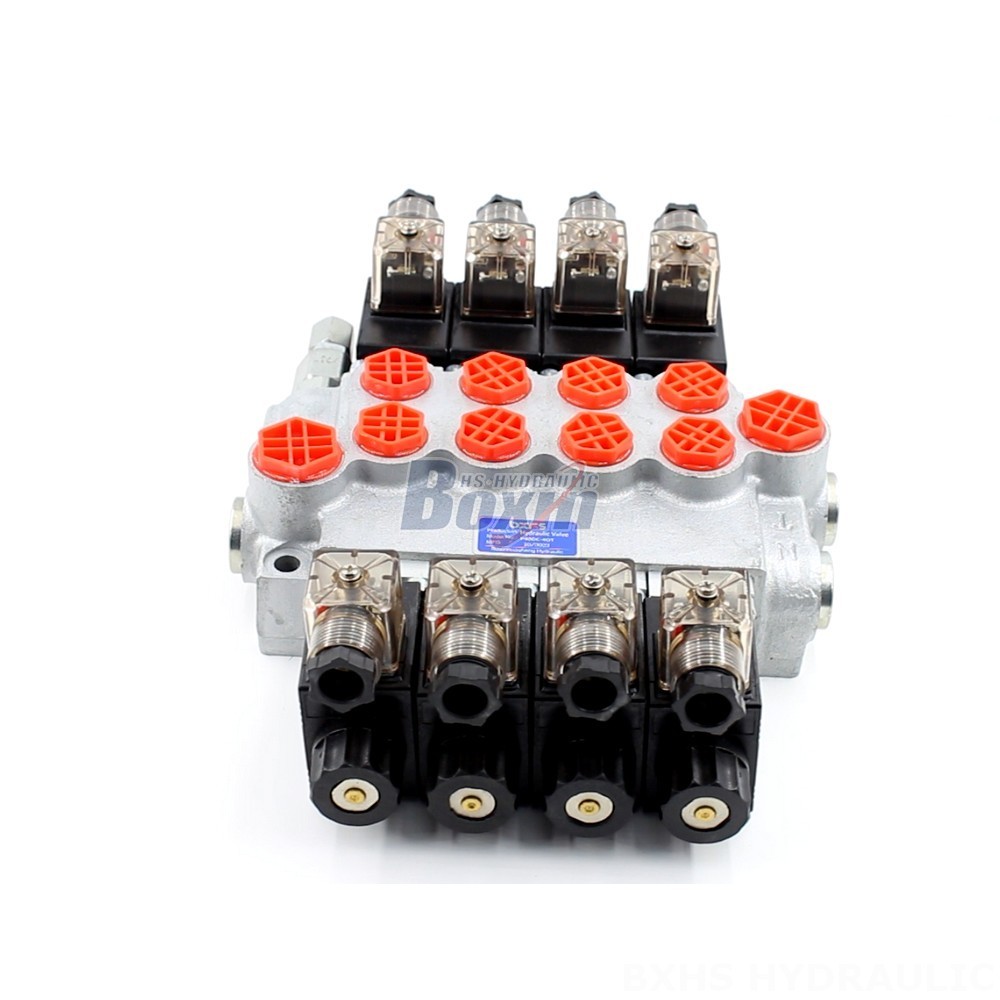

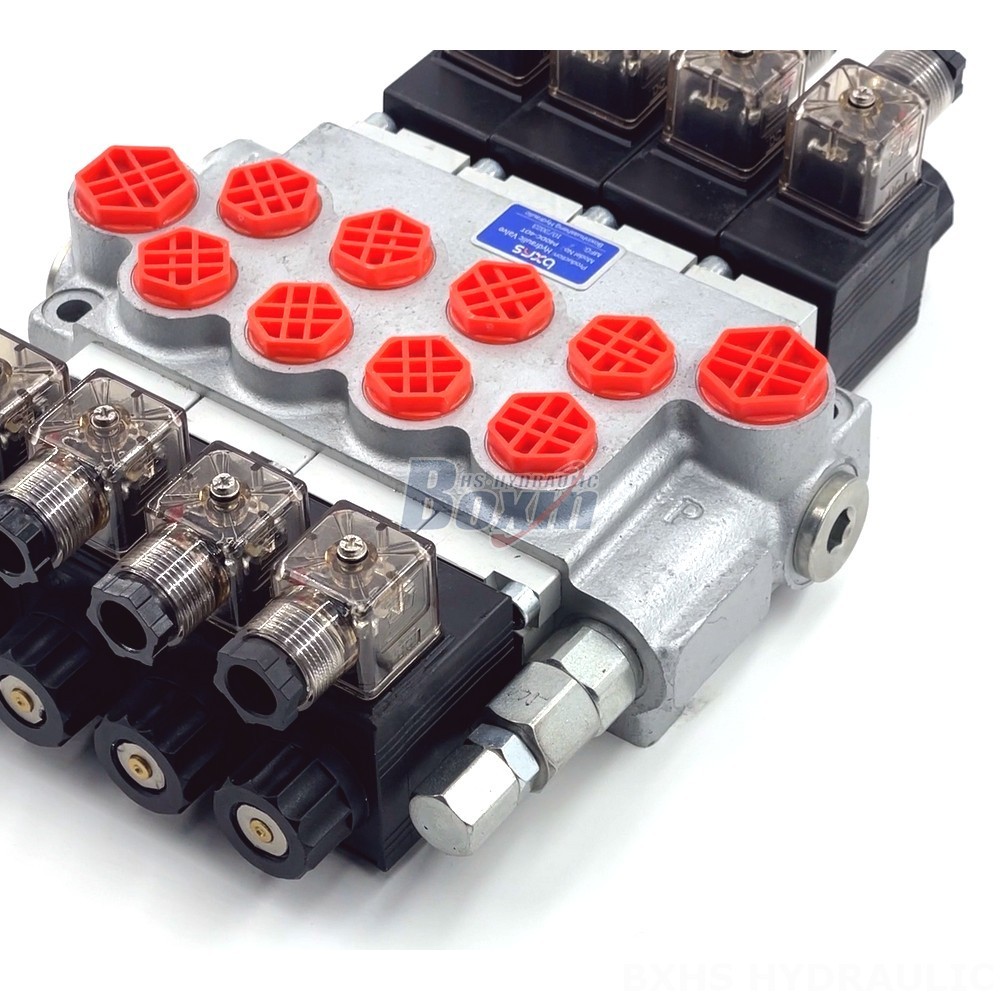

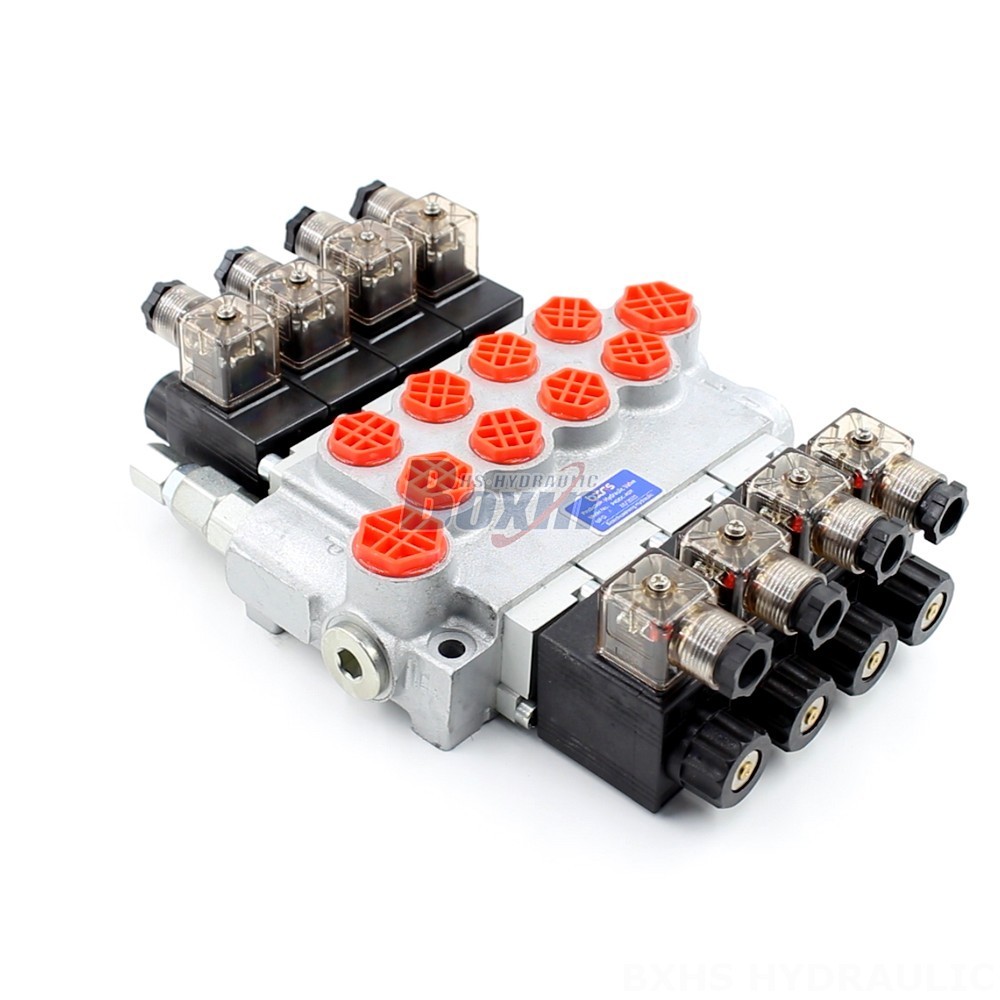

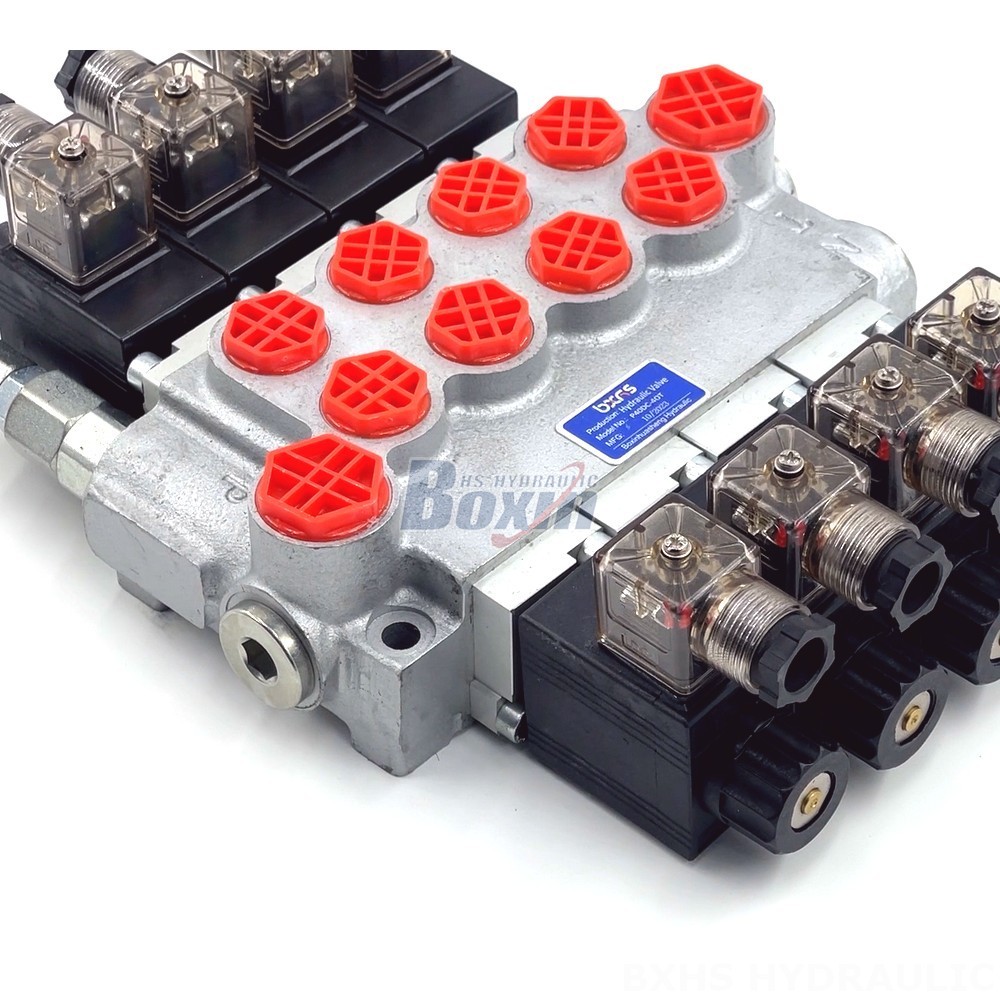

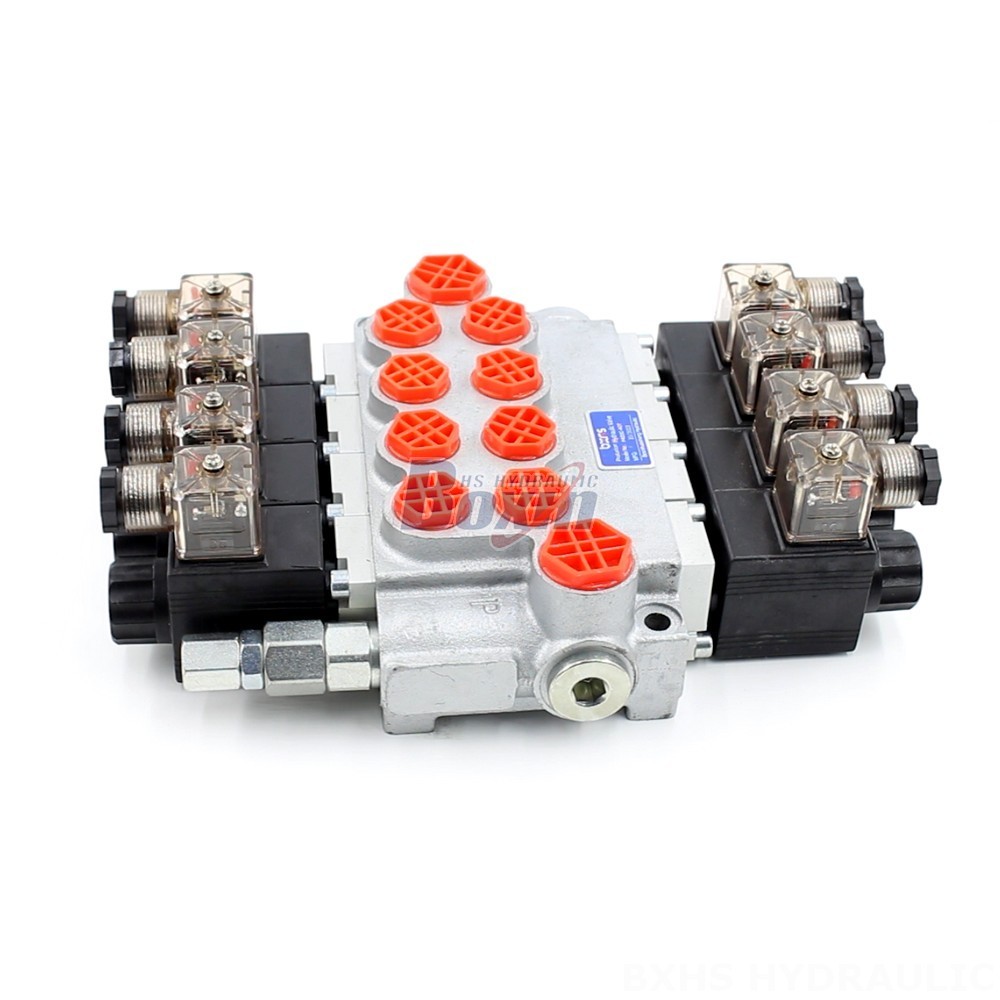

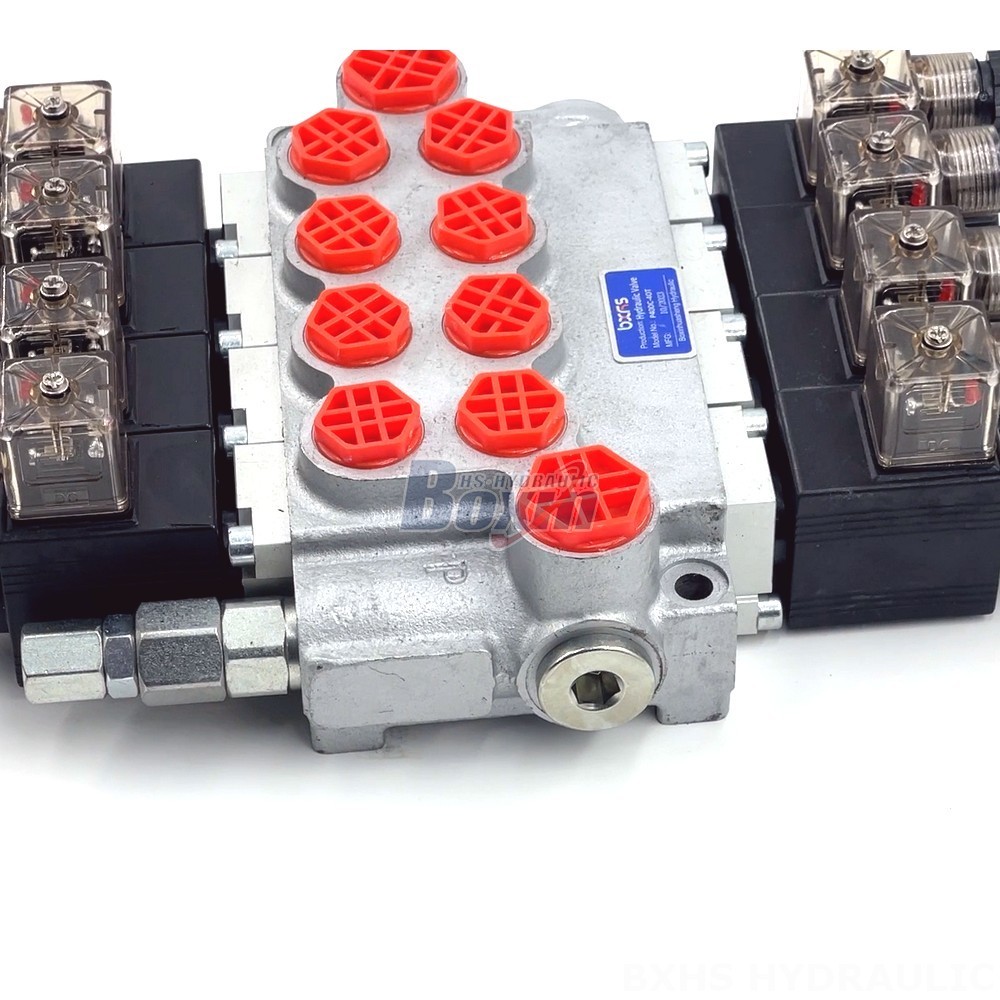

The P40-DKL Series Hydraulic Valve is a 4-spool monoblock directional valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. It features a solenoid control method, 4 sections, and a rated flow of 40 L/min. This valve is available for wholesale and OEM services.
| P40-DKL系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
This high-performance hydraulic valve is designed with a 4-spool monoblock structure, providing superior control and efficiency. It features a solenoid control method for precise actuation and a rated flow of 40 L/min, suitable for demanding applications. The P40-DKL series is ideal for a wide range of vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. We offer wholesale and OEM services to meet diverse customer needs. This valve is also characterized by its robust construction and wide operating temperature range, making it suitable for various environmental conditions.
