Sawmill Hydraulic Valve 3-Spool Solenoid Valve | HDCF50 Model | Factory Direct & Customizable

控制方式:电磁

路数:3 联

额定流量:50 L/min (13.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:M22×1.5螺纹

出油口:M22×1.5螺纹

接口尺寸:M18×1.5螺纹

品牌:BXHS

所属类别:电磁控制阀

产品系列:HDCF50系列电磁控制阀

Packagingsize:30*30*18

Grossweight:13.50 kg

库存: 有货

描述

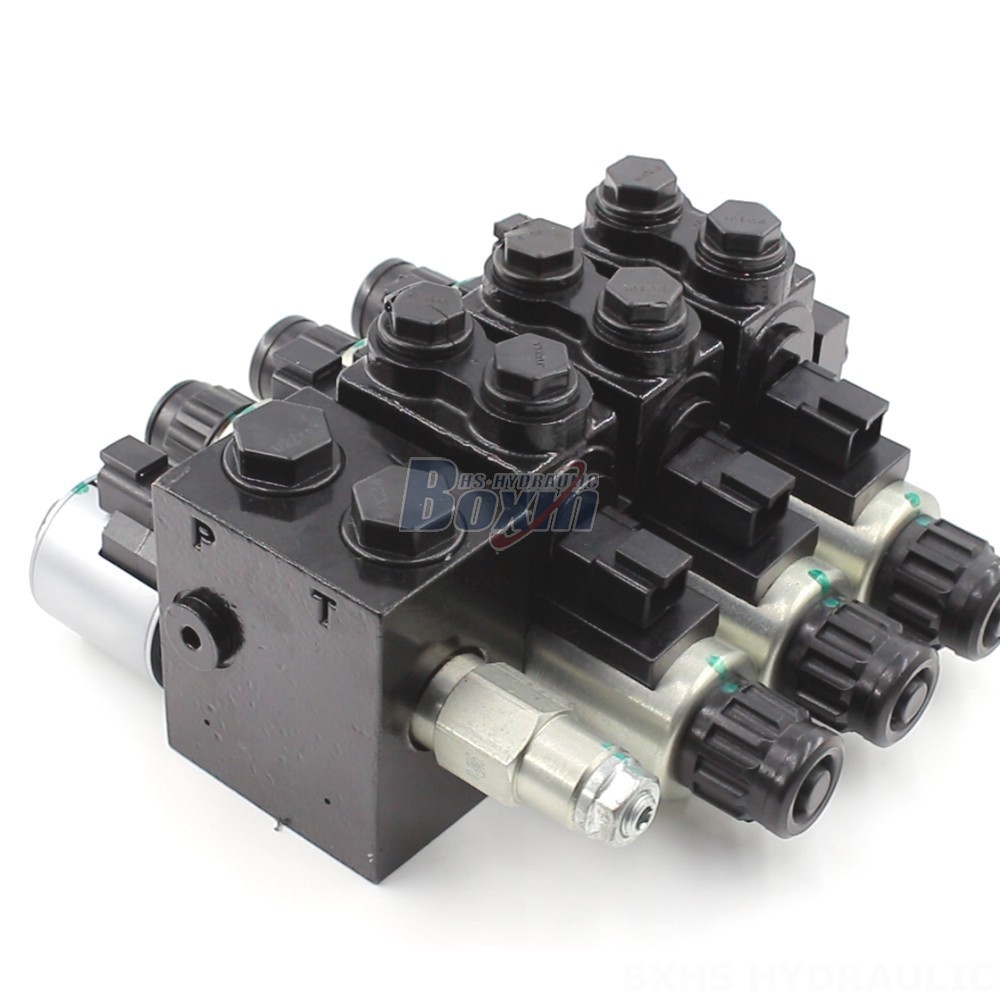

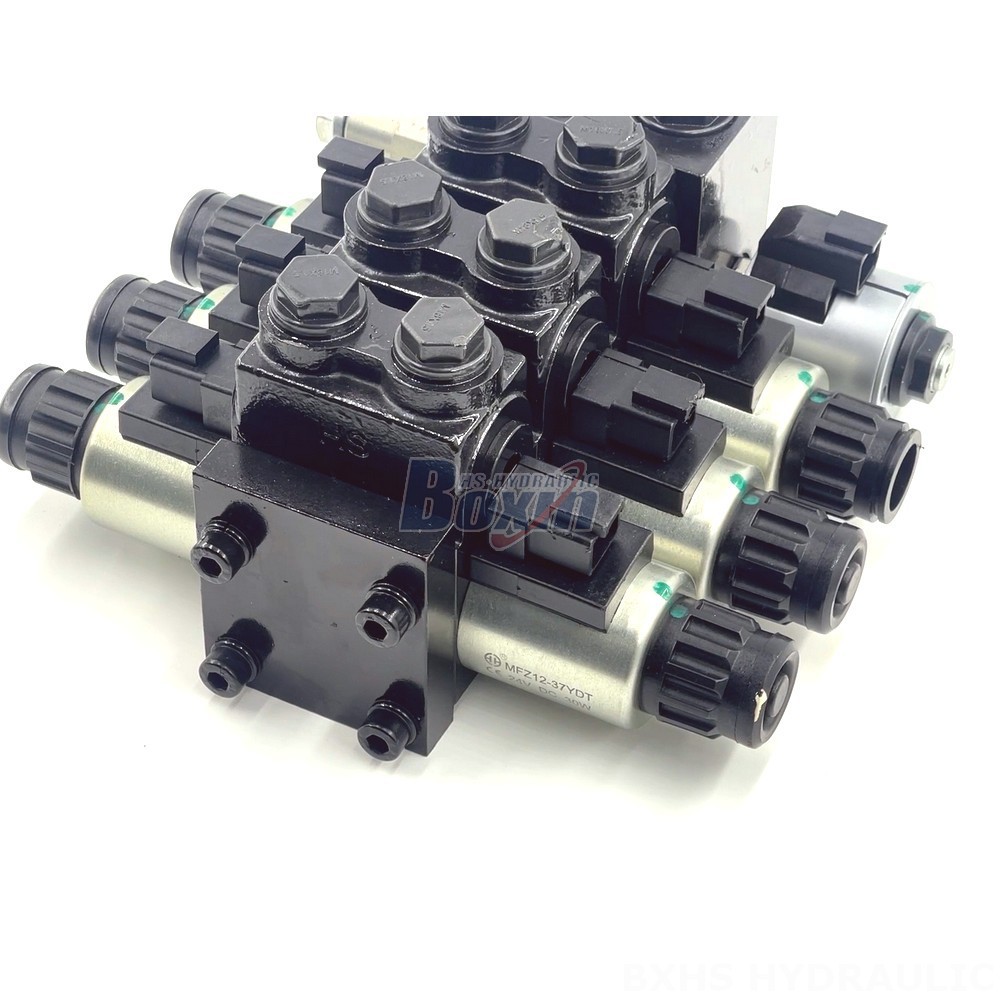

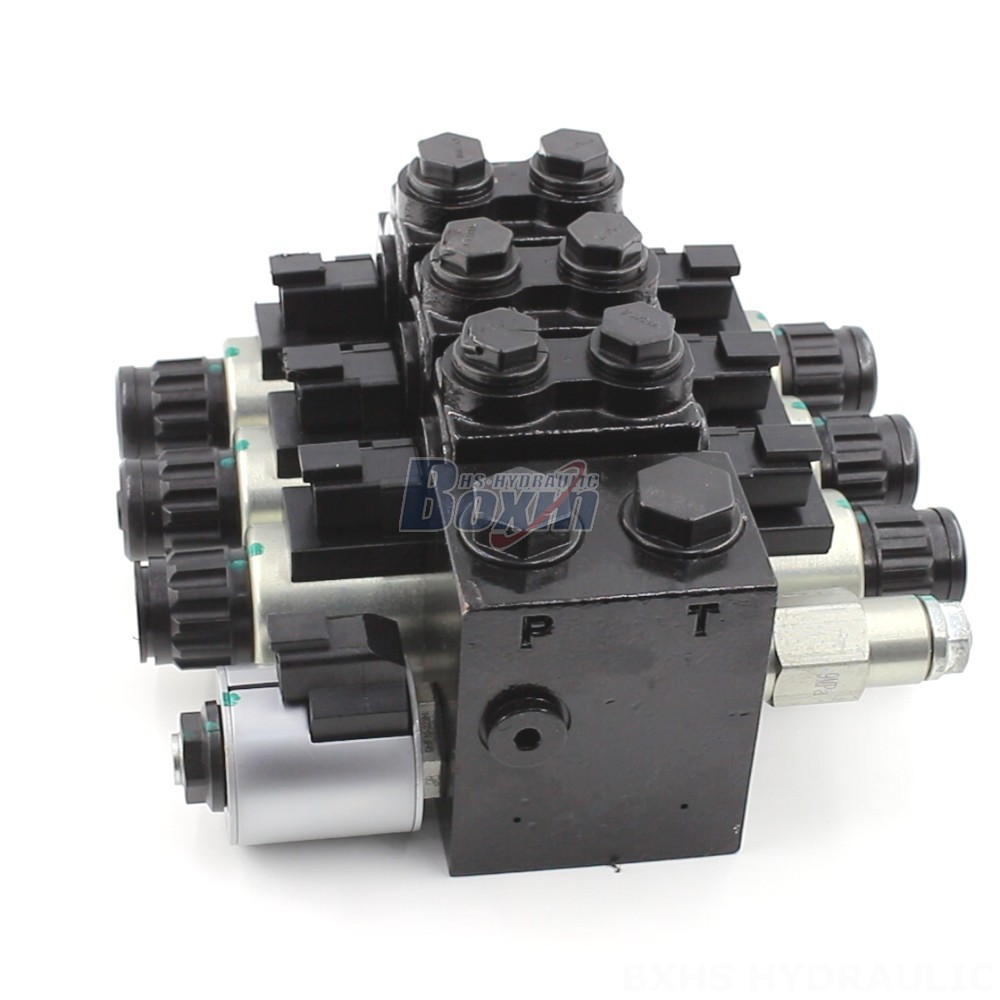

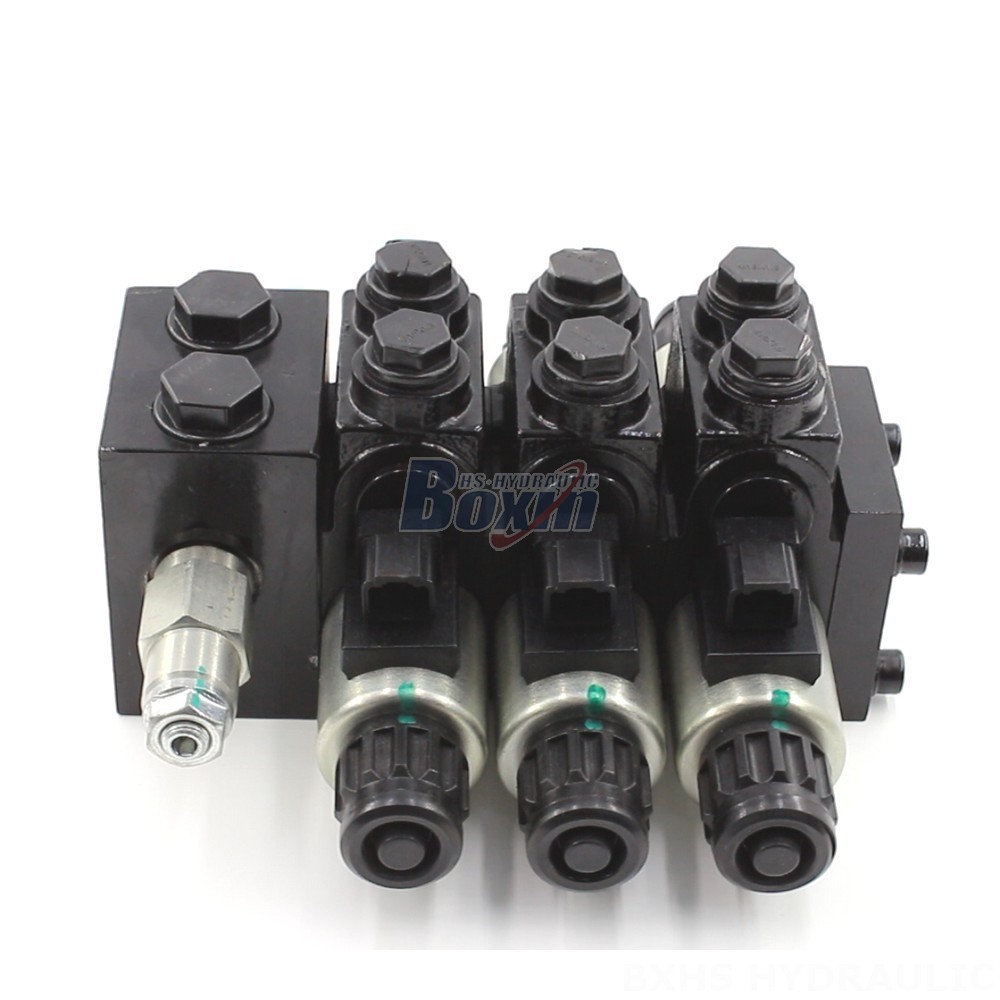

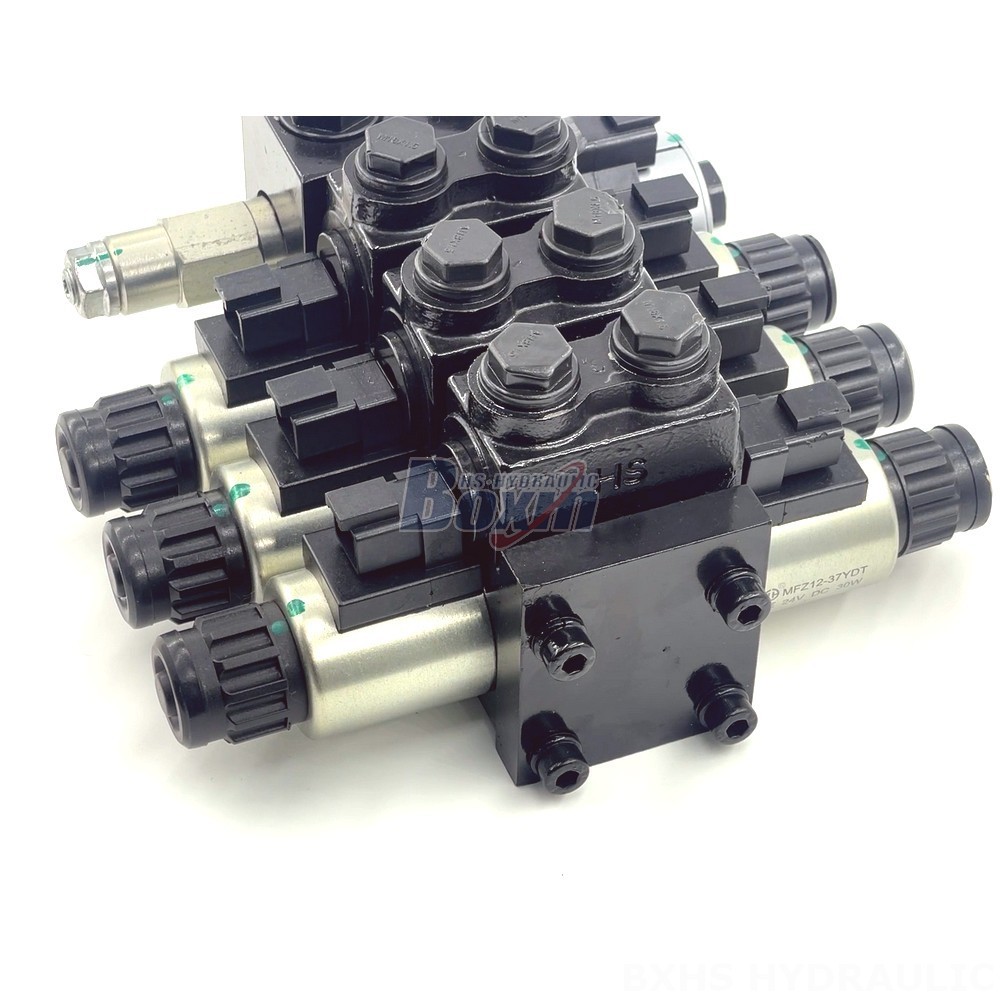

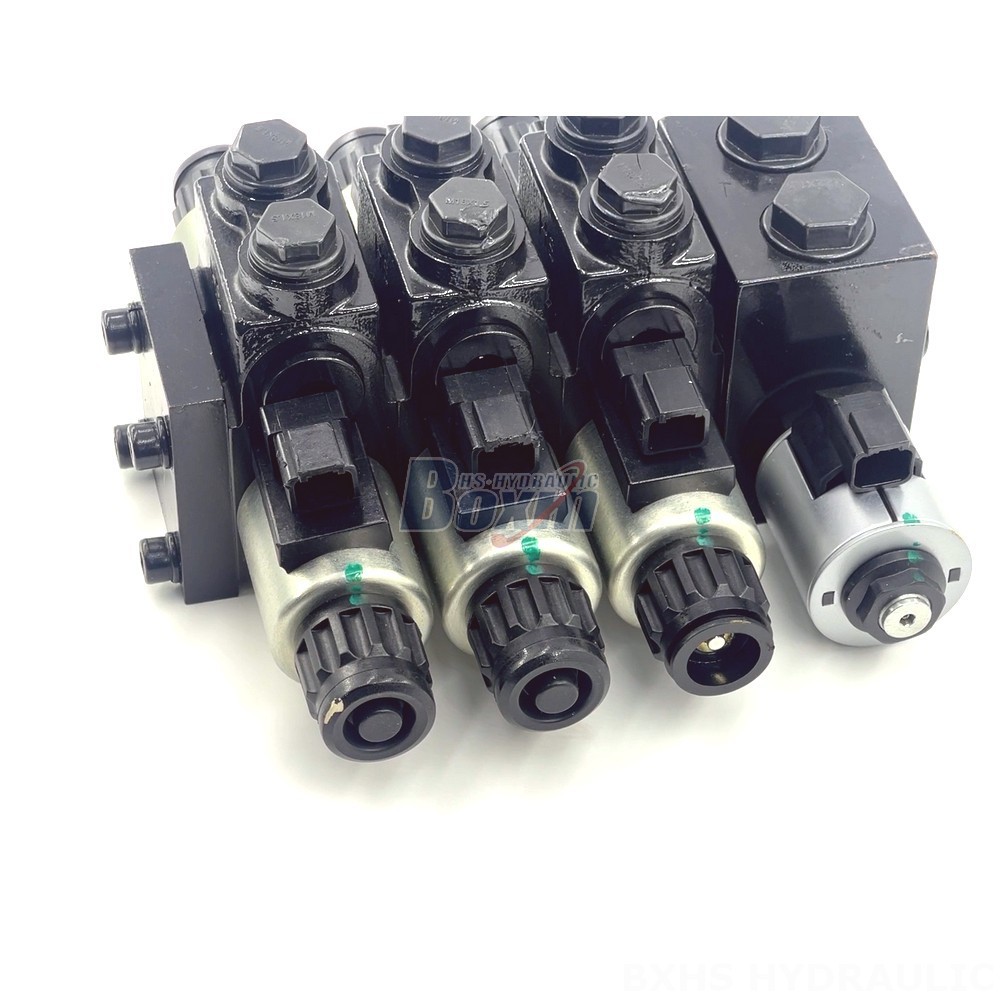

Sawmill Hydraulic Valve 3-Spool Solenoid Valve | HDCF50 Model | Factory Direct & Customizable

Sawmill Hydraulic Valve 3-Spool Solenoid Valve | HDCF50 Model | Factory Direct & Customizable drawing image

The HDCF50 3-Spool Solenoid Valve is a heavy-duty hydraulic valve designed for use in construction equipment, material handling, agriculture, and industrial vehicles. This valve offers high flow rates, high pressure capability, and customizable options to meet your specific application needs.

HDCF50系列电磁控制阀参数
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联
控制方式	电磁
接口尺寸	M22×1.5螺纹, SAE 8接头
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联
环境温度范围	-20°C to +80°C (-4°F to +176°F)
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
出油口	M18×1.5螺纹, M22×1.5螺纹, SAE 8接头
最大压力	160 bar (2300 psi)
额定流量	50 L/min (13.2 US gpm)
结构类型	分片阀
进油口	M18×1.5螺纹, M22×1.5螺纹, SAE 8接头

This HDCF50 Series 3-Spool Solenoid Valve is a durable and reliable hydraulic valve with a rated flow of 50 L/min and a maximum pressure of 160 bar. It is suitable for use in a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, and skid steer loaders. This valve is customizable to meet your specific requirements, including voltage and operating viscosity range. With its rugged construction and high performance, this valve is ideal for demanding applications in the construction, material handling, agriculture, and industrial vehicle sectors.
