3-Spool Hydraulic Valve | P80 Cable Model | Factory Direct & Customizable

控制方式:软轴

路数:3 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列单块式方向阀

Packagingsize:22*35*10

Grossweight:9.60 kg

库存: 有货

描述

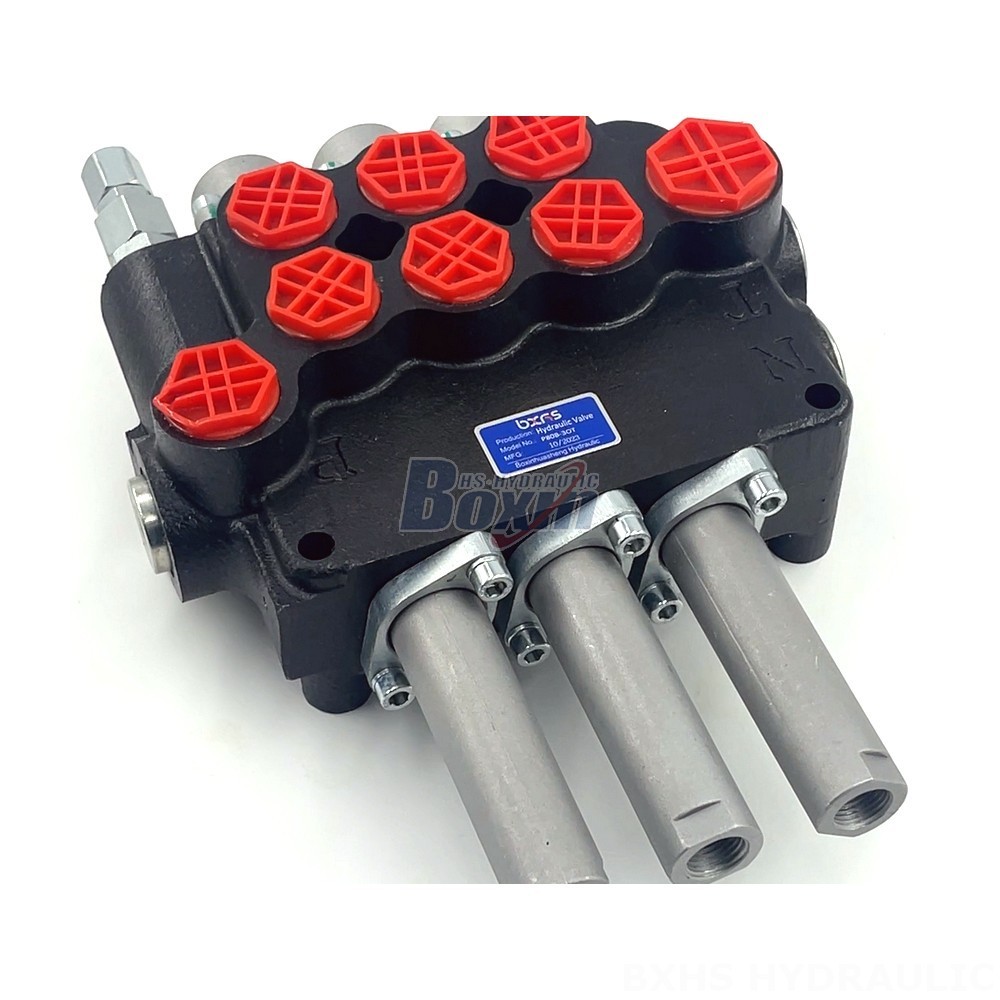

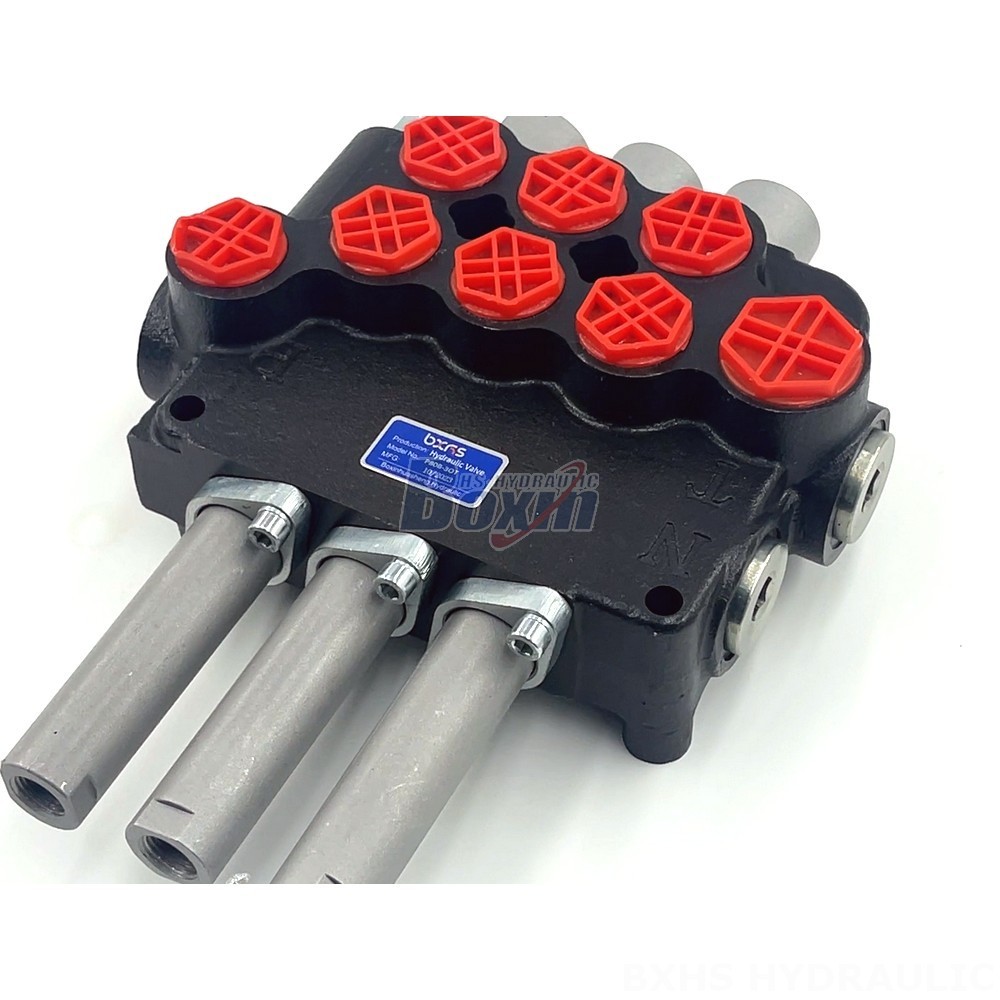

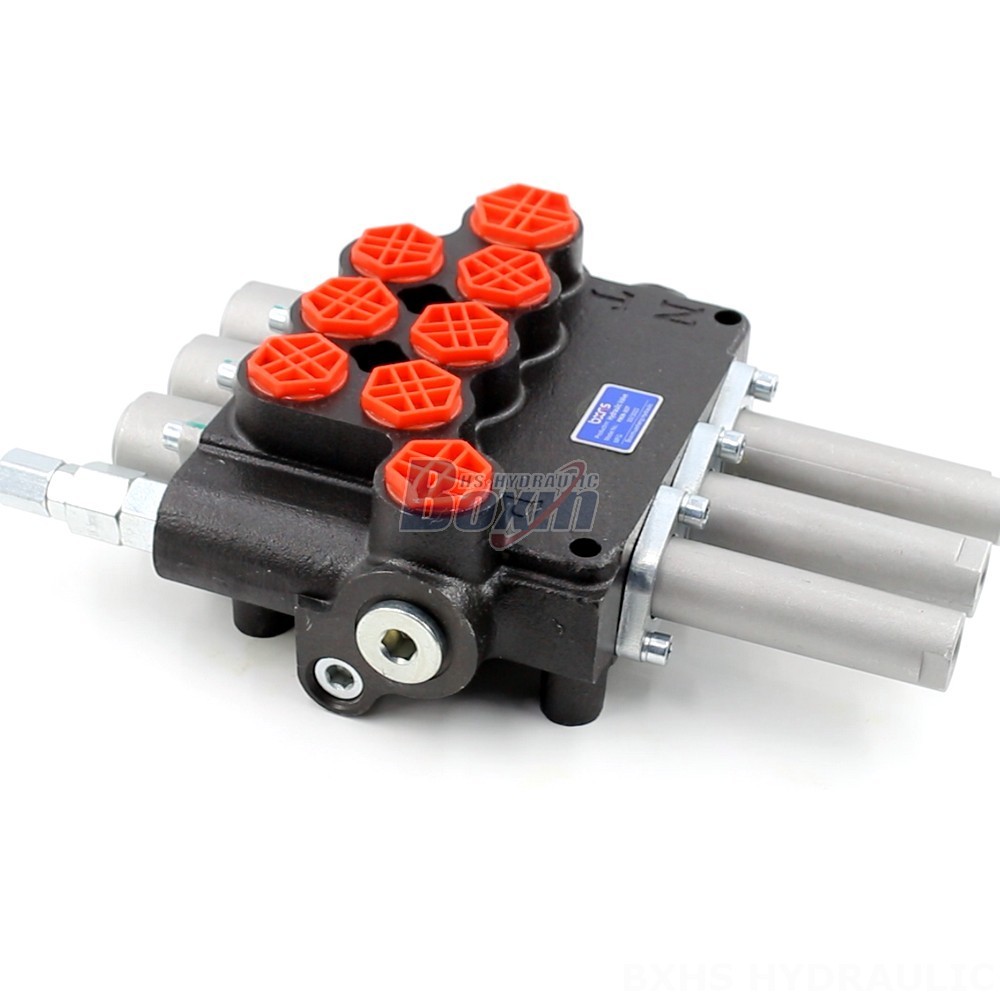

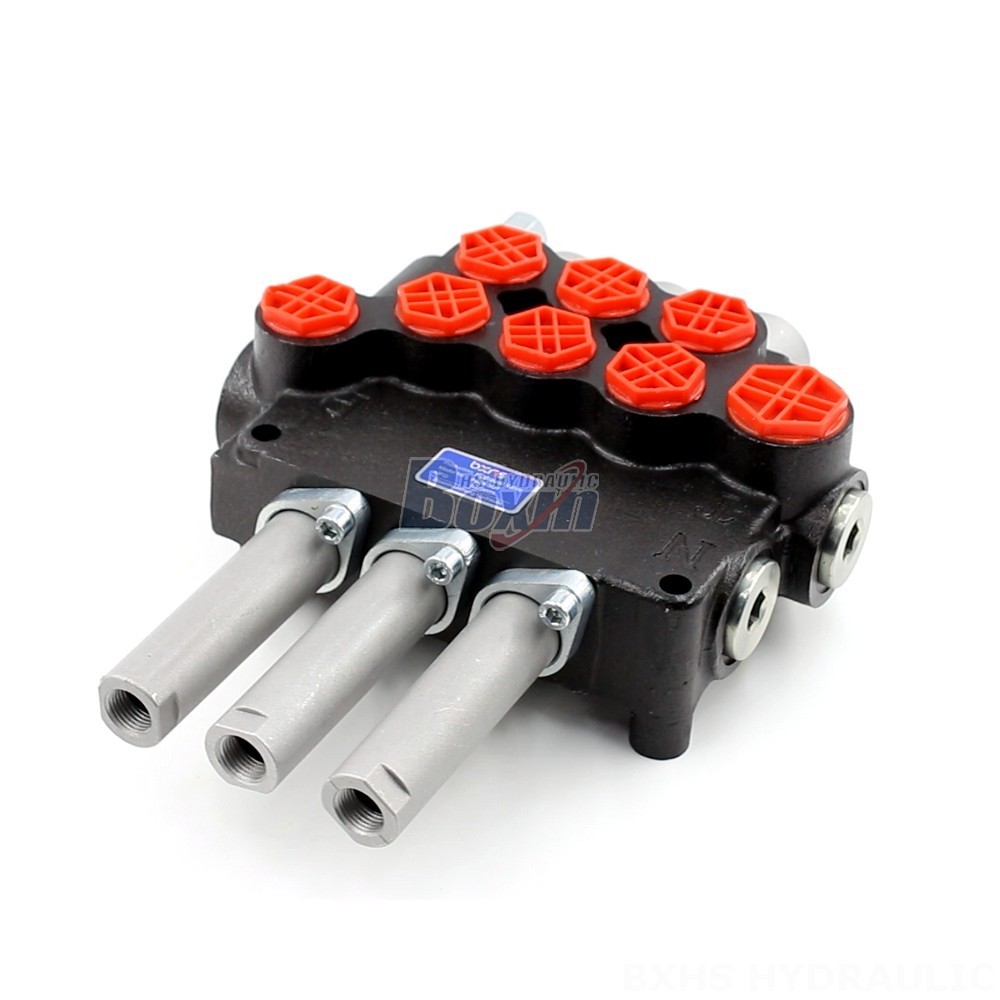

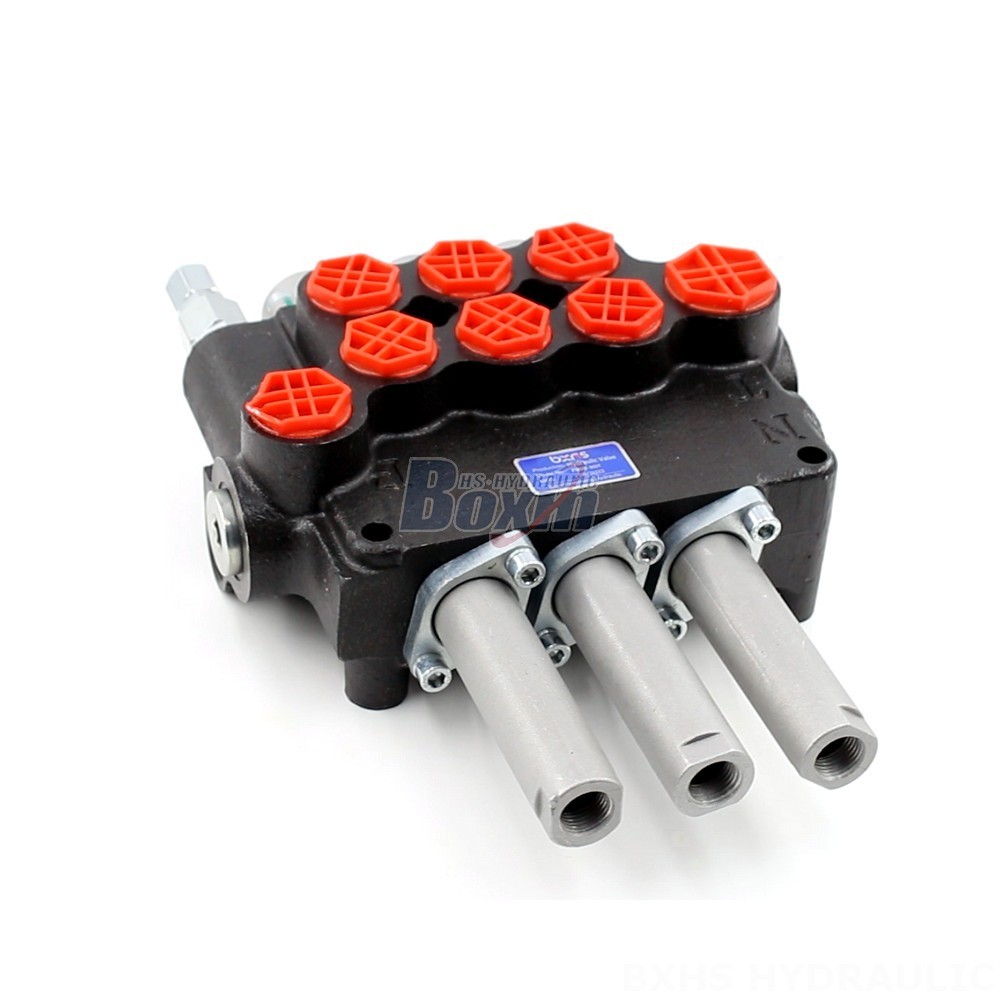

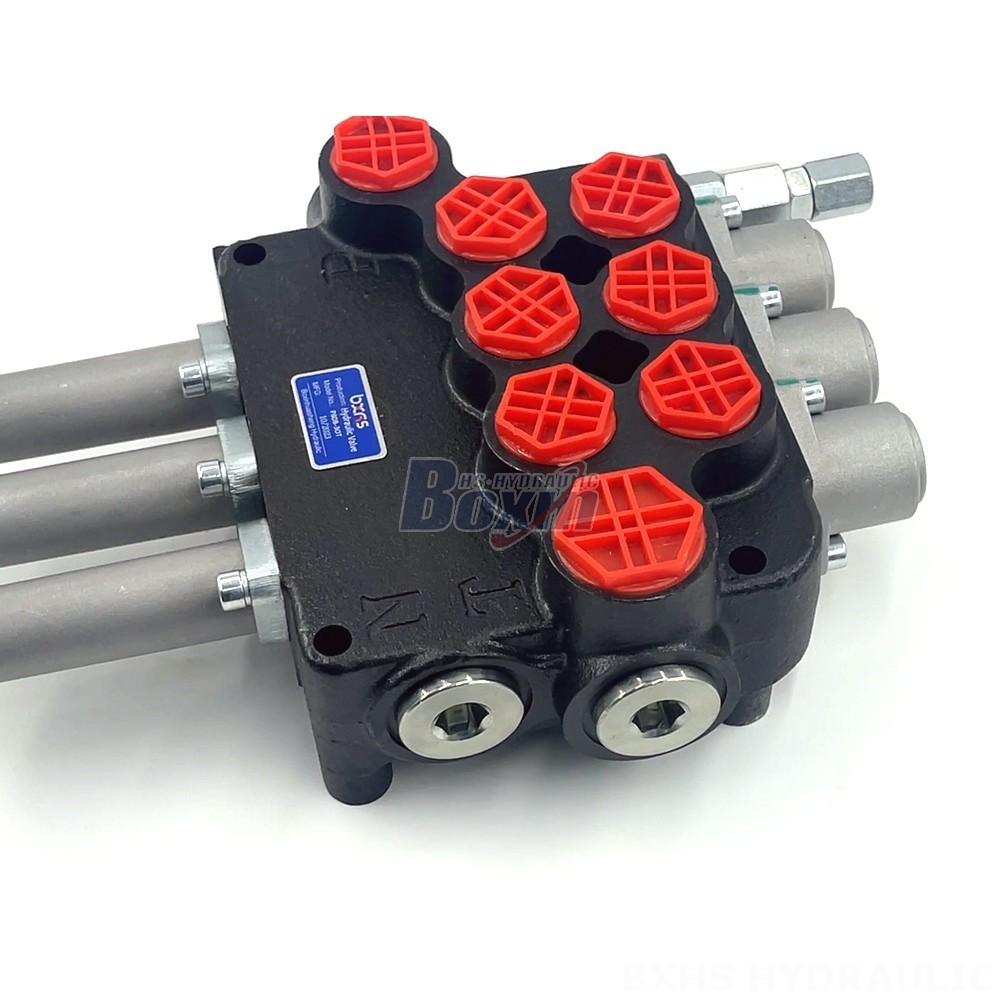

3-Spool Hydraulic Valve | P80 Cable Model | Factory Direct & Customizable

3-Spool Hydraulic Valve | P80 Cable Model | Factory Direct & Customizable drawing image

Introducing our premium 3-Spool Hydraulic Valve from the P80 Series, designed to meet the demanding requirements of various industries, including material handling, construction, agriculture, and industrial vehicles. This valve offers exceptional performance with a rated flow of 80 L/min, a maximum pressure of 250 bar, and a wide operating viscosity range of 15 - 75 mm²/s.

P80系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	80 L/min (21.2 US gpm)
最大压力	315 bar (4600 psi)
进油口	G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口	G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸	G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

**3-Spool Hydraulic Valve | P80 Cable Model**

**Control Method:** Cable
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** P80 Series

**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles

**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Midi-Excavator
- Mini-Excavator
- Skid Steer Loader
- Compact Wheel Loader
