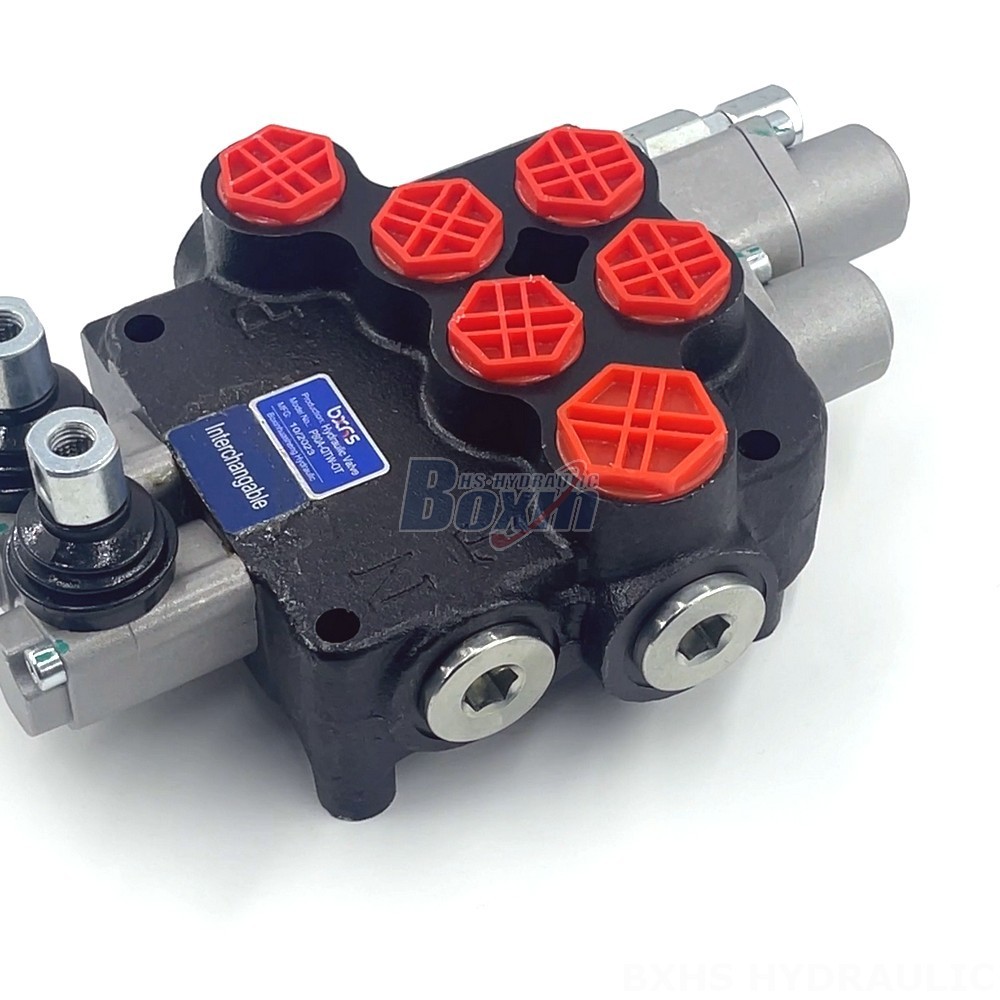

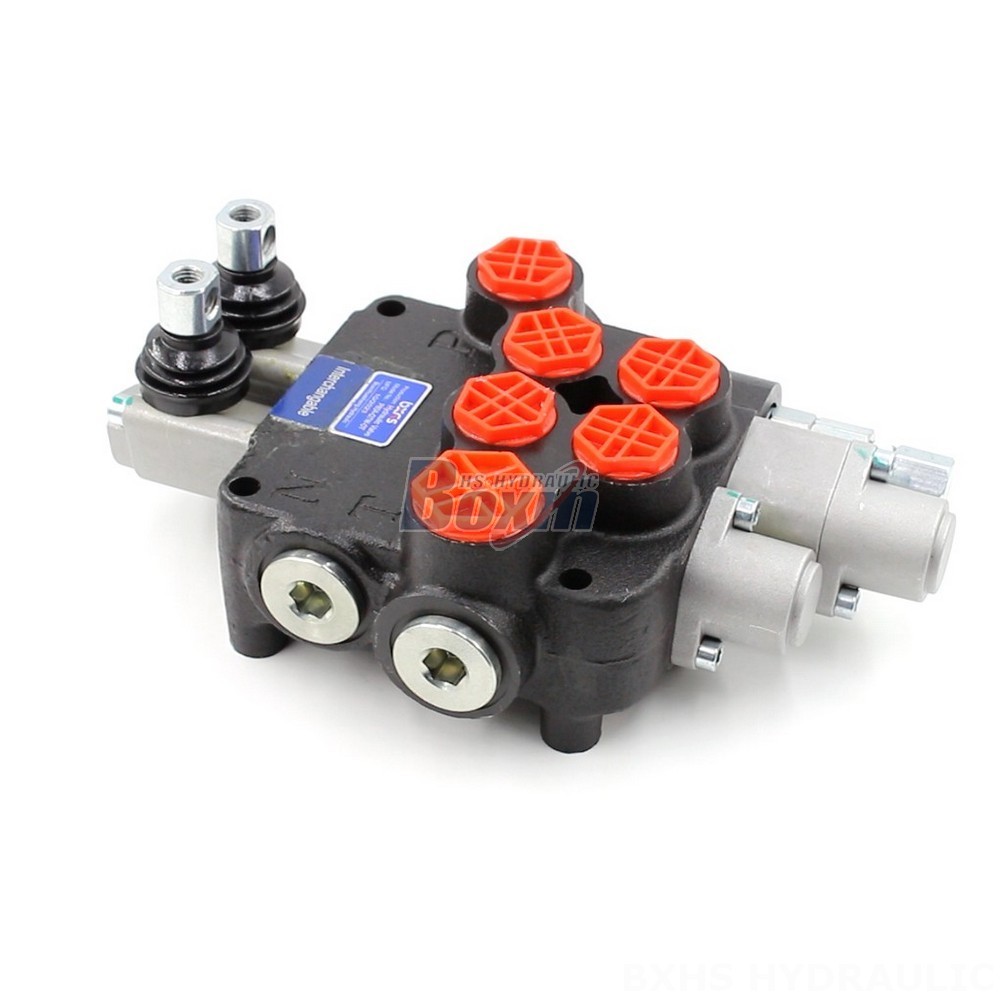

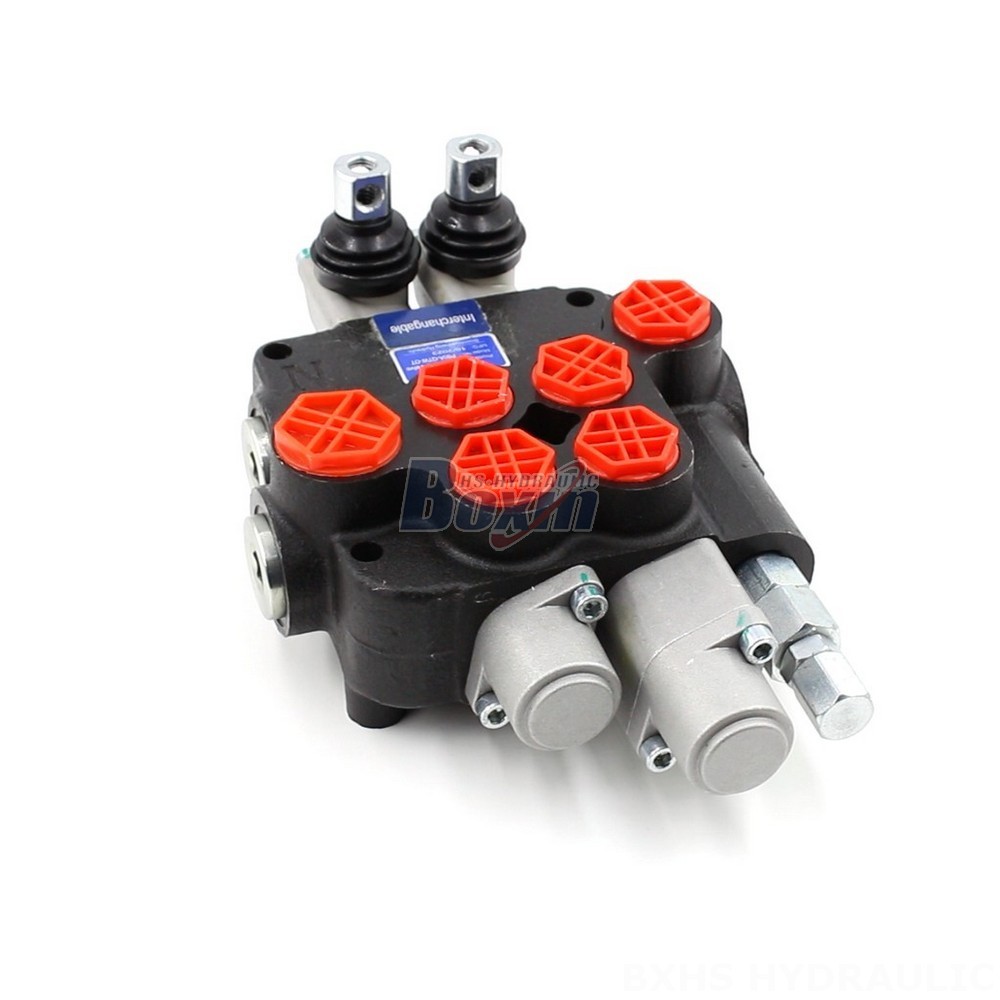

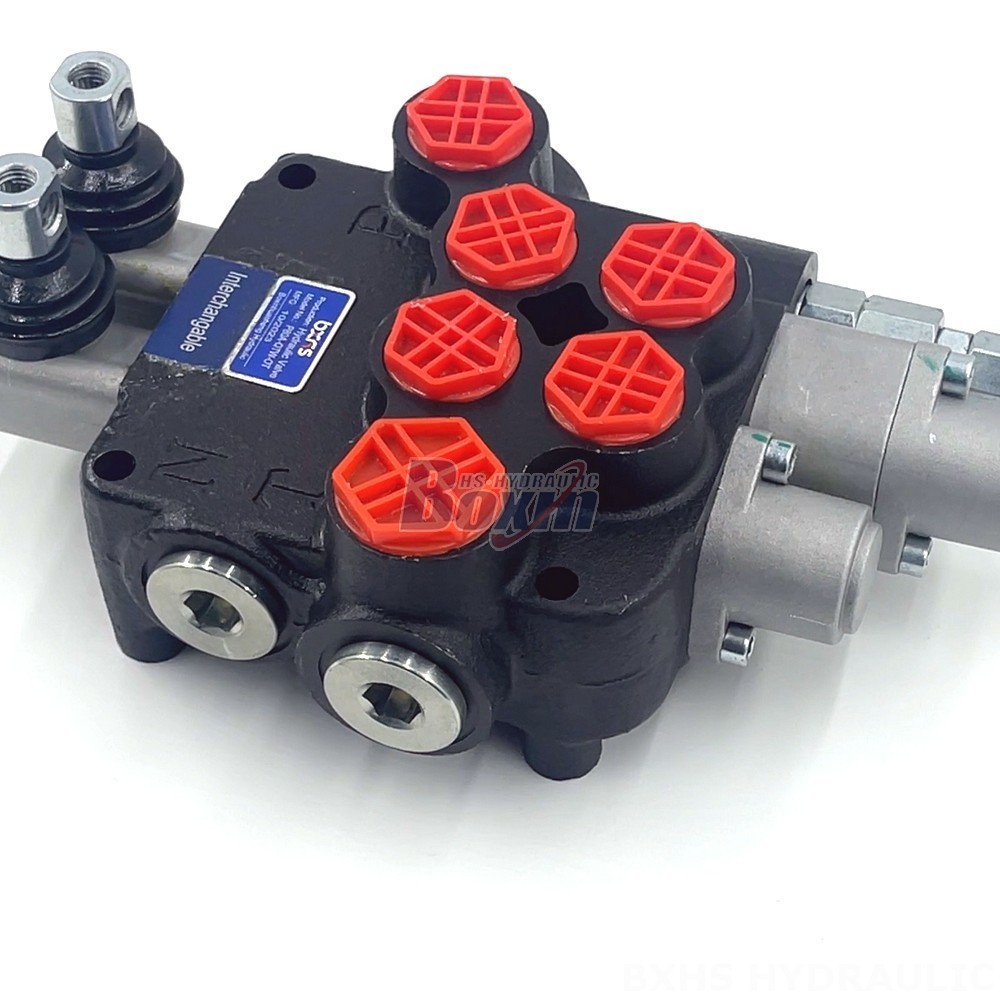

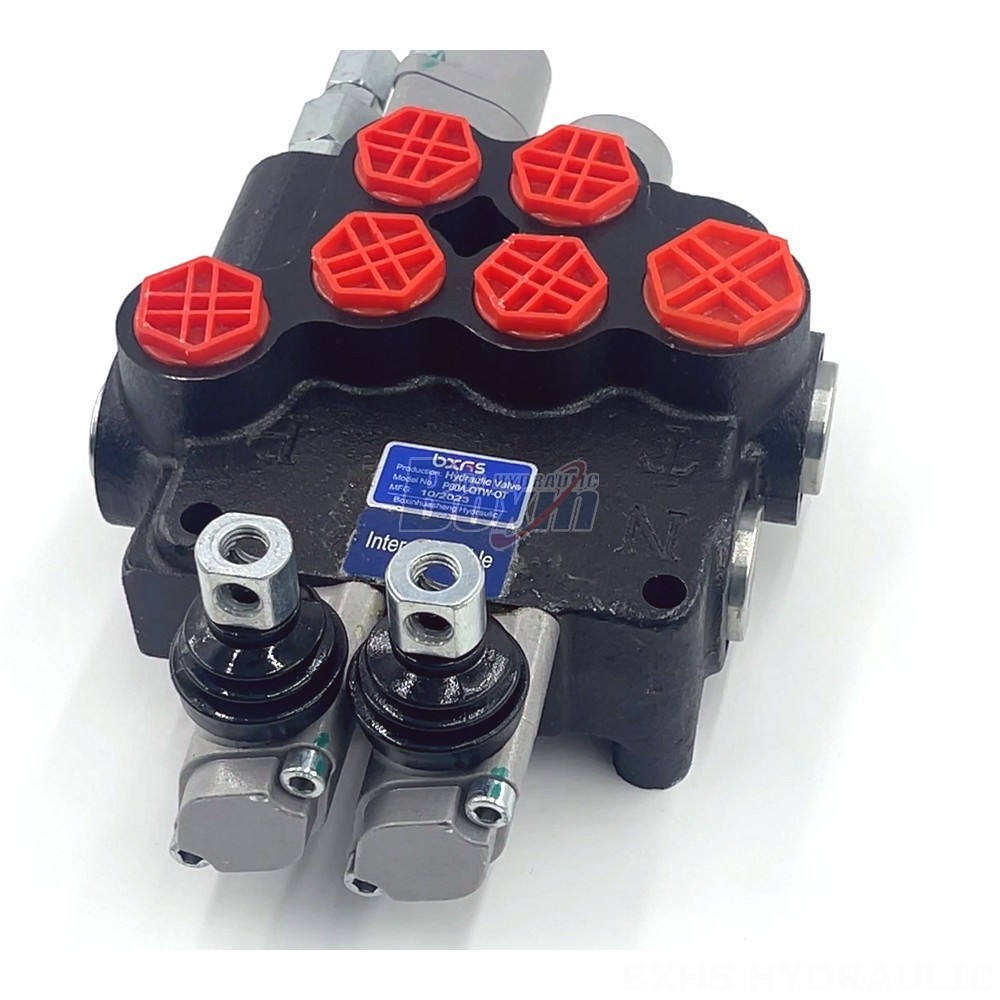

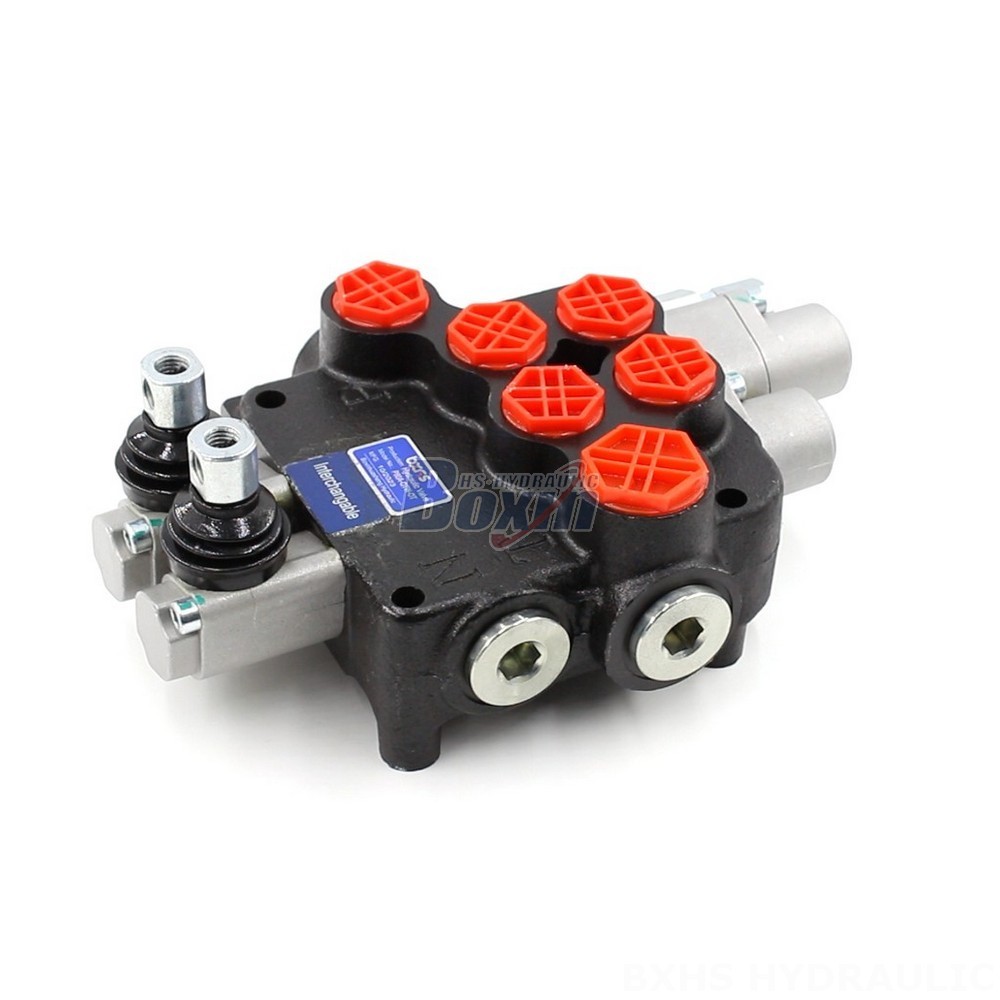

The P80A Series 2-Spool Hydraulic Control Valve Lever is a reliable and durable solution for material handling, construction, and industrial applications. Featuring a robust monoblock design, this manual control valve boasts a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment.
| P80A系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁, 电磁和手动, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
This 2-section hydraulic control valve lever is part of the P80A series, designed for demanding applications in material handling, construction, and industrial settings. Its monoblock construction ensures exceptional durability and reliability. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is suitable for a variety of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. Its manual control method provides precise and responsive operation. This valve is available for wholesale and customization, allowing you to tailor it to your specific needs. Contact us for more information and pricing.
