3 Sectional Proportional Hydraulic Distributor 2 Spool Hydraulic Valve P80-G34-2OT

控制方式:手控

路数:2 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:G3/4接口

出油口:G3/4接口

接口尺寸:G3/4接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:26*18*11

Grossweight:8.00 kg

库存: 有货

894 次查看了此产品

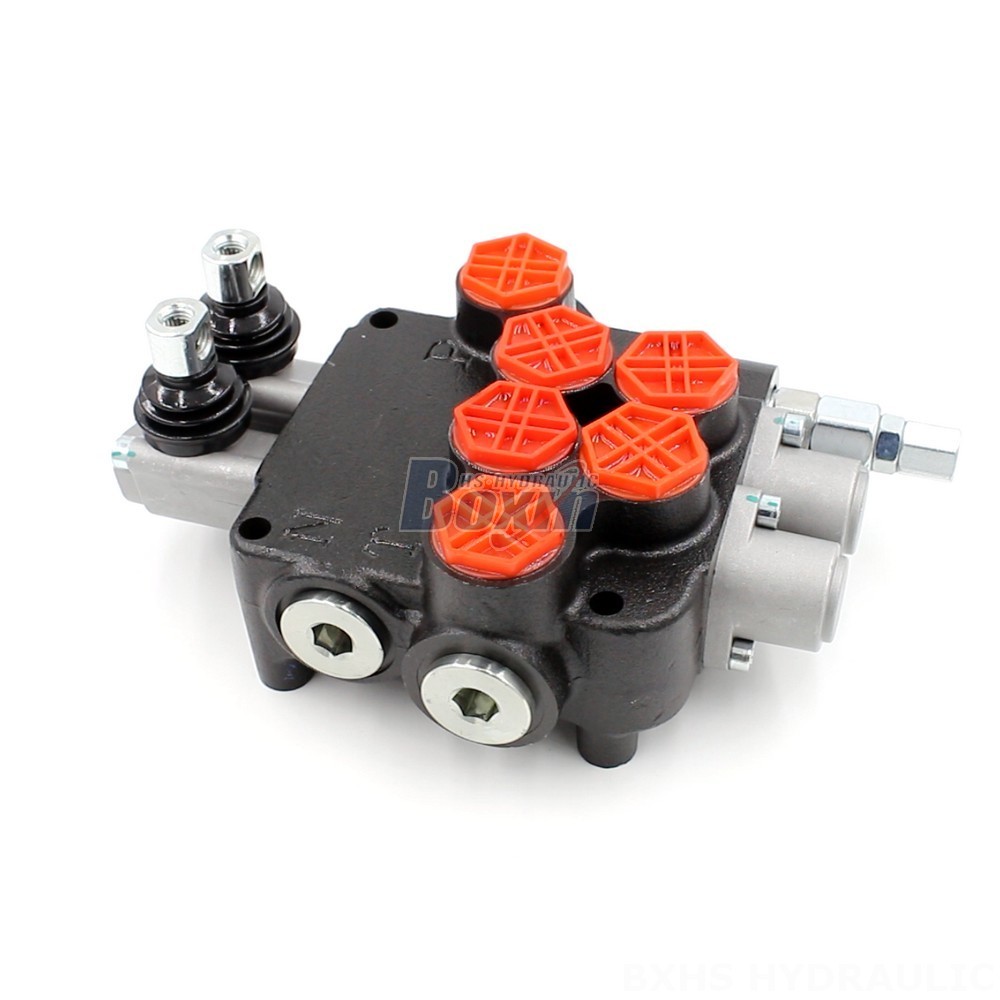

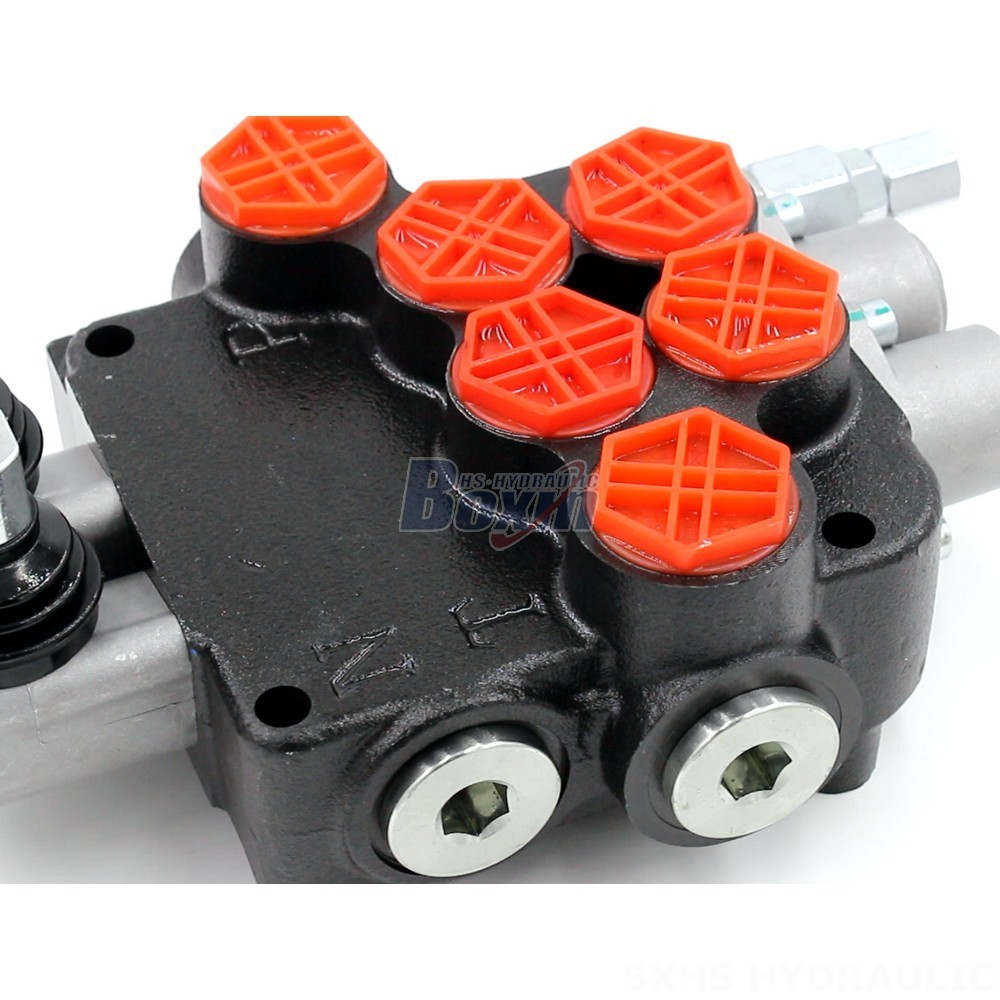

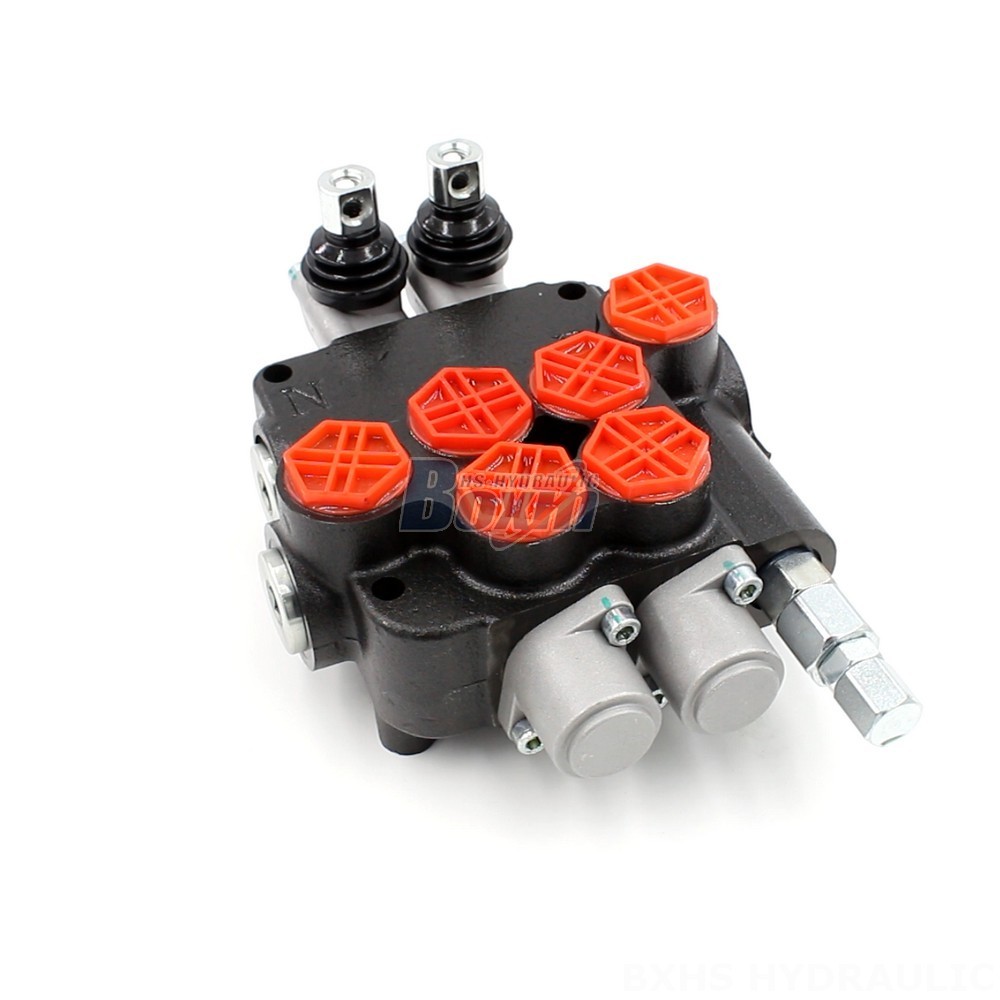

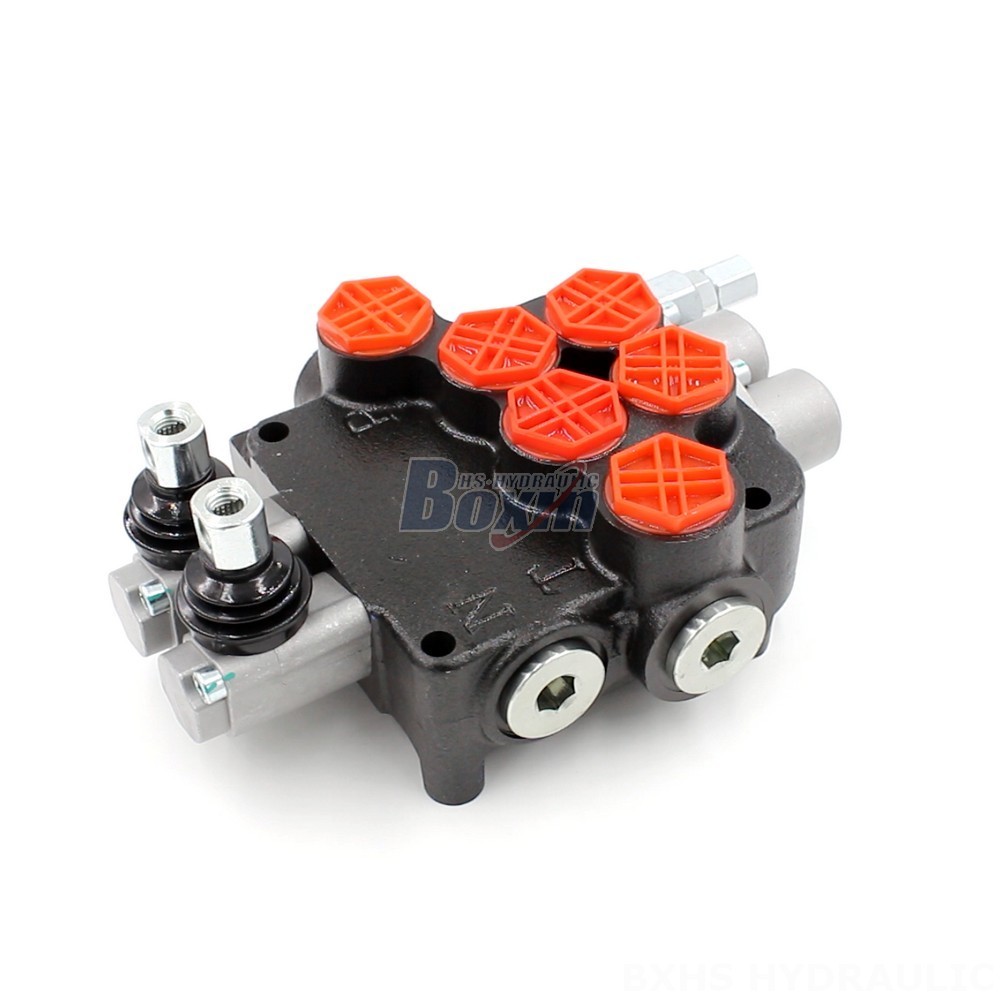

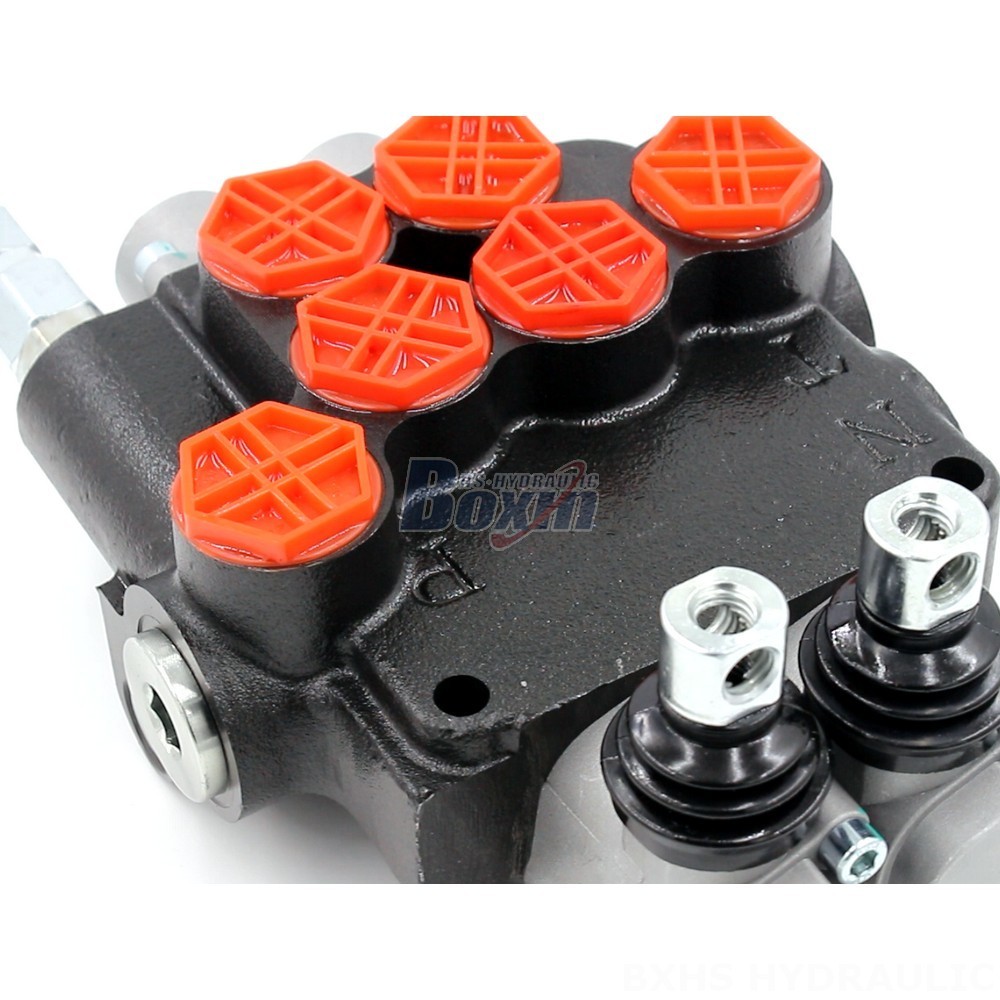

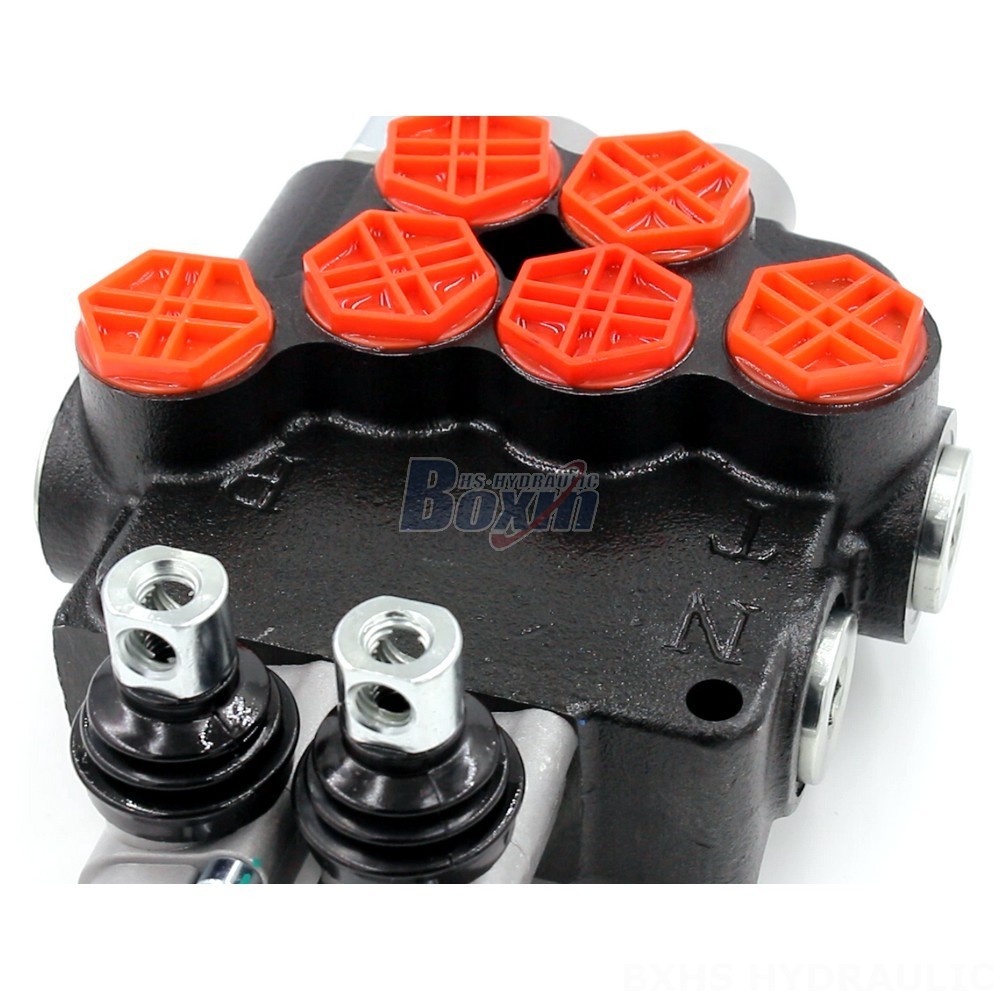

3 Sectional Proportional Hydraulic Distributor 2 Spool Hydraulic Valve P80-G34-2OT

3 Sectional Proportional Hydraulic Distributor 2 Spool Hydraulic Valve P80-G34-2OT

3 Sectional Proportional Hydraulic Distributor 2 Spool Hydraulic Valve P80-G34-2OT drawing image

The P80-G34-2OT is a 3-Sectional Proportional Hydraulic Distributor with 2 Spools, designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

This high-performance hydraulic valve from our P80 series is a 2-section, monoblock valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). Its manual control method and 2 spool design provide precise and reliable operation. The P80-G34-2OT is suitable for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. It operates in a wide temperature range of -40°C to +80°C (-40°F to +176°F) and handles viscosity ranges from 15 to 75 mm²/s (15 cSt to 75 cSt). We offer this valve as a manufactured product, OEM, private label, customized solution, and wholesale option. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
