2-Spool Hydraulic Directional Valve | P80-G12-G34-2OT | Factory Direct & Customizable

控制方式:手控

路数:2 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列单块式方向阀

Packagingsize:26*18*11

Grossweight:8.00 kg

库存: 有货

描述

2-Spool Hydraulic Directional Valve | P80-G12-G34-2OT | Factory Direct & Customizable

2-Spool Hydraulic Directional Valve | P80-G12-G34-2OT | Factory Direct & Customizable drawing image

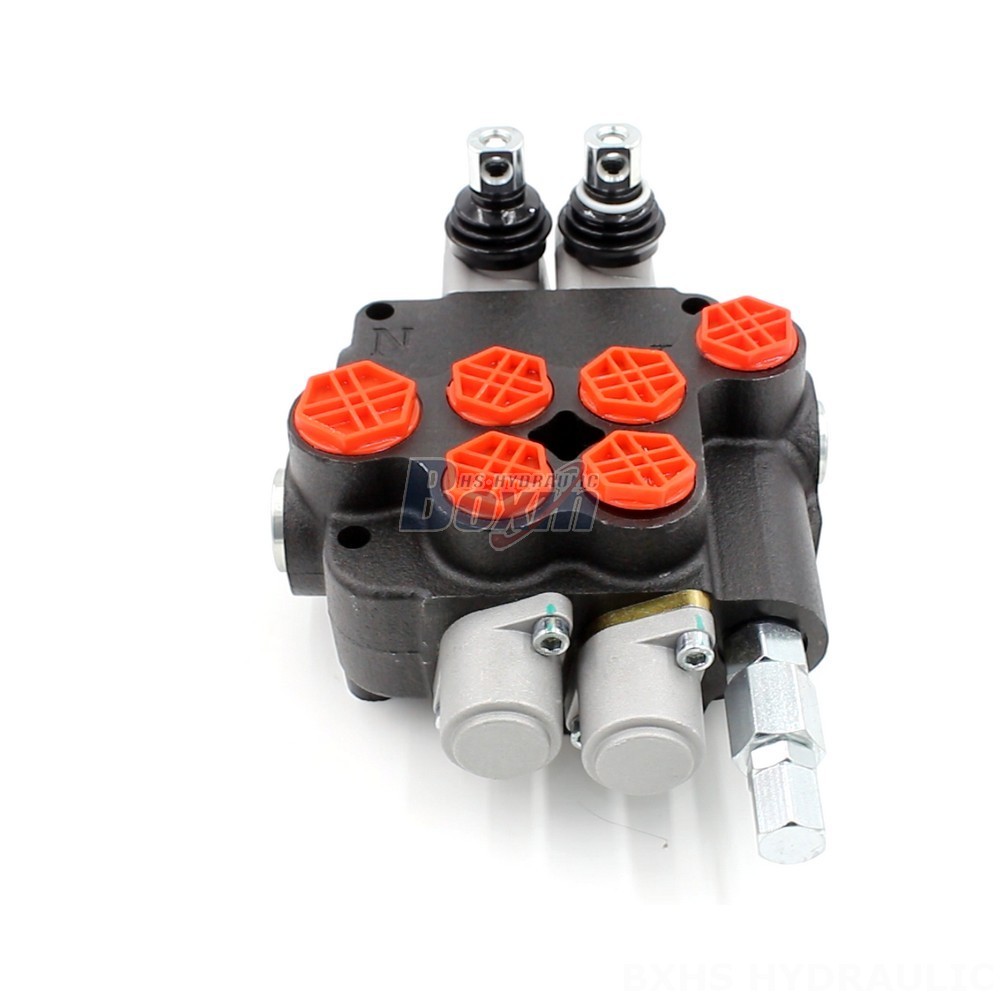

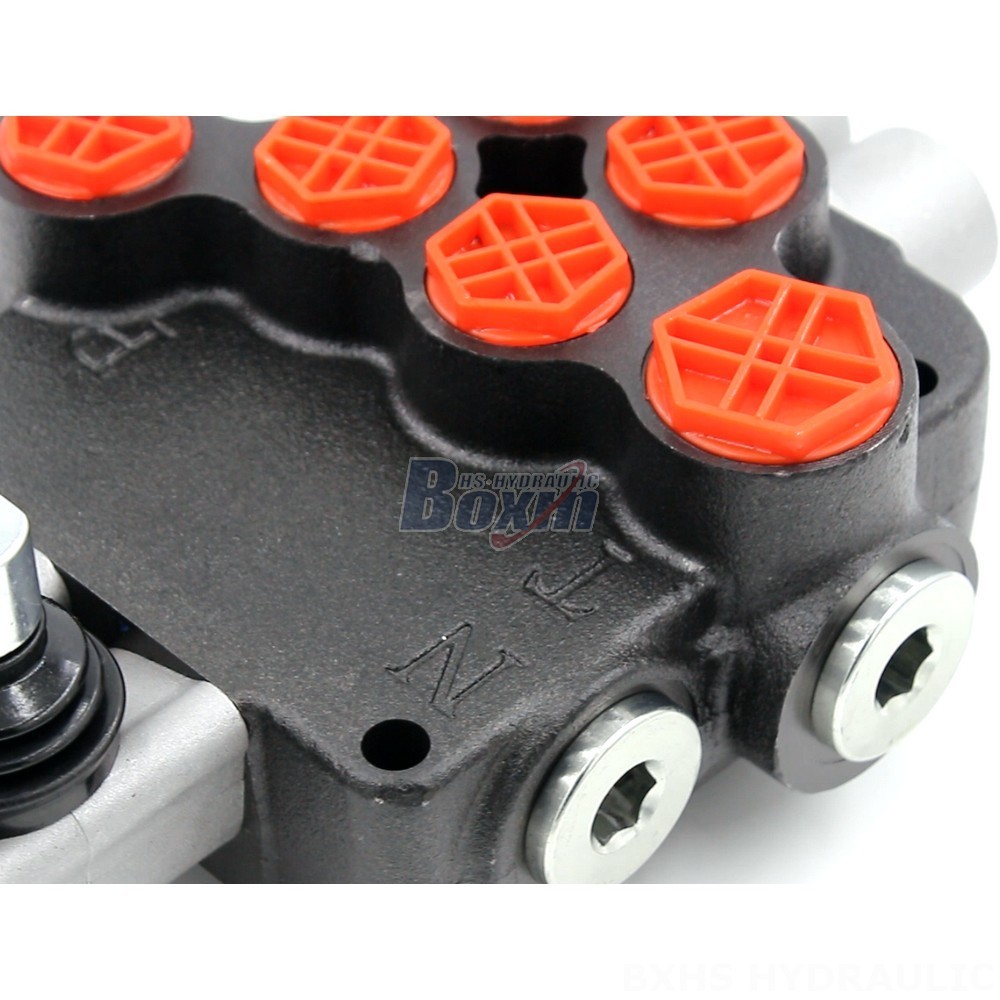

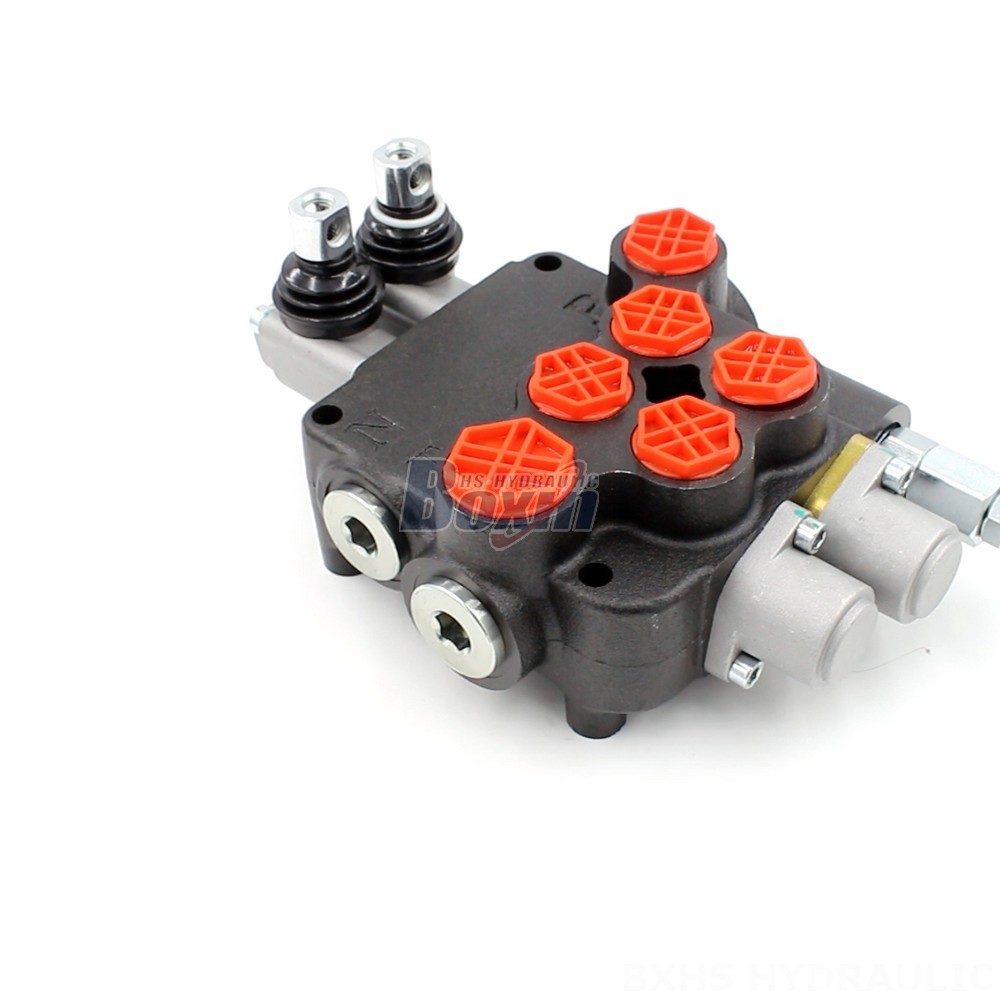

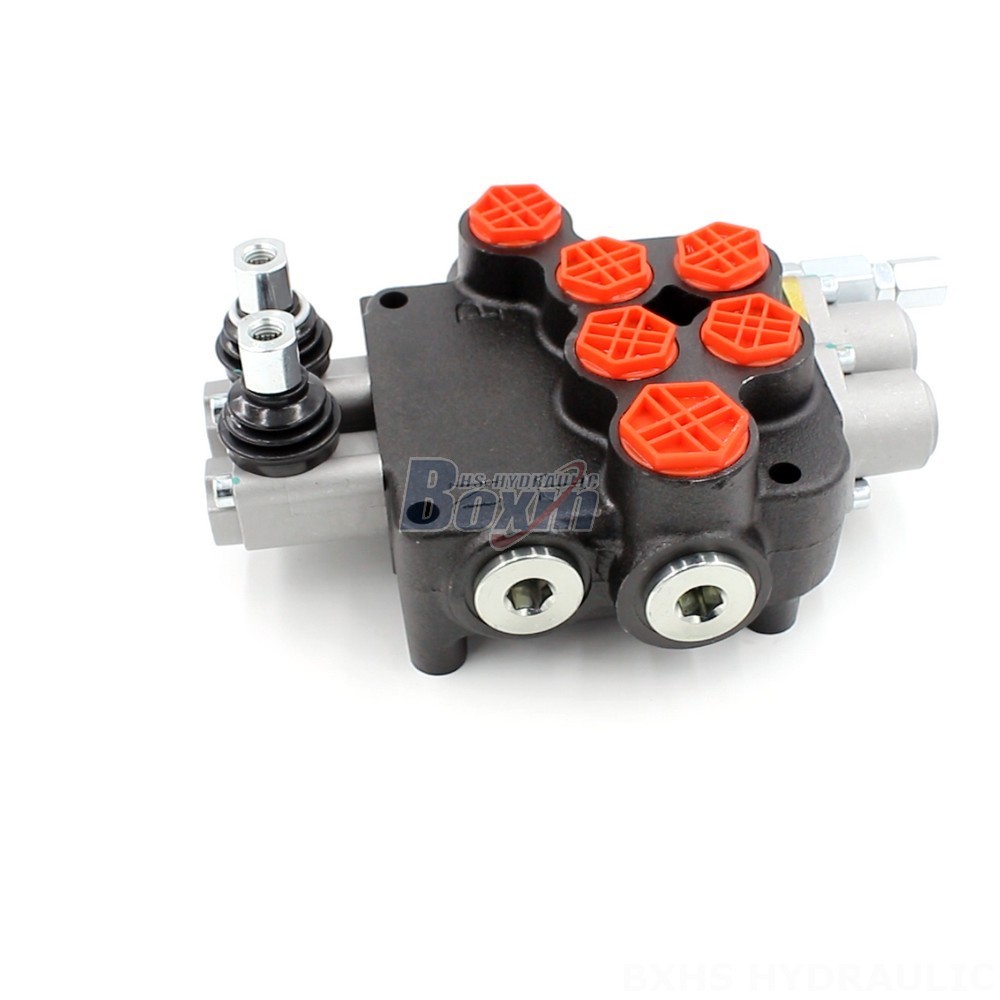

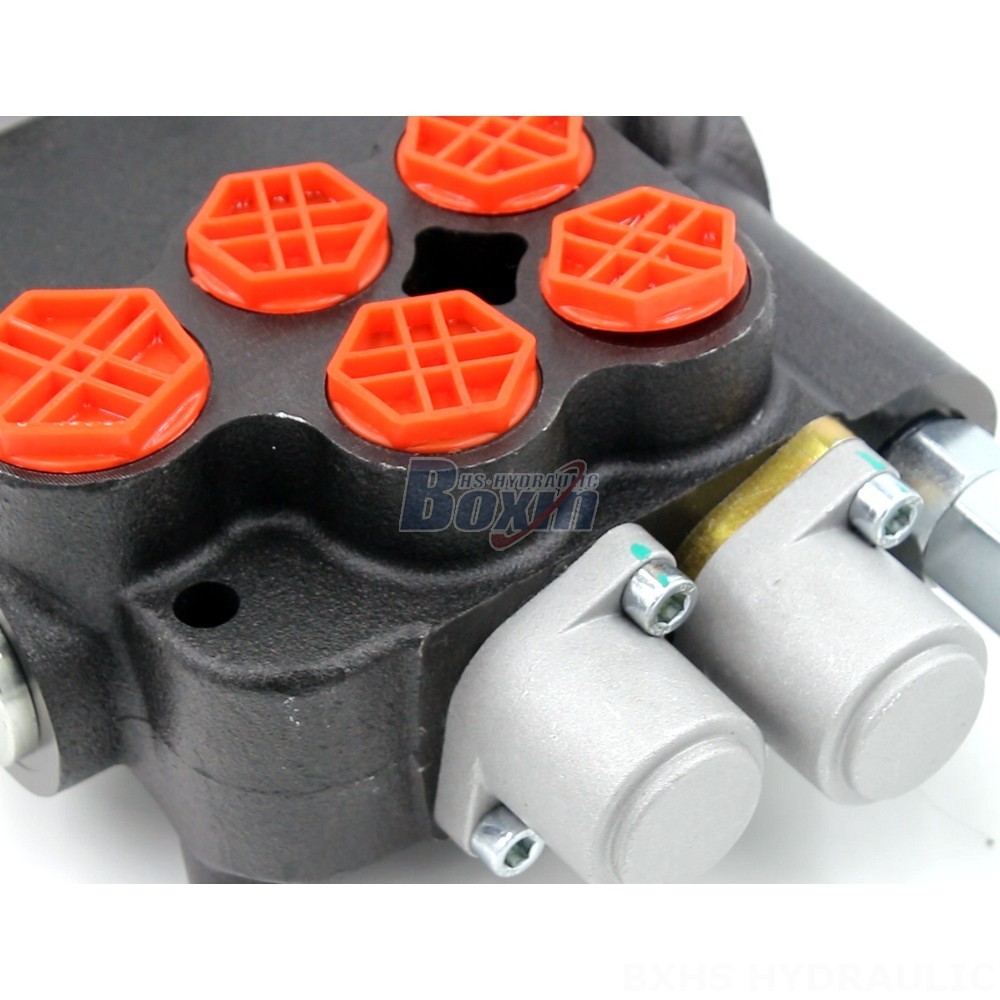

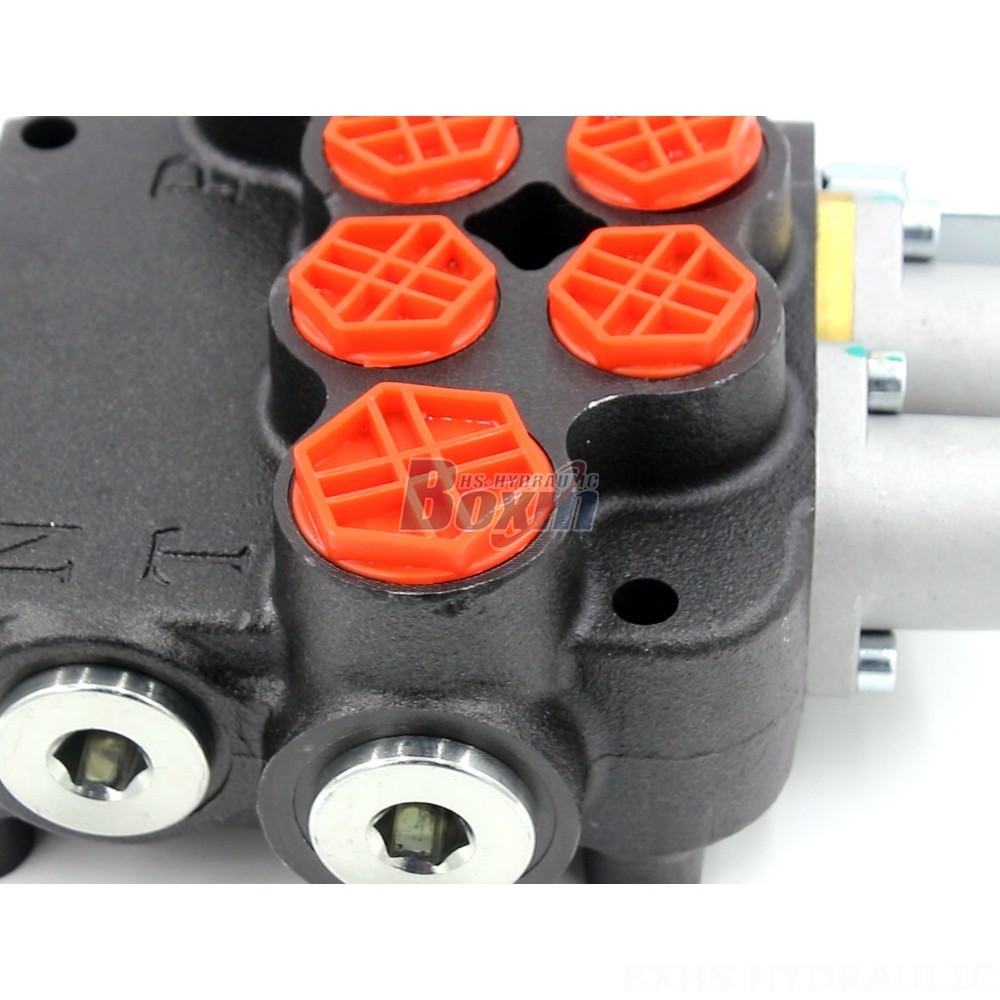

The P80-G12-G34-2OT 2-Spool Hydraulic Directional Valve is a manually controlled, monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It is designed for use in a variety of applications including material handling, construction and earth moving, agriculture, and industrial vehicles.

P80系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	80 L/min (21.2 US gpm)
最大压力	315 bar (4600 psi)
进油口	G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口	G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸	G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

**2-Spool Hydraulic Directional Valve | P80-G12-G34-2OT | Factory Direct & Customizable**

**Product Features**

* Manual control
* Monoblock valve
* 80 L/min rated flow
* 250 bar maximum pressure
* 15 - 75 mm²/s operating viscosity range
* -40°C to +80°C ambient temperature range

**Applications**

* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles

**Applicable Models**

* Telehandler
* Forklift
* All terrain crane
* Stacker
* Aerial platform
* Motor grader
* Compact wheel loader
* Wheel loader
* Backhoe loader
* Harvester
* Bale wrapper
* Seeding machine
