Flow Control Valves Hydraulic 2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply

控制方式:手控+一控二

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:23*18*13

Grossweight:6.50 kg

库存: 有货

1055 次查看了此产品

Flow Control Valves Hydraulic 2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply

Flow Control Valves Hydraulic 2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply

Flow Control Valves Hydraulic 2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply drawing image

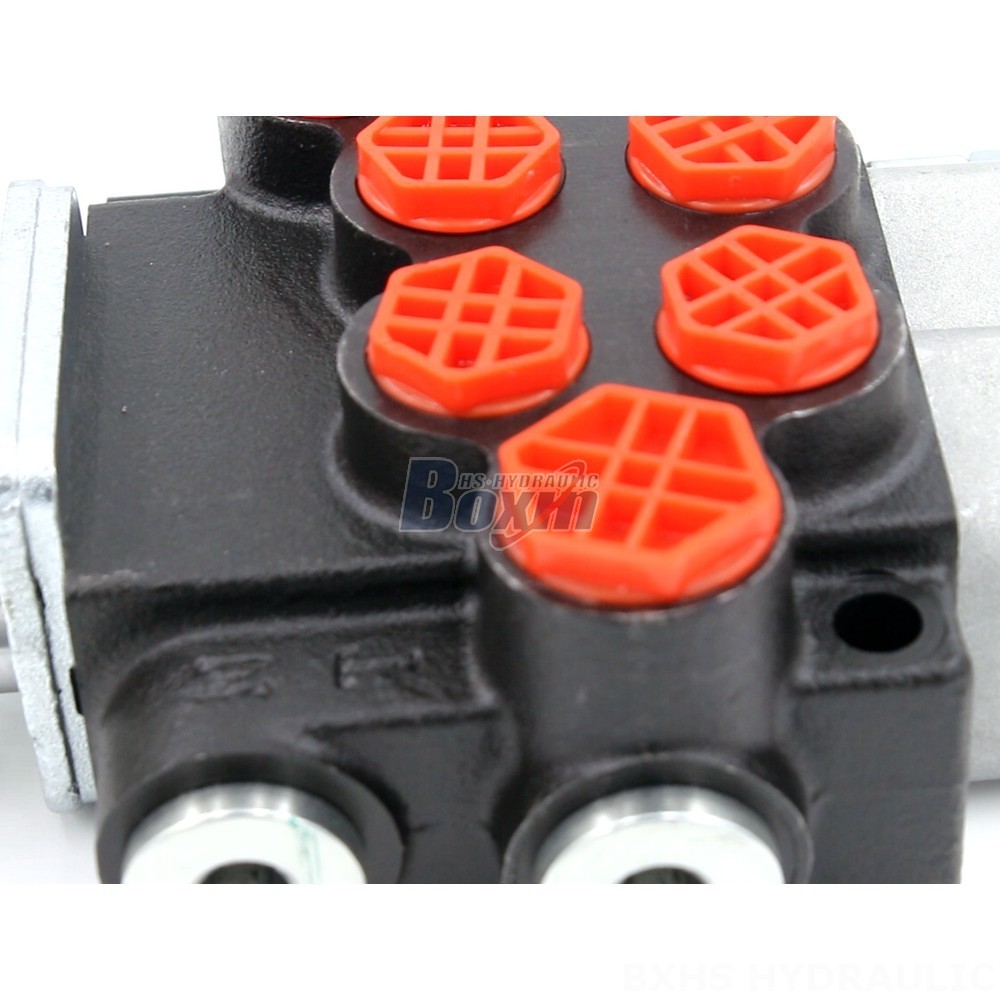

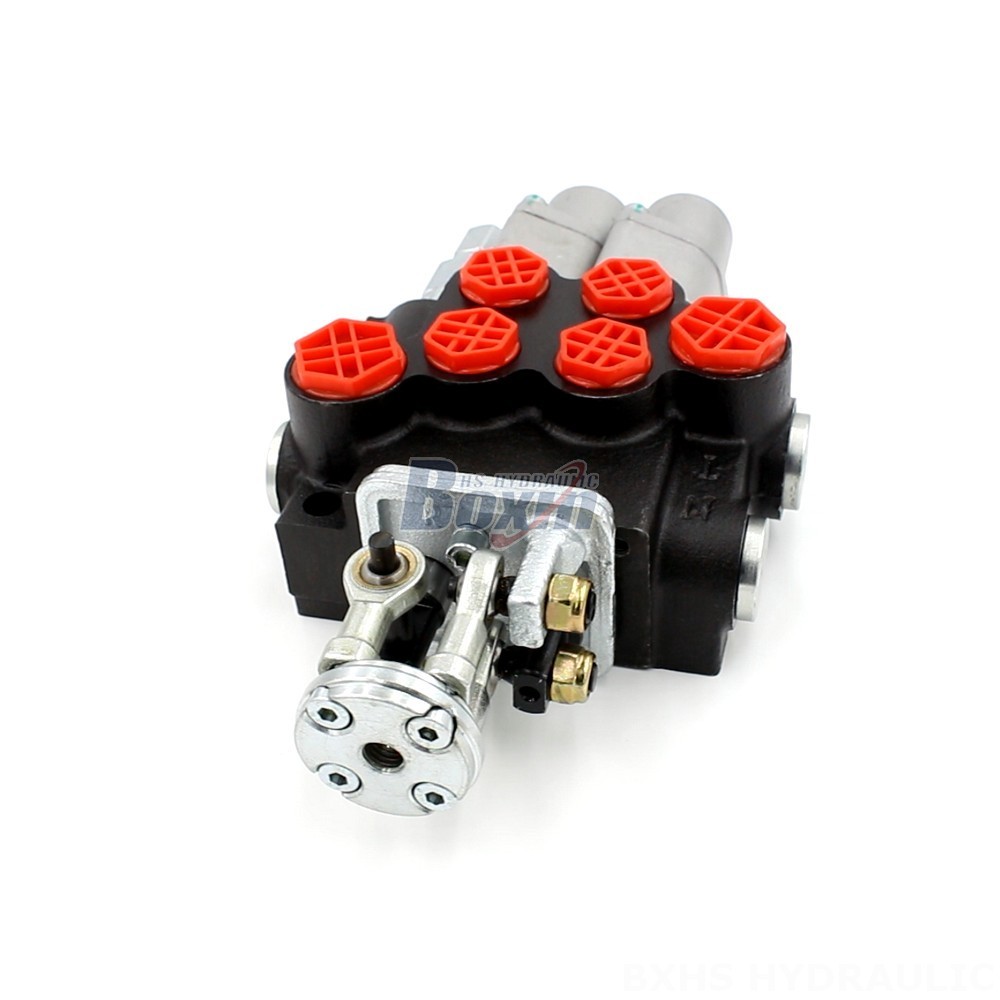

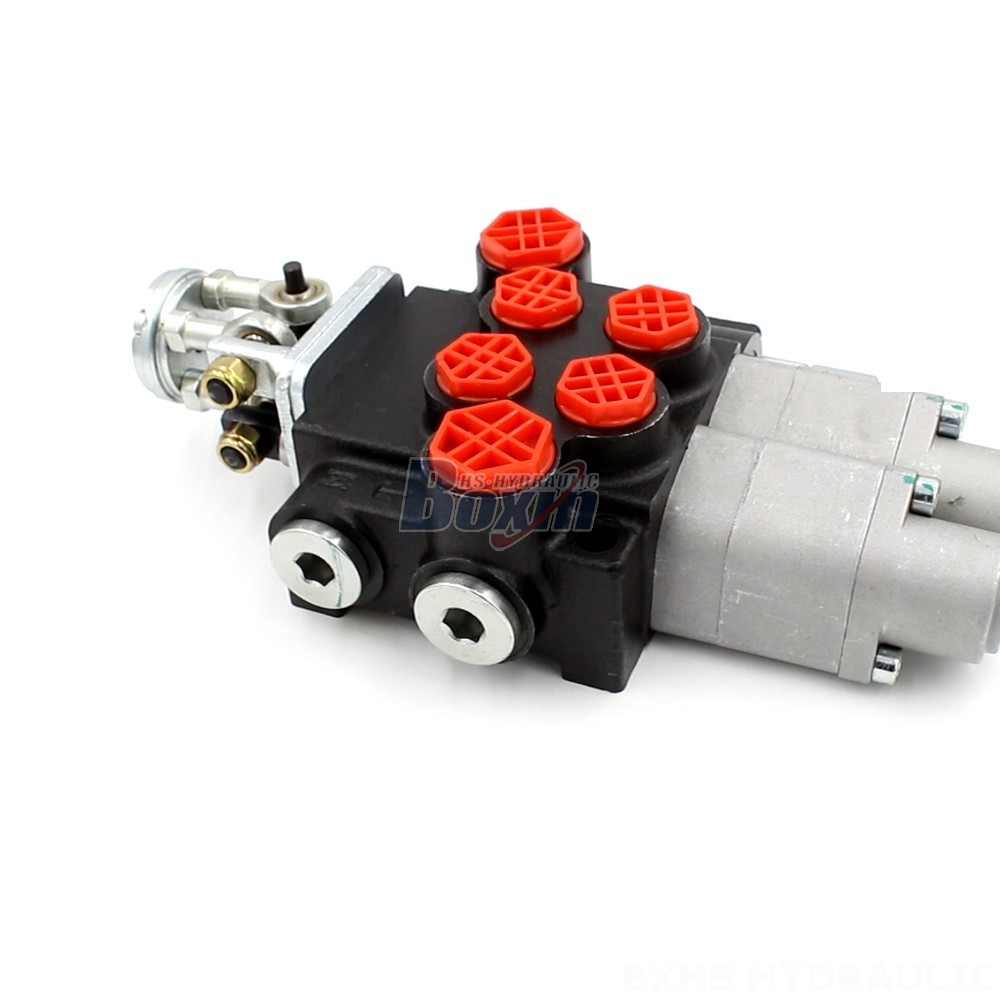

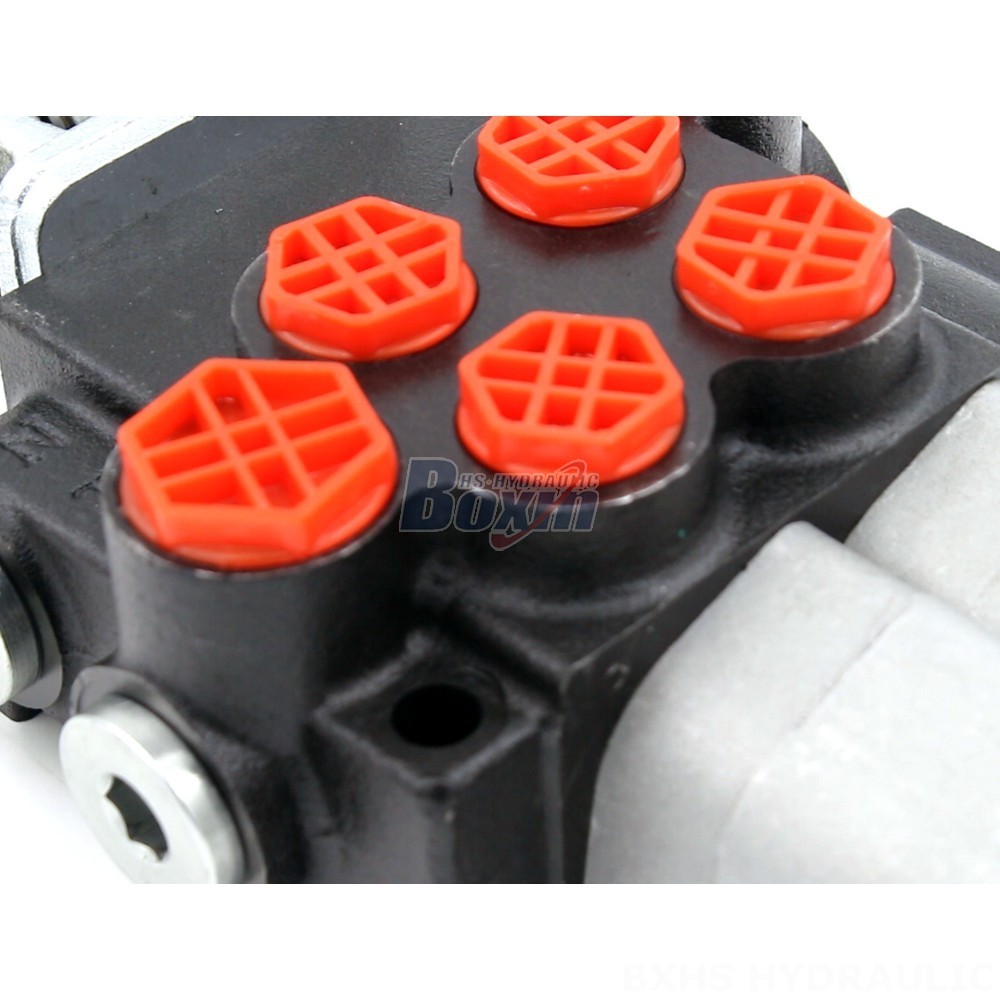

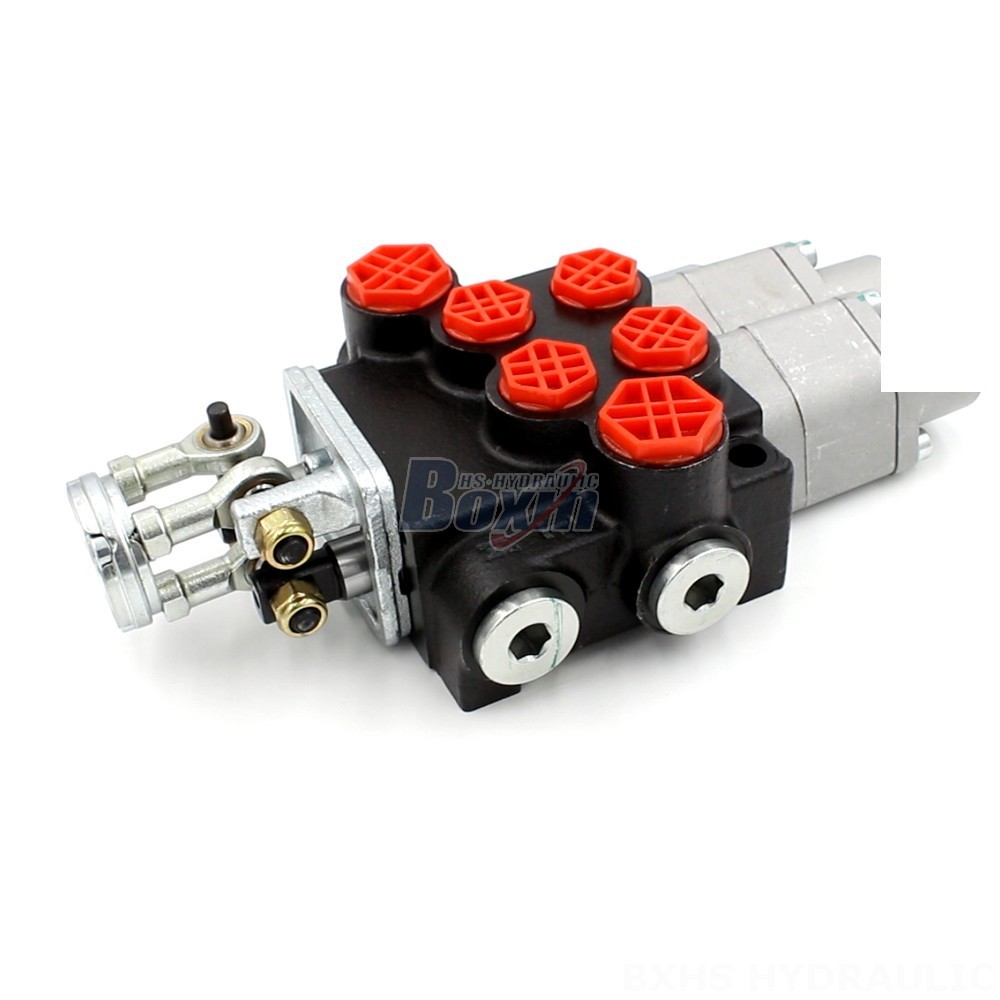

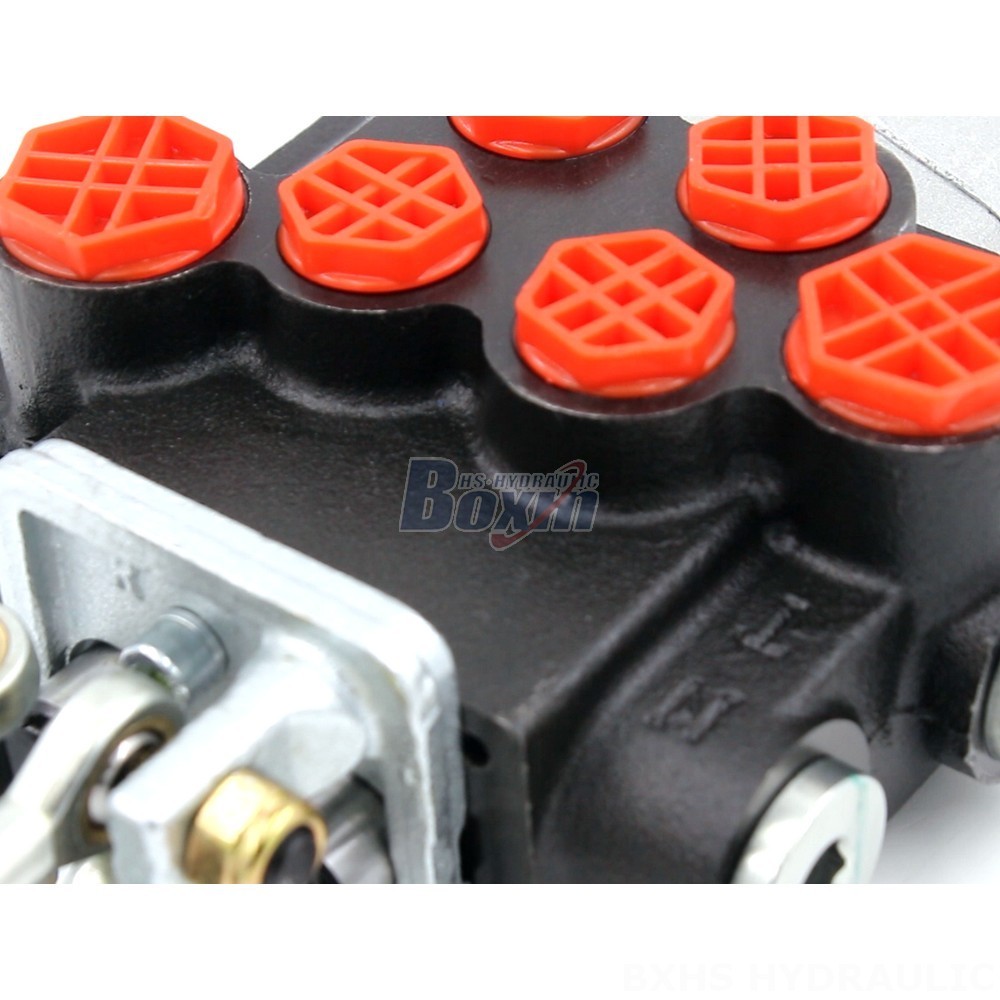

The P40 Series 2-Spool Hydraulic Directional Valve is a compact and reliable flow control valve designed for use in a variety of mobile applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in material handling, construction, agriculture, and industrial vehicles. It features manual and joystick control options, a monoblock valve structure, and a wide operating temperature range.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

This P40 Series 2-Spool Hydraulic Directional Valve is a high-performance, durable, and versatile valve that offers a variety of features and benefits. The valve is available with a variety of options, including manual and joystick control, making it suitable for a wide range of applications. The valve also features a compact design, which makes it easy to install and maintain. It is built to withstand demanding operating conditions and offers a long service life. The valve is ideal for use in applications such as material handling, construction, agriculture, and industrial vehicles. It is also compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and harvesters. The valve is available in a variety of configurations to meet the specific needs of your application. Contact us today to learn more about this product and how it can benefit your business.
