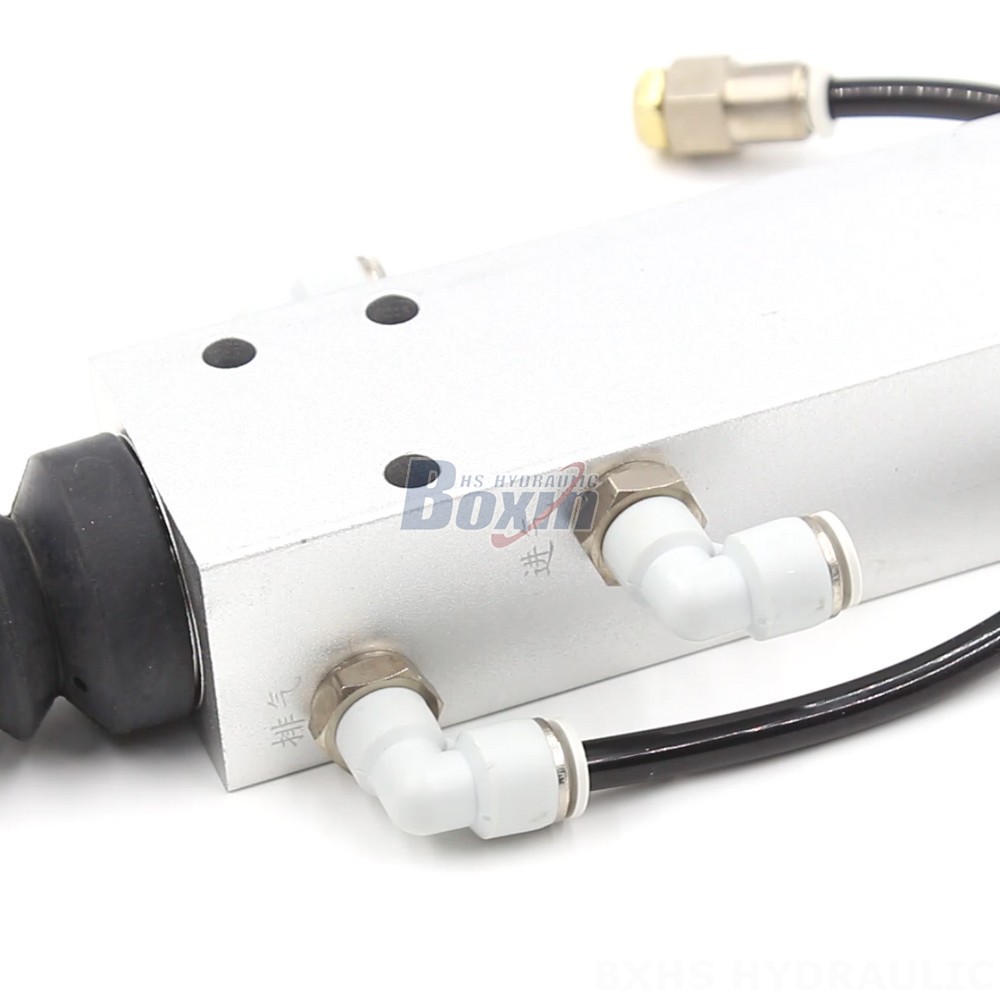

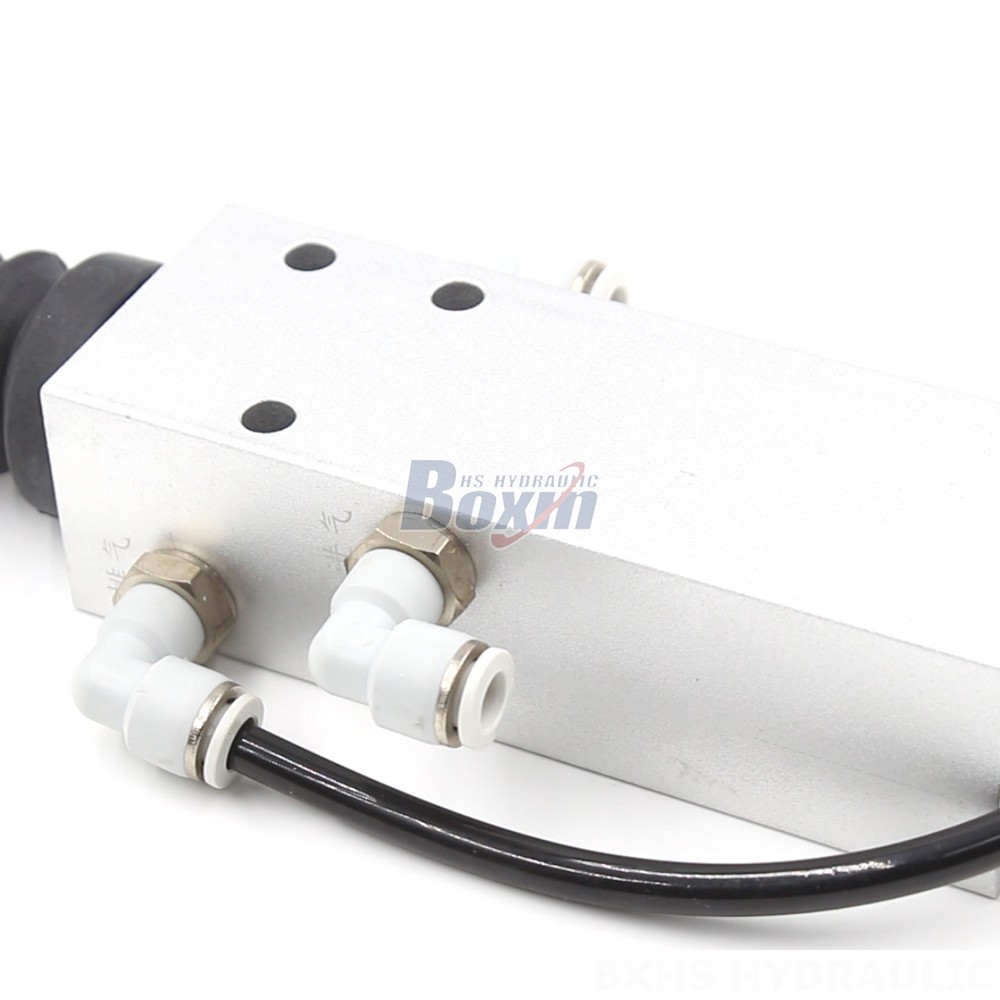

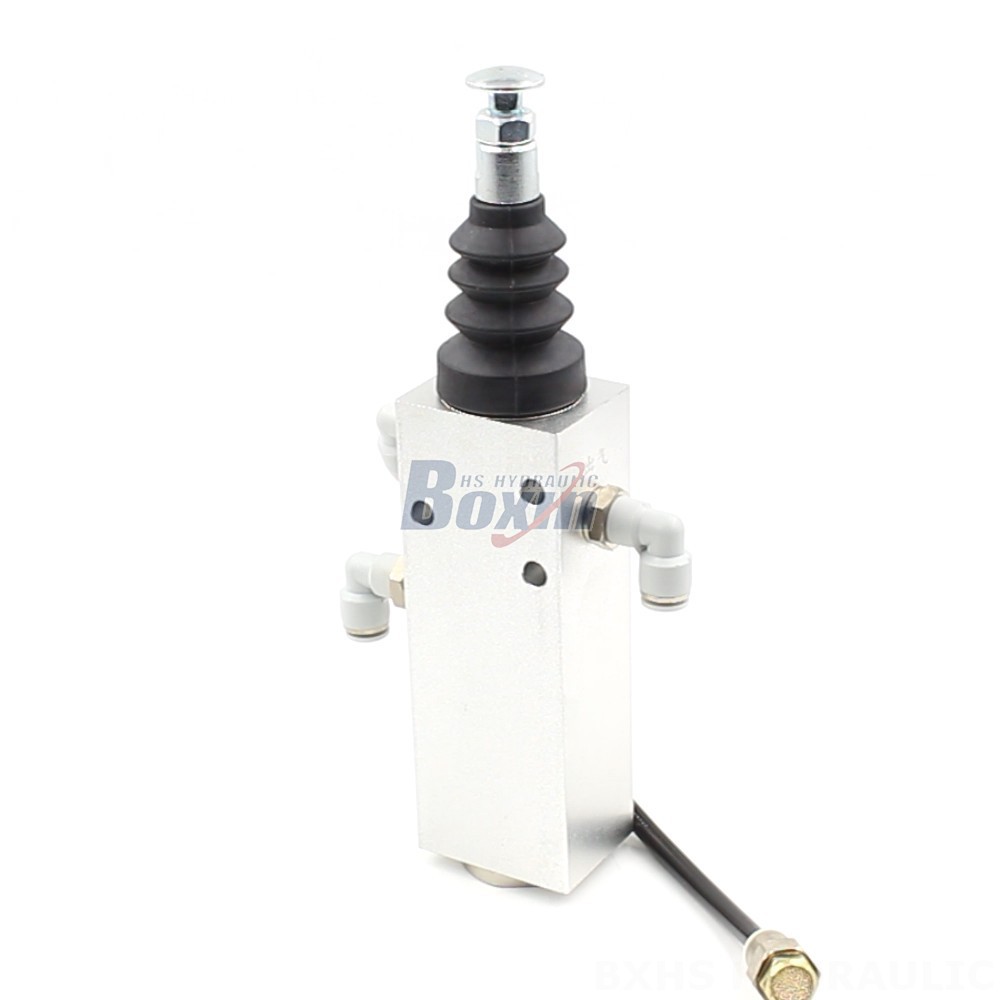

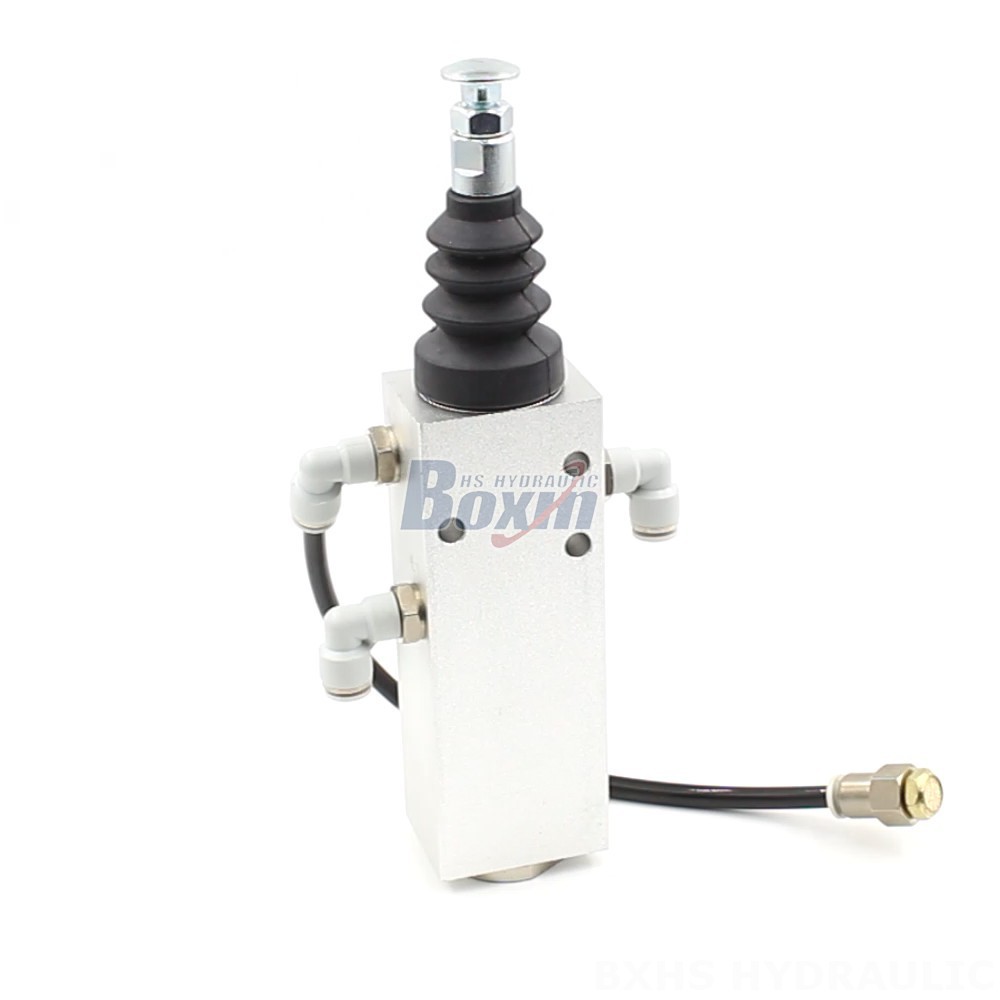

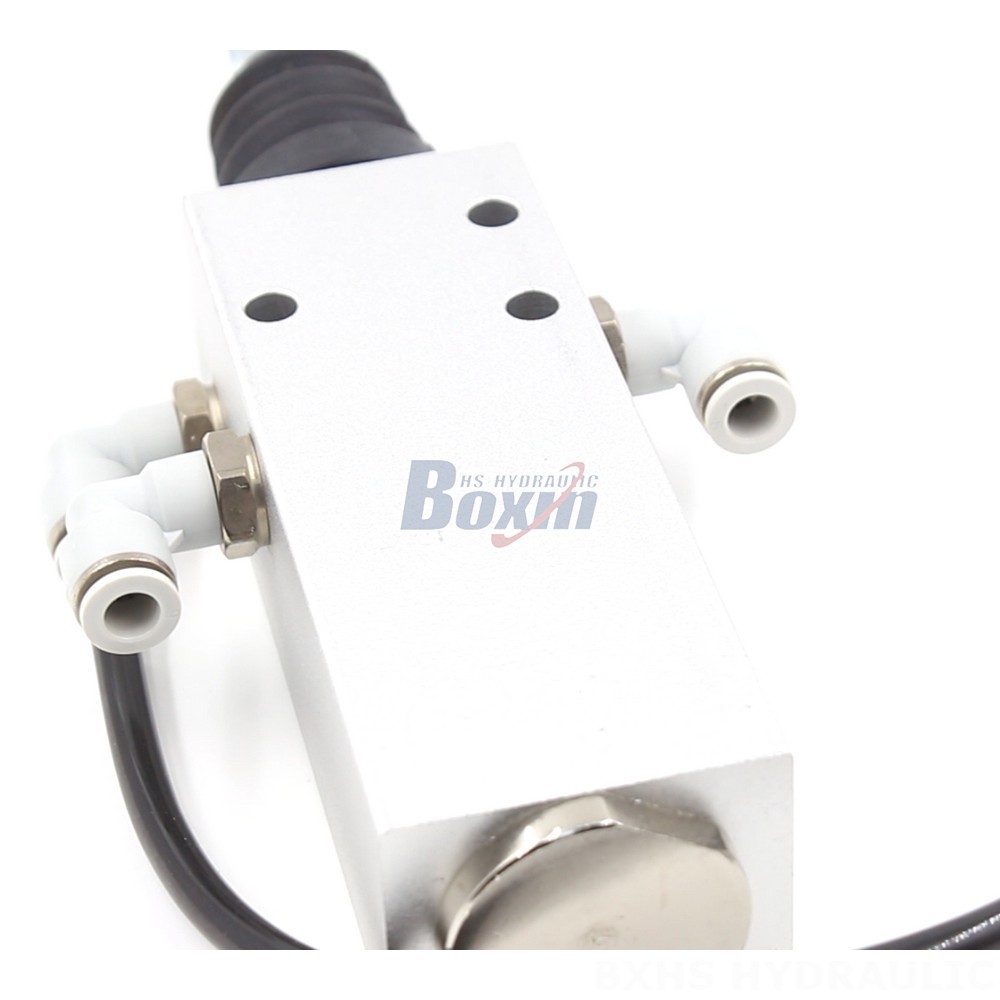

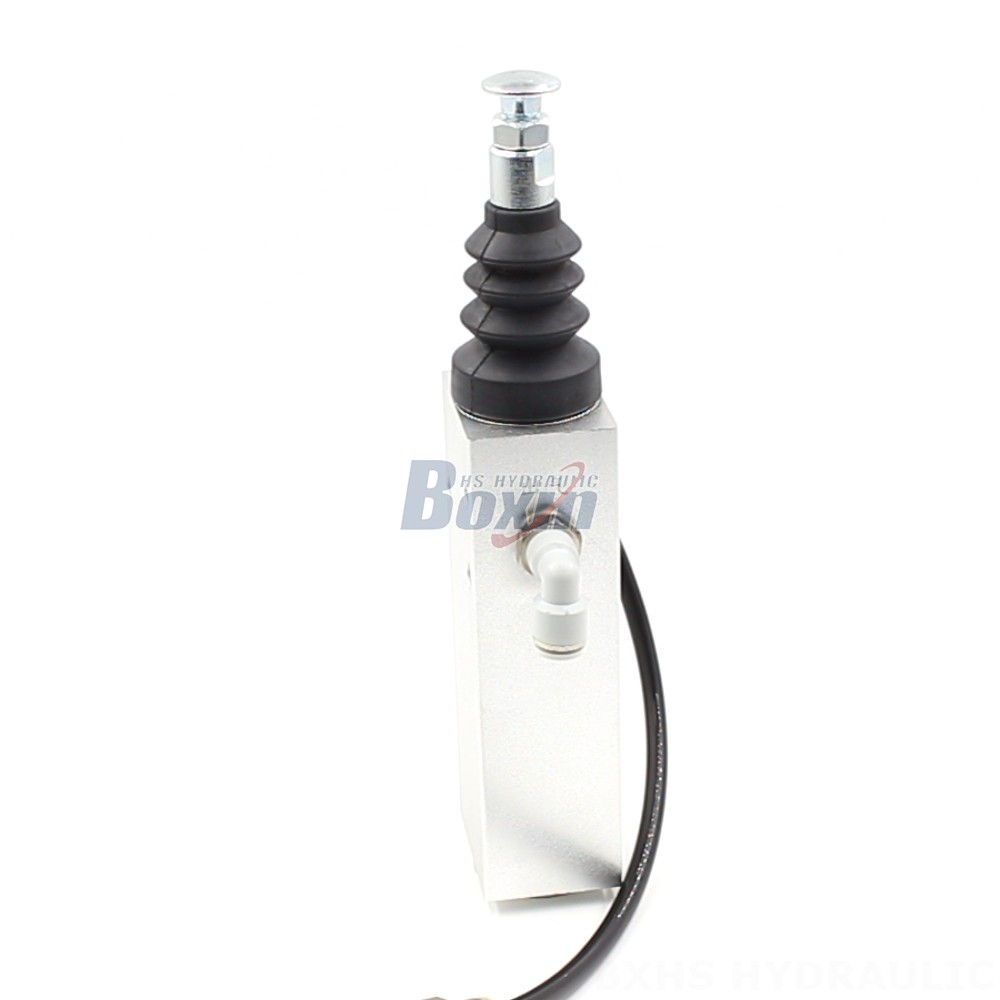

The XQF23 Pneumatic Directional Valve is a reliable and robust solution for controlling hydraulic systems in a variety of applications, including construction, agriculture, and material handling. This monoblock valve features a 1-section design, a maximum pressure of 200 bar (2900 psi), and is suitable for use with a wide range of hydraulic fluids.
| XQF系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 气控 |
| 路数 | 1 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 50 L/min (13.2 US gpm) |
| 最大压力 | 200 bar (2900 psi) |
| 进油口 | G1/4接口 |
| 出油口 | G1/4接口 |
| 接口尺寸 | G1/4接口 |
The XQF23 Pneumatic Directional Valve is a high-performance, 1-section monoblock valve designed for use in demanding applications. It features a pneumatic control method, a maximum pressure rating of 200 bar (2900 psi), and an operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). This valve is ideal for use in a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi excavators, and mini excavators. It offers reliable and precise control of hydraulic systems, ensuring optimal performance and efficiency in various industries.
