Flow Valve Hydraulic White Label Hydraulic Valves: P80 Monoblock Solution for Your Business

控制方式:手控

路数:2 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:SAE 10接头

出油口:SAE 12接头

接口尺寸:SAE 10接头

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列单块式方向阀

Packagingsize:26*18*11

Grossweight:8.00 kg

库存: 有货

描述

Flow Valve Hydraulic White Label Hydraulic Valves: P80 Monoblock Solution for Your Business

Flow Valve Hydraulic White Label Hydraulic Valves: P80 Monoblock Solution for Your Business drawing image

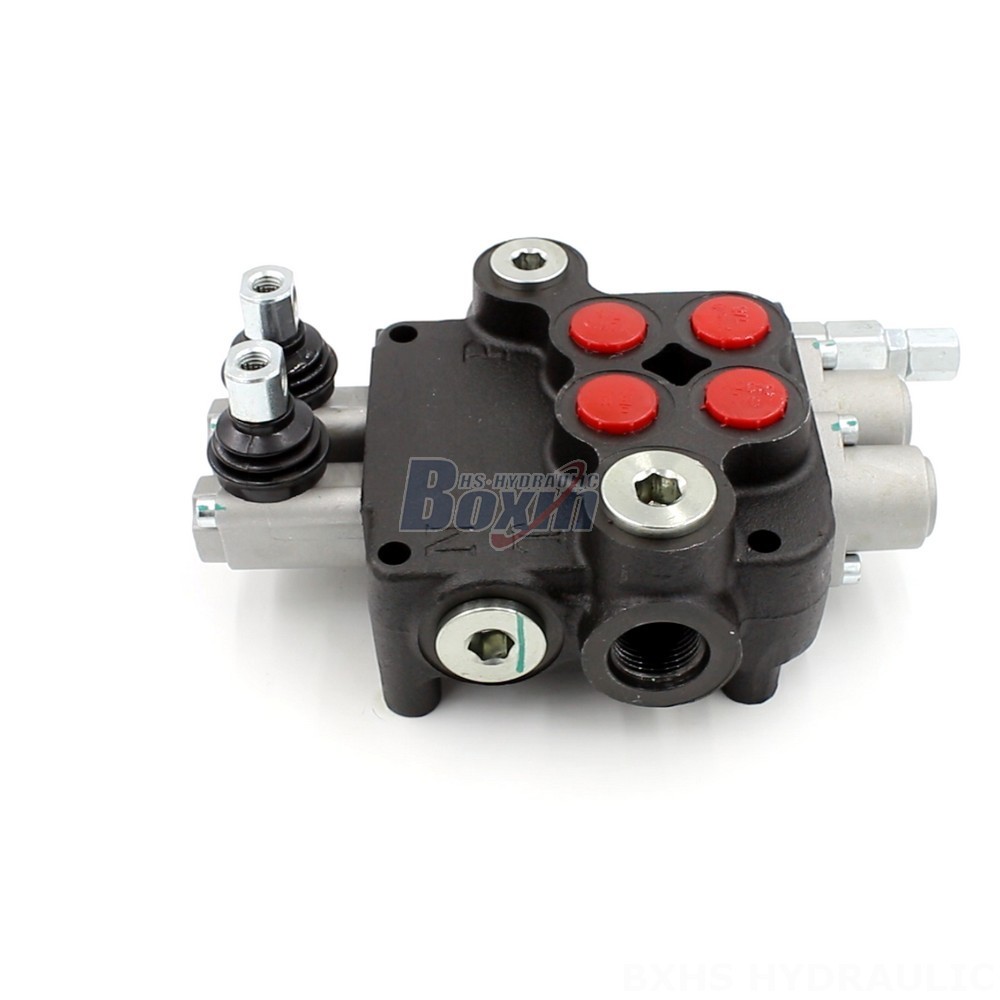

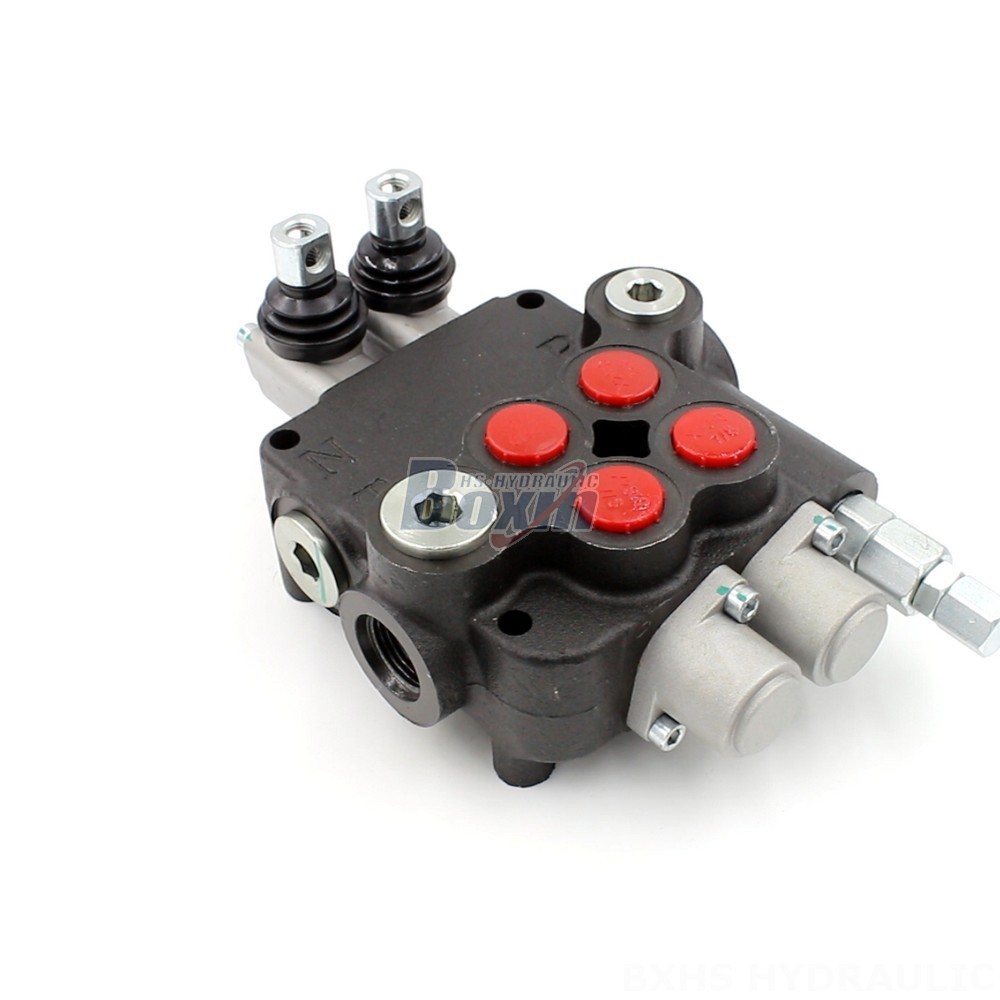

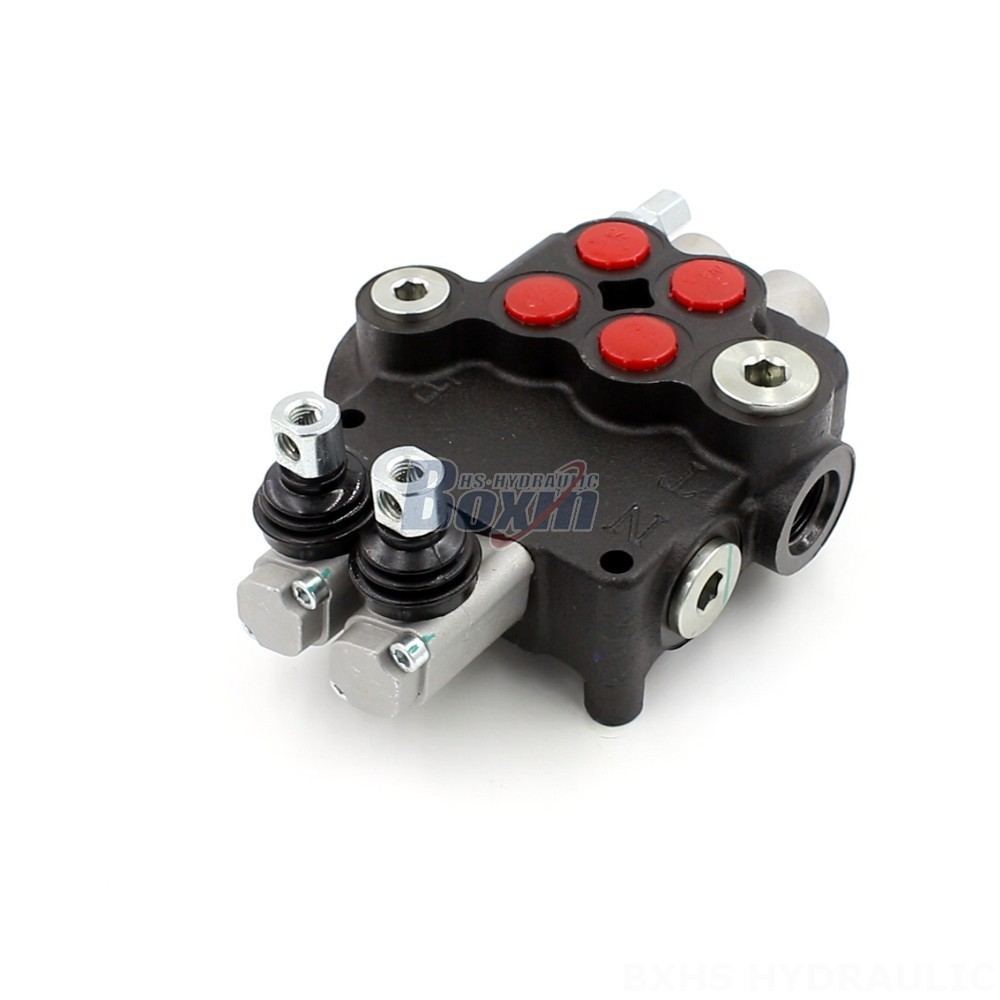

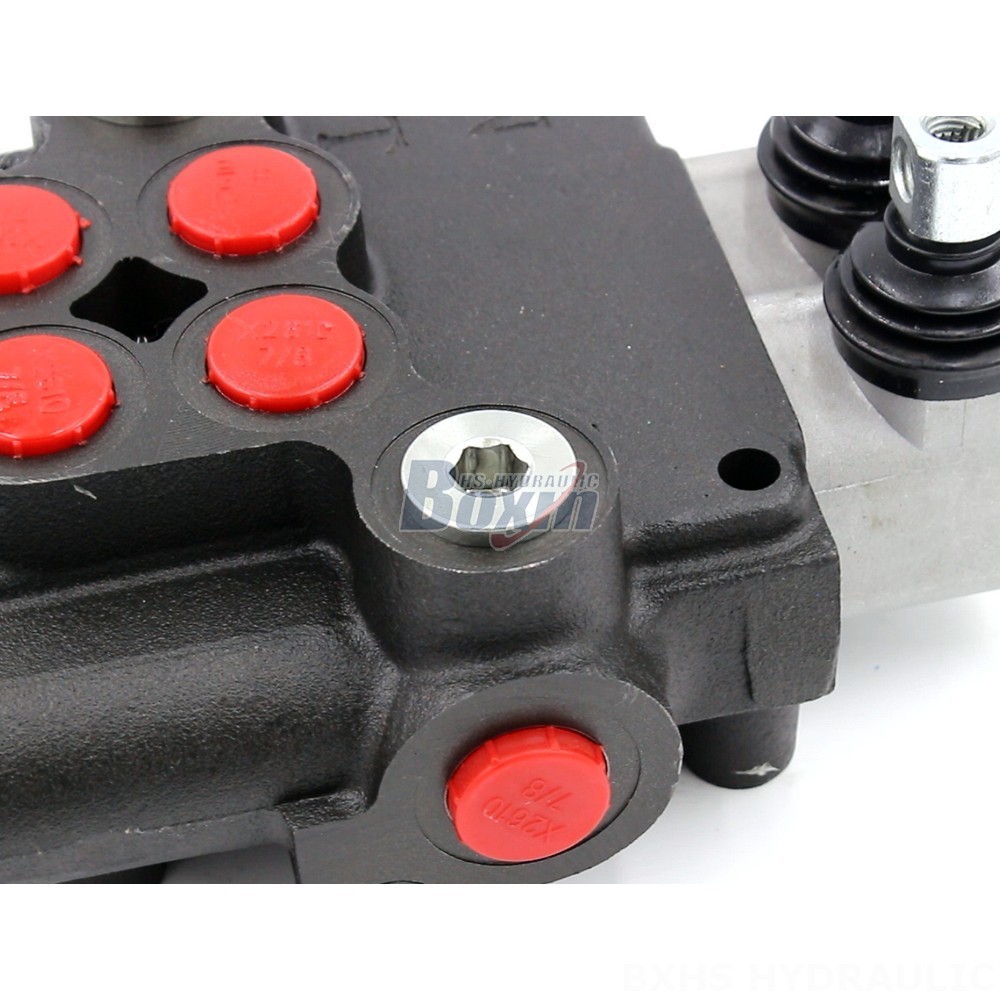

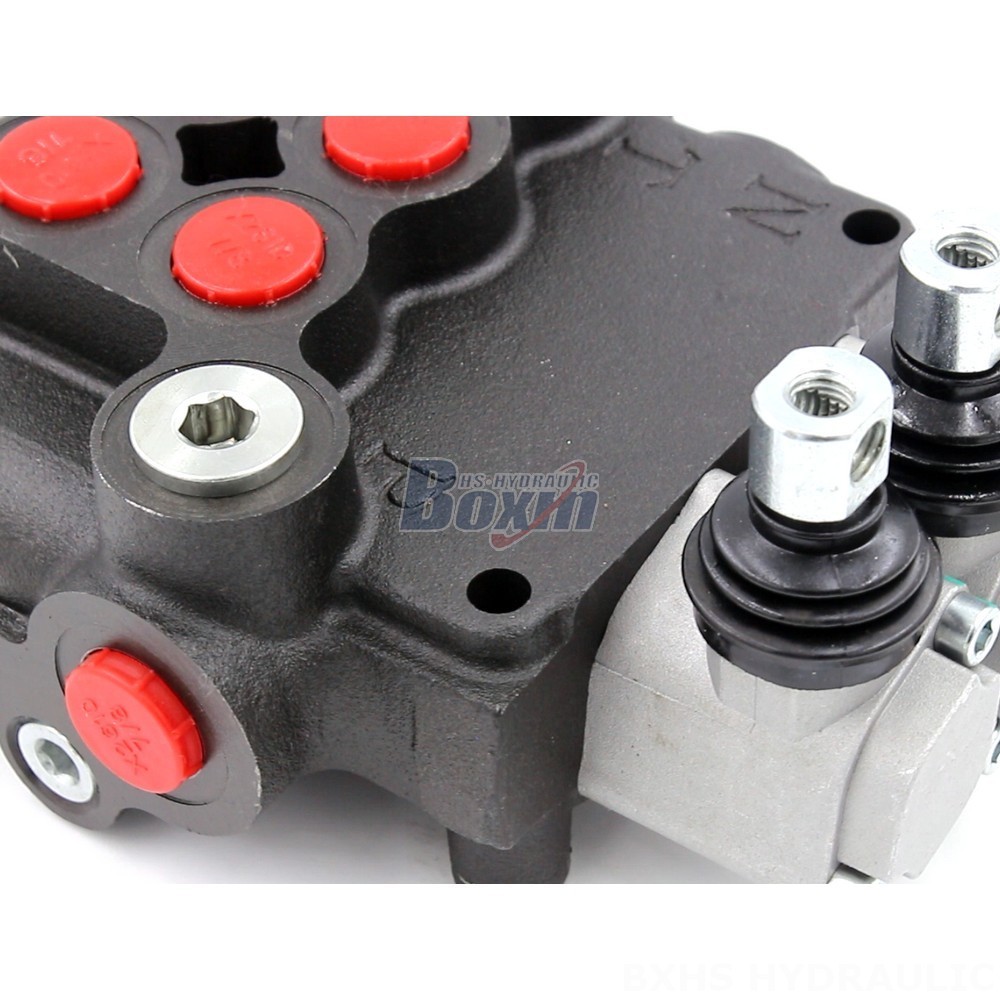

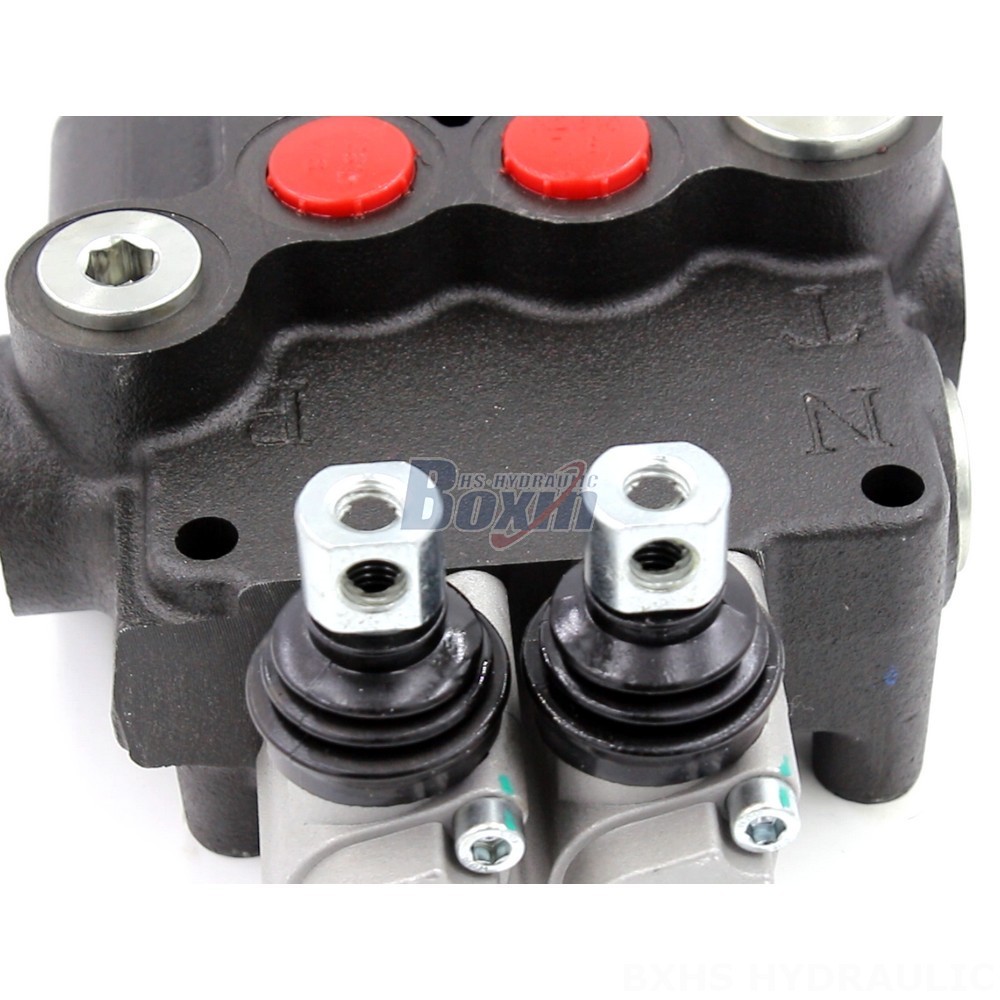

The P80 Series Flow Valve is a 2-section, manual control monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. Ideal for material handling, construction, agriculture, and industrial vehicles, this valve is perfect for OEM, ODM, white label, and custom applications. Contact us for wholesale inquiries.

P80系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	80 L/min (21.2 US gpm)
最大压力	315 bar (4600 psi)
进油口	G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口	G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸	G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

The P80 Series Flow Valve is a reliable and efficient hydraulic solution designed for a wide range of applications. This 2-section monoblock valve features manual control, a rated flow of 80 L/min, and a maximum pressure of 250 bar. Its robust design makes it suitable for demanding environments in material handling, construction, agriculture, and industrial vehicles. We offer OEM, ODM, white label, and custom solutions to meet your specific requirements. Contact us for wholesale inquiries and to discuss how this valve can enhance your product line.
