Our Tailor-Made Hydraulic Solutions offer customizable CBHST1-UNI-63 Gear Pumps with various displacement options, rated pressure, and speed capabilities. Designed for diverse applications in material handling, construction, agriculture, and industrial vehicles, these pumps provide reliable and efficient hydraulic power.
| CBHST1-UNI系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 32 毫升/转, 40 毫升/转, 50 毫升/转, 63 毫升/转, 80 毫升/转, 100 毫升/转, 34 毫升/转, 43 毫升/转 |
| 额定压力 | 23 MPa (3335 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 2500 r/min |
| 旋转方向 | 双向 |
| 架构 | 外啮合齿轮泵 |
| 材质 | 铸铁 |
| 轴伸形式 | H:矩形花键, X:渐开线花键 |
| 法兰盘类型 | UNI-3 安装孔 |

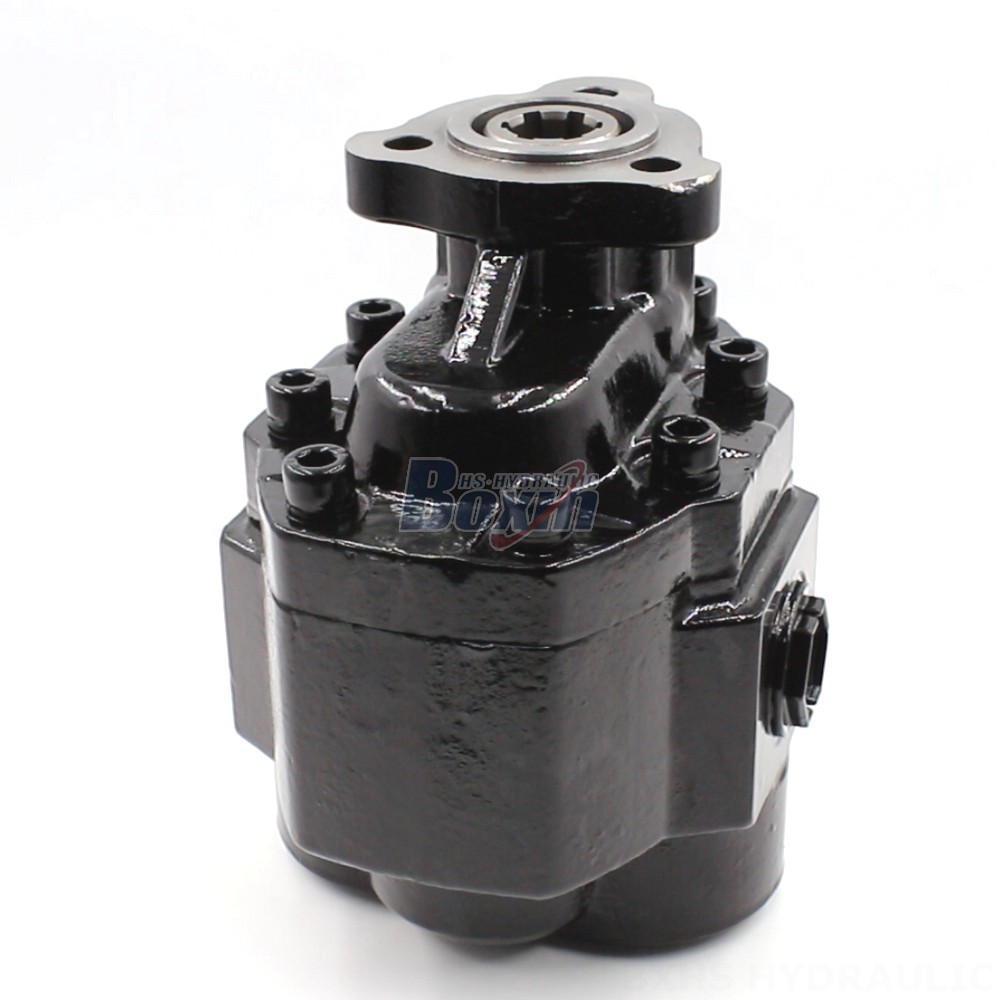

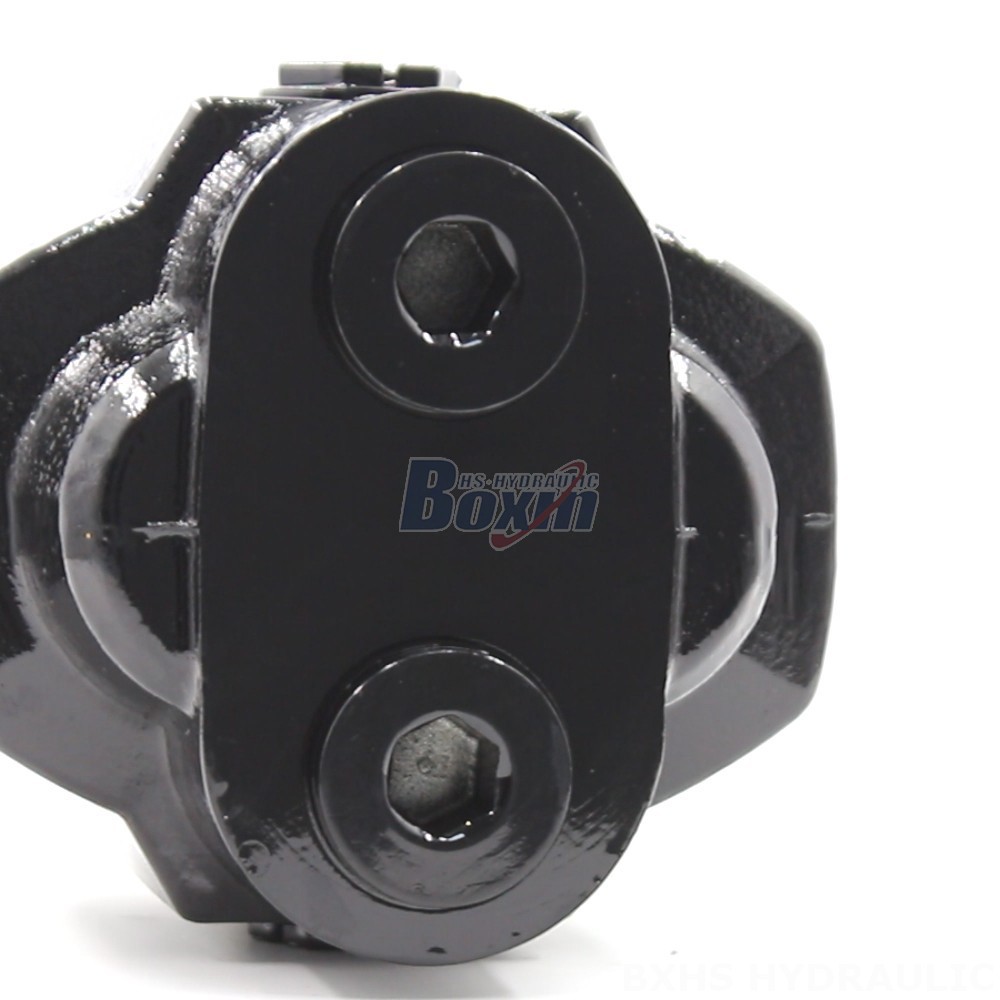

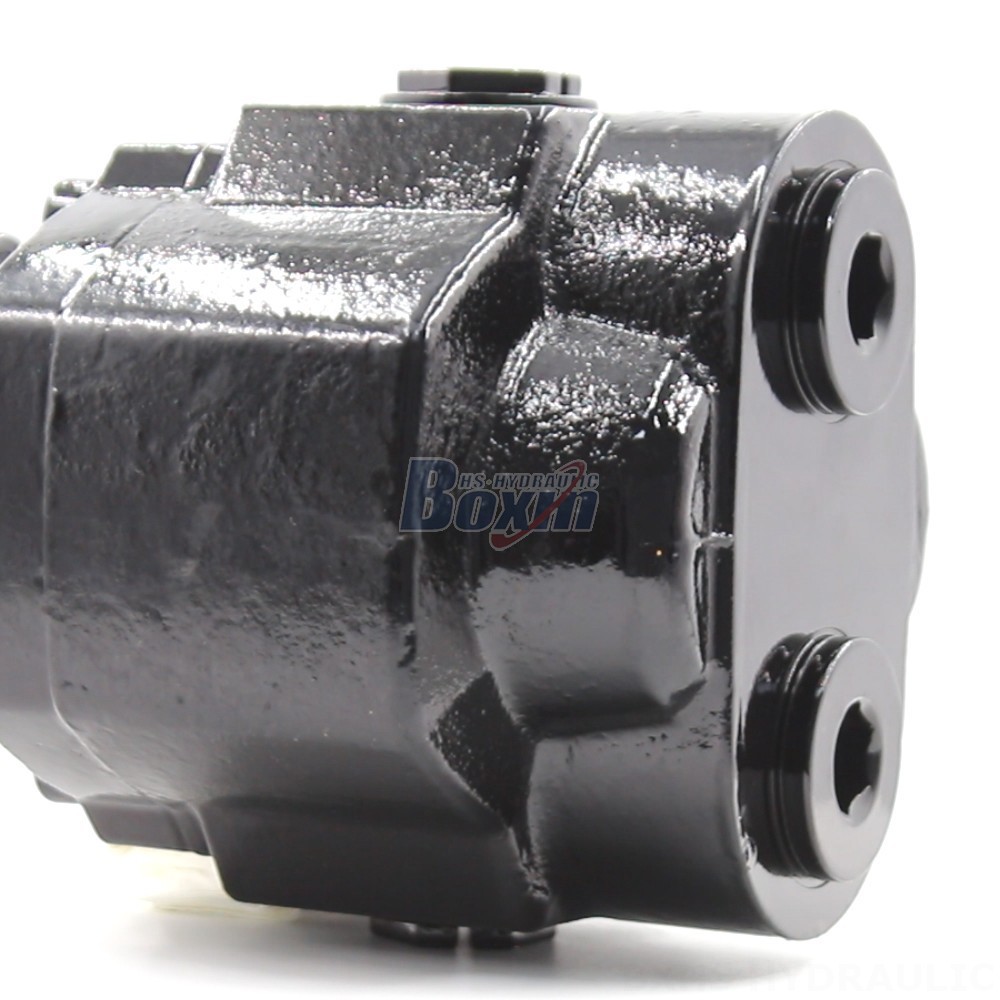

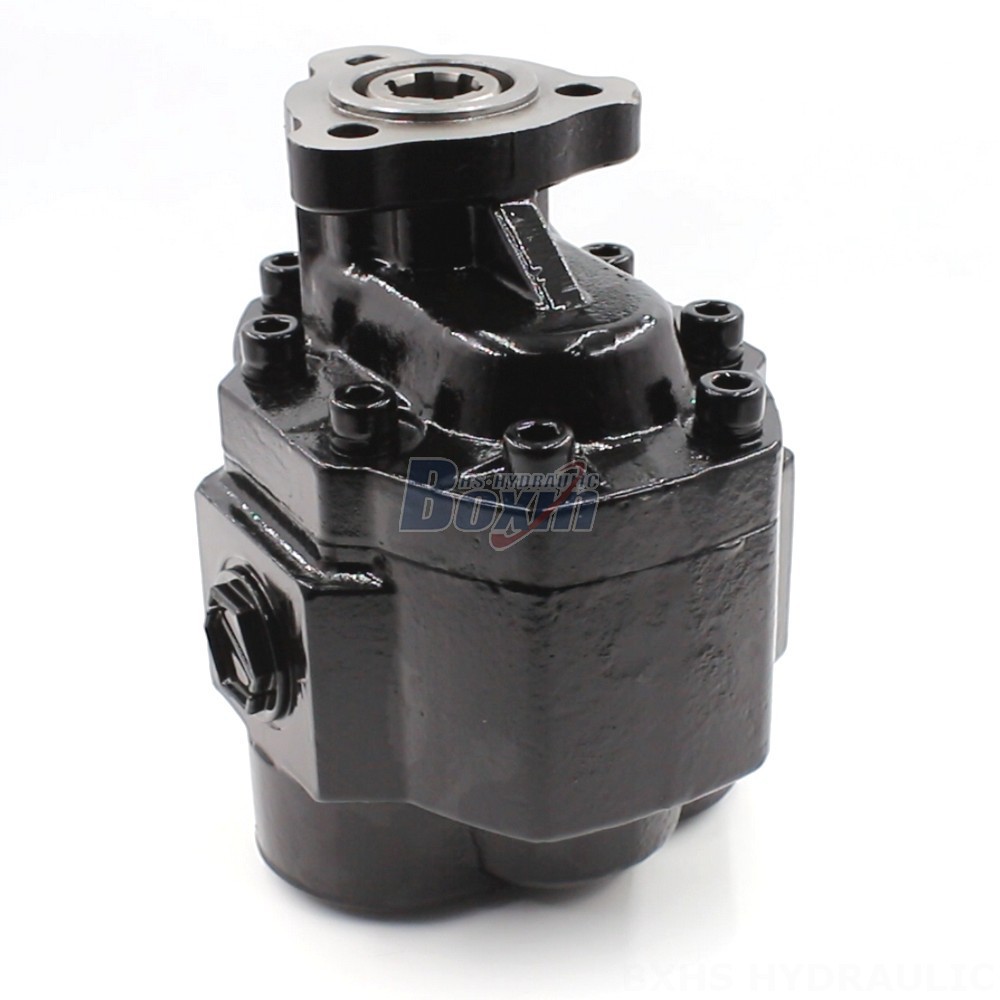

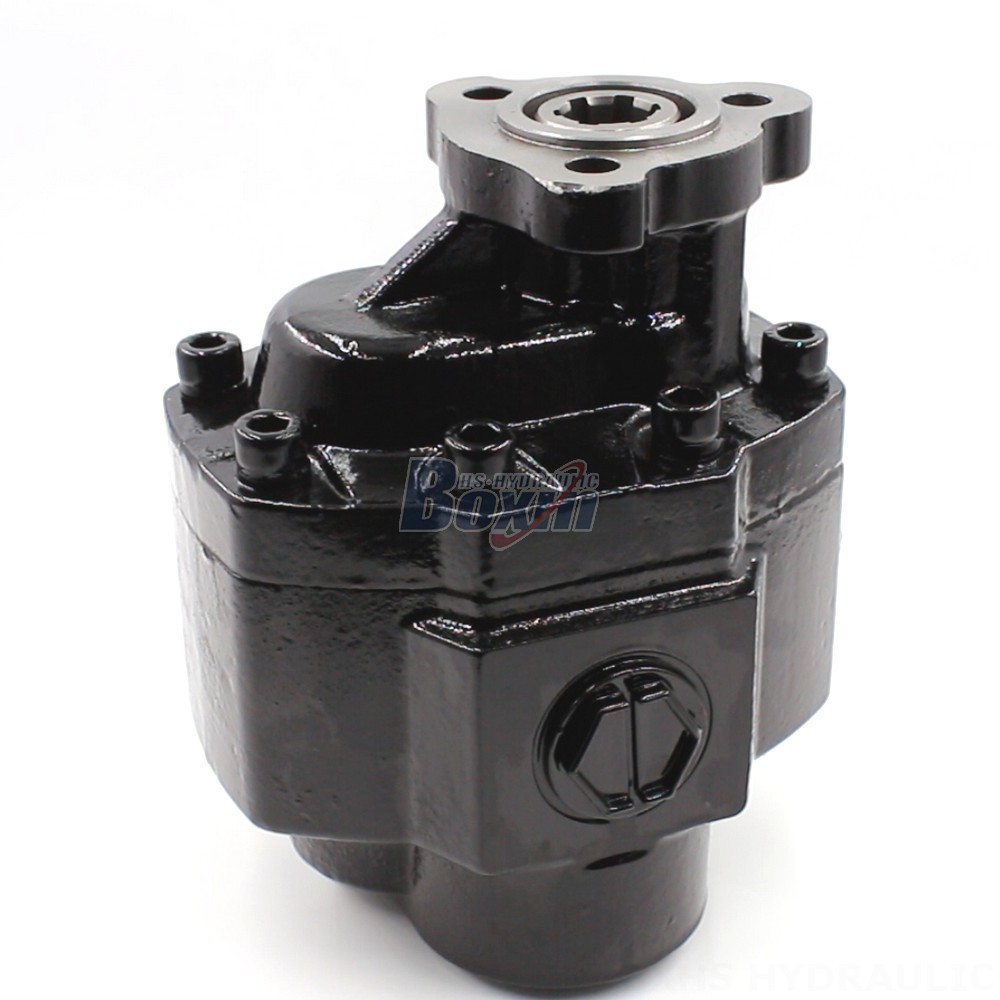

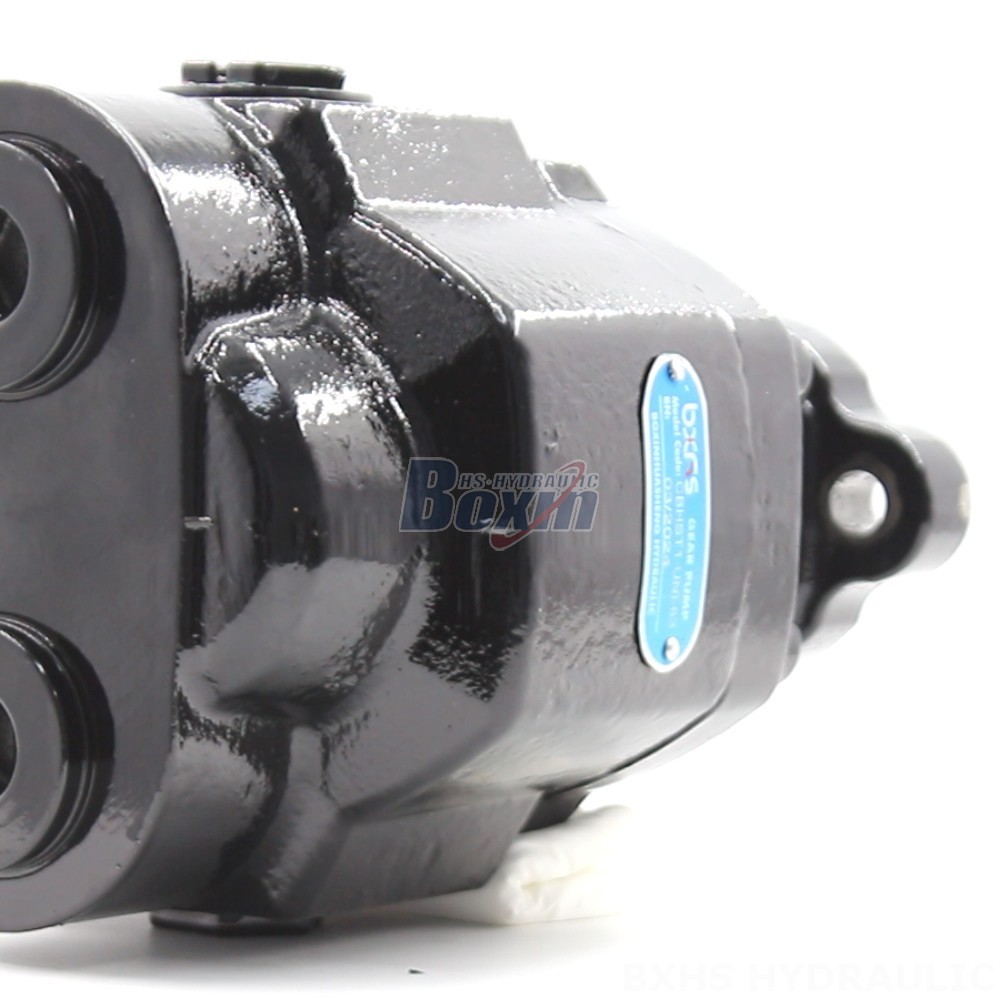

**Tailor-Made Hydraulic Solutions: Customizable CBHST1-UNI-63 Gear Pumps**
- **Displacement:** 32 cc/rev, 40 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev
- **Rated Pressure:** 23 MPa (3335 psi)
- **Max Speed:** 2500 r/min, 2000 r/min
- **Rotation:** Bidirectional
- **Structure:** Swashplate
- **Material:** Cast Iron
- **Flange Version:** UNI-3 Mounting Holes
- **Shaft Type:** Rectangle Spline (H), Involute Spline (X)
- **Series:** CBHST1-UNI Series
**Application Area:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Model:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Midi-Excavator
- Mini-Excavator
- Skid Steer Loader
- Compact Wheel Loader
**OEM, Private Label, and Custom Manufacturing Services:**
We offer flexible manufacturing solutions to meet your specific requirements. Whether it's OEM, private label, or complete customization, our team of engineers can work closely with you to develop and produce hydraulic products tailored to your exact specifications.
