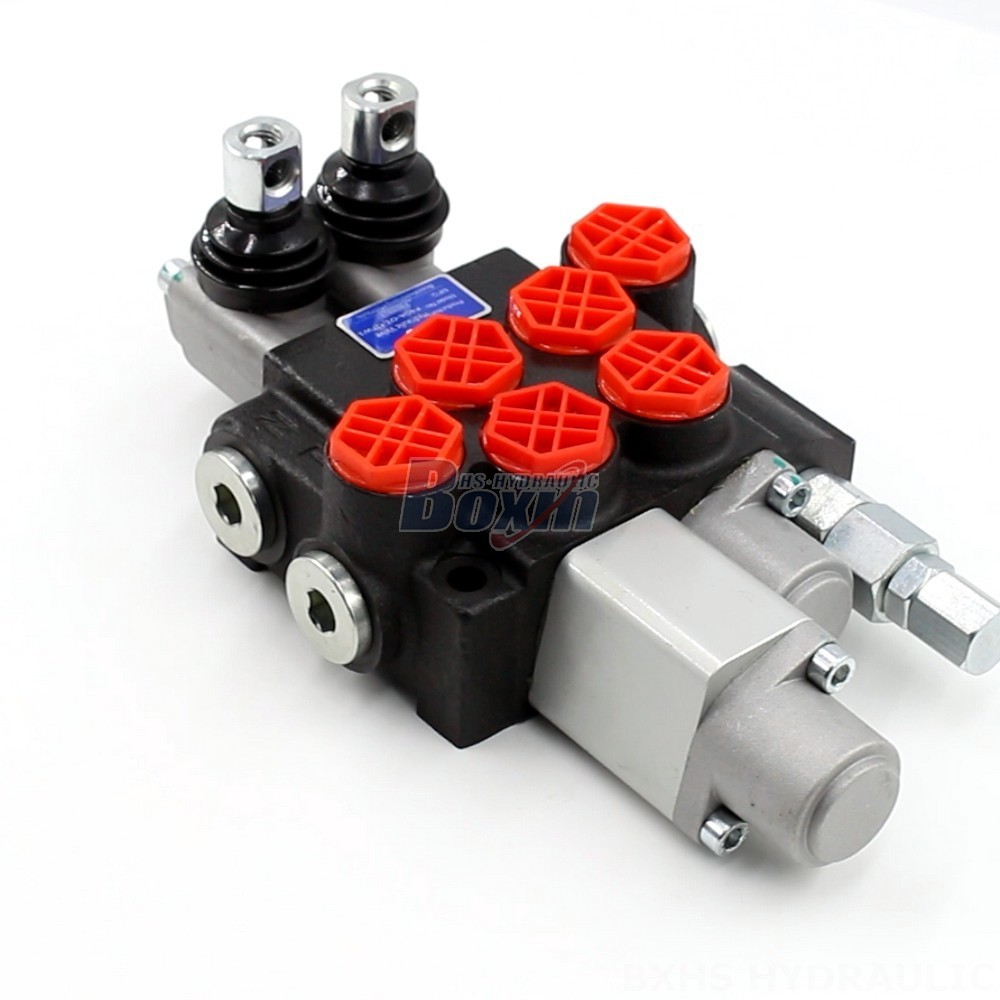

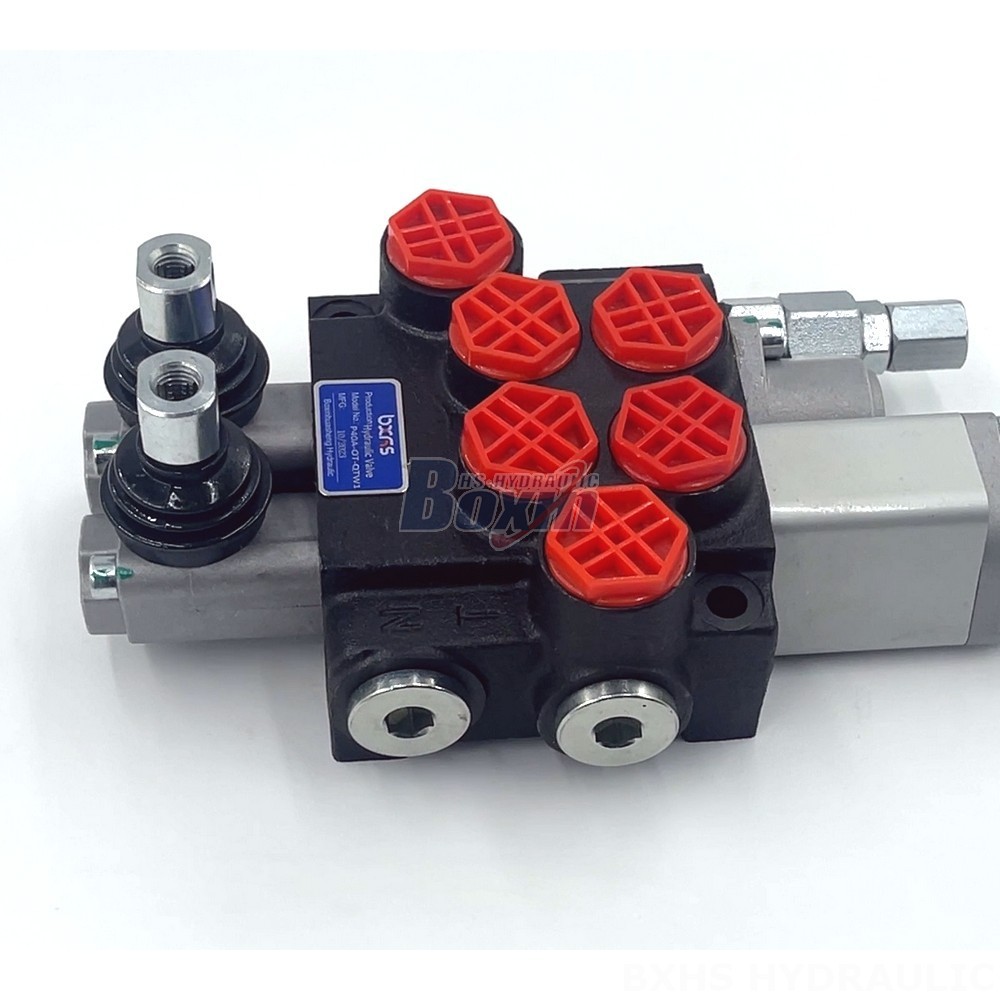

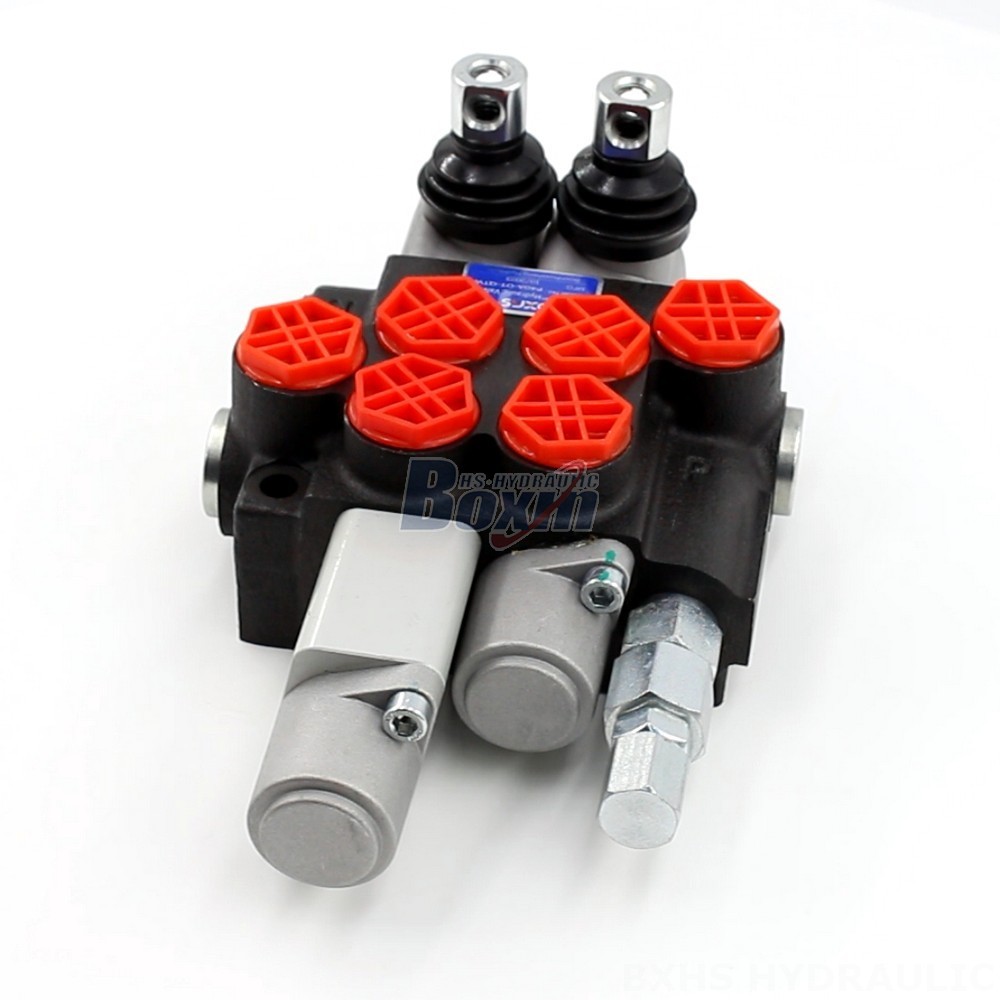

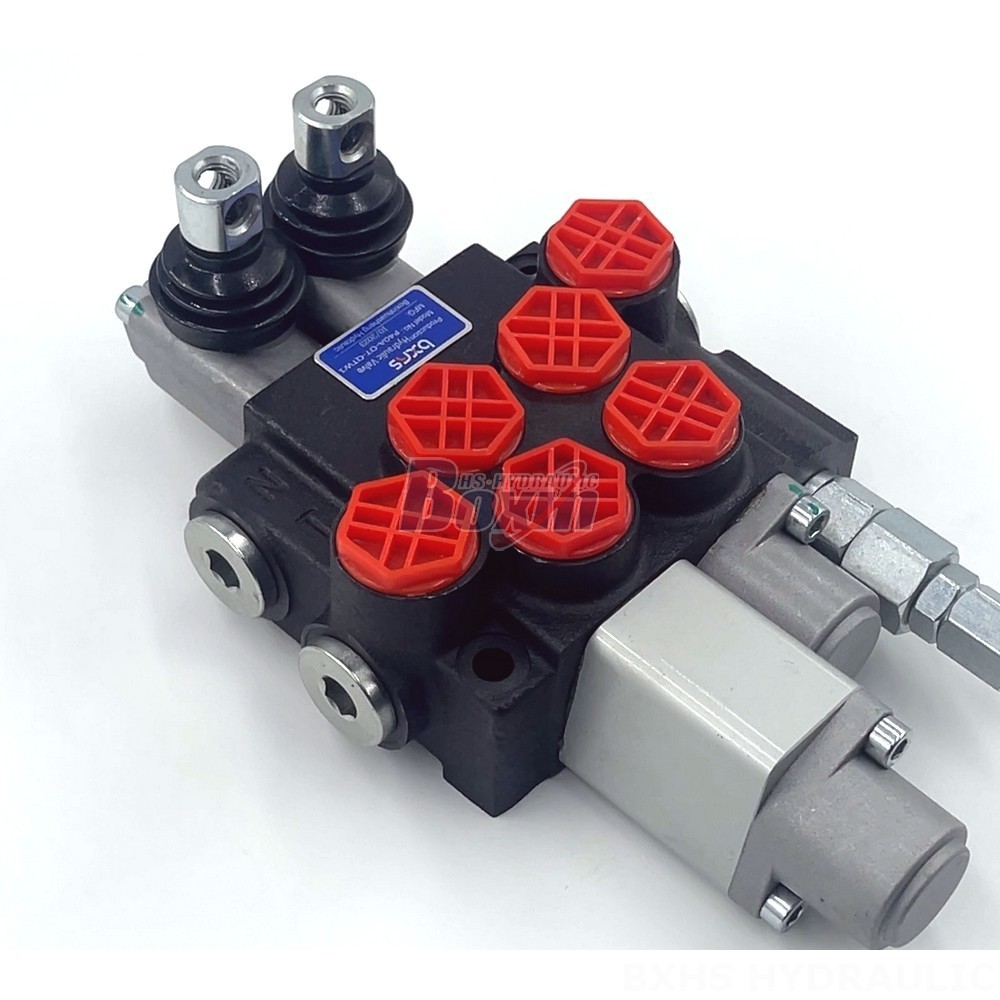

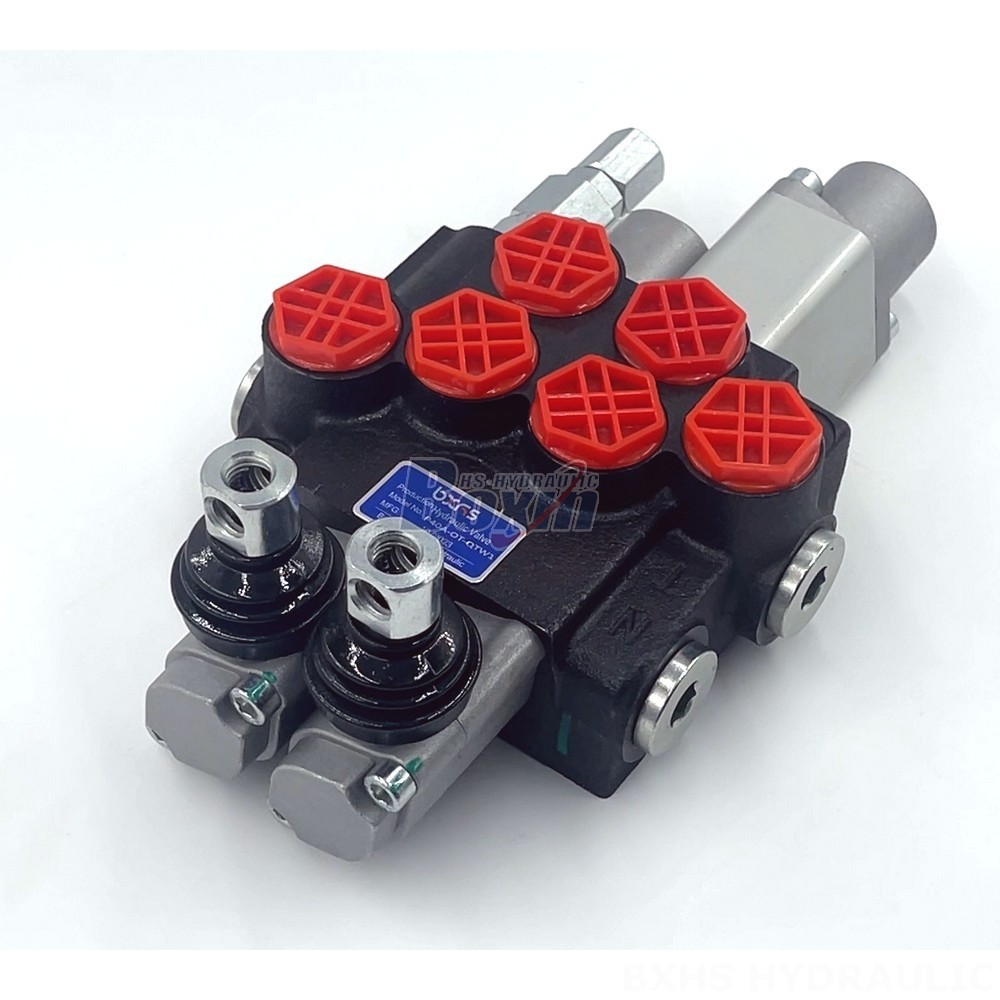

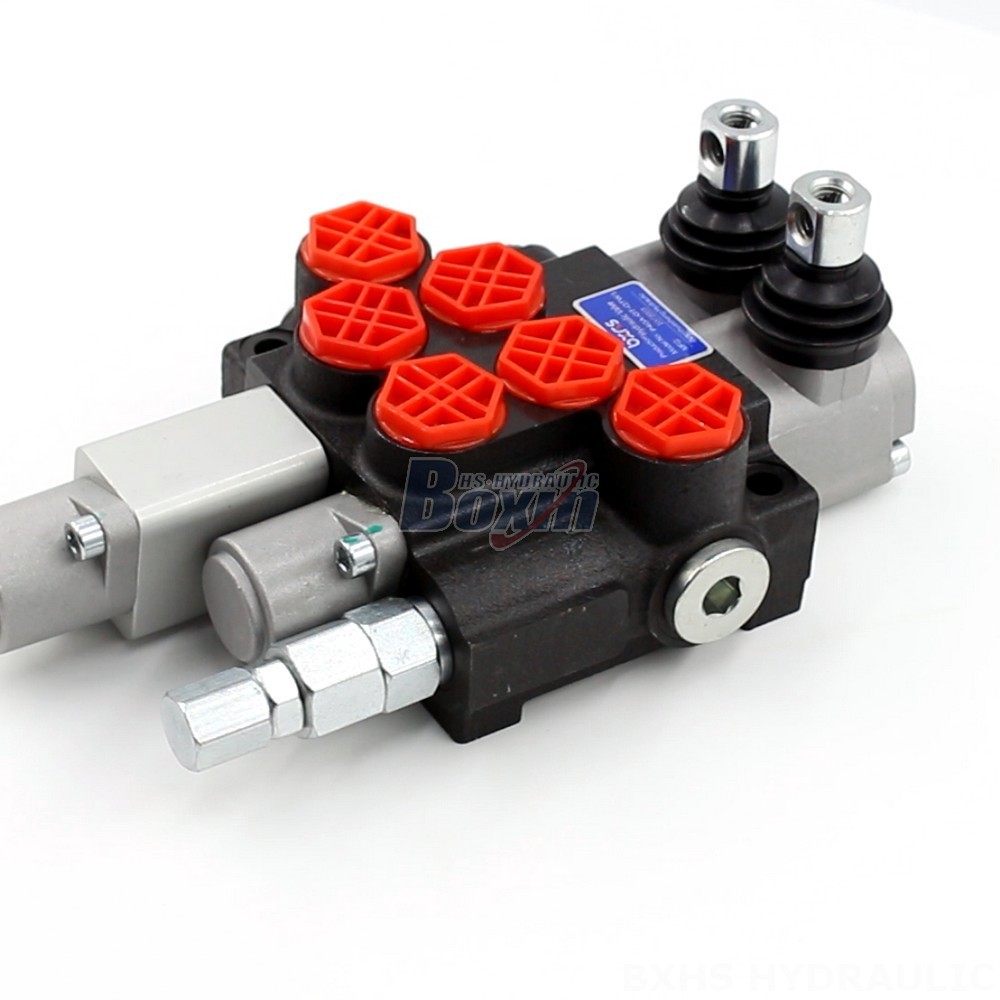

The P40A Valve is a high-performance, 2-section monoblock hydraulic valve designed for use in a wide range of construction, material handling, and industrial vehicles. This valve features a manual control system and a rated flow of 40 L/min, making it ideal for applications requiring precise control and high flow rates.
| P40A系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The P80 Superior Hydraulics P40A Valve is a reliable and durable hydraulic valve designed for demanding applications. It features a robust monoblock construction, a rated flow of 40 L/min, and a maximum pressure rating of 250 bar. The valve is suitable for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. This valve offers exceptional performance and durability, making it an ideal choice for a wide range of applications.
