Valve Hydraulic Distributors Source ZT20 Directional Control Valves from a Trusted Manufacturer

控制方式:手控

路数:2 联

额定流量:90 L/min (23.8 US gpm)

最大压力:250 bar (3600 psi)

进油口:G3/4接口

出油口:G3/4接口

接口尺寸:G3/4接口

品牌:BXHS

所属类别:液压控制阀

产品系列:ZT20系列 液压控制阀

Packagingsize:23*18*11

Grossweight:7.91 kg

库存: 有货

950 次查看了此产品

Valve Hydraulic Distributors Source ZT20 Directional Control Valves from a Trusted Manufacturer

Valve Hydraulic Distributors Source ZT20 Directional Control Valves from a Trusted Manufacturer

Valve Hydraulic Distributors Source ZT20 Directional Control Valves from a Trusted Manufacturer drawing image

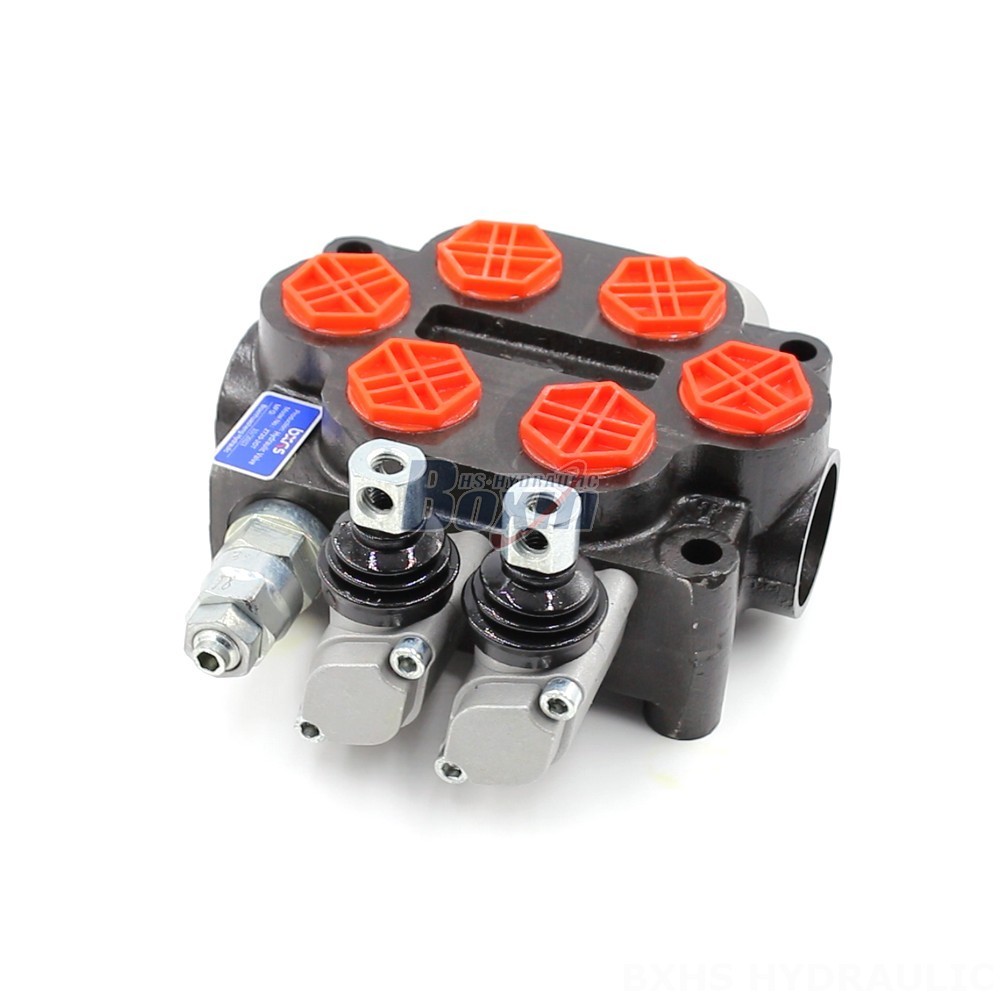

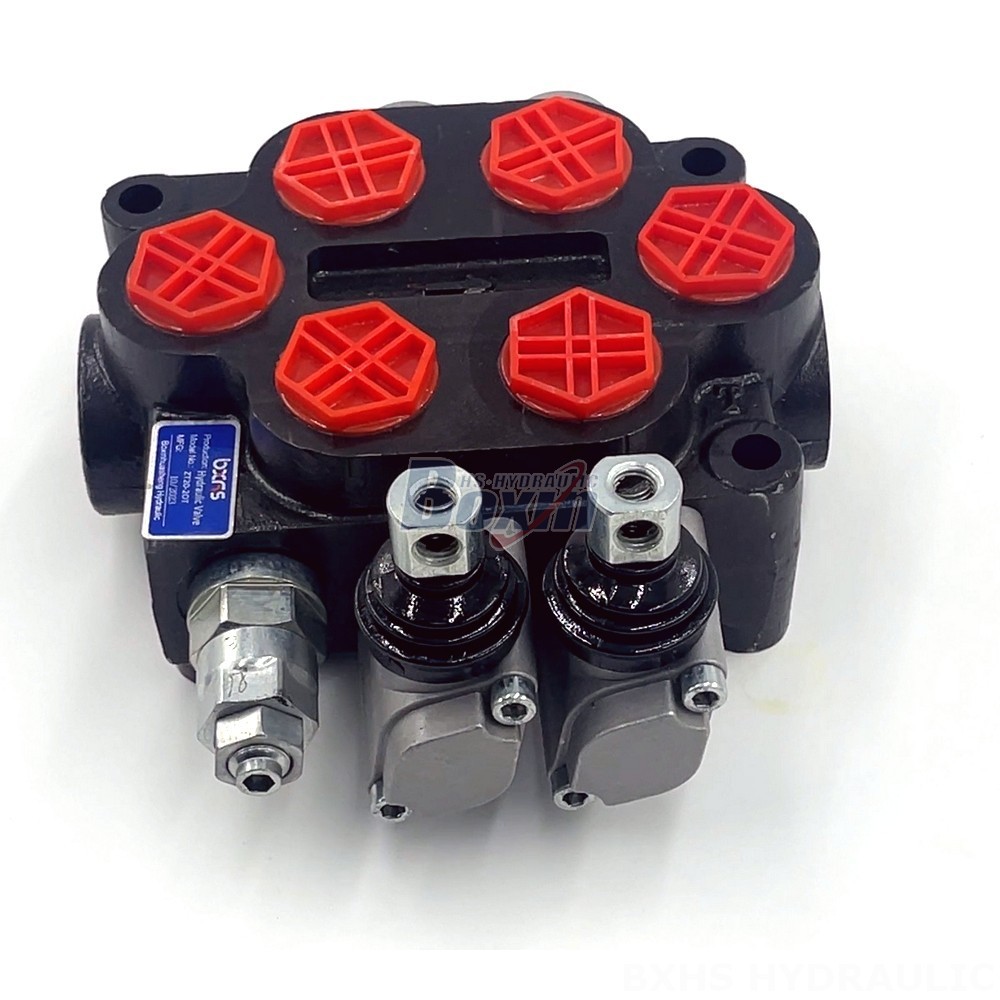

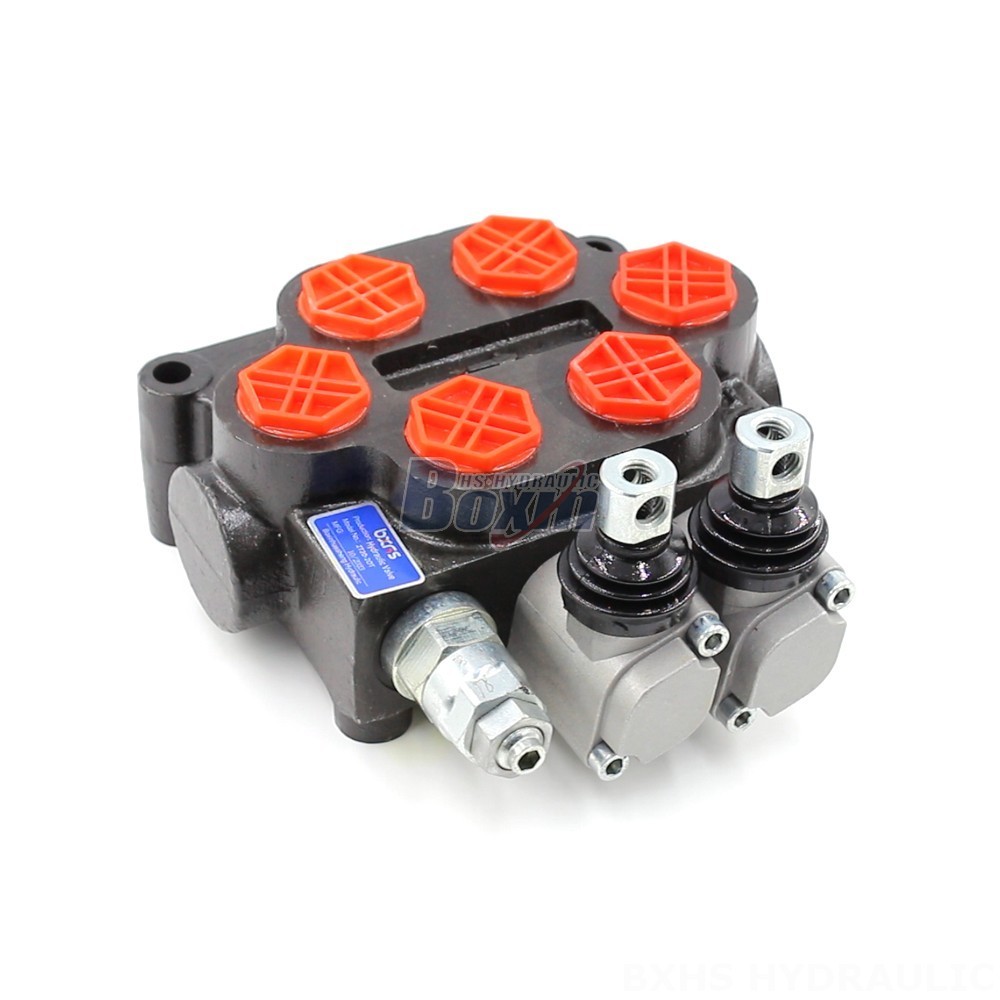

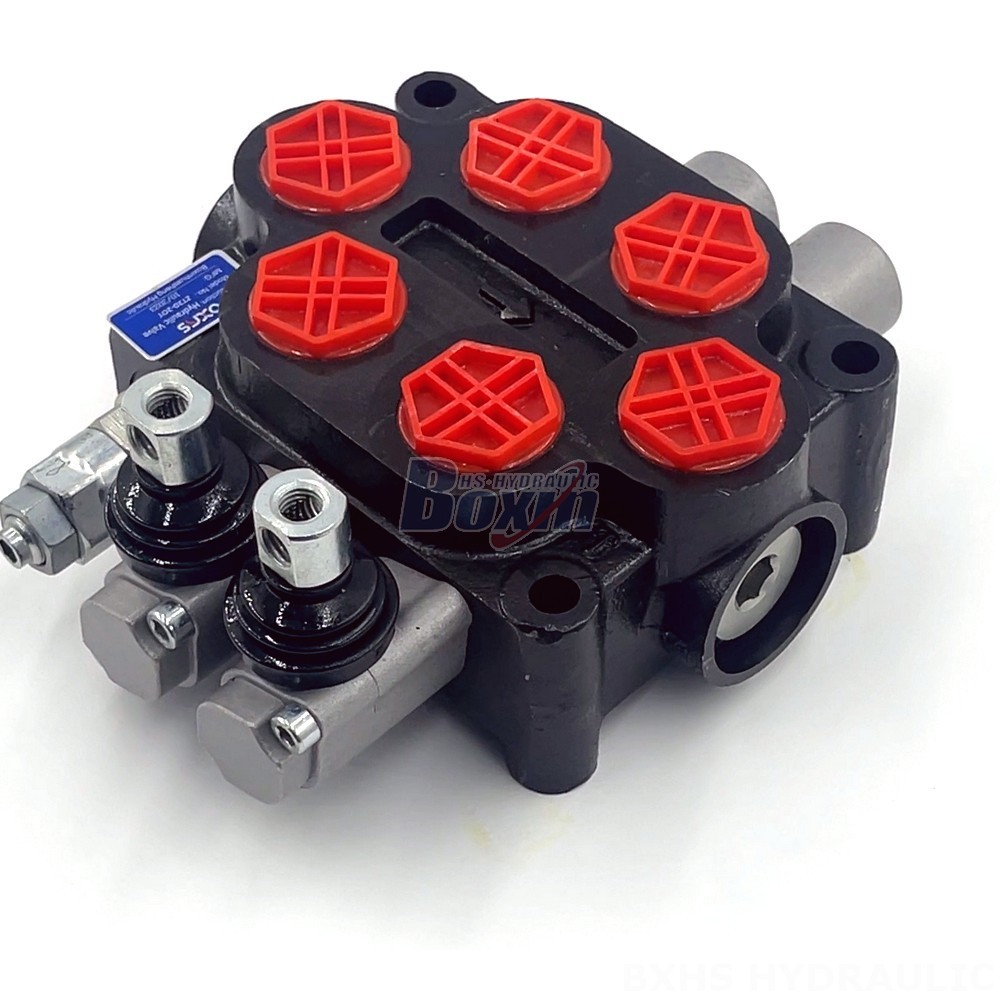

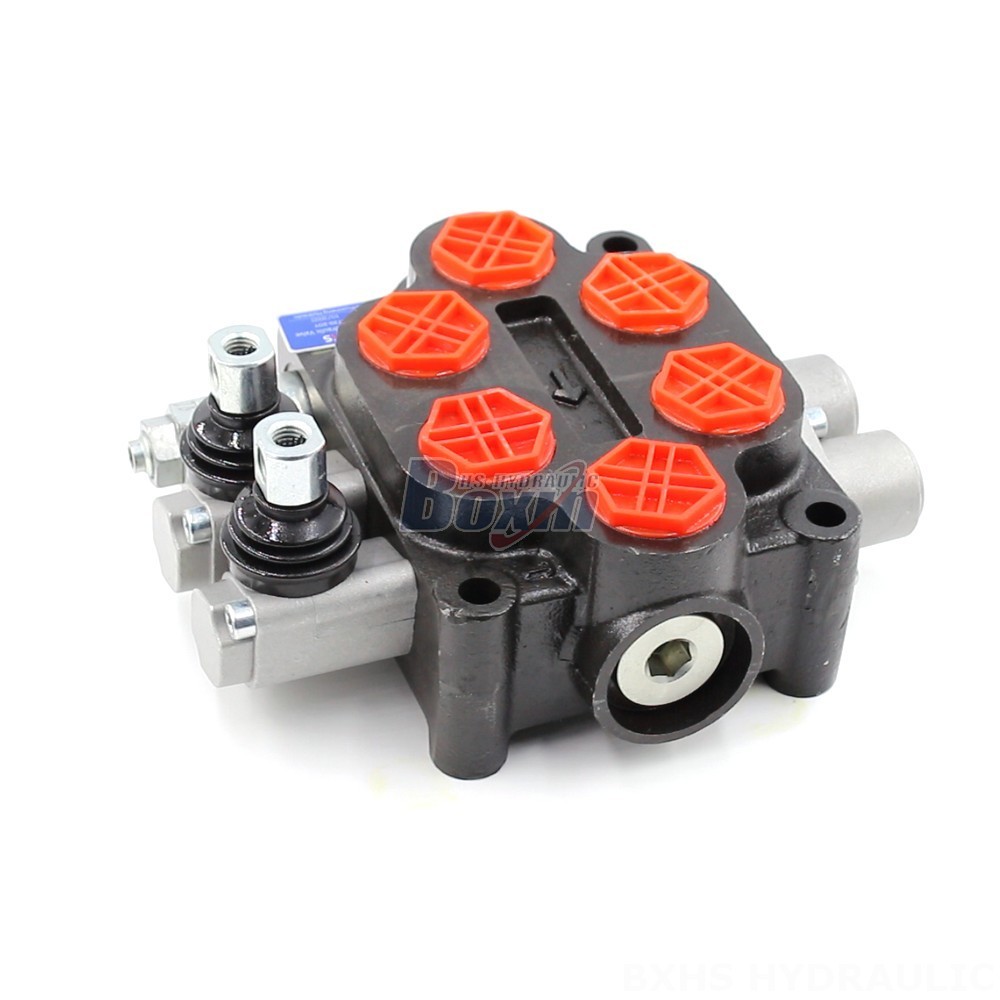

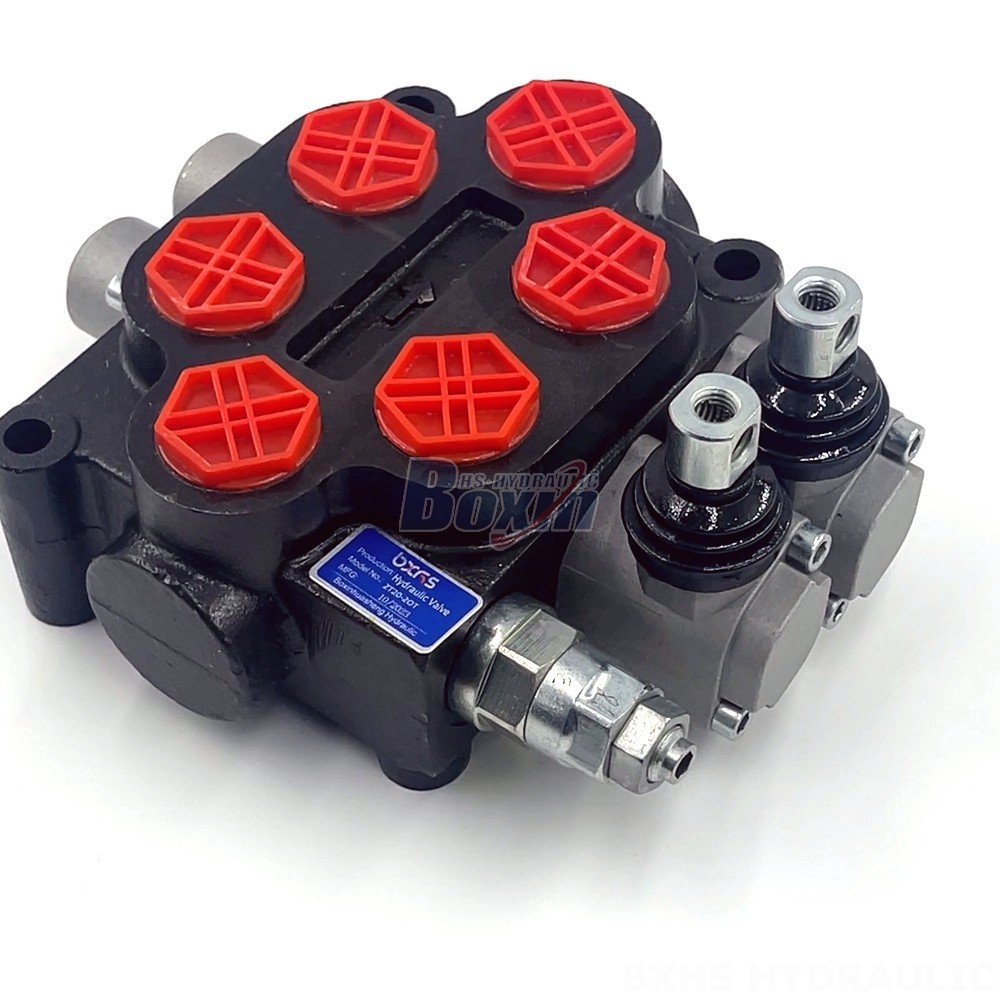

The ZT20 Series Directional Control Valve is a high-performance, 2-section monoblock valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 100 L/min rated flow, and 250 bar maximum pressure.

ZT20系列 液压控制阀 参数
控制方式 手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联
额定流量 100 L/min (26.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 8接头, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
联数 1联, 2联, 3联, 4联, 5联, 6联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

This ZT20 Series Directional Control Valve is a reliable and durable solution for your hydraulic system needs. It features a compact, monoblock design with a 2-section configuration, offering precise control and efficient operation. With a rated flow of 100 L/min and a maximum pressure of 250 bar, this valve is suitable for a wide range of applications. Its manual control allows for easy operation and adjustment. The valve is designed for use in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. With a robust construction and high-quality materials, this ZT20 Series valve delivers long-lasting performance and reliability.
