12v Hydraulic Spool Source Your P120 Directional Control Valves from a Trusted Manufacturer

控制方式:手控

路数:2 联

额定流量:120 升/分钟 (31.7 美制加仑/分钟)

最大压力:250 bar (3600 psi)

进油口:G1接口

出油口:G1接口

接口尺寸:G1接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P120系列 单块式方向阀

Packagingsize:30*39*17

Grossweight:19.00 kg

库存: 有货

860 次查看了此产品

12v Hydraulic Spool Source Your P120 Directional Control Valves from a Trusted Manufacturer

12v Hydraulic Spool Source Your P120 Directional Control Valves from a Trusted Manufacturer

12v Hydraulic Spool Source Your P120 Directional Control Valves from a Trusted Manufacturer drawing image

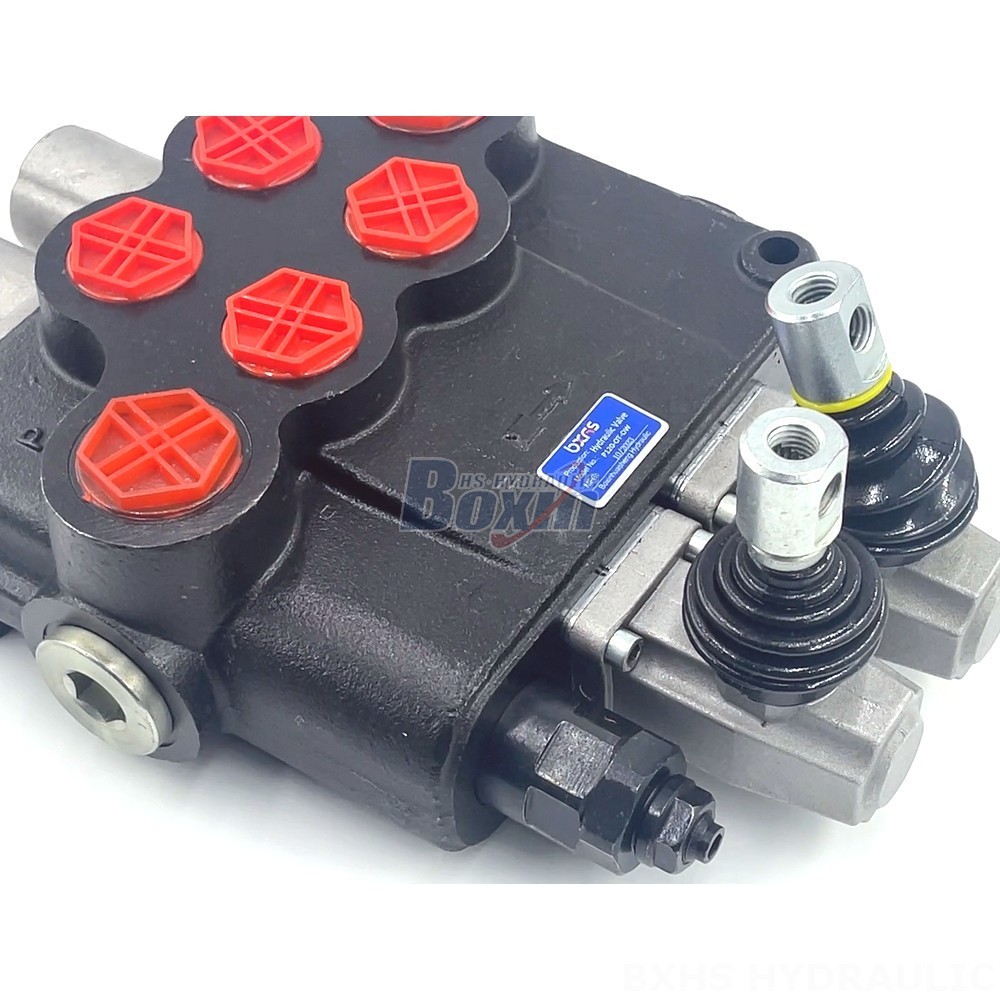

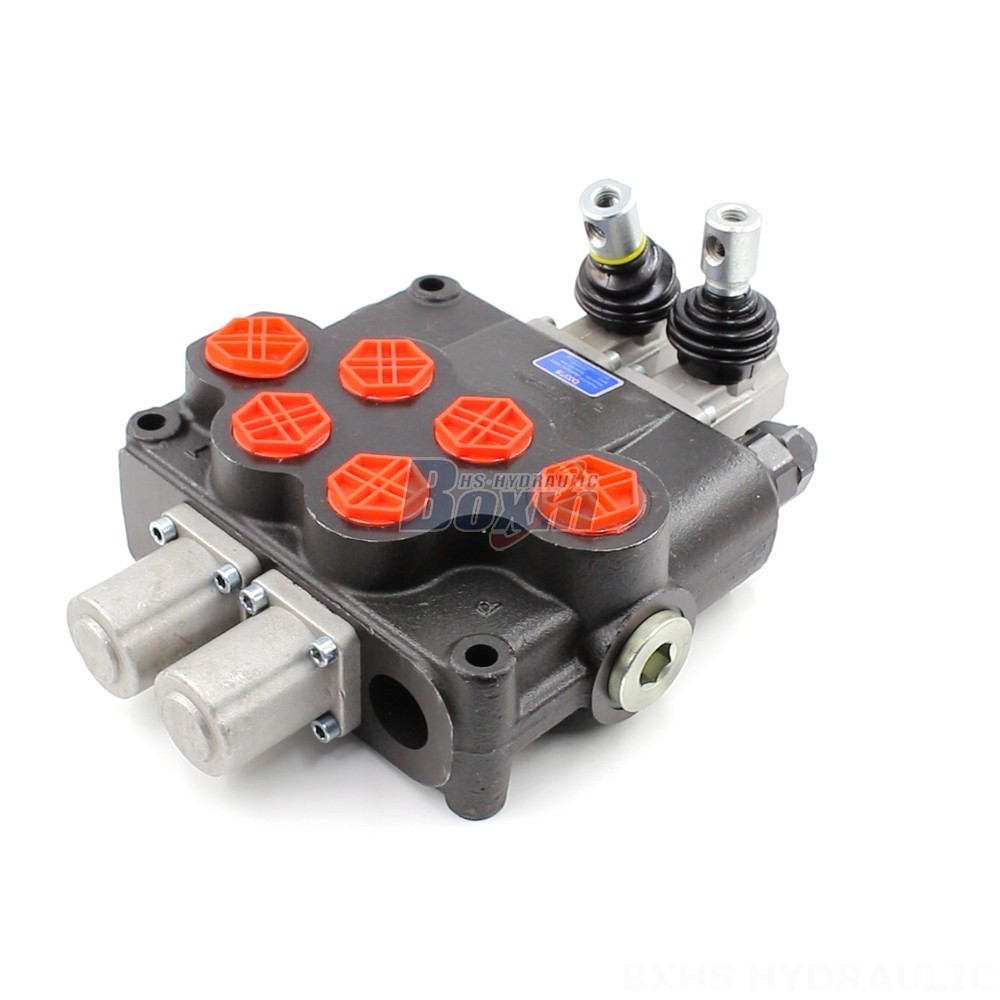

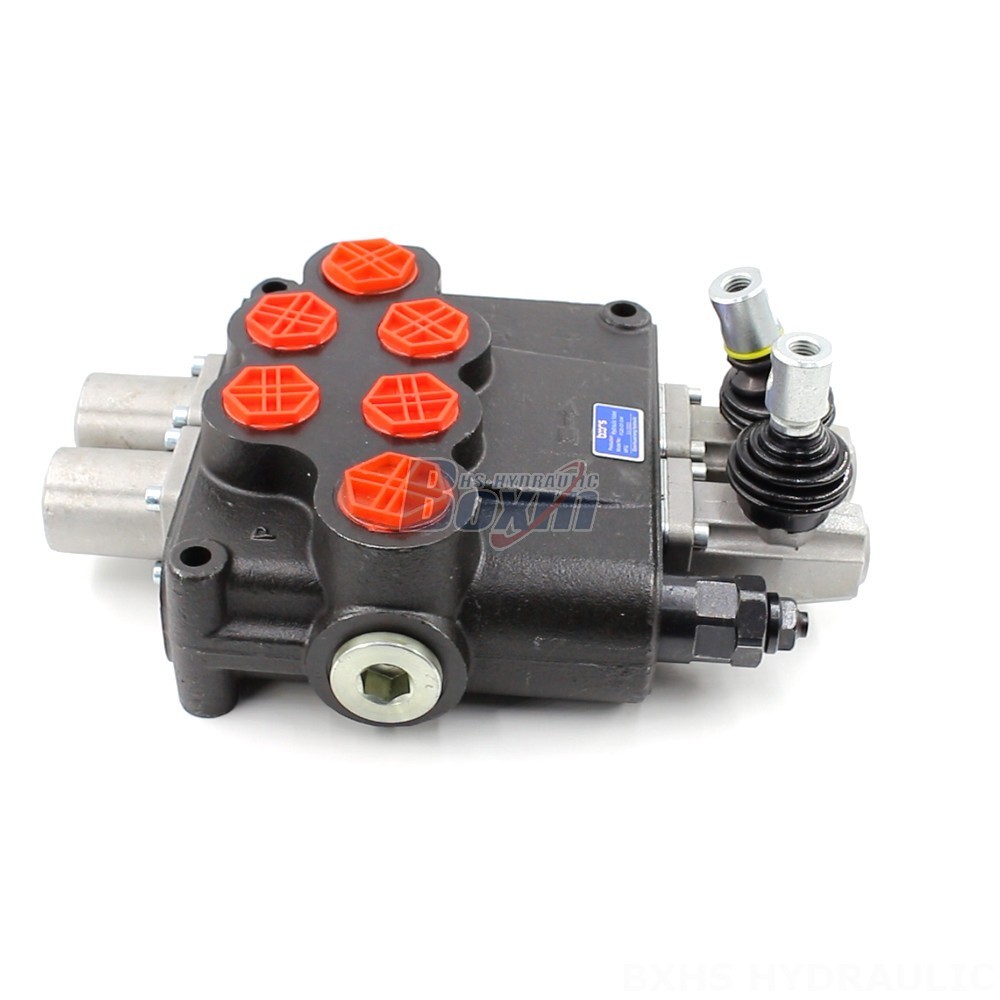

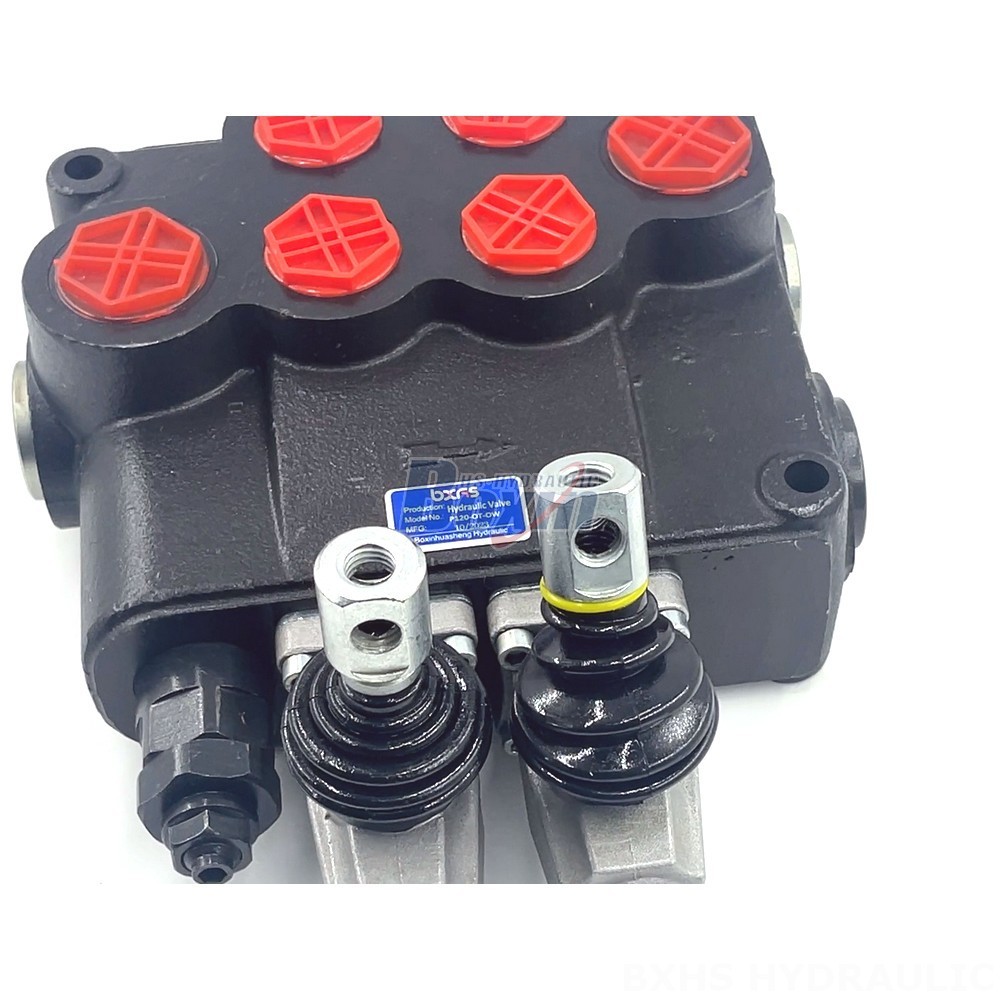

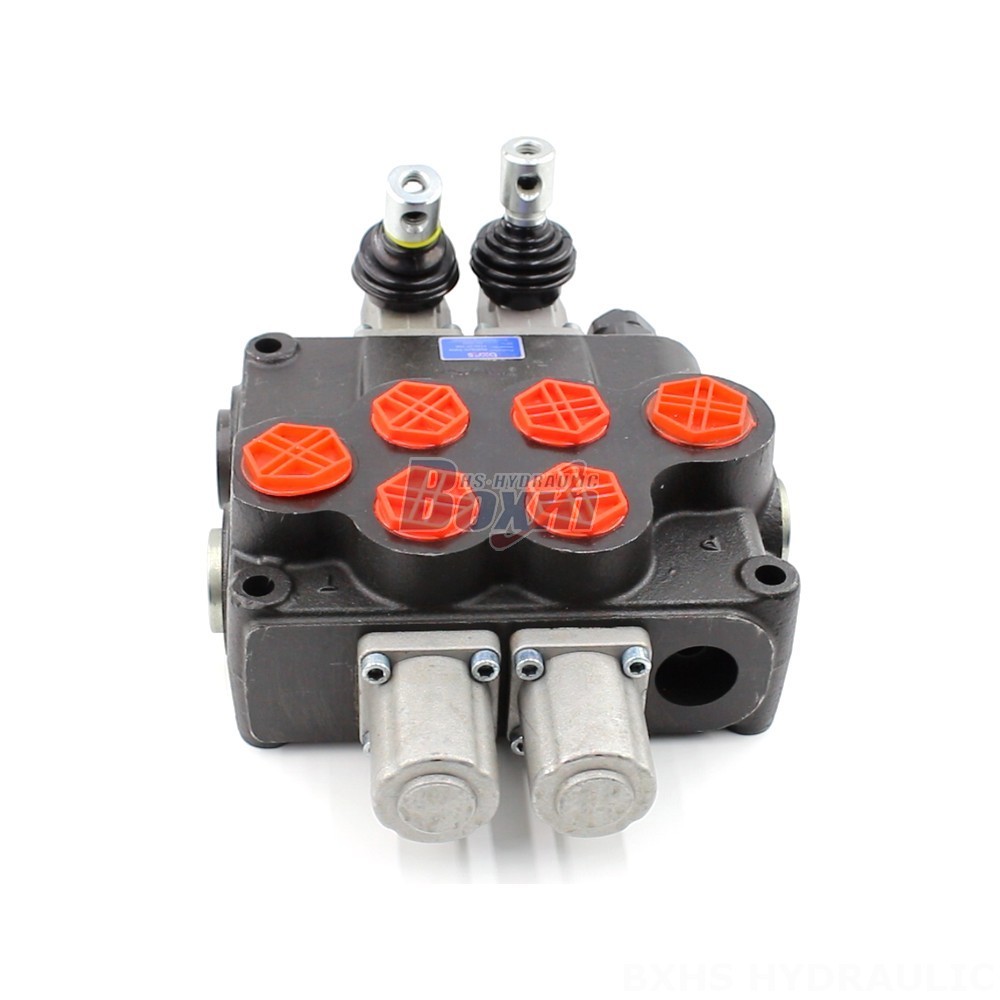

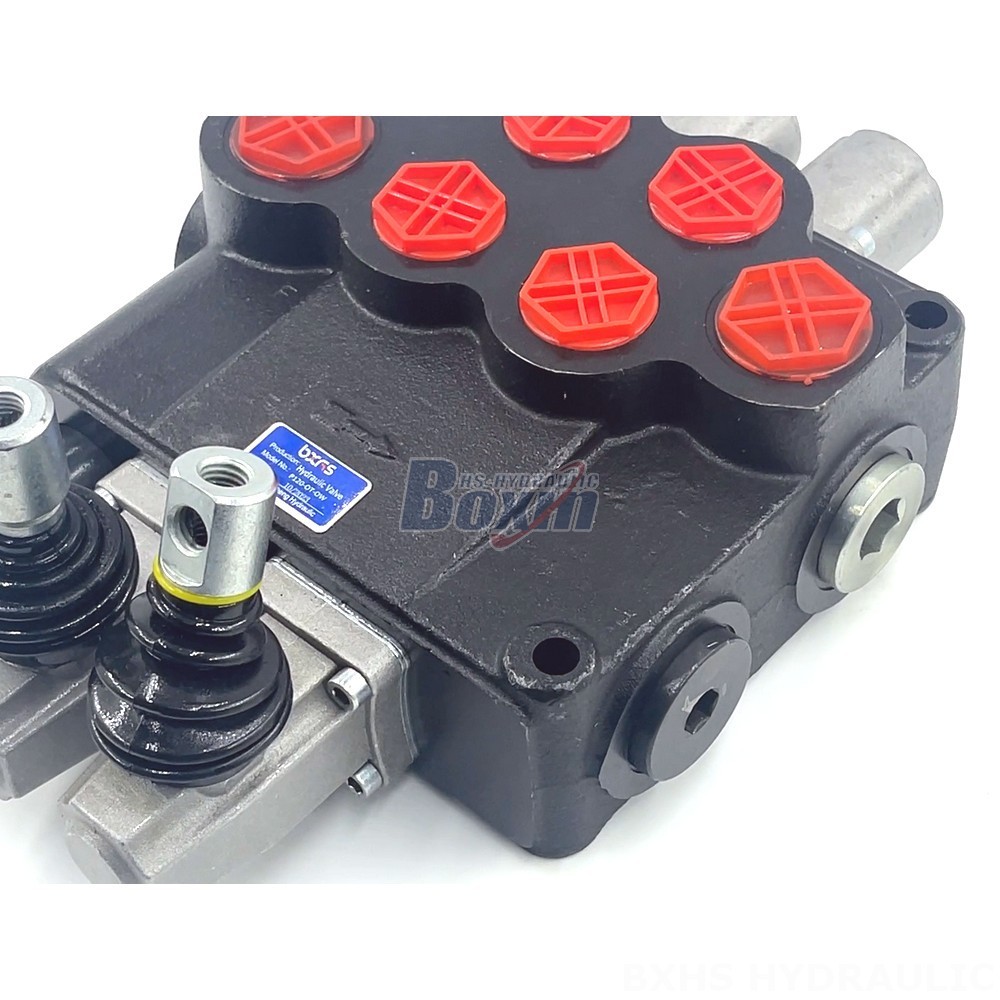

This P120 Series 12V Hydraulic Spool Valve is a 2-section, monoblock valve designed for directional control applications. It offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of machinery, including material handling, construction, agriculture, and industrial vehicles.

P120系列 单块式方向阀 参数
控制方式 手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联
额定流量 120 升/分钟 (31.7 美制加仑/分钟)
最大压力 250 bar (3600 psi)
进油口 G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹
出油口 G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹
接口尺寸 G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹
联数 1联, 2联, 3联, 4联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

The P120 Series 12V Hydraulic Spool Valve is a reliable and durable solution for your directional control needs. This manual control valve features a 2-section, monoblock design with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosities from 15 to 75 mm²/s and can operate in ambient temperatures ranging from -40°C to +80°C. This valve is ideal for a variety of applications, including material handling equipment like telehandlers and forklifts, construction machinery such as all-terrain cranes and excavators, agricultural equipment, and industrial vehicles. With its robust construction and high performance, this P120 Series valve ensures reliable operation in demanding environments.
