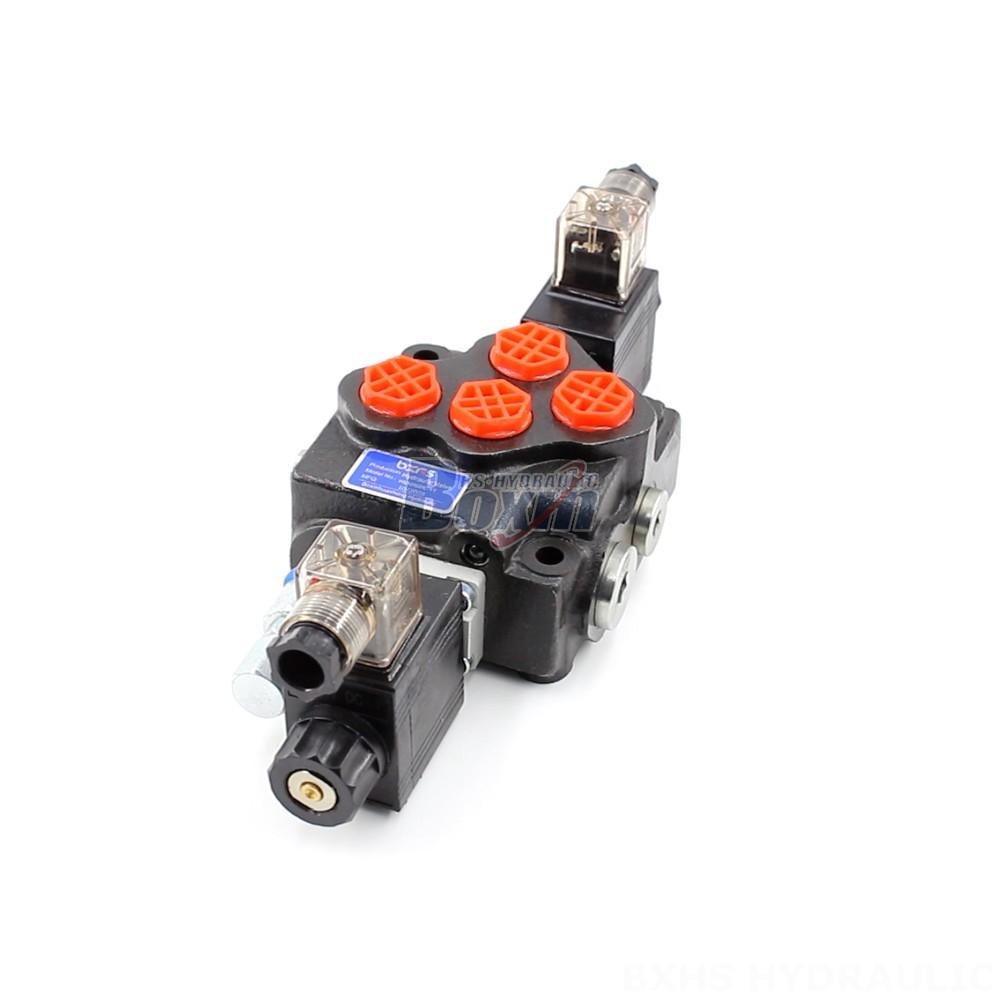

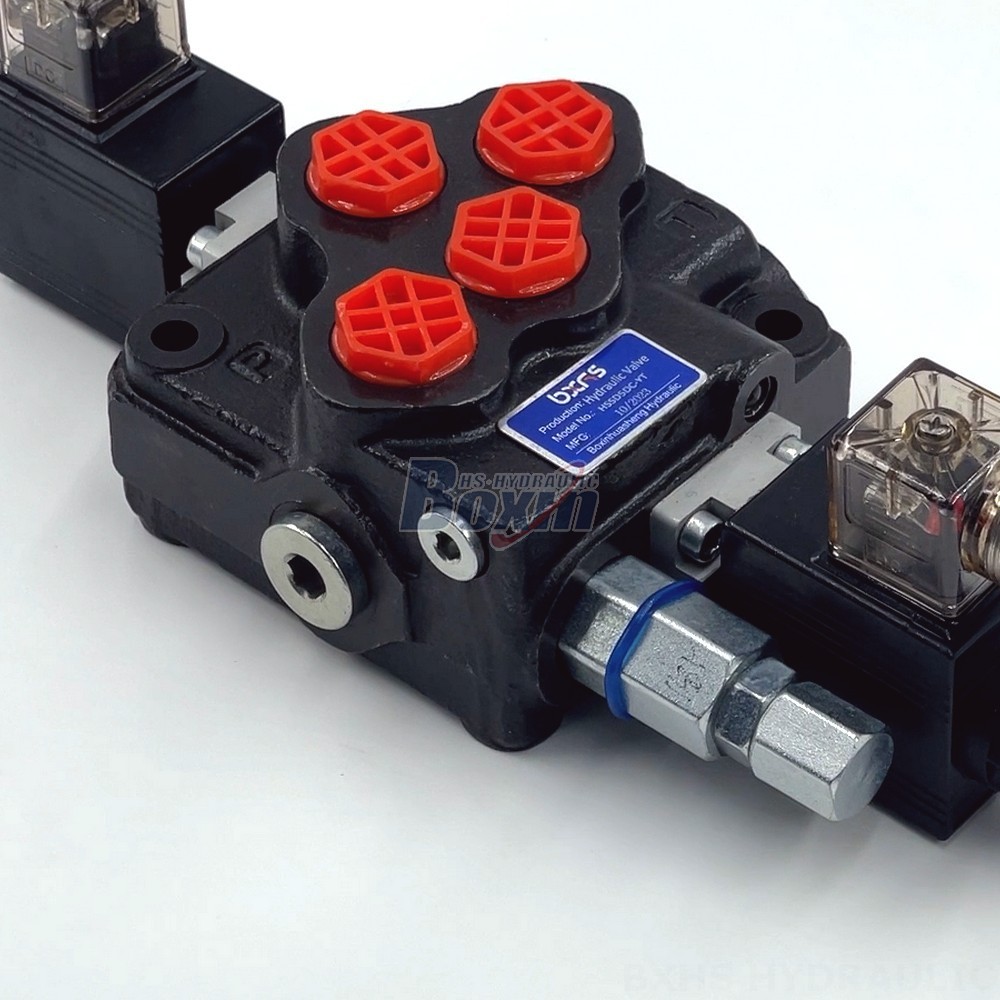

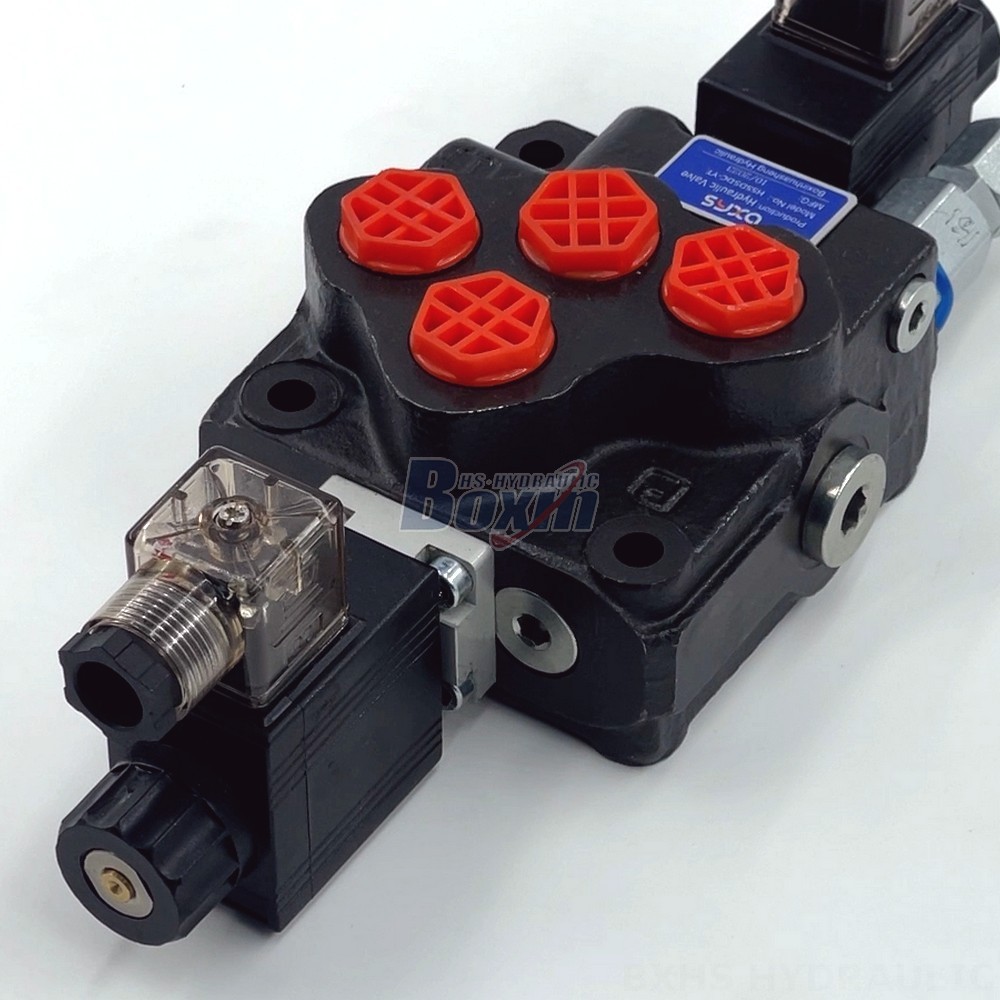

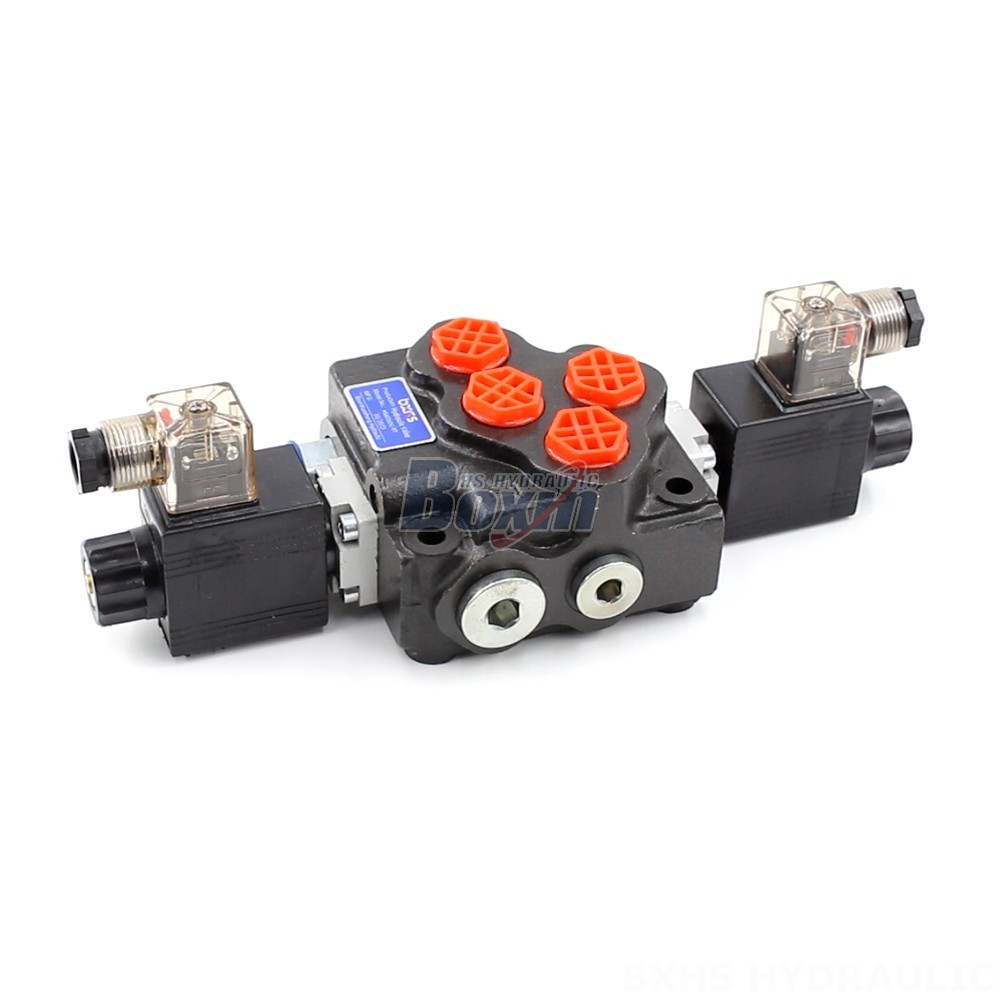

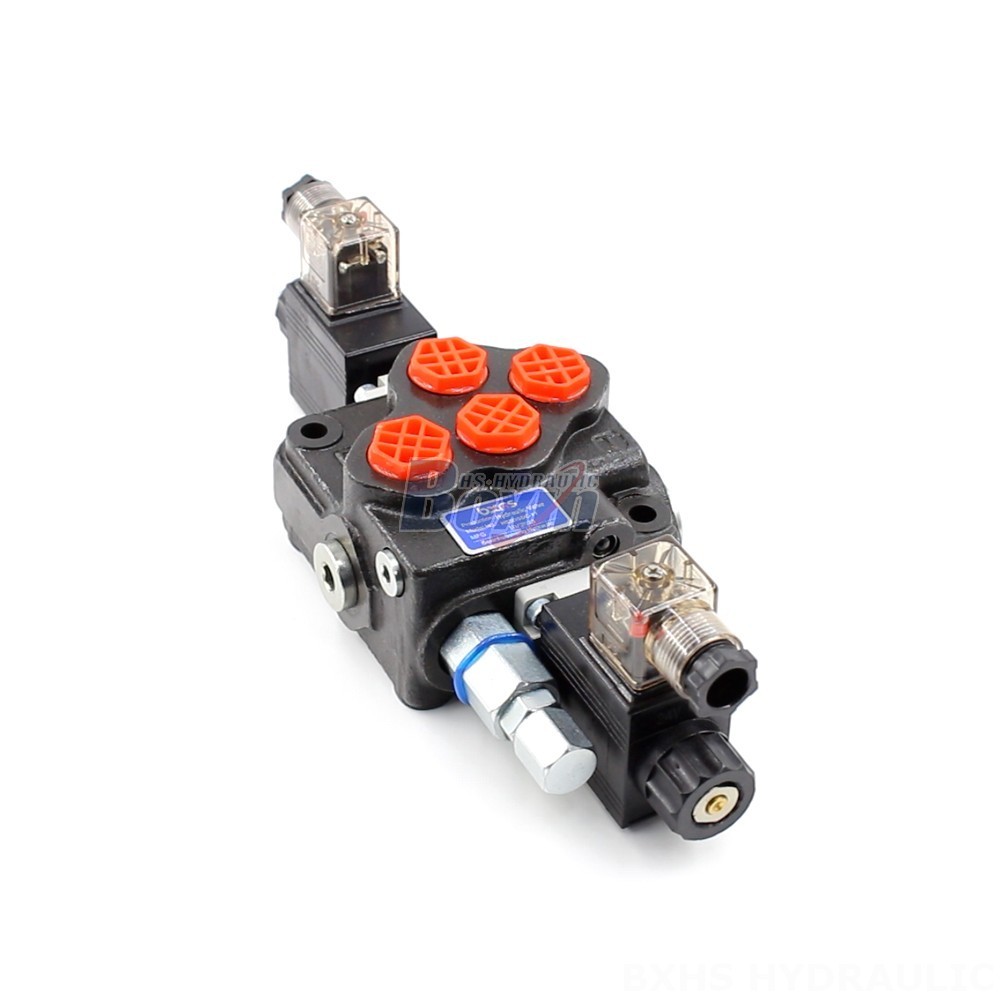

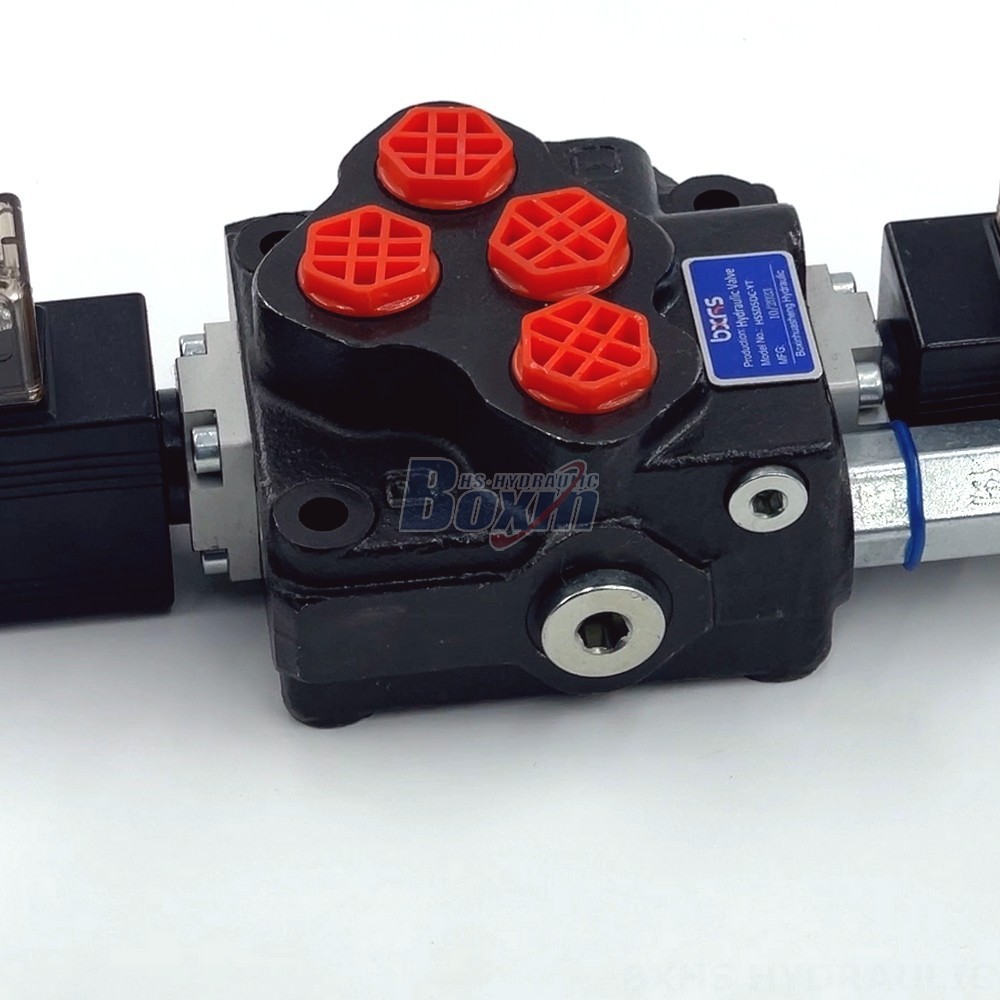

The SD5 Series Proportional Hydraulic Valve is a high-performance, compact monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features solenoid control, a 40 L/min flow rate, and a maximum pressure of 305 bar. This valve is available direct from the manufacturer, offering factory prices and wholesale options.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
The SD5 Series Proportional Hydraulic Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of applications. Directly sourced from the manufacturer, this valve offers exceptional quality and value. Its monoblock construction ensures robust performance, while its compact design allows for easy installation. The SD5 valve is perfect for applications requiring precise and responsive control, such as forklifts, telehandlers, mini excavators, skid steer loaders, and more. We offer competitive factory pricing and wholesale options to meet the needs of our global customer base.
