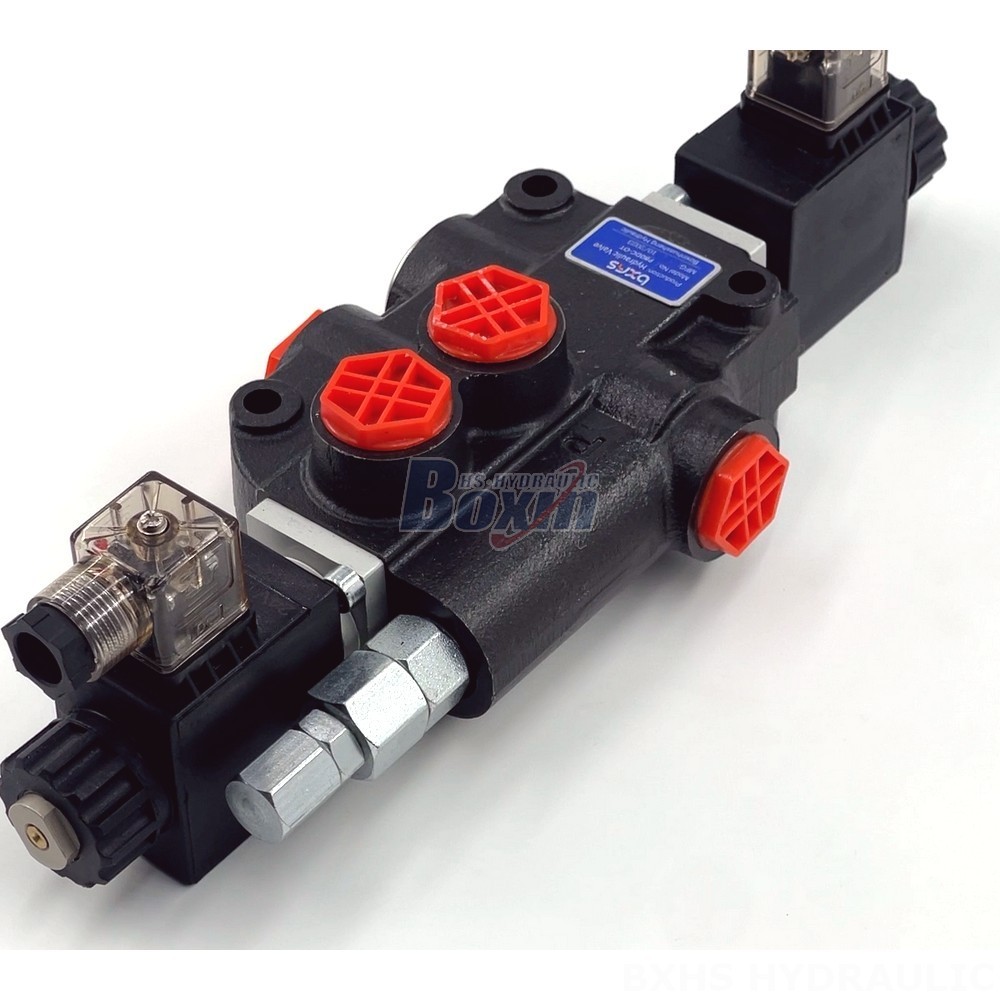

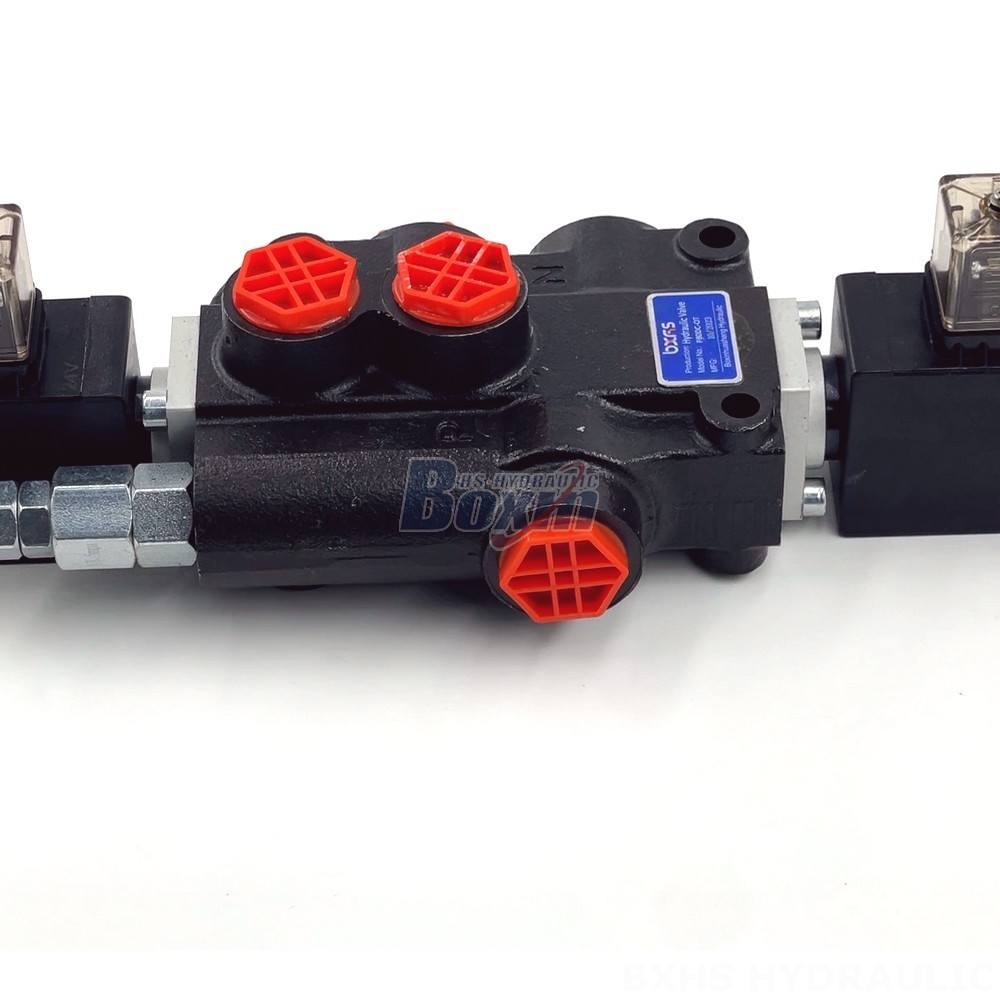

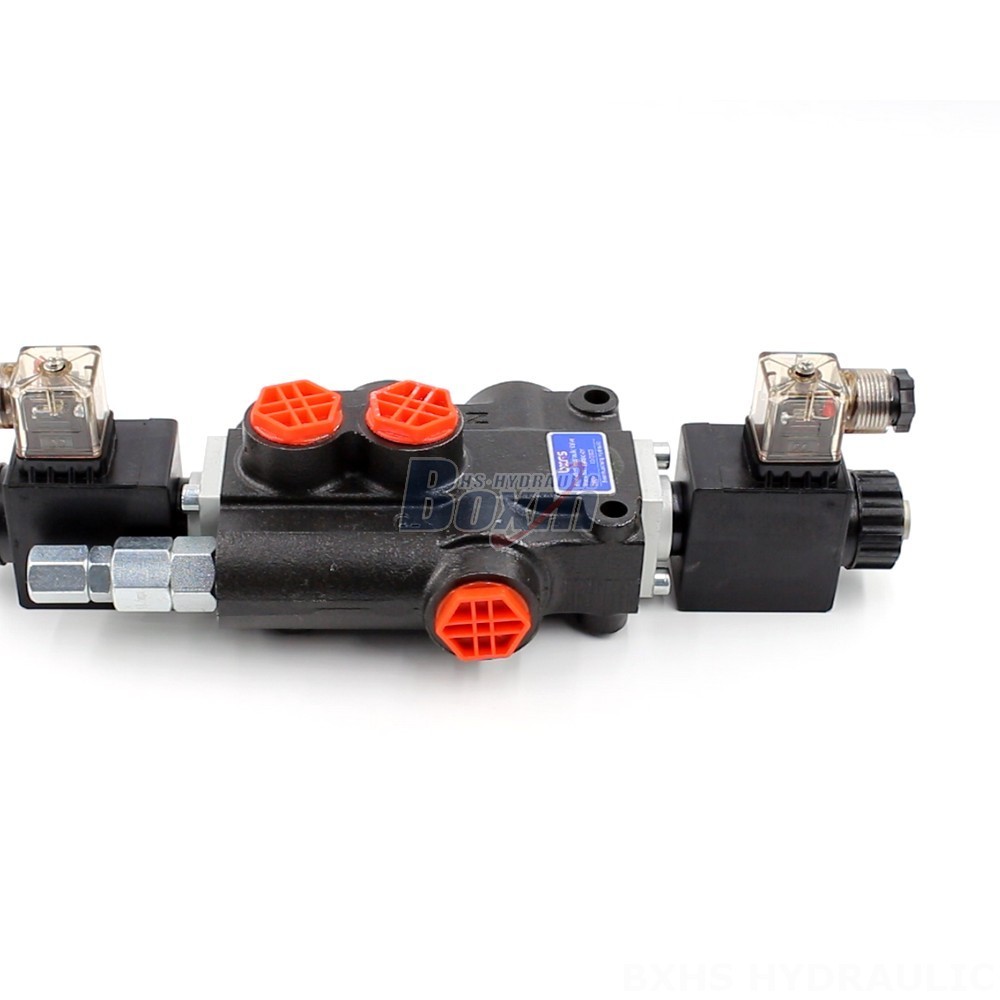

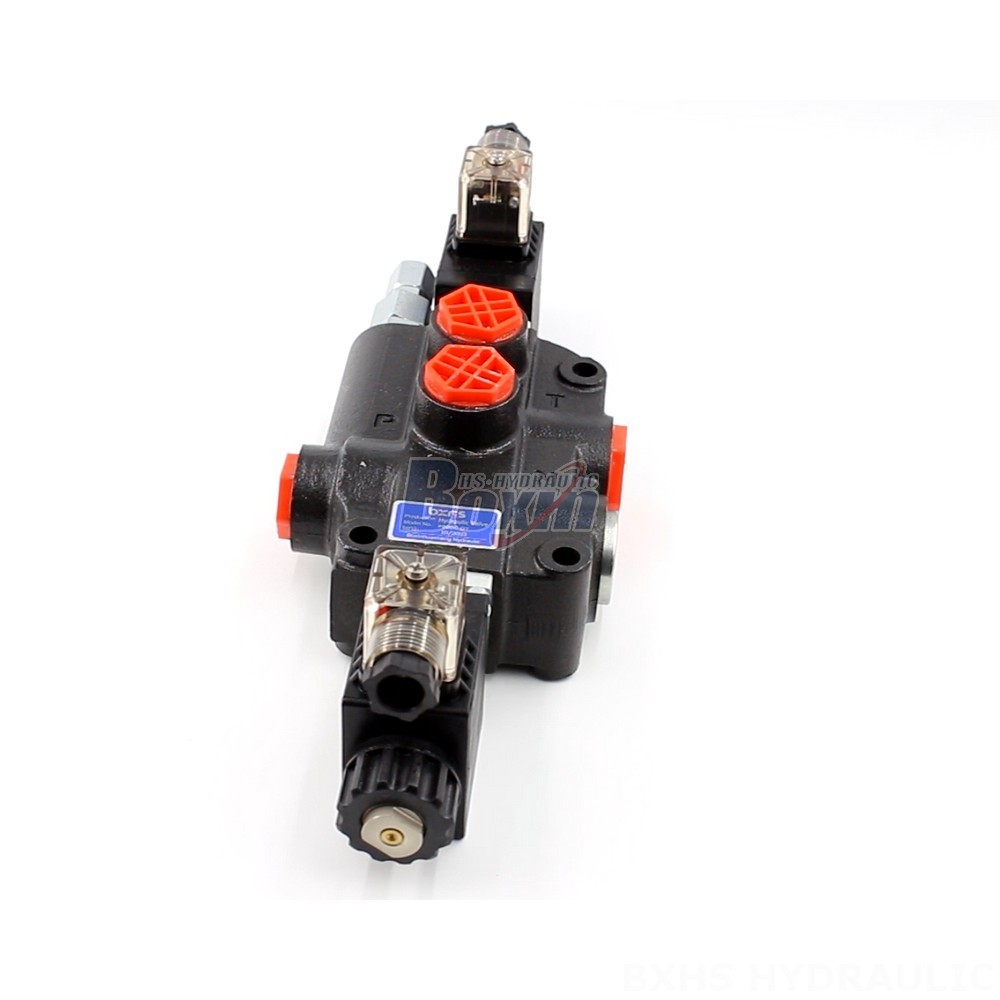

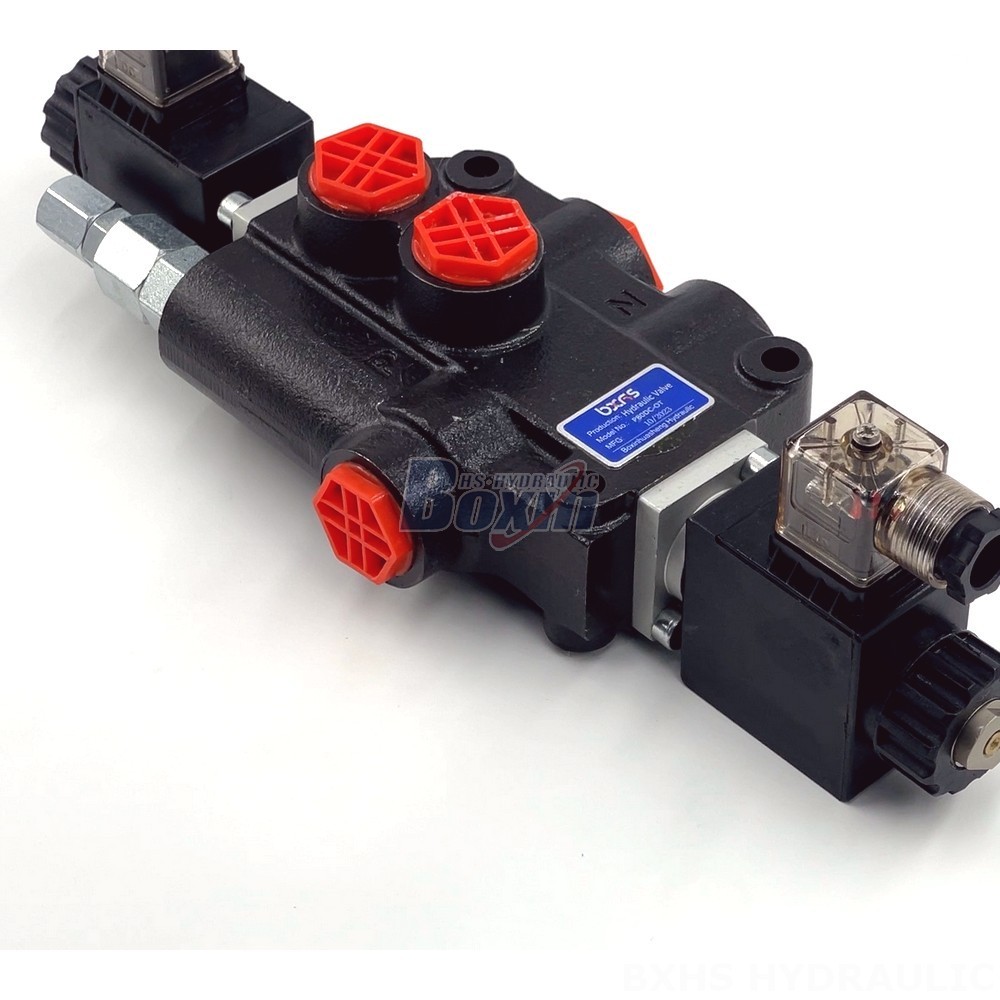

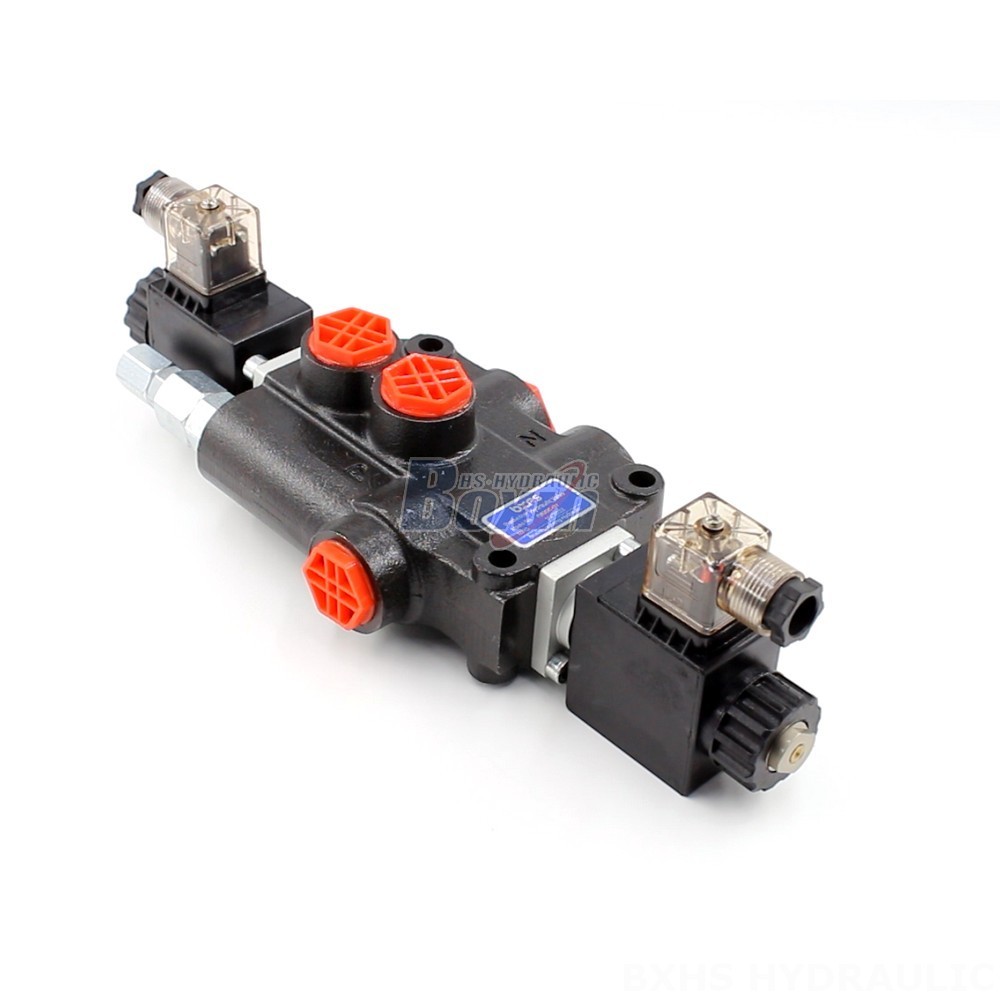

This P80 series hydraulic valve, designed for 2 lever operation, is a robust and reliable monoblock valve featuring solenoid control. Ideal for material handling, construction, agriculture, and industrial vehicle applications, it boasts a 80 L/min flow rate and a 250 bar pressure rating. Source directly from the manufacturer for competitive pricing and quality assurance.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80 Series 2 Lever Hydraulic Dispenser is a high-performance valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This monoblock valve features solenoid control and is available directly from the manufacturer, ensuring competitive pricing and factory-direct quality. Its 80 L/min flow rate and 250 bar pressure rating make it suitable for various demanding tasks. The P80 Series valve is also characterized by its high durability and reliability, ensuring smooth operation and extended lifespan. Contact us today for more information and to explore the benefits of factory direct sourcing and factory wholesale options.
