极速交货
30天极速交货
液压驱动世界 华盛智造未来
935 次查看了此产品

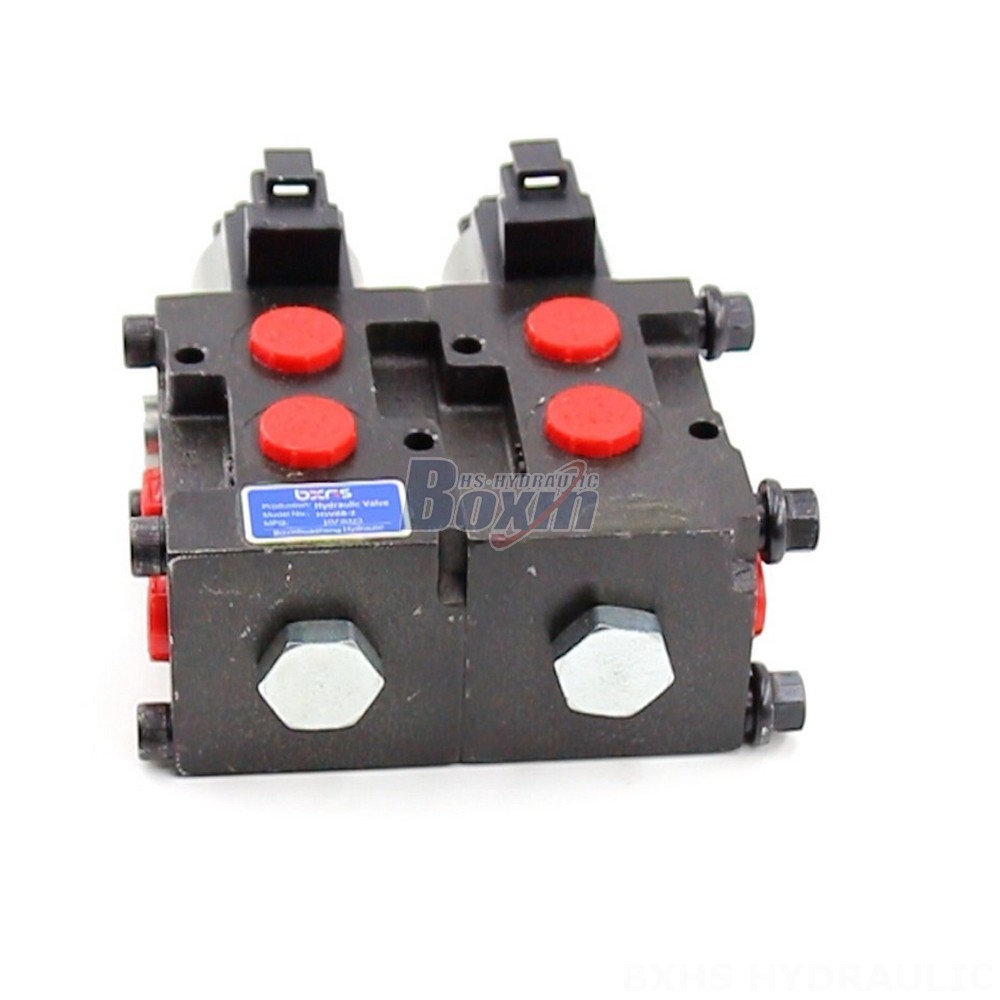

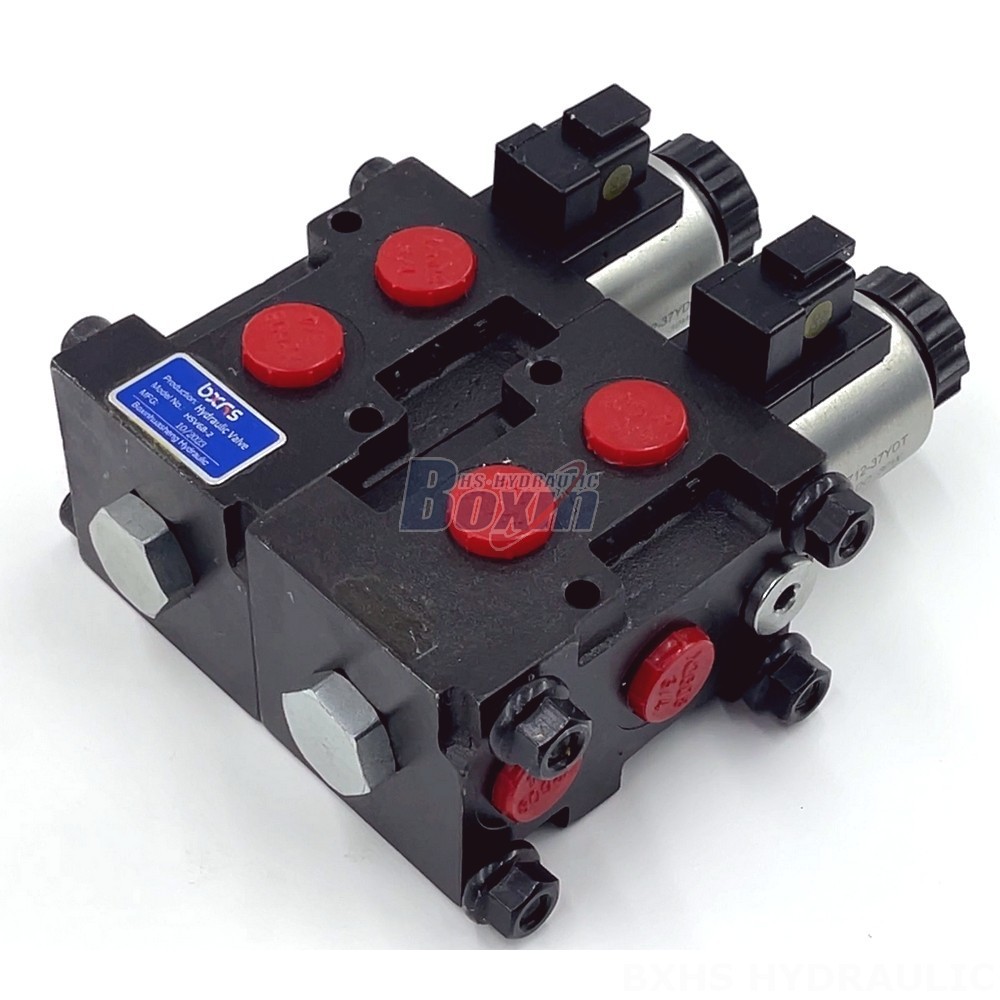

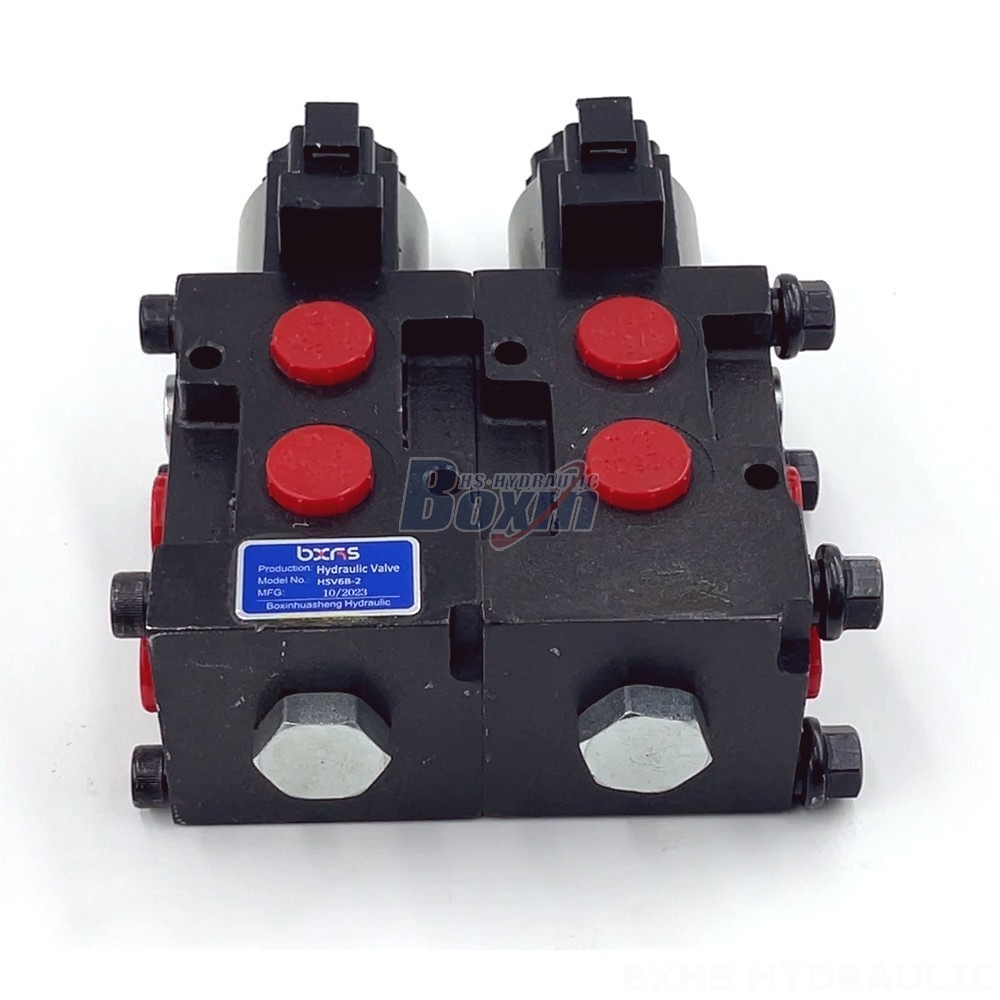

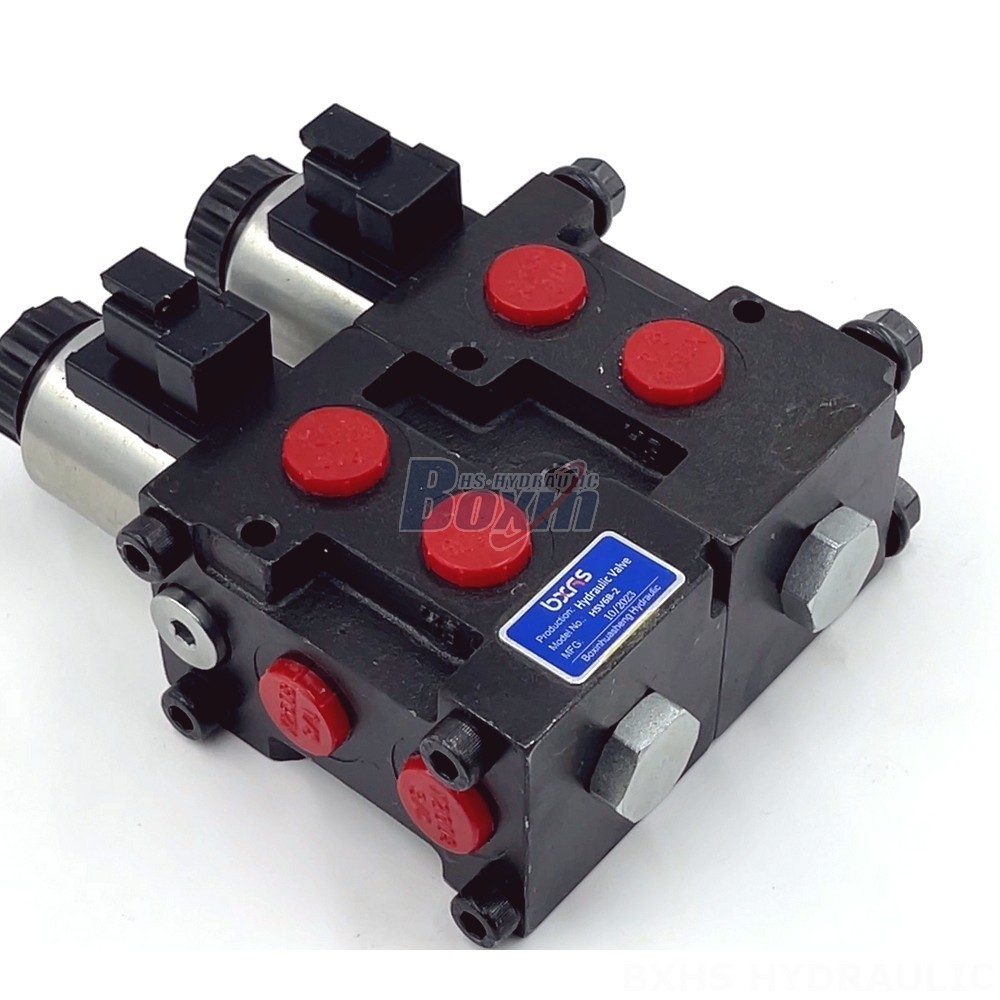

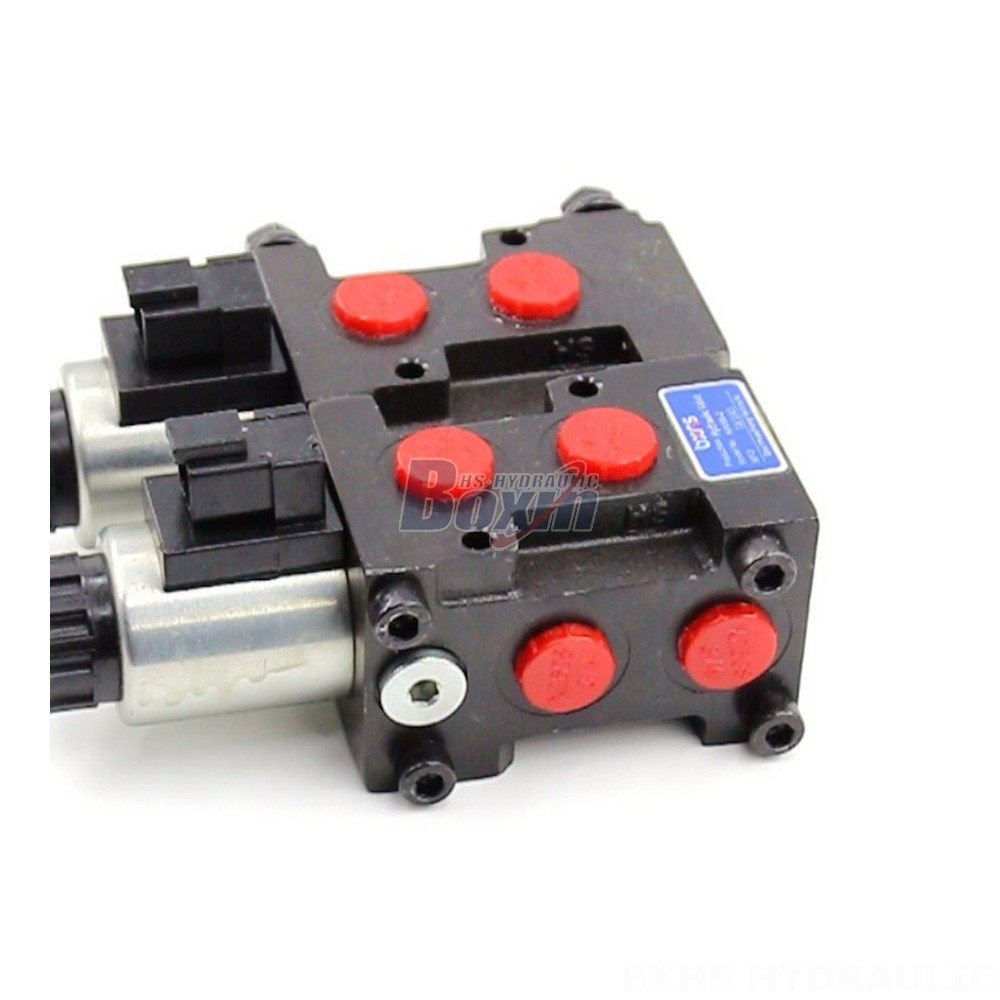

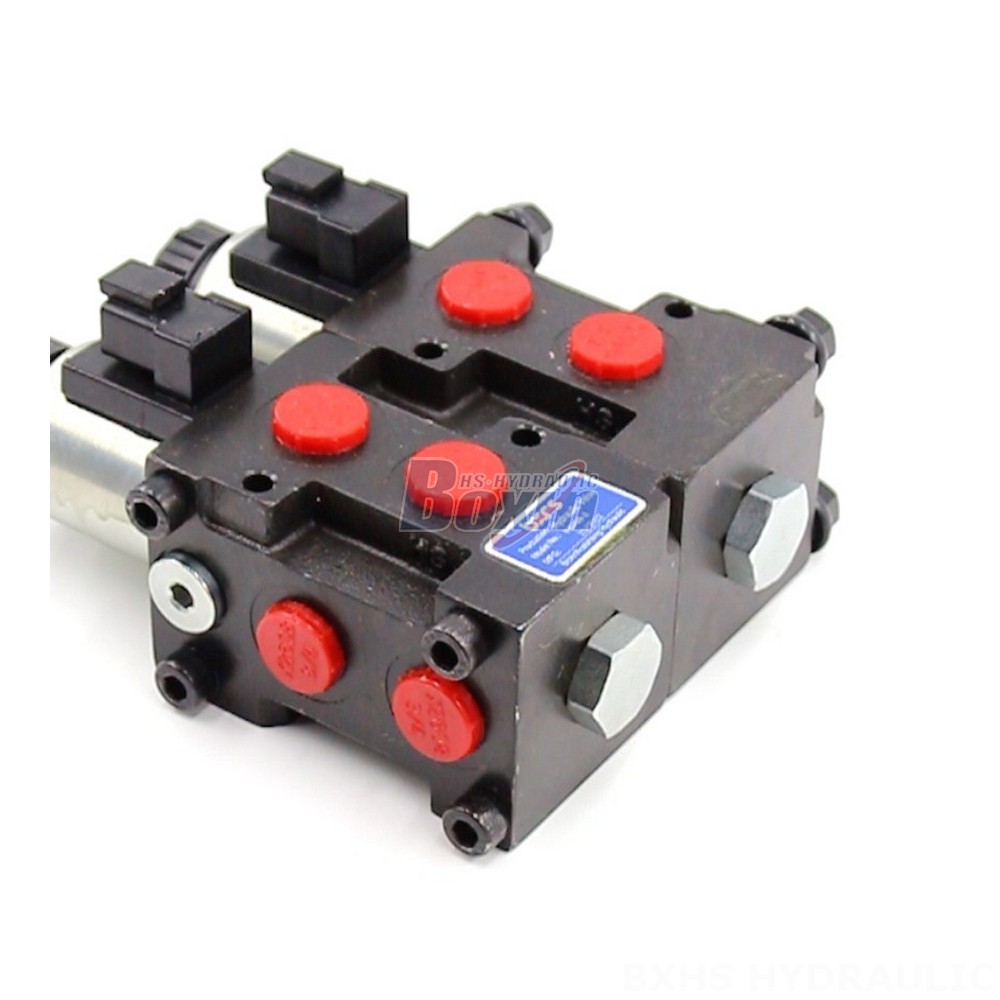

This 5-Spool Directional Valve is a high-performance hydraulic valve designed for a wide range of construction, material handling, and industrial applications. It features a solenoid control method, 2 sections, and a rated flow of 50 L/min. This valve is available directly from the manufacturer, offering factory supply and wholesale pricing.
| HSV06系列 分流阀 参数 | |
|---|---|
| 控制方式 | 手控, 电磁, 液控, 电磁 |
| 路数 | 1 联, 2 联, 3 联 |
| 额定流量 | 50 L/min (13.2 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口 |
| 出油口 | G3/8接口, G1/2接口 |
| 接口尺寸 | G3/8接口, G1/2接口 |
| 联数 | 1联, 2联, 3联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The HSV06 Series 5 Spool Directional Valve is a high-quality, reliable hydraulic valve designed for demanding applications in construction, material handling, and industrial equipment. It features a solenoid control method, 2 sections, and a rated flow of 50 L/min. This valve is designed for various applications, including telehandlers, forklifts, cranes, excavators, loaders, dumpers, drill rigs, concrete pumps, and more. The HSV06 Series is manufactured in our factory and available for direct supply, wholesale orders, and OEM partnerships. We offer competitive pricing and quick lead times for your convenience.
