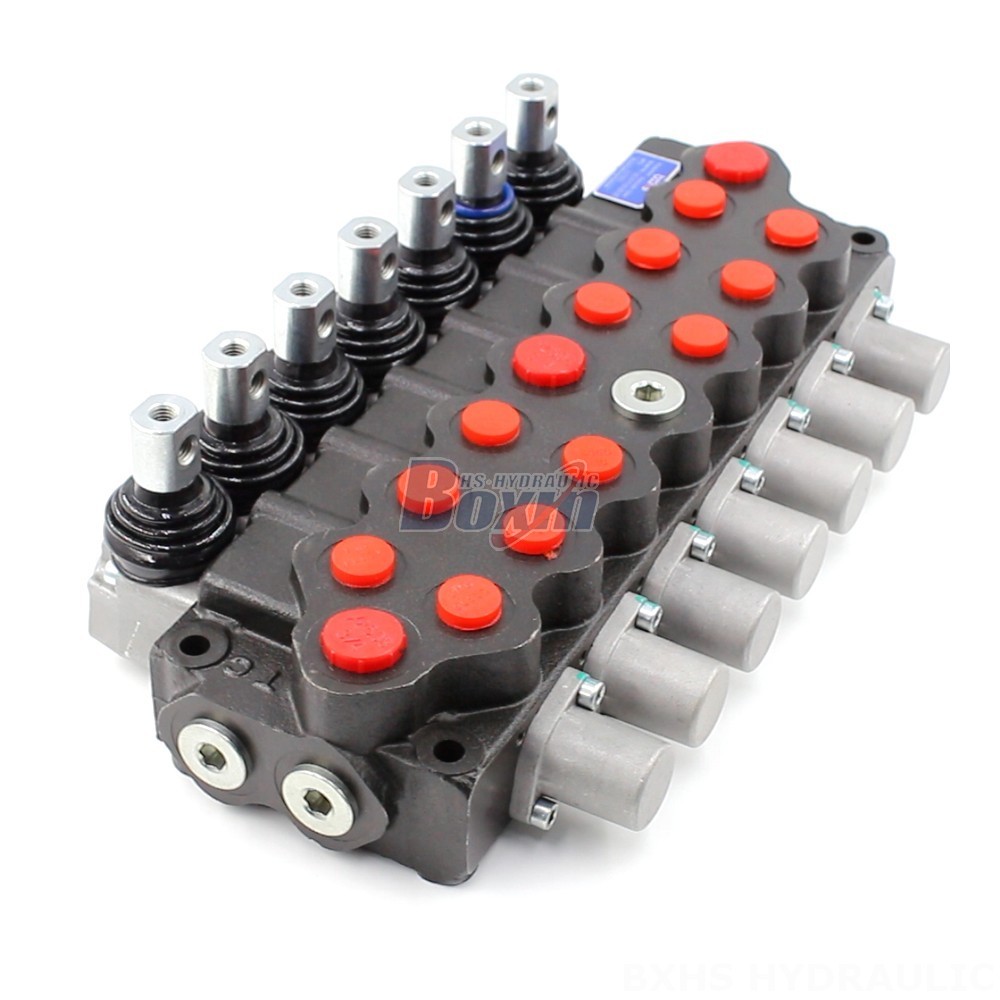

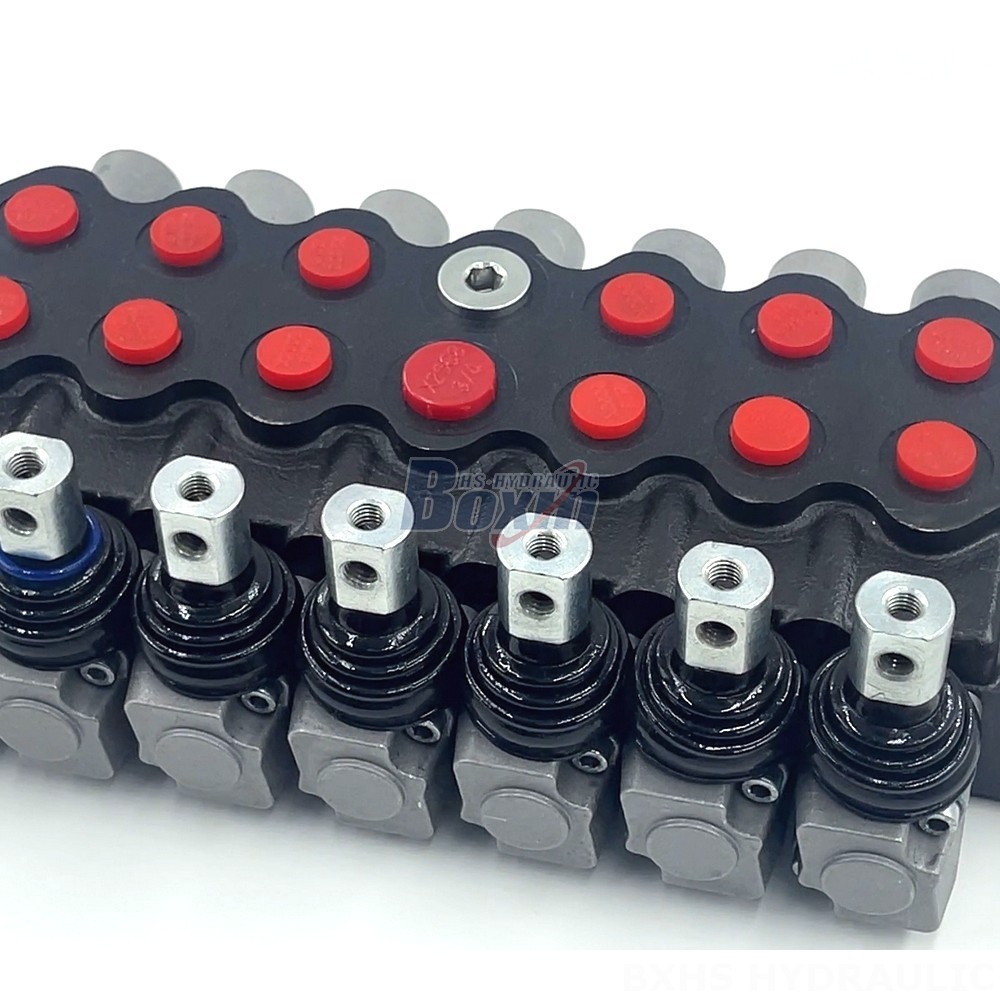

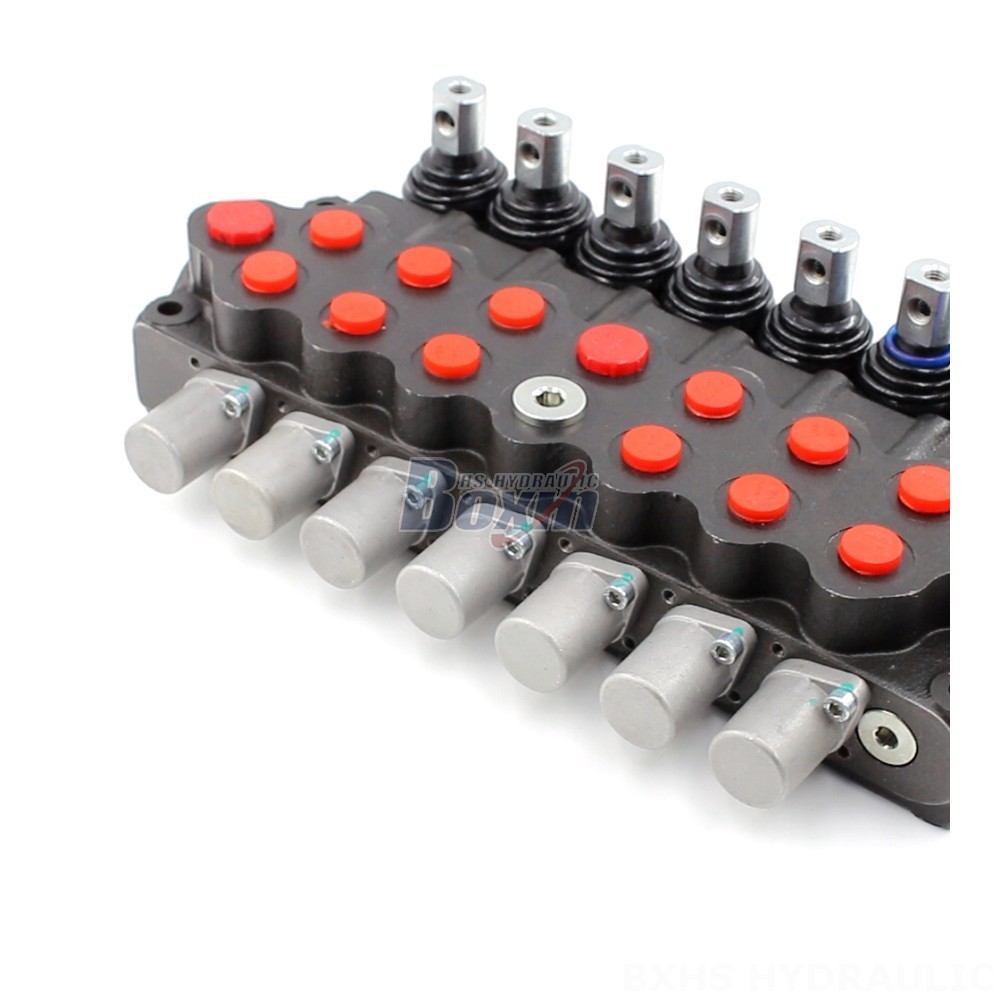

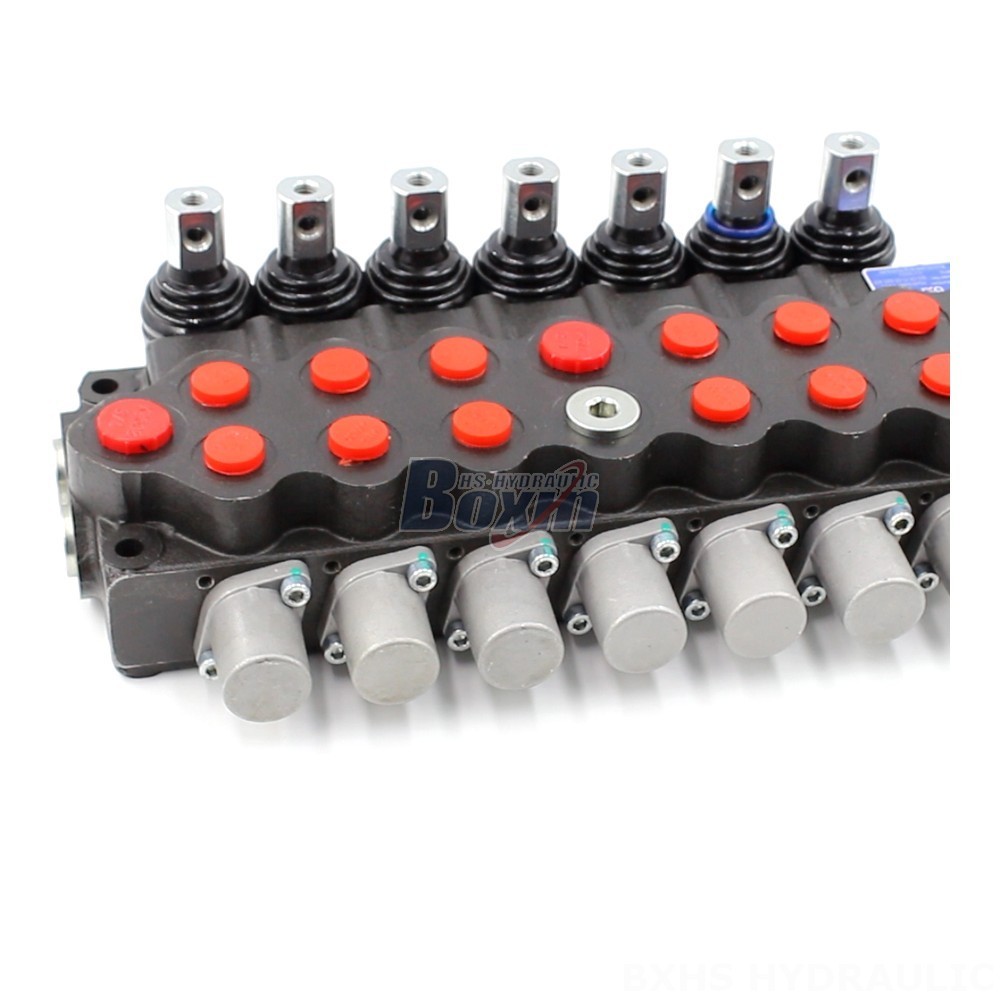

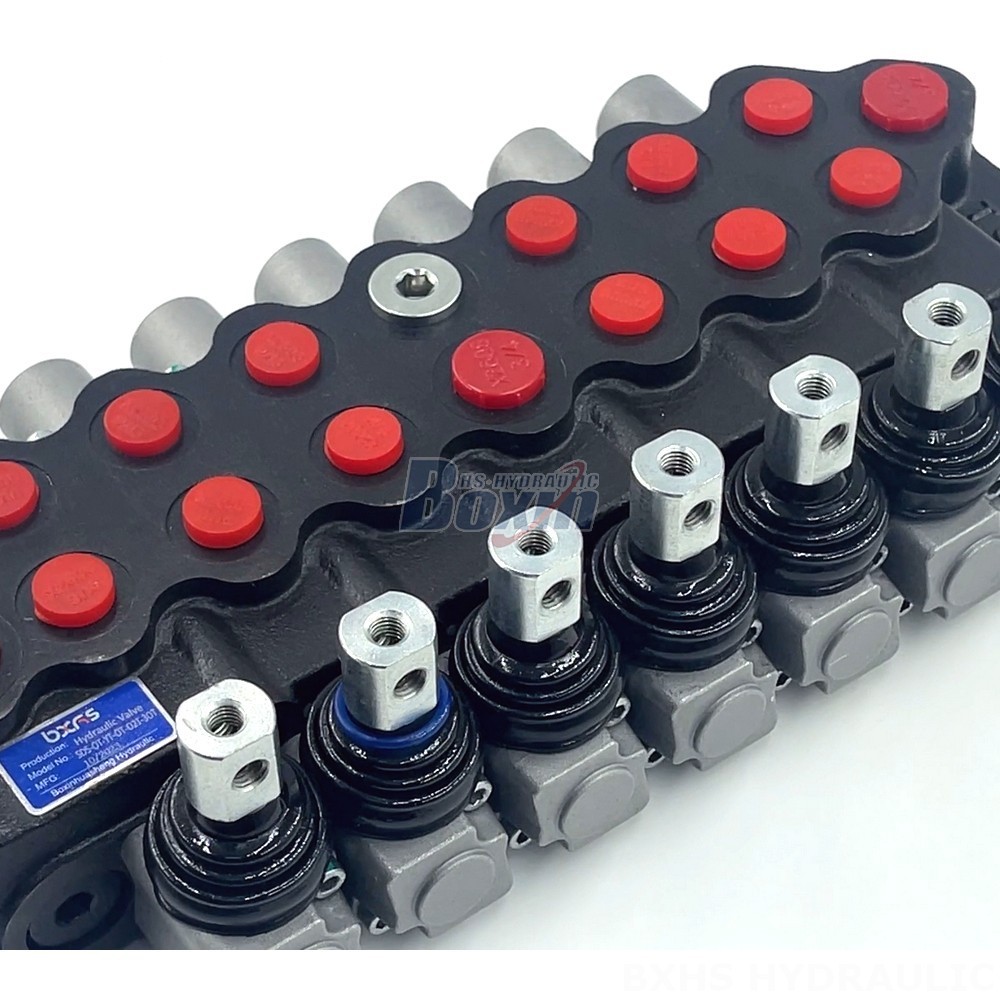

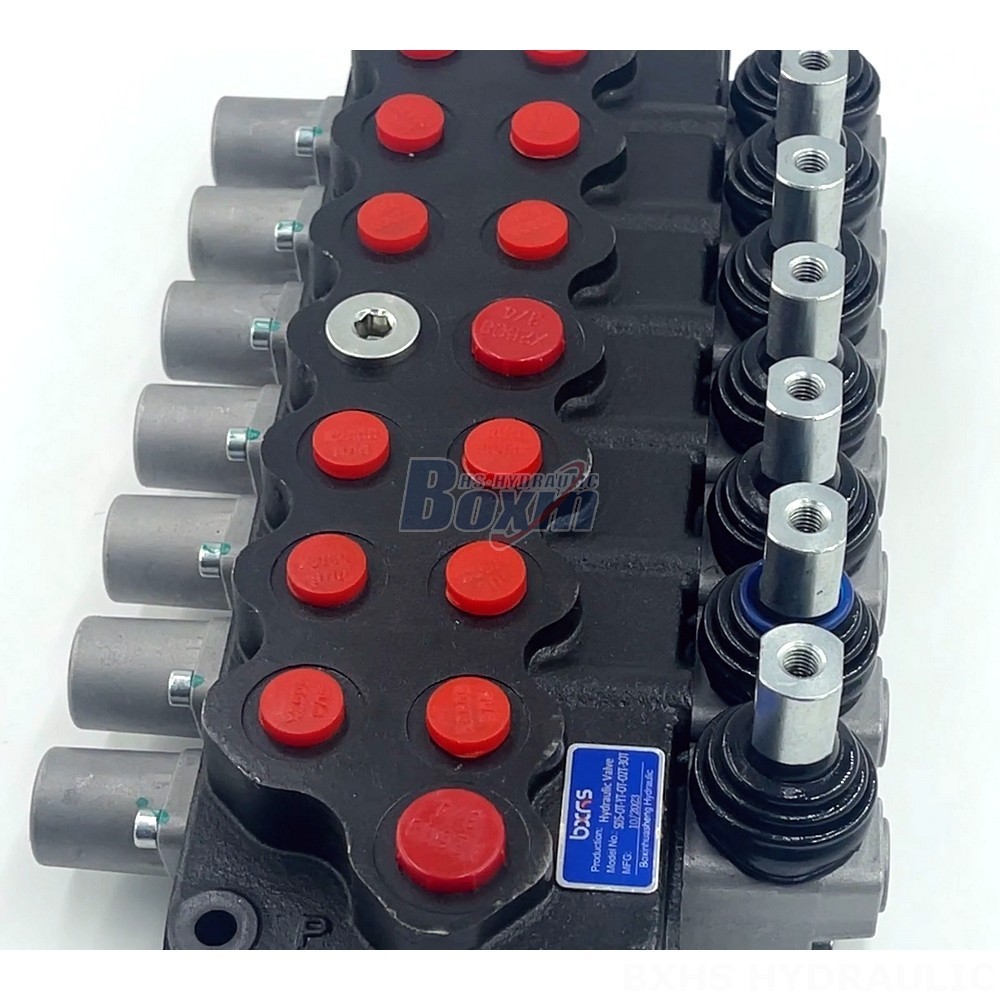

The SD5 Series Hydraulic Valve is a 7-section manual directional valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. This robust monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for a wide range of equipment.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
The Hig Tech SD5 Manual Directional Valve is a high-performance hydraulic valve engineered for demanding applications. Its 7-section design provides precise control over hydraulic circuits, while the monoblock structure ensures durability and reliability. With a rated flow of 40 L/min and a maximum pressure of 305 bar, this valve is ideal for powering telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. The valve operates smoothly across a wide viscosity range and can withstand temperatures from -40°C to +60°C. Its manual control system offers easy and intuitive operation, making it a versatile choice for a variety of hydraulic applications.
