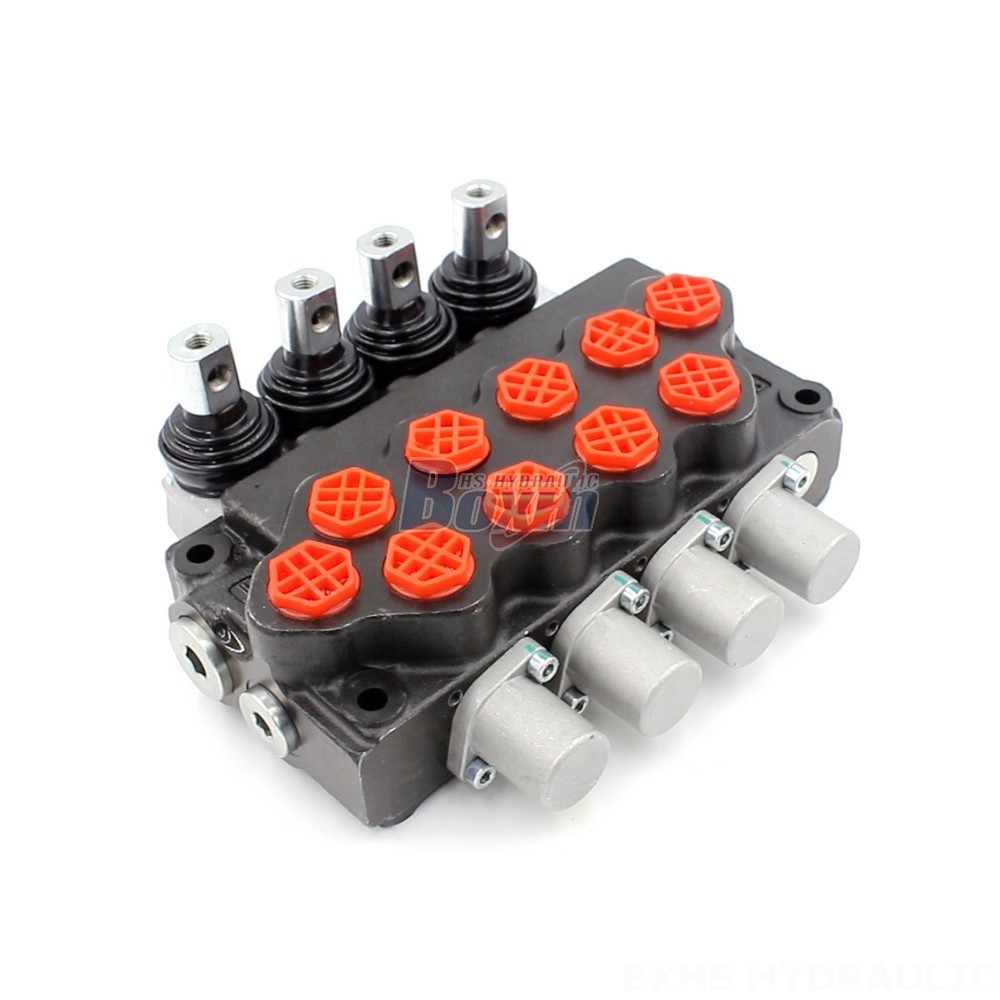

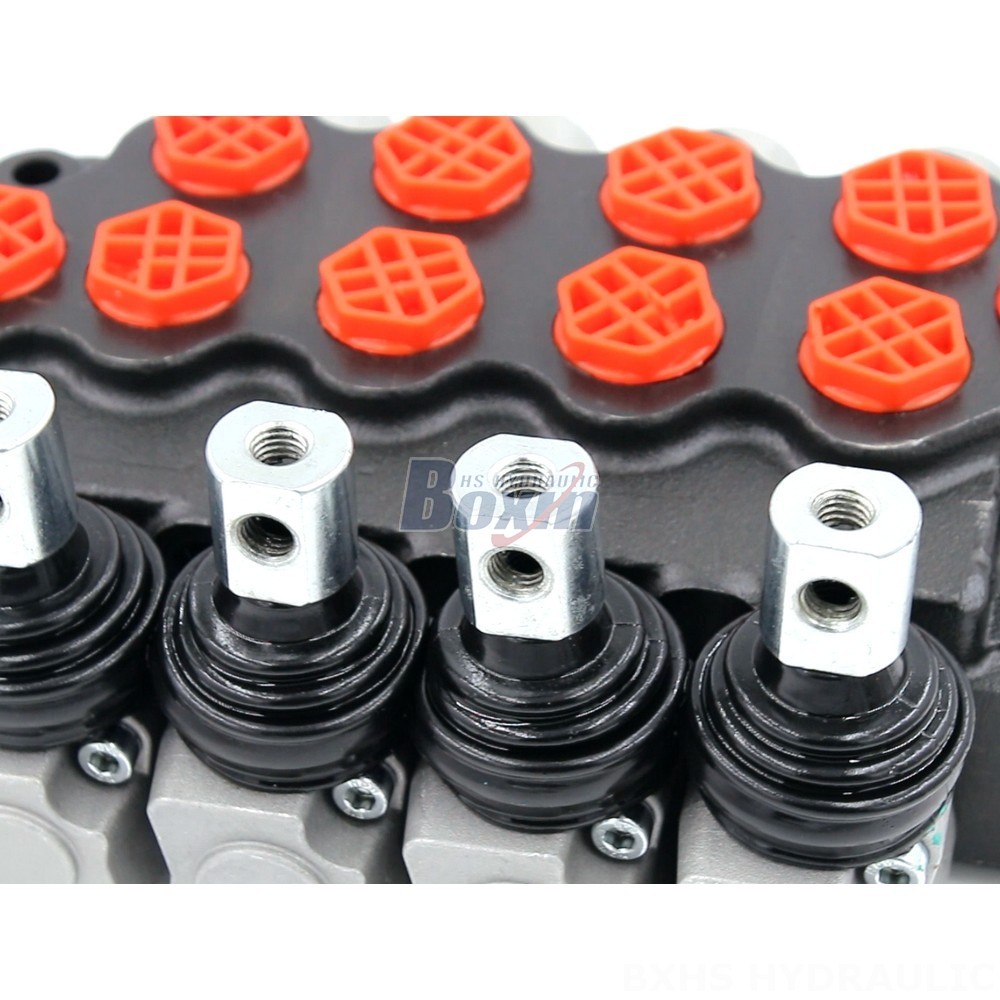

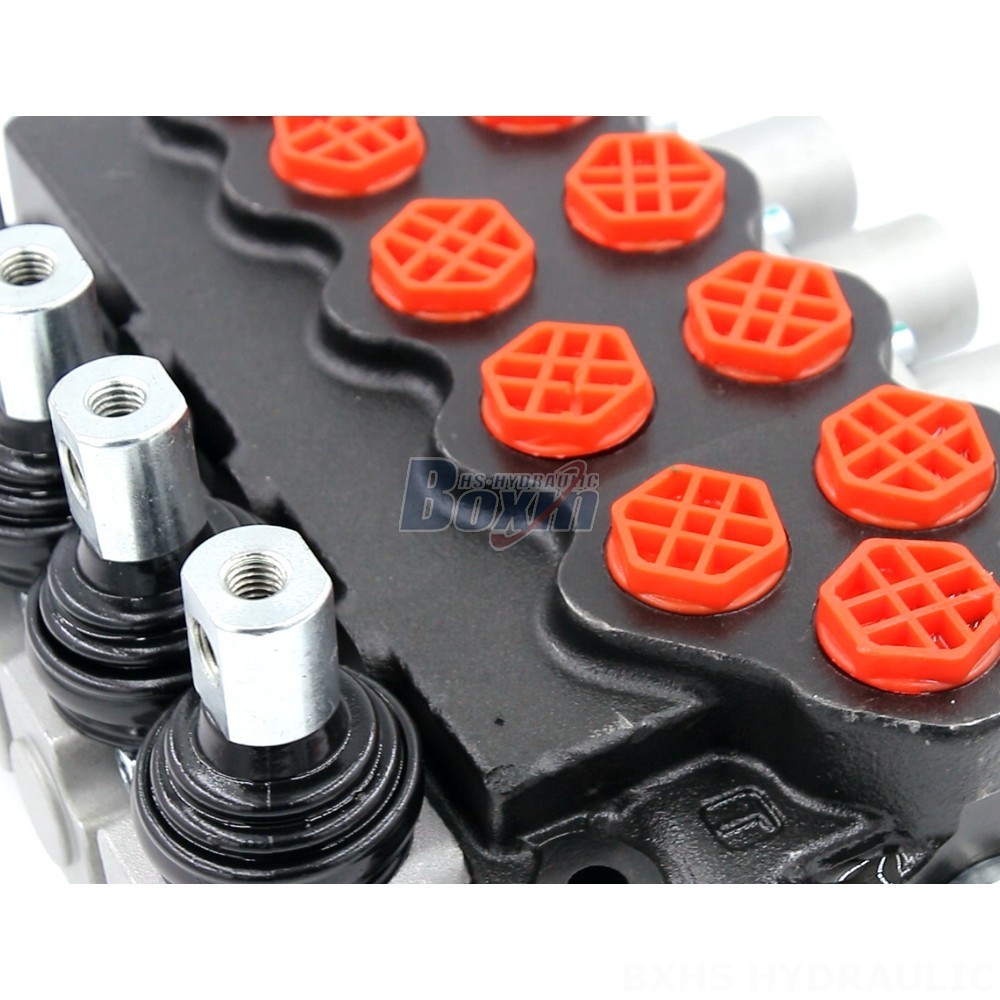

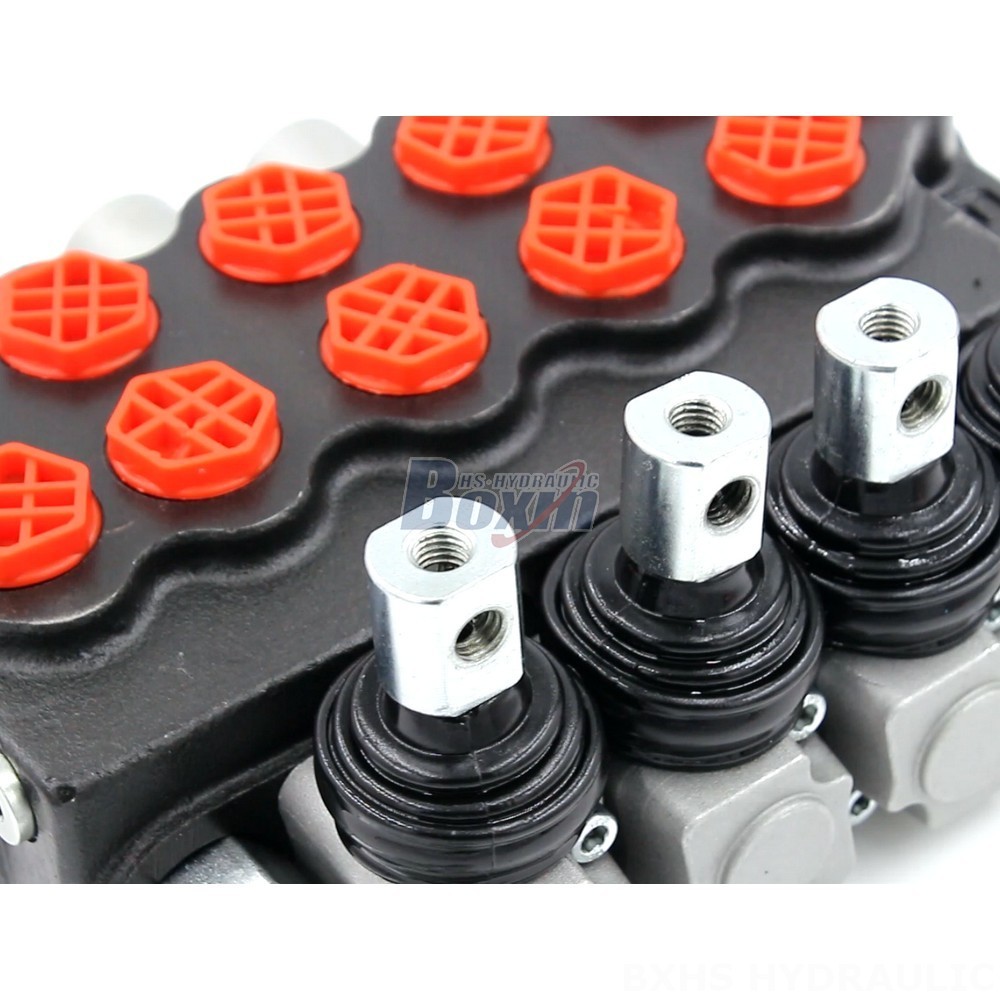

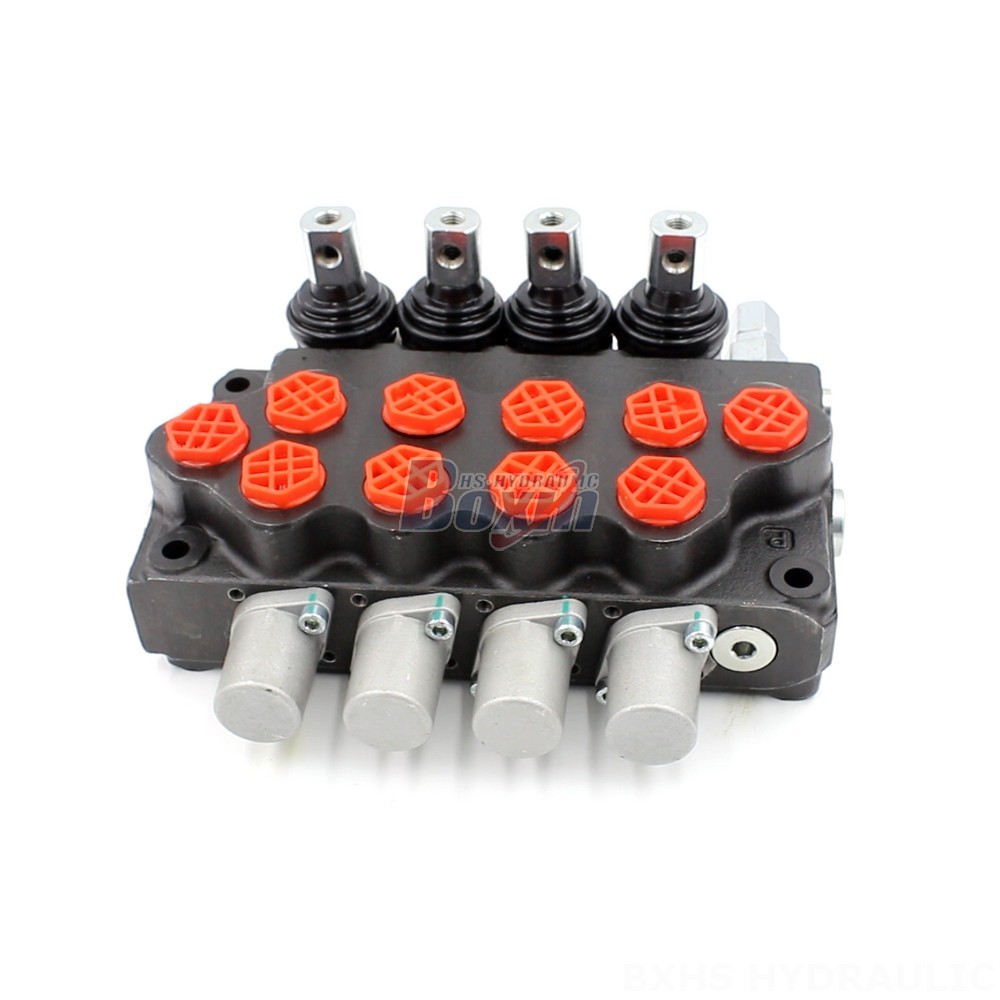

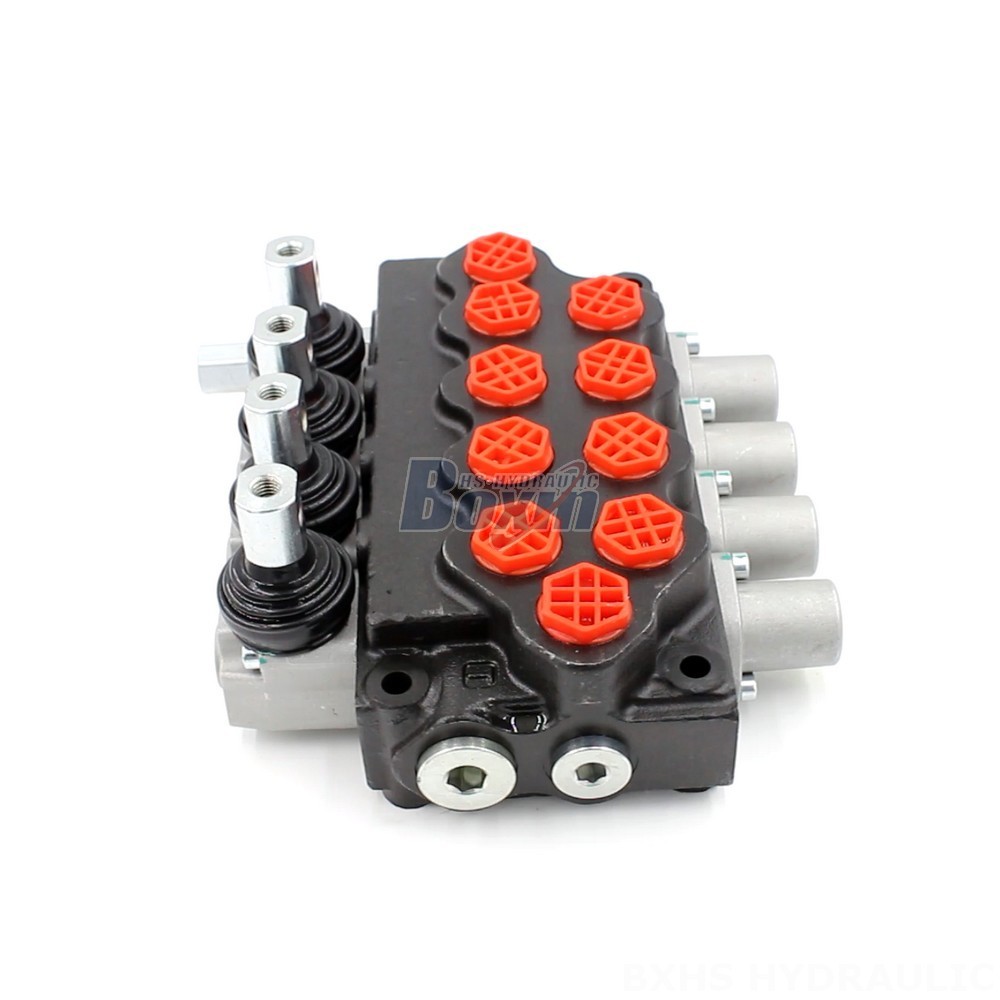

The SD5-G38 Manual 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its robust monoblock construction, manual control, and high pressure capacity, this valve offers reliable and precise flow control.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
**Key Features:**
* Manual control for precise flow adjustment
* Monoblock construction for durability and leak-free performance
* 4 spool design for versatile flow control
* Rated flow of 40 L/min (10.5 US gpm)
* Maximum pressure of 305 bar (4400 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Wide ambient temperature range (-40°C to +60°C / -40°F to +140°F)
**Applications:**
* Material handling equipment (e.g., forklifts, telehandlers)
* Construction and earth moving machinery (e.g., excavators, loaders)
* Agricultural machinery (e.g., tractors, harvesters)
* Industrial vehicles (e.g., sweepers, scrubbers)
**Benefits:**
* Improved flow control and efficiency
* Enhanced system performance and reliability
* Reduced maintenance and downtime
* Suitable for a wide range of hydraulic applications
