SD14Y-OT Hydraulic 1 Spool Monoblock Directional Valve

控制方式:液控

路数:1 联

额定流量:120 升/分钟 (31.7 美制加仑/分钟)

最大压力:315 bar (4600 psi)

进油口:G3/4接口

出油口:G3/4接口

接口尺寸:G3/4接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:SD14系列 单块式方向阀

Packagingsize:12.5*23.8*7.1

Grossweight:5.50 kg

库存: 有货

13 次查看了此产品

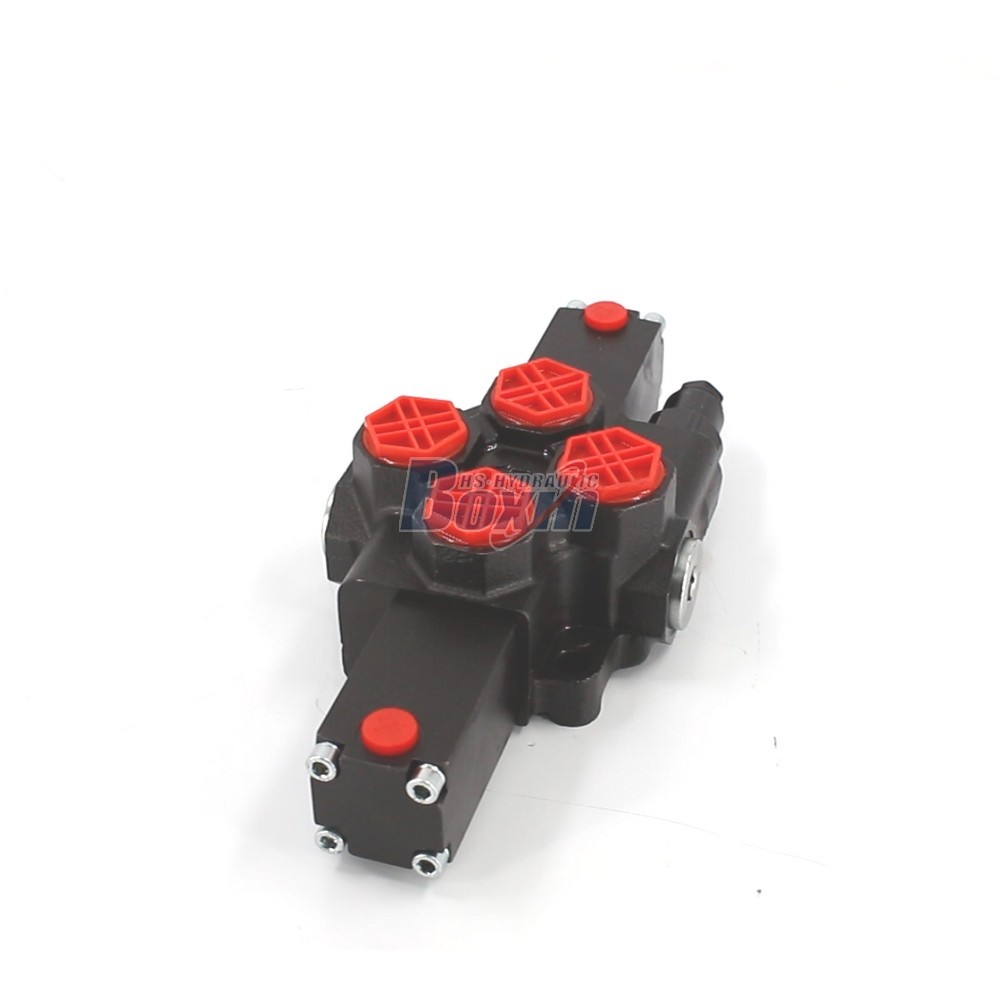

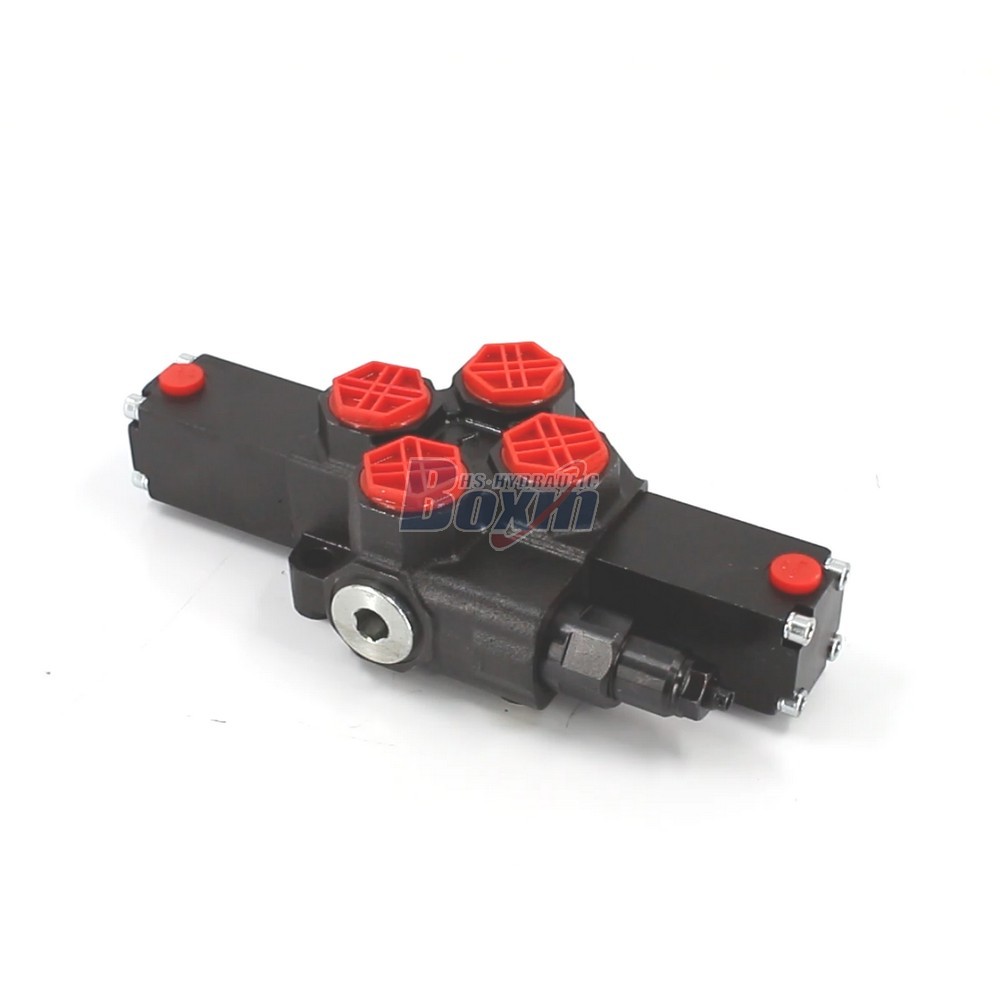

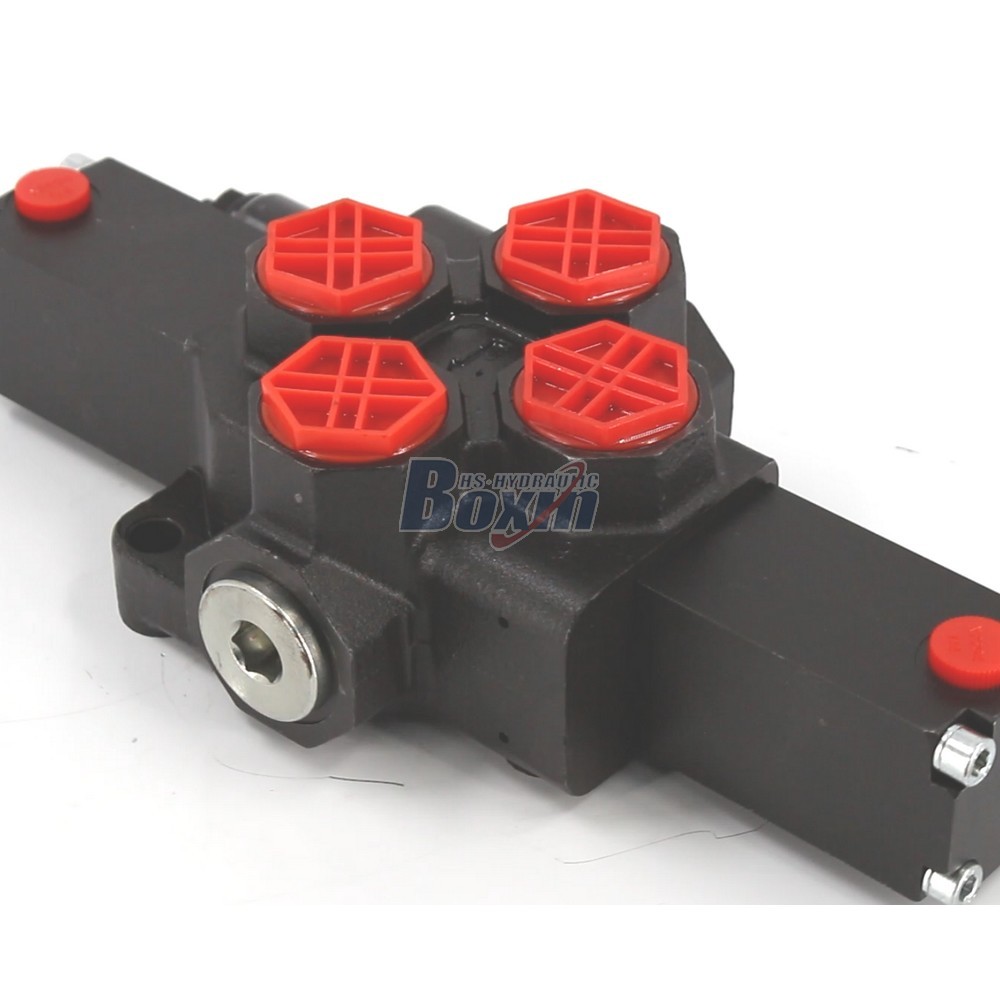

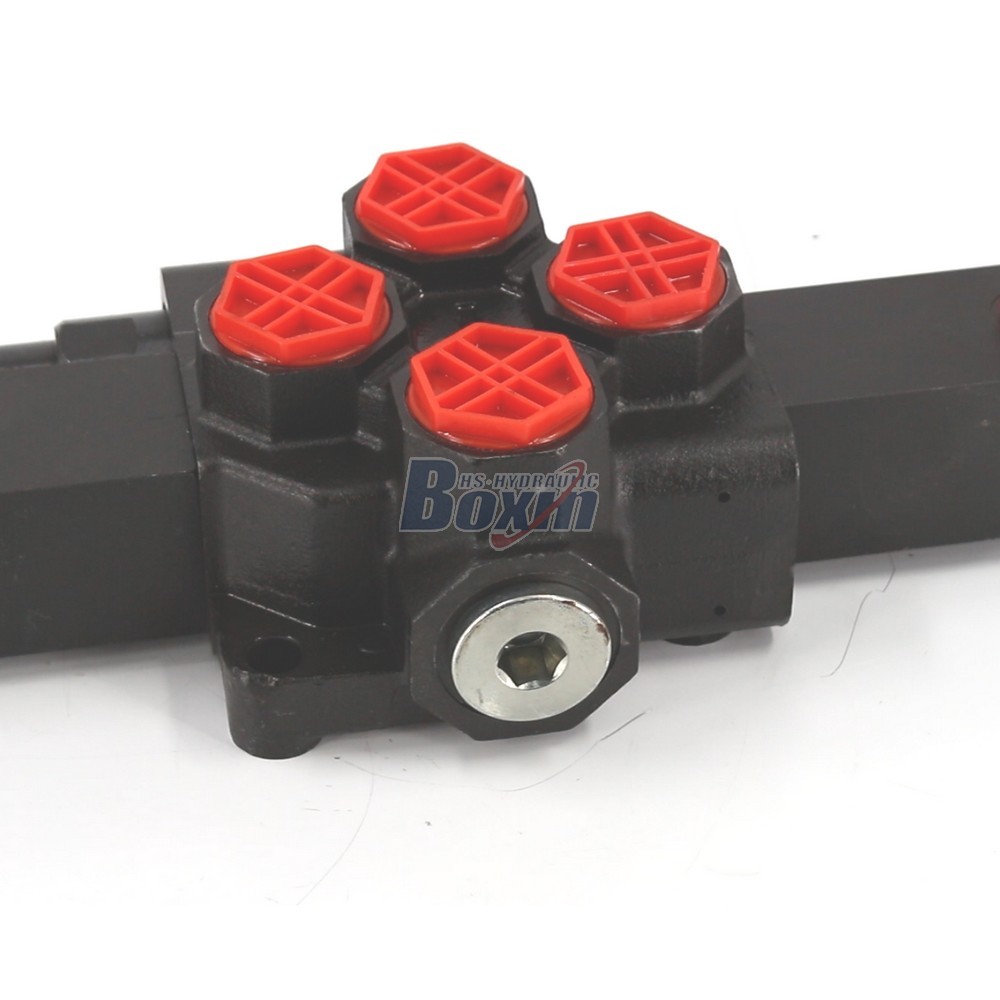

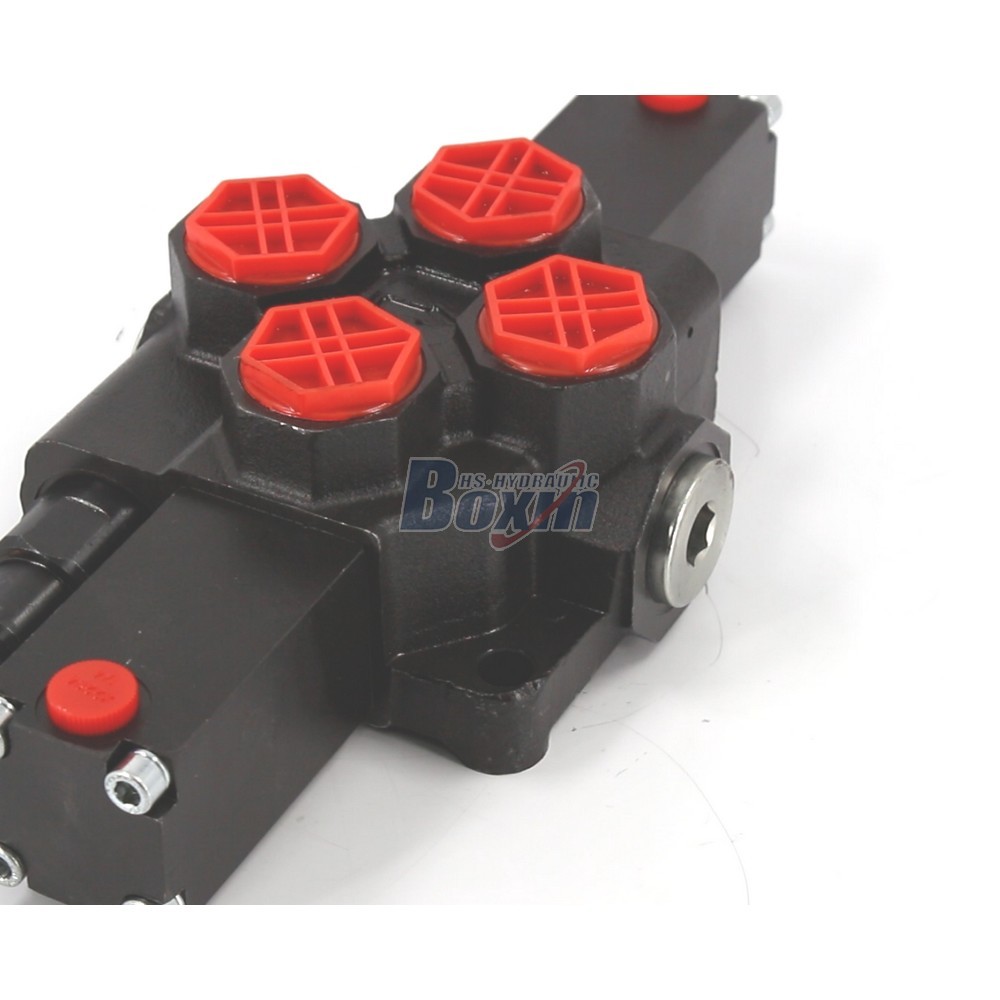

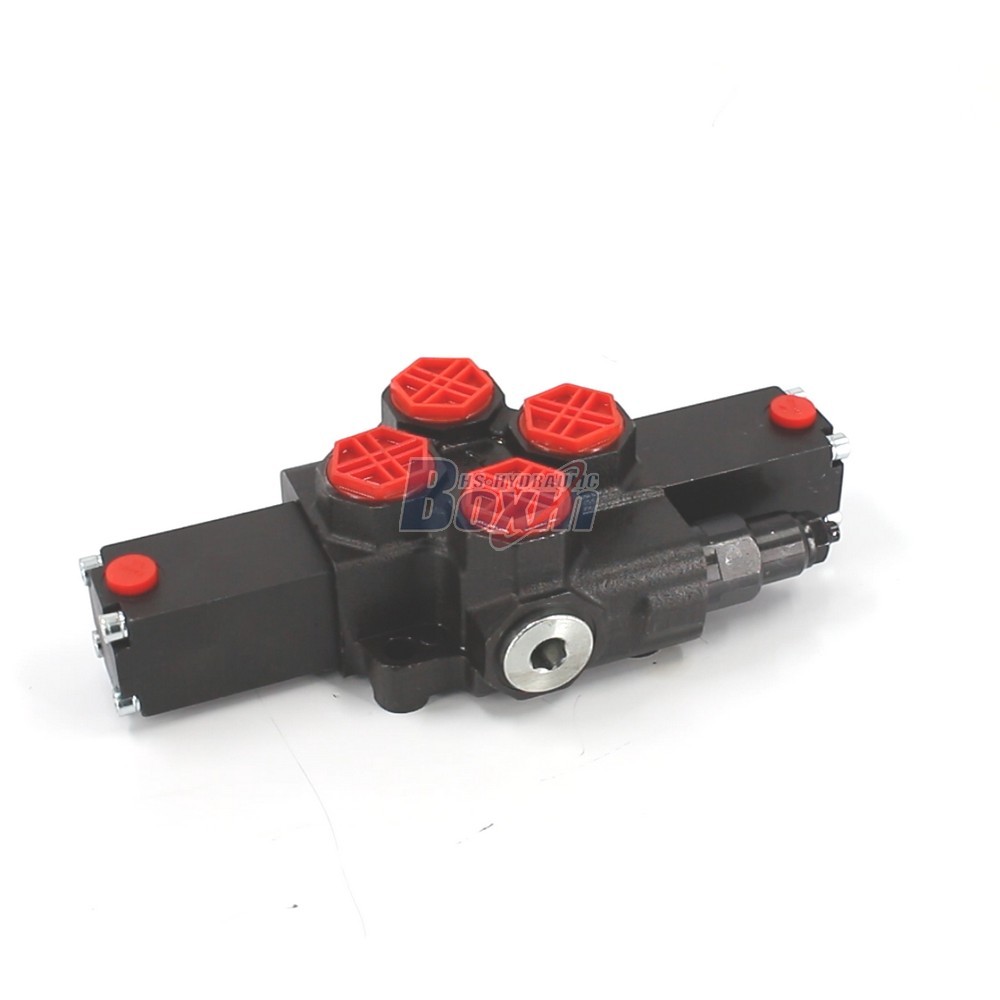

SD14Y-OT Hydraulic 1 Spool Monoblock Directional Valve

SD14Y-OT Hydraulic 1 Spool Monoblock Directional Valve

SD14Y-OT Hydraulic 1 Spool Monoblock Directional Valve drawing image

As a leading manufacturer, we provide the SD14Y-OT, a high-performance 1-spool hydraulic monoblock directional valve featuring a 120 L/min flow rate and 315 bar pressure capacity for heavy-duty machinery.

SD14系列 单块式方向阀 参数
控制方式 手控, 气控, 液控
路数 1 联
环境温度范围 -40°C to +60°C (-40°F to +140°F)
结构类型 整体阀
联数 1联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 120 升/分钟 (31.7 美制加仑/分钟)
最大压力 315 bar (4600 psi)
进油口 G3/4接口
出油口 G3/4接口
接口尺寸 G3/4接口

The SD14Y-OT Hydraulic 1 Spool Monoblock Directional Valve is engineered for demanding applications including wheel loaders, backhoes, and tractors. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), this G3/4 ported valve ensures precise hydraulic control across construction and agricultural sectors. We are a prominent hydraulic product manufacturer offering reliable factory supply and competitive wholesale pricing. Our facility supports OEM, ODM, and customized manufacturing to meet specific technical requirements. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Our SD14 series valves are ideal for material handling equipment, wood splitters, and industrial vehicles, providing durable and stable performance.
