1683 次查看了此产品

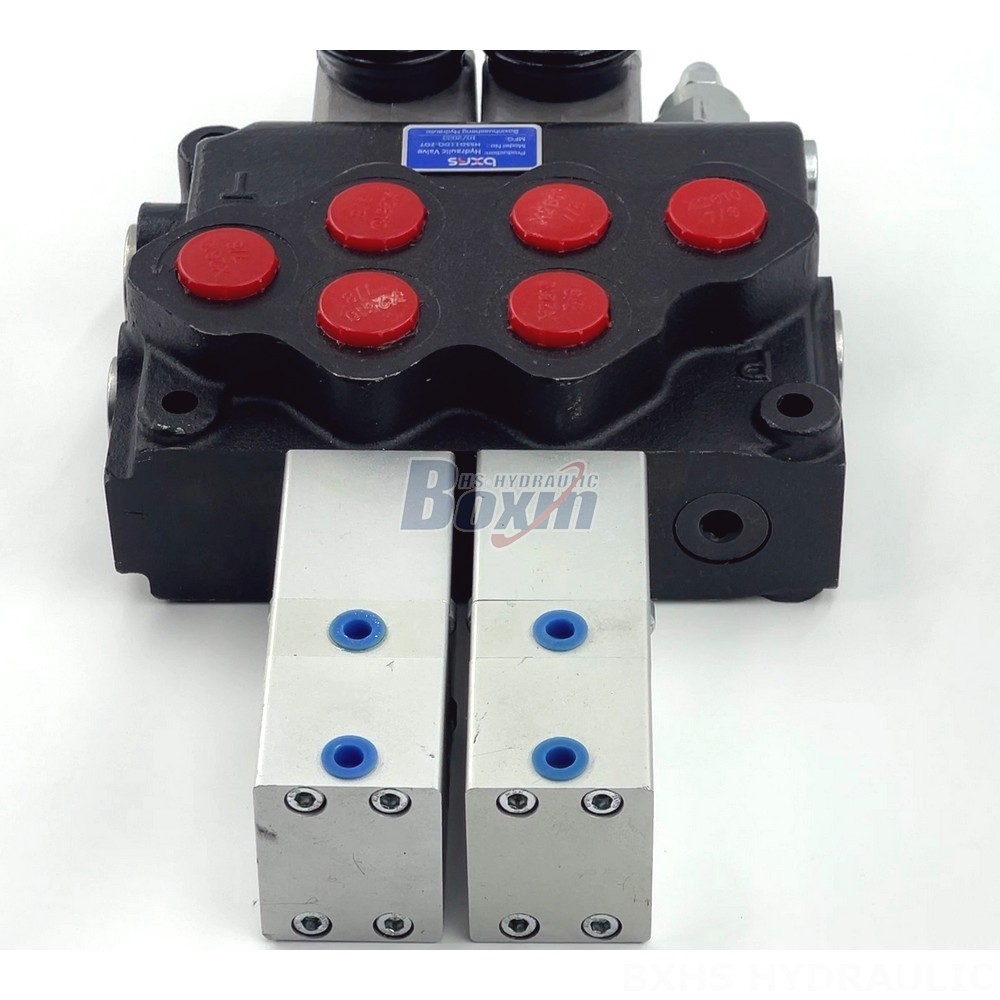

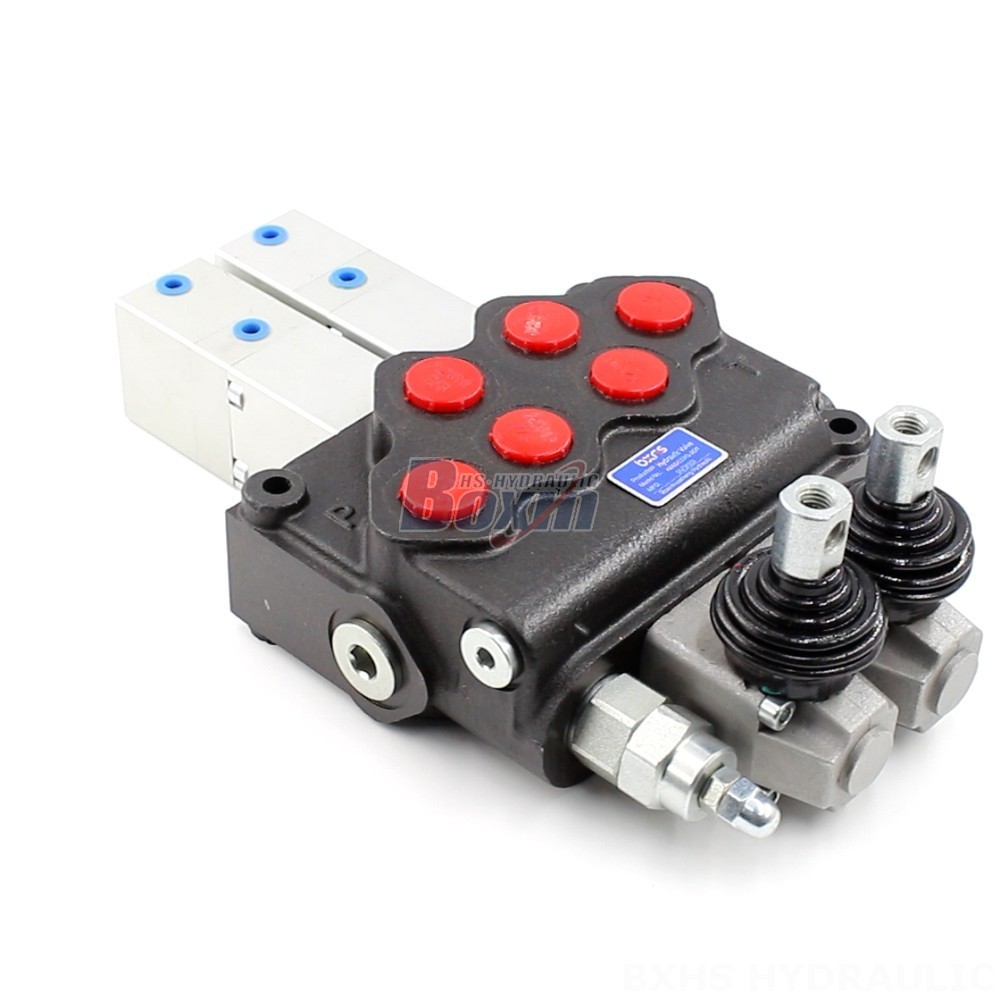

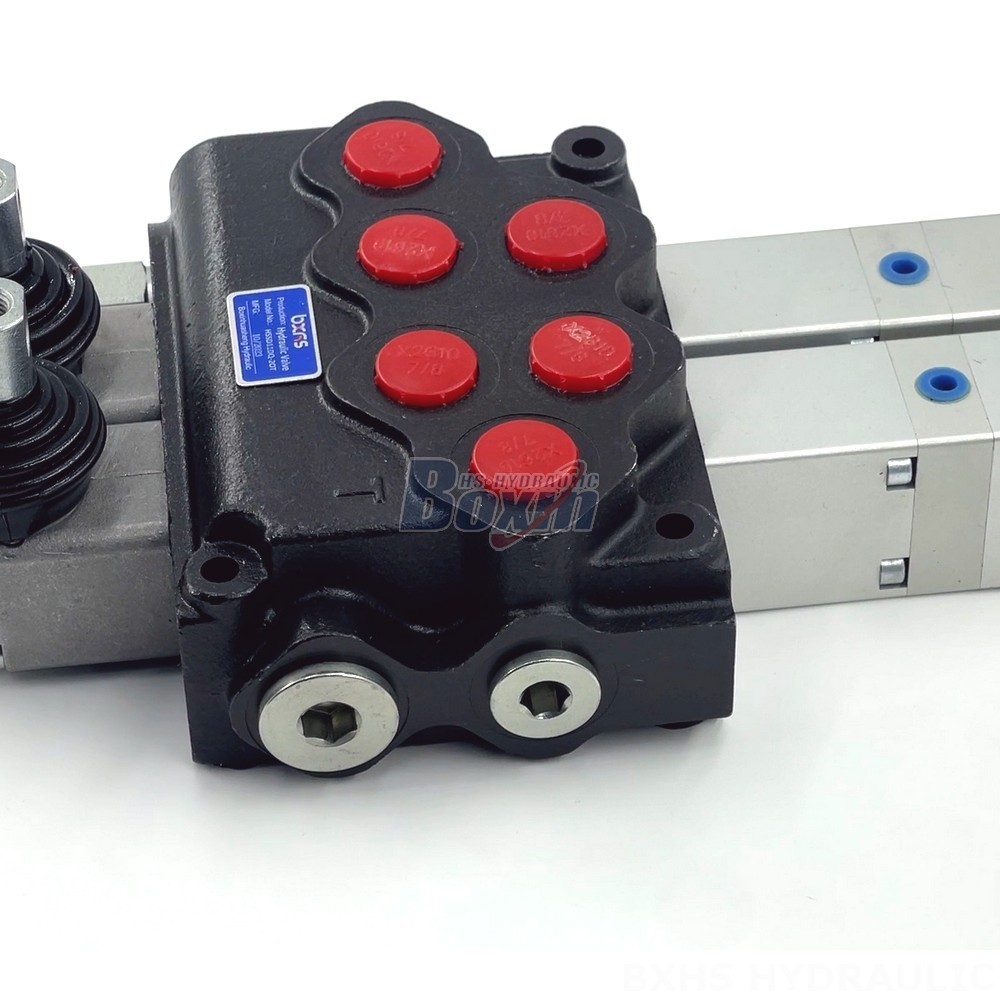

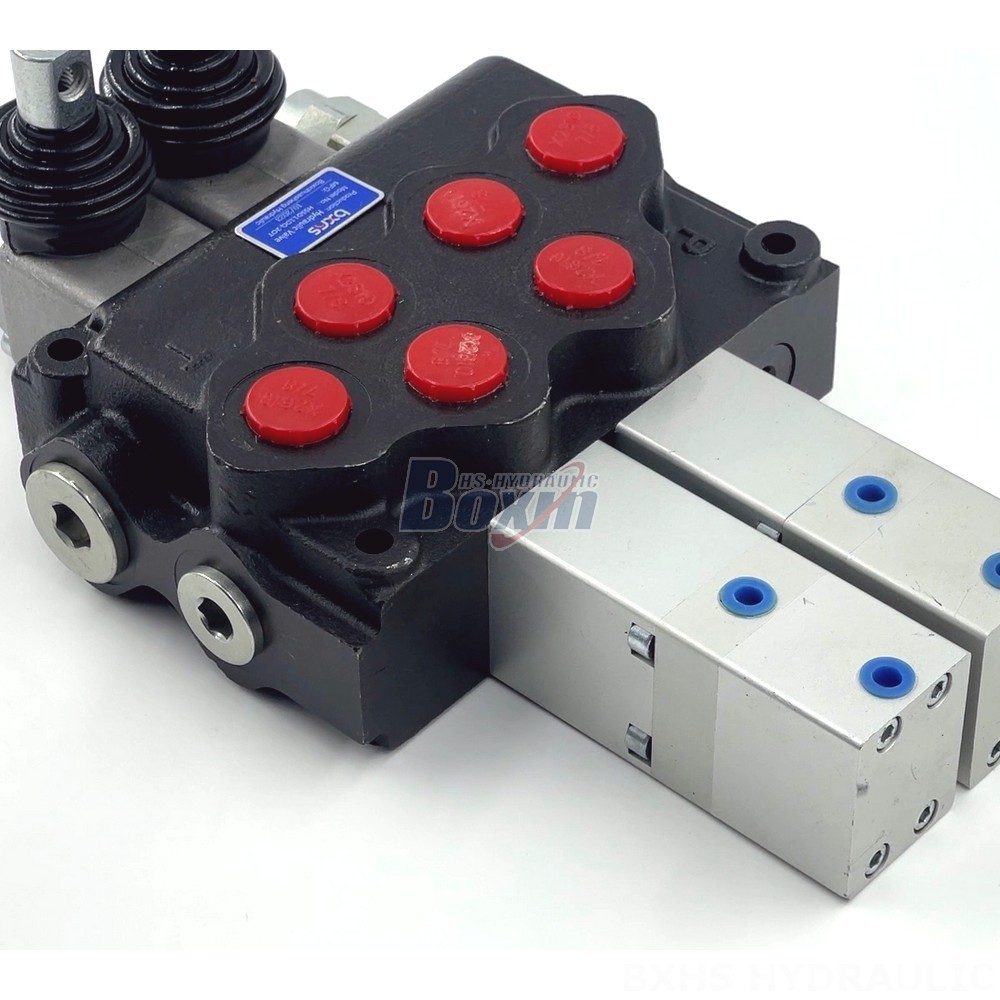

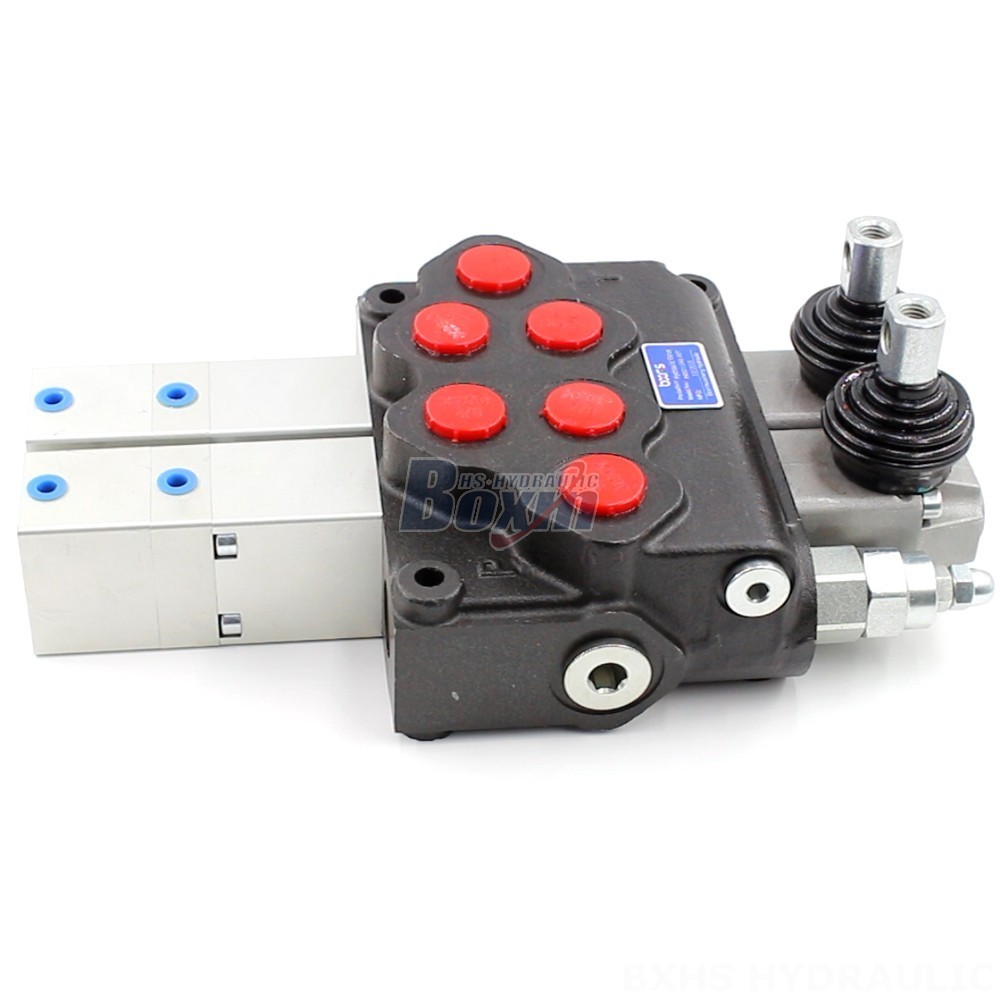

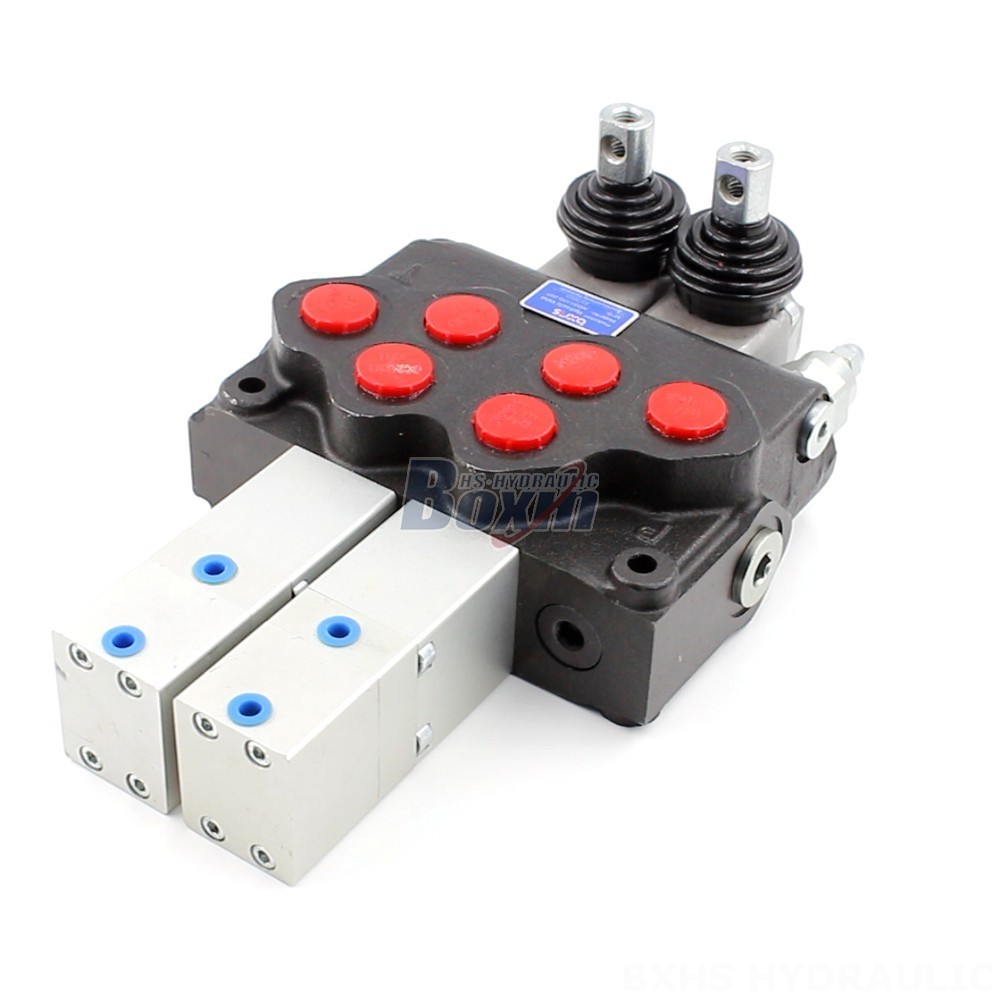

The SD11 Series Hydraulic Loader Control Valve is an ISO certified, pneumatic-controlled monoblock valve designed for demanding applications in material handling, construction, earth moving, agriculture, and industrial vehicles. This robust valve offers high flow rates, reliable performance, and expert engineering support.
| SD11系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁, 气动和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 70 L/min (18.5 US gpm) |
| 最大压力 | 305 bar (4400 psi), 315 bar (4600 psi) |
| 进油口 | G3/4接口, SAE 12接头 |
| 出油口 | G3/4接口, SAE 12接头 |
| 接口尺寸 | G3/4接口, SAE 12接头 |
The SD11 Series Hydraulic Loader Control Valve is a high-performance, 2-section monoblock valve with a 70 L/min flow rate and a maximum pressure of 250 bar. It features pneumatic control for precise operation, and is engineered for use in various demanding applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. The valve is manufactured to ISO standards and backed by expert engineering support.
