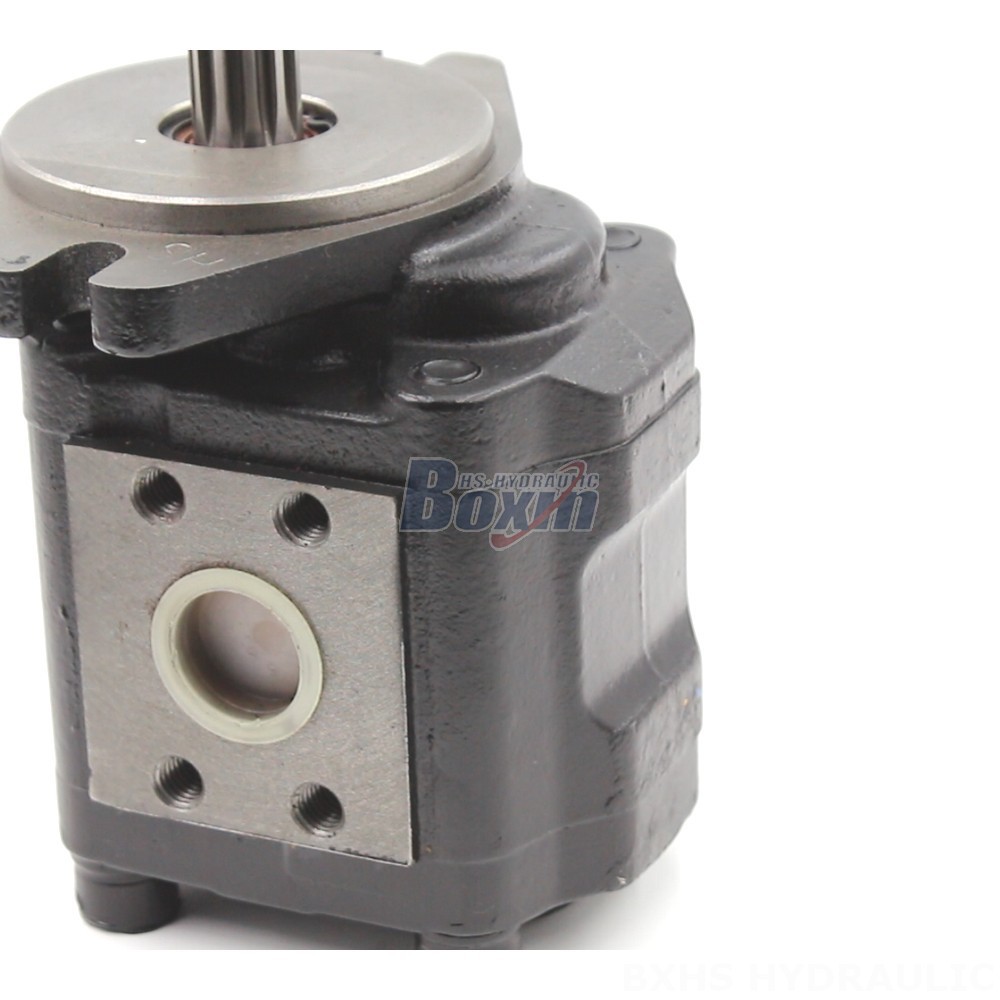

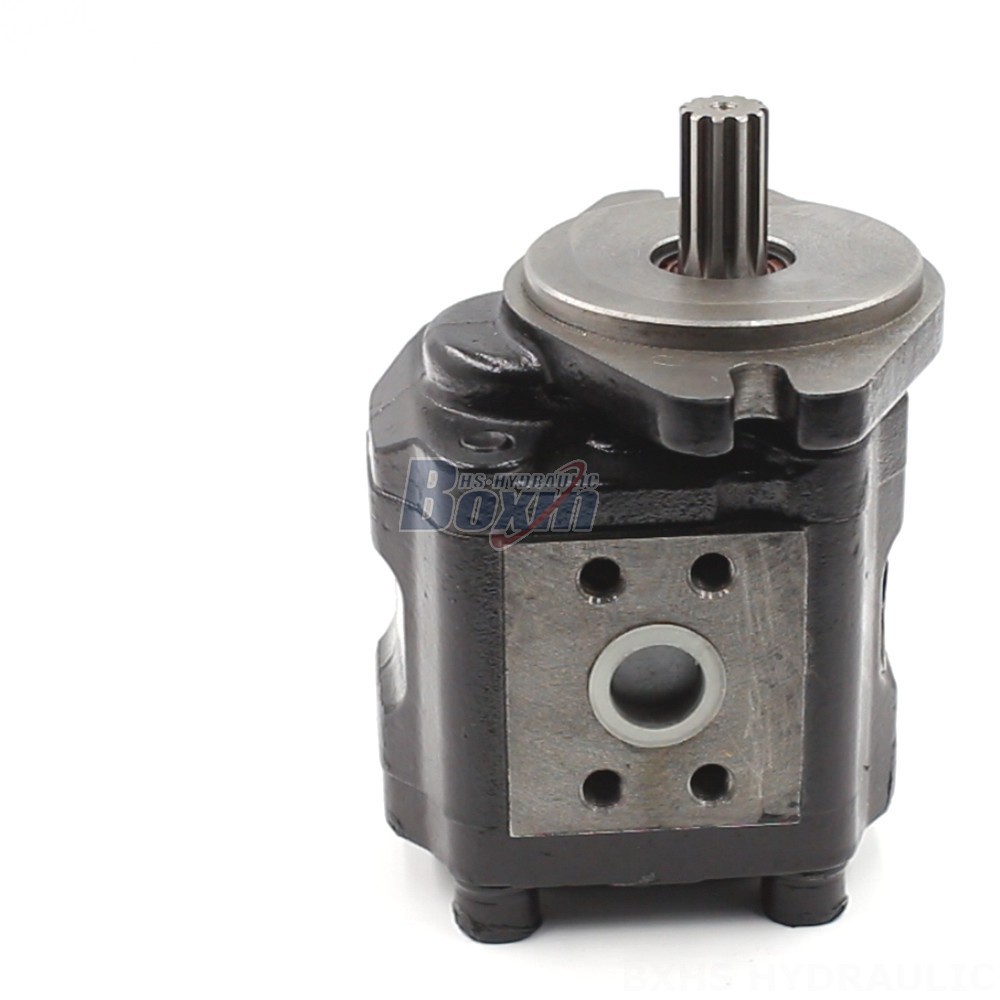

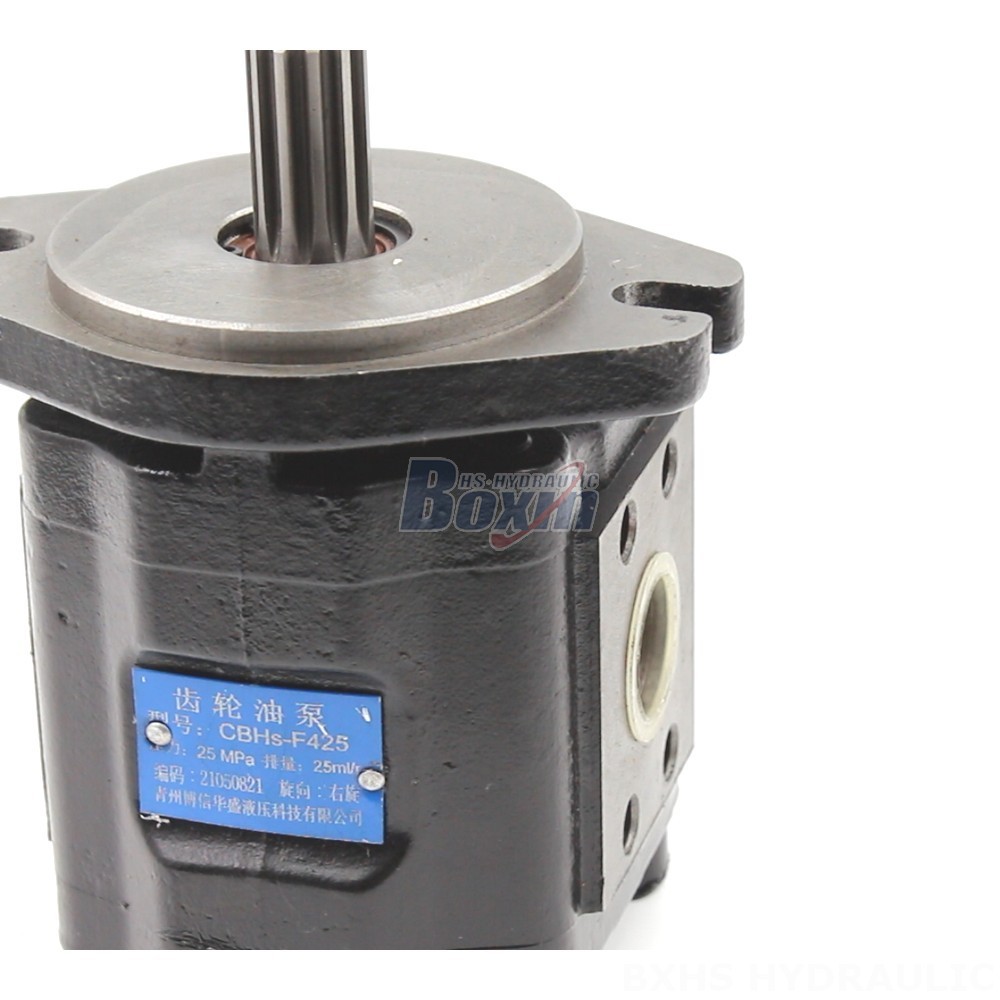

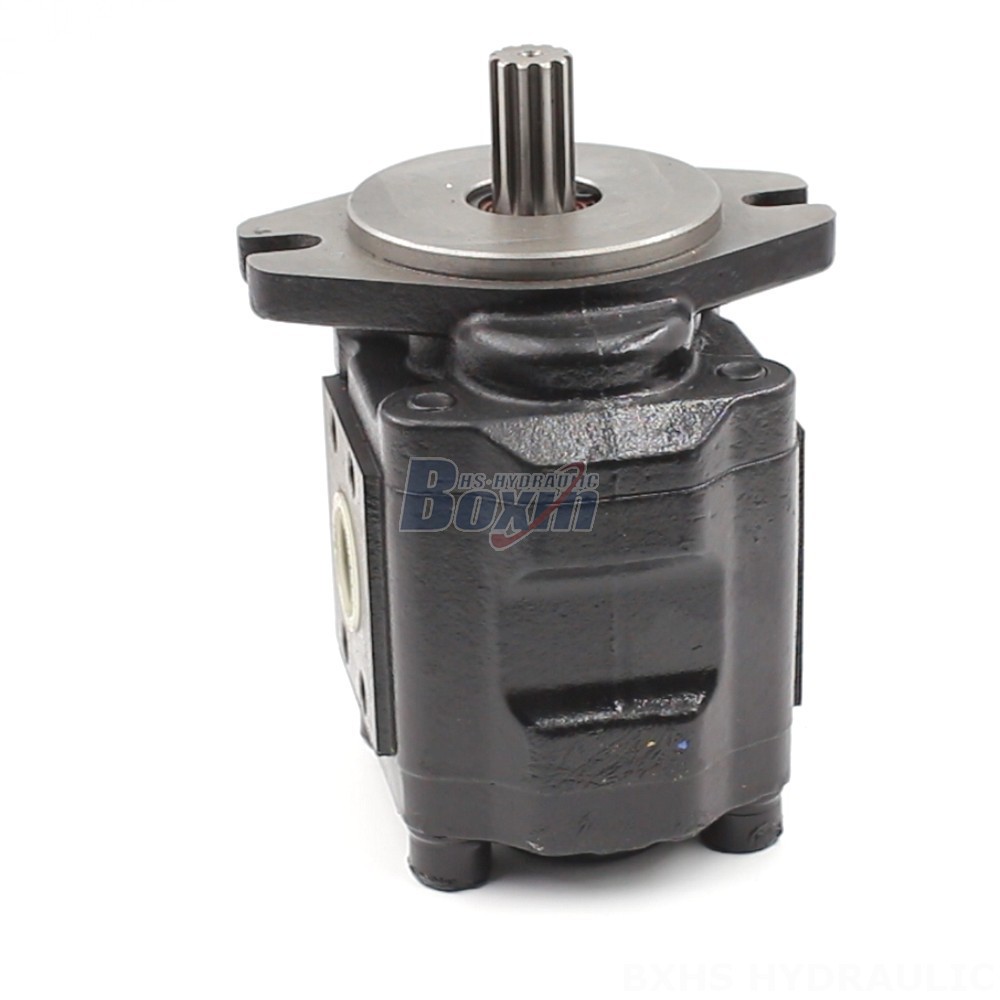

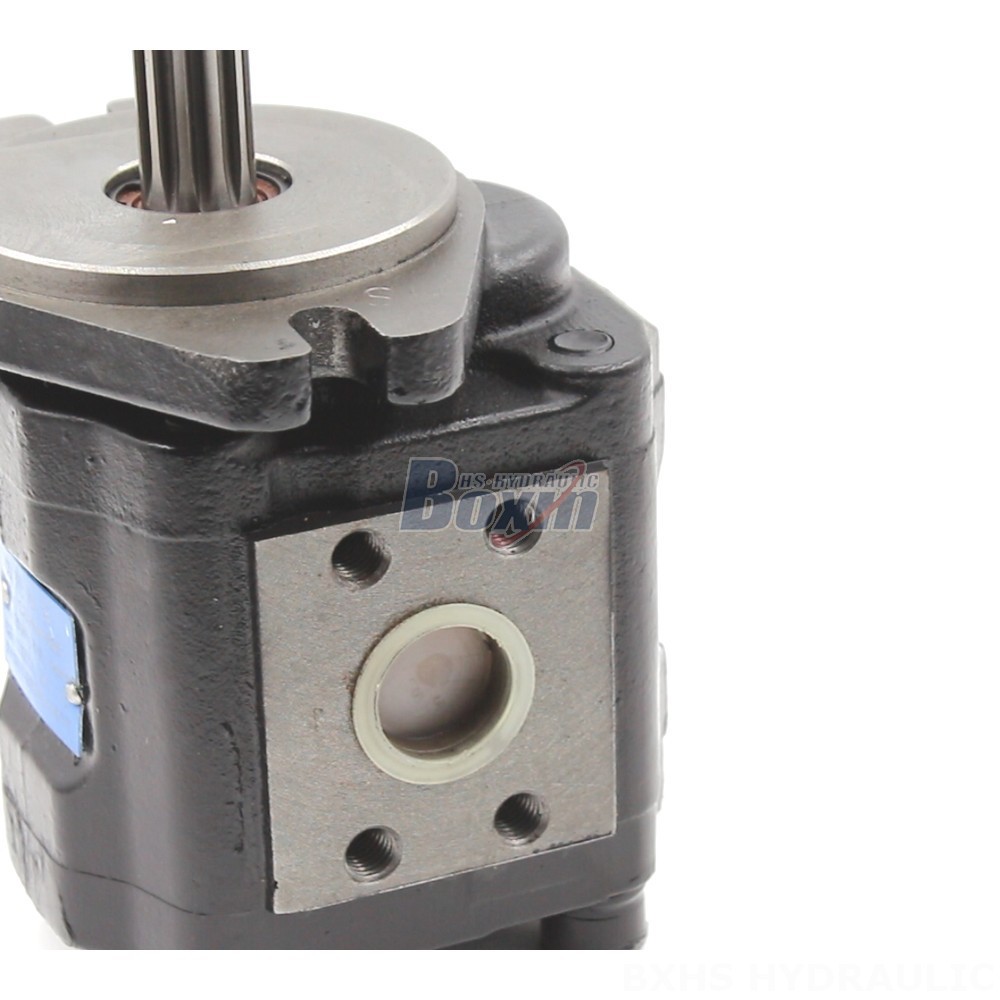

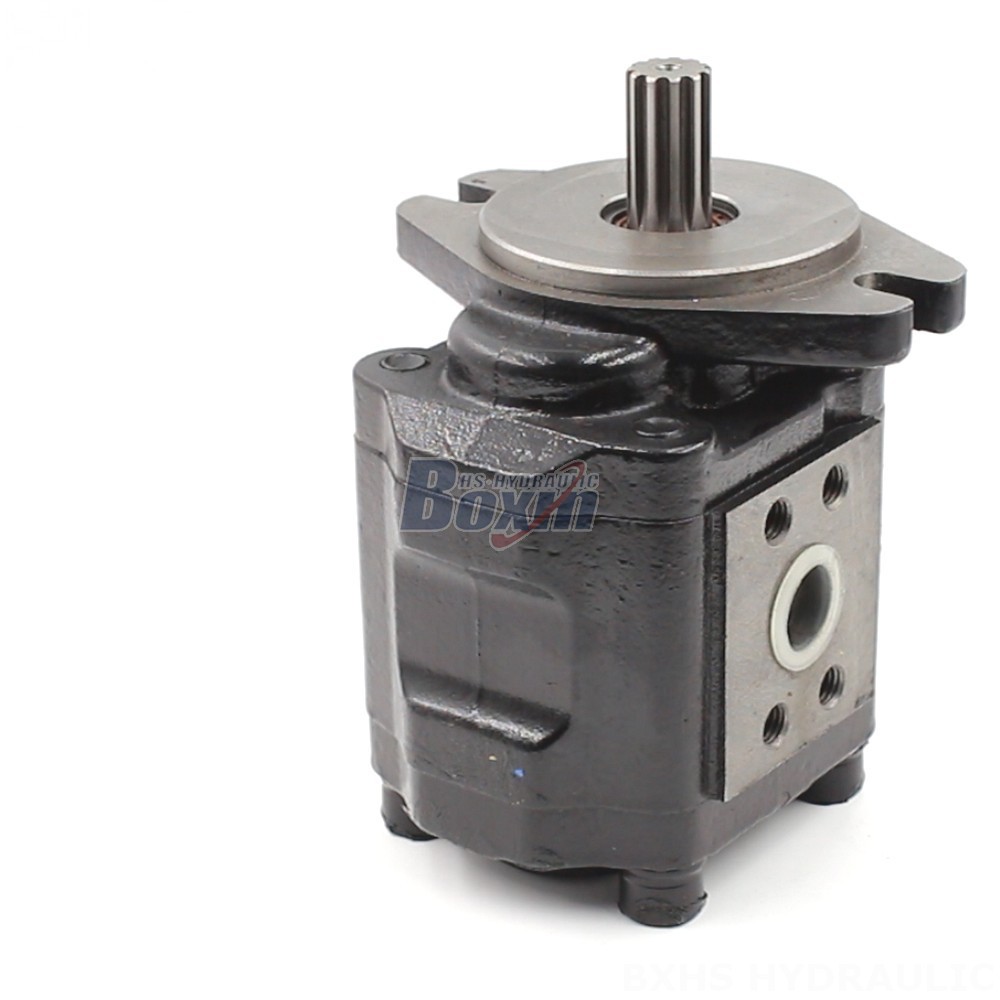

This Reliable 40 cc/rev Hydraulic Gear Pump is manufactured directly from our factory and can be customized to meet your specific needs. It offers high pressure, heavy duty performance and is ideal for a wide range of applications in construction, material handling, agriculture and industrial vehicles.
| CBHS-F4系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 40 毫升/转, 25 毫升/转, 20 毫升/转 |
| 额定压力 | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 2500 r/min |
| 旋转方向 | 左旋（逆时针旋转）, 右旋（顺时针旋转） |
| 材质 | 铸铁, 铝+铸铁, 铝 |
| 架构 | 凸轮类型 |
| 法兰盘类型 | A-菱形法兰, B-方形法兰, ISO-4 安装孔, UNI-3 安装孔, SAE法兰 |
| 轴伸形式 | H:矩形花键, X:渐开线花键, P：普通键 |
This Reliable 40 cc/rev Hydraulic Gear Pump is a high-performance, durable and reliable solution for various applications. It is available in different displacement options, including 63 cc/rev, 80 cc/rev, 40 cc/rev, 45 cc/rev and 32 cc/rev, offering flexibility for various equipment needs. The pump operates at high pressure up to 25 MPa (3625 psi) and features different flange and shaft type options for optimal compatibility. This pump is designed for use in construction and earth moving equipment, agricultural machinery, and industrial vehicles like telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, harvesters, and balers.
