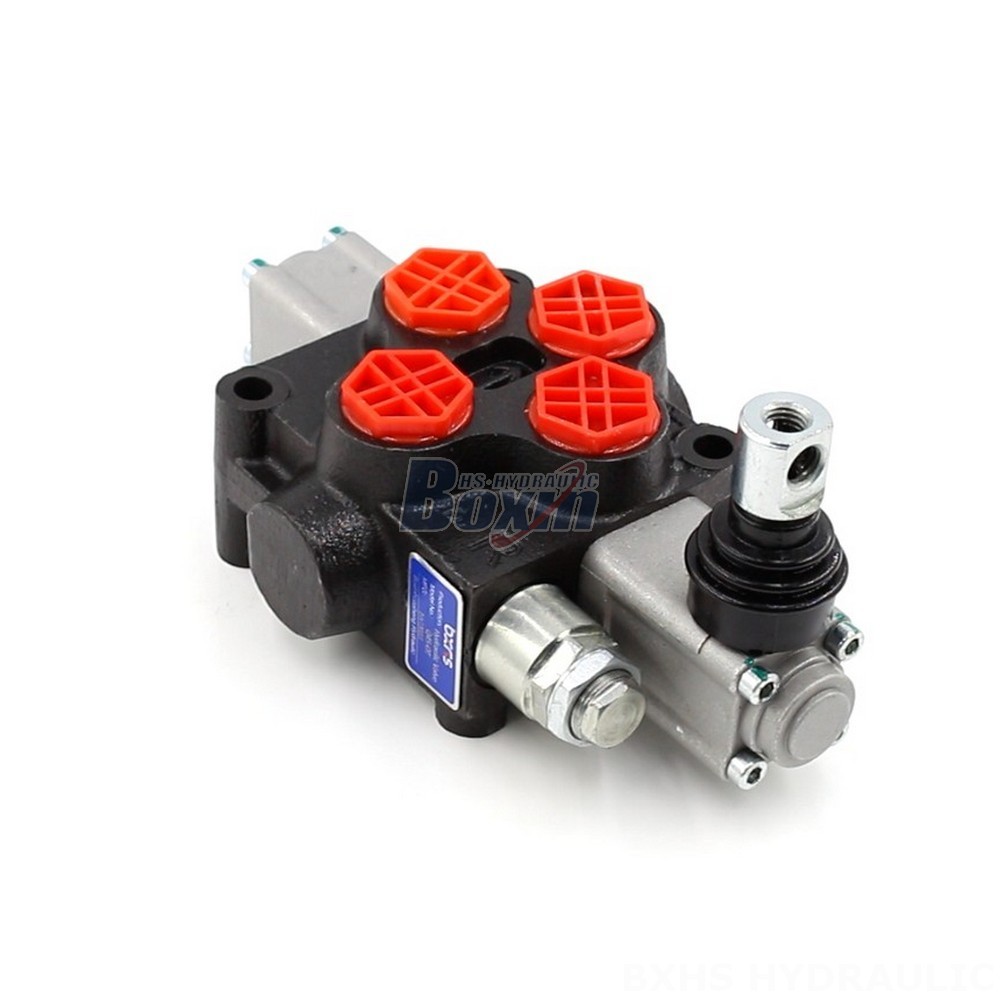

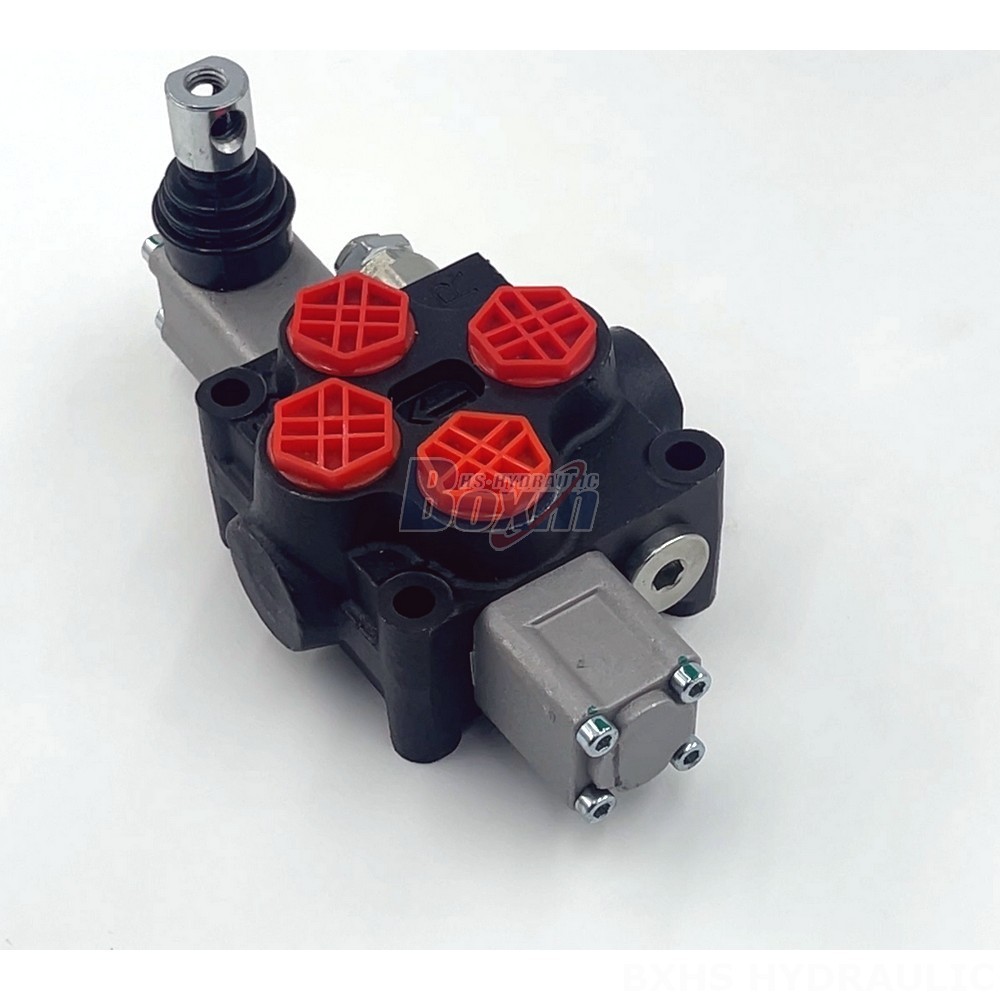

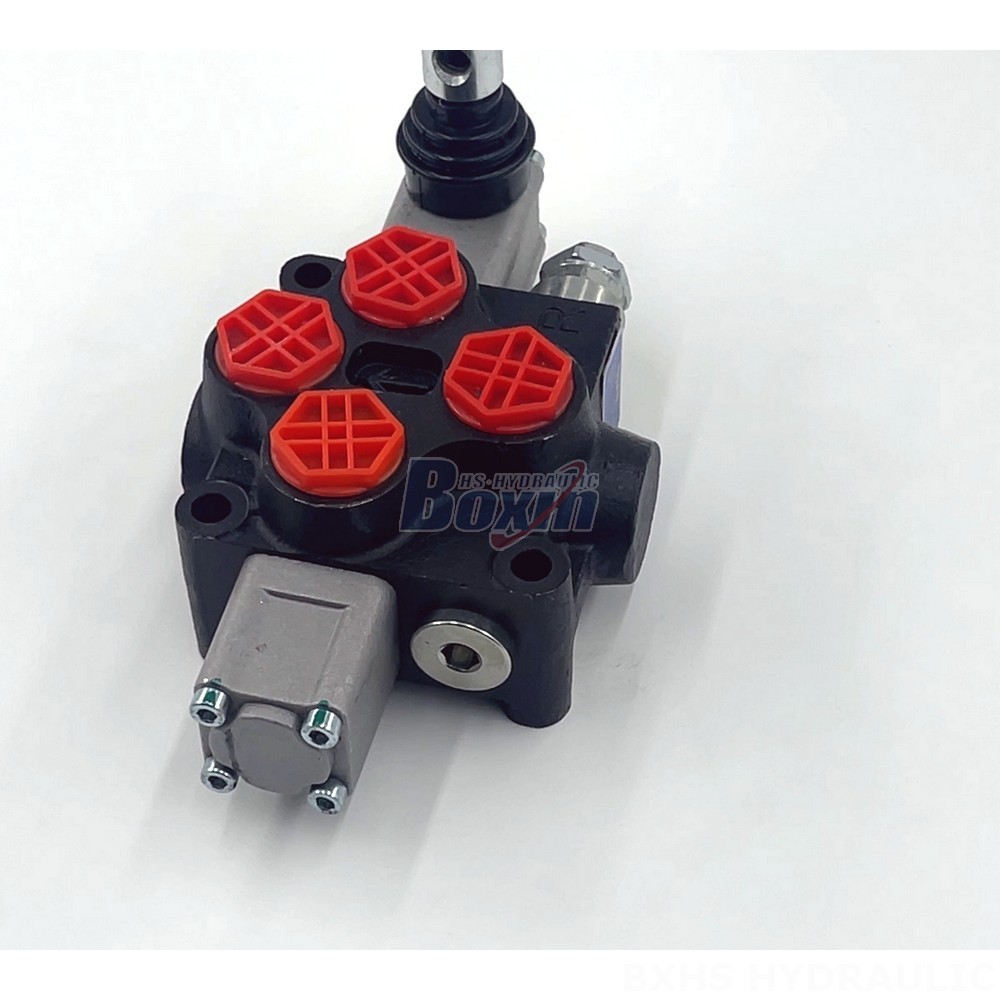

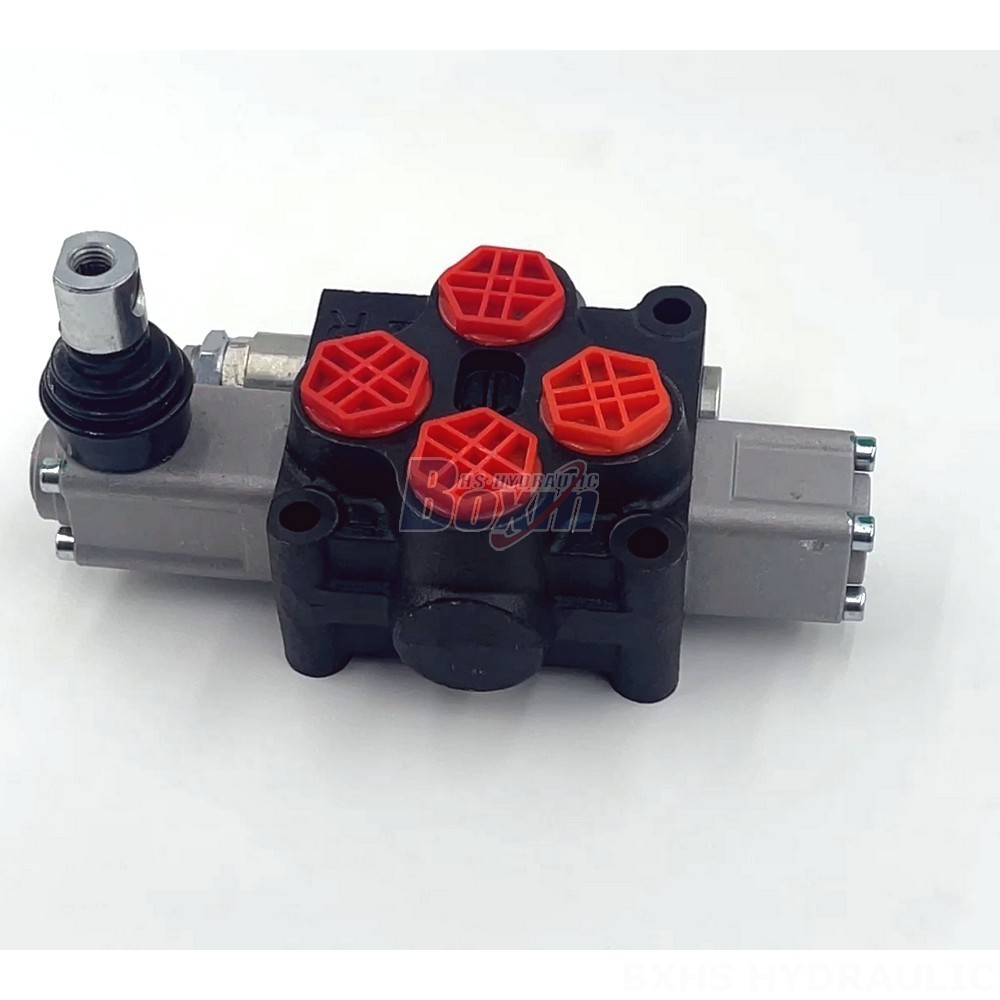

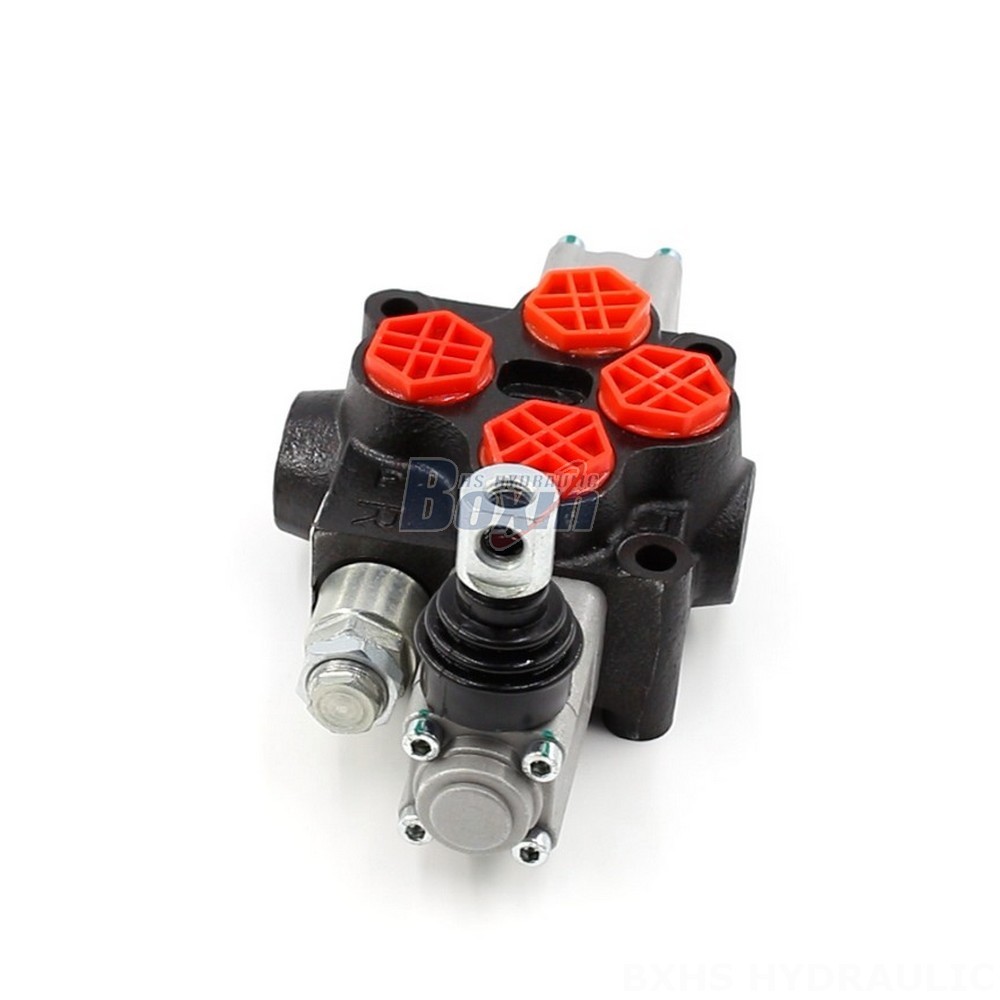

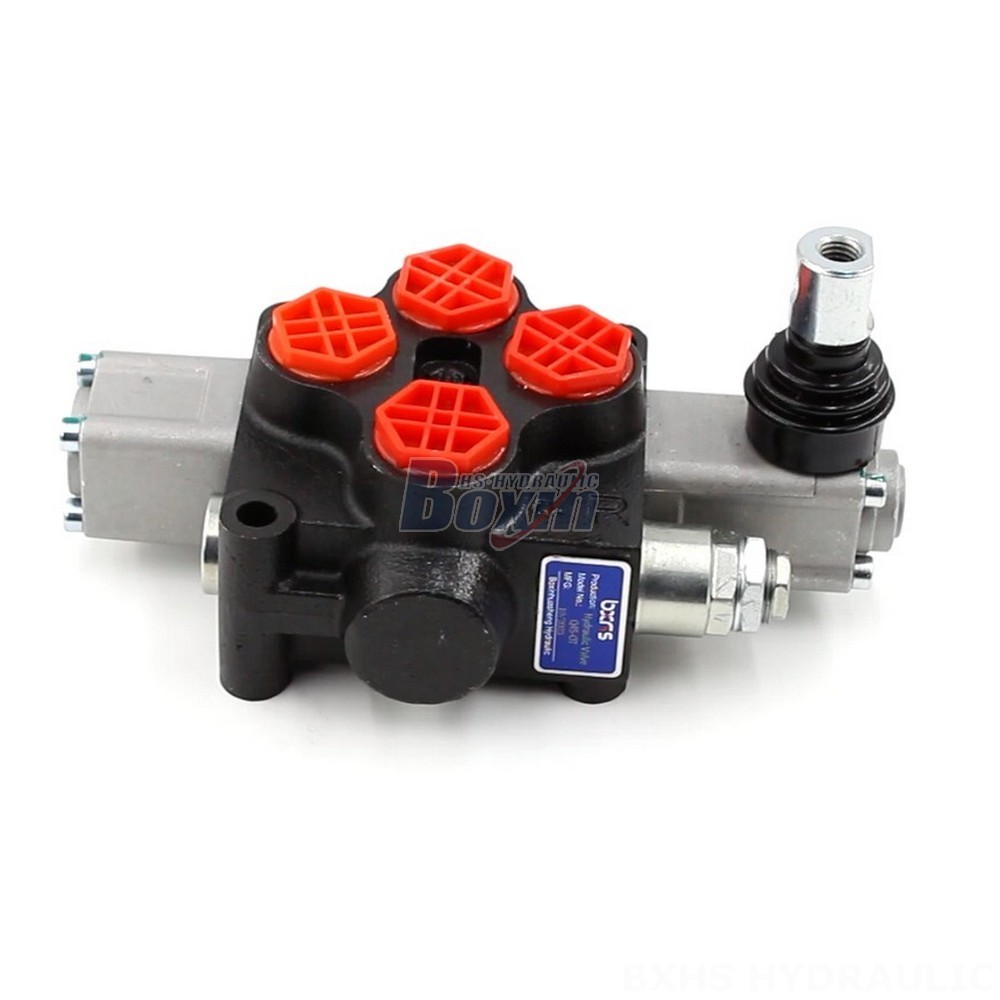

The Q45 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial and mobile applications. Featuring a manual control method, single section design, and monoblock construction, this valve offers precise flow control and reliable operation.
| Q45系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 一控二手柄控制, 电磁和手动, 手动及推拉式电磁铁, 推拉式电磁铁 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 45 L/min (11.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口 |
| 出油口 | G1/2接口 |
| 接口尺寸 | G1/2接口 |
**Key Features:**
- Manual control for precise operation
- Monoblock construction for durability and compact size
- Rated flow of 45 L/min (11.8 US gpm)
- Maximum pressure of 315 bar (4600 psi)
- Single spool design for simple flow control
**Applications:**
- Material handling equipment
- Construction and earth moving machinery
- Agricultural vehicles
- Industrial vehicles
- Telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders
