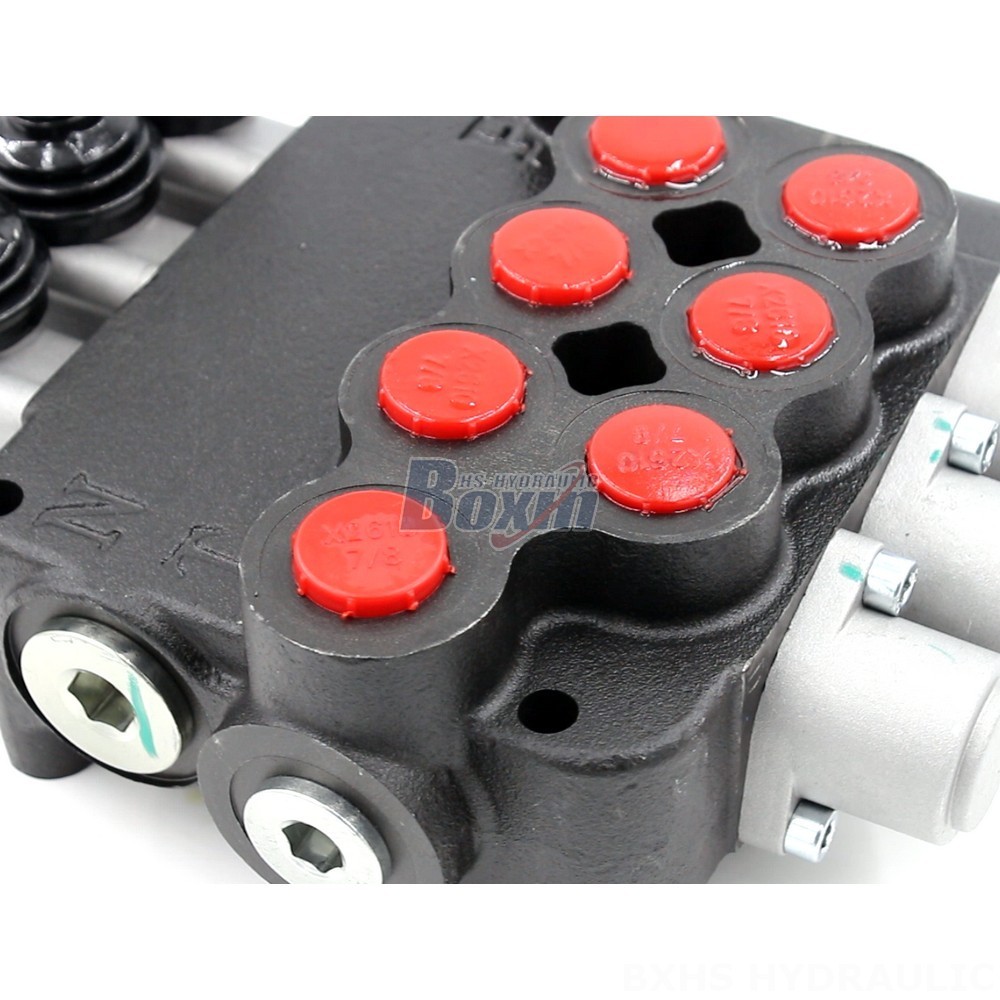

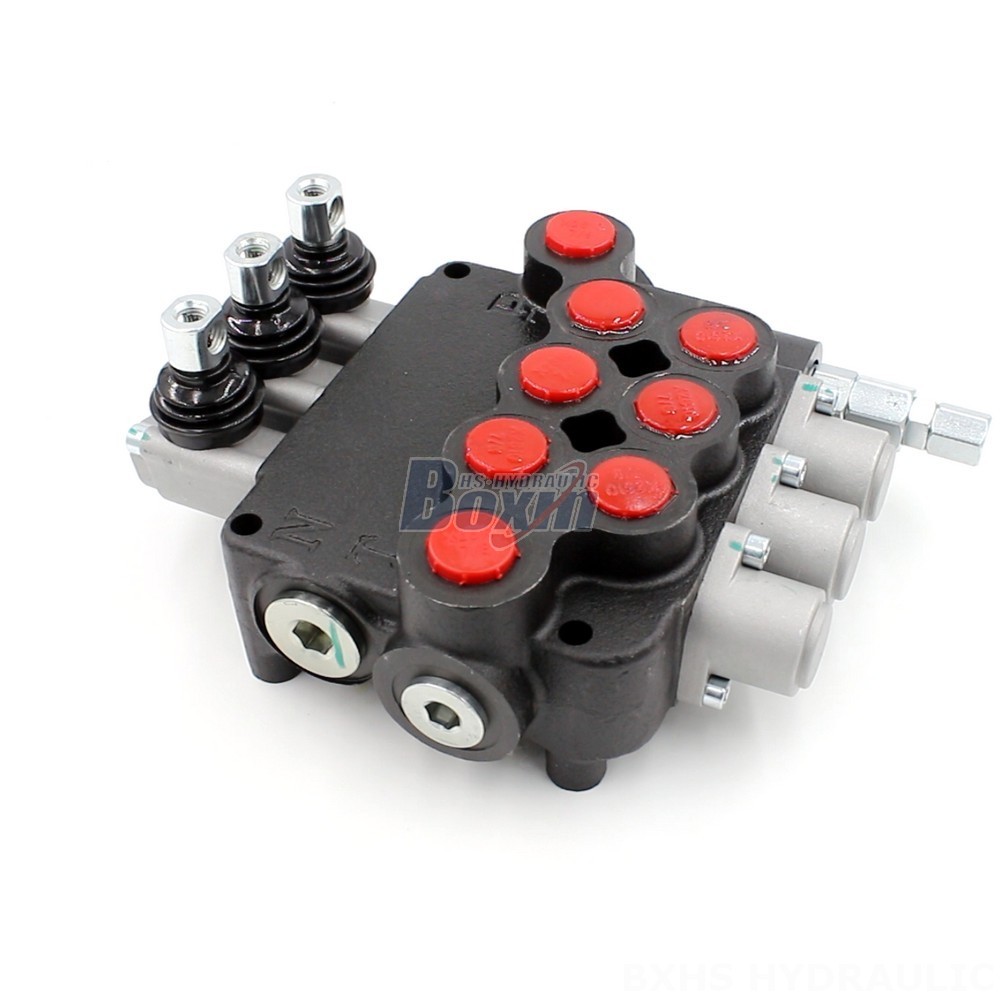

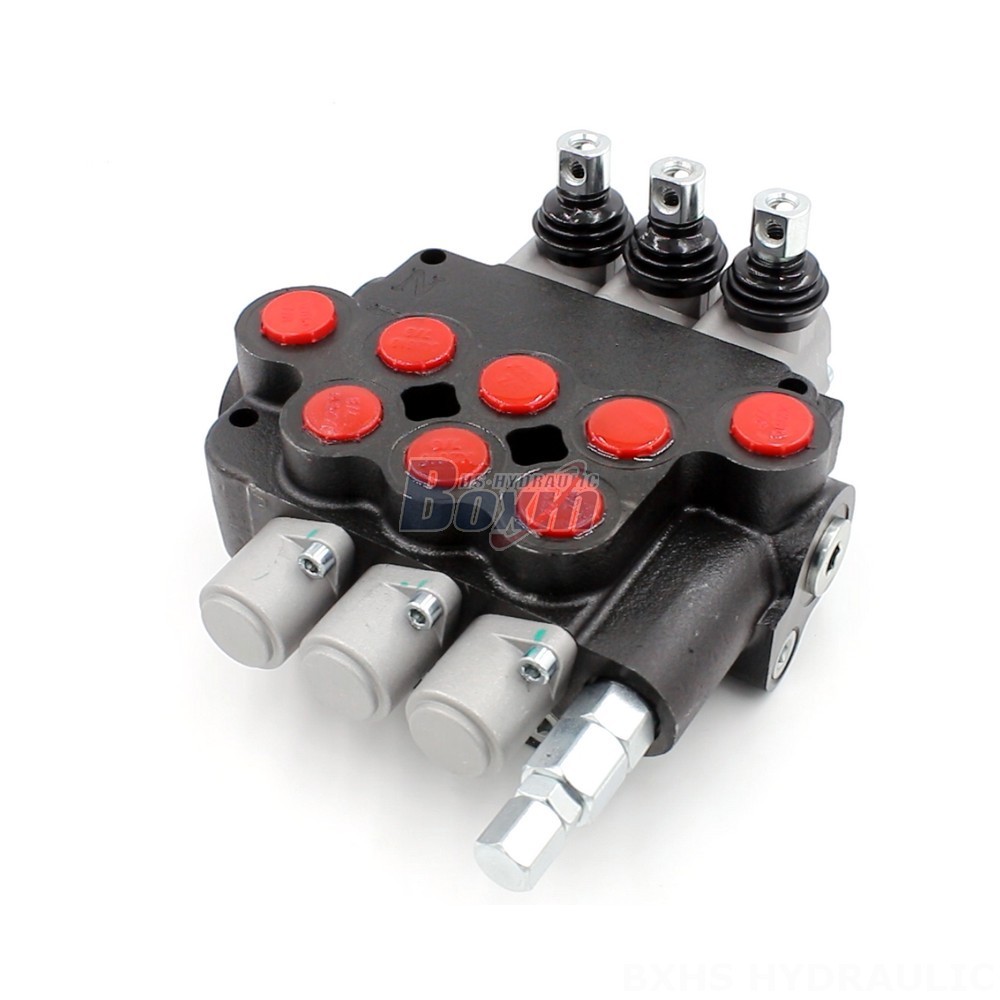

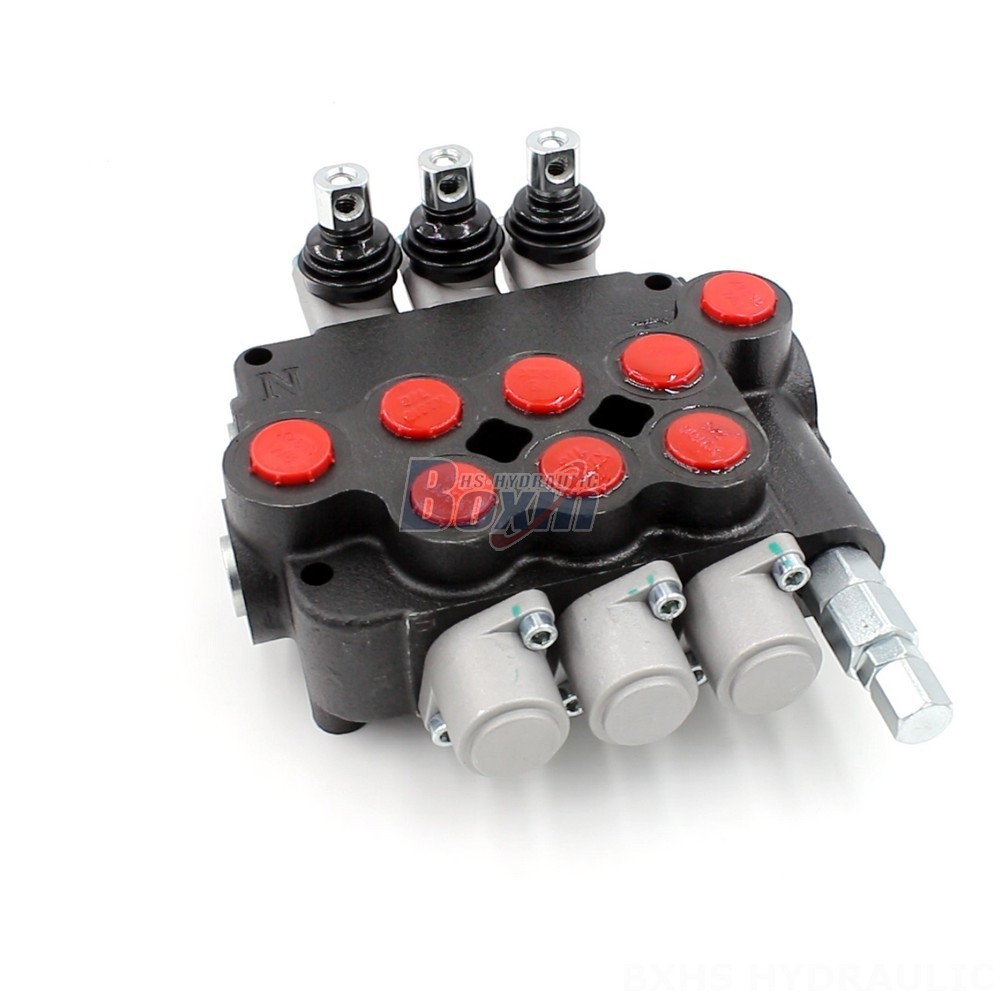

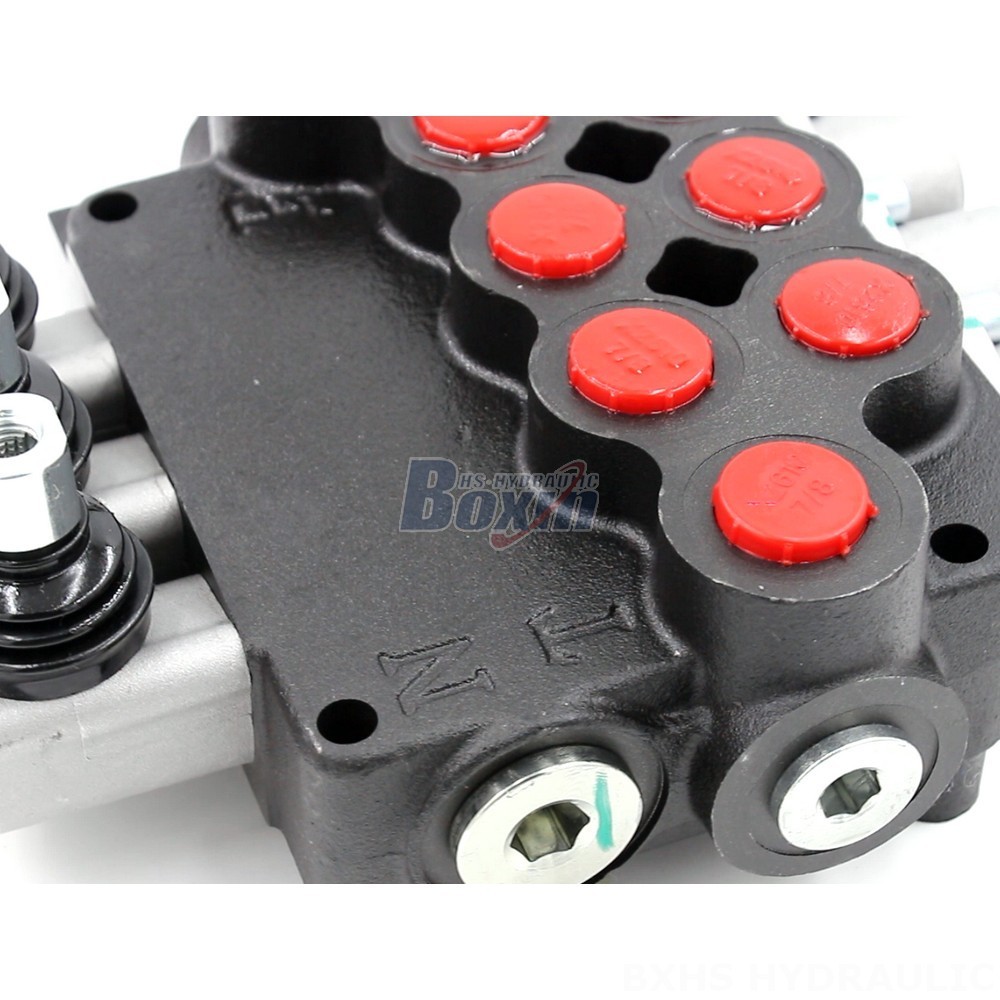

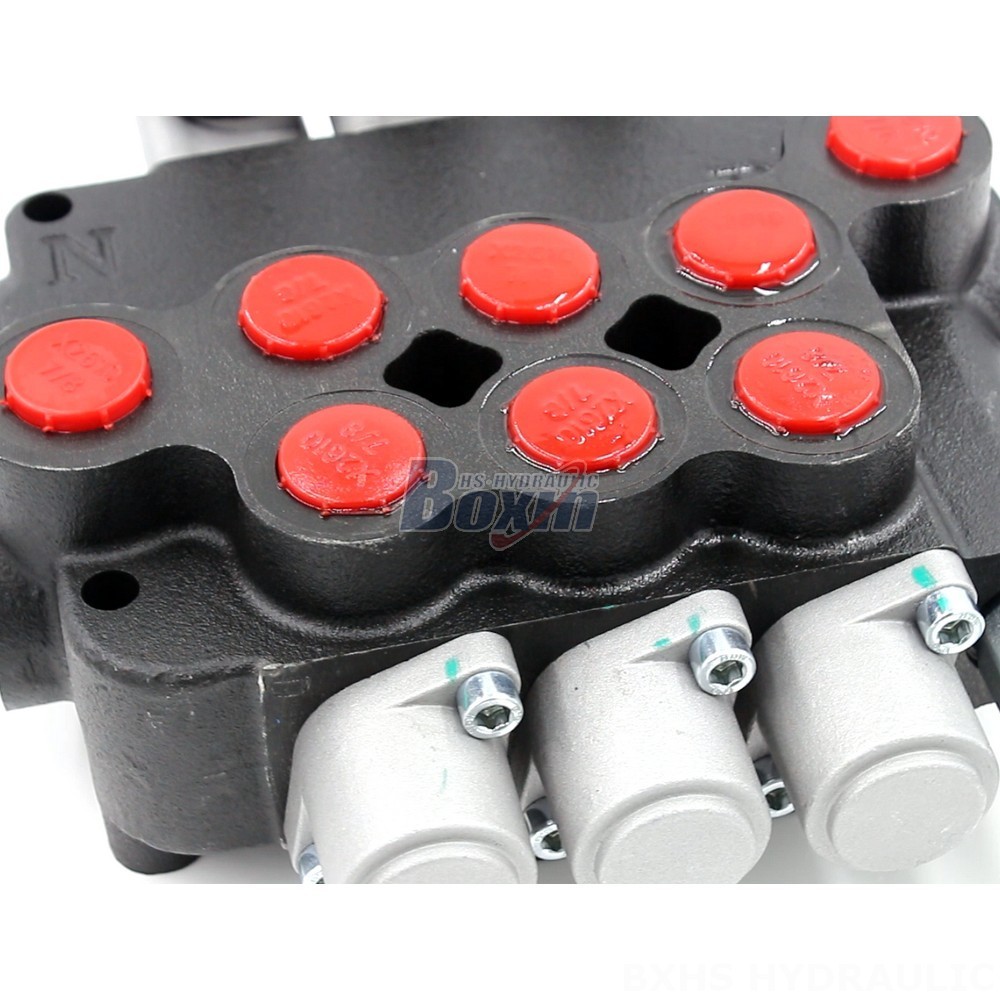

This P80-U78-3OT manual directional valve is a high-performance hydraulic flow diverter designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It offers reliable operation, durability, and a compact design, making it ideal for a wide range of equipment.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
This P80-U78-3OT manual directional valve is a 3-section monoblock valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi). It features manual control, a 3-spool design, and is suitable for operating viscosities from 15 to 75 mm²/s (15 cSt to 75 cSt). The valve operates in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). We offer this valve as a private label product, allowing you to brand it with your own logo and specifications. We also provide OEM manufacturing, custom design and development, and wholesale options to meet your specific needs. Contact us today to discuss your requirements and explore our partnership opportunities.
