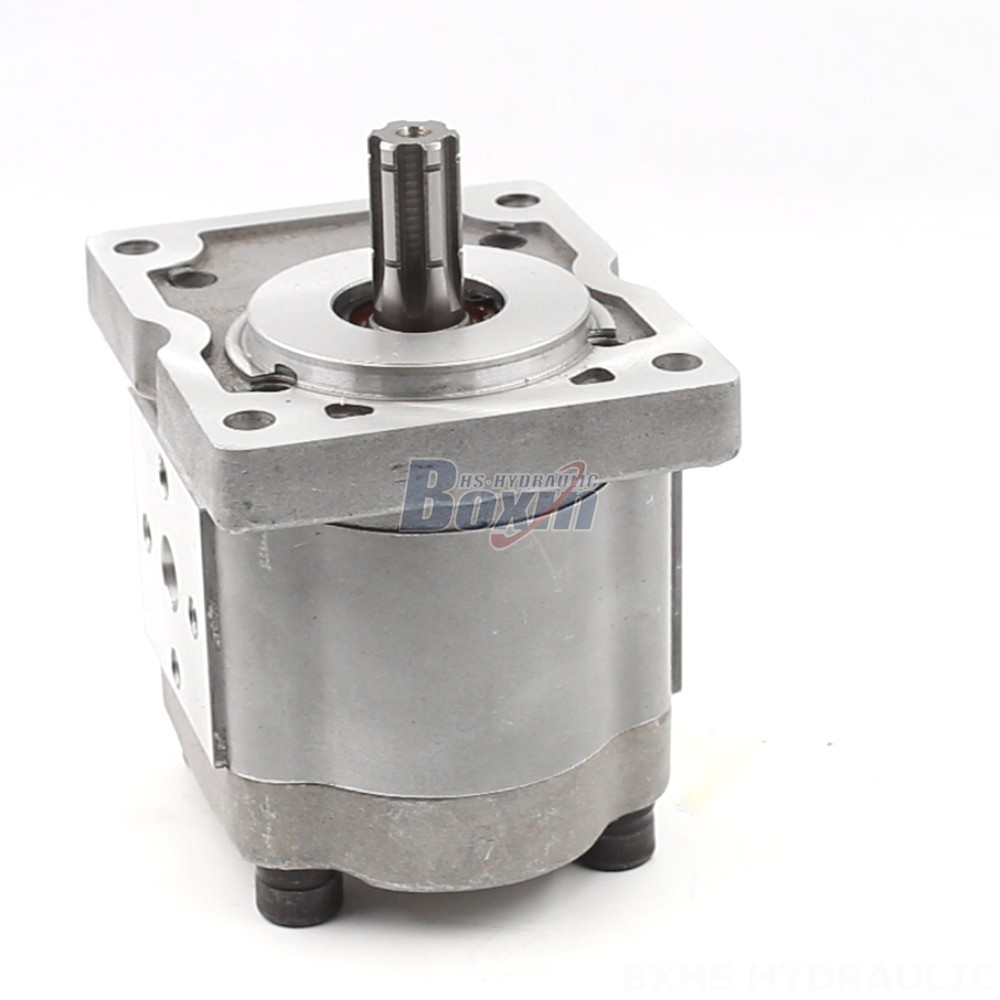

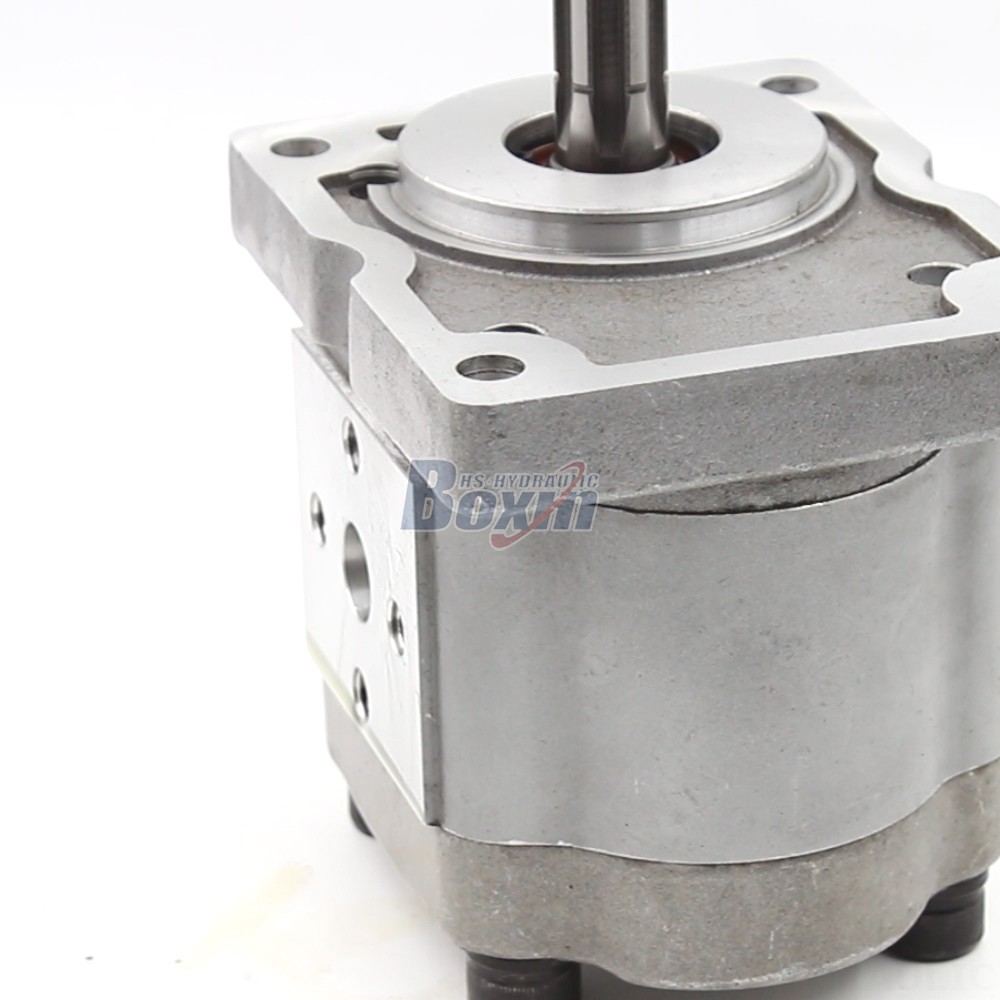

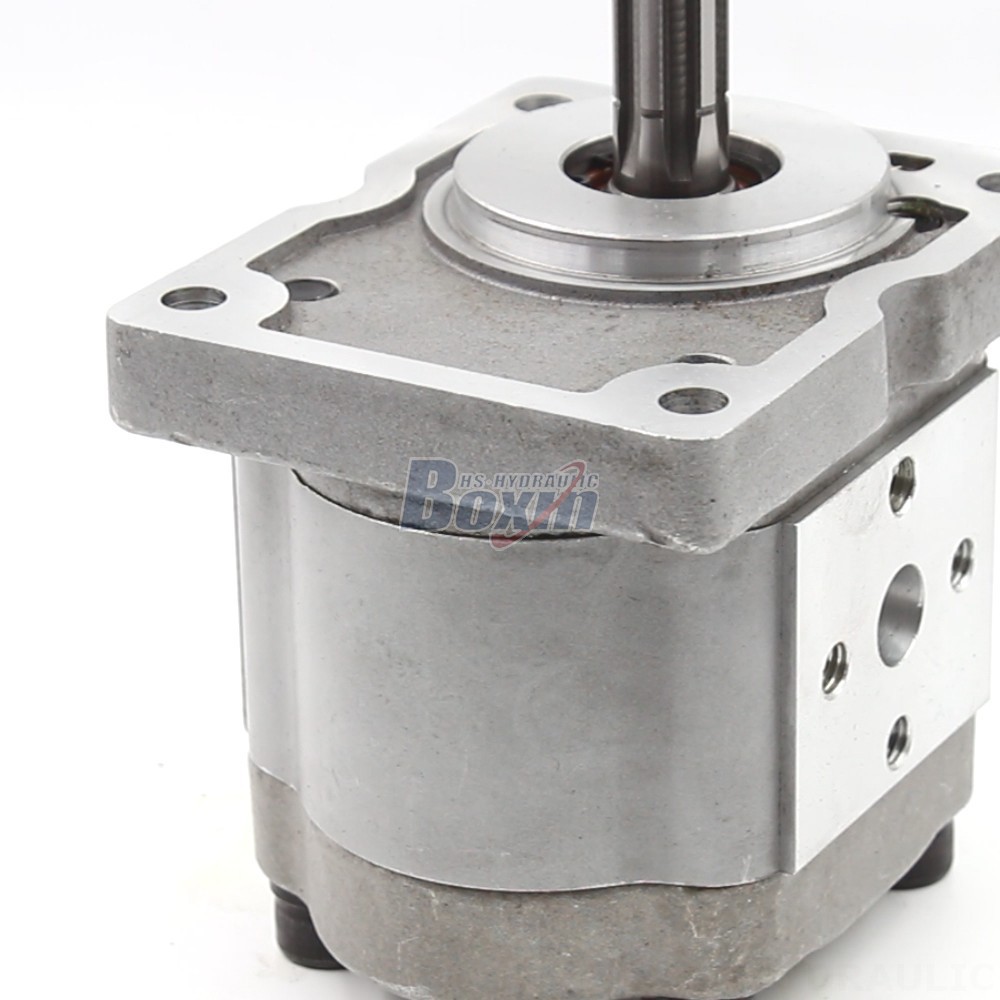

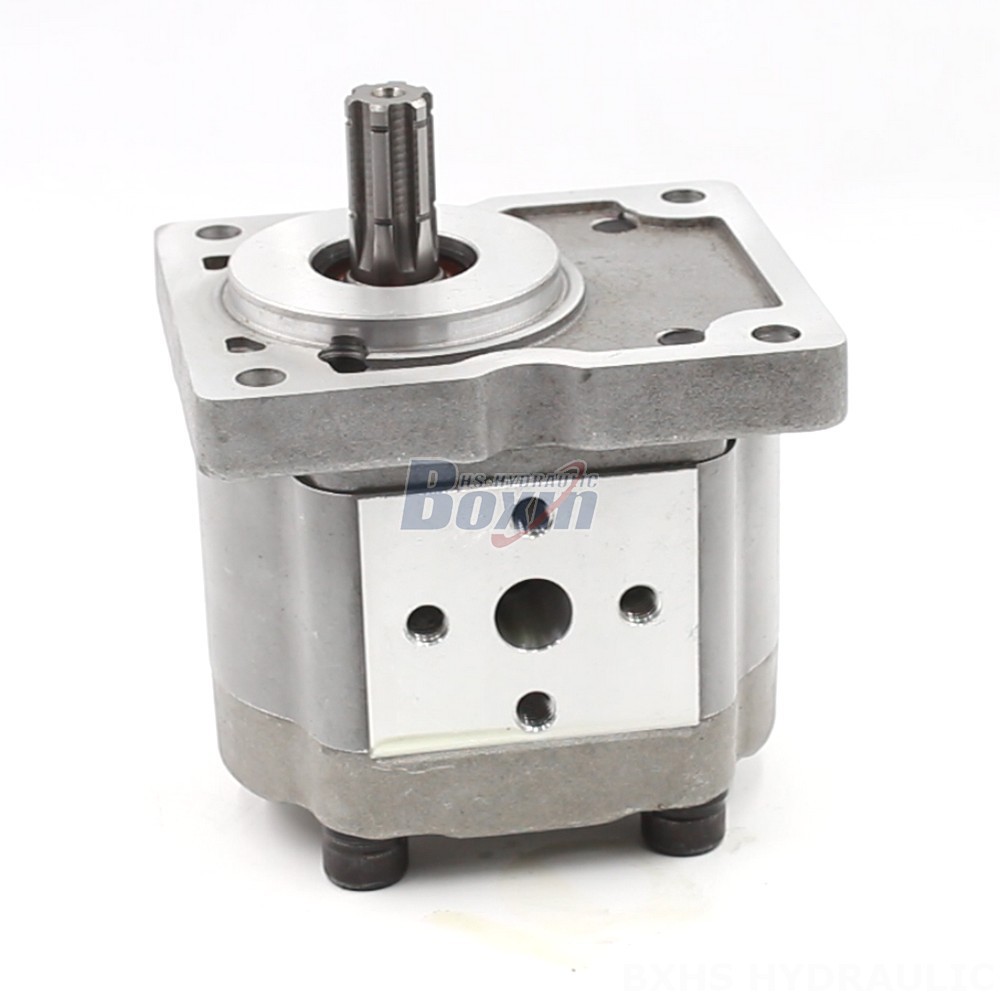

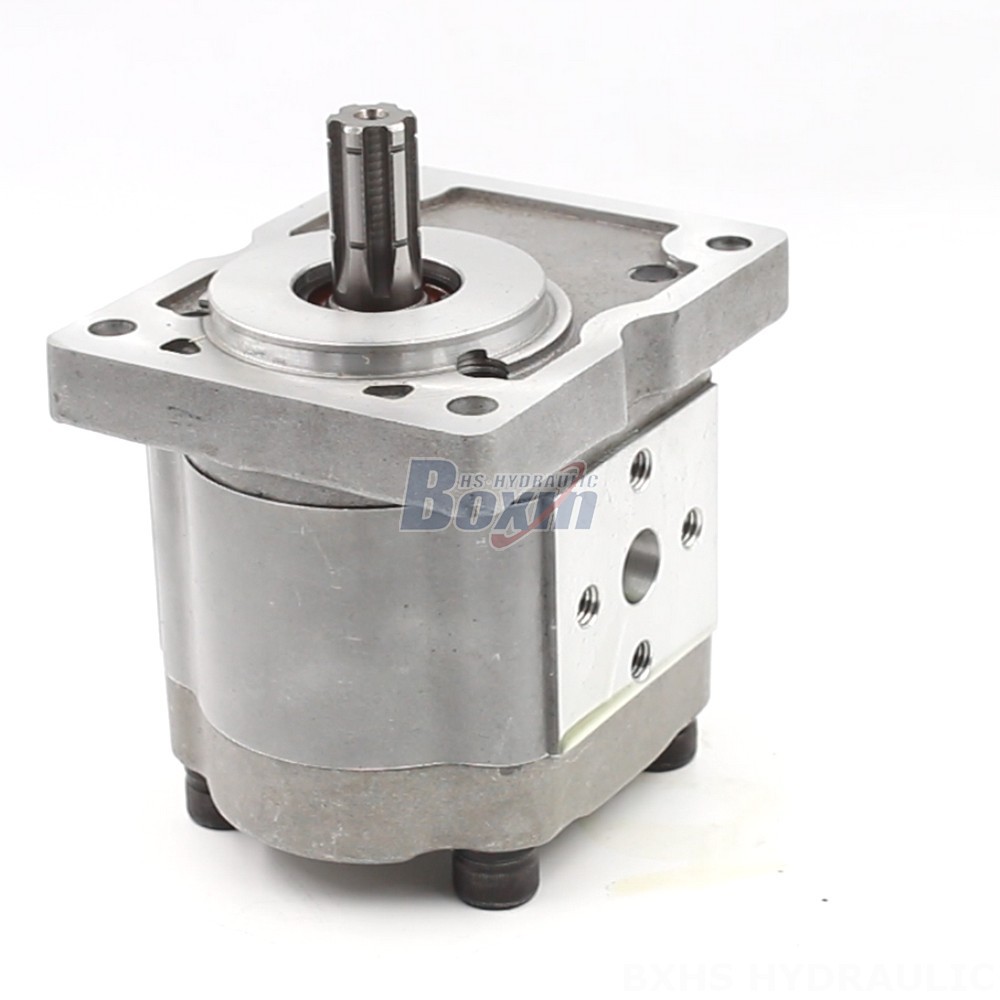

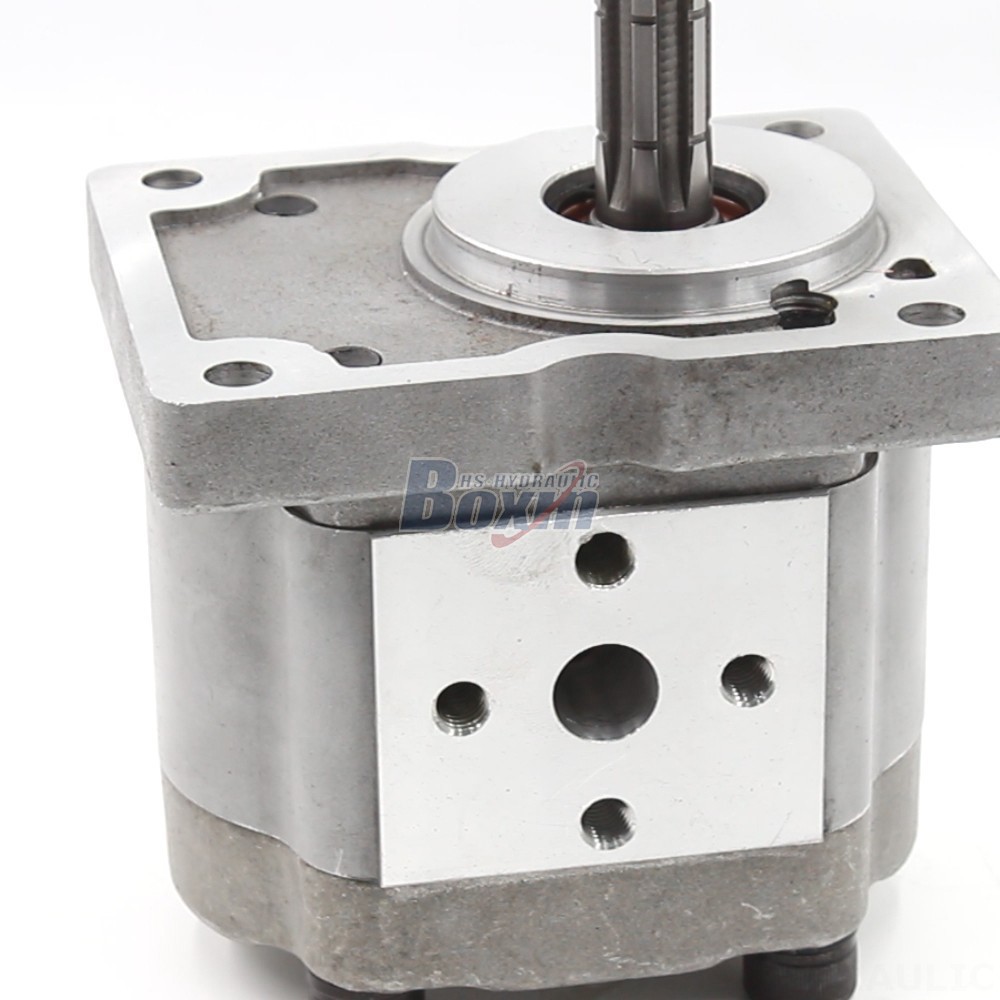

Transmission Pump Private Label Hydraulic Gear Pumps: NSH-10 Series with Your Brand Name

排量:10 毫升/转

额定压力:16 MPa (2320 psi)

最大压力:20 MPa (2900 psi)

最大转速:3600 r/min

旋转方向:右旋（顺时针旋转）

品牌:BXHS

所属类别:液压齿轮泵

产品系列:NSH系列液压齿轮泵

Packagingsize:20*15*13

Grossweight:2.60 kg

库存: 有货

描述

Transmission Pump Private Label Hydraulic Gear Pumps: NSH-10 Series with Your Brand Name

Transmission Pump Private Label Hydraulic Gear Pumps: NSH-10 Series with Your Brand Name drawing image

Private Label Hydraulic Gear Pumps: NSH-10 Series with Your Brand Name. These hydraulic gear pumps are manufactured with high-quality materials and components, and they are designed to meet the demanding requirements of a wide range of applications. With displacement options of 100 cc/rev, 10 cc/rev, 40 cc/rev, and 50 cc/rev, and a rated pressure of 18 MPa (2610 psi), these pumps are ideal for use in a variety of industrial and mobile applications.

NSH系列液压齿轮泵参数
排量	10 毫升/转, 32 毫升/转, 40 毫升/转, 50 毫升/转, 100 毫升/转
额定压力	18 MPa (2610 psi)
最大压力	20 MPa (2900 psi)
额定转速	2000 r/min
最大转速	4200 r/min
旋转方向	左旋（逆时针旋转）
材质	铝
架构	外啮合齿轮泵
法兰盘类型	B-方形法兰
轴伸形式	X:渐开线花键

**Private Label Hydraulic Gear Pumps: NSH-10 Series with Your Brand Name**

**OEM, ODM, and customization services are available.**

**Product Parameters:**

* Displacement: 100 cc/rev, 10 cc/rev, 40 cc/rev, 50 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Rotation: L: Left (counter-clockwise)
* Structure: External Gear Pump
* Material: Aluminum
* Flange Version: B-Square Flange
* Shaft Type: X: Involute Spline
* Series: NSH Series

**Application Areas:**

* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles

**Applicable Models:**

* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
