The P40-DKL Precision Directional Control Valves are a high-performance solution for industrial applications. These 4-section monoblock valves feature a solenoid control method, a rated flow of 40 L/min, and a maximum pressure of 250 bar. With their wide operating viscosity range and temperature range, these valves are suitable for a variety of applications in material handling, construction, earth moving, agriculture, and industrial vehicles.
| P40-DKL系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |

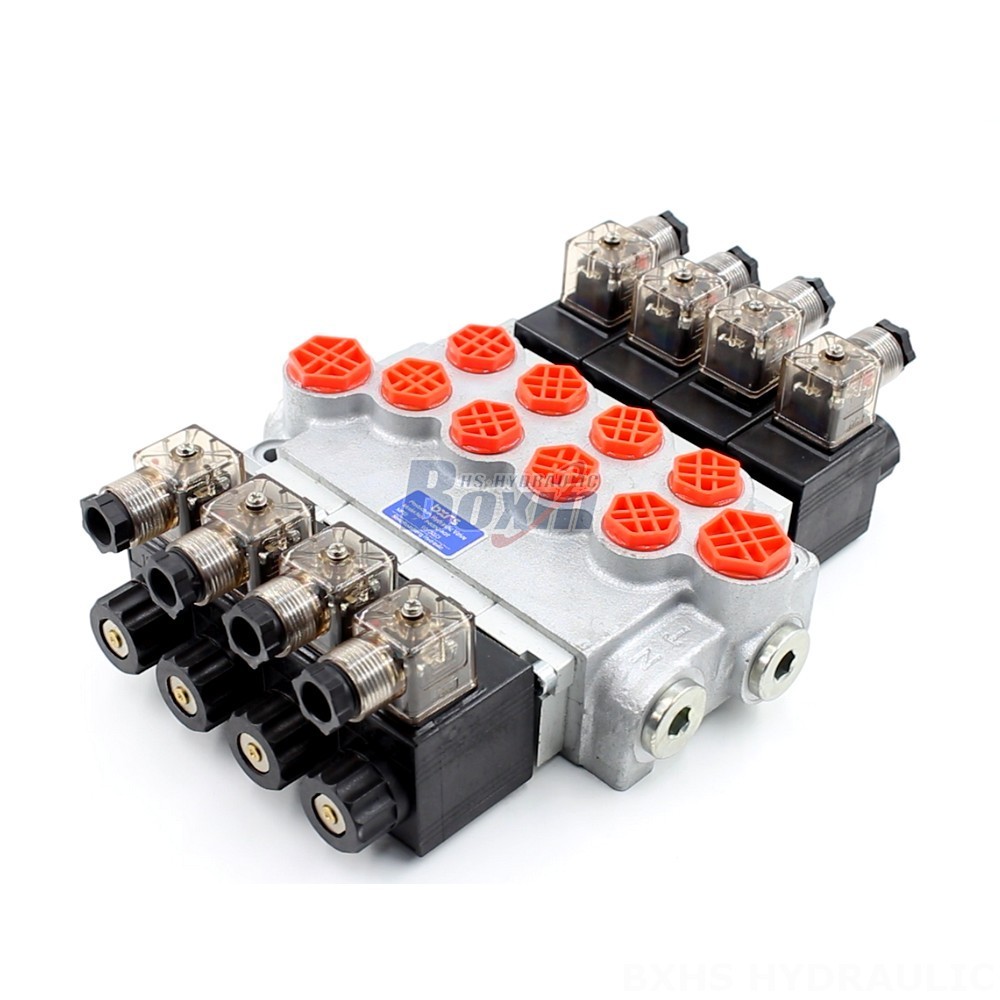

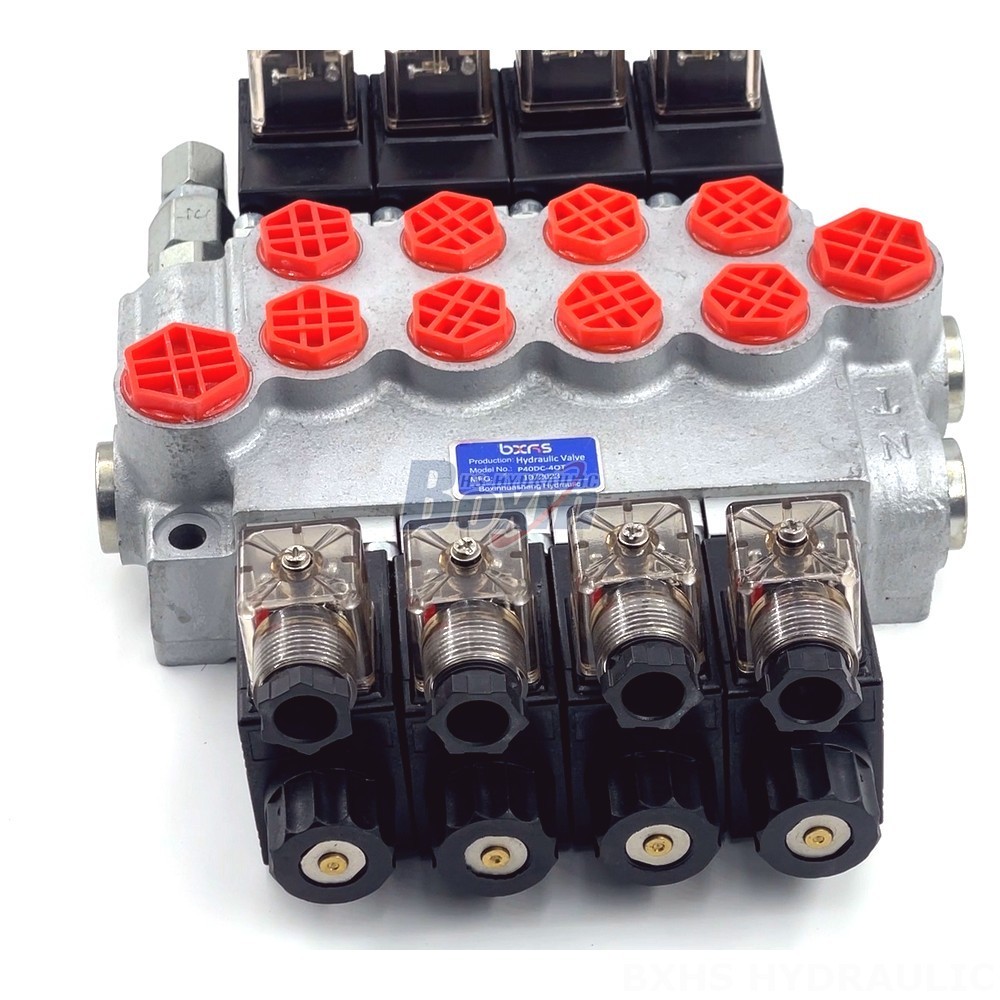

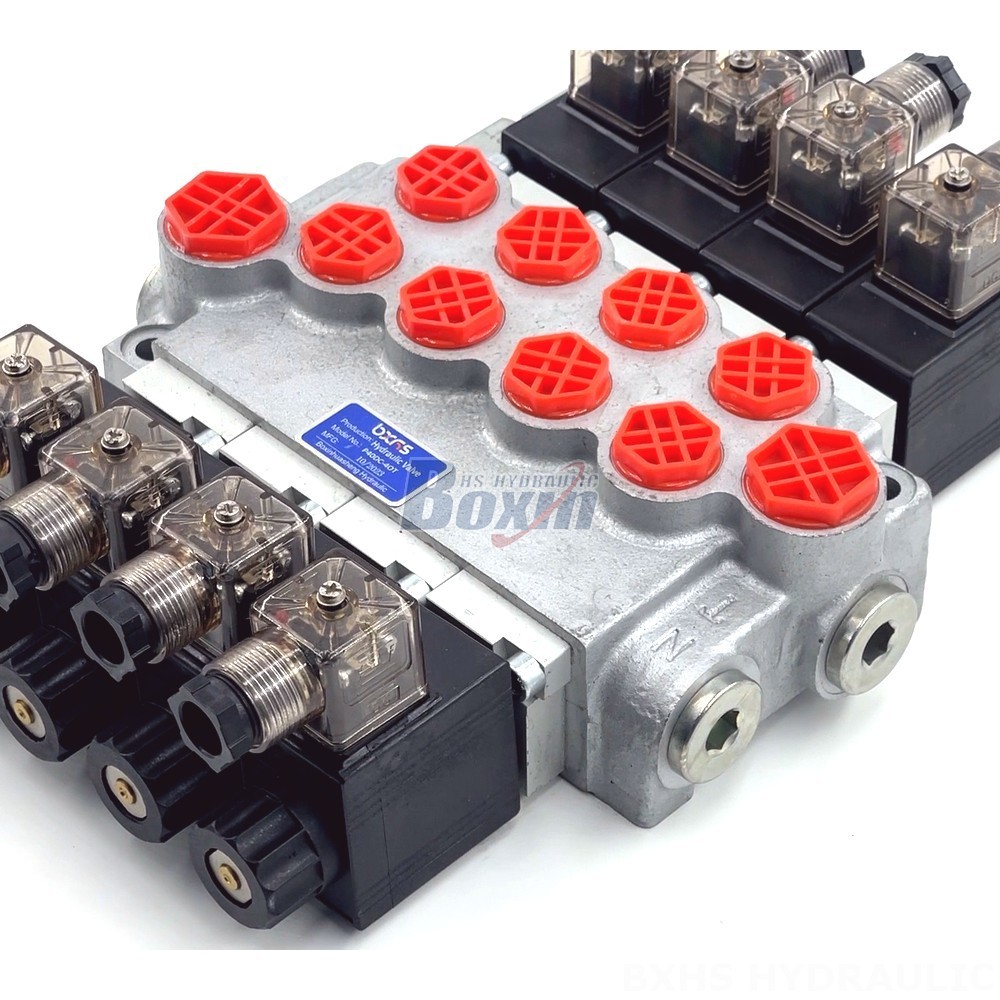

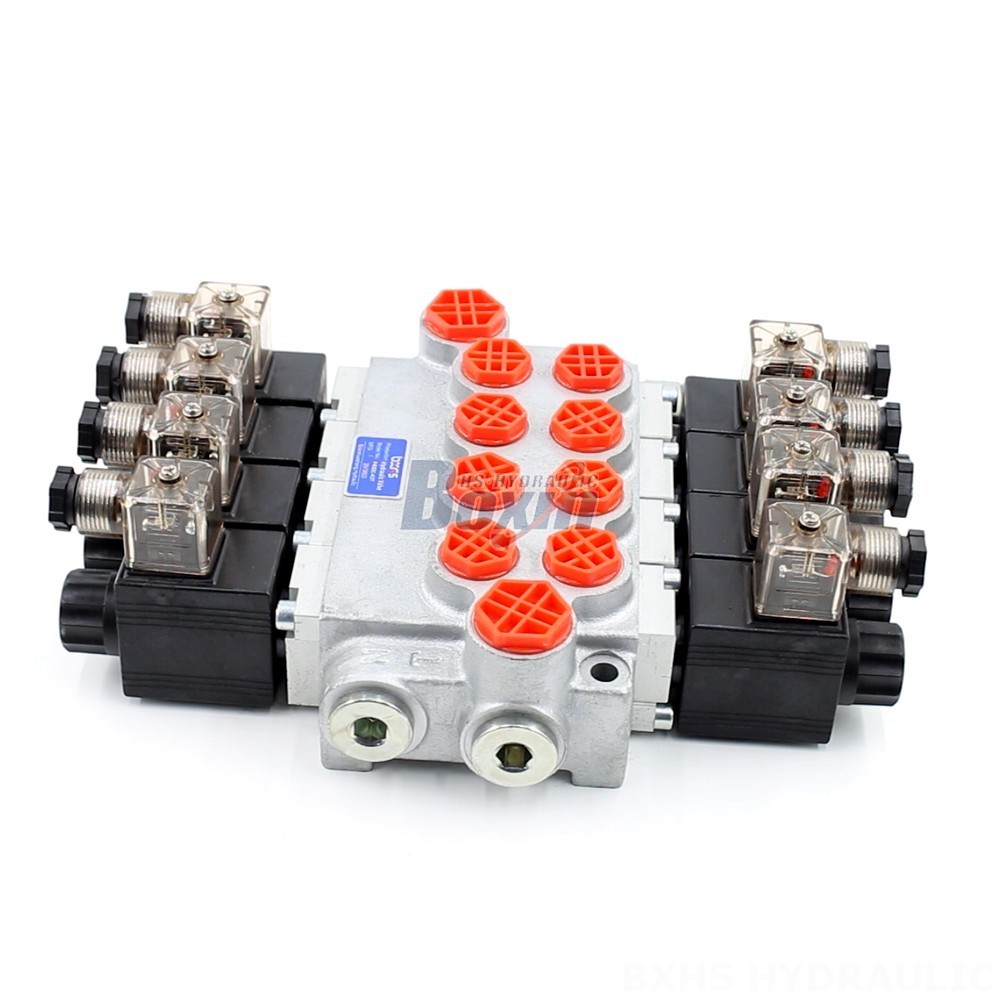

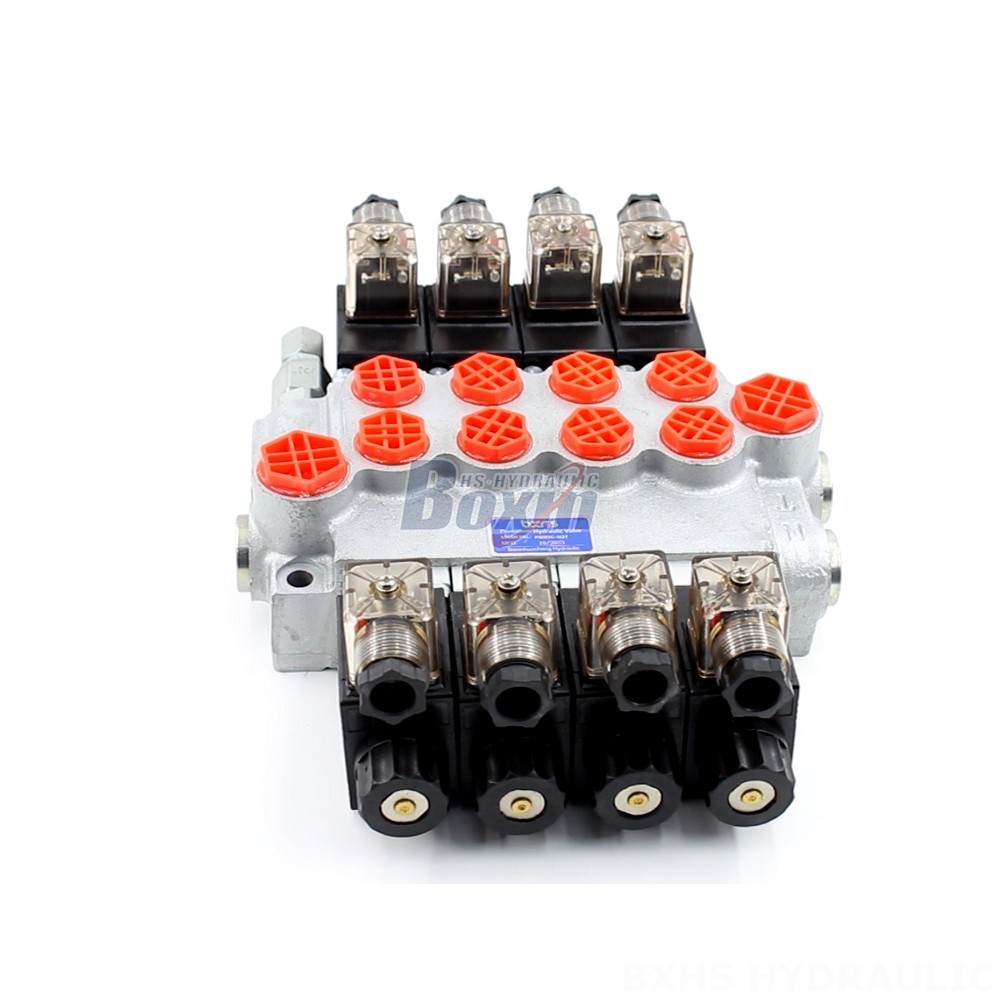

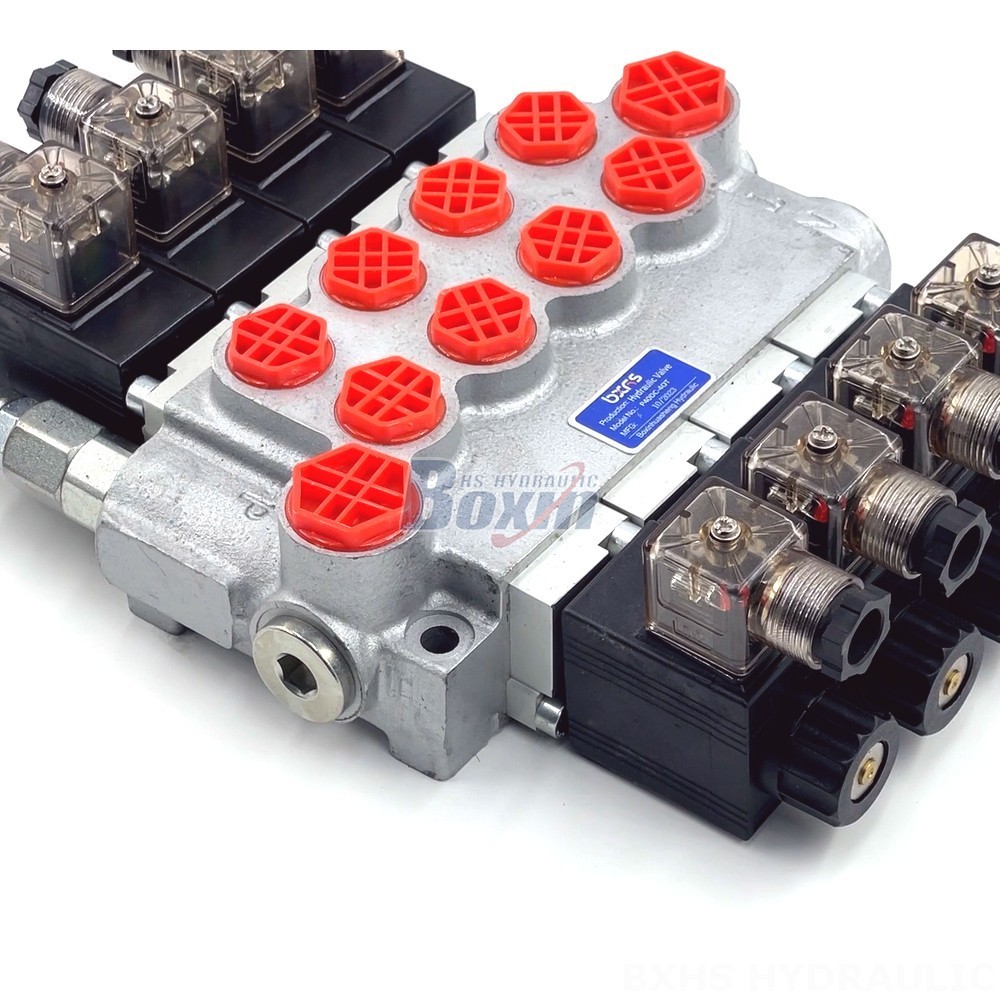

**P40-DKL Precision Directional Control Valves**
The P40-DKL Precision Directional Control Valves are designed for demanding industrial applications. These valves feature a robust monoblock construction and a solenoid control method for precise and reliable operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, these valves can handle high-pressure hydraulic systems. They also have a wide operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, making them suitable for various operating conditions.
**Key Features:**
* 4-section monoblock valve
* Solenoid control method
* Rated flow: 40 L/min
* Maximum pressure: 250 bar
* Operating viscosity range: 15 - 75 mm²/s
* Ambient temperature range: -40°C to +80°C
* 4 spool
* Suitable for material handling, construction, earth moving, agriculture, and industrial vehicles
