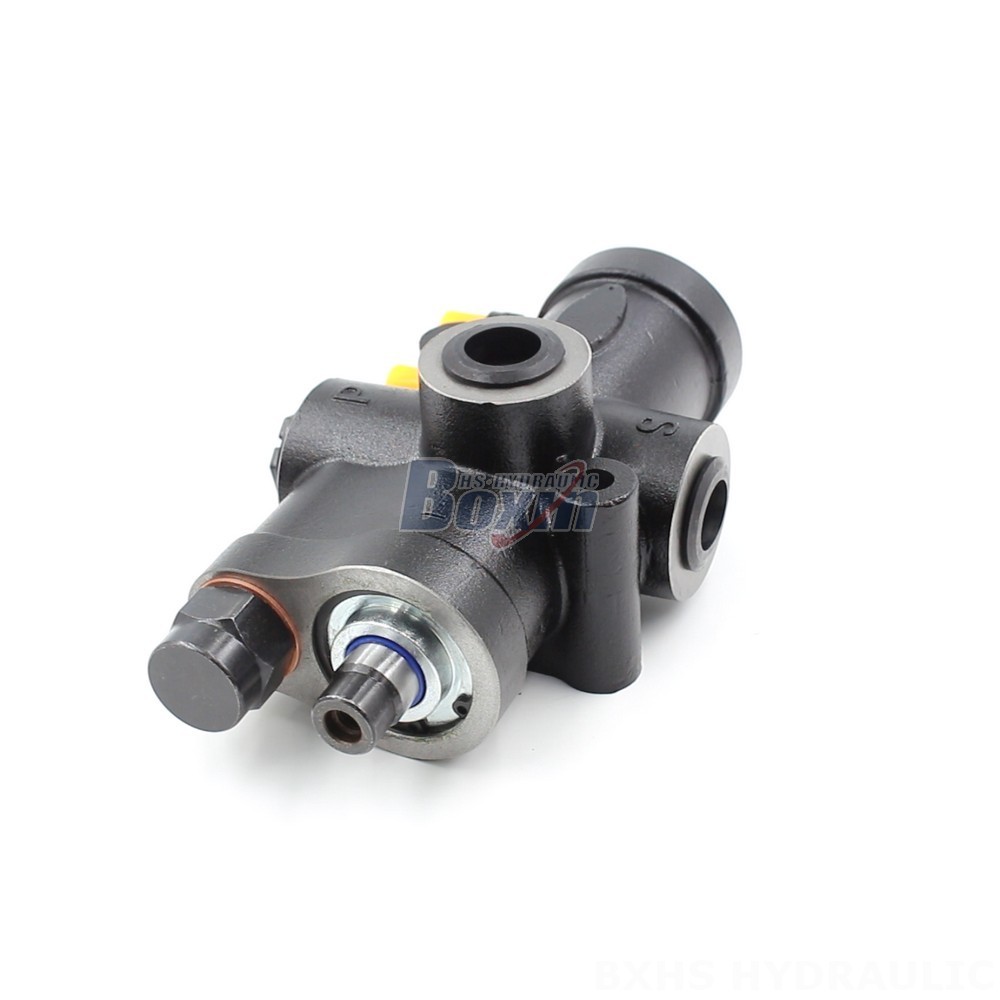

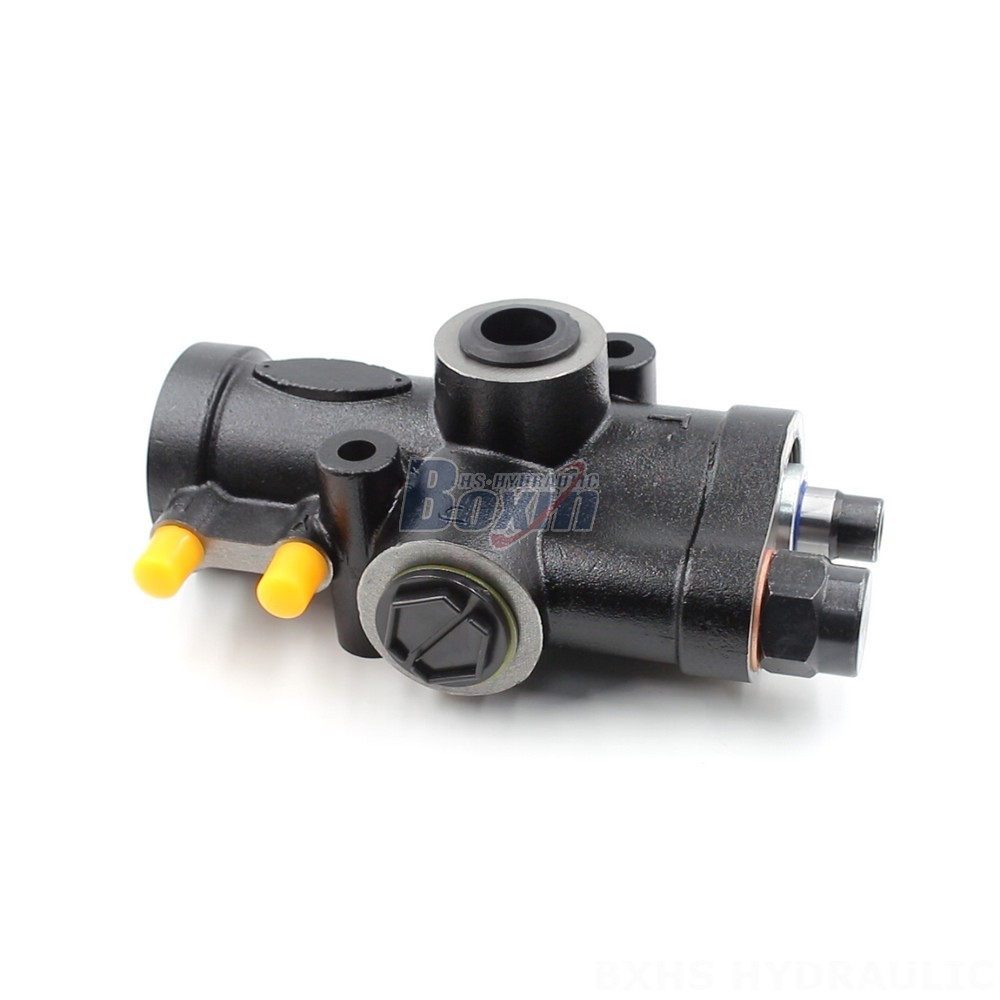

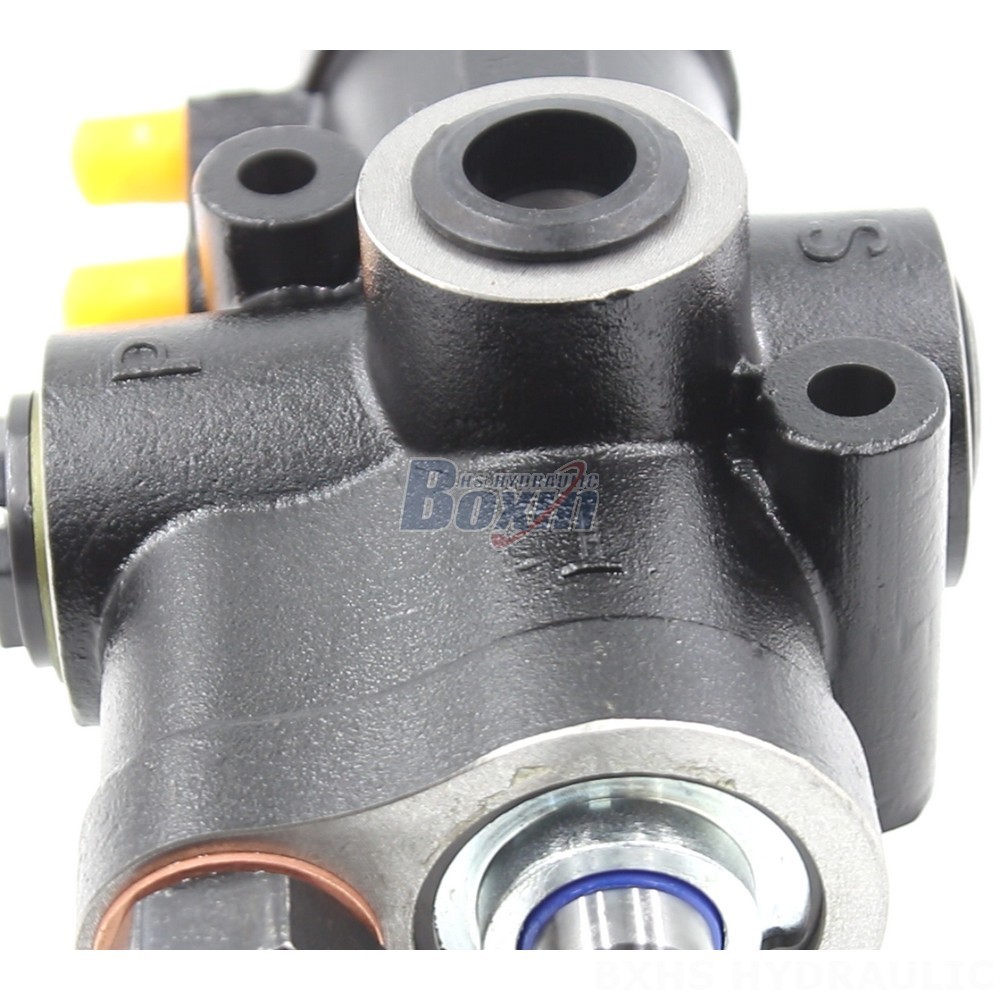

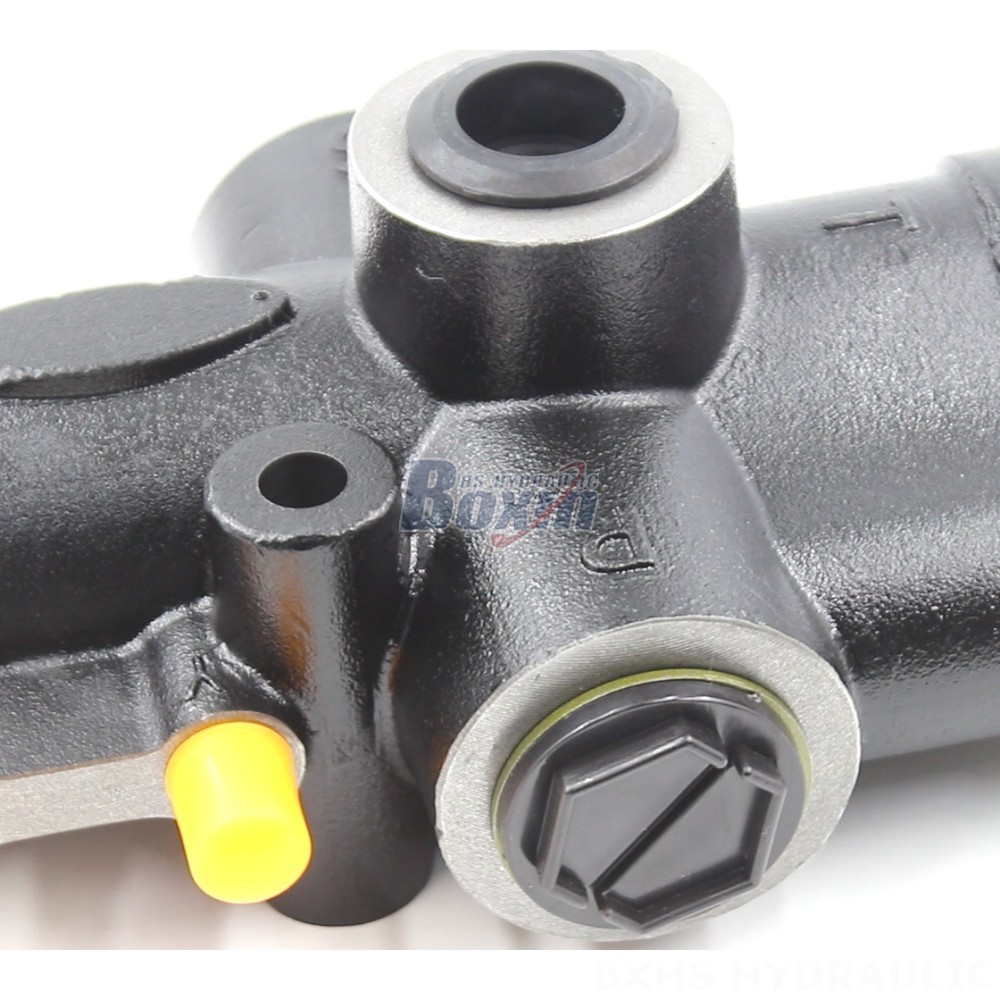

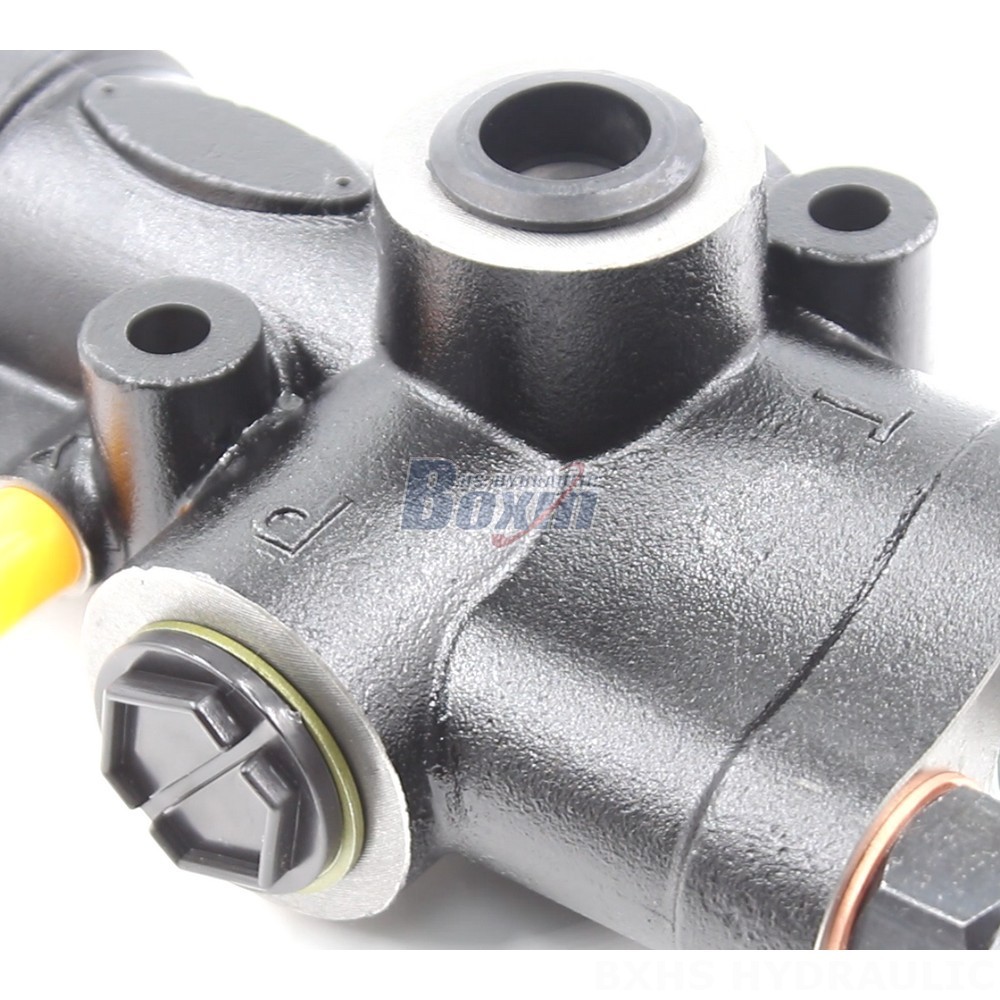

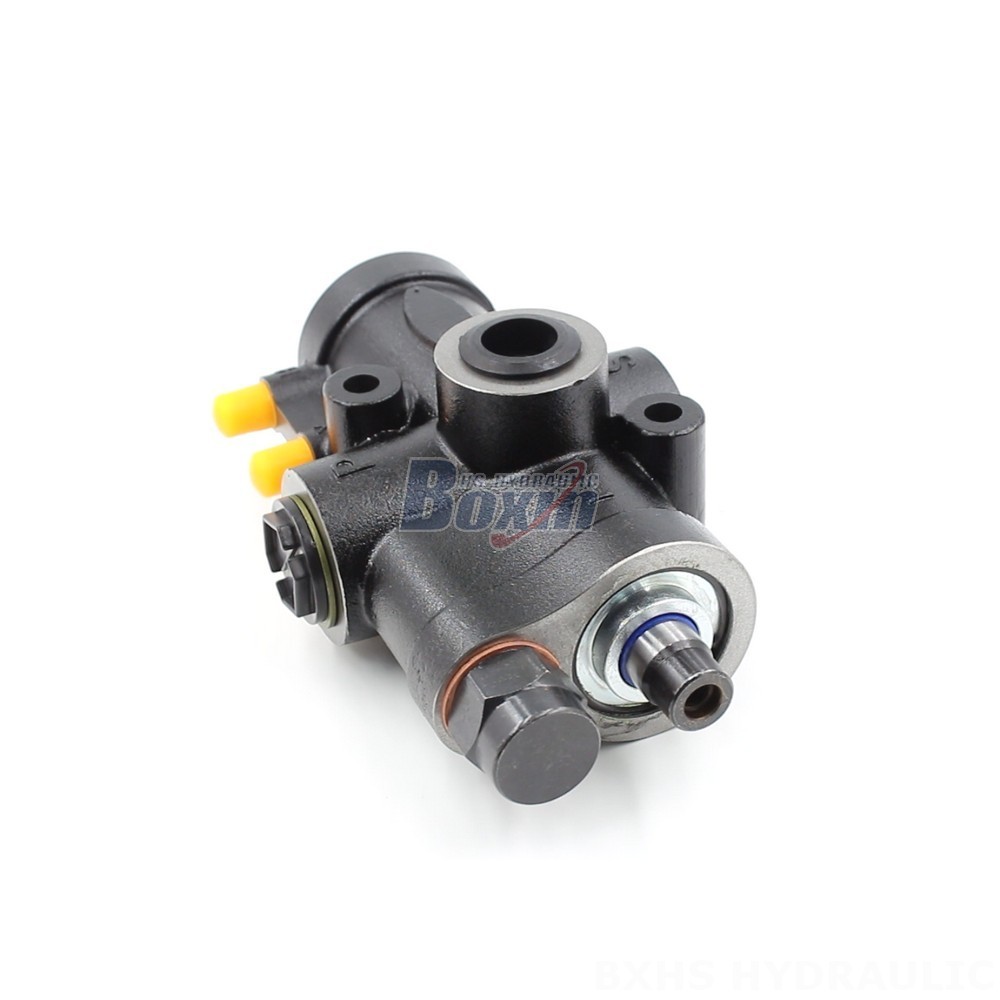

The QFCK-F20L is a high-quality, customizable pneumatic hydraulic directional control valve designed for use in various construction, agriculture, and industrial vehicles. With a rated flow of 140 L/min and a maximum pressure of 210 bar, this valve offers reliable performance for demanding applications.
| QFCK-F20L系列 翻斗阀 参数 | |
|---|---|
| 控制方式 | 气控 |
| 路数 | 1 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 150 L/min (39.6 US gpm) |
| 最大压力 | 210 bar (3045 psi) |
| 进油口 | G3/4接口 |
| 出油口 | G1接口 |
| 接口尺寸 | G3/4接口, G1接口, G1/4接口 |
This robust directional control valve features a monoblock construction and a single spool design. It is suitable for operating pressures up to 210 bar (3045 psi) and has a rated flow of 140 L/min (37 US gpm). The valve operates with a wide viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its versatility makes it ideal for use in a wide range of applications, including telehandlers, forklifts, mini and midi excavators, skid steer loaders, wheel loaders, backhoe loaders, dumpers, tractors and front-end loaders, and harvesters.
