The SD11 Series Pneumatic Directional Control Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 70 L/min and a maximum pressure of 250 bar, this valve is capable of handling even the most demanding applications. The valve is constructed from high-quality materials and is built to last.
| SD11系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁, 气动和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 70 L/min (18.5 US gpm) |
| 最大压力 | 305 bar (4400 psi), 315 bar (4600 psi) |
| 进油口 | G3/4接口, SAE 12接头 |
| 出油口 | G3/4接口, SAE 12接头 |
| 接口尺寸 | G3/4接口, SAE 12接头 |

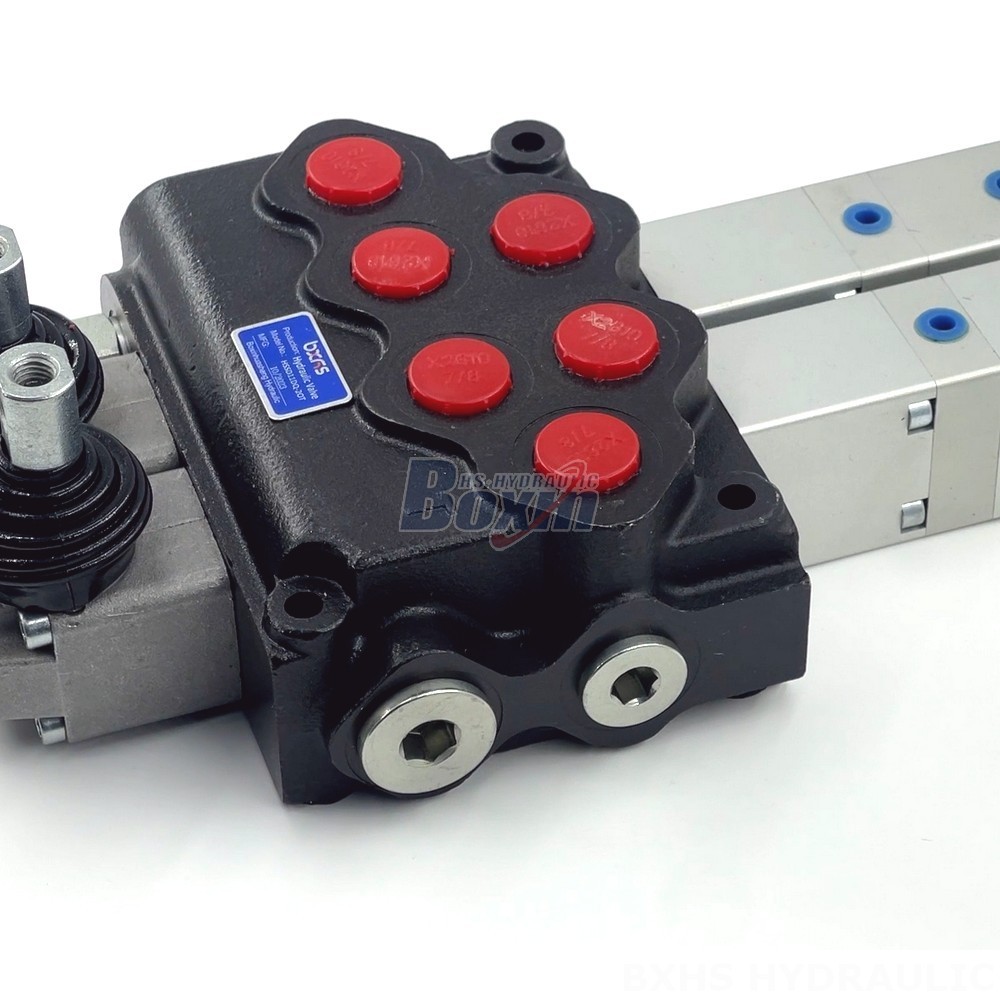

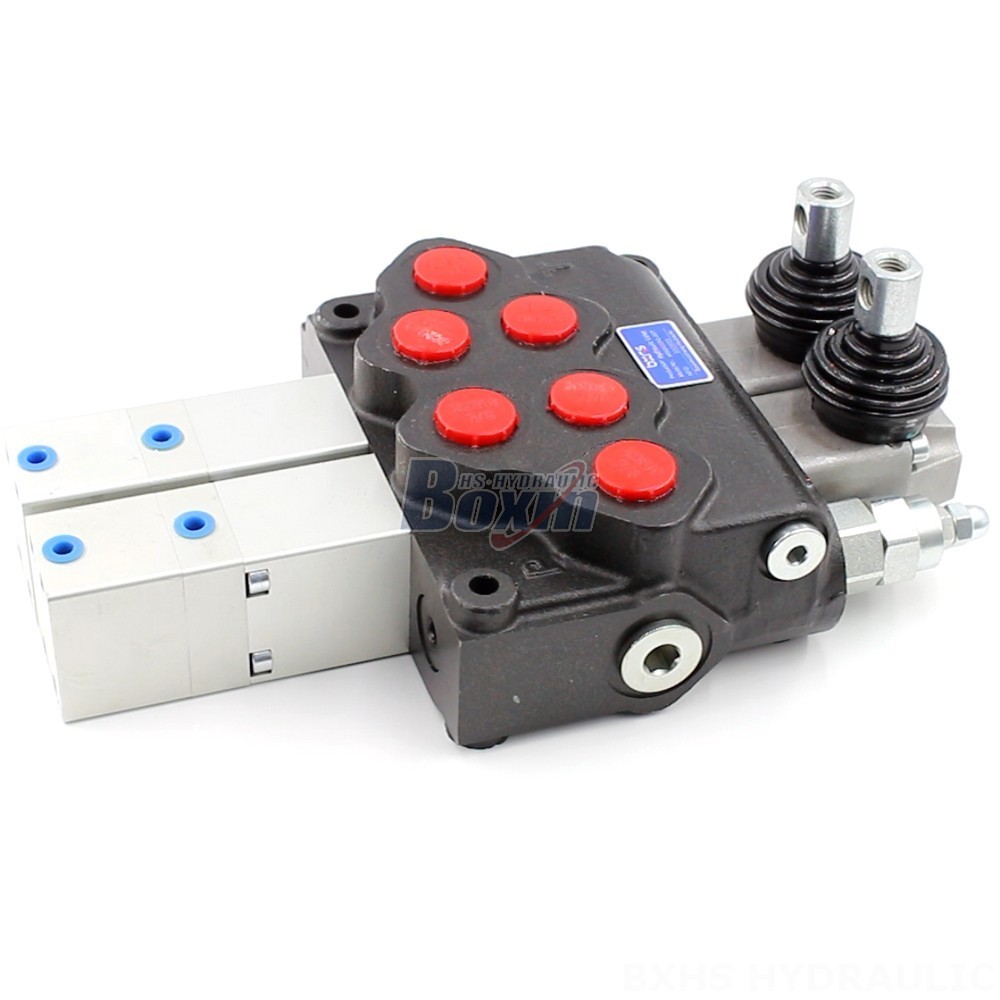

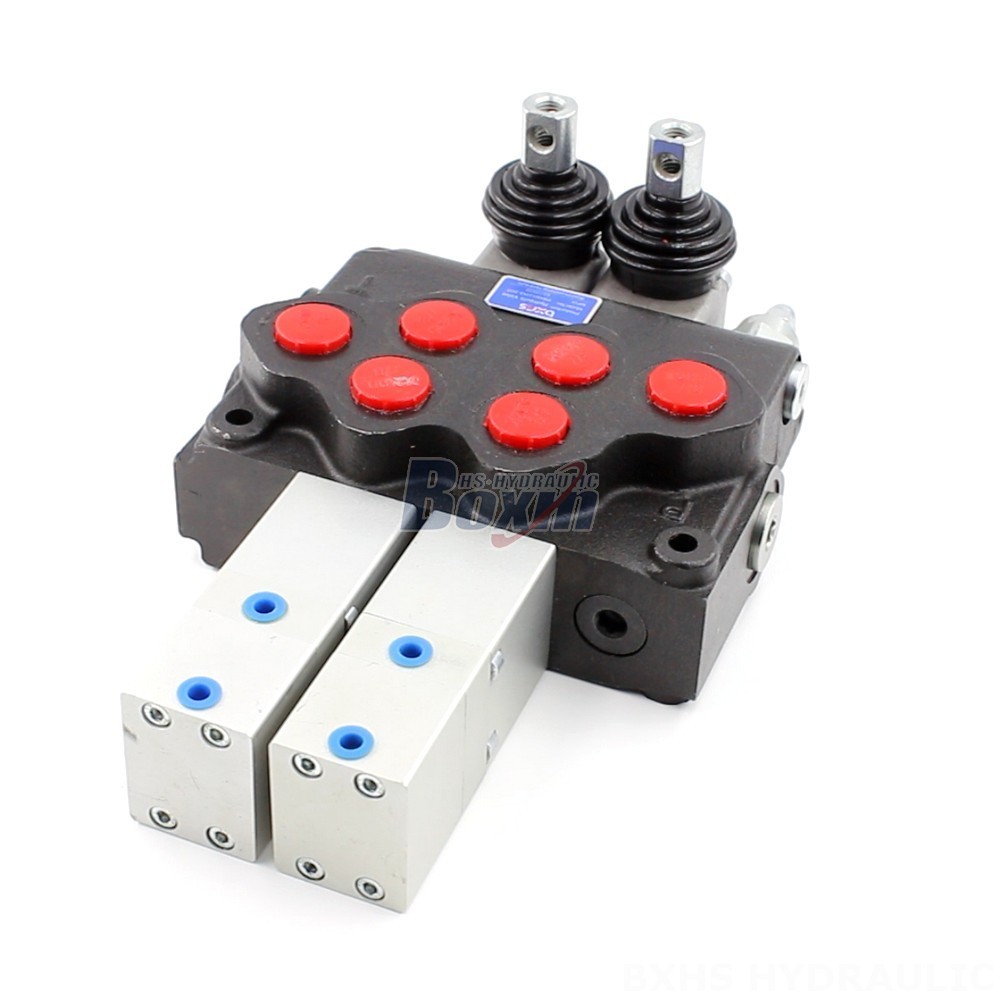

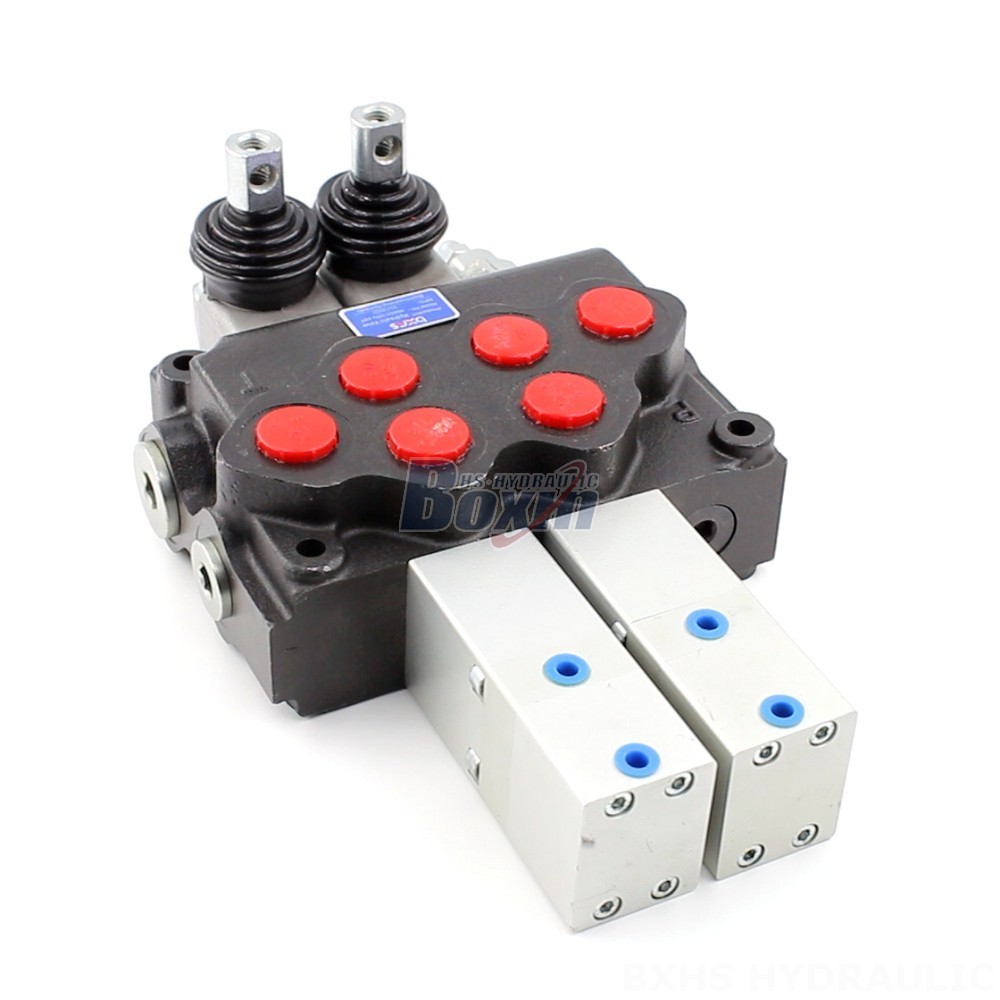

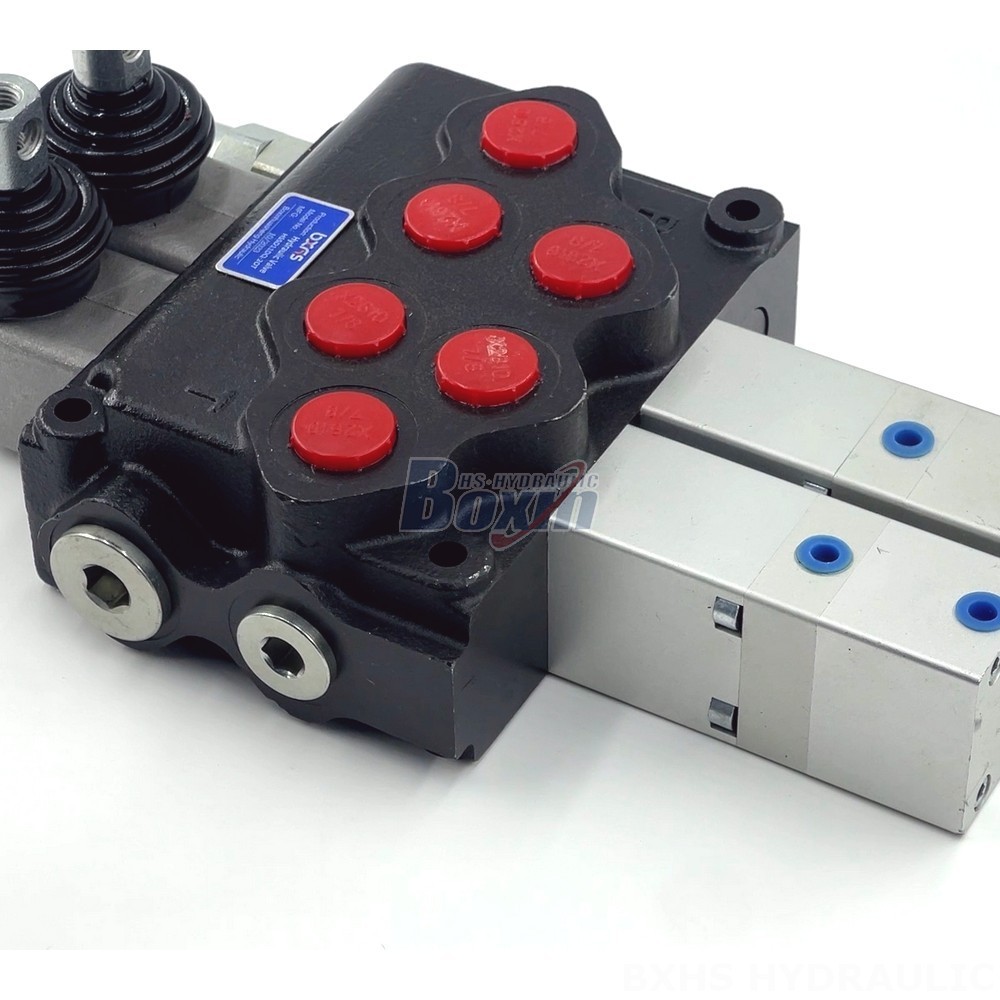

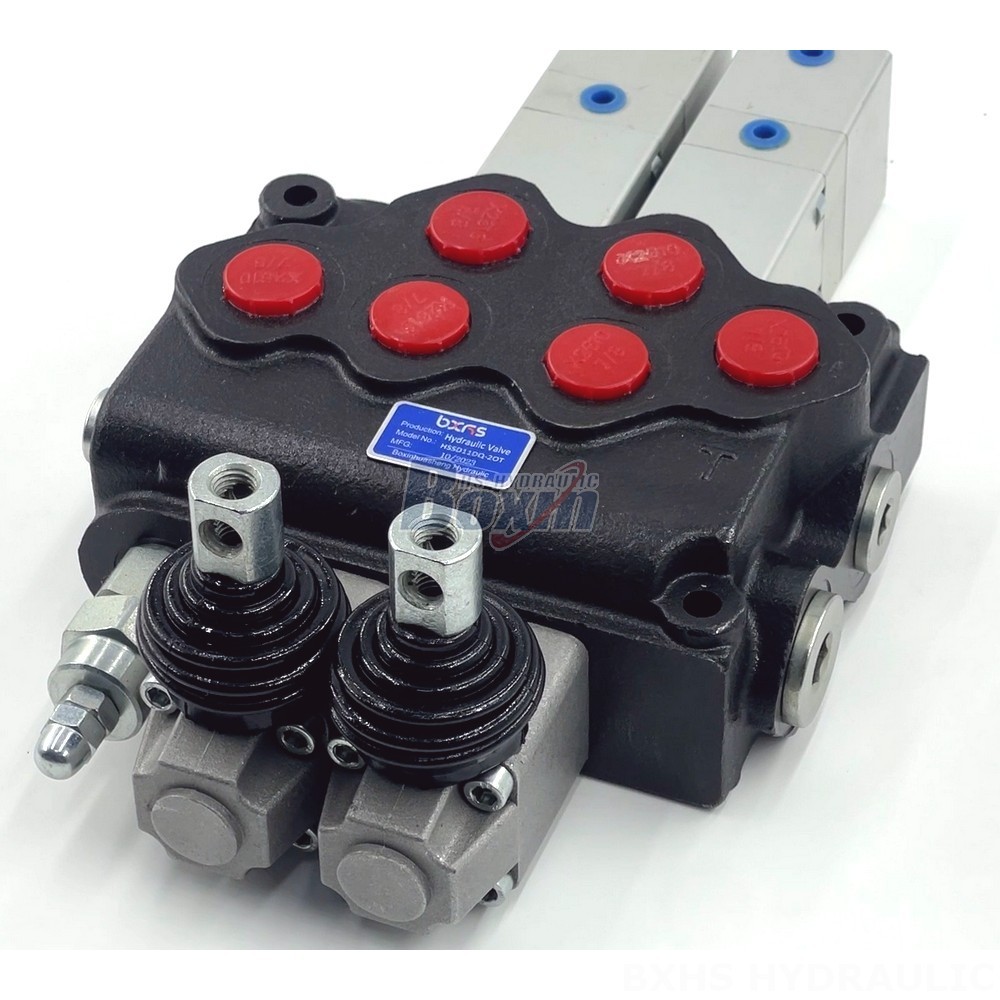

**SD11 Series Pneumatic Directional Control Valve**
The SD11 Series Pneumatic Directional Control Valve is a 2-section, monoblock valve with a rated flow of 70 L/min and a maximum pressure of 250 bar. The valve is constructed from high-quality materials and is built to last. It is ideal for use in a wide range of industrial applications, including:
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
The valve is available with a variety of spool options to meet the specific requirements of your application. It also features a wide operating temperature range of -40°C to +60°C, making it suitable for use in even the most challenging environments.
**Key Features:**
* Rated flow of 70 L/min
* Maximum pressure of 250 bar
* 2-section, monoblock valve
* Wide operating temperature range of -40°C to +60°C
* Variety of spool options available
* Compact and lightweight design
* Easy to install and maintain
