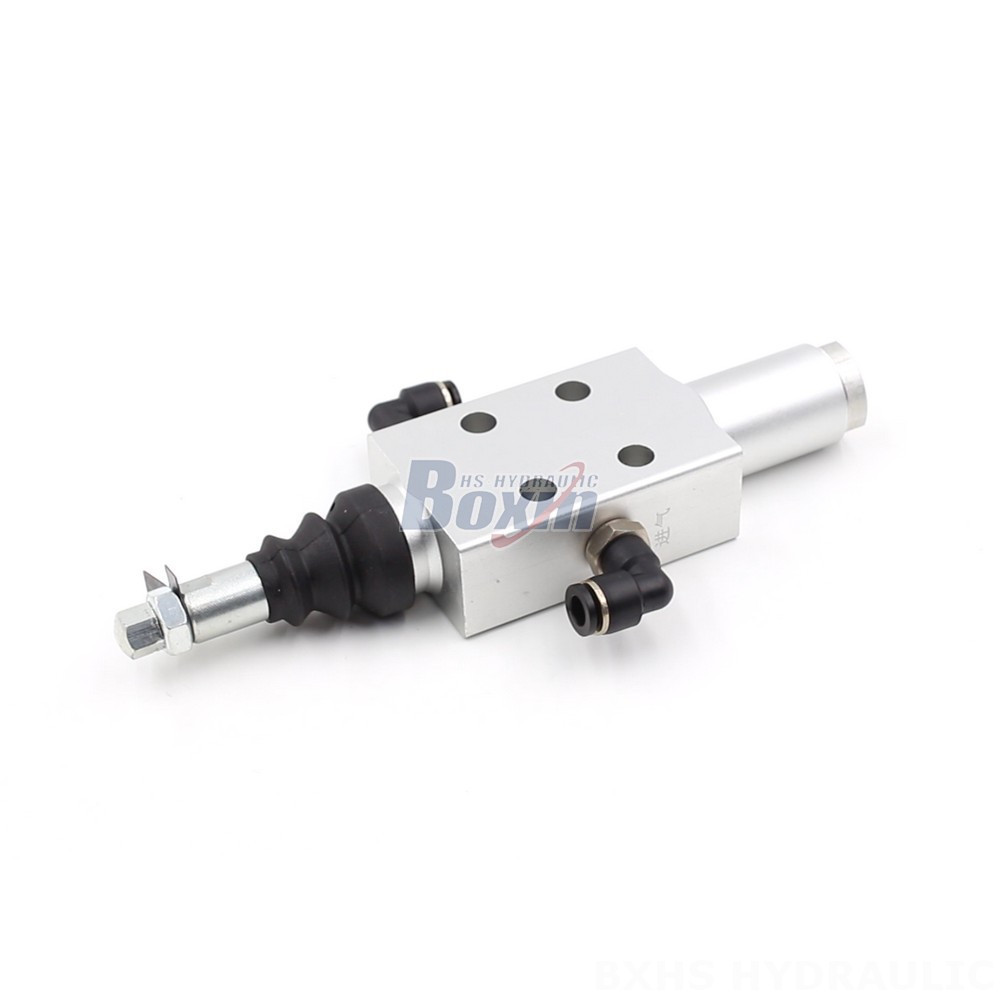

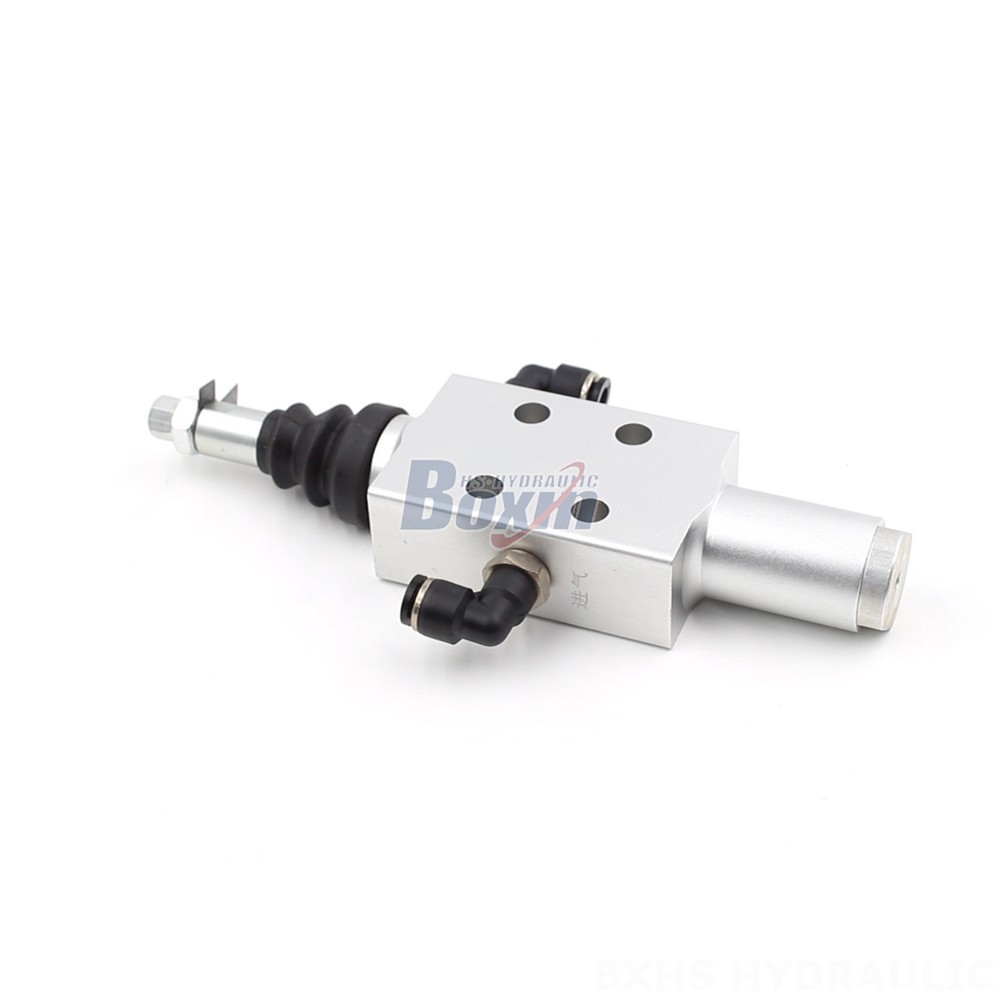

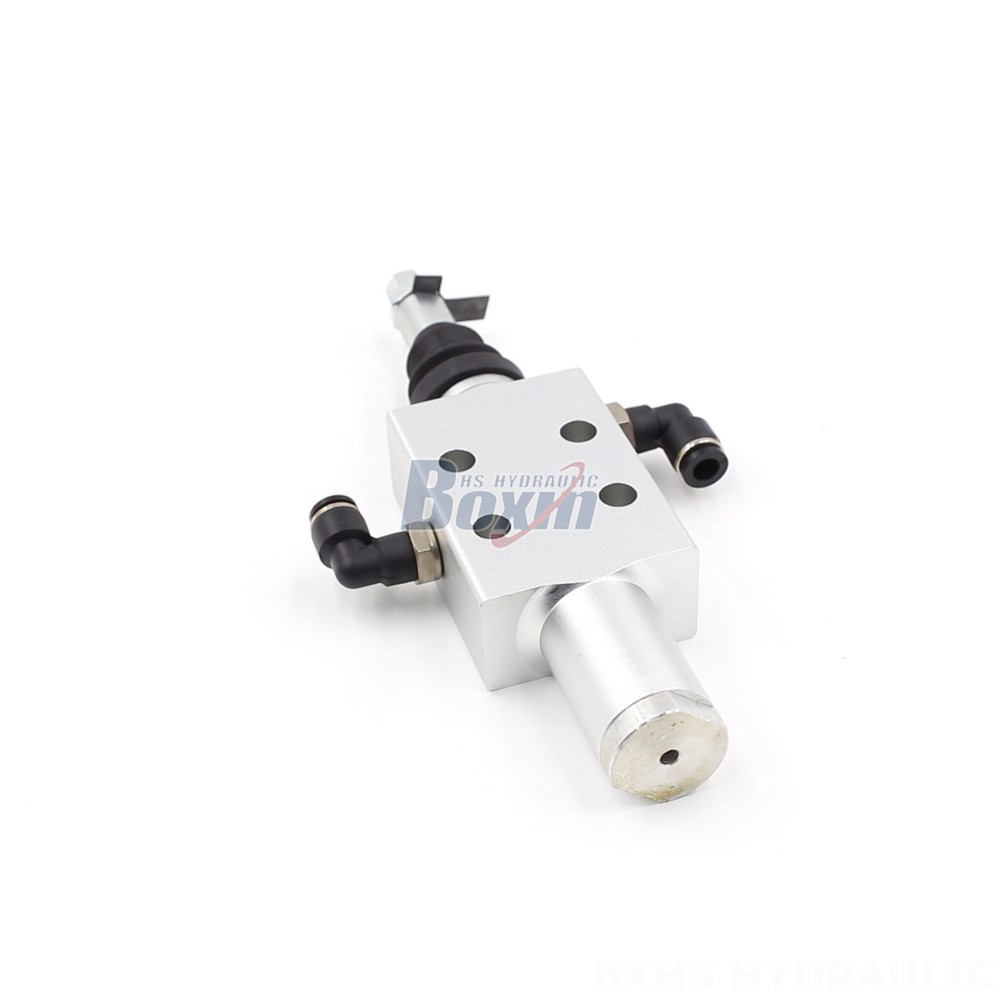

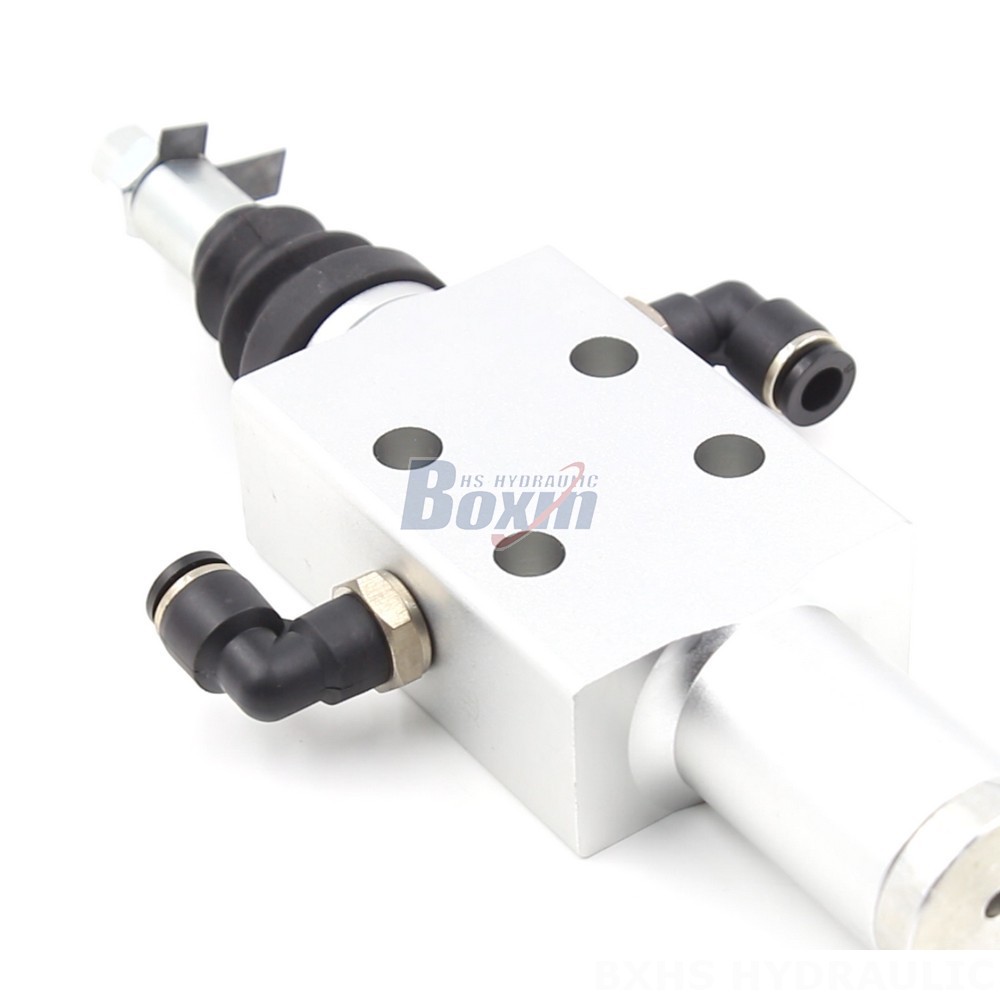

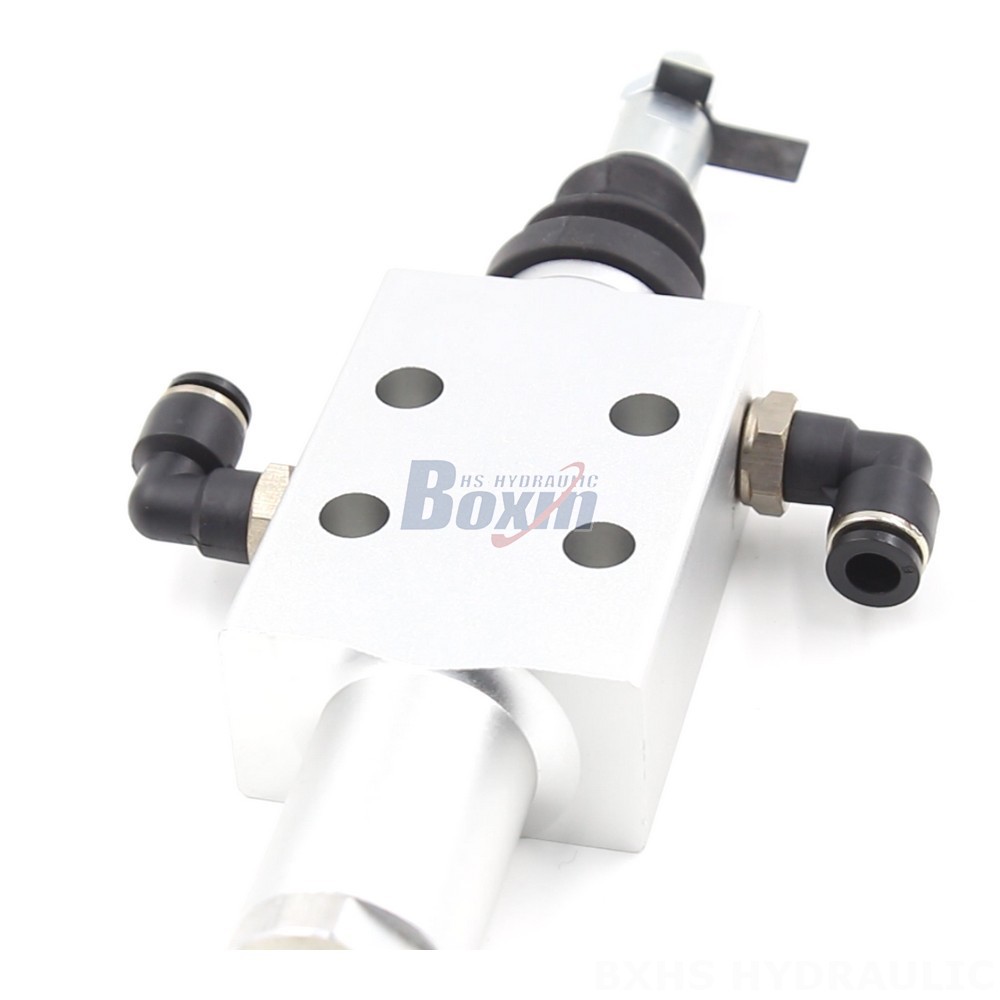

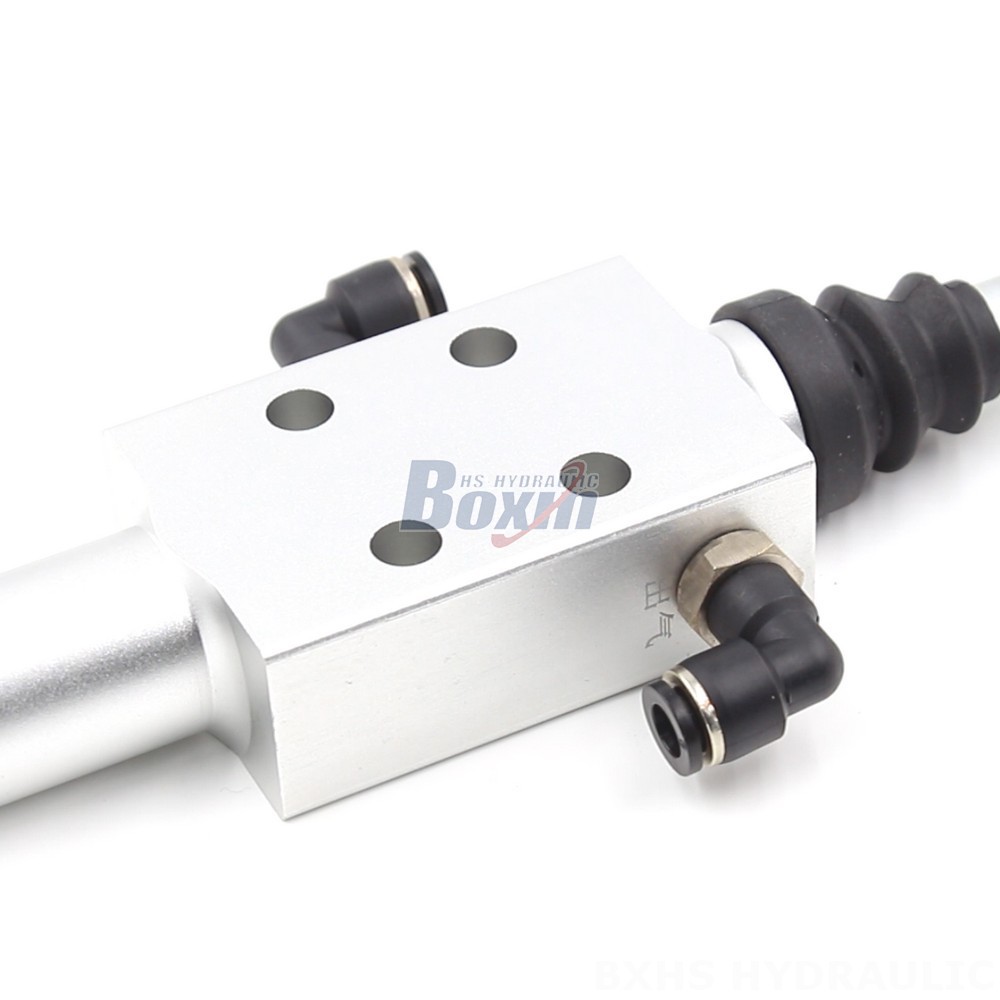

This XQF Series Pneumatic Directional Control Valve is a robust, high-performance, single-spool monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Its compact design and high pressure rating make it ideal for various machines like forklifts, telehandlers, skid steer loaders, and more.
| XQF系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 气控 |
| 路数 | 1 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 50 L/min (13.2 US gpm) |
| 最大压力 | 200 bar (2900 psi) |
| 进油口 | G1/4接口 |
| 出油口 | G1/4接口 |
| 接口尺寸 | G1/4接口 |
The XQF Series Pneumatic Directional Control Valve is a single-spool monoblock valve designed for reliable operation in demanding environments. Operating at a maximum pressure of 200 bar (2900 psi) and a viscosity range of 12-400 mm²/s (12-400 cSt), this valve is suitable for a wide range of applications across diverse industries. The valve's robust construction and high-quality materials ensure long service life even in harsh conditions. It is specifically designed for use in material handling, construction, agriculture, and industrial vehicles including forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers. This valve is available for global distribution, making it a reliable choice for manufacturers and users worldwide.
