Pneumatic Control Valve System | XQF22-A Model | Applications & Industries

控制方式:气控

路数:1 联

额定流量:60 L/min (15.8 US gpm)

最大压力:1 MPa (145 psi)

进油口:G1/4接口

出油口:G1/4接口

接口尺寸:G1/4接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:XQF系列单块式方向阀

Packagingsize:25*10*8

Grossweight:0.65 kg

库存: 有货

描述

Pneumatic Control Valve System | XQF22-A Model | Applications & Industries

Pneumatic Control Valve System | XQF22-A Model | Applications & Industries drawing image

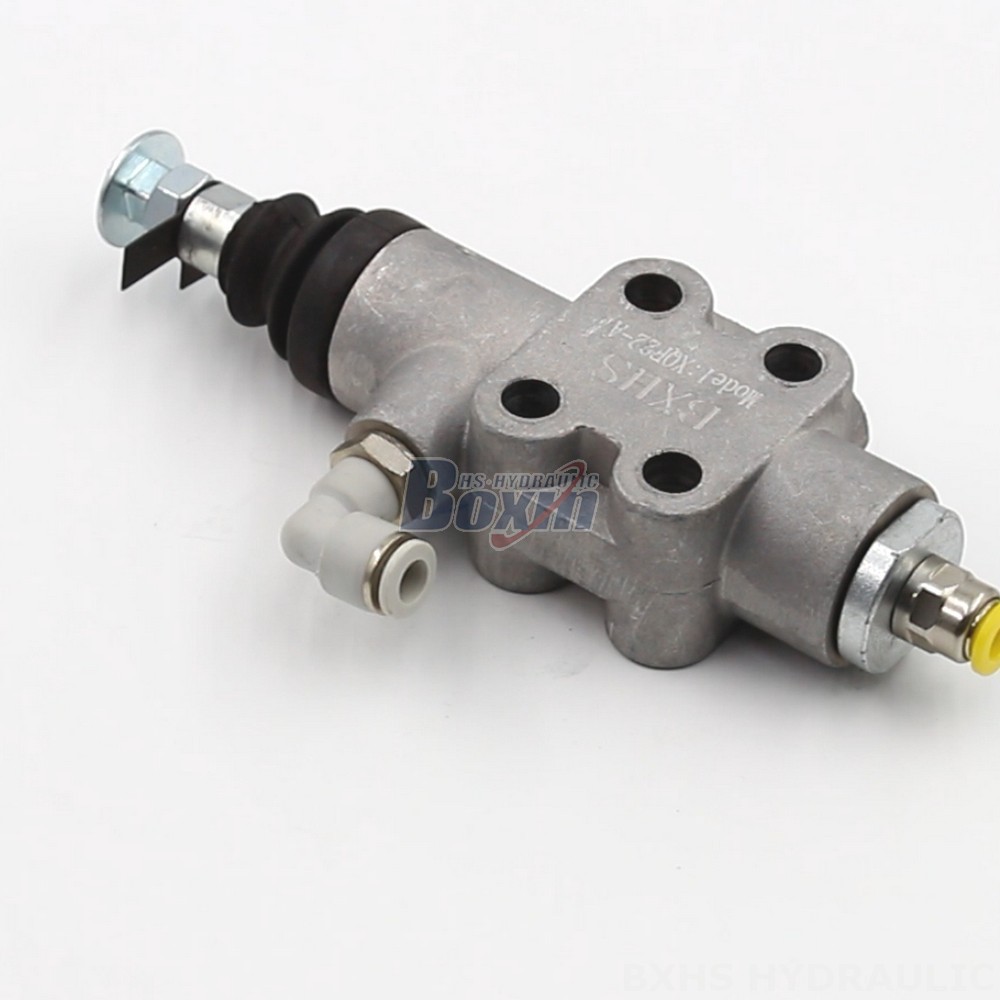

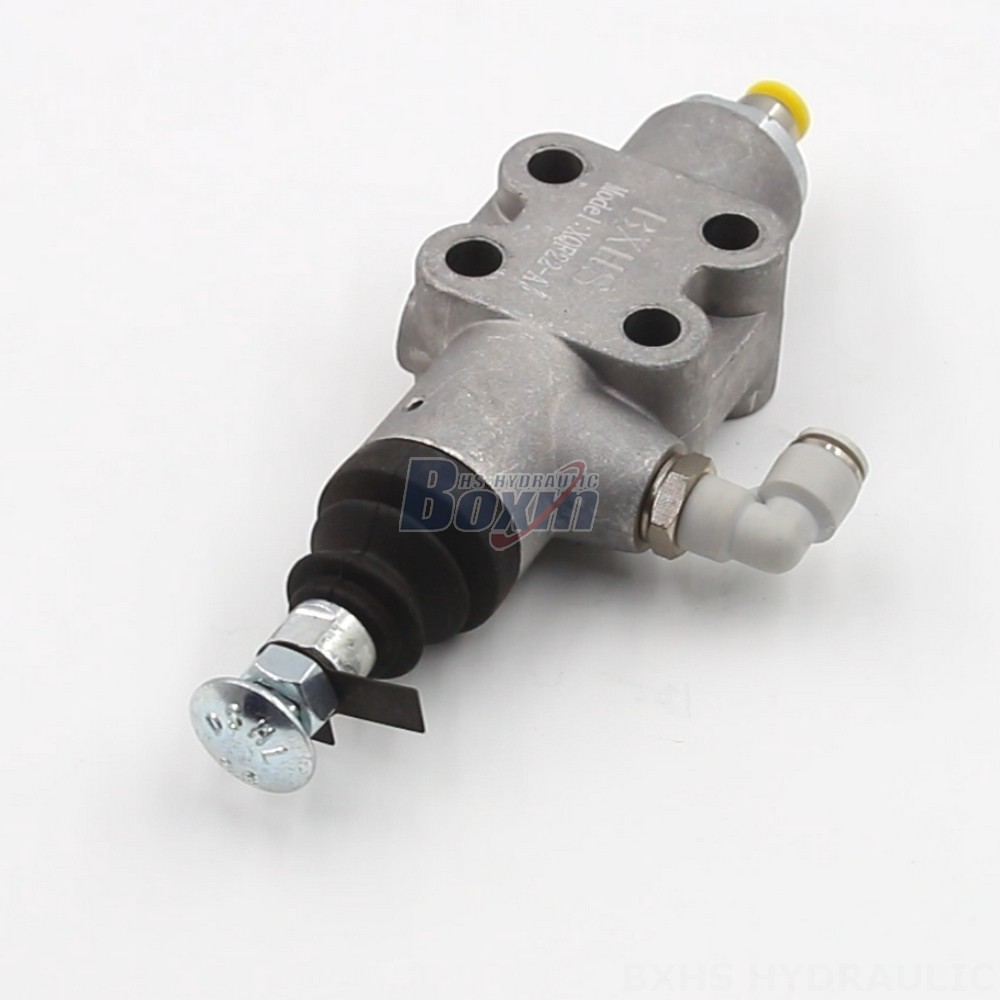

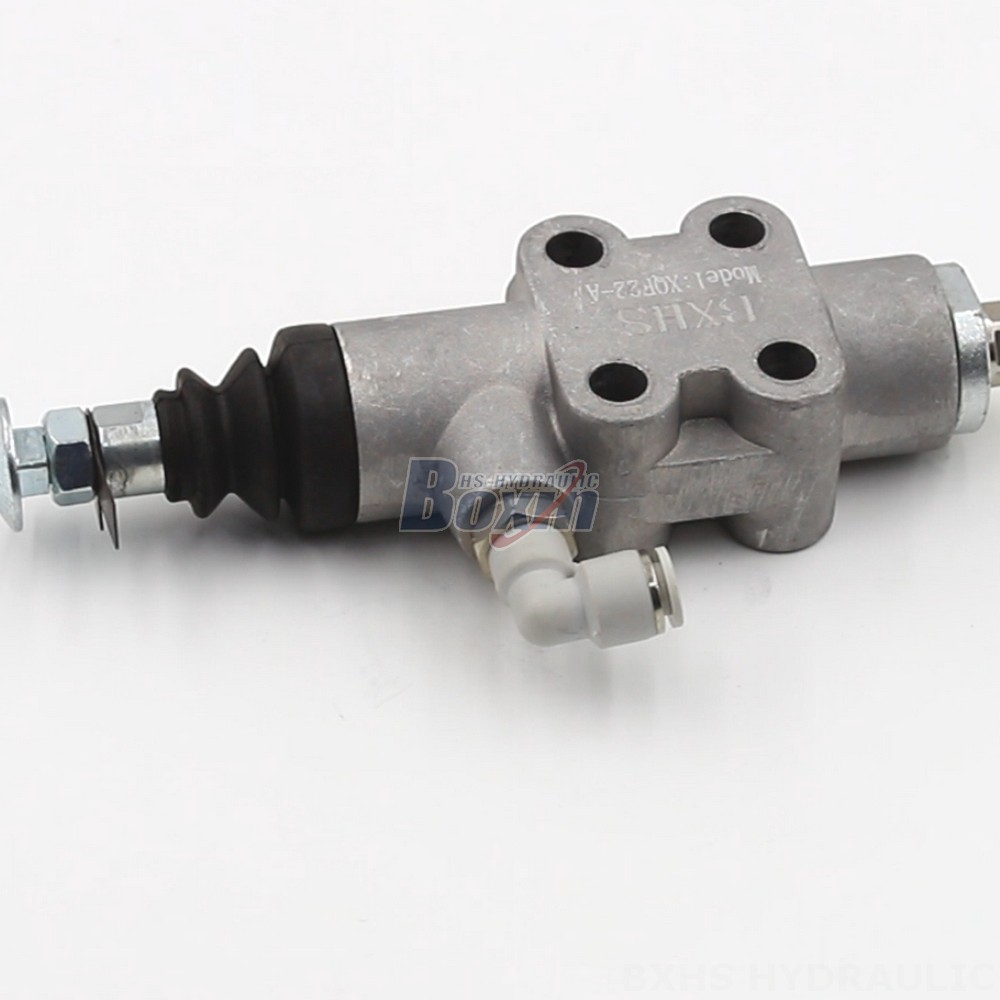

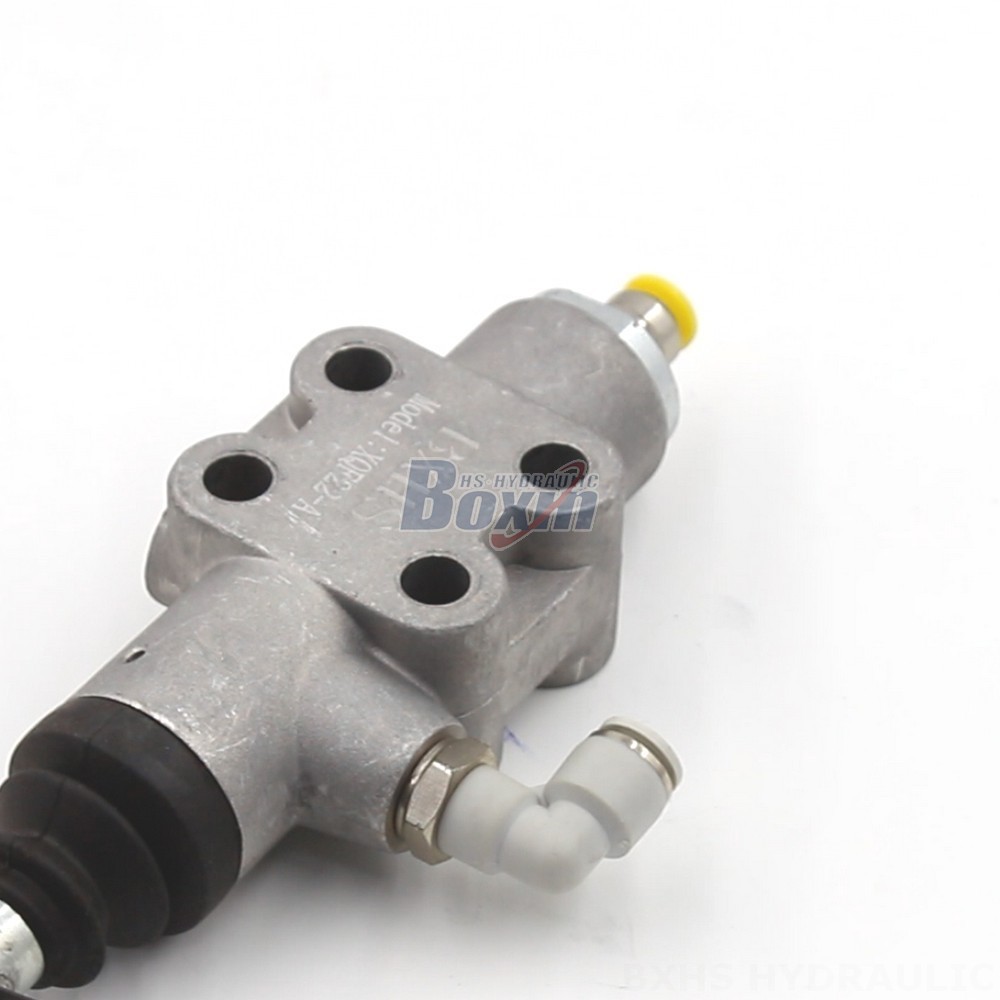

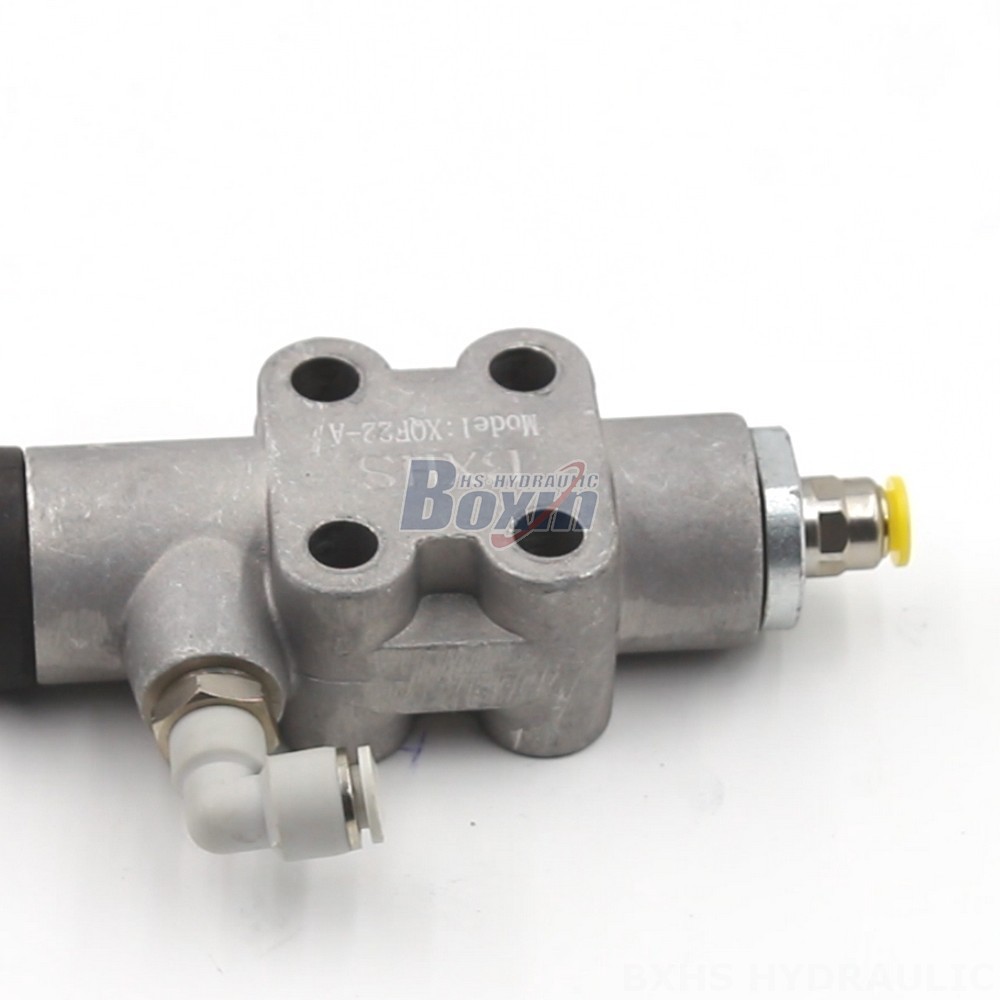

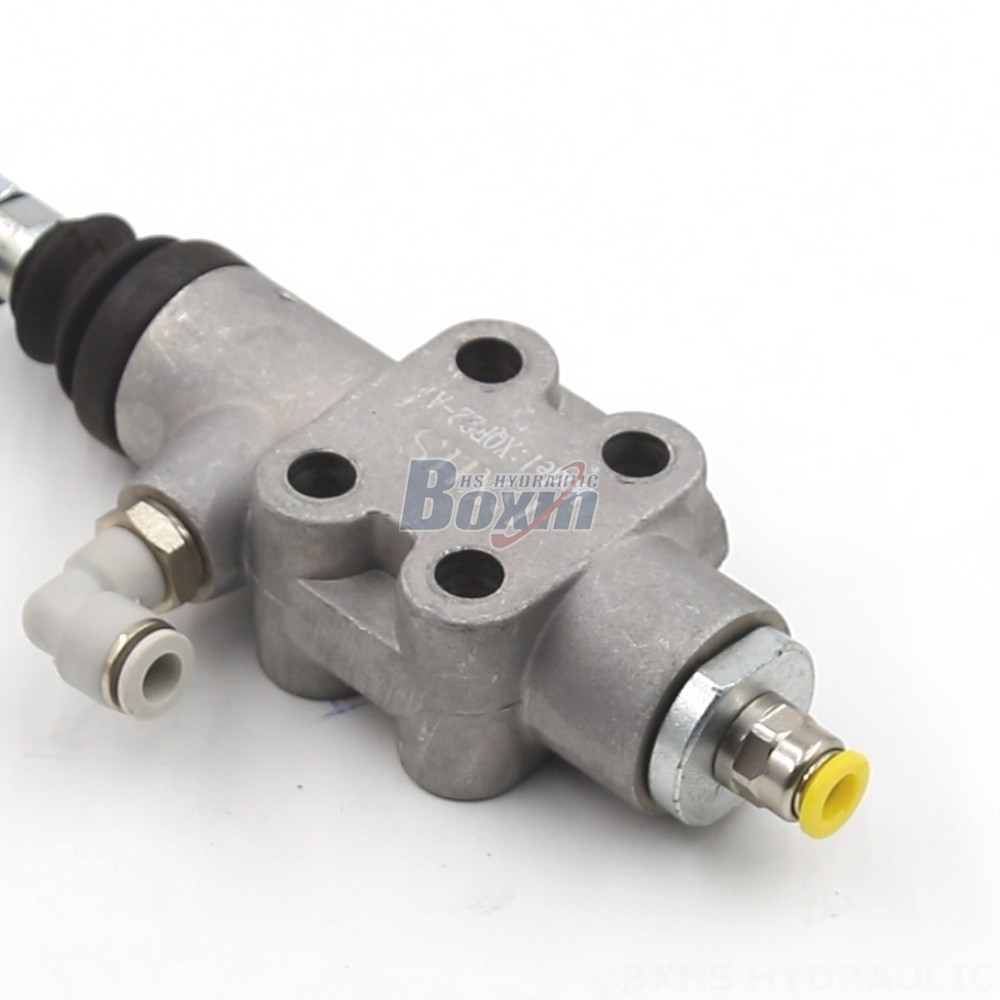

The XQF22-A Model Pneumatic Control Valve System is a single-section, pneumatically controlled valve with a rated flow of 60 L/min, a maximum pressure of 200 bar, and an operating viscosity range of 12-400 mm²/s. It has an ambient temperature range of -40°C to +60°C and is available with 1 spool.

XQF系列单块式方向阀参数
控制方式	气控
路数	1 联
环境温度范围	-40°C to +60°C (-40°F to +140°F)
结构类型	整体阀
联数	1联
工作粘度范围	12 - 400 mm²/s (12 cSt to 400 cSt)
额定流量	50 L/min (13.2 US gpm)
最大压力	200 bar (2900 psi)
进油口	G1/4接口
出油口	G1/4接口
接口尺寸	G1/4接口

The XQF22-A Model Pneumatic Control Valve System is designed for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders.
