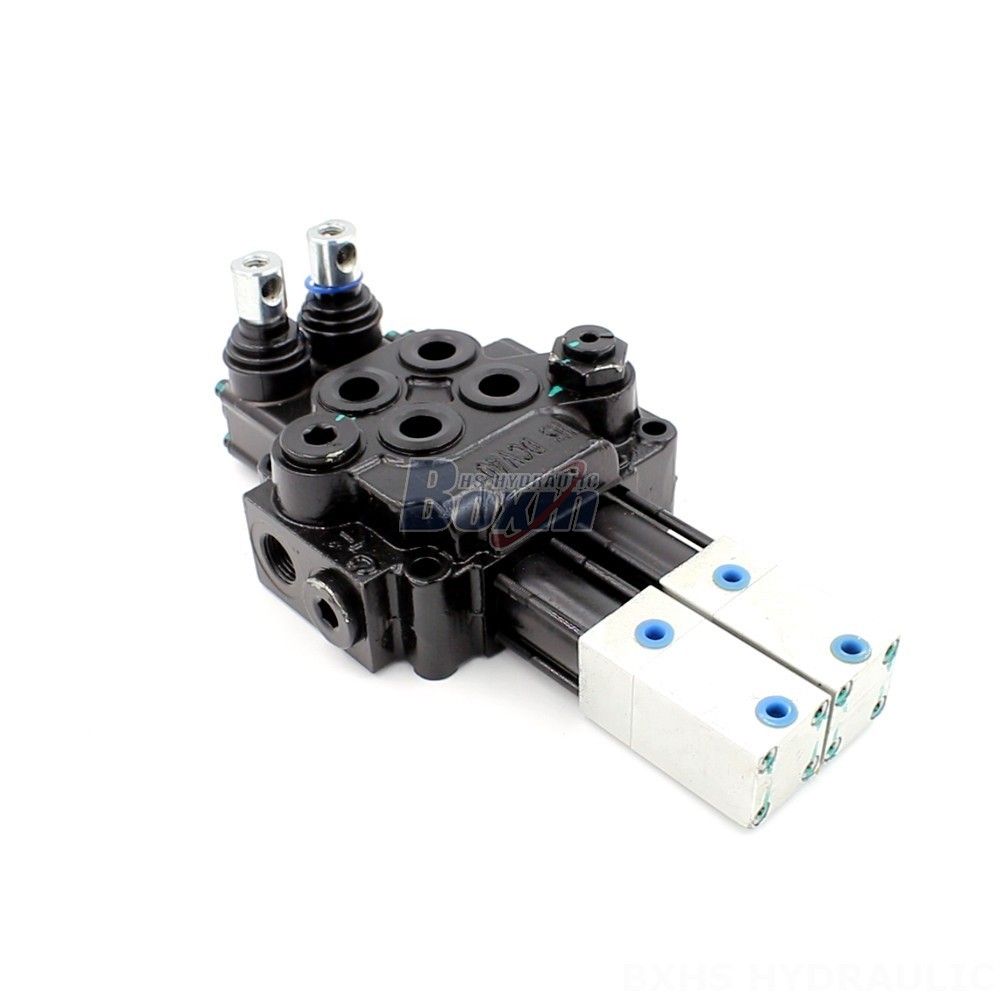

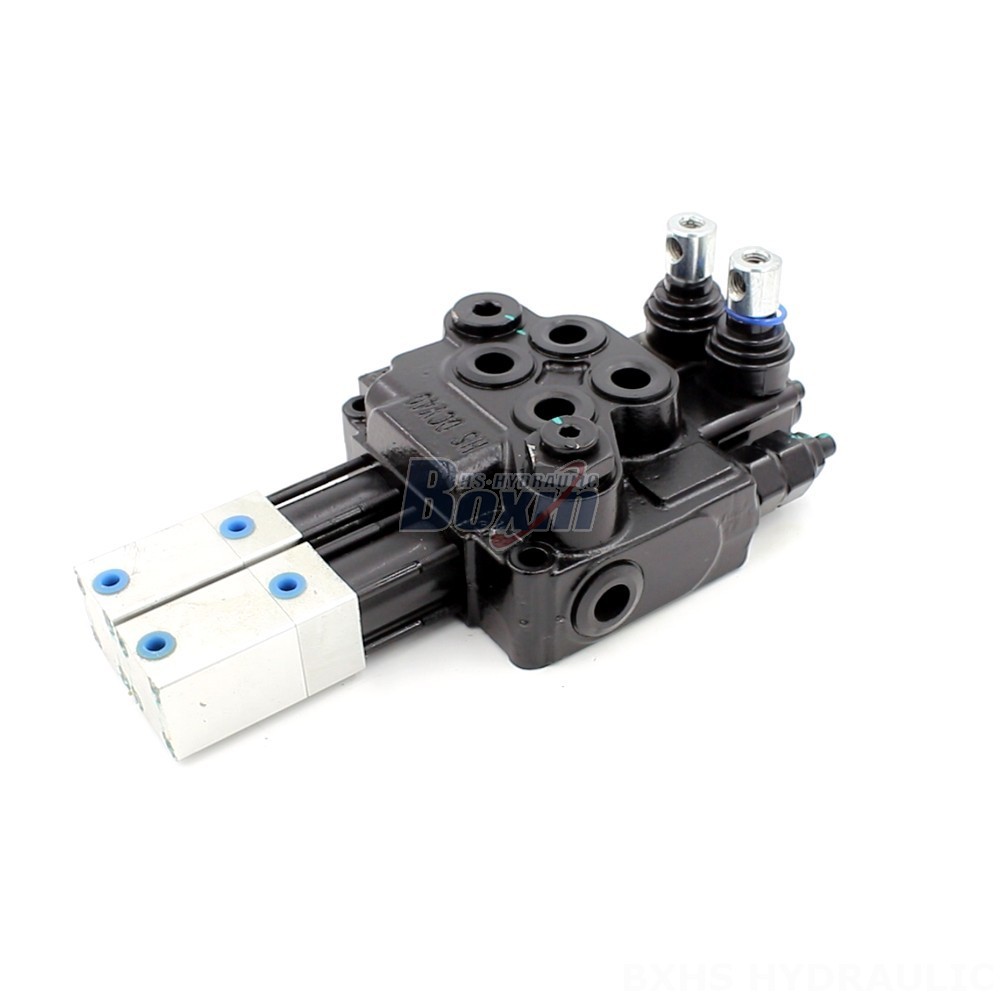

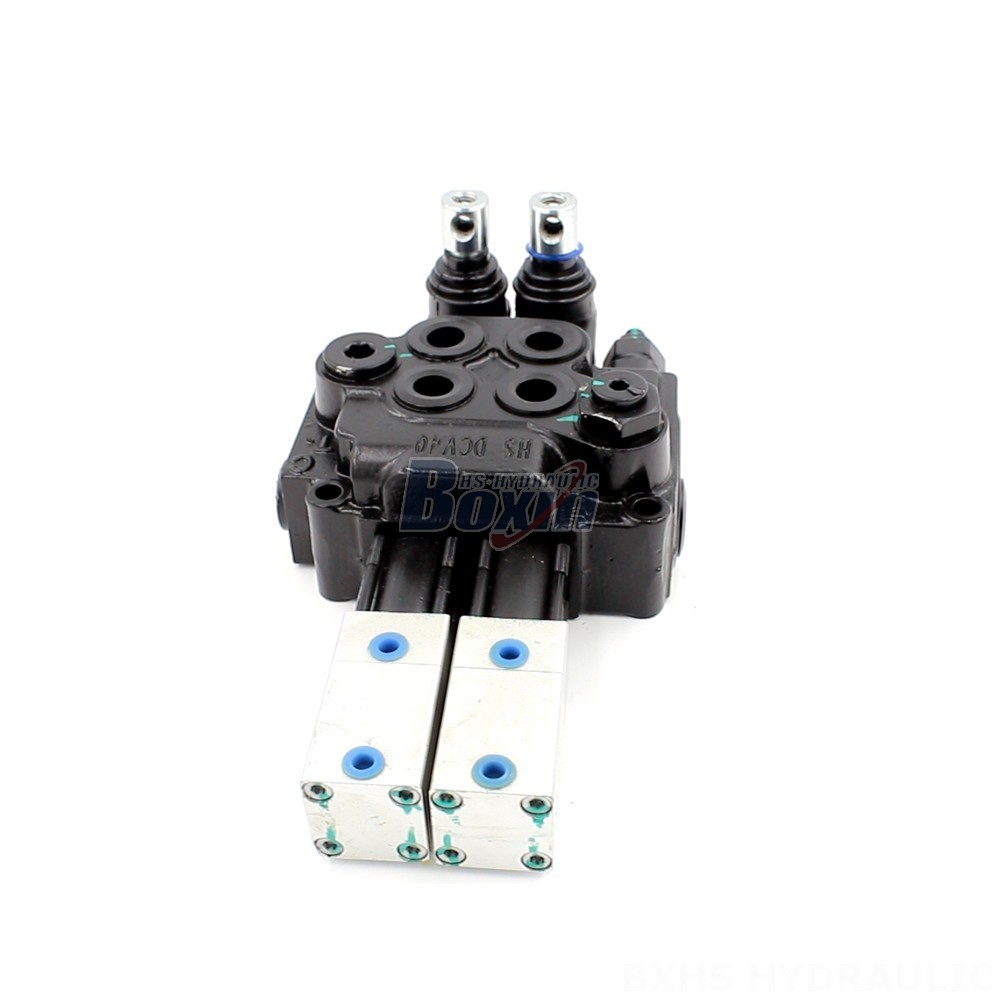

The DCV40 Directional Valve from Pneumatic Control Solutions is a high-performance valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. With its compact design, high flow capacity, and robust construction, the DCV40 offers exceptional control and reliability.
| DCV40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁和手动, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G3/8接口, G1/2接口, SAE 8接头, SAE 14接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 14接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 14接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |

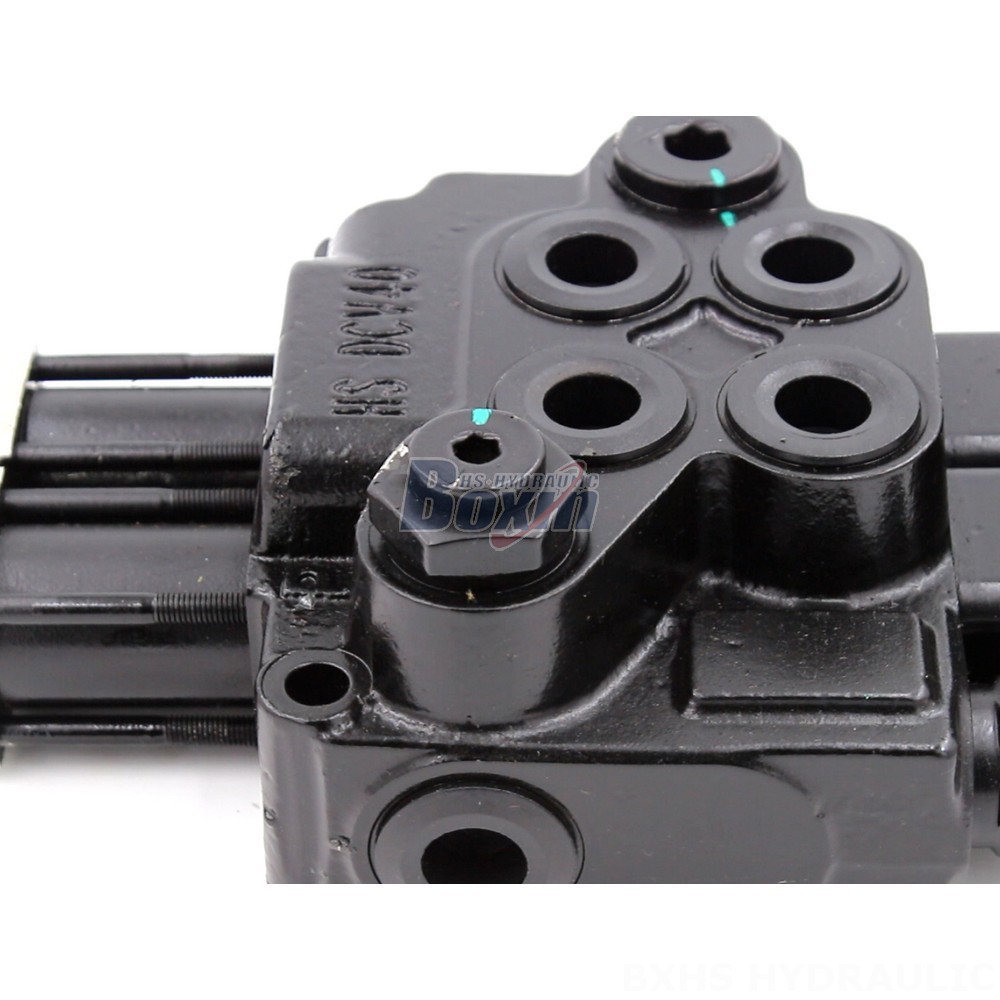

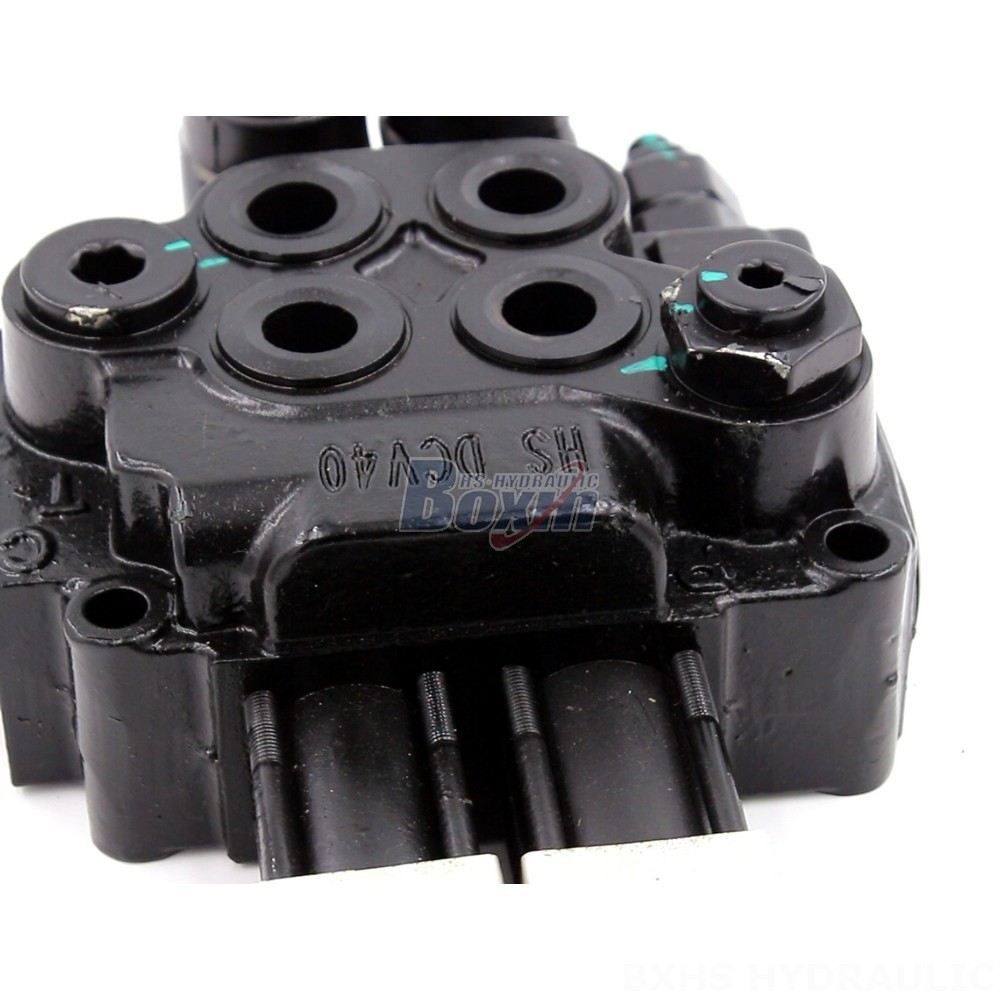

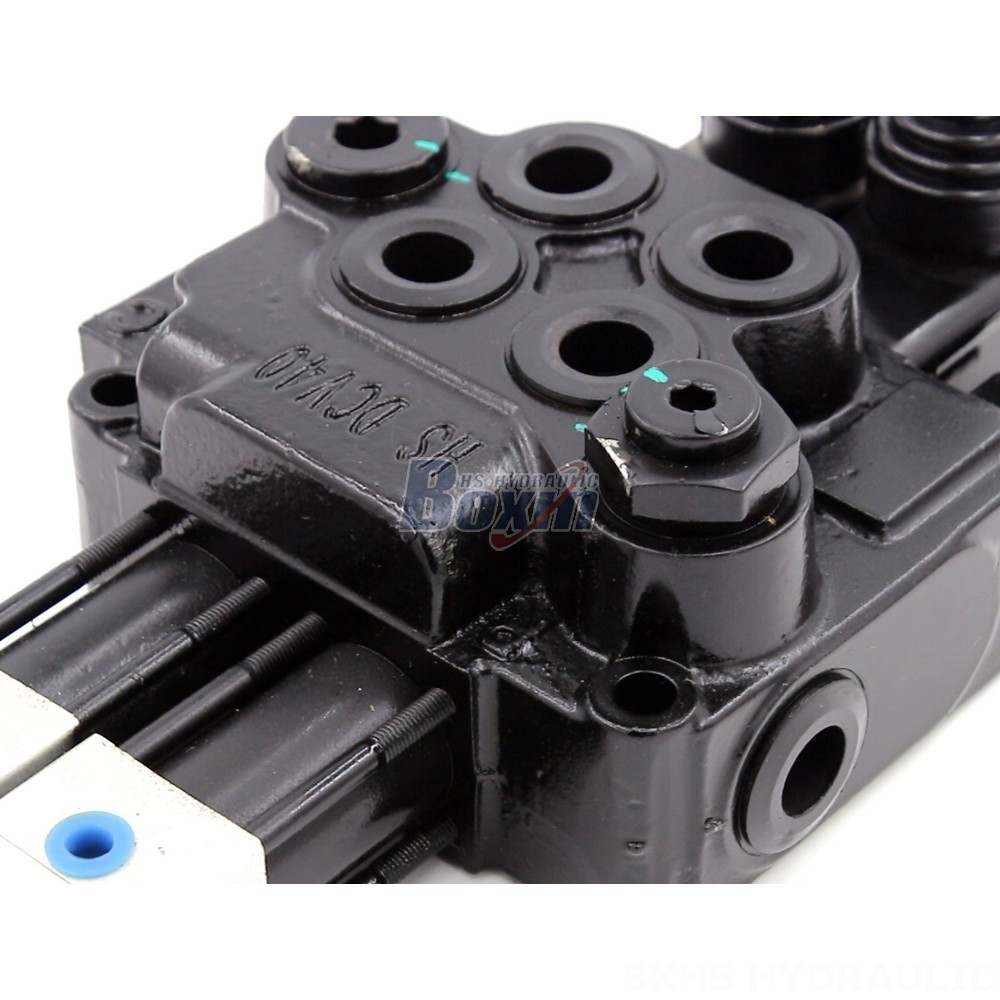

The DCV40 Directional Valve features a monoblock design for increased durability and reduced leakage. Its two sections provide independent control of fluid flow, while the two spools ensure precise and responsive operation. The valve's rated flow capacity of 40 L/min (10.5 US gpm) and maximum pressure of 350 bar (5100 psi) make it suitable for a wide range of applications. Additionally, the DCV40 has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), ensuring reliable operation in various environmental conditions.
