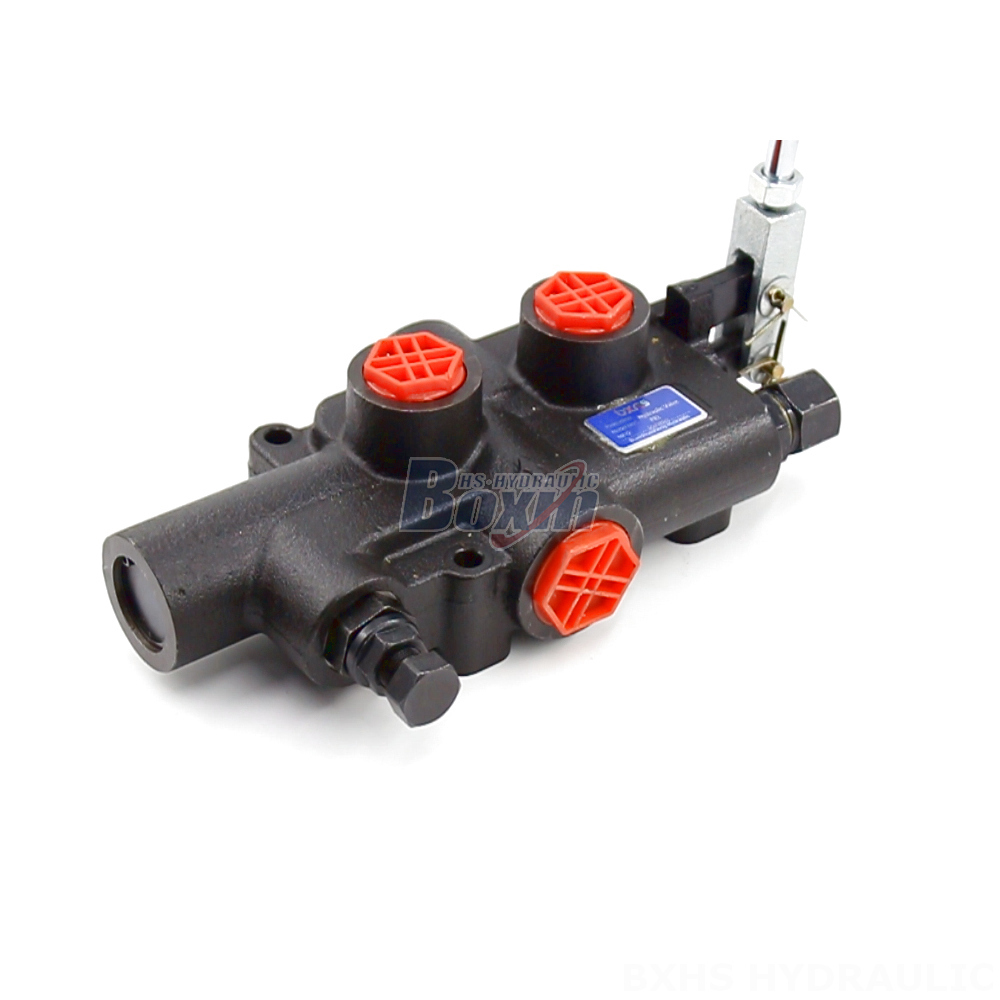

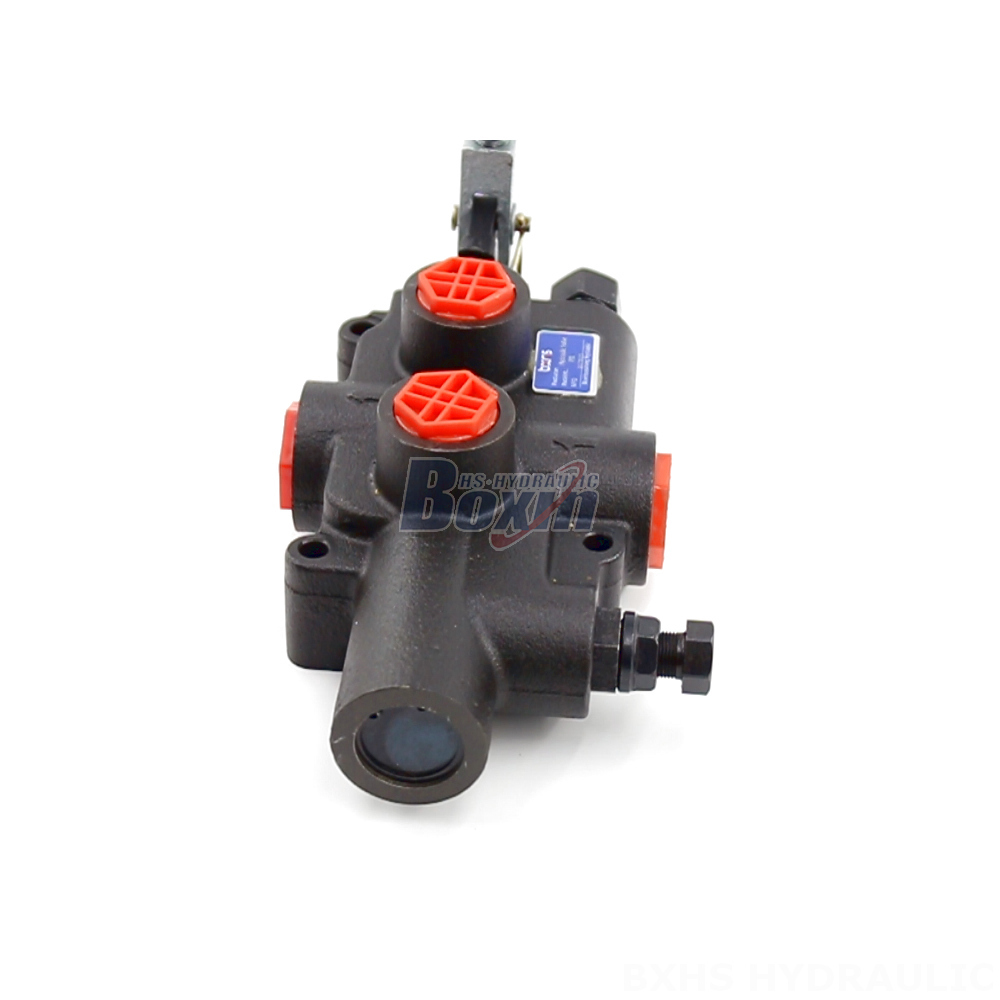

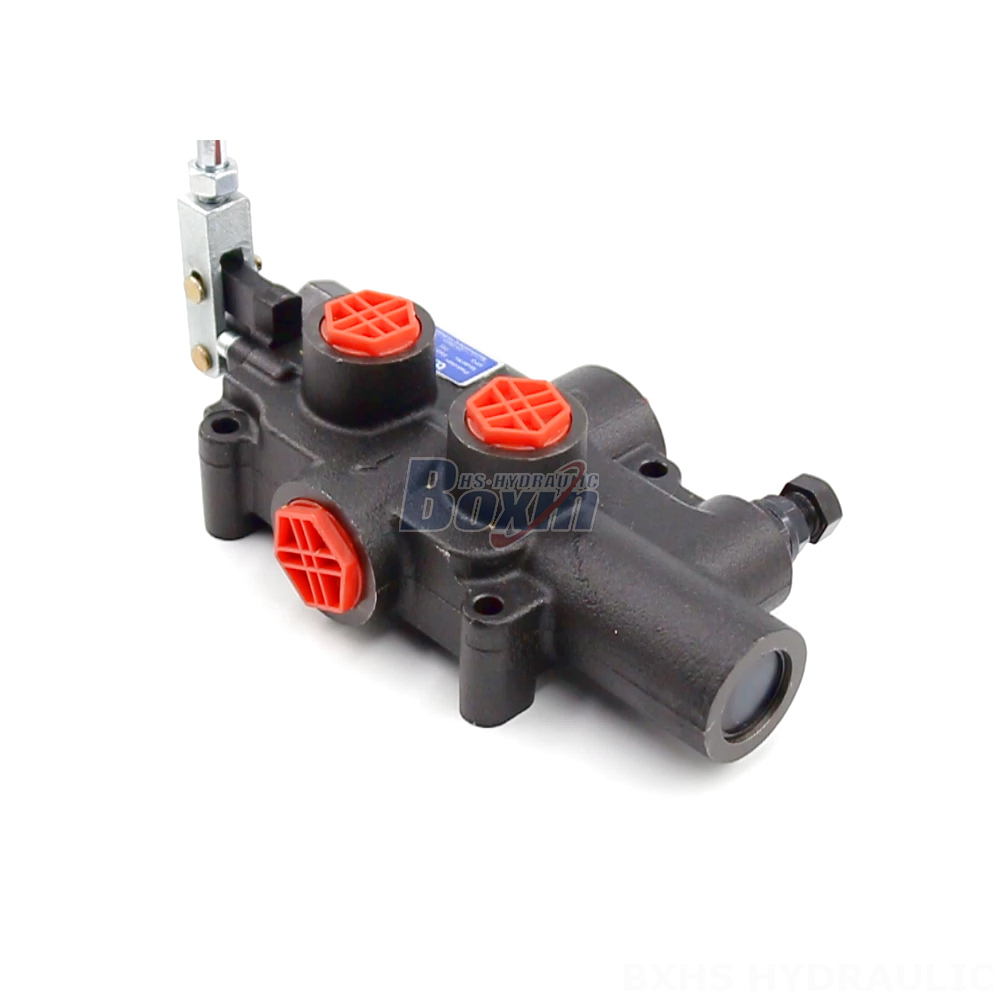

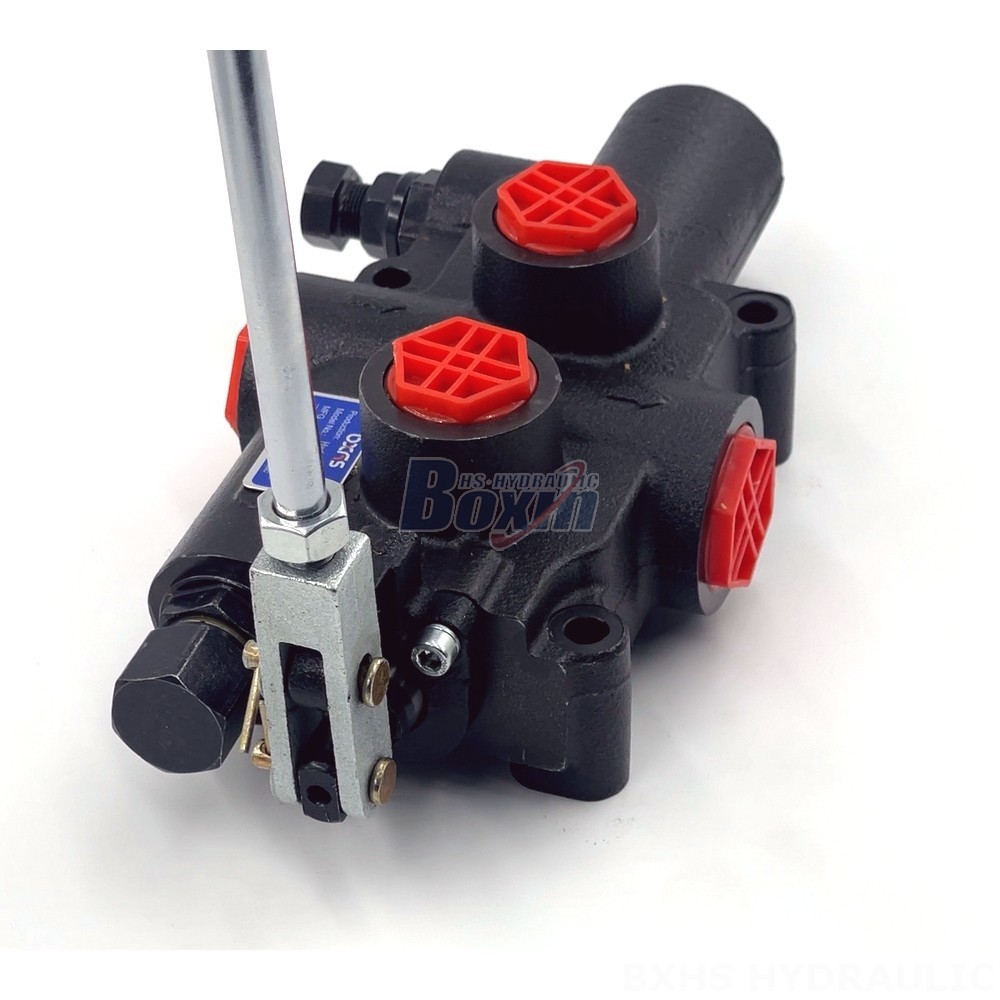

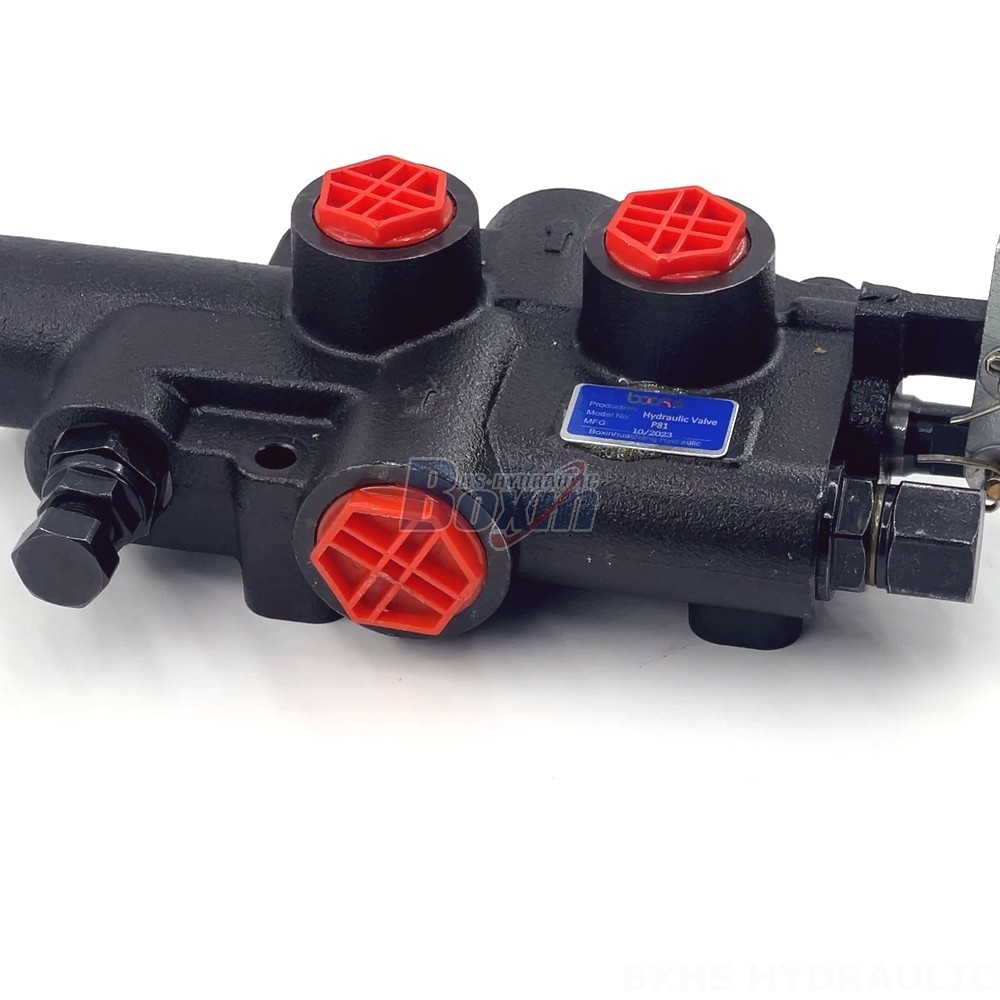

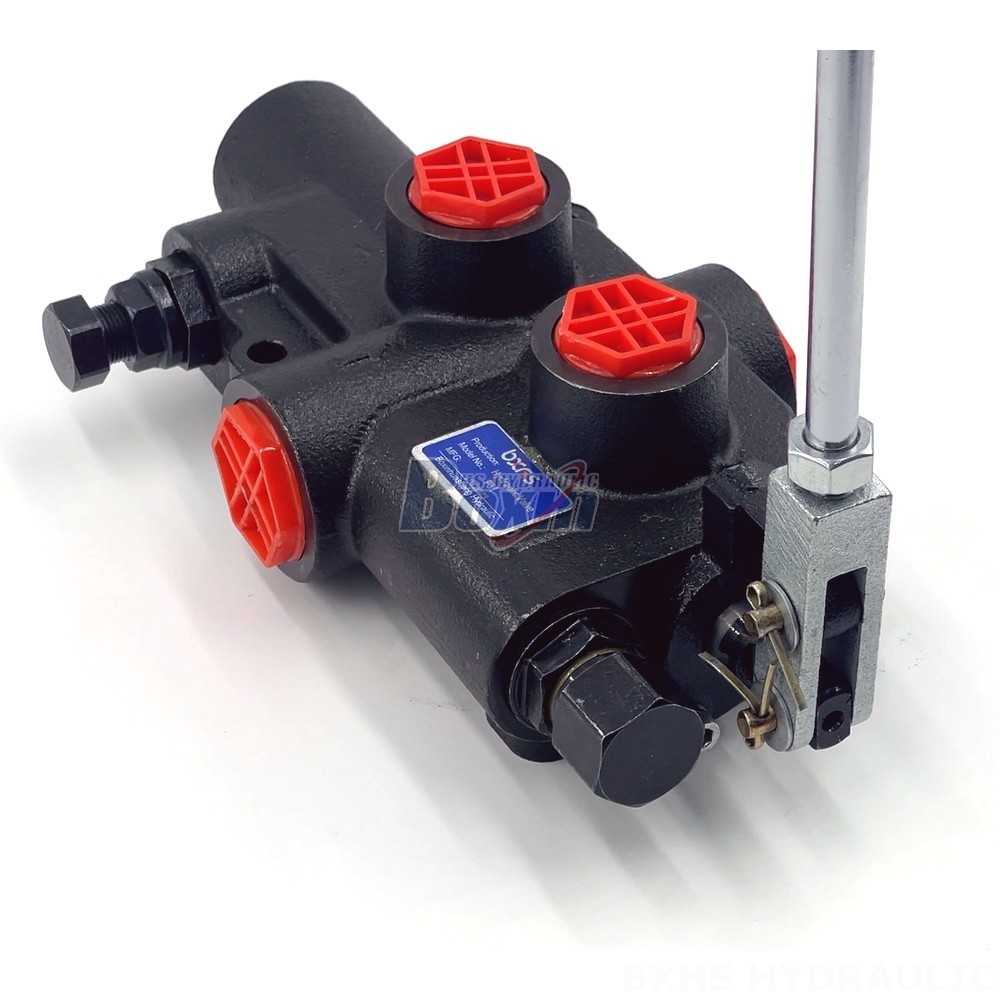

Hydraulic 2 Way Valve P81 Manual 1 Spool Log Splitter Valve | Manufacturer & Global Supplier

控制方式:手控

路数:1 联

额定流量:80 L/min (21.2 US gpm)

最大压力:19 MPa (145 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G3/4接口

品牌:BXHS

所属类别:伐木机多路阀

产品系列:P81系列 伐木机多路阀

Packagingsize:27*16*12

Grossweight:4.80 kg

库存: 有货

1603 次查看了此产品

Hydraulic 2 Way Valve P81 Manual 1 Spool Log Splitter Valve | Manufacturer & Global Supplier

Hydraulic 2 Way Valve P81 Manual 1 Spool Log Splitter Valve | Manufacturer & Global Supplier

Hydraulic 2 Way Valve P81 Manual 1 Spool Log Splitter Valve | Manufacturer & Global Supplier drawing image

This P81 Series Hydraulic 2 Way Valve is a manual, 1-spool, monoblock valve designed for log splitter applications. It features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve is suitable for industrial vehicles and offers a kick-out setting pressure range of 70~140bar (1015-2030psi).

P81系列 伐木机多路阀 参数
控制方式 手控
路数 1 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm), 95 L/min (25.1 US gpm)
最大压力 19 MPa (145 psi)
进油口 G1/2接口
出油口 G1/2接口
接口尺寸 G3/4接口

The Hydraulic 2 Way Valve P81 Manual 1 Spool Log Splitter Valve is a high-performance valve designed for use in log splitting equipment. It is a manual, 1-spool, monoblock valve that offers a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve features a kick-out setting pressure range of 70~140bar (1015-2030psi), providing reliable and efficient control of hydraulic fluid flow. Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This robust valve is ideal for industrial vehicle applications where durability and performance are critical. The P81 Series valve is designed specifically for wood splitting equipment, offering optimal performance and reliability for this demanding task.
