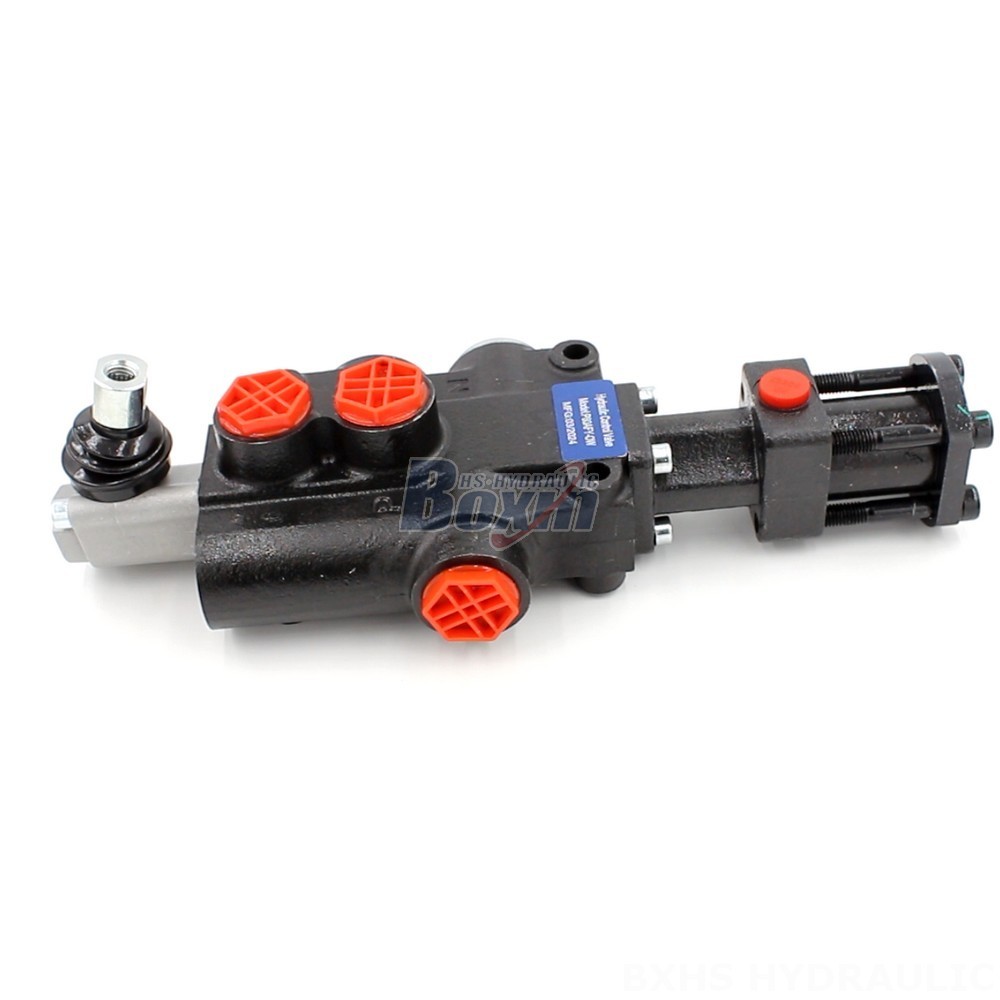

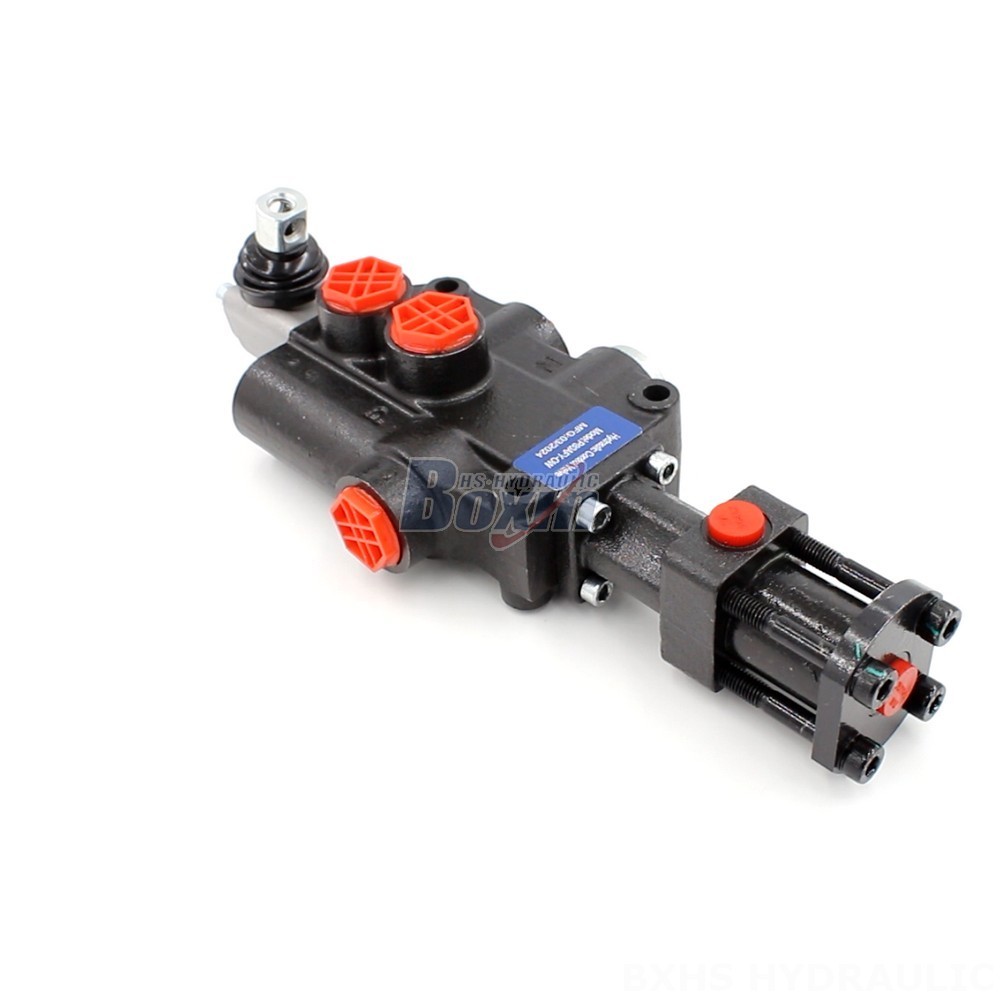

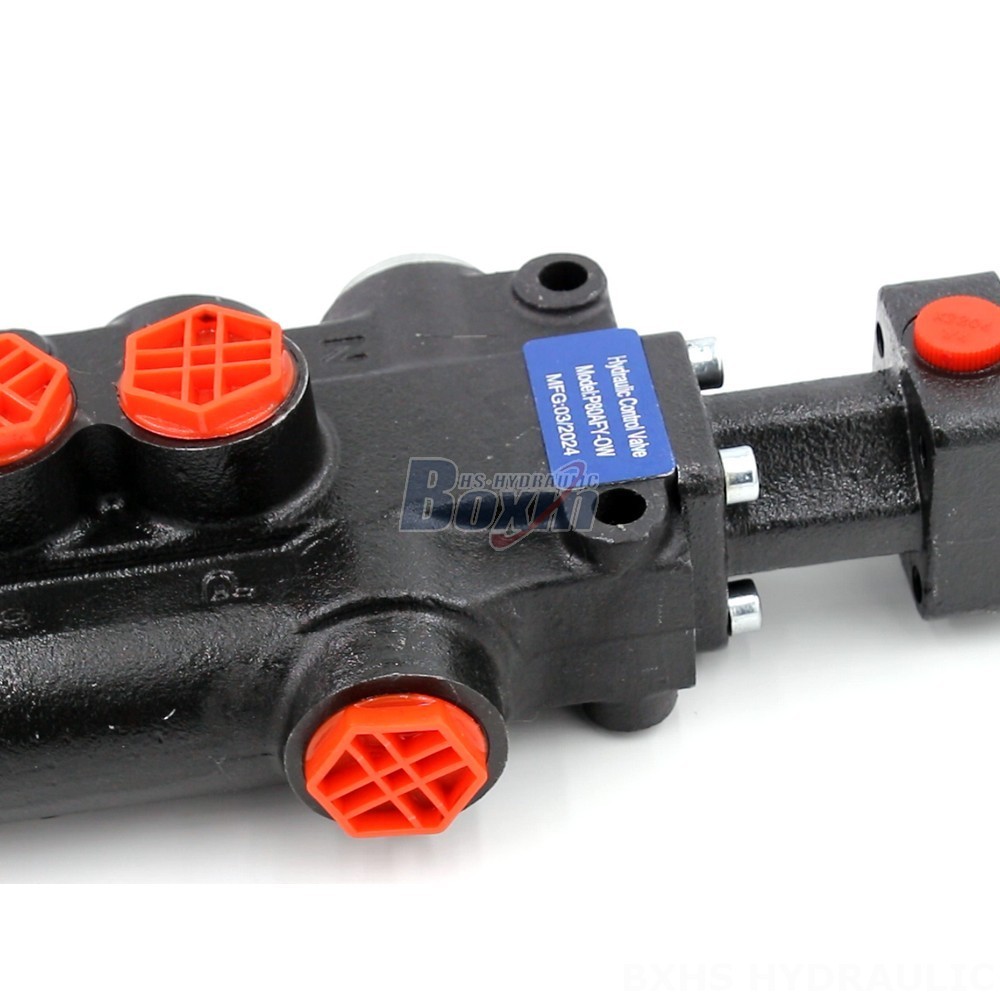

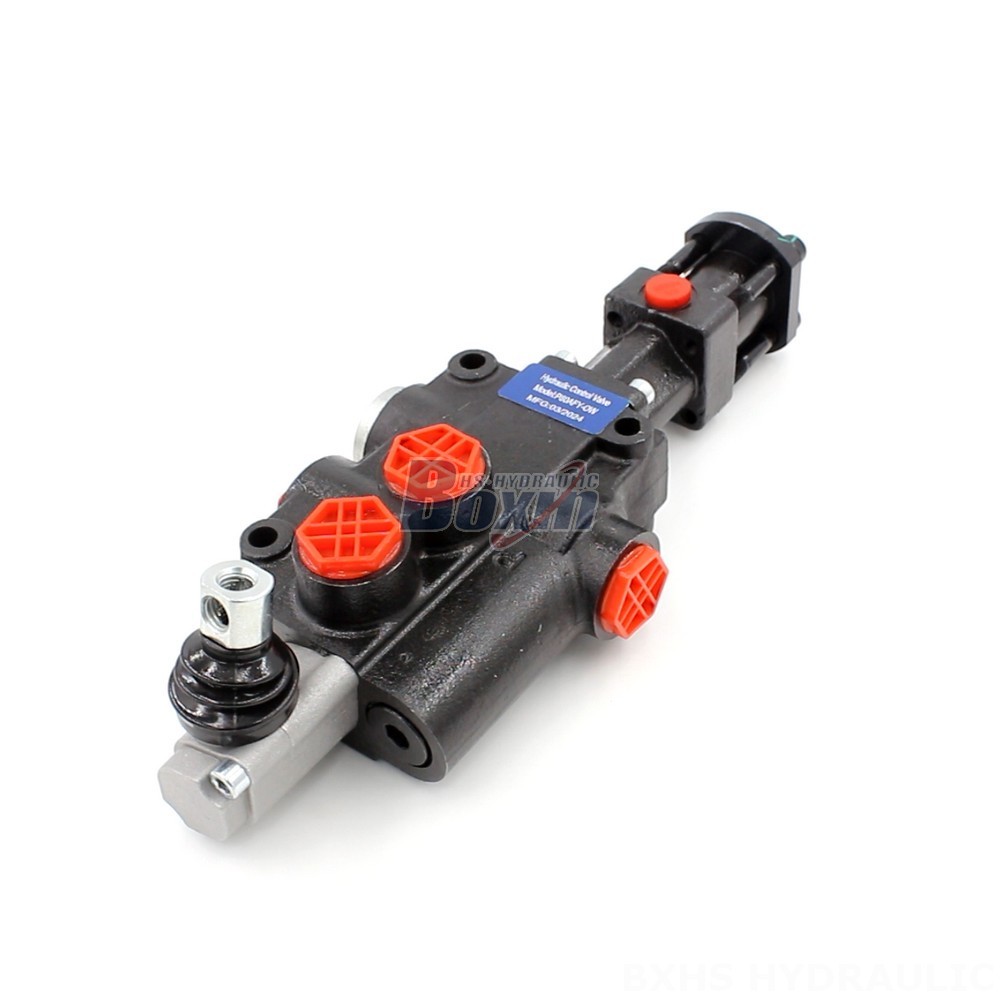

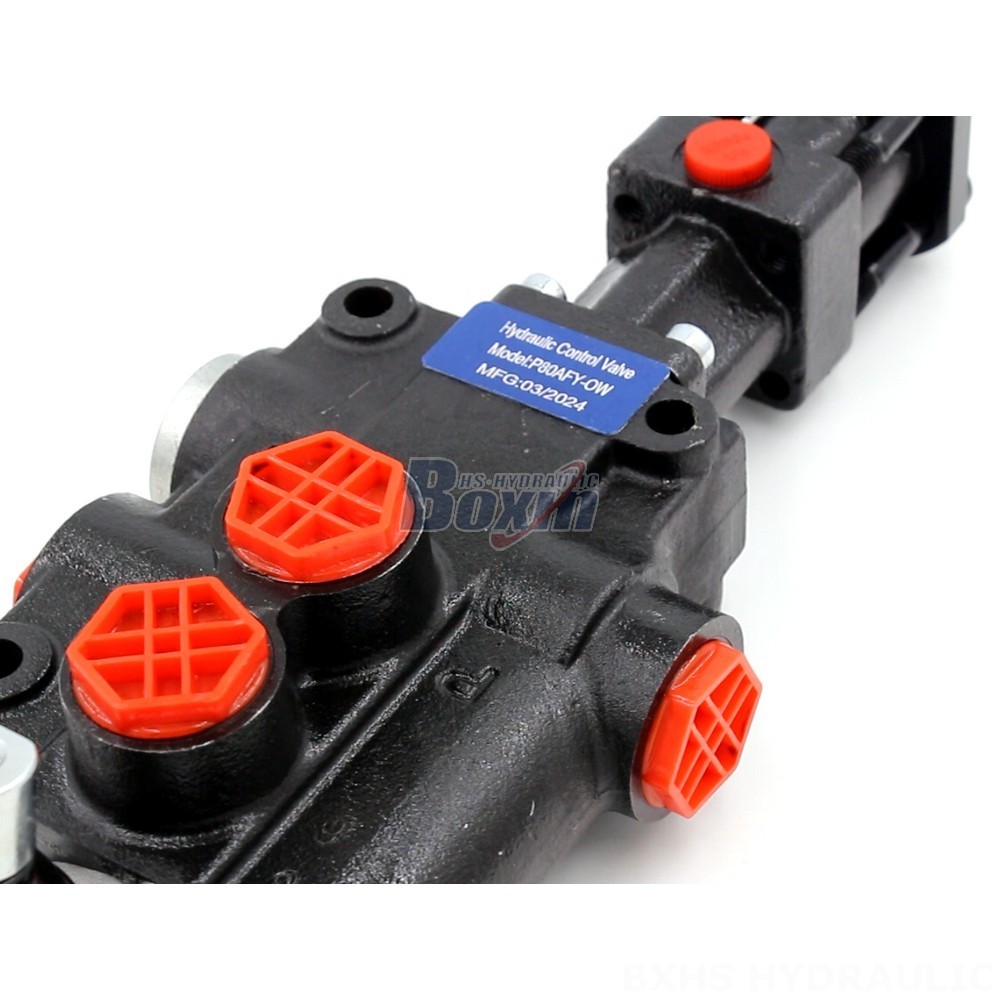

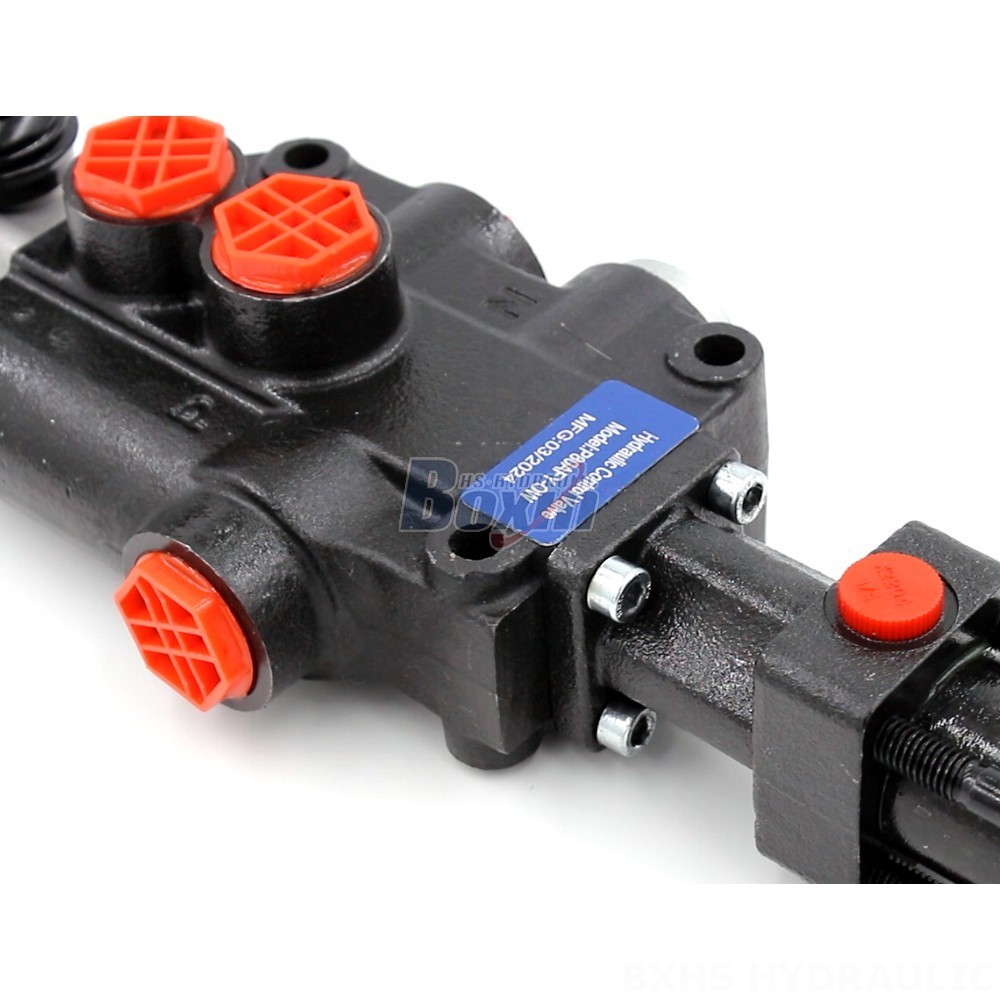

The P80F-G34 Directional Control Valve is a high-performance, heavy-duty hydraulic valve designed for demanding applications in construction equipment, material handling, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it delivers reliable control and exceptional durability.
| P80F系列 单块式方向阀 参数 | |
|---|---|
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 接口尺寸 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹 |
| 最大压力 | 315 bar (4600 psi) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 结构类型 | 整体阀 |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80F-G34 Directional Control Valve is a monoblock valve featuring a single spool and a rated flow of 80 L/min. It is designed for high-pressure operation up to 250 bar. This valve is ideal for a wide range of applications in construction, material handling, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, excavators, loaders, dumpers, drilling rigs, and more. The P80F-G34 is built for durability and reliability, with an operating viscosity range of 15 to 75 mm²/s and an ambient temperature range of -40°C to +80°C. This valve is also available as part of turnkey project solutions, offering customized designs and manufacturing options.
