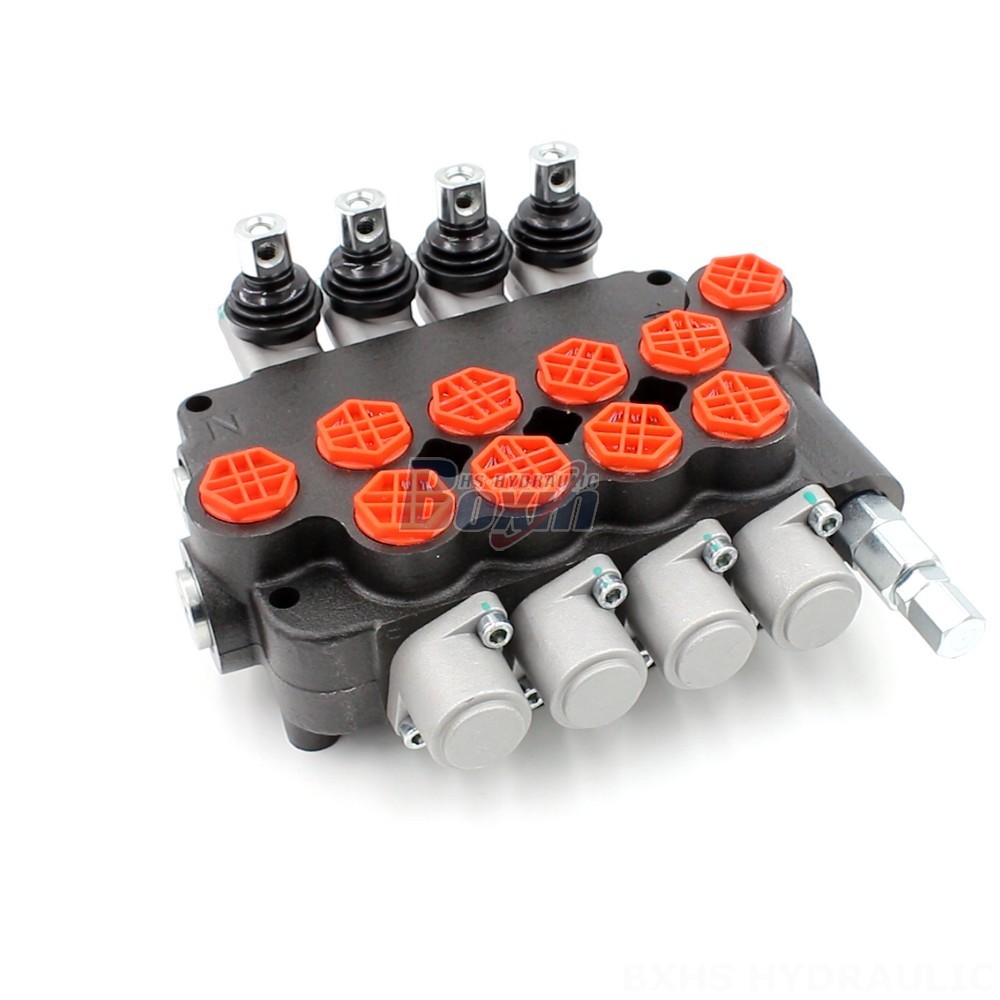

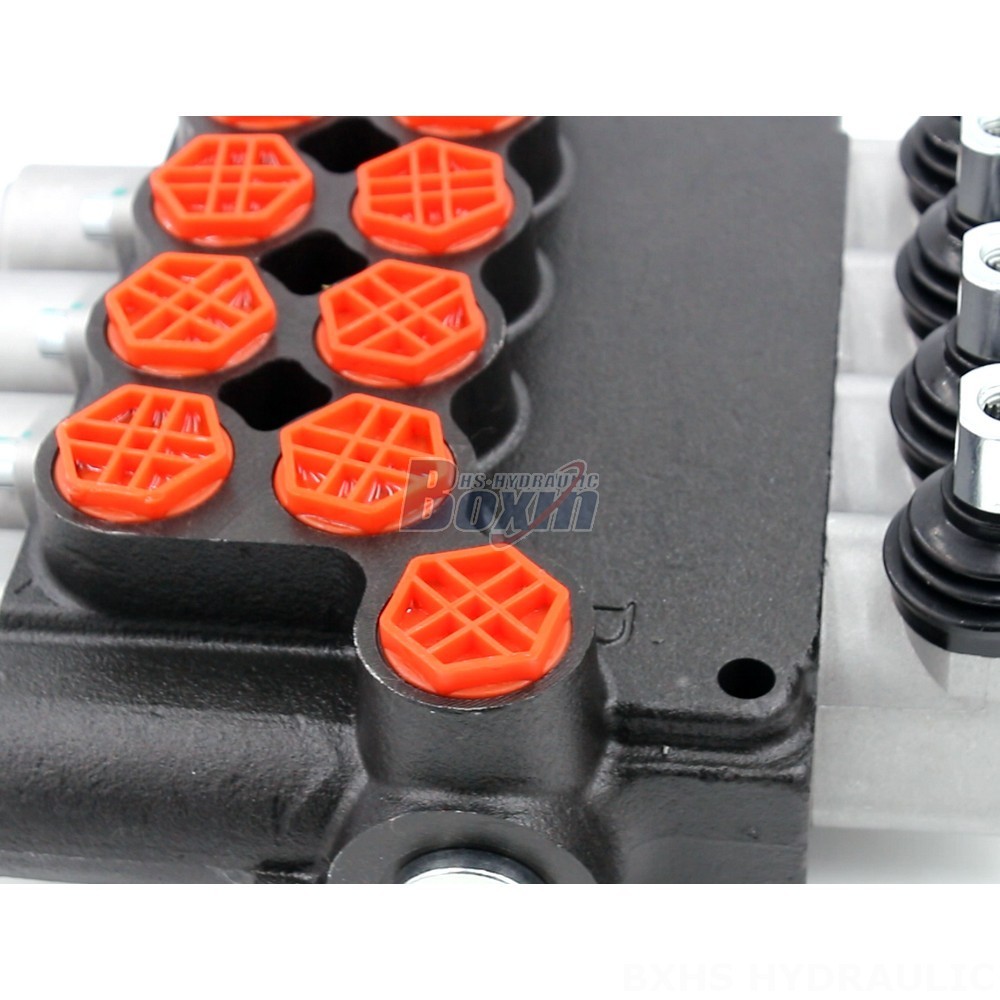

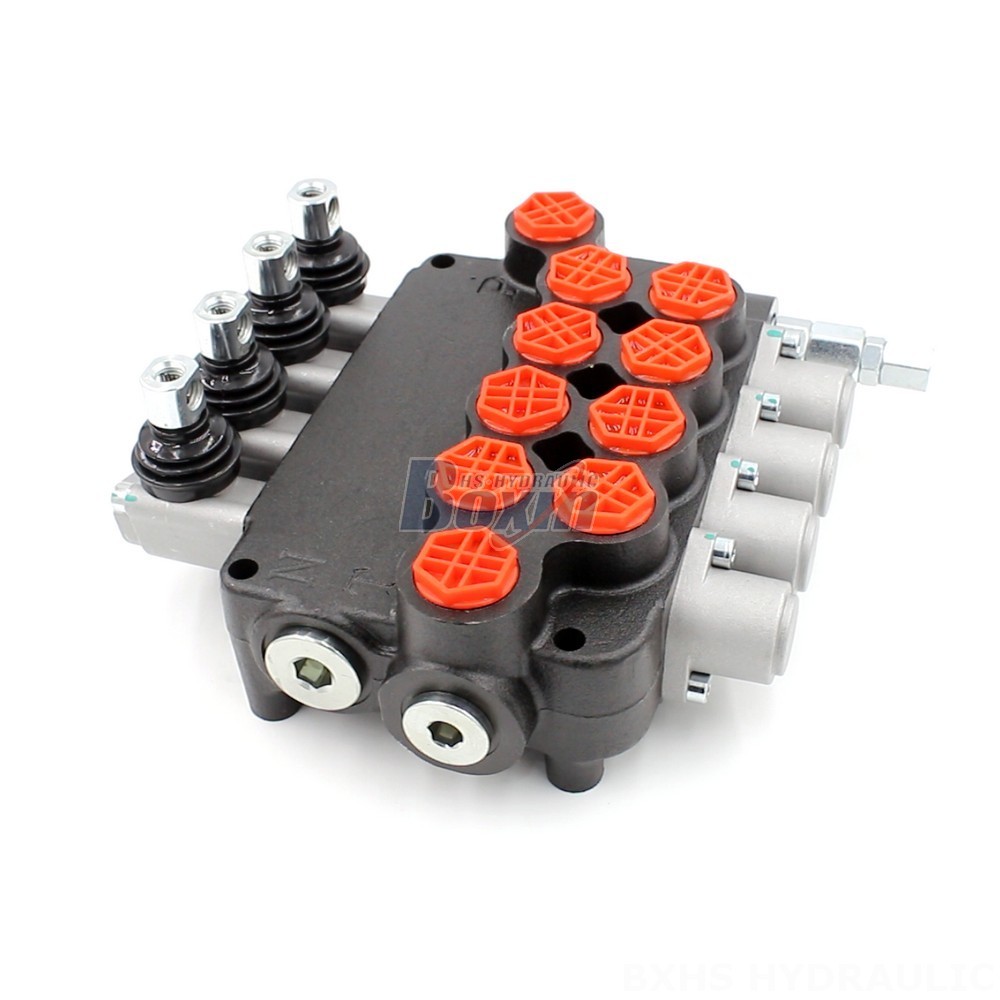

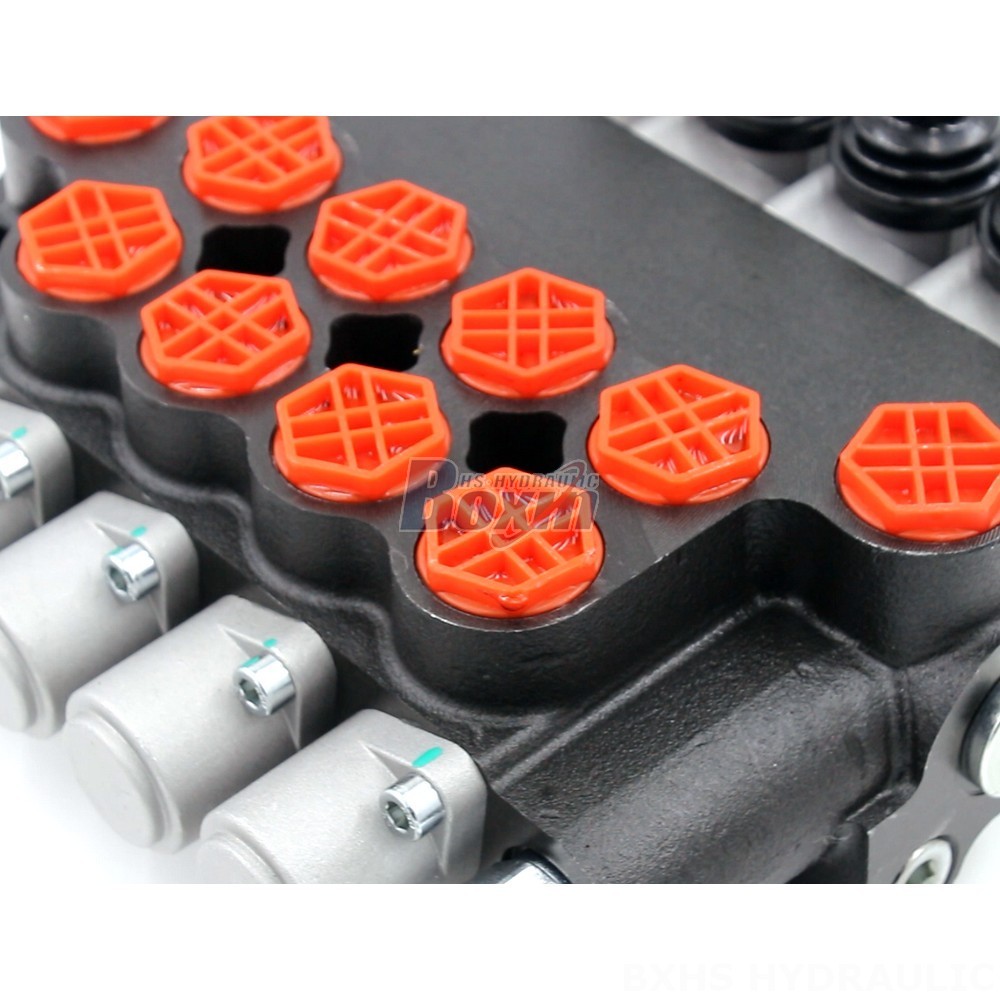

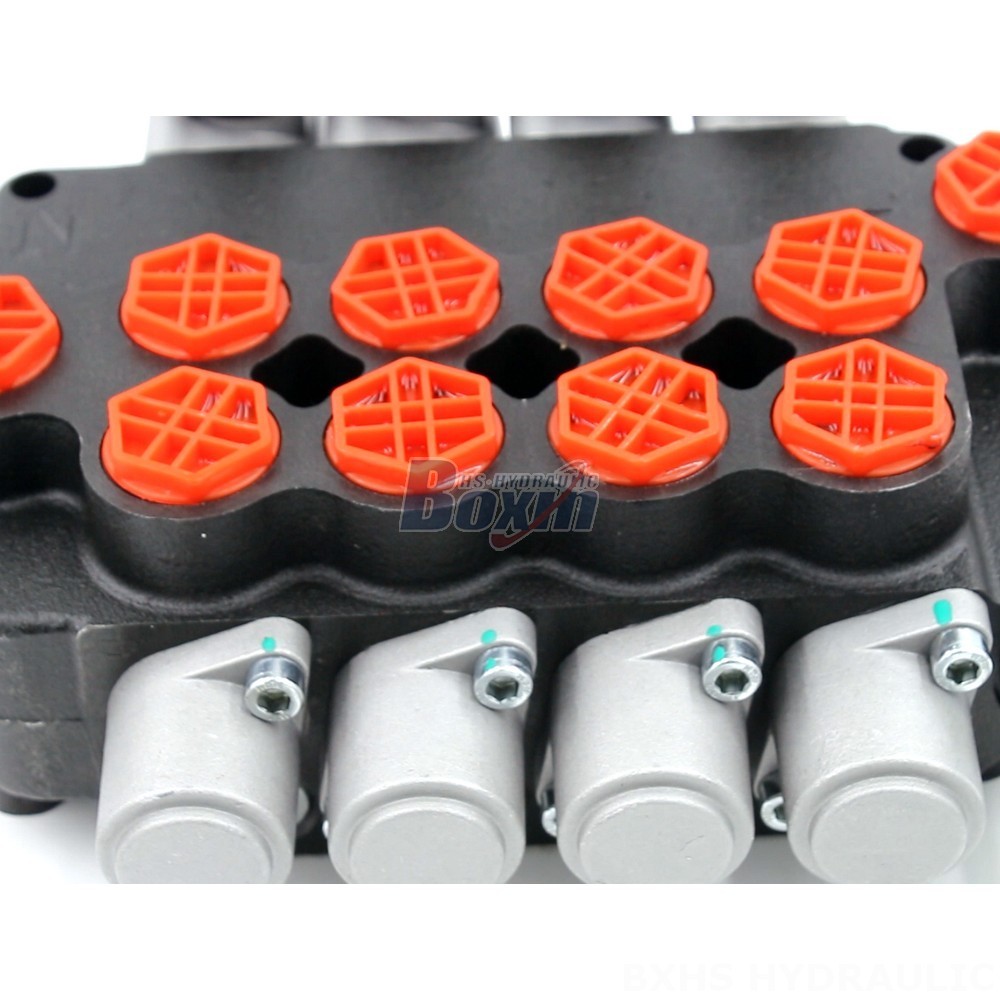

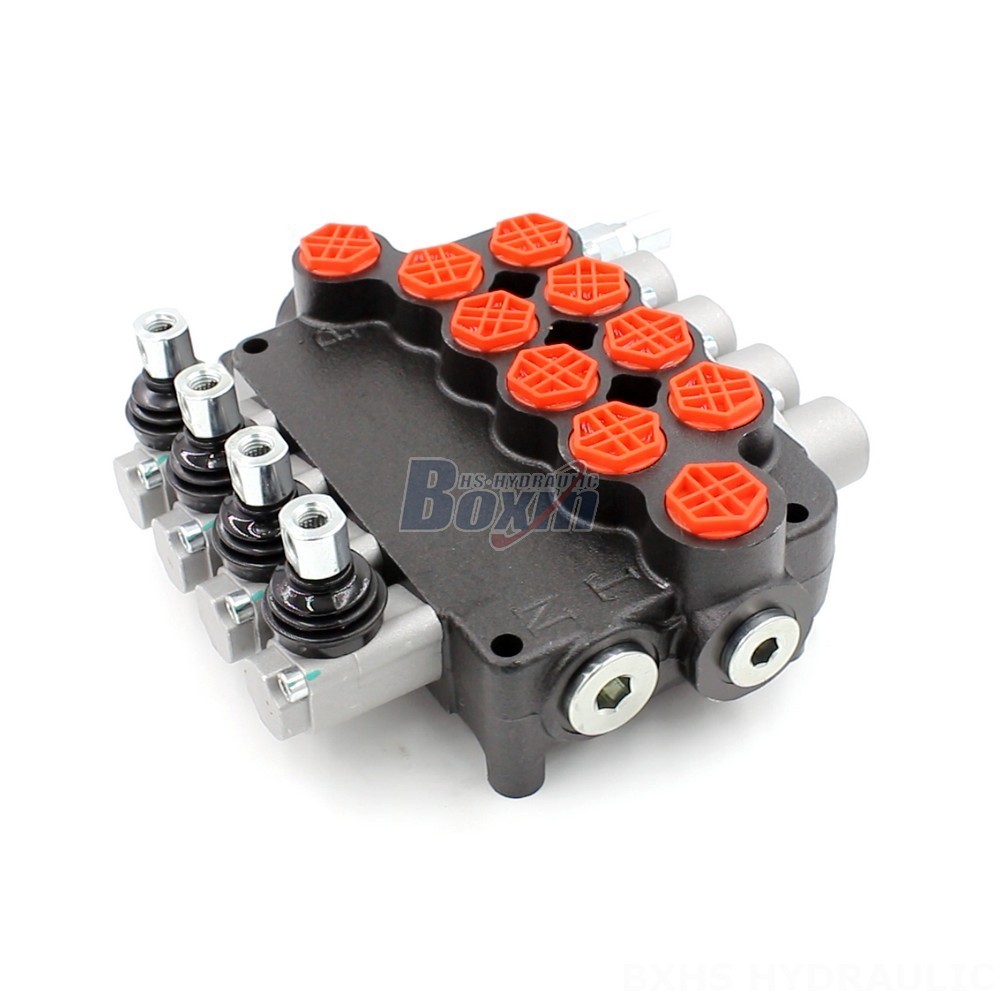

The P80 Series Directional Valve is a high-performance, 4-section monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a manual control method, a rated flow of 80 L/min, and a maximum pressure of 250 bar. We offer OEM, private label, and custom manufacturing options to meet your specific needs.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
This robust P80 Series Directional Valve is built for durability and reliability. With its 4-section, monoblock design, it provides precise and efficient control of hydraulic systems. The valve is available with manual control and is rated for a flow of 80 L/min and a maximum pressure of 250 bar. We are a global manufacturer and offer OEM, private label, and custom manufacturing options to meet the specific requirements of our customers. This allows for tailored solutions that align perfectly with your brand and application needs. Whether you need a standard model or a custom-engineered solution, we are here to support your project from concept to completion.
