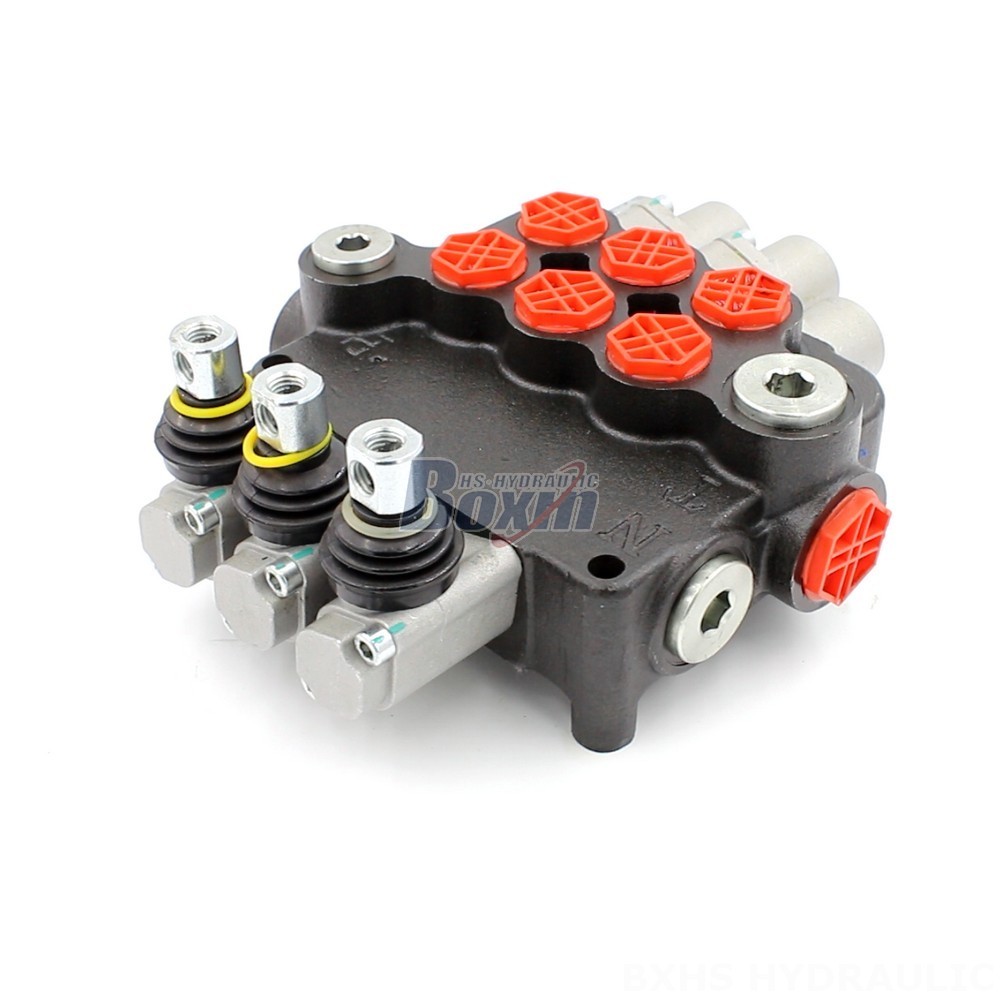

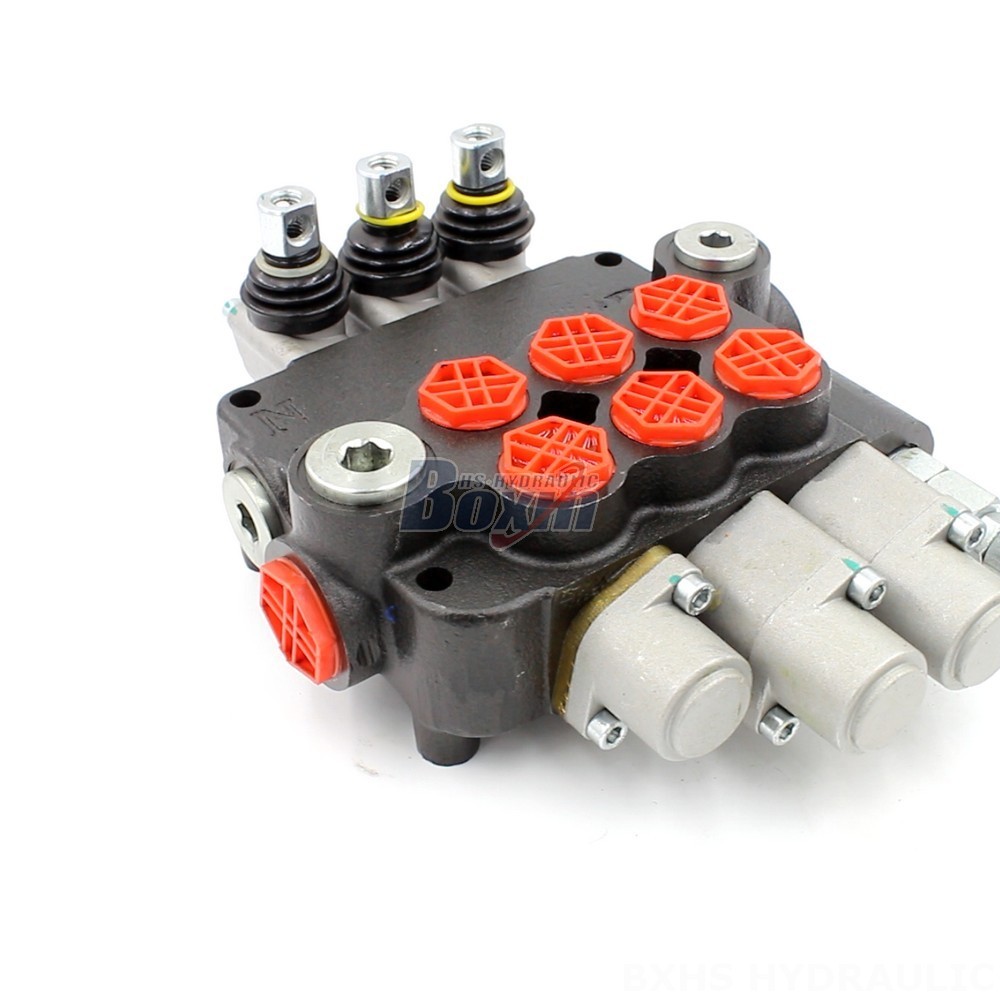

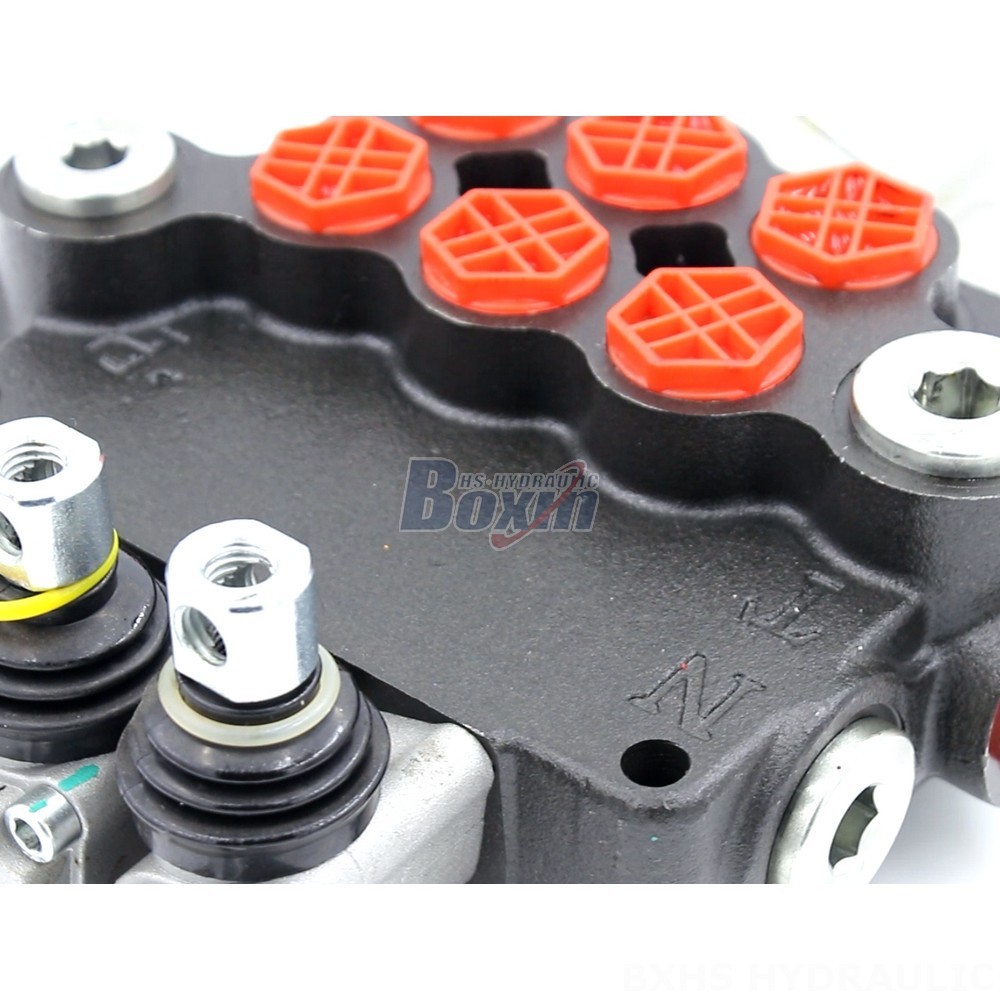

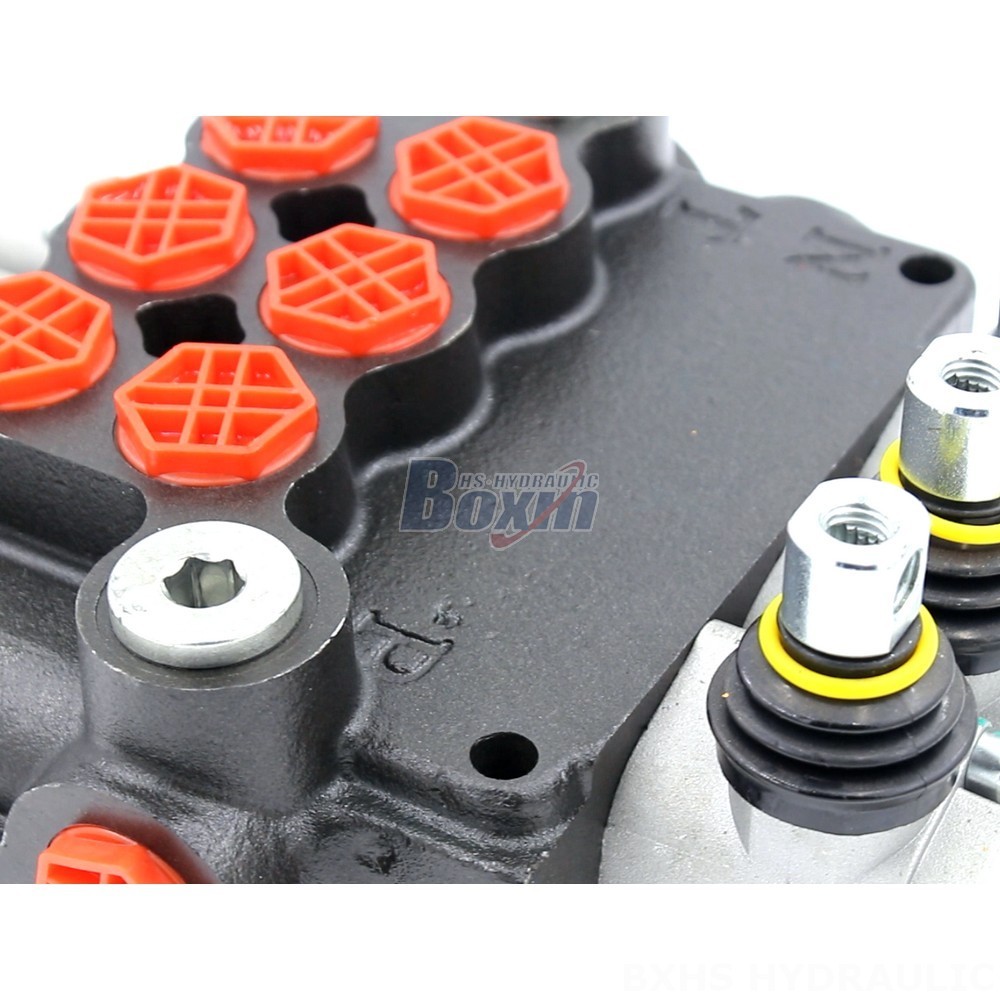

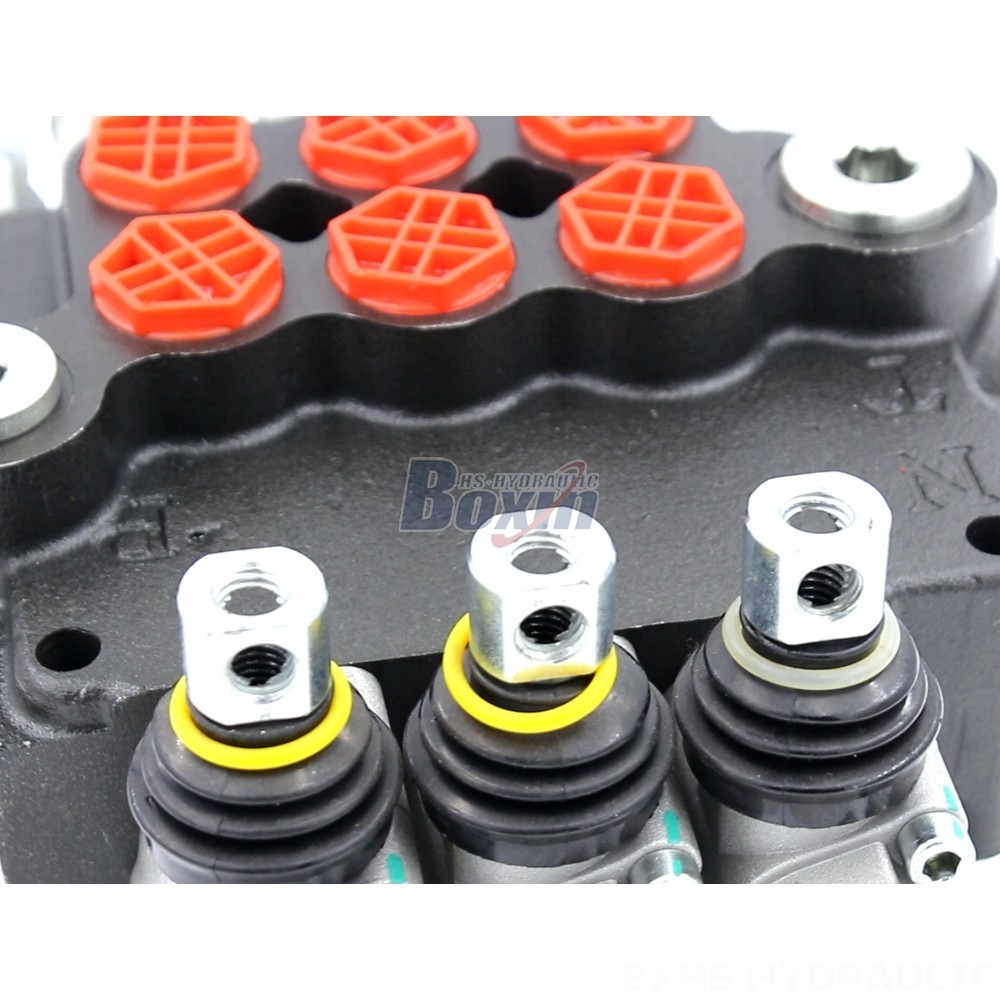

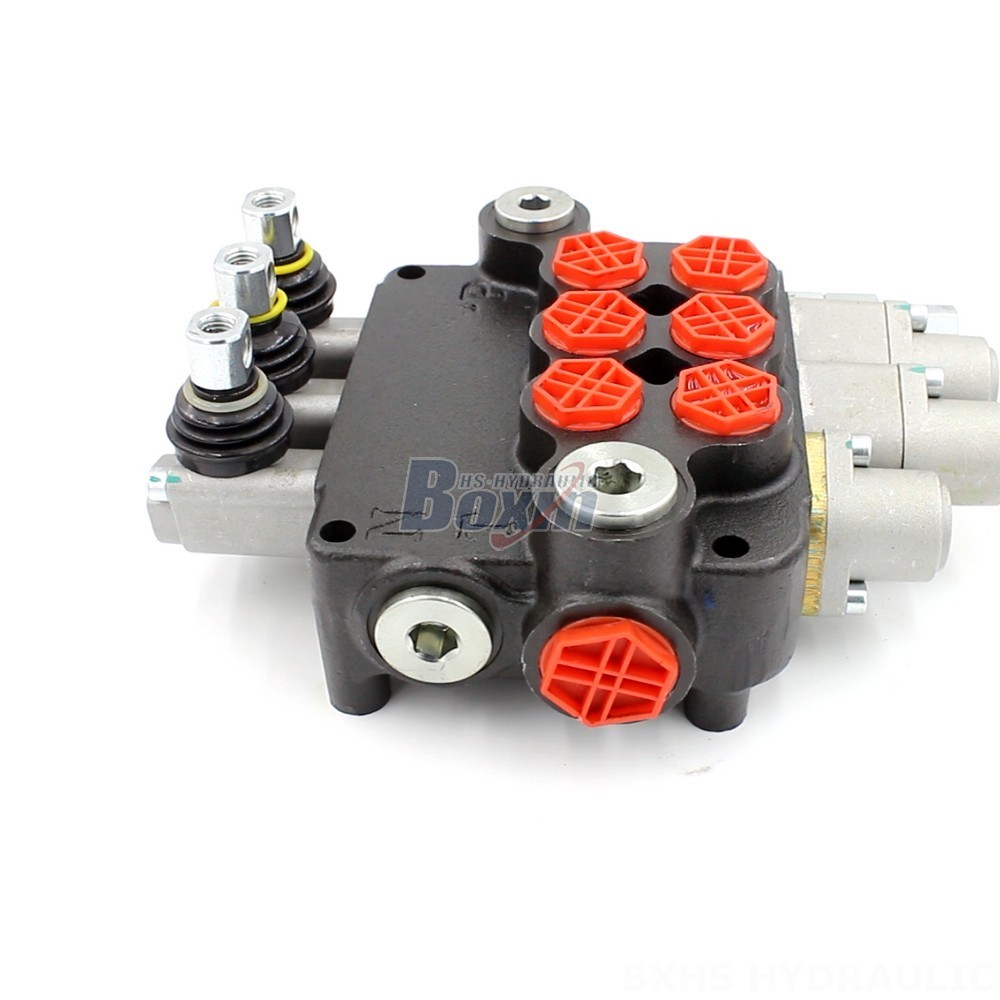

Introducing the P80-G34-G12 Hydraulic Directional Control Valve, expertly crafted for superior performance in demanding hydraulic systems. This robust, 3-section monoblock valve boasts a rated flow of 80 L/min and a remarkable maximum pressure of 250 bar. Its wide operating viscosity range (15 - 75 mm²/s) and ambient temperature tolerance (-40°C to +80°C) ensure exceptional adaptability to diverse operating conditions. With 3 spools and compatibility with a wide range of applications, including material handling, construction, agriculture, and industrial vehicles, this directional control valve delivers unparalleled versatility and reliability.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
**Key Features:**
* Manual control for precise and responsive operation
* Monoblock construction for enhanced structural integrity
* High-pressure capability (up to 250 bar) for demanding applications
* Wide viscosity range compatibility (15 - 75 mm²/s) for use with various hydraulic fluids
* Extended ambient temperature range (-40°C to +80°C) for operation in extreme conditions
* 3 spools for versatile flow control
* Compact design for easy integration into space-constrained systems
* Durable construction for extended service life
**Applications:**
* Material handling equipment: forklifts, cranes, stackers, aerial platforms
* Construction and earth moving machinery: excavators, motor graders, skid steer loaders, compact wheel loaders
* Agricultural machinery: tractors, harvesters, irrigation systems
* Industrial vehicles
