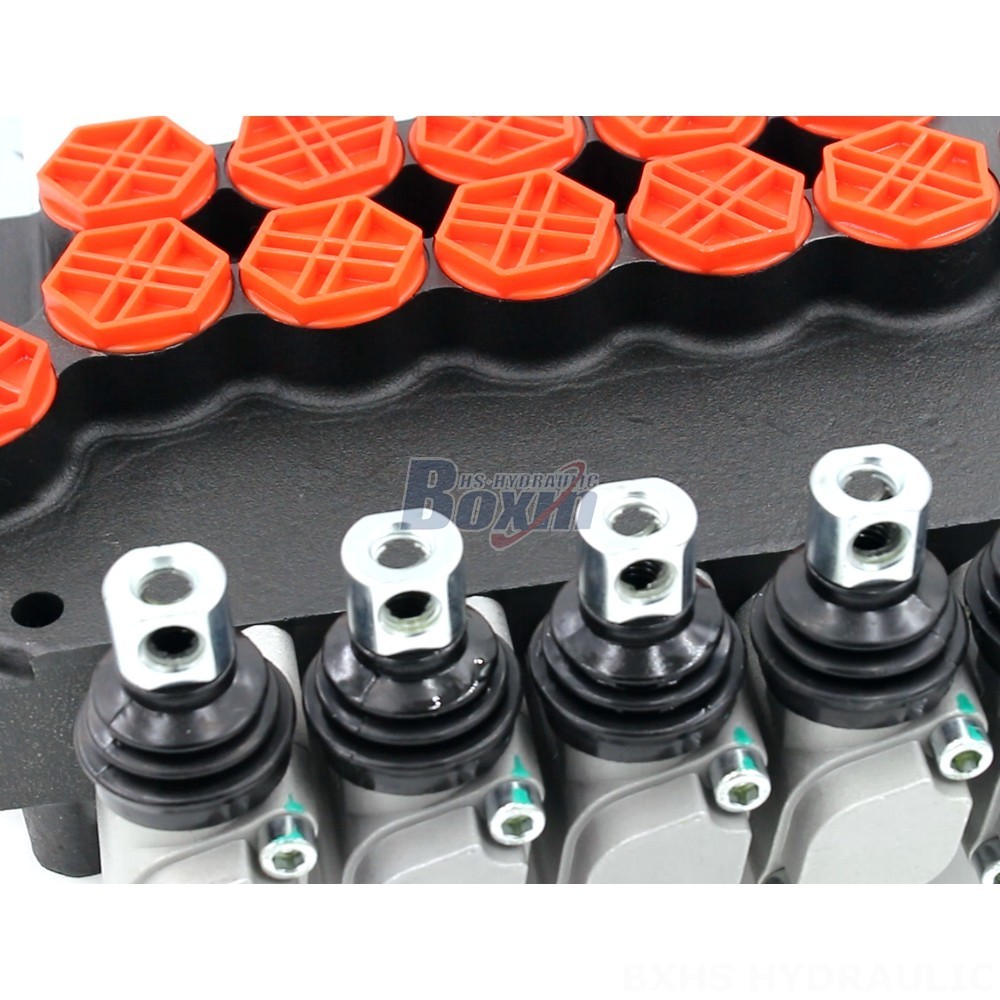

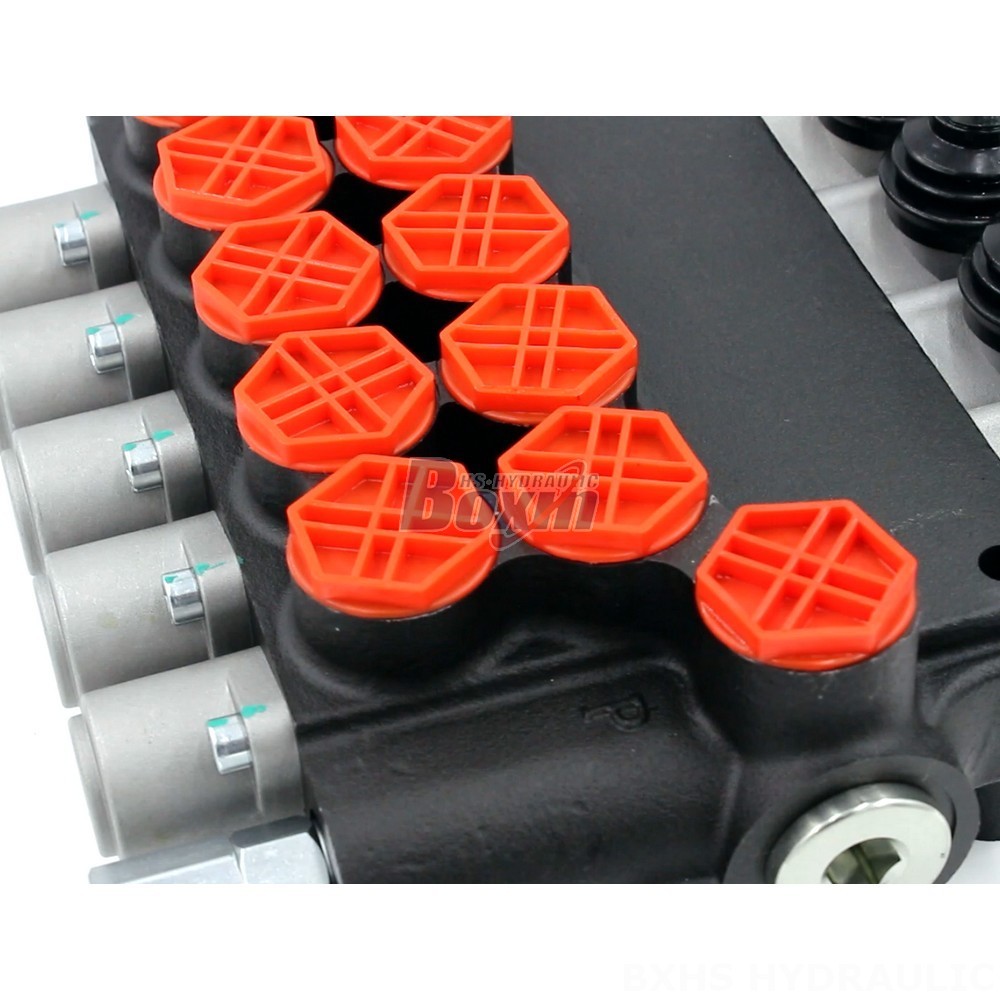

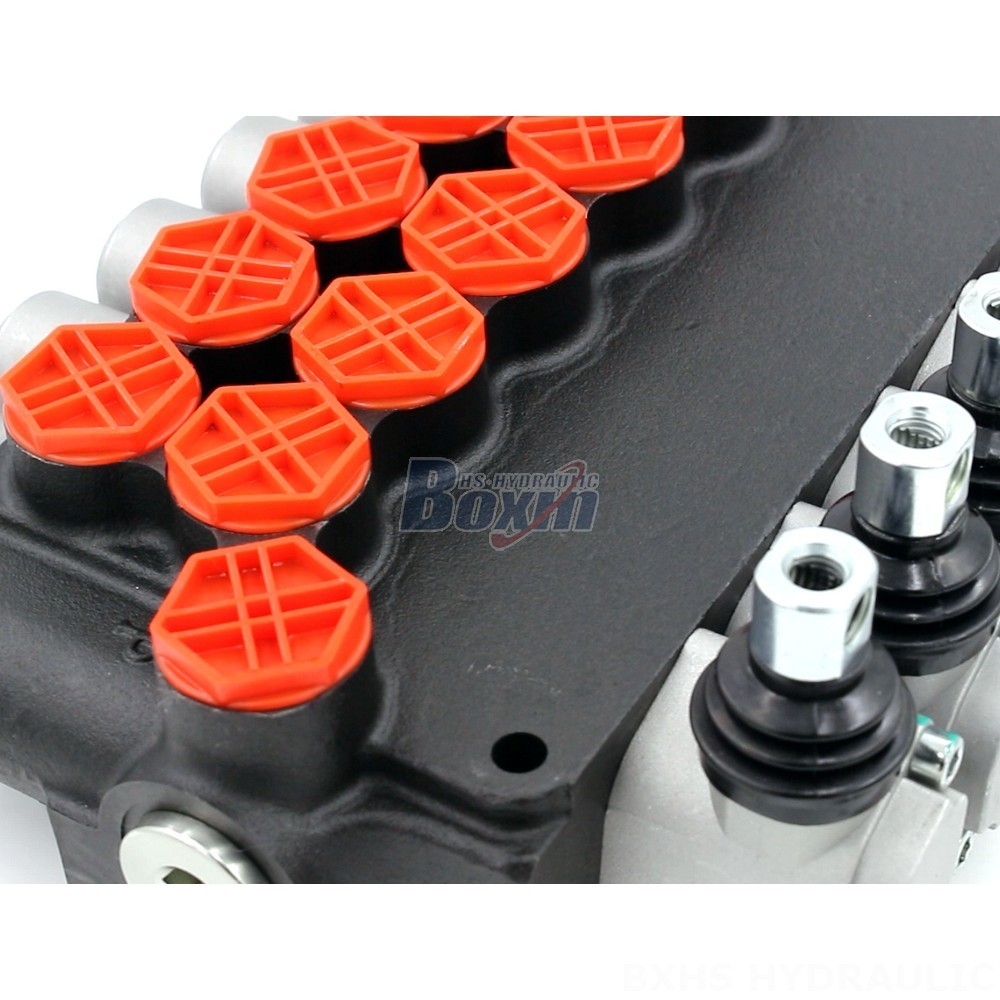

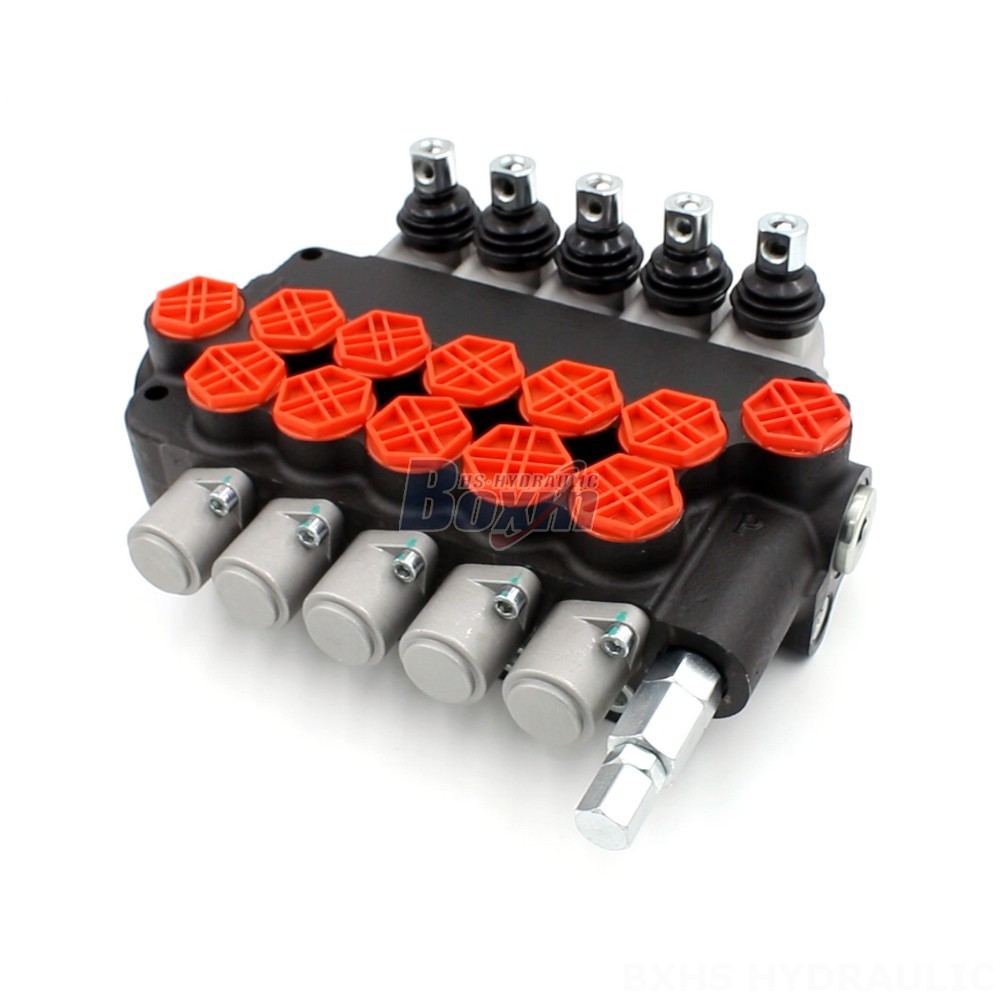

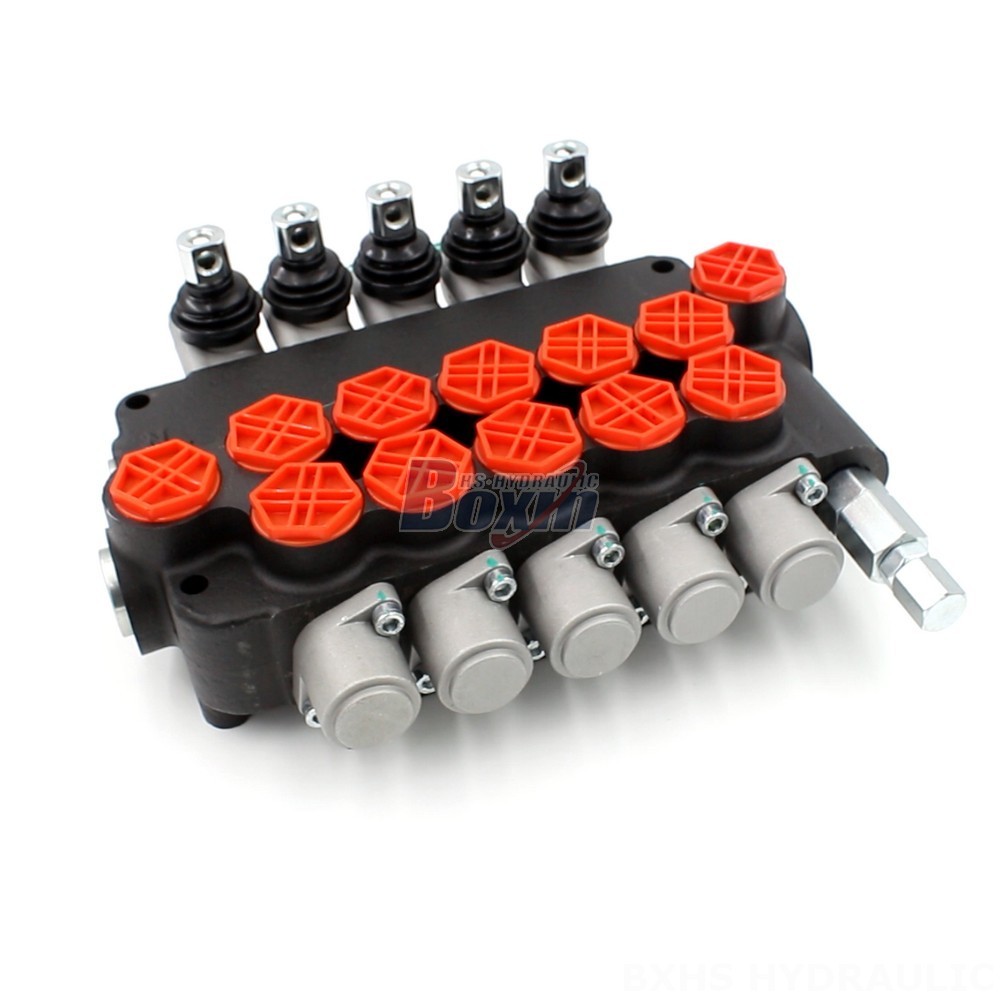

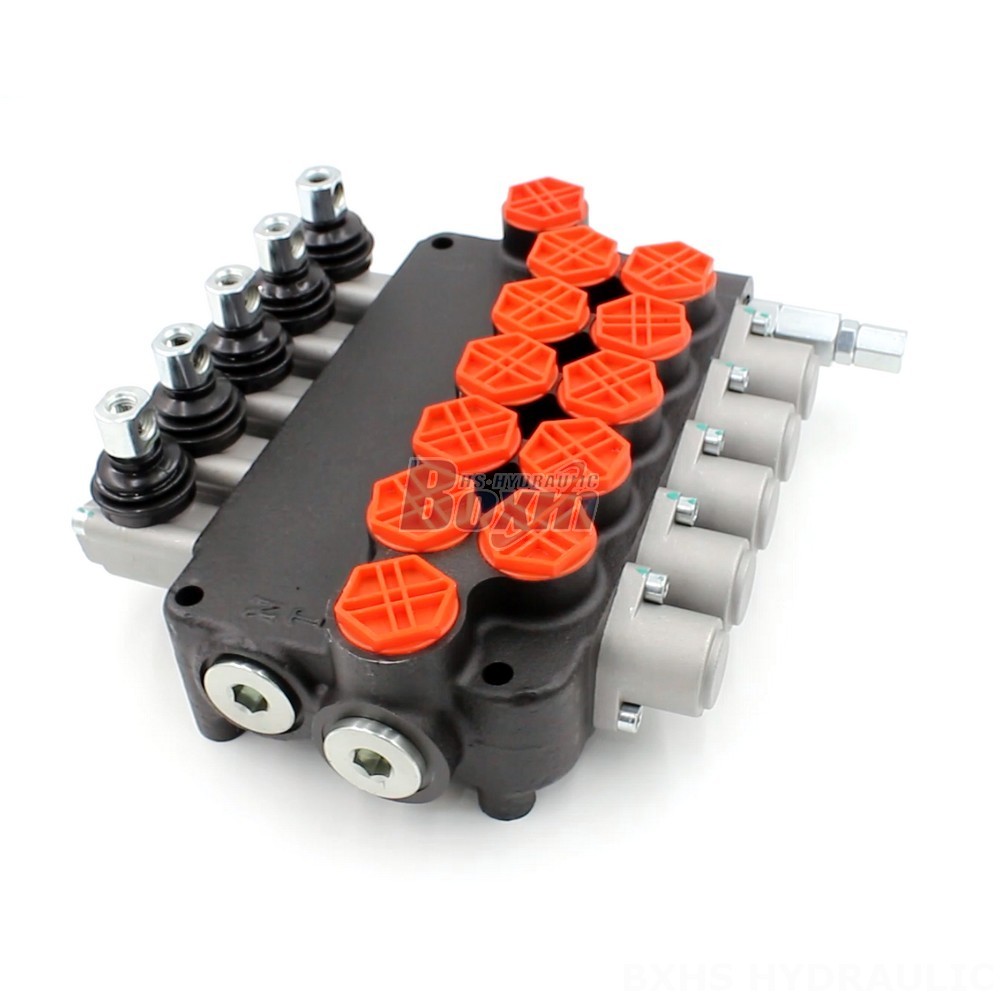

The P80-G34-5OT Manual 5 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of construction and material handling equipment. This 5-section valve offers a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding applications.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80-G34-5OT is a manual, 5-section monoblock directional valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It features a 5-spool design and is suitable for a wide range of applications, including telehandlers, forklifts, excavators, loaders, dumpers, cranes, and more. The valve is manufactured in China and is available for global distribution. Contact us for more information on this reliable and durable hydraulic valve.
