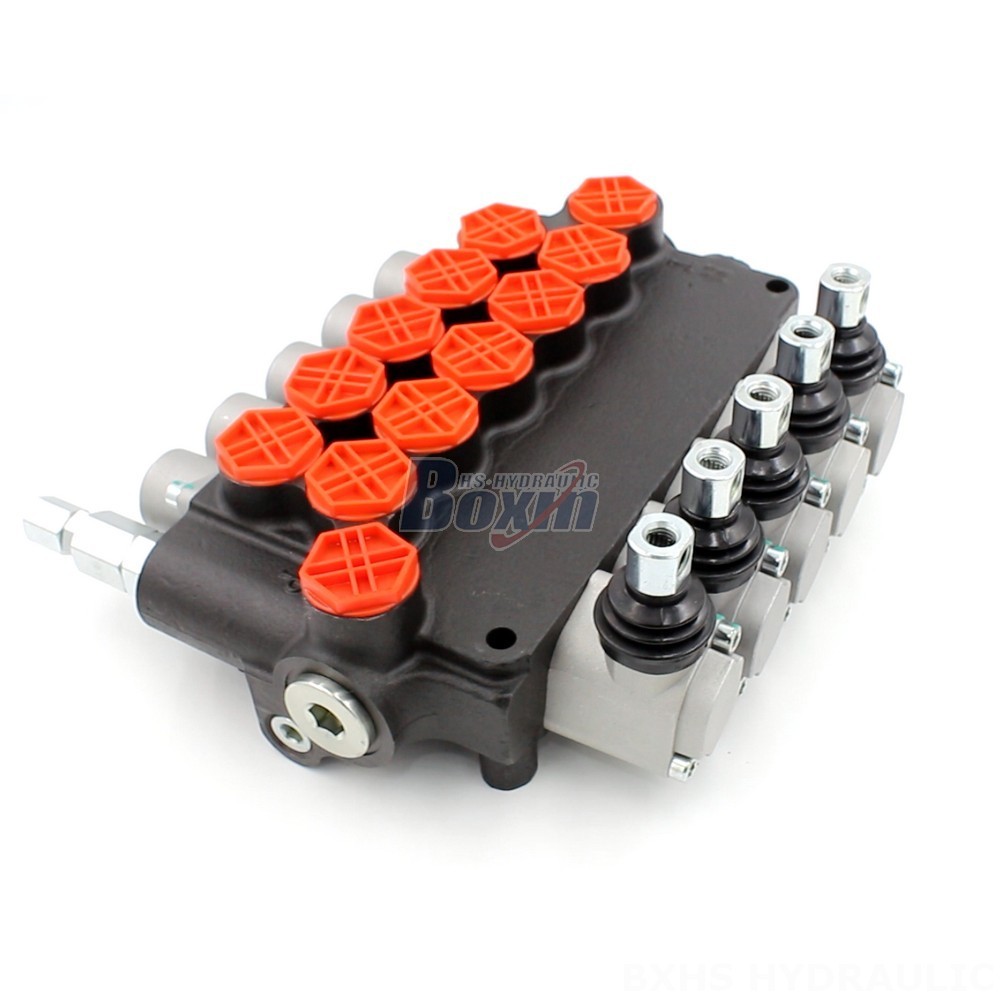

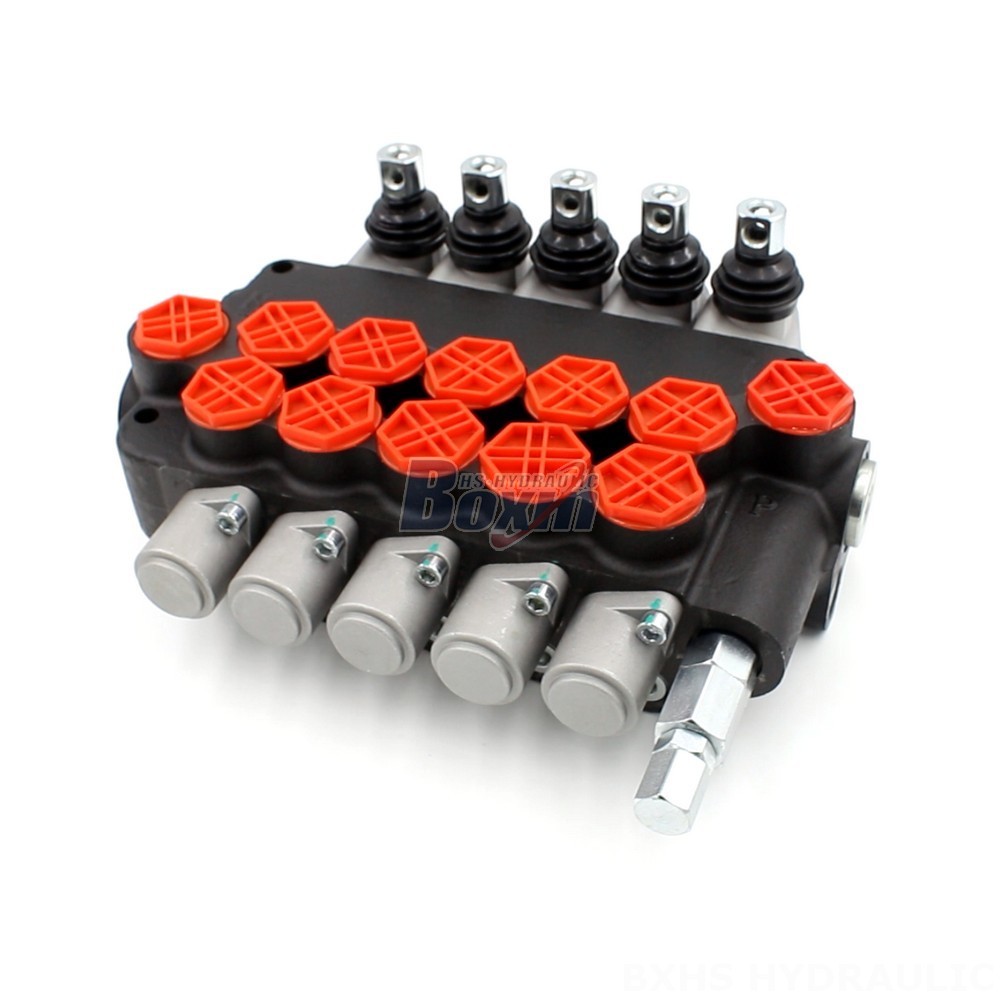

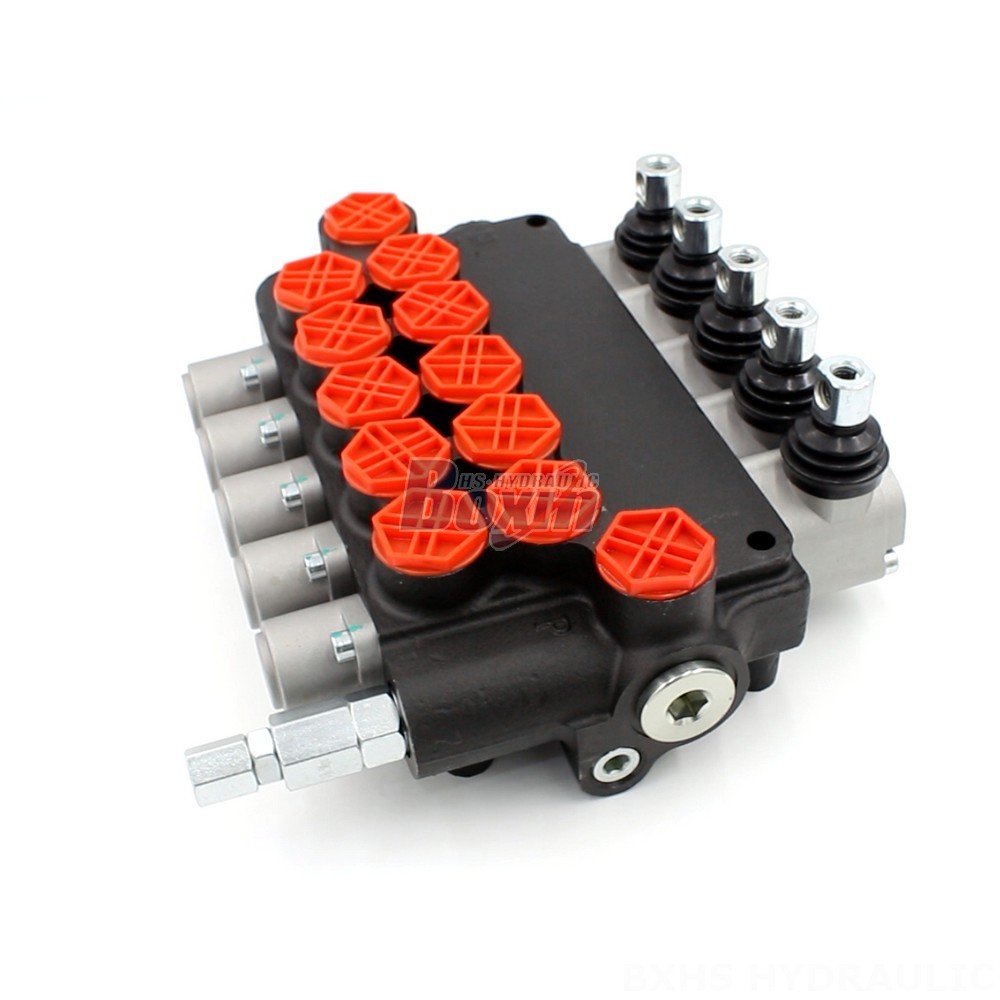

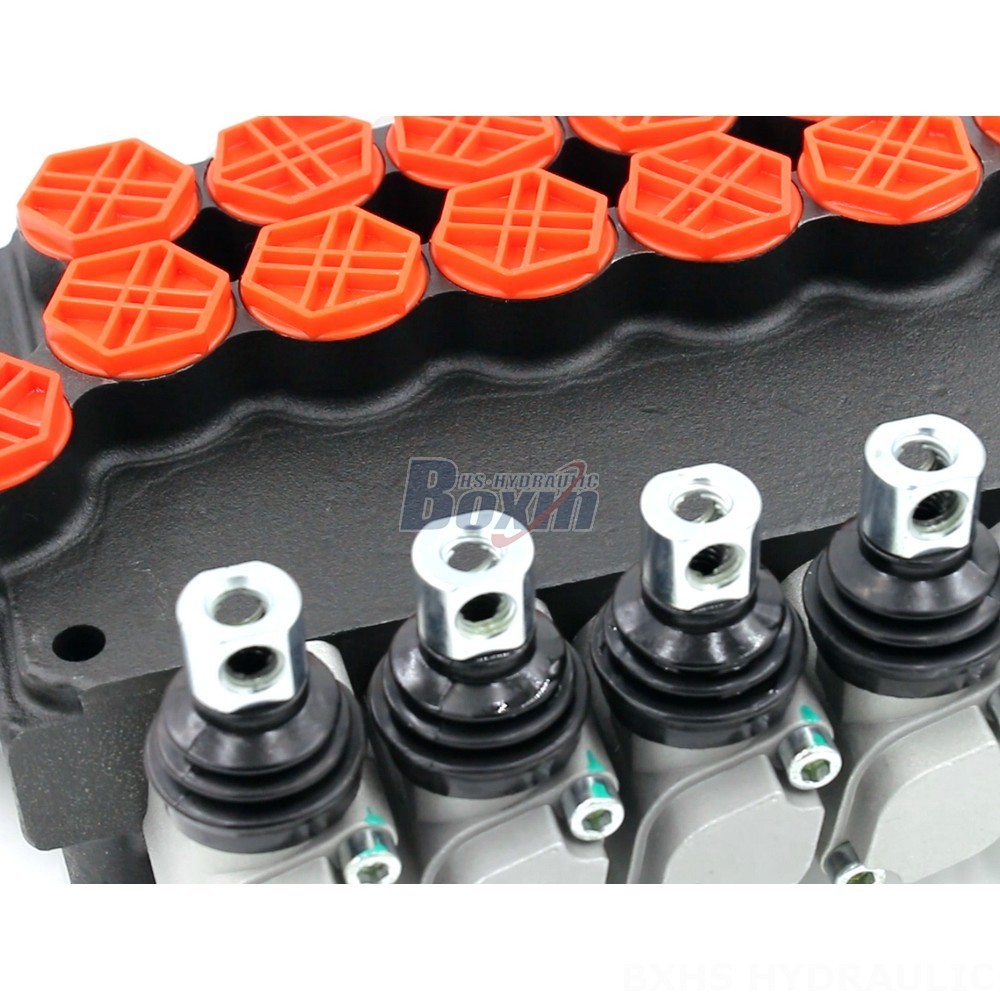

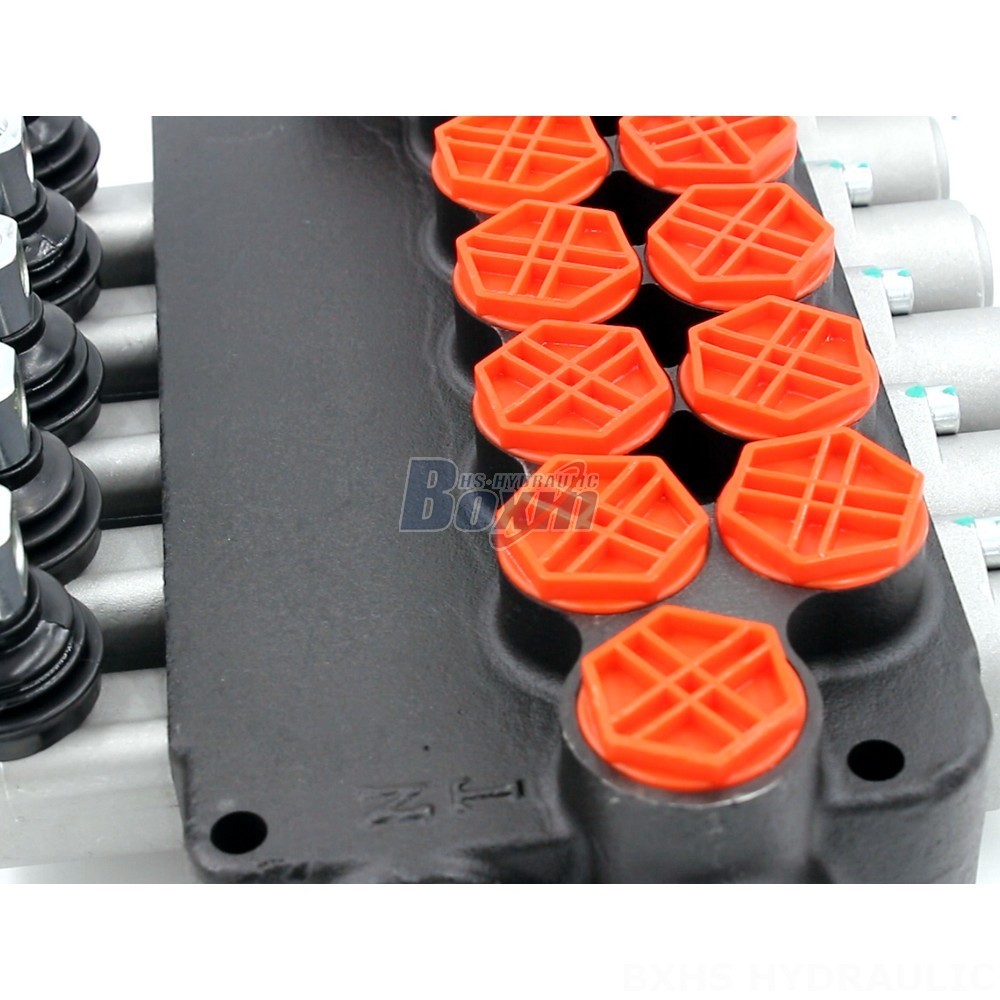

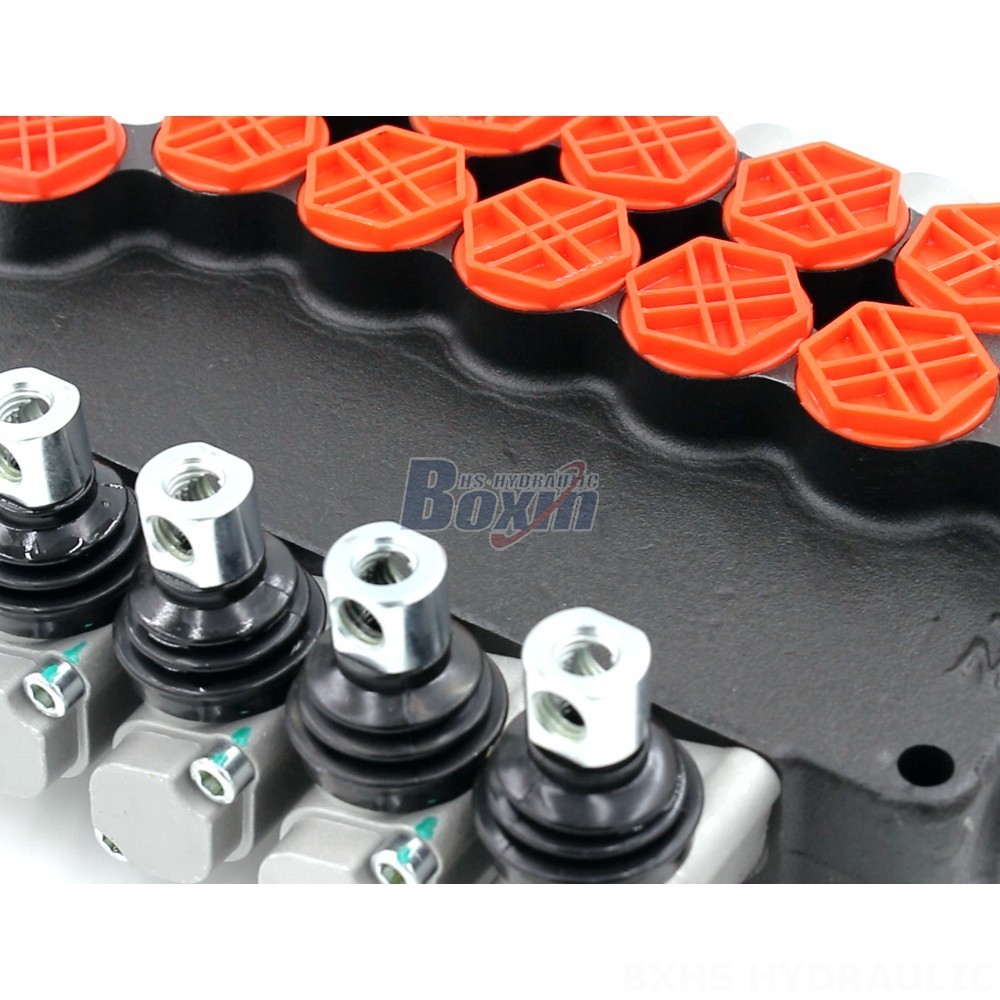

The P80-G34-5OT 5 Spool Directional Valve is a high-performance, manual control valve designed for use in a wide range of construction and material handling equipment. It features a 5-section monoblock design with a rated flow of 80 L/min and a maximum pressure of 250 bar. This valve is ideal for applications that require precise control and reliable operation in demanding environments.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
This 5-spool directional control valve from the P80 Series offers exceptional performance and durability. It boasts a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for demanding applications in construction and material handling. The monoblock design ensures high strength and rigidity, while the manual control method provides precise operation. It is specifically designed for use in various equipment such as telehandlers, forklifts, mini excavators, wheel loaders, backhoe loaders, and dumpers. This versatile valve is engineered to meet the rigorous demands of the industry, ensuring long-lasting performance and reliability.
