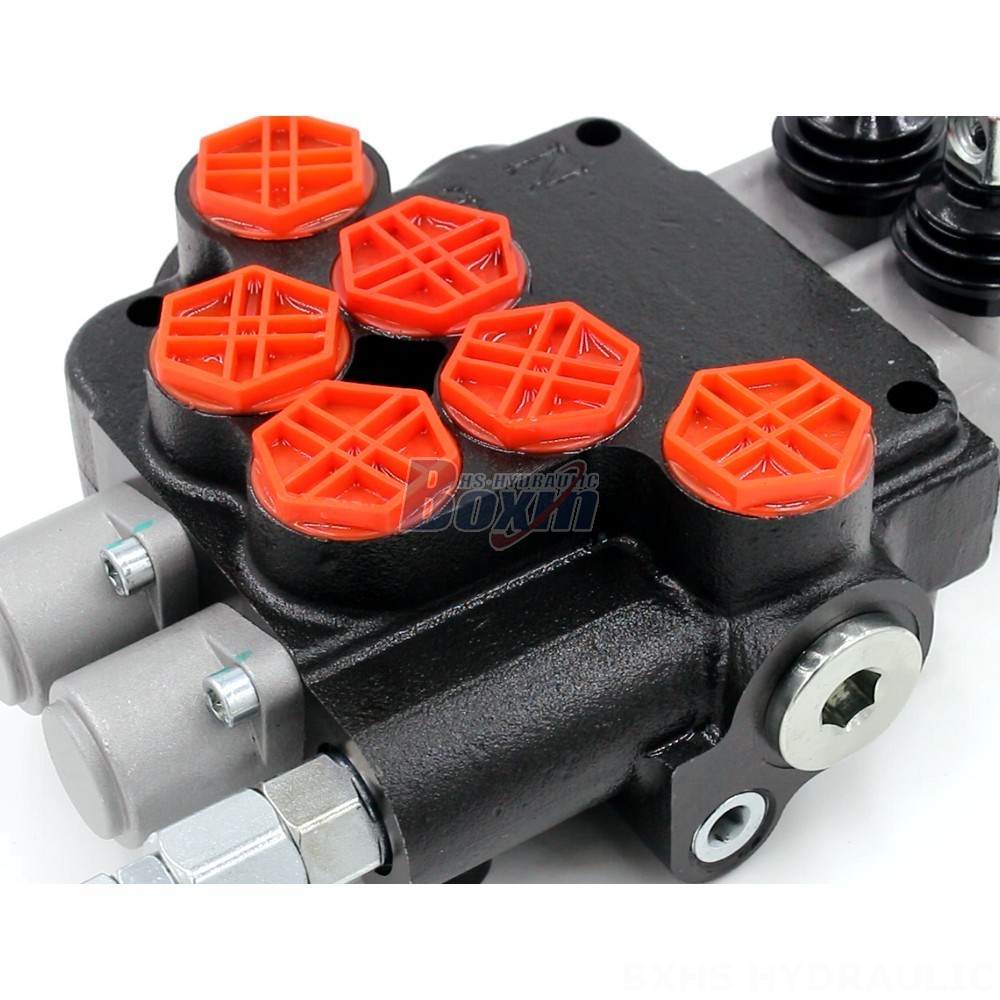

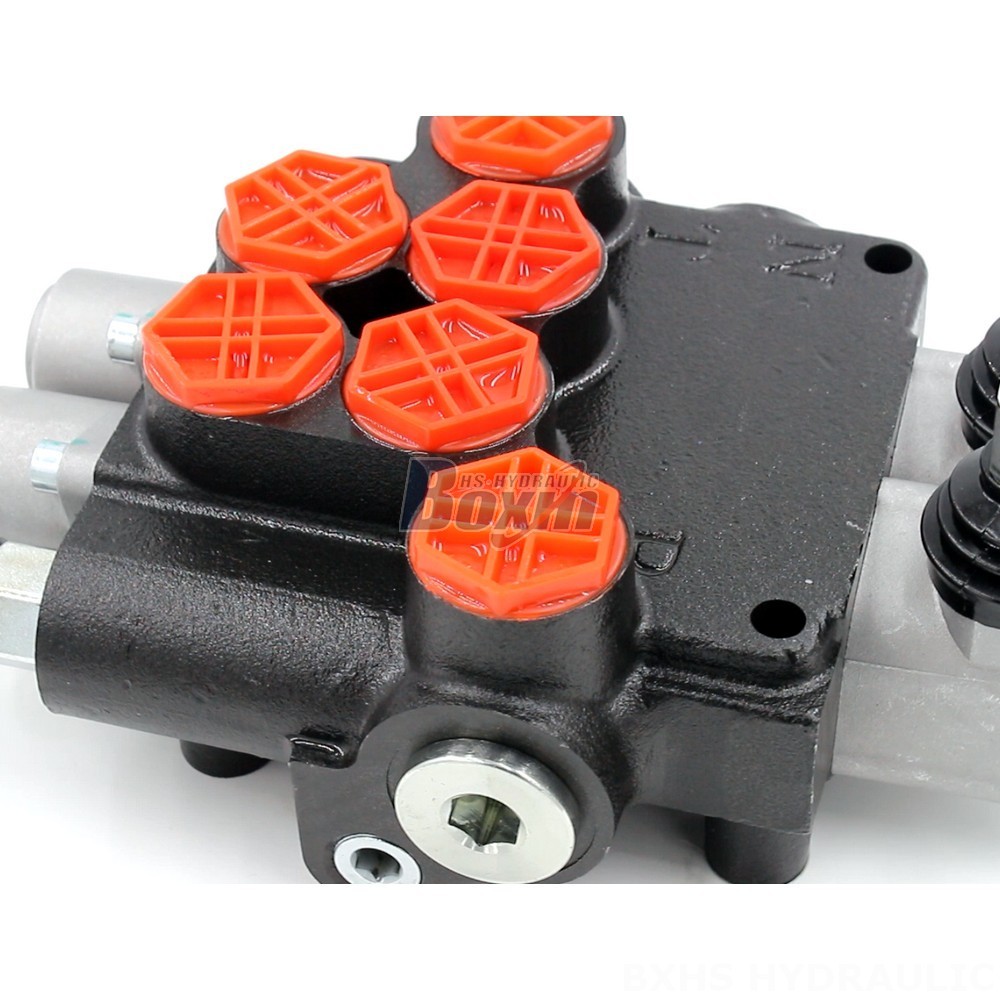

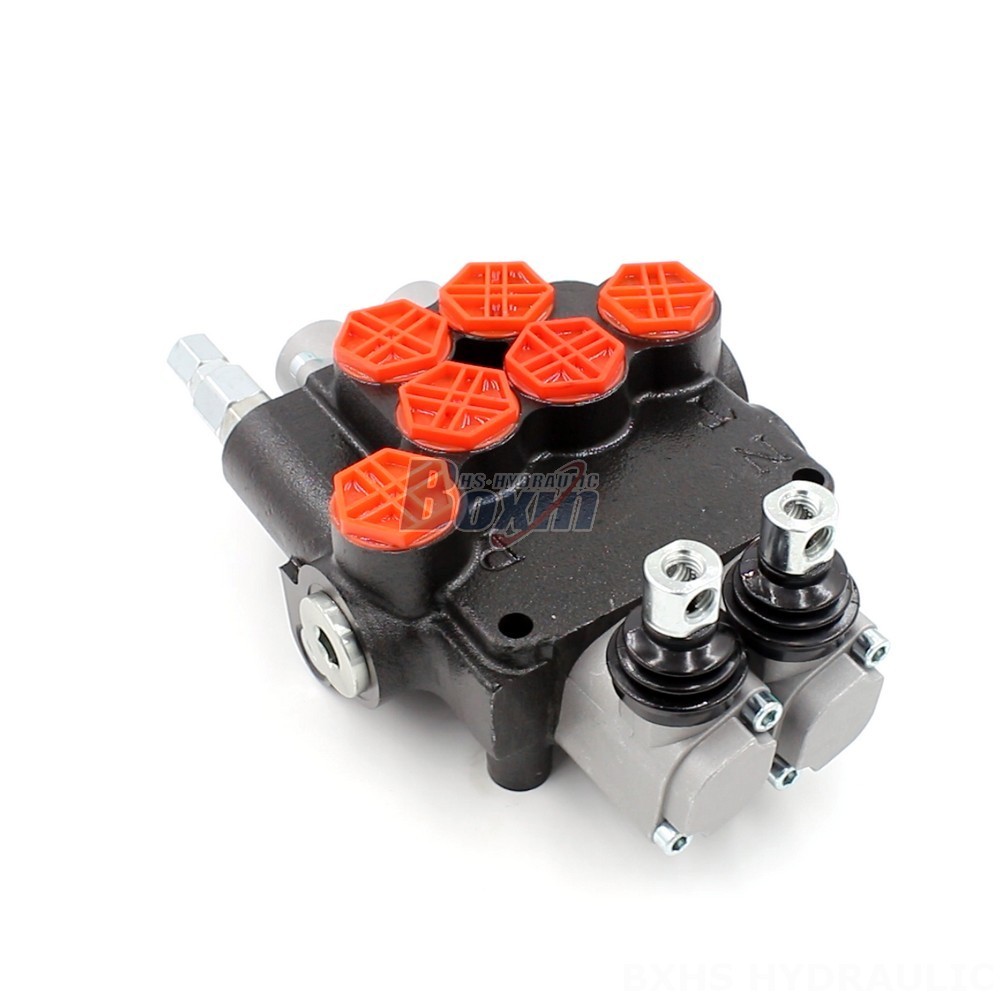

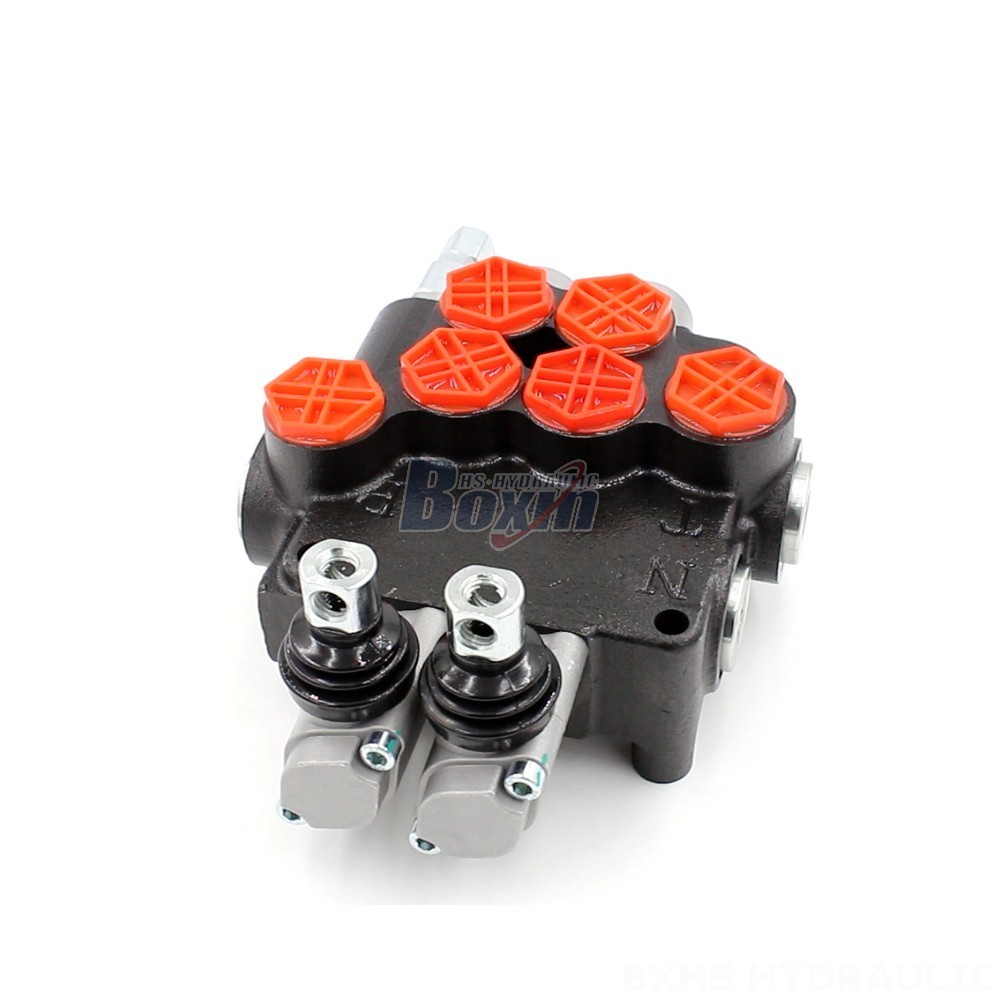

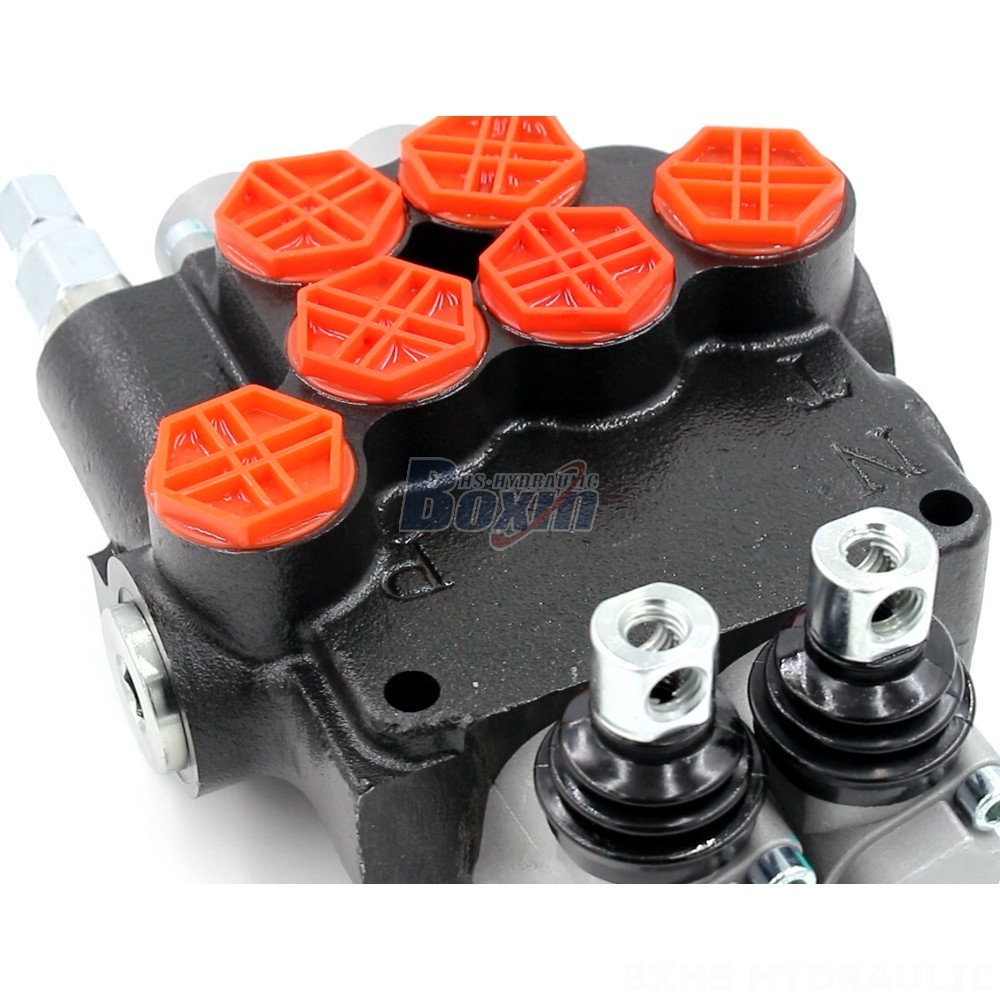

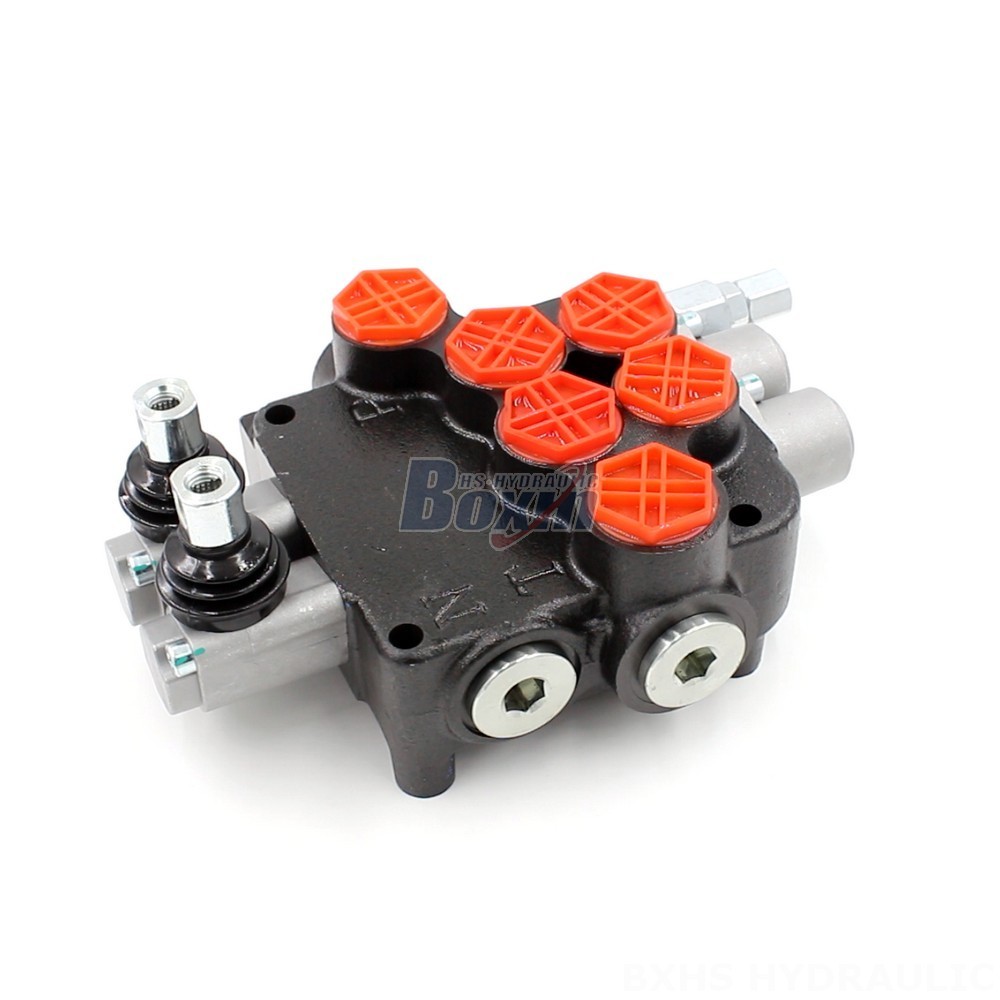

The P80-G34-2OT Hydraulic Directional Valve is a heavy-duty, 2-section, monoblock valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. Featuring a manual control method, it provides reliable flow control up to 80 L/min with a maximum pressure rating of 250 bar.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
This P80 series hydraulic directional valve is a robust solution for various mobile machinery including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. With its manual control method, it offers precise and reliable operation. The valve is engineered for high performance, handling flow rates up to 80 L/min and pressure up to 250 bar, making it suitable for demanding applications. Its monoblock construction and 2-section design ensure durability and efficiency. The P80-G34-2OT valve is designed for wide operating temperature ranges, making it suitable for various environments.
