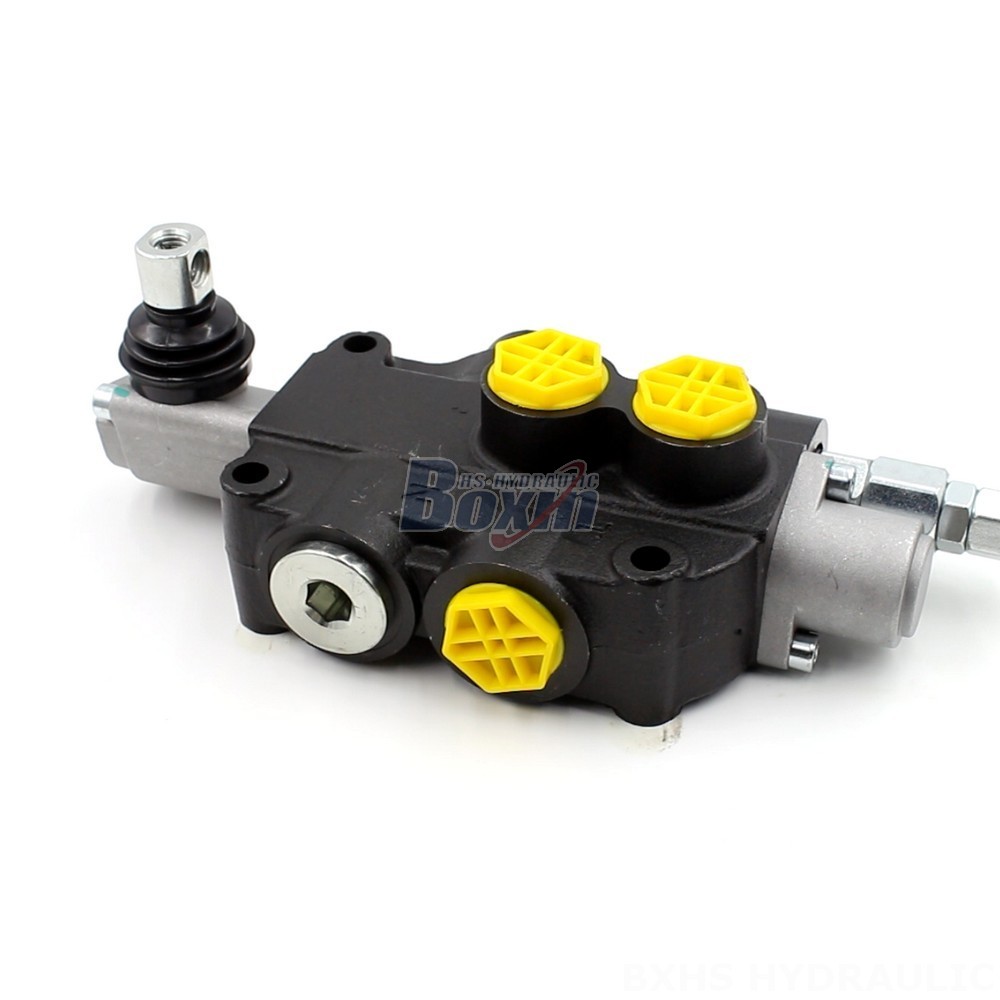

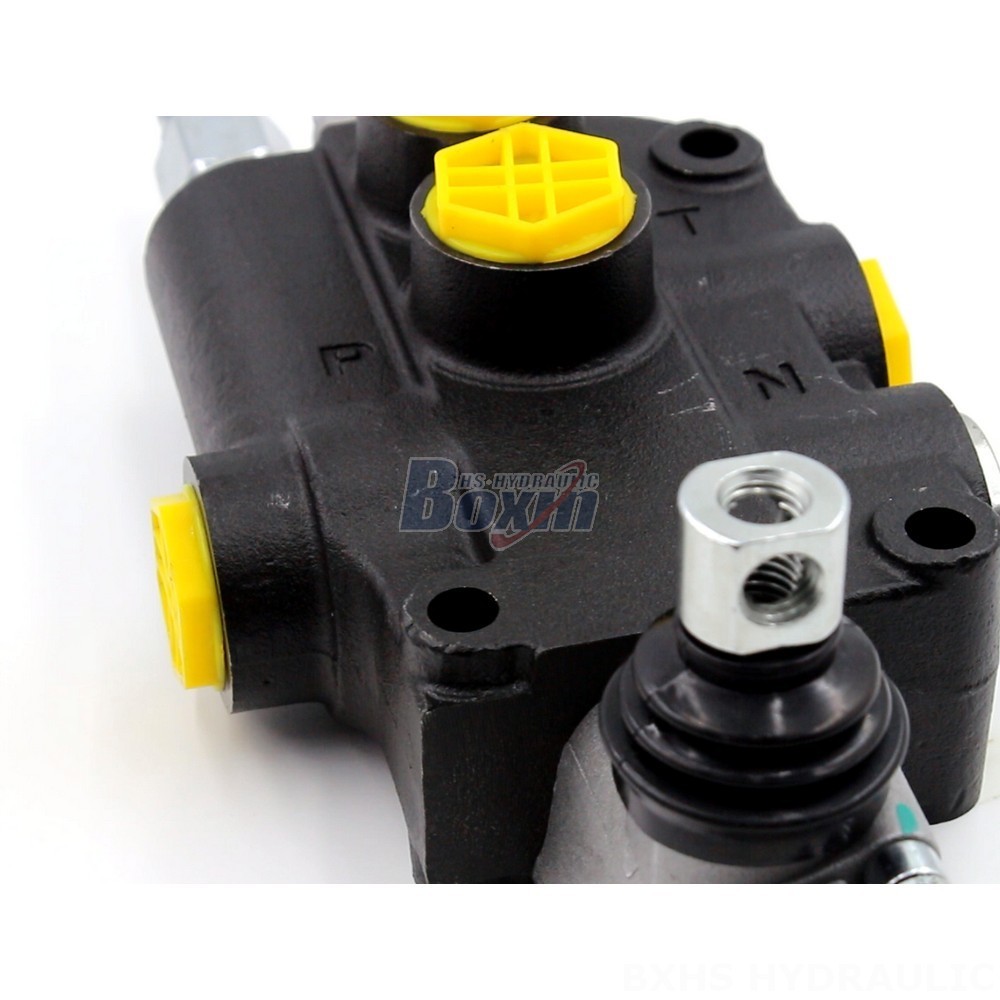

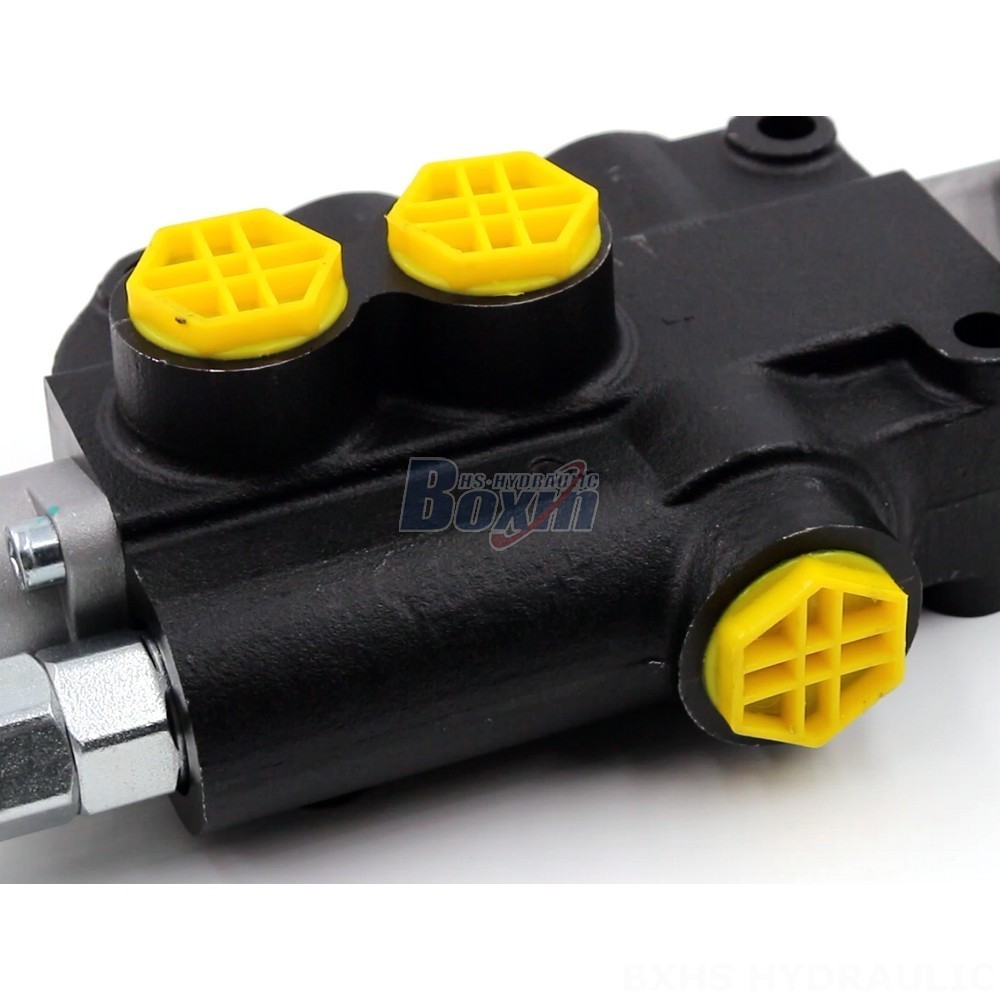

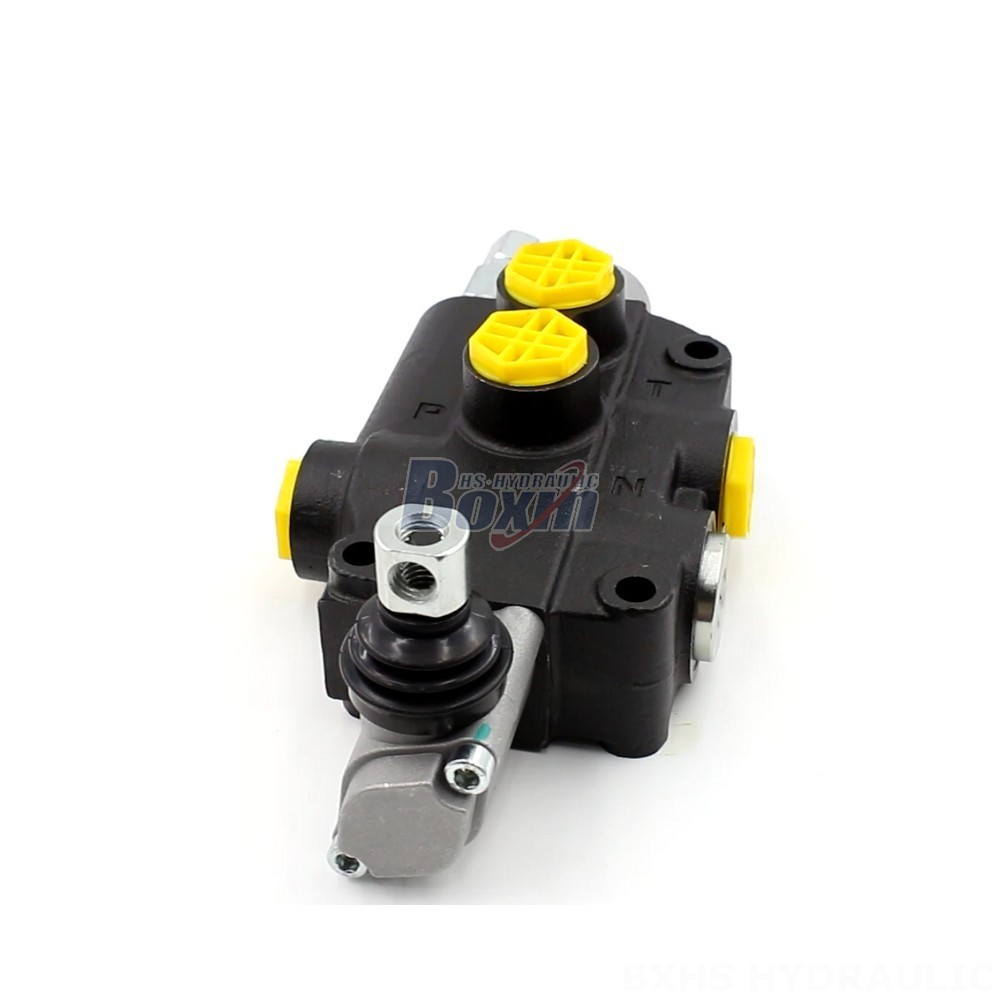

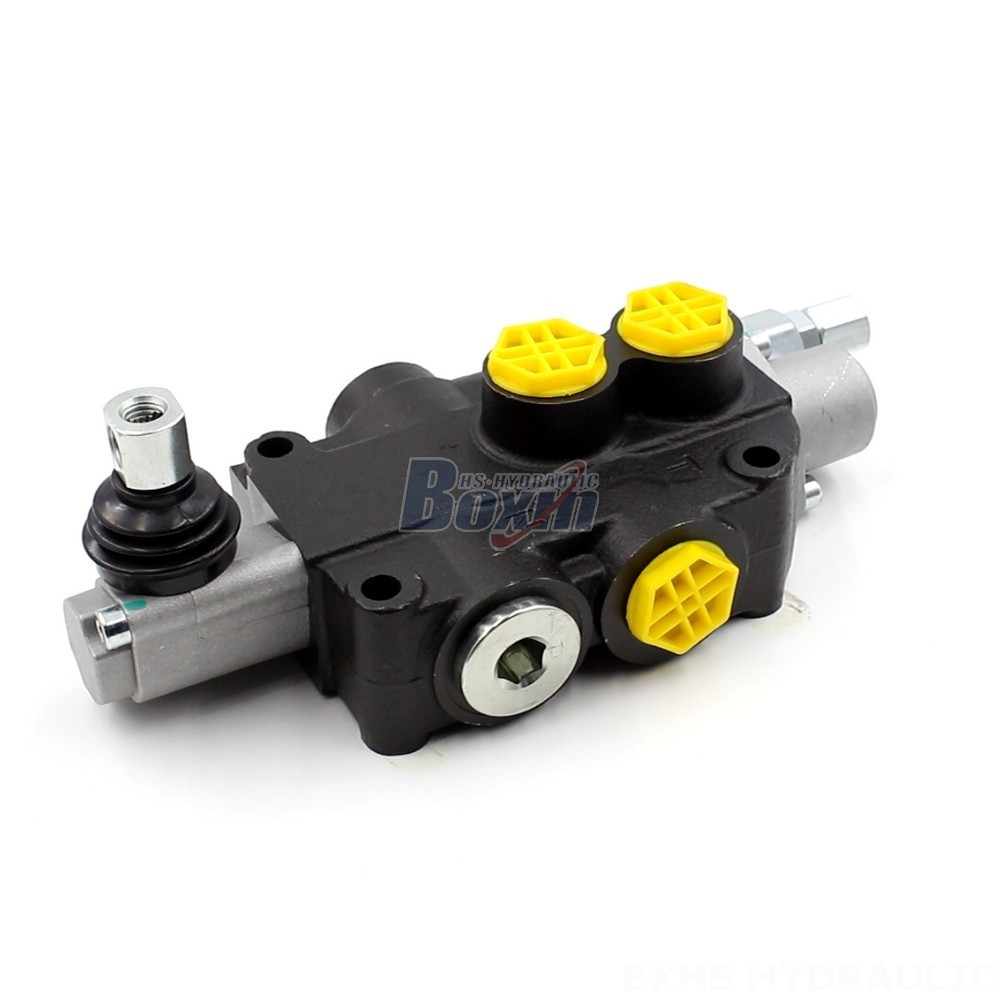

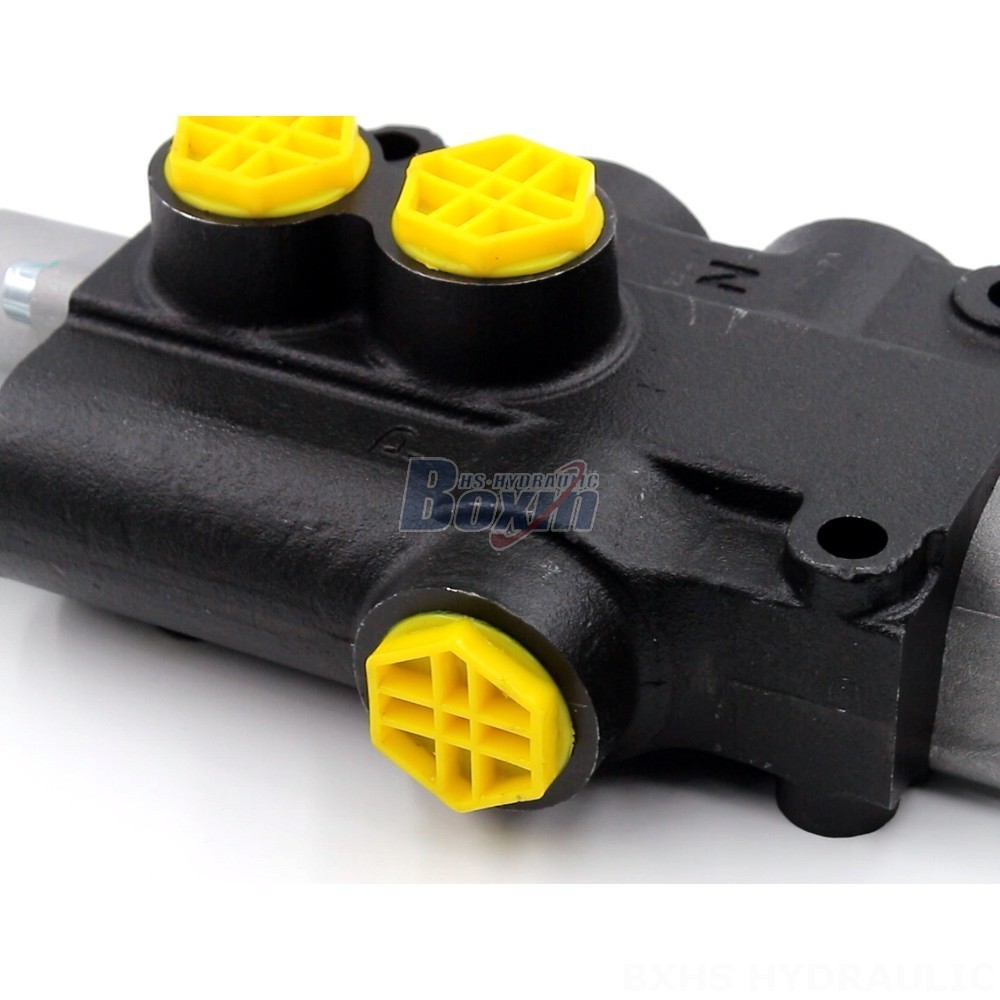

Hydraulic Joystick P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier

控制方式:手控

路数:1 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:26*15*11

Grossweight:5.00 kg

库存: 有货

877 次查看了此产品

Hydraulic Joystick P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier

Hydraulic Joystick P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier

Hydraulic Joystick P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier drawing image

The P80-G12 Manual 1 Spool Monoblock Directional Valve is a reliable and durable hydraulic component designed for use in various applications, including material handling, construction, and agriculture. This manual control valve features a single spool and a maximum pressure rating of 250 bar, making it suitable for a wide range of hydraulic systems.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

The P80-G12 Manual 1 Spool Monoblock Directional Valve is a high-quality hydraulic component manufactured for global markets. This valve is designed for manual control with a single spool and a monoblock structure, offering a compact and efficient design. It has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for various demanding applications. The operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). This valve is specifically designed for use in various applications, including material handling, construction, and agriculture. It is compatible with a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. As a leading hydraulic product manufacturer, we offer a comprehensive range of services including manufacturing, OEM, private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
